AMX-2782BASwivl Base

Model number. SW2782. Warranty. This product is guaranteed against manufacturing defects for one (1) year from the original date of purchase. Swivl’s sole obligation in the event of such defects during this period is to repair or replace the defective part or product with a comparable part or product. This is done at Swivl’s sole discretion. Except for such replacement, the sale, or other handling of this product is without warranty, condition or other liability even though the defect or loss is caused by negligence or other fault. Damage resulting from use, misuse, accident, or normal wear and tear is not covered by this or any warranty. Swivl assumes no liability for inciden- tal or consequential damages relating to or resulting from the use of this product or any of its parts. When servicing your warranty request, Swivl may require you to furnish proof of purchase. Visit swivl.com/warranty for details. Attention. “Made for iPod”, “Made for iPhone” “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance. Carrying and handling. Product contains sensitive components. Do not drop, disassemble, microwave, burn, paint or insert foreign objects into device. Do not use if it has been damaged. AC Charger. The product is designed to be used only with the Swivl approved AC charger. Oulet. The socket-outlet shall be installed near the equipment and shall be easily accessible. Lanyard. The lanyard is only intended for use with adults. It does not contain a safety breakaway for use with children (under the age of 8). Infrared Interference. This product uses IR technology. Direct interference from strong IR sources, such as sun, plasma TVs, and some types of light fixtures, may affect its performance. Remove the interference, or direct the product away from from the IR source. Radio Frequency Interference. This product uses 2.4Ghz wireless technology for wireless audio transmission. High saturation of similar technology in the immediate vicinity may degrade audio. Battery. The lithium polymer batteries are hazardous and can cause serious injury. Manufacturer cannot be held liable for misuse. Battery should be replaced only by Swivl or a Swivl authorized ser- vice provider, and must be recycled or disposed of separately from household waste in accordance with local regulations. Avoid water. Do not expose this product to water or rain, or handle near wet locations. Do not spill food or liquid on the product. In the case that it gets wet, unplug any cables and allow it to fully dry before turning it back on again. Damage due to liquid is not covered. Avoid operation. Do not use this product while driving. Use of this product may be prohibited while travelling in aircraft as it emits radio frequencies during operation. Ports. The micro USB and shutter interface on the base are not used during normal operation. Information Guide 1/2 Acceptable temperatures.The product is designed to be used between 0 degrees and 40 degrees C (32 degrees and 104 degrees F). It can be stored between -20 degrees and 50 degrees C (-4 degrees and 122 degrees F). Low or high temperature conditions might lead the product to temporarily stop working, or working properly. Allow unit to return to room temperature after storage at high or low temperatures before operation. FCC Statement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect the equipment into an outlet on a circuit different from that to which the receiver is connected and Consult the dealer or an experienced radio/TV technician for help. I mportant. Any modifications to the unit, unless expressly approved by the party responsible for compliance, could void the user’s authority to operate the equipment. The product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices and shielded cables between system components. It is important that you use the compliant peripheral devices and shielded cables between system components to reduce the possibility of causing interference to radios, televisions and other electronics devices. Canadian Compliance Statement. Complies with the Canadian ICES-003 Class B specifications. Cet appareil numerique de la lass B est conforme a la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. Cet appareil numerique de la Classe B respecte toutes les exigences du Reglement sur le materiel brouilleur du C…

Text truncated - open the document above for the full version.

t| 650.264.4994 f| 650.412.2444 1354 El Camino Real San Carlos, CA 94070 Request for Confidentiality Date: January 21, 2014 Subject: Confidentiality Request for: AMX-2782BA, AMX-2782MA ______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual Satarii, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 90 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify Intertek Testing Service NA, Inc. in the event information regarding the product or the product is made available to the public. Intertek t| 650.264.4994 f| 650.412.2444 1354 El Camino Real San Carlos, CA 94070 Testing Service NA, Inc.will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ _Vladimir Tetelbaum__ (Signature/Title) (Print name)

INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model : SW2782(BA) (External) INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model : SW2782(BA) (External) INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model : SW2782(BA) (External)

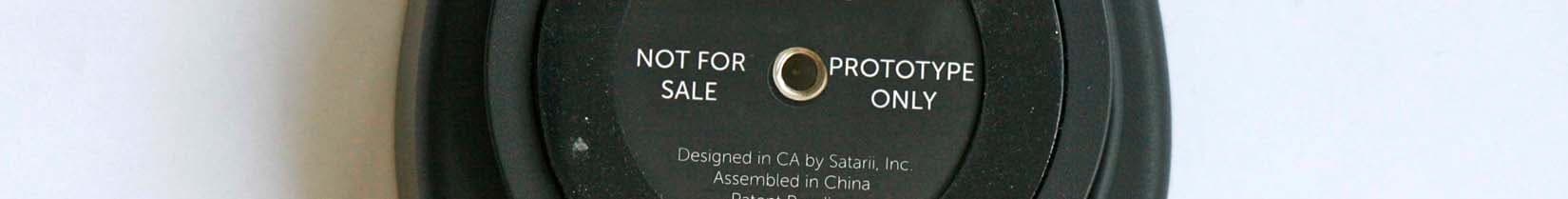

Location of label: 7.5cm 7.5cm

INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model: SW2782(BA) (Internal) INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model: SW2782(BA) (Internal) INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model: SW2782(BA) (Internal) INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model: SW2782(BA) (Internal) INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model: SW2782(BA) (Internal)

INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model: SW2782(BA) (Internal) INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model: SW2782(BA) (Internal) INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model: SW2782(BA) (Internal) INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model: SW2782(BA) (Internal) INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model: SW2782(BA) (Internal) INTERTEK TESTING SERVICE Report No.: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Equipment Photographs Model: SW2782(BA) (Internal)

Analysis Report Report No.: 14010177HKG-005R1 The Equipment Under Test (EUT) is the base portion of the 2.4GHz remote control system. The EUT contains a USB, a micro-USB, a shutter port, an audio interface, a Bluetooth module and a Purepath Wireless transceiver. The Bluetooth module in the EUT complies with Bluetooth version 3.0 standards with operating frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The Purepath Wireless transceiver in the EUT is operating in the frequency range from 2406MHz to 2474MHz (18 channels with 4MHz channel spacing). The EUT can be powered by AC/DC adaptor (Input: 100- 240VAC 50/60Hz; Output: 5.25VDC 2.5A) and 1 X 3.7V rechargeable battery (Li-Poly). The EUT can accept audio and control signal via Purepath Wireless once paired with the Marker. After paired with an Apple Device via Bluetooth, the control signal can be transferred to it to start recording audio signal from the audio interface and video from its camera. The EUT is using non-adaptive frequency hopping in the Bluetooth module as declared by the applicant. USB port interface of the EUT do not contain PC Connectivity which the USB interface is for charging the Apple device use only. The micro-USB port is disabled and not for End-user use, it is only used for firmware upgrades by manufacturer. A shutter port is also disabled for this device. For Bluetooth portion, the certification procedure of modular approval of the Bluetooth module (with FCC ID: A8TBM57SPPSYC2A) has been authorized by certification procedure. Thus, “Contains FCC ID: A8TBM57SPPSYC2A” can be found on the product label. When the Bluetooth was stand-alone emitting, the Bluetooth portion emission is as below: Antenna Type: Internal integral antenna Antenna Gain: 2.45dBi Production tolerance: -2dBm (Minimum) to +4dBm (Maximum) According to the KDB 447498: Based on the Maximum allowed radiated power of production tolerance was +6.45dBm in frequency 2.4GHz, thus; Maximum radiated power (EIRP) is 4.42mW (i.e. +6.45dBm), thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 2.51mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Analysis Report Report No.: 14010177HKG-005(R1) The Equipment Under Test (EUT) is the base portion of the 2.4GHz remote control system. The EUT contains a USB, a micro-USB, a shutter port, an audio interface, a Bluetooth module and a Purepath Wireless transceiver. The Bluetooth module in the EUT complies with Bluetooth version 3.0 standards with operating frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The Purepath Wireless transceiver in the EUT is operating in the frequency range from 2406MHz to 2474MHz (18 channels with 4MHz channel spacing). The EUT can be powered by AC/DC adaptor (Input: 100- 240VAC 50/60Hz; Output: 5.25VDC 2.5A) and 1 X 3.7V rechargeable battery (Li-Poly). The EUT can accept audio and control signal via Purepath Wireless once paired with the Marker. After paired with an Apple Device via Bluetooth, the control signal can be transferred to it to start recording audio signal from the audio interface and video from its camera. The EUT is using non-adaptive frequency hopping in the Bluetooth module as declared by the applicant. USB port interface of the EUT do not contain PC Connectivity which the USB interface is for charging the Apple device use only. The micro-USB port is disabled and not for End-user use, it is only used for firmware upgrades by manufacturer. A shutter port is also disabled for this device. For Bluetooth portion, the certification procedure of modular approval of the Bluetooth module (with FCC ID: A8TBM57SPPSYC2A) has been authorized by certification procedure. Thus, “Contains FCC ID: A8TBM57SPPSYC2A” can be found on the product label. When the Purepath Wireless was stand-alone emitting, the Purepath Wireless portion emission is as below: Antenna Type: Internal integral antenna Antenna Gain: 3.3dBi Production tolerance: 0dBm (Minimum) to +3.5dBm (Maximum) According to the KDB 447498: Based on the Maximum allowed radiated power of production tolerance was +6.8dBm in frequency 2.4GHz, thus; Maximum radiated power (EIRP) is 4.79mW (i.e. +6.8dBm), thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 2.24mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.474) mW = 9.54 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

Simultaneous Transmission SAR exclusion considerations Since the Purepath Wireless and Bluetooth transmitters of this device may operate simultaneously, simultaneous transmission analysis is required. Per KDB 447498, simultaneous transmission SAR test exclusion can be applied when the sum of 1-g SAR of all simultaneously transmitting antennas in an operating mode and exposure condition combination is within the SAR limit (≤ 1.6W/kg). When the standalone SAR test exclusion is applied, the standalone 1-g SAR must be estimated according to the following equation, Estimated SAR = )max/()5.7/)((TDPxGHzF where F(GHz) is the RF channel transmit frequency in GHz Pmax is the max. power of channel, including tune-up tolerance, mW TD is the min. test separation distance, mm For Purepath Wireless operation, Maximum Time-averaged Conducted Power of this device = 2.24 mW Therefore, the Estimated SAR will be determined as follow, Estimated SAR = )max/()5.7/)((TDPxGHzF = 0.09 W/kg where Pmax = 2.24mW, TD = 5 mm and F(GHz) = 2.474 GHz For Bluetooth operation, Maximum Time-averaged Conducted Power of this device = 2.51 mW Therefore, the Estimated SAR will be determined as follow, Estimated SAR = )max/()5.7/)((TDPxGHzF = 0.11 W/kg where Pmax = 2.51mW, TD = 5 mm and F(GHz) = 2.480 GHz Simultaneous Transmission Analysis Purepath Wireless SAR (W/kg) Bluetooth SAR (W/kg) Σ SAR (W/kg) Simultaneous SAR Required 0.09 0.11 0.20 No Conclusion Since the above summed SAR result for all simultaneous transmission conditions were below the SAR limit (1.6 W/kg), SAR evaluation for simultaneous transmission configuration are not required.

INTERTEK TESTING SERVICES Report No.: 14010177HKG-005 FCC ID: AMX-2782BA 7 Worst-Case Operating Mode: Purepath Wireless + Bluetooth Transmitting EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average177 kHz 20.05 L1 gnd -34.56 1 Quasi Peak 190.5 kHz 49.50 L1 gnd -14.50 1 Quasi Peak 213 kHz 47.20 L1 gnd -15.88 2 CISPR Average226.5 kHz 32.79 L1 gnd -19.78 1 Quasi Peak 339 kHz 40.96 L1 gnd -18.26 1 Quasi Peak 456 kHz 36.97 L1 gnd -19.78 1 Quasi Peak 577.5 kHz 35.56 L1 gnd -20.44 1 Quasi Peak 1.086 MHz 31.31 L1 gnd -24.68 1 Quasi Peak 1.257 MHz 30.75 L1 gnd -25.24 1 Quasi Peak 1.959 MHz 29.87 N gnd -26.13 1 Quasi Peak 2.2515 MHz 29.60 N gnd -26.39 1 Quasi Peak 3.5745 MHz 25.86 L1 gnd -30.13 1 Quasi Peak 4.389 MHz 29.62 N gnd -26.37 1 Quasi Peak 11.076 MHz 35.41 L1 gnd -24.58 1 Quasi Peak 13.0695 MHz 40.43 L1 gnd -19.56 1 Quasi Peak 15.477 MHz 33.63 L1 gnd -26.36 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 14010177HKG-005R1 Satarii Inc Application For Certification (Original Grant) (FCC ID: AMX-2782BA) Transceiver This report supersedes previous report with report number 14010177HKG-005 dated March 19, 2014 Prepared and Checked by: Approved by: Signed On File Allen Wong Assistant Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: March 26, 2014 INTERTEK TESTING SERVICES Report No.: 14010177HKG-005R1 FCC ID: AMX-2782BA i GENERAL INFORMATION Satarii Inc BRAND NAME: Swivl, MODEL: SW2782(BA) FCC ID: AMX-2782BA Grantee: Satarii Inc Grantee Address: 1354 EI Camino Real, San Carlos, California 94070, United States. Contact Person: Vladimir Tetelbaum Tel: 1 (650) 264-4994 Fax: 1 (650) 362-1992 e-mail: [email protected] Manufacturer: Satarii Inc Manufacturer Address: 1354 EI Camino Real, San Carlos, California 94070, United States. Brand Name: Swivl Model: SW2782(BA) Type of EUT: Transceiver Description of EUT: Swivl Base Serial Number: N/A FCC ID AMX-2782BA Date of Sample Submitted: January 06, 2014 Date of Test: January 06, 2014 to January 30, 2014 Report No.: 14010177HKG-005R1 Report Date: March 26, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14010177HKG-005R1 FCC ID: AMX-2782BA ii SUMMARY OF TEST RESULT Satarii Inc BRAND NAME: Swivl, MODEL: SW2782(BA) FCC ID: AMX-2782BA TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 Pass Bandwidth Requirement Radiated Emission Radiated Emission on the Bandedge 15.249 / 15.209 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14010177HKG-005R1 FCC ID: AMX-2782BA iii Table of Contents 1.0 General Description........................................................................................ 1 1.1 Product Description........................................................................................ 1 1.2 Related Submittal(s) Grants ........................................................................... 1 1.3 Test Methodology .......................................................................................... 2 1.4 Test Facility.................................................................................................... 2 2.0 System Test Configuration............................................................................. 3 2.1 Justification .................................................................................................... 3 2.2 EUT Exercising Software ............................................................................... 3 2.3 Special Accessories ....................................................................................... 3 2.4 Equipment Modification.................................................................................. 3 2.5 Measurement Uncertainty .............................................................................. 3 2.6 Support Equipment List and Description......................................................... 4 3.0 Emission Results............................................................................................ 5 3.1 Field Strength Calculation .............................................................................. 5 3.2 Radiated Emission Configuration Photograph ................................................ 6 3.3 Radiated Emission Data................................................................................. 6 3.4 Conducted Emission Configuration Photograph.............................................. 6 3.5 Conducted Emission Data.............................................................................. 6 4.0 Equipment Photographs............................................................................... 12 5.0 Product Labelling.......................................................................................... 12 6.0 Technical Specifications............................................................................... 12 7.0 Instruction Manual........................................................................................ 12 8.0 Miscellaneous Inform…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA  Configuration Photographs Wo rst-Case Radiated Emissions (Front View) Model: SW2782(BA)          SW2782(BA) 14010177HKG-005 INTERTEK TESTING SERVICE Report No: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: SW2782(BA) SW2782(BA) 14010177HKG-005

INTERTEK TESTING SERVICE Report No: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: SW2782(BA) INTERTEK TESTING SERVICE Report No: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: SW2782(BA) INTERTEK TESTING SERVICE Report No: 14010177HKG-005 FCC ID: AMX-2782BA IC: 10134A-2782BA Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: SW2782(BA)
