ANSBP3591Wireless LAN module

PRODUCTS HYBRID IC TYPE BP3591 PAGE 1/19 <Specifications (Precautions and Prohibitions)> ● Precautions for Safety 1) The products are designed and produced for application in ordinary electronic equipment (AV equipment, OA equipment, telecommunication equipment, home appliances, amusement equipment, etc.). If the products are to be used in devices requiring extremely high reliability (medical equipment, transport equipment, aircraft/spacecraft, nuclear power controllers, fuel controllers, car equipment including car accessories, safety devices, etc.) and whose malfunction or operational error may endanger human life and sufficient fail-safe measures, please consult with the ROHM sales staff in advance. If product malfunctions may result in serious damage, including that to human life, sufficient fail-safe measures must be taken, including the following: [a] Installation of protection circuits or other protective devices to improve system safety [b] Installation of redundant circuits in the case of single-circuit failure 2) The products are designed for use in a standard environment and not in any special environments. Application of the products in a special environment can deteriorate product performance. Accordingly, verification and confirmation of product performance, prior to use, is recommended if used under the following conditions: [a] Use in various types of liquid, including water, oils, chemicals, and organic solvents [b] Use outdoors where the products are exposed to direct sunlight, or in dusty places [c] Use in places where the products are exposed to sea winds or corrosive gases, including Cl 2 , H 2 S, NH 3 , SO 2 , and NO 2 [d] Use in places where the products are exposed to static electricity or electromagnetic waves [e] Use in environment subject to strong vibration and impact. [f] Use in proximity to heat-producing components, plastic cords, or other flammable items [g] Use involving sealing or coating the products with resin or other coating materials [h] Use of the products in places subject to dew condensation 3) The products might receive the radio wave interference from electronic devices such as Wireless LAN devices, Bluetooth devices, digital cordless telephone, microwave oven and so on that radiate electromagnetic wave. 4) The products are not radiation resistant. 5) Verification and confirmation of performance characteristics of products, after on-board mounting, is advised. 6) Confirm that operation temperature is within the specified range described in product specification. 7) Failure induced under deviant condition from what defined in the product specification can not be guaranteed. 8) This product is a specification to radiate the radio wave. It is necessary to acquire the attestation of decided Radio Law of each region used to use the equipment that radiates the radio wave. Please inquire about the attestation of Radio Law that this product acquires. 9) When product safety related problems arises, please immediately inform to ROHM, and consider technical counter measure. DATE: 21/FEB./2012 SPECIFICATION No.：BP3591-B-001-E(Lead Free) DESIGN CHECK APPROVAL REV.B TSZ22111･04･002 PRODUCTS HYBRID IC TYPE BP3591 PAGE 2/19 <Specifications (Precautions and Prohibitions)> ●Precautions for Reference Circuits 1) If change is made to the constant of an external circuit, allow a sufficient margin due to variations of the characteristics of the products and external components, including transient characteristics, as well as static characteristics. 2) The reference circuit examples, their constants, and other types of information contained herein are applicable only when the products are used in accordance with standard methods. Therefore, if mass production is intended, sufficient consideration to external conditions must be made. ● Precaution for Electrostatic This product is Electrostatic sensitive product, which may be damaged due to Electrostatic discharge. Please take proper caution during manufacturing and storing so that voltage exceeding Product maximum rating won't be applied to products. Please take special care under dry condition (Grounding of human body / equipment / solder iron, isolation from charged objects, setting of Ionizer, friction prevention and temperature / humidity control etc.) ● Precaution for Storage / Transportation 1) Product performance and connector mating may deteriorate if the products are stored in the following places: [a] Where the products are exposed to sea winds or corrosive gases, including Cl 2 , H 2 S, NH 3 , SO 2 , and NO 2 [b] Where the temperature or humidity exceeds those recommended by the Company Temperature: 5°C～40°C, Humidity 40%～60% [c] Storage in direct sunshine or condensation. [d] Storage in high Electrostatic. 2) Even under ROHM recommended storage condition, connector mating of products over 1 year old may be degraded. 3) Store / transport cartons in the correct direction, which is indicated on a carton as a symbol, otherwise bent leads may occur due to excessive stress applied when dropping of a carton.. ● Precaution for Product Label QR code printed on ROHM product label is only for internal use, and please do not use at customer site. It might contain a internal part number that is inconsistent with an product part number. ● Precaution for Disposition When disposing products please dispose them properly with a industry waste company. ● Precaution for Foreign Exchange and Foreign Trade Act Note: Since concerned goods are fallen under controlled goods prescribed by Foreign exchange and Foreign trade act, the permission based on the act is necessary in case of export. Please follow the necessary procedures based on relevant laws and regulations when end goods, which were manufactured by your company with the concerned goods, are brought to foreign countries or nonresident. REV.B SPECIFICATION No.：BP3591-B-001-E(Lead Free) TSZ22111･05･002 PRODUCTS HYBRID IC TYPE BP3591 PAGE 3/19 <Specifications (Precautions an…

Text truncated - open the document above for the full version.

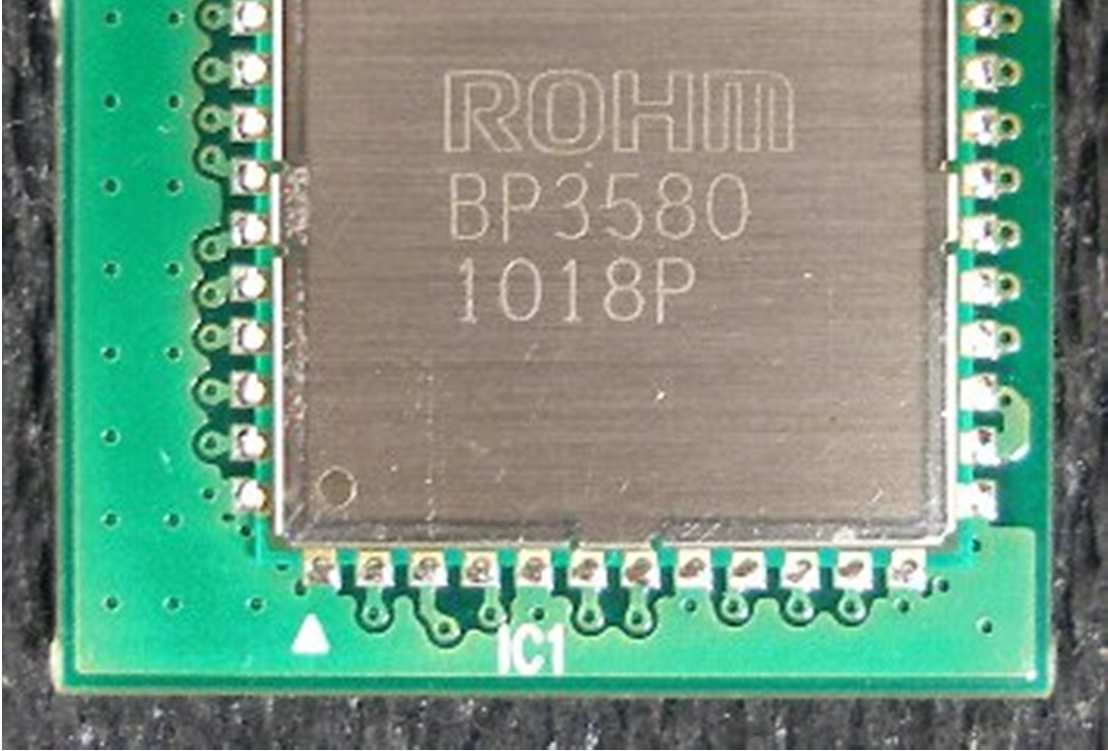

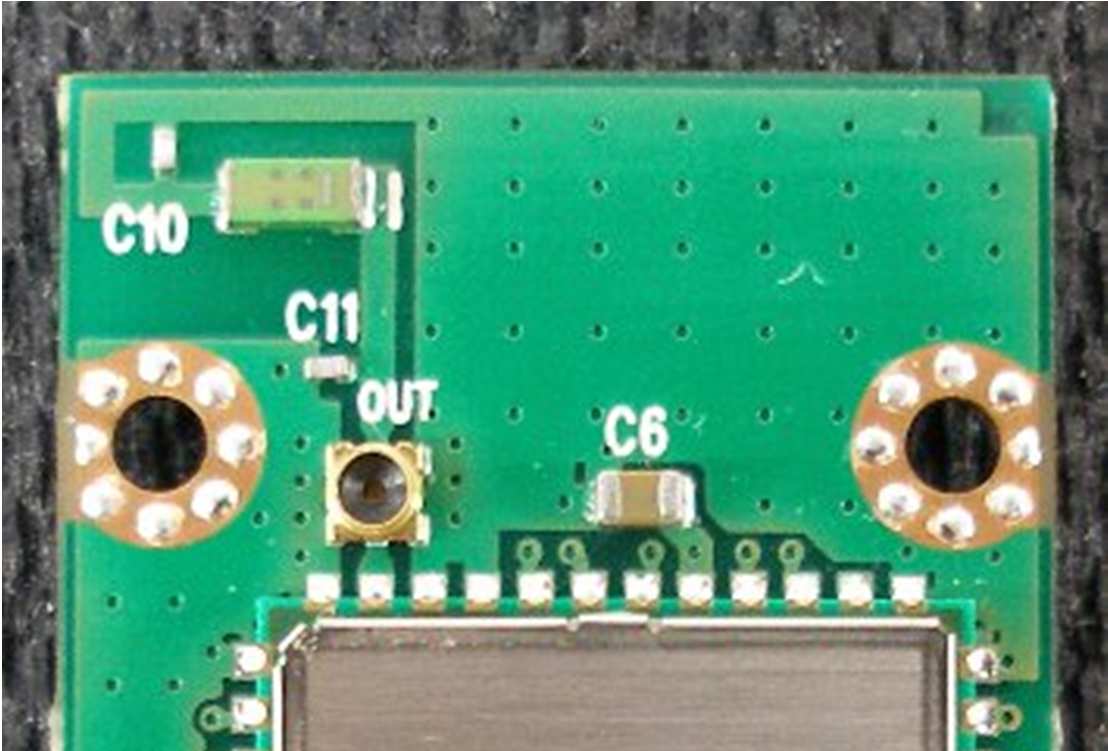

ROHM Co., Ltd. FCC ID: ANSBP3591 Model: BP3591 External Photo Side A with Shield Antenna ROHM Co., Ltd. FCC ID: ANSBP3591 Model: BP3591 External Photo Side A without Shield ROHM Co., Ltd. FCC ID: ANSBP3591 Model: BP3591 External Photo Side B

Label Position FCC ID: ANSBP3591

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: ROHM Co., Ltd. Type of Equipment : Wireless LAN module Model No. : BP3591 FCC ID: ANSBP3591 ROHM Co., Ltd. declares that Model : BP3591 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “BP3591“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 167.11 mW (Maximum peak output power) G = 1.29 Numerical Antenna gain; equal to1.10dBi r =20.0 cm For: BP3591S =0.04283 mW/cm 2 No. : 32EE0095-HO-01 RF Exposure / MPE Calculation

Test report No. : 32EE0095-HO-01-A-R1 Page : 2 of 69 Issued date : February 14, 2012 Revised date : February 20, 2012 FCC ID : ANSBP3591 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 19 Maximum Peak Output Power .......................................................................................................... 22 Radiated Spurious Emission ............................................................................................................. 25 Conducted Spurious Emission .......................................................................................................... 39 Conducted Emission Band Edge compliance ................................................................................... 58 Power Density ................................................................................................................................... 59 99%Occupied Bandwidth ................................................................................................................. 62 APPENDIX 2: Test instruments ............................................................................................................. 64 APPENDIX 3: Photographs of test setup ............................................................................................... 66 Conducted Emission ......................................................................................................................... 66 Radiated Spurious Emission ............................................................................................................. 67 Worst Case Position .......................................................................................................................... 69 Test report No. : 32EE0095-HO-01-A-R1 Page : 3 of 69 Issued date : February 14, 2012 Revised date : February 20, 2012 FCC ID : ANSBP3591 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : ROHM Co., Ltd. Address : 21 Saiin Mizosaki-cho, Ukyo-ku Kyoto 615-8585 Japan Telephone Number : +81-75-311-7068 Facsimile Number : +81-75-321-0447 Contact Person : YUSAKU KAWABATA SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN module Model No. : BP3591 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC3.3V Receipt Date of Sample : December 14, 2011 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : Xtal: 40MHz / CPU: 60MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2412-2462MHz Modulation : DSSS / OFDM Power Supply (radio part input) : DC3.3V, DC2.8V Antenna type : Internal Antenna (Chip Antenna) Antenna Gain : 1.1dBi Test report No. : 32EE0095-HO-01-A-R1 Page : 4 of 69 Issued date : February 14, 2012 Revised date : February 20, 2012 FCC ID : ANSBP3591 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on February 1, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz *The revision on February 1, 2012 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 2.6dB, 0.46383MHz, N AV 1.7dB, 0.46383MHz, N Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(a)(2) See data. Complied Conducted IC: RSS-Gen 4.6.2 IC: RSS-210 A8.2(a) Maximum Peak Output Power FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(b)(3) Complied Conducted IC: RSS-Gen 4.8 IC: RSS-210 A8.4(4) Power Density FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Sectio…
