ANSBP35C5Wi-Sun Module

PRODUCTS Hybrid IC TYPE BP35C5 PAGE 1/33 TARGET SPECIFICATION The mentioned items and the specifications may be changed without notice. Notice ● Precaution on using ROHM Products 1) Our Products are designed and manufactured for application in ordinary electronic equipment (such as AV equipment, OA equipment, telecommunication equipment, home electronics appliances, amusement equipment, etc.). If you intend to use our Products in devices requiring extremely high reliability (such as medical equipment, transport equipment, traffic equipment, aircraft/spacecraft, nuclear power controllers, fuel controllers, car equipment including car accessories, safety devices, etc.) and whose malfunction or failure may cause loss of human life, bodily injury or serious damage to property (“Special Applications”), please consult with the ROHM sales representative in advance. Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of any ROHM’s Products for Specific Applications. 2) ROHM designs and manufactures its Products subject to strict quality control system. However, semiconductor products can fail or malfunction at a certain rate. Please be sure to implement, at your own responsibilities, adequate safety measures including but not limited to fail-safe design against the physical injury, damage to any property, which a failure or malfunction of our Products may cause. The following are examples of safety measures. [a] Installation of protection circuits or other protective devices to improve system safety [b] Installation of redundant circuits to reduce the impact of single or multiple circuit failure 3) Our Products are designed and manufactured for use under standard conditions and not under any special or extraordinary environments or conditions, as exemplified below. Accordingly, ROHM shall not be in any way responsible or liable for any damages, expenses or losses arising from the use of any ROHM’s Products under any special or extraordinary environments or conditions. If you intend to use our Products under any special or extraordinary environments or conditions (as exemplified below), your independent verification and confirmation of product performance, reliability, etc, prior to use, must be necessary: [a] Use of our Products in any types of liquid, including water, oils, chemicals, and organic solvents [b] Use of our Products outdoors or in places where the Products are exposed to direct sunlight or dust [c] Use of our Products in places where the Products are exposed to sea winds or corrosive gases, including Cl 2 , H 2 S, NH 3 , SO 2 , and NO 2 [d] Use of our Products in places where the Products are exposed to static electricity or electromagnetic waves [e] Use of our Products in proximity to heat-producing components, plastic cords, or other flammable items [f]Sealing or coating our Products with resin or other coating materials [g] Use of the Products in places subject to dew condensation 4) The Products are not subject to radiation-proof design. 5) Please verify and confirm characteristics of the final or mounted products in using the Products. 6) Confirm that operation temperature is within the specified range described in the product specification. 7) ROHM shall not be in any way responsible or liable for failure induced under deviant condition from what is defined in this document. 8) This Product may be subjected to radio wave interference from other equipment emitting radio waves. 9) This Product emits radio waves due to the specification. To use equipment emitting radio waves, certification under the Radio Act should be obtained by region in which the Product is used. For the standards for certification under the Radio Act to be obtained for the use of this Product, separately contact your ROHM representative. DESIGN Kawabata CHECK APPROVAL DATE: 12/May/2020 SPECIFICATION No.: TARGET SPECIFICATION REV. E TSZ22111･04･002 PRODUCTS Hybrid IC TYPE BP35C5 PAGE 2/33 Notice ● Precaution for Mounting / Circuit board design 1) When a highly active halogenous (chlorine, bromine, etc.) flux is used, the residue of flux may negatively affect product performance and reliability. 2) In principle, the reflow soldering method must be used. ● Precautions Regarding Application Examples and External Circuits 1) If change is made to the constant of an external circuit, please allow a sufficient margin considering variations of the characteristics of the Products and external components, including transient characteristics, as well as static characteristics. 2) You agree that application notes, reference designs, and associated data and information contained in this document are presented only as guidance for Products use. Therefore, in case you use such information, you are solely responsible for it and you must exercise you own independent verification and judgment in the use of such information contained in this document. ROHM shall not be in any way responsible or liable for damages, expenses or losses incurred by you or third parties arising from the use of such information. ● Precaution for Electrostatic This Product is electrostatic sensitive product, which may be damaged due to electrostatic discharge. Please take proper caution in your manufacturing process and storage so that voltage exceeding Products maximum rating will not be applied to Products. Please take special care under dry condition (e.g. Grounding of human body / equipment / solder iron, isolation from charged objects, setting of Ionizer, friction prevention and temperature / humidity control). ● Precaution for Storage / Transportation 1) Product performance and soldered connections may deteriorate if the Products are stored in the places where: [a] the Products are exposed to sea winds or corrosive gases, including Cl2, H2S, NH3, SO2, and NO2 [b] the temperature or humidity exceeds thos…

Text truncated - open the document above for the full version.

PRODUCTS Hybrid IC TYPE BP35C5 PAGE 22/33 19. RECOMMENDED REFLOW CONDITION ※Reflow solder can be operated only once Fig.6. Recommended Reflow Profile REV. E SPECIFICATION No.: TARGET SPECIFICATION TSZ22111･05･002 220°C 180°C 150°C Ramp rate(Avg.) < 5°C/sec Ramp rate(Avg.) < 4°C/sec Peak temp. 230～255°C Time above 220°C 40sec (30~90sec) Time between A-B 80sec (60~120sec) 150°C 180°C200°C180°C 140°C160°C 240°C255°C230°C 60sec120sec80sec 30sec90sec40secTime above220°C Peak temperature Time of preheating End preheating Start preheating PointRecommendUpper limitLower limit A B A～B C D PRODUCTS Hybrid IC TYPE BP35C5 PAGE 23/33 20. PACKING (TBD) 20.1 Taping dimensions UNIT: mm Symbol A0 B0 D0 D1 E F P0 P P2 K0 S t W Dimensions (mm) 15.55 19.4 1.5 2.0 1.75 14.2 4.0 20.0 2.0 3.2 28.4 0.35 32.0 Tolerance (mm) ±0.1 ±0.1 +0.1 /0.0 MIN. ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.05 ±0.3 <Material of tape> Pocket: PS, Cover tape: PE 20.2 Taping packaging specification Pull-Out direction of taping and direction of pin 1 are shown below. The taping of the products is done so that the adsorption side of the mounter may become a shield case side. REV. E SPECIFICATION No.: TARGET SPECIFICATION TSZ22111･05･002 Carrier tape Reel Box label Humidity indicator cardDesiccant Foil bags Box label PRODUCTS Hybrid IC TYPE BP35C5 PAGE 24/33 20.3 Packaging method REV. E SPECIFICATION No.: TARGET SPECIFICATION TSZ22111･05･002 Box label Packing slip Carton (4000 pcs/1 CTN) Material: AB Flute Foil bags Box label Box label (1) Box label (2) Middle Carton Material: B Flute PRODUCTS Hybrid IC TYPE BP35C5 PAGE 25/33 REV. E SPECIFICATION No.: TARGET SPECIFICATION TSZ22111･05･002 PRODUCTS Hybrid IC TYPE BP35C5 PAGE 26/33 20.4 Reel Dimensions Reel size/ Tape size A B C D W t T MAX Dimensions (mm) 330 100 13.3 2.5 32.5 2.0 36 Tolerance (mm) ±2.0 ±2.0 ±1.0 ±0.5 +2.0/ -0.0 ±0.5 +2.0/ -1.0 REV. E SPECIFICATION No.: TARGET SPECIFICATION TSZ22111･05･002 PRODUCTS Hybrid IC TYPE BP35C5 PAGE 27/33 20.5 Leader and Trail Tape There will be 40 pockets at Leader tape. There will be 10 pockets at Trail tape. The end of Trail tape is not fixed to Reel. 20.6 Missing product ratio 20.7 Standard Packaging Quantity Type Package Quantity BP35C5 800 pcs / reel ・ Please be sure to order product with multiple number of the Standard Packaging Quantity. ・ The quantity of “Standard Package Quantity” may change in future. Rate of incident Remark Consecutive missing products 0% Except Leader and Trail tapes Non-Consecutive missing products MAX 0.1% / 1 reel REV. E SPECIFICATION No.: TARGET SPECIFICATION TSZ22111･05･002 40ポケット以上 Pulling-out side リーダー部 空部 Reel side Leader tape part Empty 80cm (about 40 pockets in the front) Reel sidePulling-out side 空部 10ポケット以上 Empty 20cm (about 10pockets in the tail) ３００mm／min １６５ ～ １８０° PRODUCTS Hybrid IC TYPE BP35C5 PAGE 28/33 20.8 Peel-off strength of Cover Tape Peel-off strength of Cover tape is: 0.1～0.7N (10gf～70gf) with peeling speed of 300mm/min. 20.9 Packing Label The label with following things is stuck at the packing case. ① Type name (BP35C5) ② Quantity ③ Lot No. ④ Shipment inspection stamp ⑤ Country of origin ⑥ Manufacturing company name (Trade mark) ⑦ Logotype of lead free Please refer to the following example of the label indication. Fig.7. Packing Label Spec REV. E SPECIFICATION No.: TARGET SPECIFICATION TSZ22111･05･002 165～180° 300mm/min ① ② ① ③ ④ ⑤ ⑥ ⑦ PRODUCTS Hybrid IC TYPE BP35C5 PAGE 29/33 21. Product Weight 1.4 gram 22. Manufacturing Country China 23. Precautions for Use 1) This product allows the reflow process only once. (with ROHM’s recommended reflow condition) During the reflow process, the solder inside the product may be re-fused or re-melt. Please note this and pay special attention. 2) If this product is laid neglected, it will absorb moisture from the surrounding environment. Keep this Product with below mentioned condition, and reflow mount it within 72 hours of opening the laminated bag. <Store condition> Temperature: 5 °C～40 °C Relative Humidity: 50±10 %RH 3) If storage in the desiccator where is humidity under the recommended values, be sure to protect this product from static electricity. 4) Be sure to use after baking process with the following conditions when it passed 72 hours after opening; ・Baking condition: 125 °C / 24 hours (Not in reel state), Baking times: up to once 5) When a mounter is used to place this product, its recognition should be taken with the reverse side (pad) of product. It is not recommended to use the dimensions of product for recognition as its tolerance is big. 6) There are cases where lot numbers are different in the same reel. 7) There are cases where serial numbers (MAC address) are not in sequence in the same reel. 8) About soldering parts of mounting on this product, presence of soldering fillet does not be asked. 9) With respect to a label affixed to this product, defects other than “peeling”, “sticking-out”, and “extreme defect in character recognition” are overlooked. 10) This product is assumed to be mounted on glass epoxy board. If the product is mounted on other materials board such as ceramic, be sure to evaluate it sufficiently. 11) RF-SW (pin 27, pin 29 ANT terminal) which is mounted inside the module is a product very weak to static electricity on the specification. Be sure to use after taking sufficient measures against static electricity. 12) Please note that it is likely to come off when the stress joins the shield case. 13) Use this product without cleaning residue of flux. 14) About wireless communication 1. Wireless communication may be unstable due to radio wave environment and communication environment, does not guarantee 100 % data transfer, ROHM assumes absolutely no responsibility even if data is missing. 2. UDP does not provide for the arrival of consecutive packet send data arrival is not guaranteed. 3. Please fully verify with customers before installing this product in customer's set and doing full-scale operation. 4. ROHM assumes no …

Text truncated - open the document above for the full version.

Date: May 27, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: declaration of composite/rated equipment for FCC ID: ANSBP35C5 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Class B All other devices has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : ROHM Co., Ltd. Address : 21 Saiin, Mizozaki-cho, Ukyo-ku, Kyoto 615-8585 Japan Signature : _________________________________ Name and Job Title. : Tomohiro Ikuta E-mail : [email protected] Tel. : +81-75-321-1294

Modular Approval Request Letter Date: June 10, 2020 Subject: Modular Approval Attestation FCC ID: ANSBP35C5 Dear Reviewer, We, Sporton International Inc., are authorized by ROHM Co., Ltd., to have their Wi-Sun Module approved under single module approval authorization. The requirements regulated in 47 CFR 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip (ML7436N). 3. The requirement of power supply regulation: The part number of the power regulator is (ML7436N). 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE and SAR RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Applicant : ROHM Co., Ltd. Address : 21 Saiin, Mizozaki-cho, Ukyo-ku, Kyoto 615-8585 Japan Signature : _________________________________ Name and Job Title. : Tomohiro Ikuta E-mail : [email protected] Tel. : +81-75-321-1294

Letter of Authorization Date: May 27, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: ANSBP35C5 Product Name: Wi-Sun Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : Manager e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : ROHM Co., Ltd. Address : 21 Saiin, Mizozaki-cho, Ukyo-ku, Kyoto 615-8585 Japan Signature : _________________________________ Name and Job Title. : Tomohiro Ikuta E-mail : [email protected] Tel. : +81-75-321-1294

Confidentiality Request Letter Date: May 27, 2020 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: ANSBP35C5 To whom it may concern: Short-term Confidentiality pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are request the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : ROHM Co., Ltd. Address : 21 Saiin, Mizozaki-cho, Ukyo-ku, Kyoto 615-8585 Japan Signature : _________________________________ Name and Job Title. : Tomohiro Ikuta E-mail : [email protected] Tel. : +81-75-321-1294

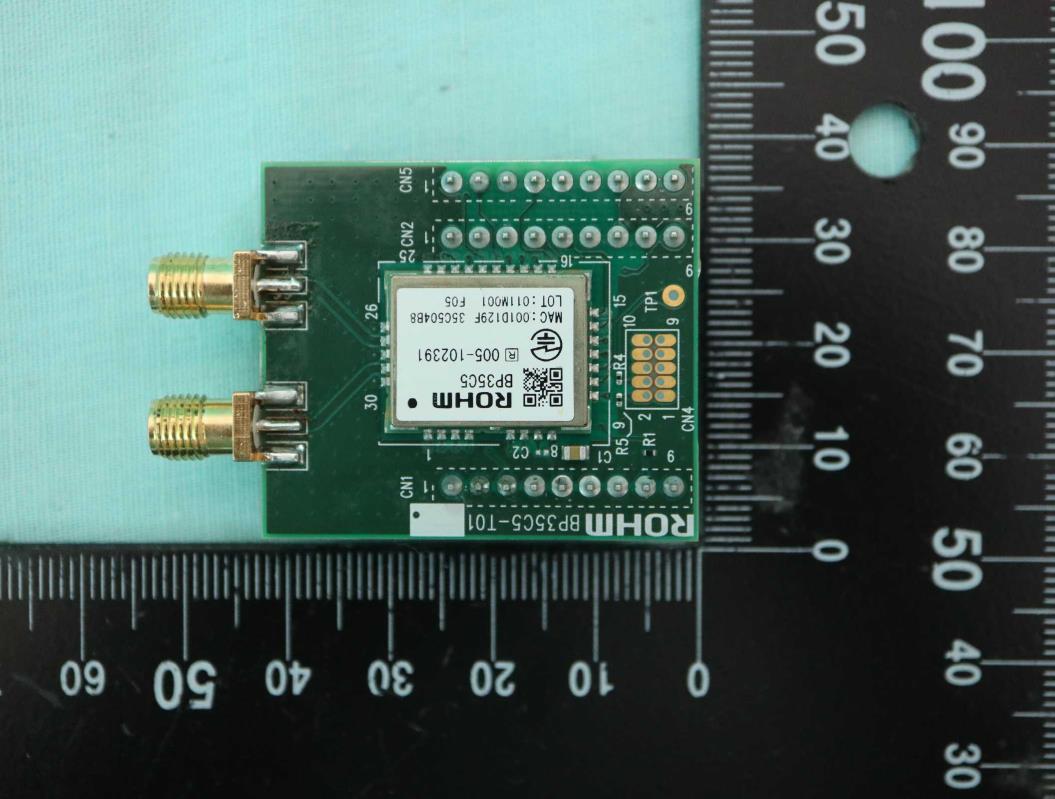

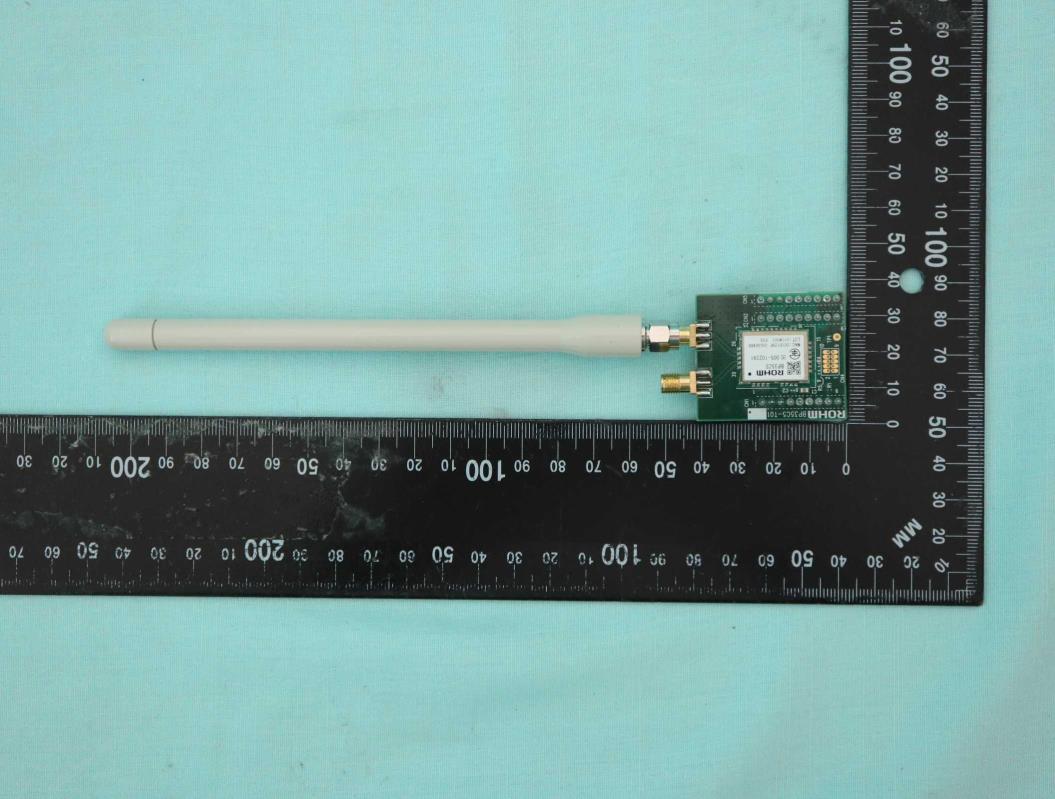

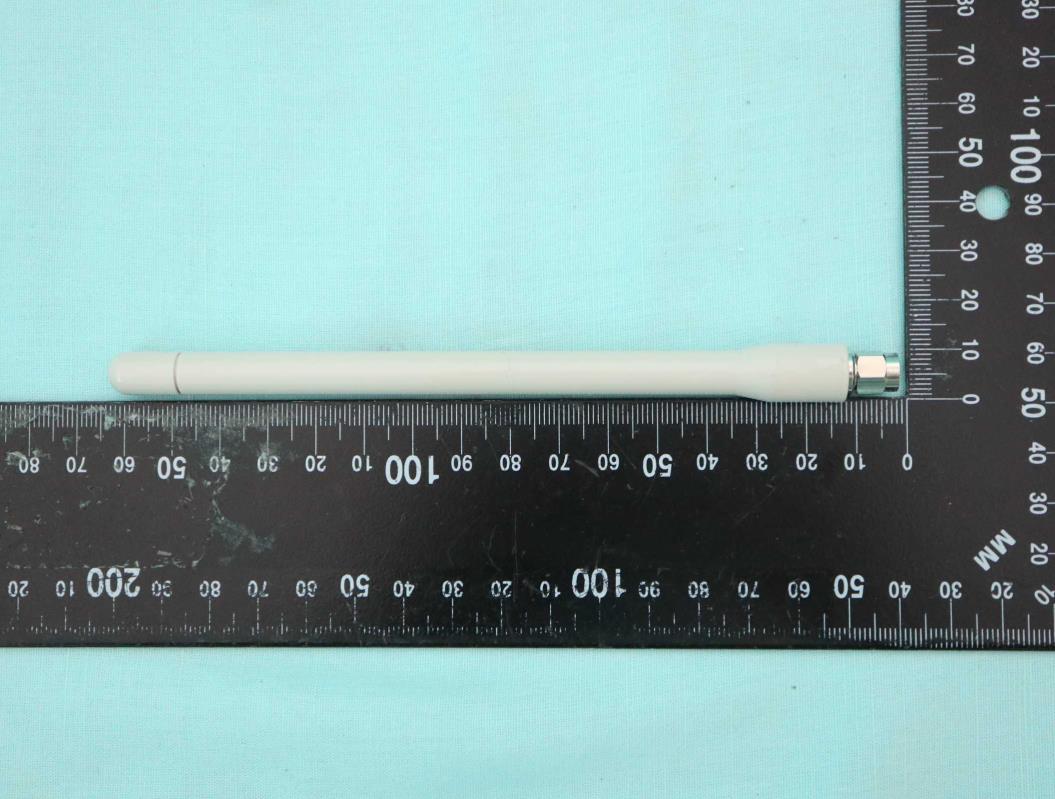

Photographs of EUT Report No. : EP051311 SPORTON International Inc. Page No. : 1 of 11 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Photographs of EUT Report No. : EP051311 SPORTON International Inc. Page No. : 2 of 11 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Photographs of EUT Report No. : EP051311 SPORTON International Inc. Page No. : 11 of 11 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 ─────THE END────

P. 0 Confidential © 2020 ROHM Co.,Ltd. All Rights Reserved BP35C5 Label Design 2020/5/11 Photonics Div. FCC Certification Number “ANS” is FCC grantee code for ROHM FCC ID: ANSBP35C5

Photographs of EUT Report No. : EP051311 SPORTON International Inc. Page No. : 3 of 11 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Photographs of EUT Report No. : EP051311 SPORTON International Inc. Page No. : 4 of 11 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Photographs of EUT Report No. : EP051311 SPORTON International Inc. Page No. : 5 of 11 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Photographs of EUT Report No. : EP051311 SPORTON International Inc. Page No. : 6 of 11 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Photographs of EUT Report No. : EP051311 SPORTON International Inc. Page No. : 7 of 11 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Photographs of EUT Report No. : EP051311 SPORTON International Inc. Page No. : 8 of 11 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Photographs of EUT Report No. : EP051311 SPORTON International Inc. Page No. : 9 of 11 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Photographs of EUT Report No. : EP051311 SPORTON International Inc. Page No. : 10 of 11 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020

Radio Exposure Evaluation Report Report No. : FA051311 TEL : 886-3-327-3456 Page Number : 1 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: ANSBP35C5 Radio Exposure Evaluation Report FCC ID : ANSBP35C5 Equipment : Wi-Sun Module Brand Name : ROHM Model Name : BP35C5 Applicant : ROHM Co., Ltd. 21 Saiin, Mizozaki-cho, Ukyo-ku, Kyoto 615-8585 Japan Manufacturer : ASKEY COMPUTER CORPORATION 10F, No. 119, Jiankang Road, Zhonghe Dist., New Taipei City, Taiwan Standard : 47 CFR Part 2.1091 The product was received on May 13, 2020, and testing was started from May 22, 2020 and completed on May 27, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR Part 2.1091 and shown compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of United States government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA051311 TEL : 886-3-327-3456 Page Number : 2 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: ANSBP35C5 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Testing Location ..................................................................................................................................... 5 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 6 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 6 2.2 MPE Calculation Method ........................................................................................................................ 7 2.3 Calculated Result and Limit .................................................................................................................... 8 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA051311 TEL : 886-3-327-3456 Page Number : 3 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: ANSBP35C5 History of this test report Report No. Version Description Issued Date FA051311 01 Initial issue of report Jun. 08, 2020 Radio Exposure Evaluation Report Report No. : FA051311 TEL : 886-3-327-3456 Page Number : 4 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: ANSBP35C5 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None. Reviewed by: Sam Tsai Report Producer: Yunha Liou Radio Exposure Evaluation Report Report No. : FA051311 TEL : 886-3-327-3456 Page Number : 5 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: ANSBP35C5 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type Wi-SUN - 50kHz 902 ~ 928 902.2 - 927.8 2GFSK Wi-SUN - 150kHz 902 ~ 928 902.4 - 927.6 2GFSK Wi-SUN - 300kHz 902 ~ 928 902.6 - 927.2 2GFSK Wi-SUN - 600kHz 902 ~ 928 903 - 927 2GFSK 1.2 Testing Location Testing Location HWA YA ADD : No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 FAX : 886-3-327-0973 Test site Designation No. TW1190 with FCC. JHUBEI ADD : No.8, Ln. 724, Bo'ai St., Zhubei City, Hsinchu County, Taiwan (R.O.C.) TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Radio Exposure Evaluation Report Report No. : FA051311 TEL : 886-3-327-3456 Page Number : 6 of 8 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Report Template No.: HE1-A1 Ver2.1 Report Version : 01 FCC ID: ANSBP35C5 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density Radio Exposure Evaluation Report Report No. : FA051311 TEL : 886-3-327-3456 Page…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR051311 TEL : 886-3-327-3456 Page No. : 1 of 38 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Report Template No.: HE1-C13 Ver2.2 Report Version : 01 FCC ID: ANSBP35C5 FCC Test Report FCC ID : ANSBP35C5 Equipment : Wi-Sun Module Brand Name : ROHM Model Name : BP35C5 Applicant : ROHM Co., Ltd. 21 Saiin, Mizozaki-cho, Ukyo-ku, Kyoto 615-8585 Japan Manufacturer : ASKEY COMPUTER CORPORATION 10F, No. 119, Jiankang Road, Zhonghe Dist., New Taipei City, Taiwan Standard : 47 CFR FCC Part 15.247 The product was received on May 13, 2020, and testing was started from May 18, 2020 and completed on May 27, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) FCC Test Report Report No. : FR051311 TEL : 886-3-327-3456 Page No. : 2 of 38 FAX : 886-3-327-0973 Issued Date : Jun. 08, 2020 Report Template No.: HE1-C13 Ver2.2 Report Version : 01 FCC ID: ANSBP35C5 Table of Contents SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 6 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 TEST CONFIGURATION OF EUT......................................................................................................... 8 2.1 Test Condition ........................................................................................................................................ 8 2.2 Test Channel Mode ................................................................................................................................ 8 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Support Equipment ............................................................................................................................... 11 2.5 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 20dB Bandwidth and Carrier Frequency Separation............................................................................ 16 3.3 Maximum Conducted Output Power .................................................................................................... 17 3.4 Power Spectral Density ........................................................................................................................ 18 3.5 Number of Hopping Frequencies and Hopping Bandedge .........................................................…
