APY-RUITZ0001MPRadio Module

User’s manual Model: RUITZ0001MPZZ FCC ID: APY-RUITZ0001MP IC: 548B-RUITZ0001MP For OEM integration only – device ca nnot be sold to general public. Therefore we will not supply the User’s manual, the installation manual is the official for OEM. (Note) This module was granted as FCC/IC Limited Modular Approval. Host systems must provide regulated supply voltages to the module. OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. The antenna of this device must not be co-located or used in conjunction with any other ante nna or transmitter. OEM integrat ors must be provided with ante nna installation instructions. Only those antennas tested with the de vice or similar antennas with equal or lesser gain may be used with this transmitter. We will ask OEM to include the foll owing Notices required by FCC/ IC on the product and in the User’s manual. ■ Requirement of Labeling (For FCC) Please describe the following item on t he host device of the this module: Contains FCC ID: APY-RUITZ0001MP This device complies with part 15 of the FCC Rules. O peration is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may c ause undesired operation. *If it is difficult to describe this st atement on the host product due to the size, please describe in the User's manual. (For IC) Please describe the following item on t he host device of the this module: Contains IC: 548B-RUITZ0001MP ■ Requirement of User’s Manual Statement (For FCC) User’s manual shall c ontain following sentence FCC CAUTION Changes or modifications not expressly appr oved by the party responsible for complianc e could void the user’s authority to oper ate the equipment. This transmitter must not be co-loc ated or operated in conjunction with any other antenna or transmitter. When installing in Mobile device This equipment complies with FCC radiation exposure limits se t forth for an uncontrolled envir onment and meets the FCC radio frequency (RF) Exposure Guidelines. This equi pment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). When installing in Portable device This equipment complies with FCC radiation exposure limits se t forth for an uncontrolled envir onment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipm ent has very low levels of RF energy th at are deemed to comply without testing o f specific absorption ratio (SAR). * Portable device: Distance between the person's body and the antenna is 20cm or less. * Mobile device: Distance between the perso n's body and the antenna is more than 20cm. (For IC) Indicate the following information. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interf erence, and (2) this device must accept any inte rference, including interf erence that may cause unde sired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicabl es aux appareils radio exempt s de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouill age, et (2) l'utilisateur de l'appareil doit acce pter tout brouillage radioélectrique subi, même si le brouillage est su sceptible d'en comprome ttre le fonctionnement. * It can be also indicated on the equipment in place of the manual When installing in Mobile device This equipment complies with IC radiati on exposure limits set forth for an uncontro lled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permiss ive exposure evaluation (MPE). Cet équipement est conforme aux lim ites d’exposition aux rayonnement s énoncées pour un environnement non contrôlé et respecte l es règles d’exposition aux fréquences radioélec triques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui es t considérée conforme sans évaluation de l’exposition maximale autorisée. When installing in Portable device This equipment complies with IC radiati on exposure limits set forth for an uncontro lled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of spe cific absorption ratio (SAR). Cet équipement est conforme aux lim ites d’exposition aux rayonnement s énoncées pour un environnement non contrôlé et respecte l es règles d’exposition aux fréquences radioélec triques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui es t considérée conforme sans évaluation du débit d’absorption spécifique (DAS).

WIRELESS MODULE LABEL Country:Japan、Europe、America、Canada Front W28mm×H9mm M/N RUITZ0001MPZZ SHARP CORPORATION 001XXXXXXXX R Back W21mm×H9mm MADE IN JAPAN FCC ID : APY-RUITZ0001MP IC : 548B-RUITZ0001MP 2404MPZZ Tape:7mm

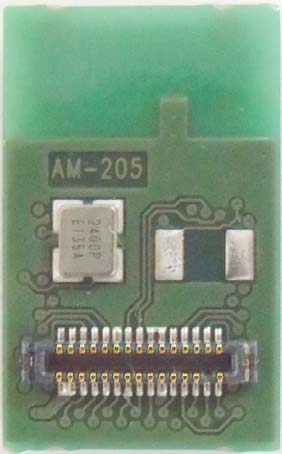

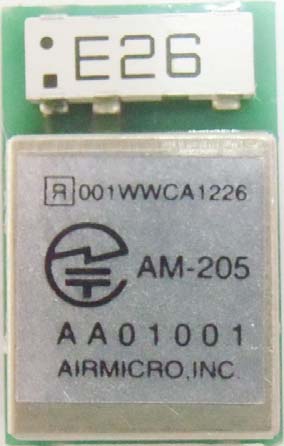

NOQ'TY ① 1 Parts Name Wireless Module Label Parts Code Remarks TLABZ2404MPZZ Radio module：RUITZ0001MPZZ Label pasting position ① Radio module：Photo ※Since Wireless Module Label is attach with double-stick tape, it does not separate. ●The quality of the material of a label The label is a synthetic paper which uses polypropylene as a main material. Therefore, it tension strength and bends and is strong against a shock. ●Tension strengt The 180-degree tension strength of double-stick tape is 15N/20mm. Therefore, it does not separate easily. ●Influence from the outside Since a label is finally fit into a product, it is the environment where it is hard to separate.

UL Japan, Inc. Head Office EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: ul.com/jp February 12, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: APY-RUITZ0001MP To whom it may concern, We, UL Japan, Inc, hereby declare that Radio module, model: RUITZ0001MPZZ (FCC ID: APY- RUITZ0001MP) of SHARP Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(V05). KDB 447498D01(V05) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum tune-up tolerance limit was 4 mW So for this device: 4 mW[maximum tune-up tolerance limit]/5mm[minimum separation distance]*√2.48 = 1.25 *This is less than 3.0, so no SAR is required. Thank you for your attention to this matter. Masanori Nishiyama Manager of Head Office EMC Lab. WiSE Japan UL Verification Service UL Japan, Inc.

Test report No. : 10156279H-A-R2 Page : 2 of 35 Issued date : January 28, 2014 Revised date : February 18, 2014 FCC ID : APY-RUITZ0001MP UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10156279H-A Revision Test report No. Date Page revised Contents - (Original) 10156279H-A January 28, 2014 - - 1 10156279H-A-R1 February 12, 2014 19 Correction of test data 2 10156279H-A-R2 February 18, 2014 19 Correction and addition of calculation formula Test report No. : 10156279H-A-R2 Page : 3 of 35 Issued date : January 28, 2014 Revised date : February 18, 2014 FCC ID : APY-RUITZ0001MP UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 15 Maximum Peak Output Power .......................................................................................................... 17 Radiated Spurious Emission ............................................................................................................. 19 Conducted Spurious Emission .......................................................................................................... 24 Conducted Emission Band Edge compliance ................................................................................... 27 Power Density ................................................................................................................................... 28 99%Occupied Bandwidth ................................................................................................................. 30 APPENDIX 2: Test instruments ............................................................................................................. 31 APPENDIX 3: Photographs of test setup ............................................................................................... 33 Conducted Emission ......................................................................................................................... 33 Radiated Spurious Emission ............................................................................................................. 34 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) .............................................................. 35 Test report No. : 10156279H-A-R2 Page : 4 of 35 Issued date : January 28, 2014 Revised date : February 18, 2014 FCC ID : APY-RUITZ0001MP UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : SHARP Corporation Address : 492 Minosho-cho, Yamatokoriyama-shi, Nara 639-1186 Japan Telephone Number : +81-743-55-4011 Facsimile Number : +81-743-53-6505 Contact Person : Nobuo Manabe SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Radio module Model No. : RUITZ0001MPZZ Serial No. : Refer to Section 4, Clause 4.2 Rating : DC2.1-3.6V Receipt Date of Sample : December 13, 2013 Country of Mass-production : Japan Condition of EUT : Production model Modification of EUT : No Modification by the test lab 2.2 Product Description Radio Specification Radio Type : Transceiver Frequency of Operation : 2405-2480MHz Bandwidth & Channel spacing : 2MHz & 5MHz/CH Modulation : DSSS Power Supply (radio part input) : DC 3.3V Antenna type : Chip Antenna Antenna gain : 1.8dBi Test report No. : 10156279H-A-R2 Page : 5 of 35 Issued date : January 28, 2014 Revised date : February 18, 2014 FCC ID : APY-RUITZ0001MP UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2013, final revised on September 30, 2013 and effective October 30, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 13.7dB, 0.20320MHz, L AV 13.5dB, 0.40709MHz, L Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance for Performing Compliance Measurements on Digital Transmission Systems (DTS) Operating Under §15.247(…

Text truncated - open the document above for the full version.

Test report No. : 10156279H-A-R2 Page : 33 of 35 Issued date : January 28, 2014 Revised date : February 18, 2014 FCC ID : APY-RUITZ0001MP UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10156279H-A-R2 Page : 34 of 35 Issued date : January 28, 2014 Revised date : February 18, 2014 FCC ID : APY-RUITZ0001MP UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10156279H-A-R2 Page : 35 of 35 Issued date : January 28, 2014 Revised date : February 18, 2014 FCC ID : APY-RUITZ0001MP UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: Z-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
