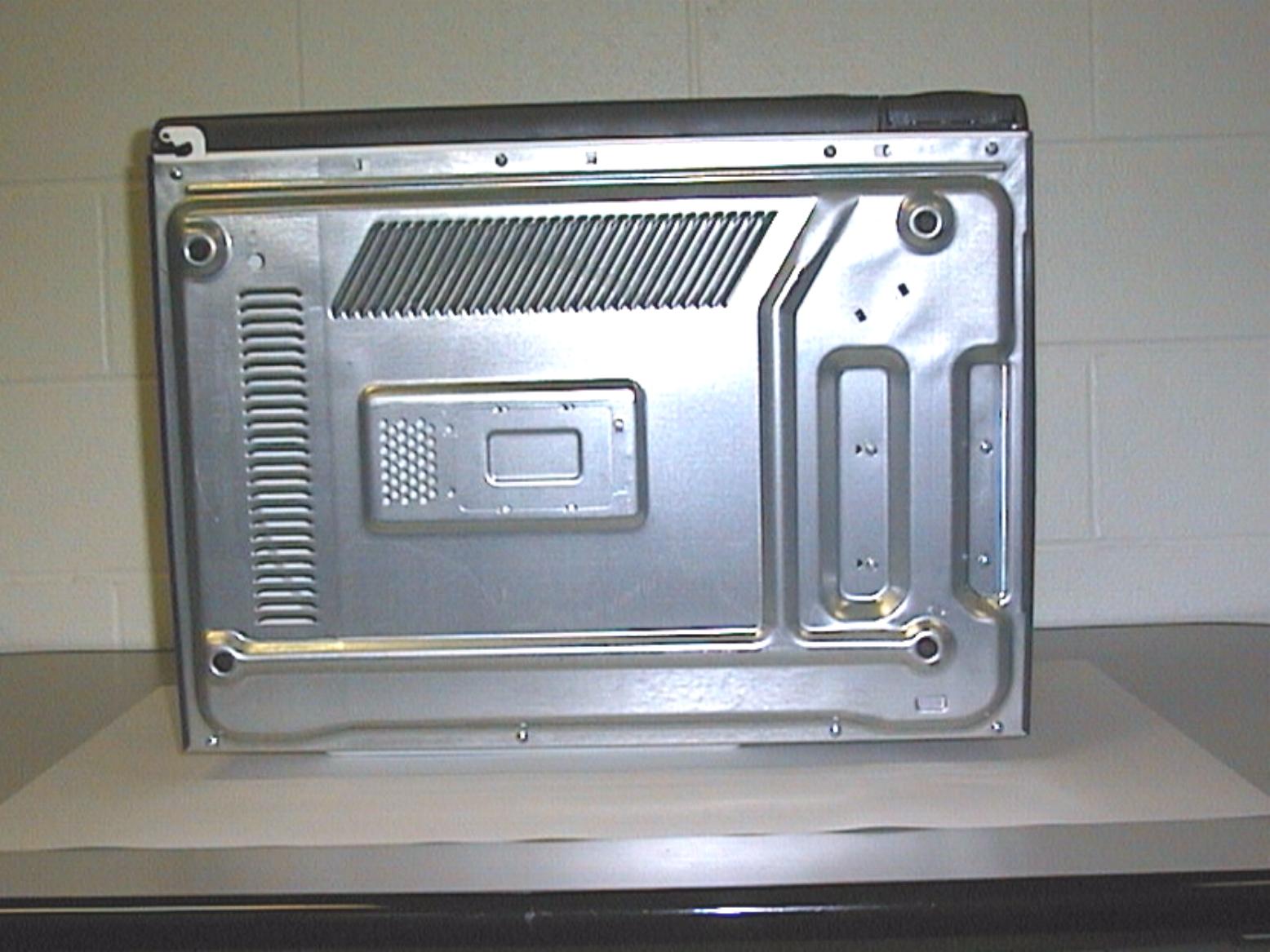

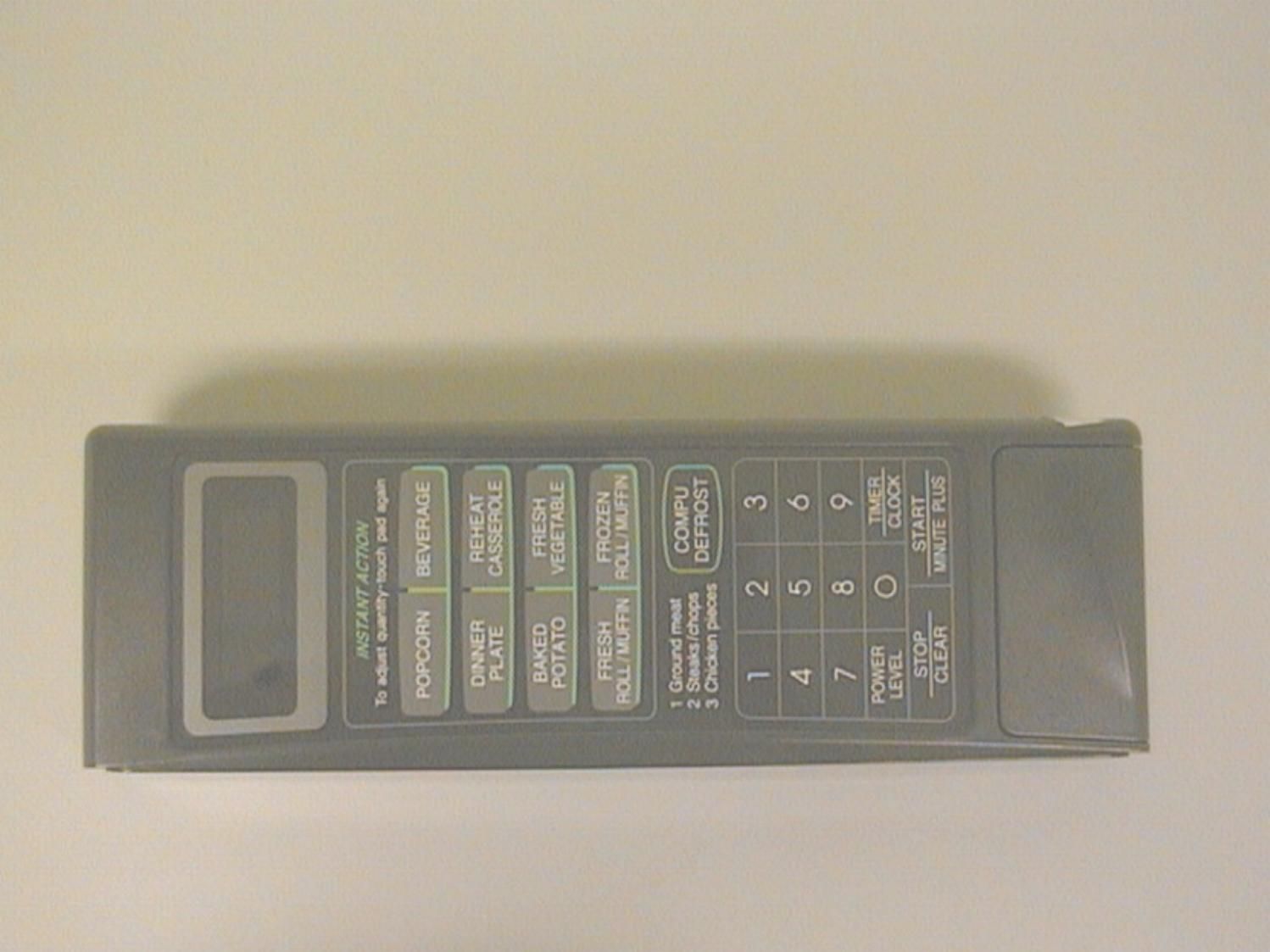

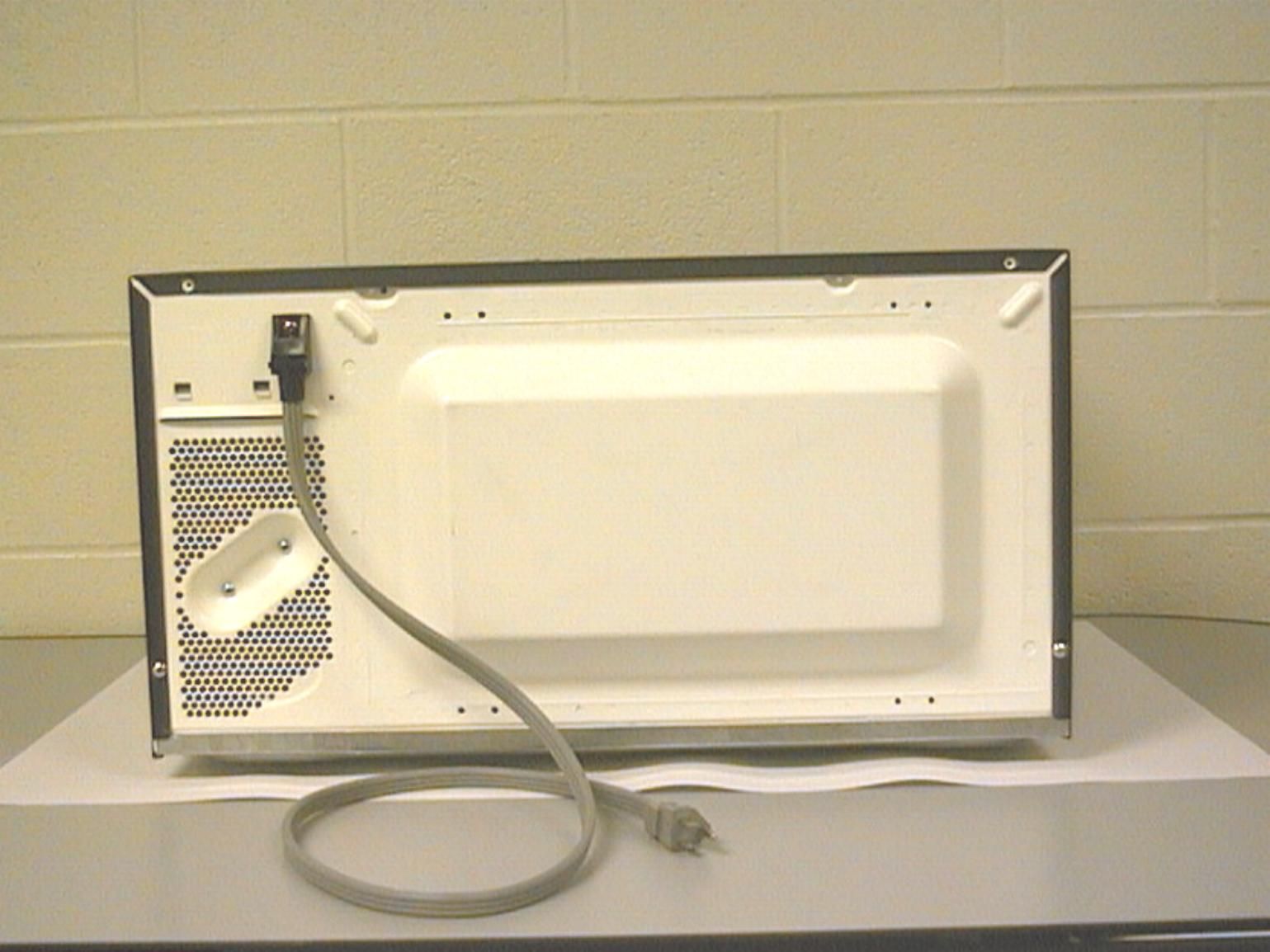

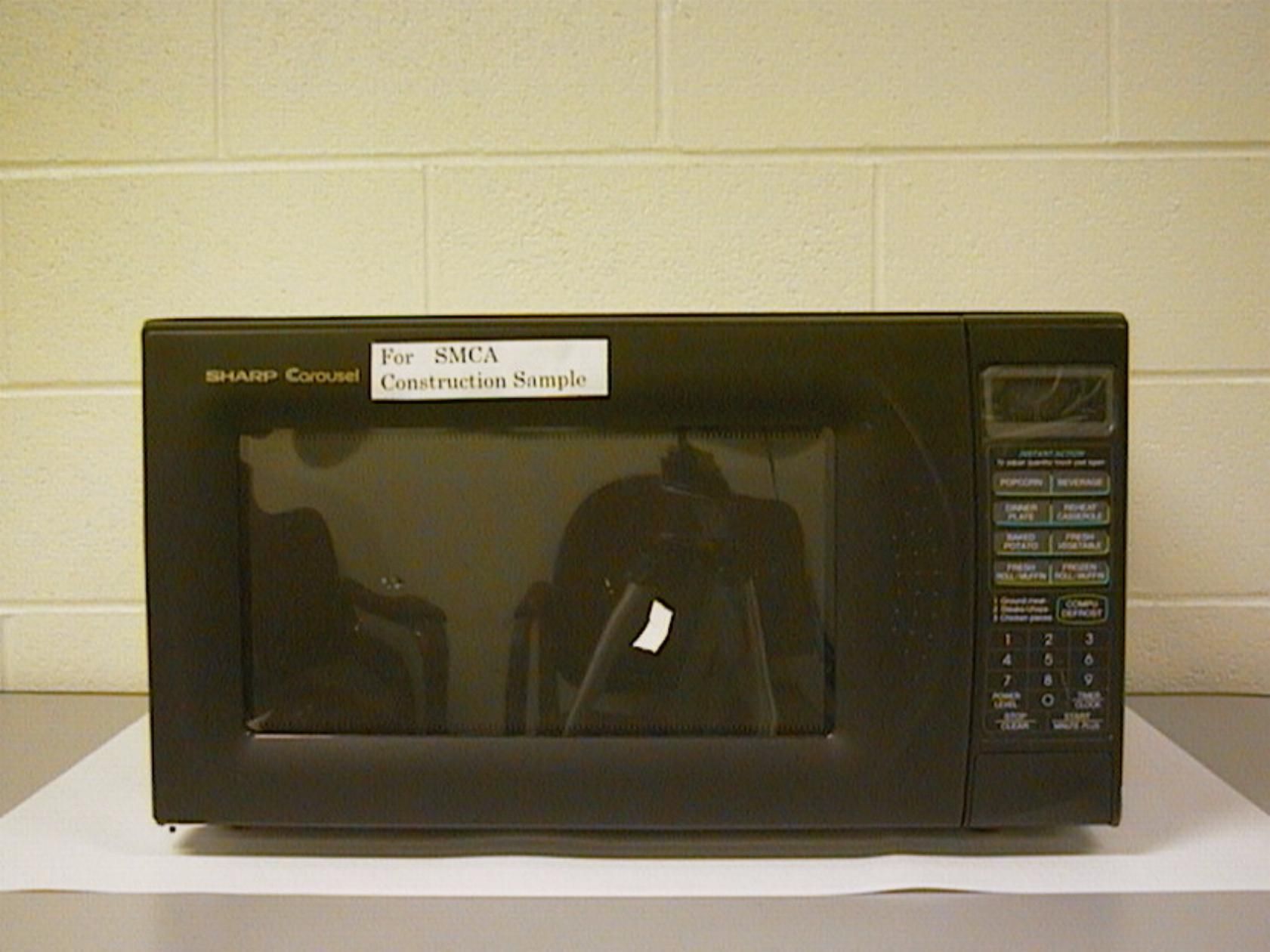

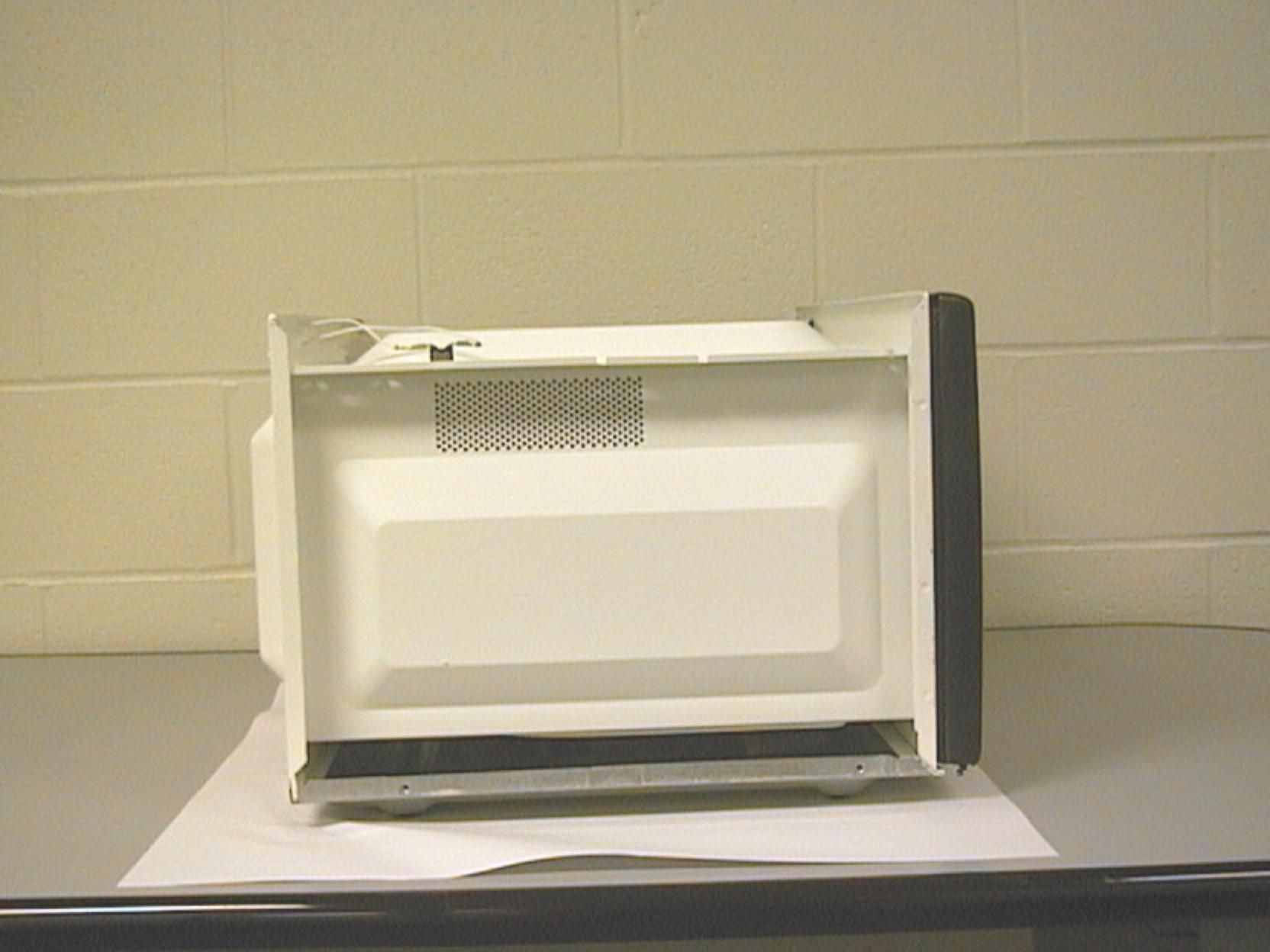

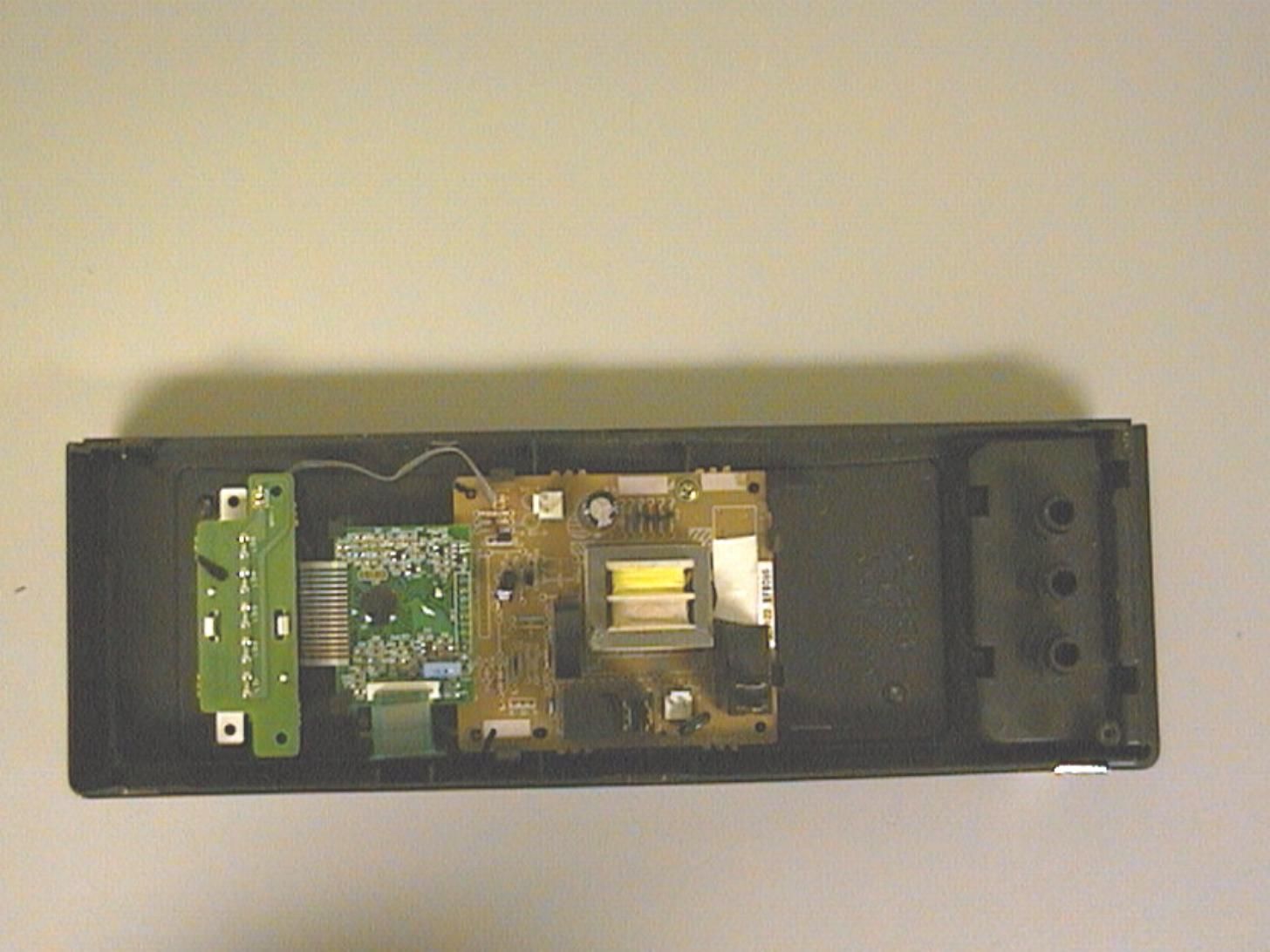

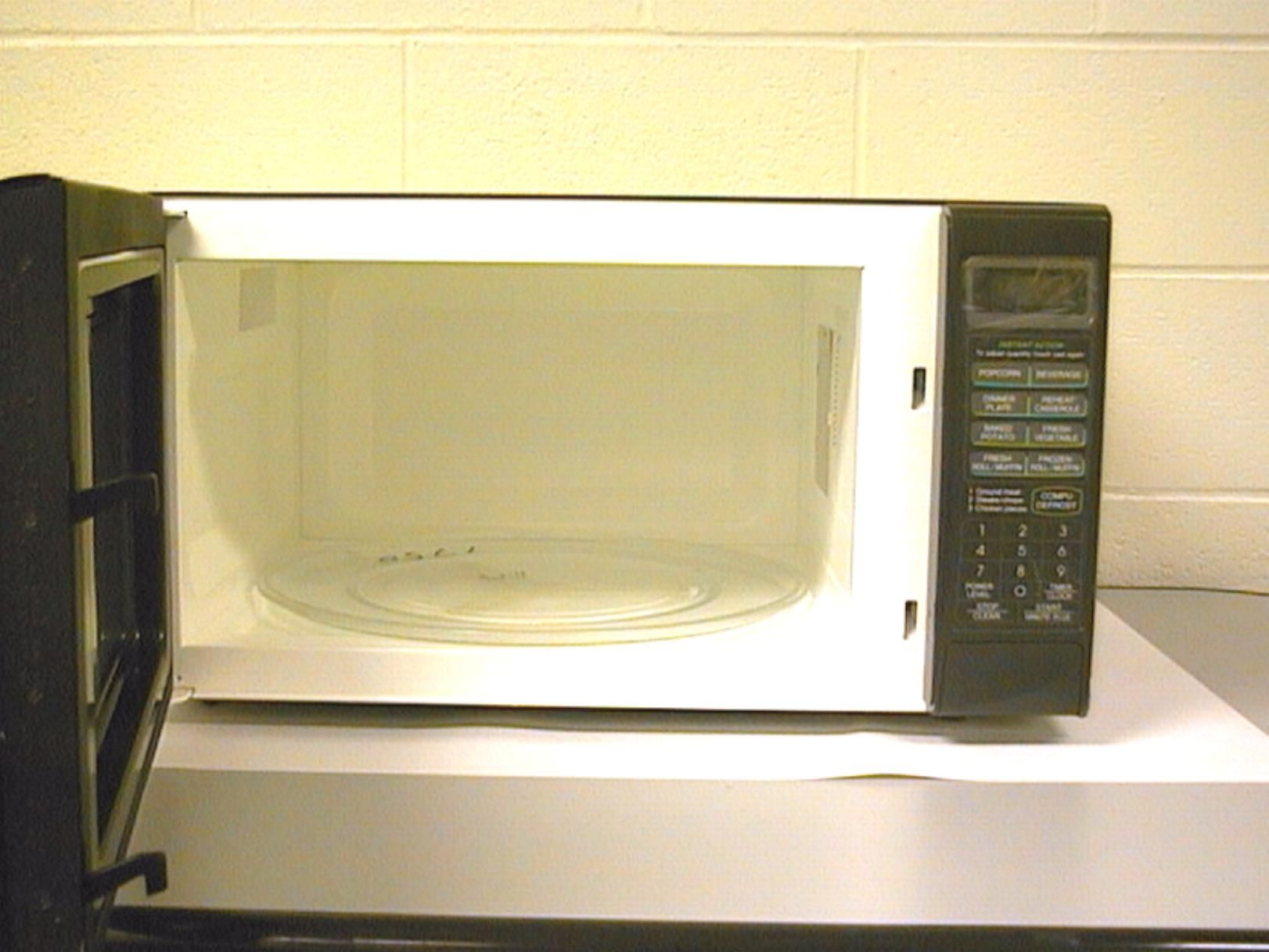

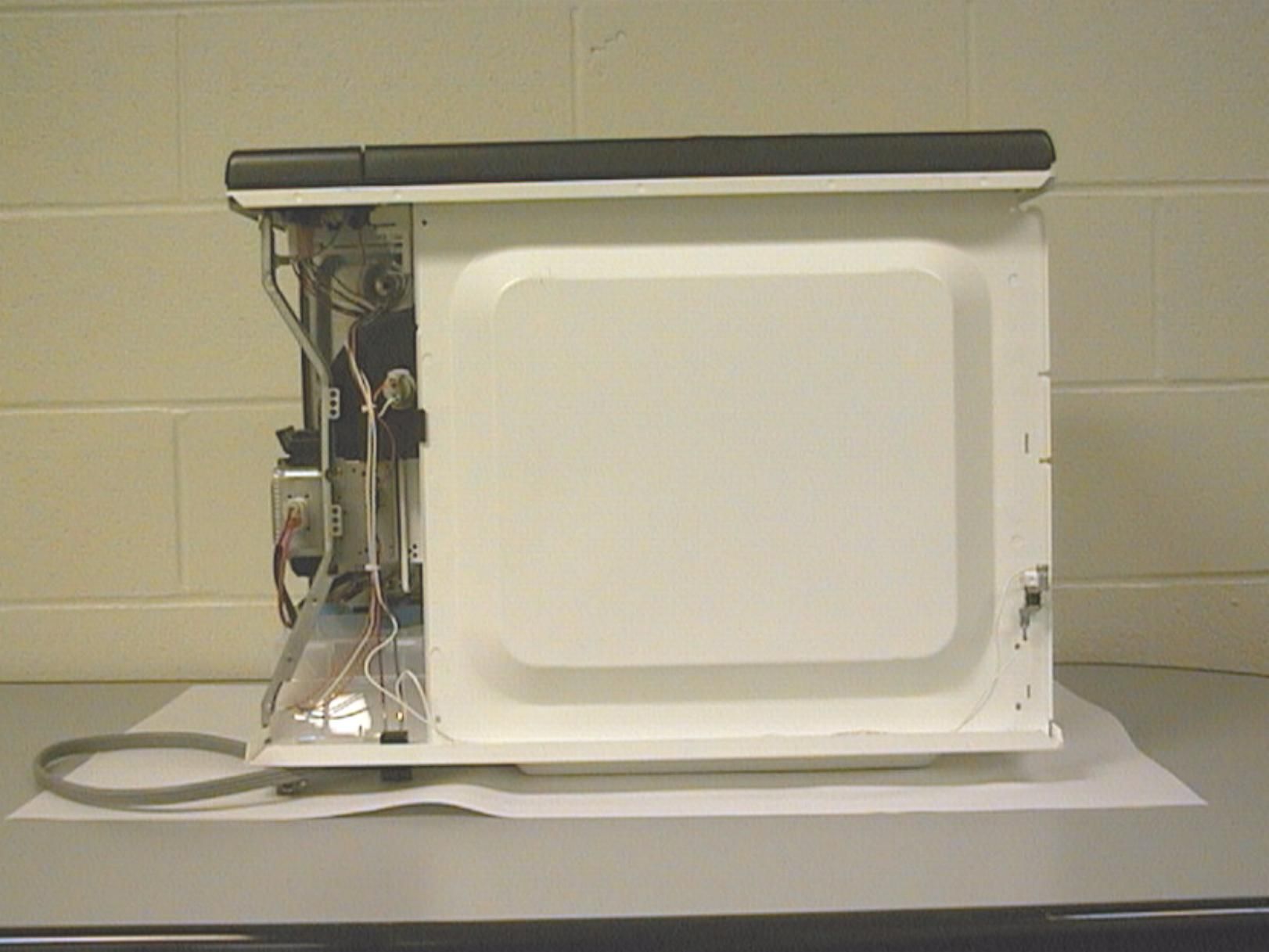

APYDMR0122Household Microwave Oven

Read all instructions carefully before using the oven. CONTENTS • For Customer Assistance ................. Inside Front Cover • Precautions to Avoid Possible Exposure to Excessive Microwave Energy .......................................Inside Front Cover • Limited Warranty ...............................................1 • Product Information Card .................................1 • Important Safety Instructions ..........................2 • Unpacking and Installation Instructions .........3 • Grounding Instructions ....................................3 • Information You Need to Know ........................4-6 • Part Names .........................................................7 • Before Operating ...............................................8 • Manual Operation ..............................................9 • Special Features ................................................ 10-12 • Other Convenient Features .............................. 13-14 • Cleaning & Care .................................................14 • Service Call Check ............................................15 • THE ULTIMATE ACCESSORY ..........................15 • Specifications ....................................................16 • COOKBOOK ORDER FORM .............................16 • Cooking Charts.................................................. 17-20 • Guia Auto-Touch .......................Parte Interior de la Cuberta Trasera • Auto-Touch Guide ..................................... Back Cover MICROWAVE OVEN OPERATION MANUAL ® MODELS R-510C / R-410C Followed by letter indicating color K=black, W=white To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBER________________________SERIAL NUMBER______________ DATE OF PURCHASE______________________ DEALER____________________________TELEPHONE________________ SERVICER___________________________TELEPHONE________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. TO PHONE: DIAL 1-800-BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and COOKBOOK DIAL (201)529-8703 for : COOKING ASSISTANCE TO WRITE: For cooking and operation questions: Susan Edwards/Test Kitchen Sharp Electronics Corporation Sharp Plaza, Box 650 Mahwah, NJ 07430-2135 For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. TO ACCESS INTERNET: www.sharp-usa.com FOR CUSTOMER ASSISTANCE 1 SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repai…

Text truncated - open the document above for the full version.

December 14, 1998 Federal Communications Commission C/O Mellon Bank 525 William Penn Way Room 153-2713 Pittsburgh, PA 15259-0001 Attn.: Wholesale Lockbox Supervisor Subject: Part 18 Certification for Microwave Oven Models: R-508C, R-510C,R-519C and R-530C. Brand Name:Sharp FCC ID Number:APYDMR0122 Applicant:Sharp Corporation Manufacturer:Sharp Manufacturing Company of America Dear Sirs, Sharp Manufacturing Company of America requests certification for the subject models under Part 18 of the FCC Rules. Enclosed you will find a completed FCC Form 731 and supporting exhibits. A list of exhibits is included directly behind the FCC Form 731. If you should have any questions concerning this application please contact myself, (901) 367- 5150 or Mr. Steve Petruska, (201) 529-9689. Thank you. Sincerely, Derek Shannon Derek Shannon Compliance Engineer Microwave Oven Division Enclosure FCC ID: APDYMR0122 INFORMATION FOR CERTIFICATION APPLICANT: Name:Sharp Corporation, Reliability Control Group Address:22-22 Nagaike-Cho, Abeno-Ku Osaka 545, Japan Grantee Code:APY Applicant Representative:Mr. K. Aoyagi REPORTED BY: Name:Sharp Manufacturing Company of America Address:Sharp Plaza Blvd., Memphis, TN 38193 CONTACT PERSON: Name:Sharp Electronics Corporation Address:Sharp Plaza, Mahwah, New Jersey 07430 Applicant Representative:Mr. Steve Petruska Telephone No.:(201) 529-9689 MANUFACTURER: Name:Sharp Manufacturing Company of America Address:Sharp Plaza Blvd., Memphis, TN 38193 FCC IDENTIFIER:APYDMR0122 EQUIPMENT:Microwave Oven Models R-508C, R-510C, R-519C and R-530C. FCC ID: APYDMR0122 EXHIBIT A PURPOSE OF FILING The purpose of this filing is to request certification for a new model family of microwave ovens. The output power for this model family is 1000 and 1100 Watts as measured by the IEC 705 method, 1988 revision. These models are cord connected counter top / built in Microwave Ovens. The Magnetrons used with these models have been used on previously certified products. The power transformer is a new design. The chassis design and waveguide are similar to the design for models listed under FCC ID APYDMR0115. There are some modifications in the dimensions of the cooking area. TECHNICAL REPORT APPLICATION FOR CERTIFICATION December, 1998 FCC ID:APYDMRO122 MODEL NO.:R-508C, R-510C,R-519C and R-530C. MAGNETRON TYPE:2M167B (PANASONIC) 2M246 (LG Electronics) 2M253J (L) Toshiba EQUIPMENT CLASS: Part 18 Consumer Device FCC ID:APYDMR0122 LIST OF EXHIBITS EXHIBIT A -Purpose of Filing EXHIBIT B -Block Diagram and Schematic Drawing EXHIBIT C -Operations Manual EXHIBIT D -Identification Label EXHIBIT E -Photographs EXHIBIT F -Measurement Report FCC ID: APYDMR0122 MICROWAVE OVEN BLOCK DIAGRAM Note: Components outlined with dotted line are optional and may not be present on all models. Control Panel H.V. Transformer H.V. Capacitor Magnetron Oven Cavity Fan Motor Lamp Turntable Motor Hood Motor Stirrer Motor Timer Motor Input 120 Vac Heating Element

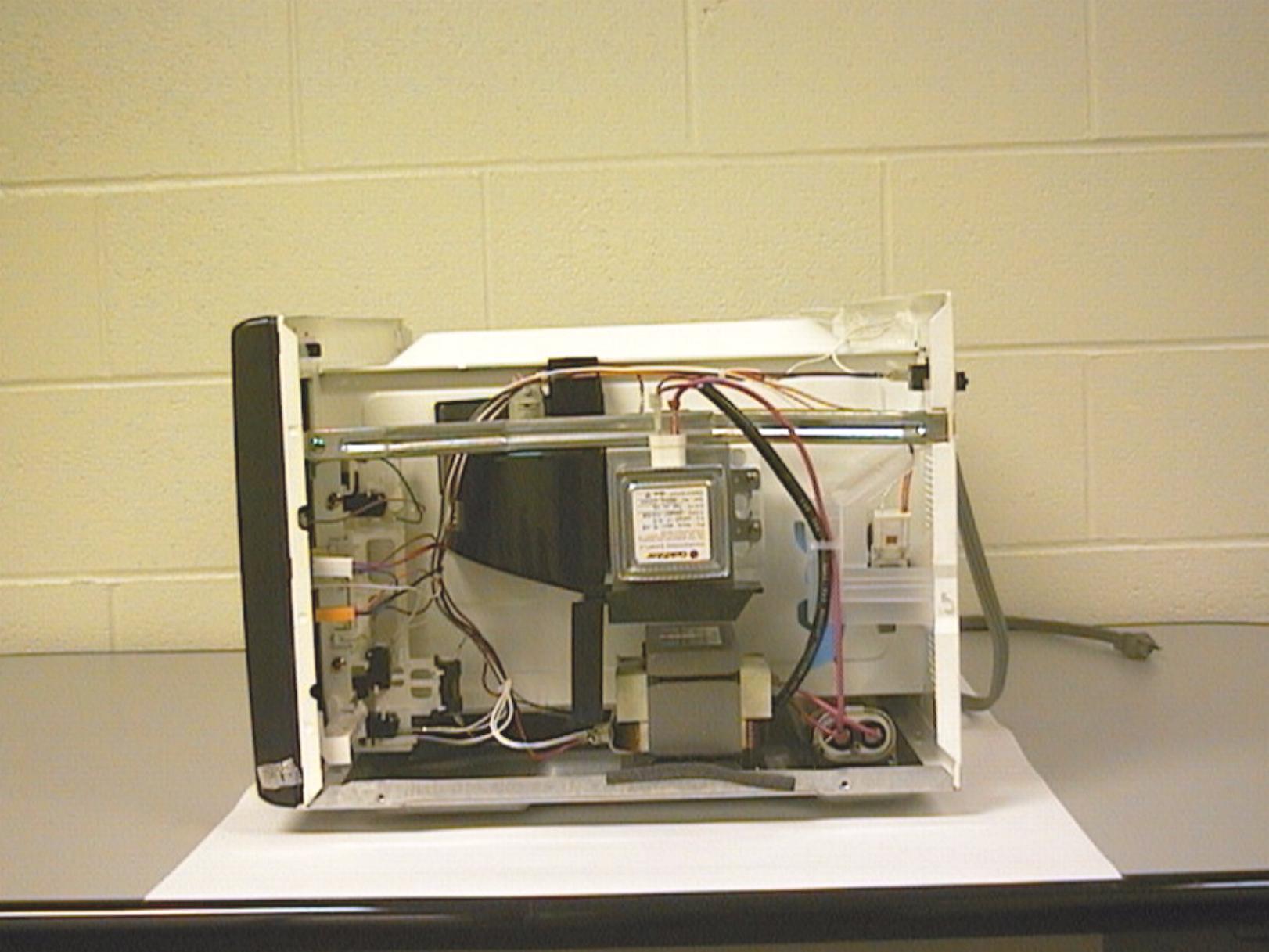

1. FREQUENCY MEASUREMENTS FCC ID: APYDMR0122 Tested Unit: Microwave Oven, Model R-530C Magnetron Type No.: 2M167B, mfd by Matsushita Tested: December 08, 1998 (1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1500 cc water in the glass beaker (Note: Since the RF output power is rated 1100 watts (more than 1000 watts), the load was increased 50 %) Line Voltage Variation (V) Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 96 (80%)+ 32 MHz - 12 MHz 108 (90%)+ 34 MHz - 25 MHz 120 (Nominal)+ 36 MHz - 29 MHz +/- 50 MHz 132 (110%)+ 33 MHz - 10 MHz 150 (125%)+ 38 MHz - 4 MHz (2) Frequency VS Load Variation Test Test Results (room temperature: 20 degC) Initial Load: 1500 cc water in the glass beaker (Note: Since the RF output power is rated 1100 watts (more than 1000 watts), the load was increased 50 %) Volume of Water (cc) Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 1500+ 36 MHz - 12 MHz 1200+ 34 MHz - 37 MHz 900+ 35 MHz - 33 MHz +/- 50 MHz 600+ 26 MHz - 28 MHz 300+ 22 MHz - 29 MHz 2. RADIATED FIELD STRENGTHDATA SHEET (FCC Measurement Procedure MP-5) FCC ID: APYDMR0122 Model R-530C Magnetron: 2M167B, mfd by Matsushita Date: December 3-8, 1998 Frequency Load Place of Antenna Cable Reading Radiated the load Factor Loss Data Field Strength (MHz) (ml) (dB) (dB) (dBuV @:3m) (uV/m @:300m) Vertical Horizen Vertical Horizen Fundamental 2474 1500 Center 20.70 1.03 87 86 1745.85 1555.99 2nd Harmonic 4921 1050 Center 20.50 1.58 34 28 6.37 3.19 4942 1050 R.F.Corner 20.50 1.58 29 27 3.58 2.84 4923 450 Center 20.50 1.58 33 27 5.68 2.84 4944 450 R.F.Corner 20.50 1.58 30 29 4.02 3.58 3rd Harmonic 7415 1050 Center 19.20 2.10 40 41 11.62 13.03 7422 1050 R.F.Corner 19.20 2.10 37 37 8.22 8.22 7404 450 Center 19.20 2.10 40 43 11.62 16.41 7427 450 R.F.Corner 19.20 2.10 37 39 8.22 10.35 4th Harmonic 9884 1050 Center 20.00 2.65 35 32 7.63 5.40 Sprious F<1000, 4575<F 7804 1050 Center 19.60 2.20 35 39 6.92 10.97 8305 1050 Center 19.80 2.30 42 45 16.03 22.65 14777 1050 Center 19.20 3.70 31 32 4.95 5.56 Spurious 1000<F<4575 2376 1050 Center 20.70 1.00 38 31 5.94 2.65 Emission Sideband 2400 1500 Center 20.70 1.01 48 49 18.99 21.31 2415 1500 Center 20.70 1.02 63 58 107.55 60.48 2485 1500 Center 20.70 1.03 45 52 13.92 31.17 2500 1500 Center 20.80 1.04 23 24 1.13 1.26 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above d ata. Microwave Leakage at 5 cm on fundamental : 0.2 mW/cm 2 Since the RF output power rating is more than 1000 W, the load for measurment was increased 50%. 1. FREQUENCY MEASUREMENTS FCC ID: APYDMR0122 Tested Unit: Microwave Oven, Model R-530C Magnetron Type No.: 2M253J(L), mfd by Toshiba Tested: December 10, 1998 (1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1500 cc water in the glass beaker (Note: Since the RF output power is rated 1100 watts (more than 1000 watts), the load was increased 50 %) Line Voltage Variation (V) Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 96 (80%)+ 30 MHz - 32 MHz 108 (90%)+ 30 MHz - 34 MHz 120 (Nominal)+ 31 MHz - 38 MHz +/- 50 MHz 132 (110%)+ 30 MHz - 30 MHz 150 (125%)+ 30 MHz - 27 MHz (2) Frequency VS Load Variation Test Test Results (room temperature: 20 degC) Initial Load: 1500 cc water in the glass beaker (Note: Since the RF output power is rated 1100 watts (more than 1000 watts), the load was increased 50 %) Volume of Water (cc) Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 1500+ 31 MHz - 38 MHz 1200+ 32 MHz - 31 MHz 900+ 23 MHz - 27 MHz +/- 50 MHz 600+ 27 MHz - 26 MHz 300+ 23 MHz - 19 MHz 2. RADIATED FIELD STRENGTHDATA SHEET (FCC Measurement Procedure MP-5) FCC ID: APYDMR0122 Model R-530C Magnetron: 2M253J(L), mfd by Toshiba Date: December 8-10, 1998 Frequency Load Place of Antenna Cable Reading Radiated the load Factor Loss Data Field Strength (MHz) (ml) (dB) (dB) (dBuV @:3m) (uV/m @:300m) Vertical Horizen Vertical Horizen Fundamental 2478 1500 Center 20.70 1.03 87 89 1748.48 2201.21 2nd Harmonic 4922 1050 Center 20.50 1.58 40 37 12.71 9.00 4941 1050 R.F.Corner 20.50 1.58 43 37 17.95 9.00 4927 450 Center 20.50 1.58 40 39 12.71 11.32 4942 450 R.F.Corner 20.50 1.58 41 37 14.26 9.00 3rd Harmonic 7341 1050 Center 19.20 2.10 38 32 9.23 4.62 7338 1050 R.F.Corner 19.20 2.10 41 35 13.03 6.53 7343 450 Center 19.20 2.10 38 33 9.23 5.19 7336 450 R.F.Corner 19.20 2.10 36 32 7.33 4.62 4th Harmonic 9832 1050 Center 20.00 2.65 46 45 27.07 24.13 Sprious F<1000, 4575<F 8326 1050 Center 19.80 2.30 32 33 5.07 5.69 17227 1050 Center 18.70 4.21 45 46 24.86 27.89 Spurious 1000<F<4575 2378 1050 Center 20.70 1.00 46 47 14.93 16.76 Emission Sideband 2400 1500 Center 20.70 1.01 51 51 26.82 26.82 2415 1500 Center 20.70 1.02 60 59 76.14 67.86 2485 1500 Center 20.70 1.03 24 25 1.24 1.39 2500 1500 Center 20.80 1.04 24 24 1.26 1.26 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above d ata. Microwave Leakage at 5 cm on fundamental : 0.22 mW/cm 2 Since the RF output power rating is more than 1000 W, the load for measurment was increased 50%. 1. FREQUENCY MEASUREMENTS FCC ID: APYDMR0122 Tested Unit: Microwave Oven, Model R-530C Magnetron Type No.: 2M246, mfd by LG Electronics Tested: December 17, 1998 (1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1500 cc water in the glass beaker (Note: Since the RF output power is rated 1100 watts (more than 1000 watts), the load was increased 50 %) Line Voltage Variation (V) Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 96 (80%)+ 44 MHz - 34 MHz 108 (90%)+ 46 MHz - 4 MHz 120 (Nominal)+ 45 MHz - 31 MHz…

Text truncated - open the document above for the full version.
