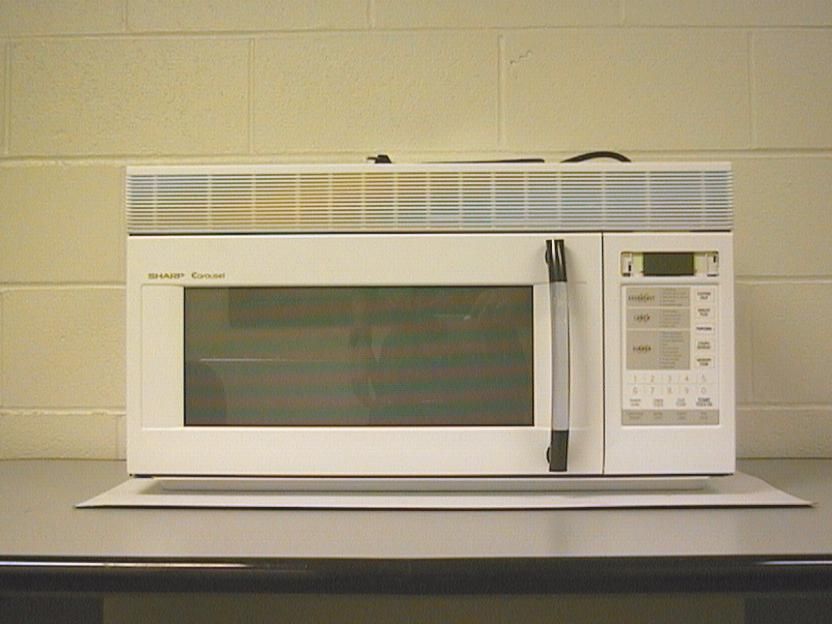

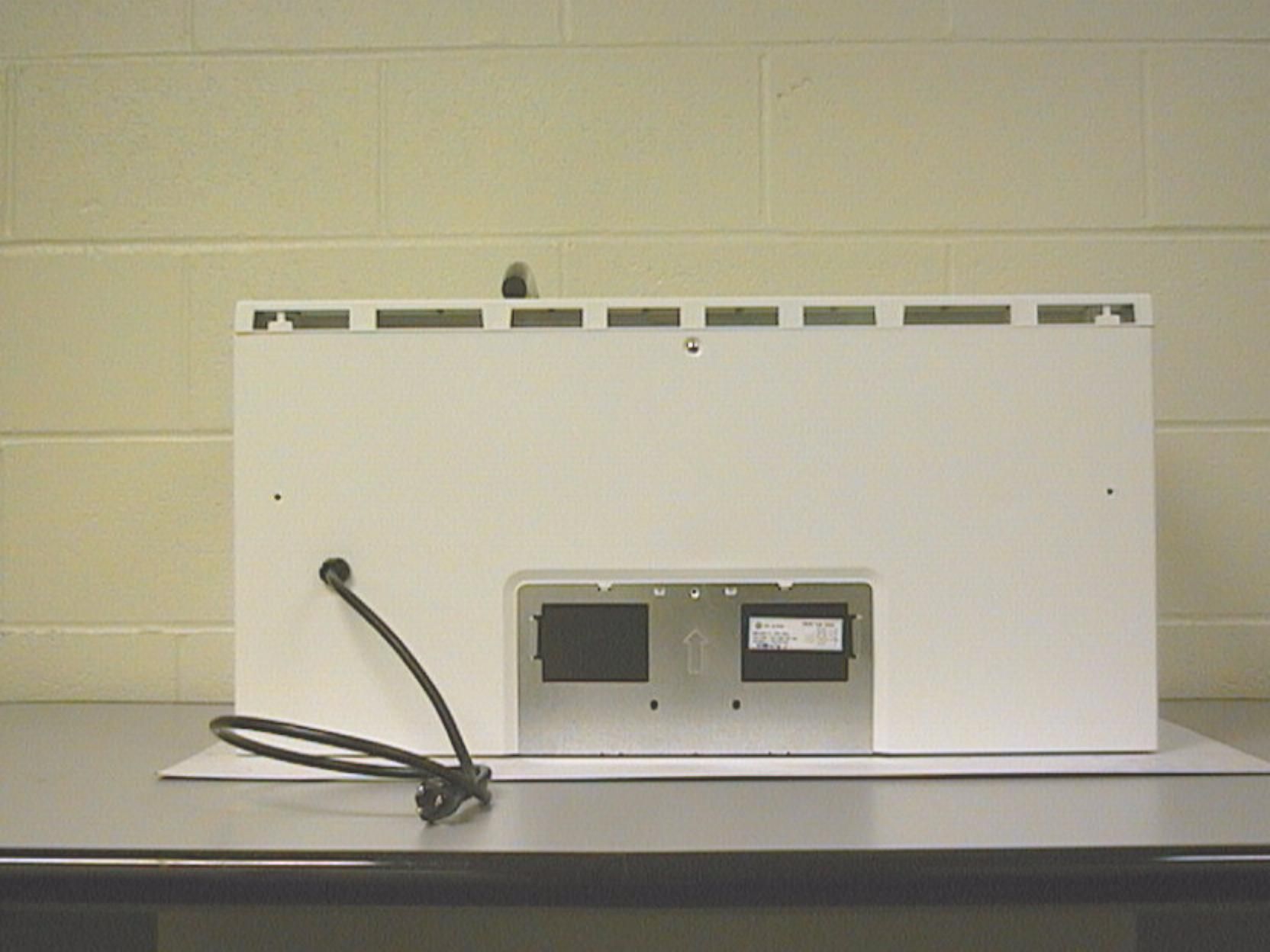

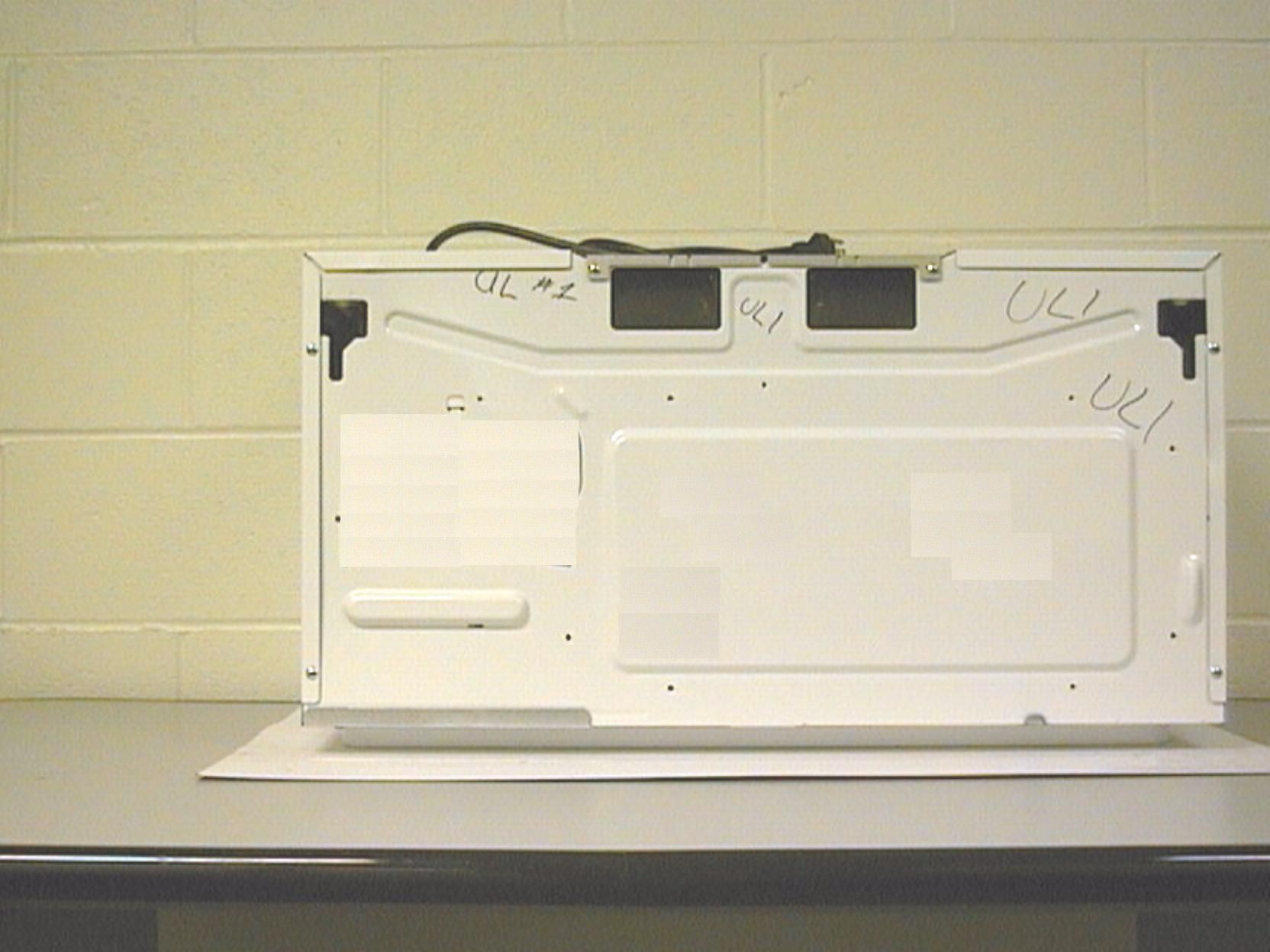

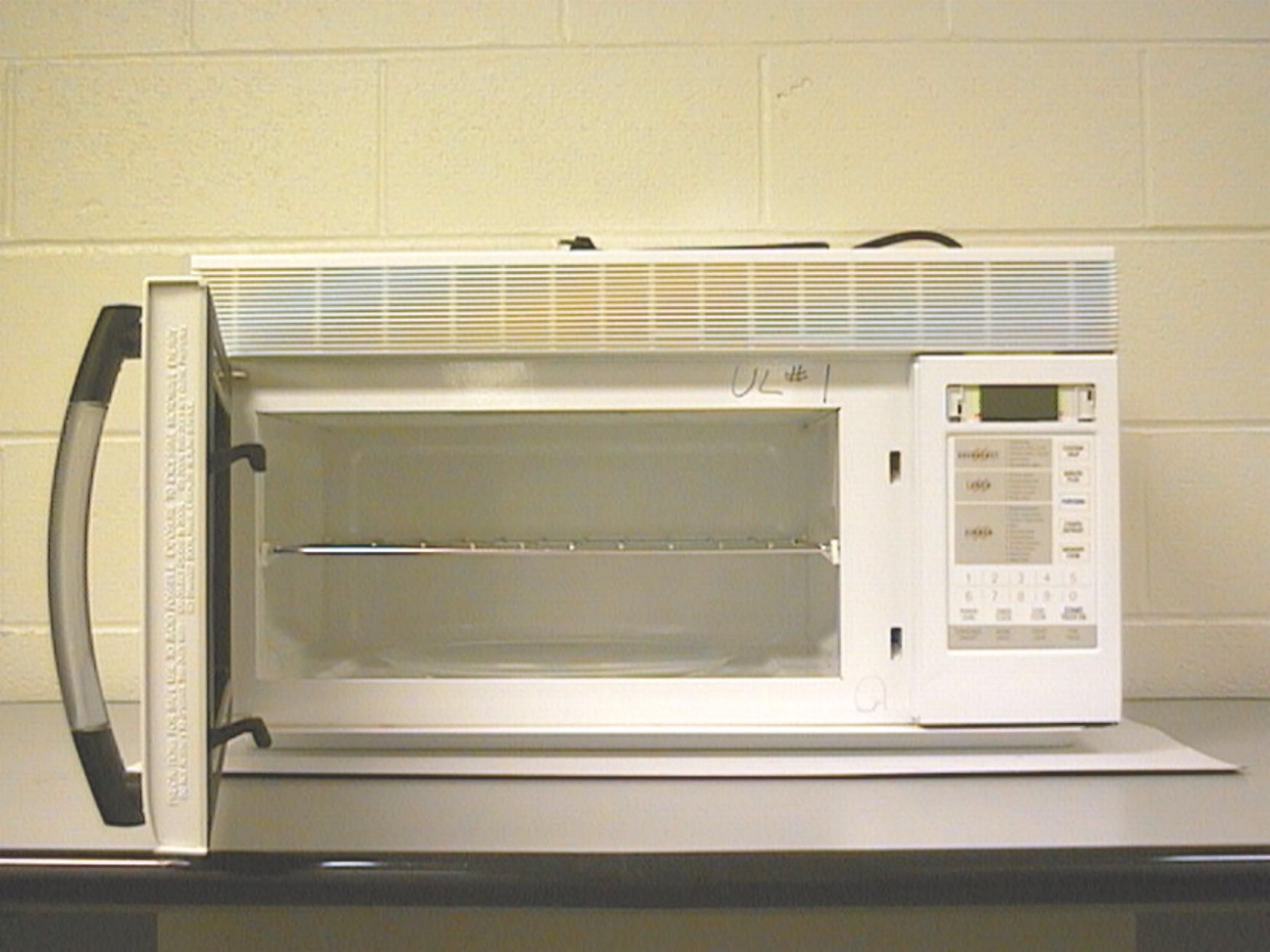

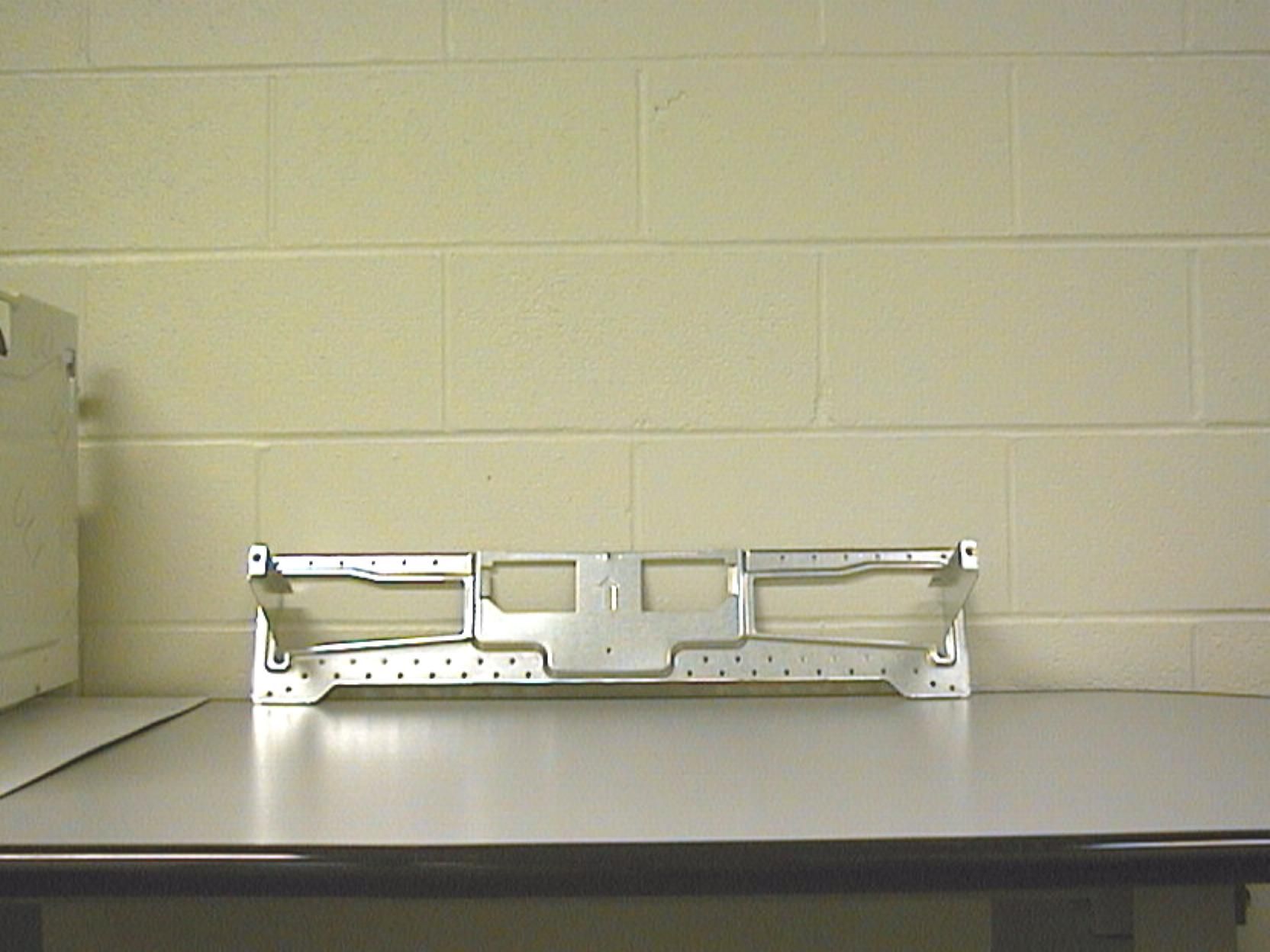

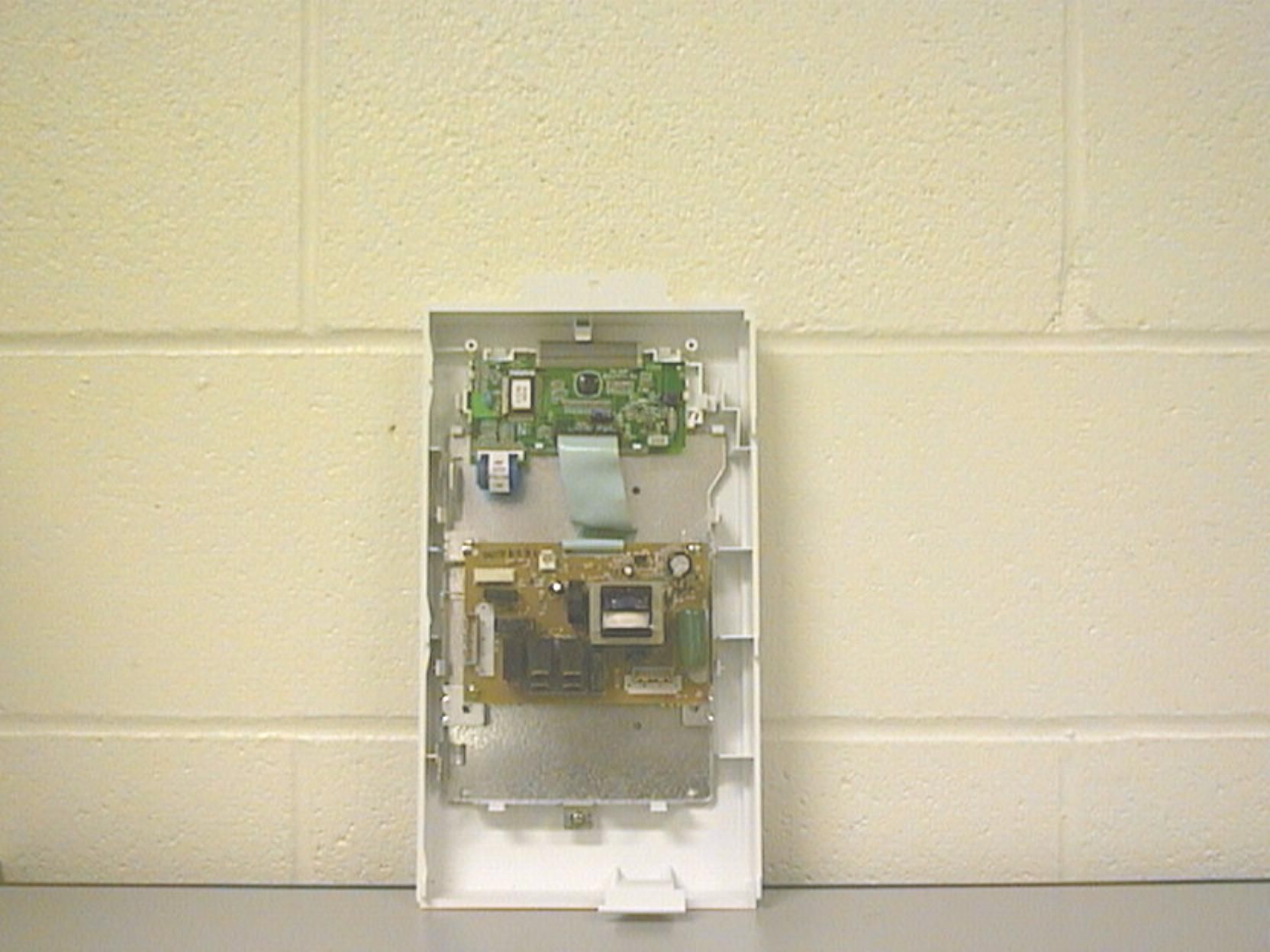

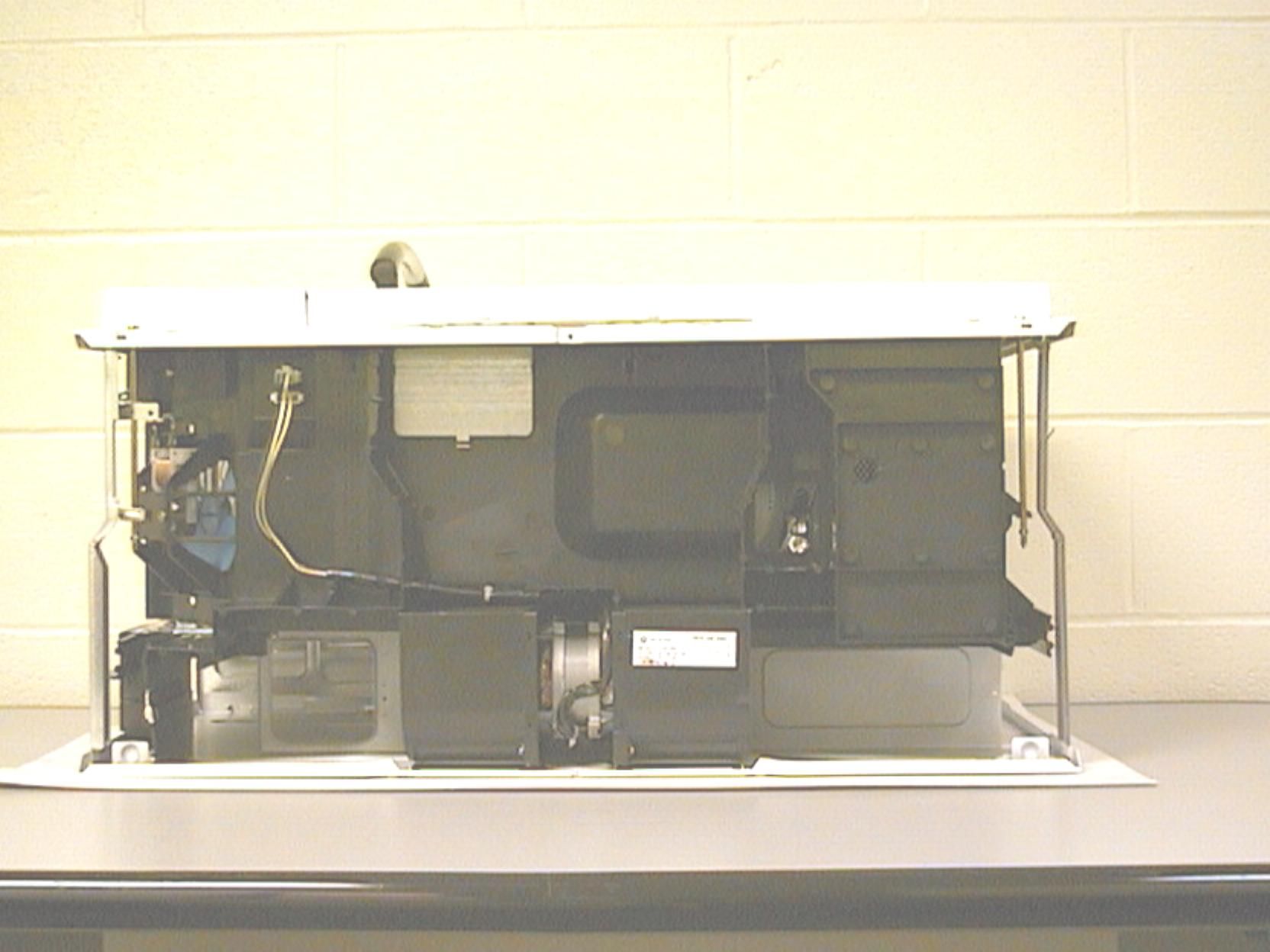

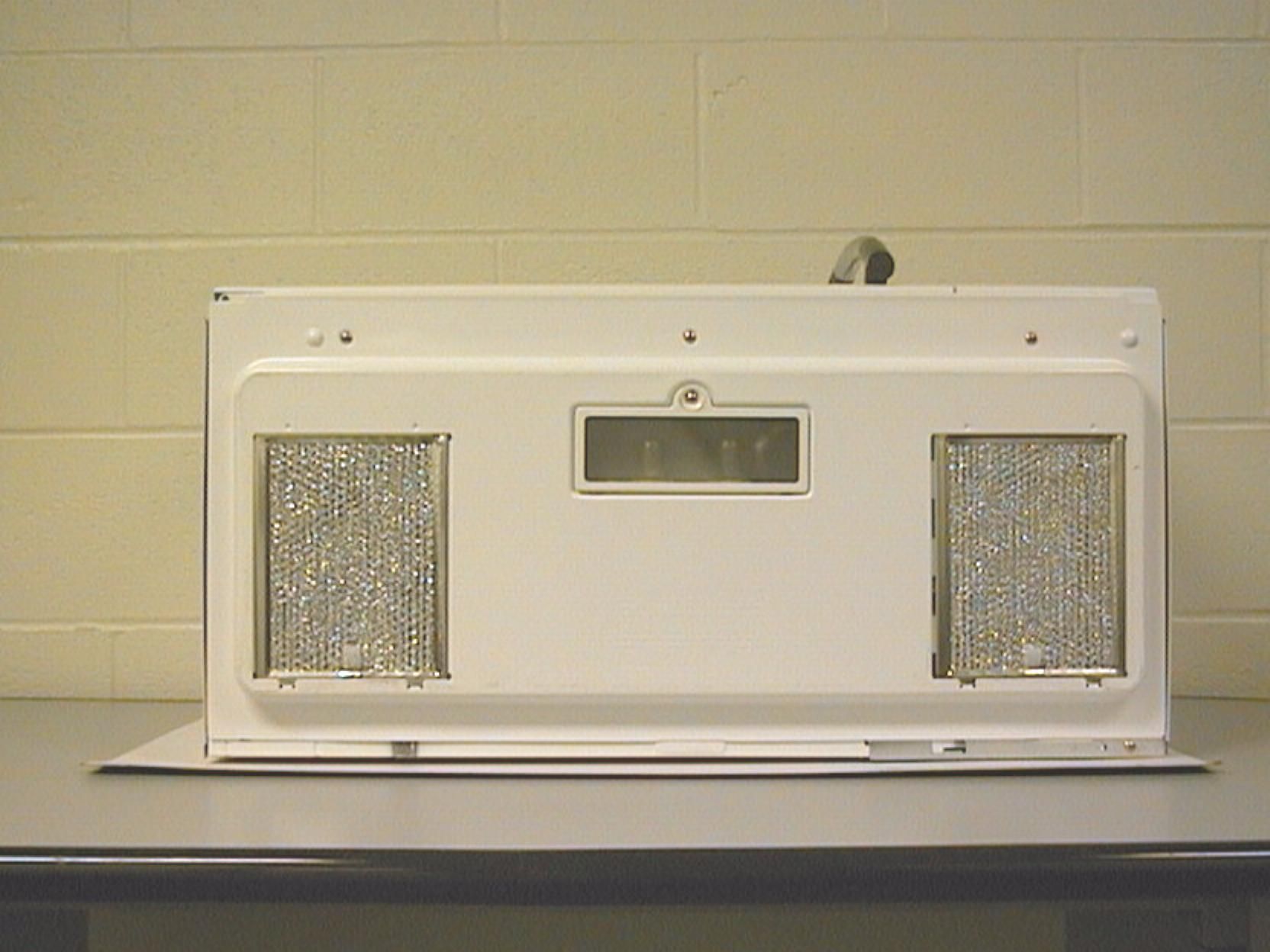

APYDMR0123Household Microwave Oven

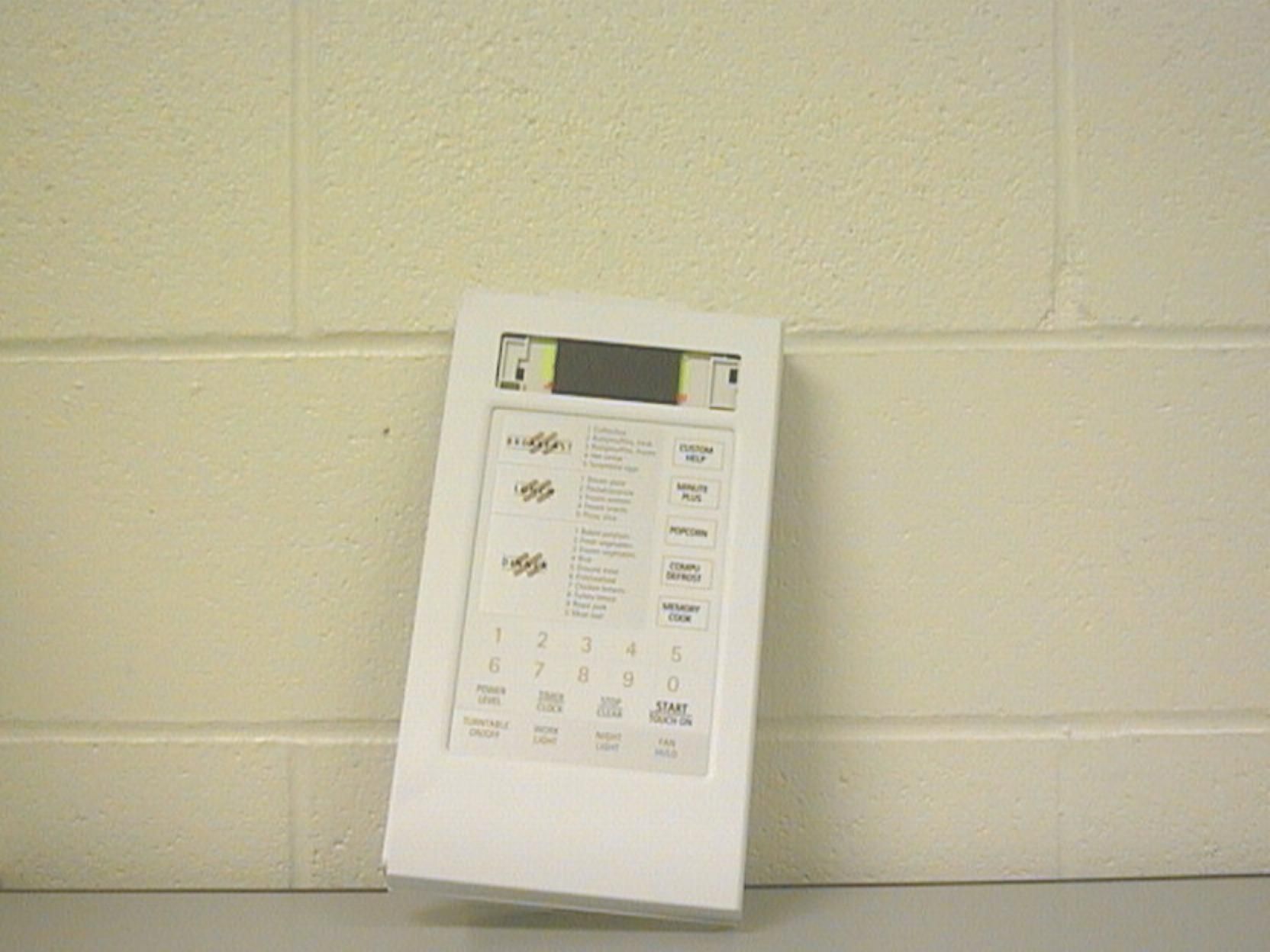

OVER THE RANGE MICROWAVE OVEN Read all instructions carefully before using the oven. OPERATION MANUAL MODELS R-1600 R-1601 R-1602 TO PHONE: DIAL 1-800-BE-SHARP (237-4277) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and COOKBOOK DIAL (201)529-8703 for : COOKING ASSISTANCE TO WRITE: For cooking and operation questions: Susan Edwards/Test Kitchen Sharp Electronics Corporation Sharp Plaza, Box 650 Mahwah, NJ 07430-2135 For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. TO ACCESS INTERNET: www.sharp-usa.com To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBER________________________SERIAL NUMBER______________ DATE OF PURCHASE______________________ DEALER____________________________TELEPHONE________________ SERVICER___________________________TELEPHONE________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. FOR CUSTOMER ASSISTANCE 1 CONTENTS For Customer Assistance ....Inside Front Cover Precautions to Avoid Possible Exposure to Excessive Microwave Energy............ Inside Front Cover Contents ......................................................1 Consumer Limited Warranty .....................2 Product Information Card ..........................2 Important Safety Instructions ...................3 Unpacking Instructions .............................4 Optional Accessories ................................4 Grounding Instructions .............................4 Information You Need to Know .................5-7 About Your Oven ......................................5 About Food ...............................................5 About Microwave Cooking ........................6 About Safety .............................................6 About Utensils and Coverings ..................7 About Children and the Microwave ...........7 Part Names .................................................8 Touch-Control Panel ..................................9 Before Operating........................................10 To Set the Clock .......................................10 Stop/Clear .................................................10 Manual Operation .......................................10-11 Time Cooking ............................................10 To Set Power Level .................................. 10-11 Turntable On/Off .......................................11 Special Features......................................... 12-16 Breakfast/Lunch/Dinner ............................12 Breakfast Chart .........................................12 Lunch Chart ..............................................13 Dinner Chart .............................................14 INTERACTIVE COOKING SYSTEM The Interactive Cooking System with 2-line, 16 digit display offers step-by-step instructions for using the oven, from setting the clock to programming each feature. It also includes Custom Help for instructions on using Child Lock, Audible Signal Elimination and Auto Start. There is a choice of English, Spanish or French and a choice of U.S. Customary Unit-pound or Metric-kilograms. Touch CUSTOM HELP and follow the directions displayed or check page 18. CompuDefrost ...........................................15 CompuDefrost Chart .................................15 Manual Defrost ..........................................16 Popcorn ....................................................16 Other Convenient Features....................... 17-19 Multiple Sequence Cooking ......................17 More or Less Time Adjustment .................17 Memory Cook ............................................17 Custom Help .............................................18 1. Child Lock ............................................18 2. Audible Signal Elimination ...................18 3. Auto Start .............................................18 4. & 5. Language/Weight Selection ..........18 Kitchen Timer ............................................18 Touch On ..................................................19 Minute Plus ...............................................19 Demonstration Mode ................................19 Help ..........................................................19 Work Light .................................................19 Night Light .................................................19 Fan ............................................................19 Reheating Chart .........................................20 Fish and Seafood Cooking Chart .............20 Service Call Check .....................................21 THE ULTIMATE ACCESSORY ...................21 Specifications .............................................22 Co…

Text truncated - open the document above for the full version.

February 24, 1999 Federal Communications Commission C/O Mellon Bank 525 William Penn Way Room 153-2713 Pittsburgh, PA 15259-0001 Attn.: Wholesale Lockbox Supervisor Subject: Part 18 Certification for Microwave Oven Models: R-1600, R-1601, R-1602, R-1610, R-1611, & R-1612. Brand Name:Sharp FCC ID Number:APYDMR0123 Applicant:Sharp Corporation Manufacturer:Sharp Manufacturing Company of America Dear Sirs, Sharp Manufacturing Company of America requests certification for the subject models under Part 18 of the FCC Rules. Enclosed you will find a completed FCC Form 731 and supporting exhibits. A list of exhibits is included directly behind the FCC Form 731. If you should have any questions concerning this application please contact myself, (901) 367- 5150 or Mr. Steve Petruska, (201) 529-9689. Thank you. Sincerely, Derek Shannon Derek Shannon Compliance Engineer Microwave Oven Division Enclosure FCC ID: APYDMR0123 INFORMATION FOR CERTIFICATION APPLICANT: Name:Sharp Corporation, Reliability Control Group Address:22-22 Nagaike-Cho, Abeno-Ku Osaka 545, Japan Grantee Code:APY Applicant Representative:Mr. K. Aoyagi REPORTED BY: Name:Sharp Manufacturing Company of America Address:Sharp Plaza Blvd., Memphis, TN 38193 CONTACT PERSON: Name:Sharp Electronics Corporation Address:Sharp Plaza, Mahwah, New Jersey 07430 Applicant Representative:Mr. Steve Petruska Telephone No.:(201) 529-9689 MANUFACTURER: Name:Sharp Manufacturing Company of America Address:Sharp Plaza Blvd., Memphis, TN 38193 FCC IDENTIFIER:APYDMR0123 EQUIPMENT:Microwave Oven Models R-1600, R-1601, R-1602, R-1610, R-1611,& R-1612. FCC ID:APYDMR0123 LIST OF EXHIBITS EXHIBIT A -Purpose of Filing EXHIBIT B -Block Diagram and Schematic Drawing EXHIBIT C -Operations Manual EXHIBIT D -Identification Label EXHIBIT E -Photographs EXHIBIT F -Measurement Report FCC ID: APYDMR0123 EXHIBIT A PURPOSE OF FILING The purpose of this filing is to request certification for a new model family of microwave ovens. The output power for this model family is 1000 watts as measured by the IEC 705 method, 1988 revision. These models are designed to be installed above a conventional range or cooktop. The Magnetrons used with these models have been used on previously certified products. The power transformer is a new design. The chassis design and waveguide are similar to the design for models listed under FCC ID APYDMR0118. There are some modifications in the dimensions of the cooking area. TECHNICAL REPORT APPLICATION FOR CERTIFICATION February, 1999 FCC ID:APYDMR0123 MODEL NO.:R-1600, R-1601, R-1602, R-1610, R-1611, & R-1612. MAGNETRON TYPE:2M167B (PANASONIC) 2M214 (LG Electronics) EQUIPMENT CLASS: Part 18 Consumer Device EXHIBIT B FCC ID: APYDMR0123 MICROWAVE OVEN BLOCK DIAGRAM Note: Components outlined with dotted line are optional and may not be present on all models. Control Panel H.V. Transformer H.V. Capacitor Magnetron Oven Cavity Fan Motor Lamp Turntable Motor Hood Motor Stirrer Motor Timer Motor Input 120 Vac Heating Element

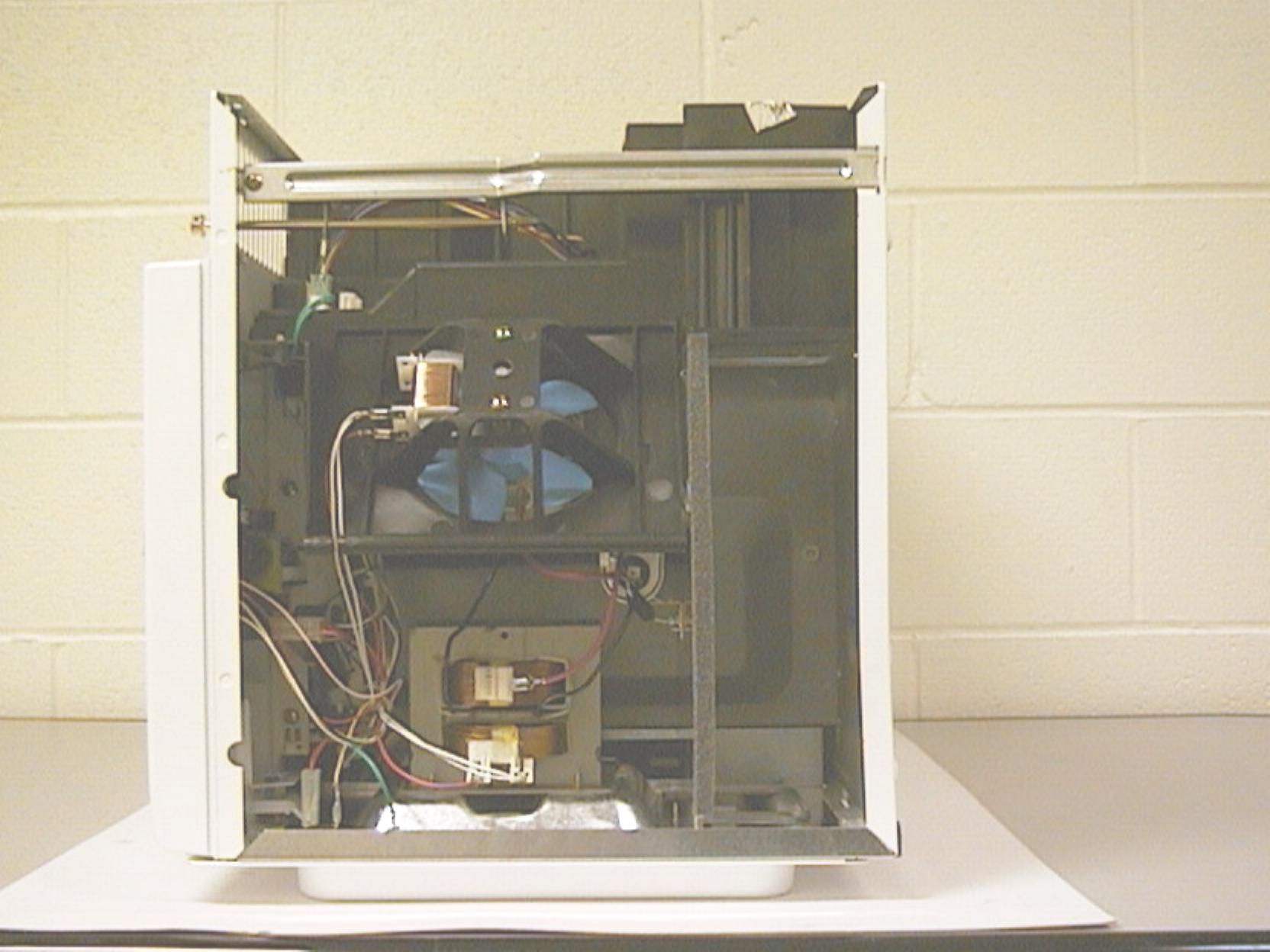

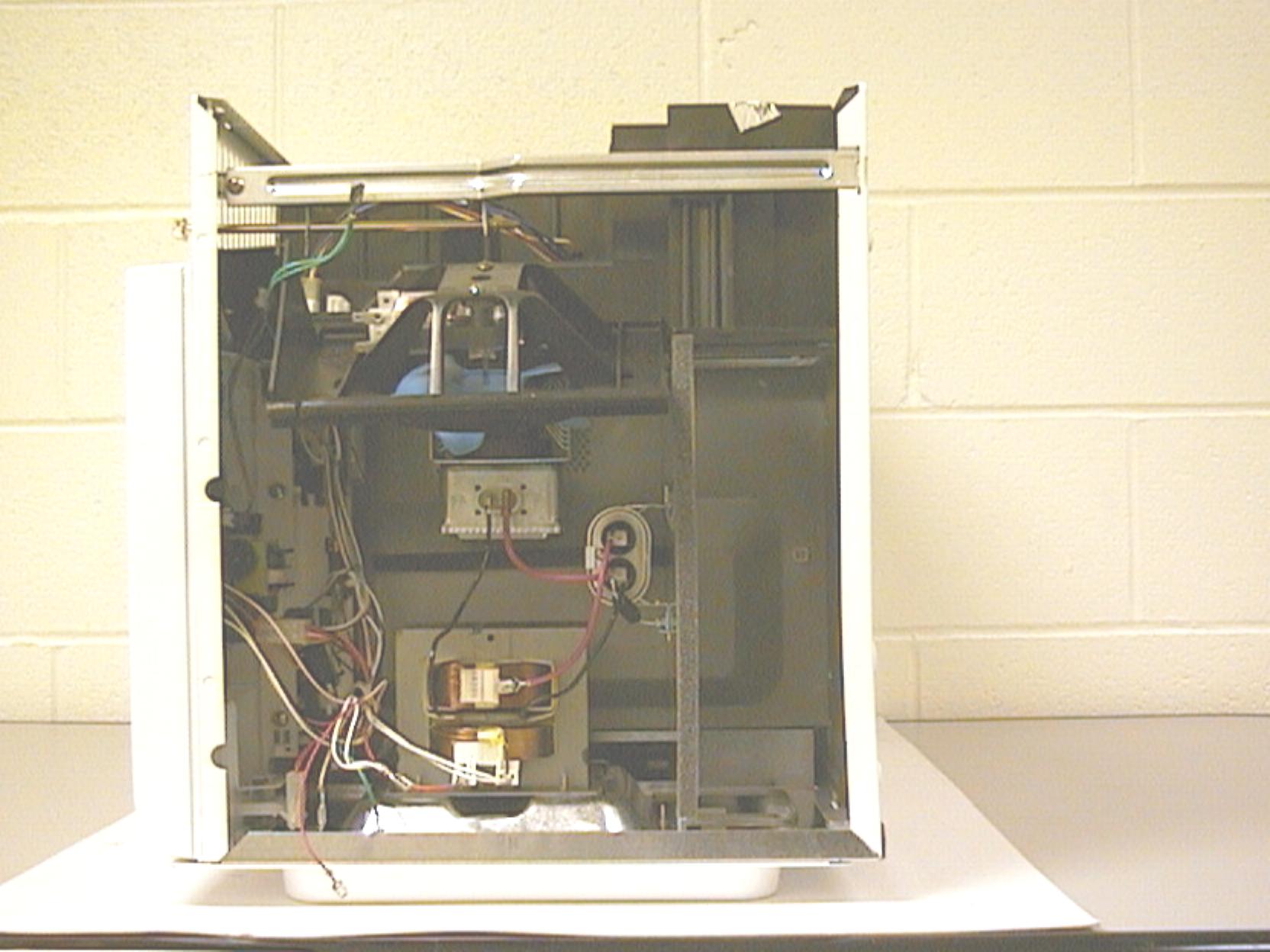

1. FREQUENCY MEASUREMENTS FCC ID: APYDMR0123 Tested Unit: Microwave Oven, Model R-1600 Magnetron Type No.: 2M214, mfd by LG Electronics Tested: February 19, 1999 (1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1000 cc water in the glass beaker Line Voltage Variation (V) Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 96 (80%)+ 28 MHz - 42 MHz 108 (90%)+ 27 MHz - 38 MHz 120 (Nominal)+ 27 MHz - 31 MHz +/- 50 MHz 132 (110%)+ 28 MHz - 39 MHz 150 (125%)+ 29 MHz - 22 MHz (2) Frequency VS Load Variation Test Test Results (room temperature: 20 degC) Initial Load: 1000 cc water in the glass beaker Volume of Water (cc) Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 1000+ 27 MHz - 31 MHz 800+ 31 MHz - 38 MHz 600+ 29 MHz - 9 MHz +/- 50 MHz 400+ 28 MHz - 10 MHz 200+ 33 MHz - 20 MHz 2. RADIATED FIELD STRENGTHDATA SHEET (FCC Measurement Procedure MP-5) FCC ID: APYDMR0123 Model R-1600 Magnetron: 2M214, mfd by LG Electronics Date: February 17 - 19, 1999 Frequency Load Place of Antenna Cable Reading Radiated the load Factor Loss Data Field Strength (MHz) (ml) (dB) (dB) (dBuV @:3m) (uV/m @:300m) Vertical Horizen Vertical Horizen Fundamental 2442 1000 Center 20.70 1.03 75 76 433.22 486.08 2nd Harmonic 4910 700 Center 20.50 1.58 30 27 4.02 2.84 4914 700 R.F.Corner 20.50 1.58 32 27 5.06 2.84 4923 300 Center 20.50 1.58 33 28 5.68 3.19 4922 300 R.F.Corner 20.50 1.58 35 28 7.15 3.19 3rd Harmonic 7339 700 Center 19.20 2.10 20 17 1.16 0.82 7343 700 R.F.Corner 19.20 2.10 17 15 0.82 0.65 7341 300 Center 19.20 2.10 17 16 0.82 0.73 7339 300 R.F.Corner 19.20 2.10 20 19 1.16 1.04 4th Harmonic 9837 700 Center 20.00 2.65 17 15 0.96 0.76 Sprious F<1000, 4575<F 8623 700 Center 19.80 2.38 19 18 1.15 1.02 17277 700 Center 18.70 4.22 37 40 9.91 14.00 Spurious 1000<F<4575 2517 700 Center 20.80 1.04 21 22 0.90 1.01 Emission Sideband 2400 1000 Center 20.70 1.01 34 41 3.79 8.48 2415 1000 Center 20.70 1.02 46 48 15.19 19.13 2485 1000 Center 20.70 1.03 15 14 0.44 0.39 2500 1000 Center 20.80 1.04 18 15 0.63 0.45 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above d ata. Microwave Leakage at 5 cm on fundamental : 0.15 mW/cm 2 PHOTOGRAPH OF TEST EQUIPMENT #1 Spectrum AnalyzerField Strength MeterHorn Antenna 8566BNM-67 Turn Table Controller PHOTOGRAPH OF TEST EQUIPMENT #2 Horn Antenna Field Strength Meter NM-67 PHOTOGRAPH OF TEST EQUIPMENT #3 Microwave OvenWooden Table Test Sample Transparent Turn Table

Panasonic Panasonic Industrial Company1707 N. Randall Road Diversified Technologies Group Division of Matsushita ElectricE-Zip: 1F-2 Magnetron Tube Department Corporation of AmericaElgin, IL 60123-7847 TEL : ( 847) 468-5744 Fax: ( 847 ) 468-5773 FEB 25 , 1999 ELECTROMAGNETIC RADIATION TEST OF MICROWAVE OVEN Report No. CALR-FCC-097 Page. 1 This is to certify that the MICROWAVE OVEN from which the following data have been derived through the required measurements in Panasonic's test facility that have been filed with FCC file No. 31010/EQU 4-3-0A. Oven Model : OTR7 Magnetron Model : 2M167 1. Power Density Safety Check ConditionLoad - Water 275cc center EquipmentNarda 8110B Power density0.20 ( mW/cm 2 ) 2. Input Power Line Volt (V)Input I (A)Input Power (W)Load Condition 12015.5516601000cc / 20 degC 3. Output Power Condition Water load : 1000cc×1 / 20 deg C, Tim : 120sec Temp 1 ( deg C )Temp 2 ( deg C )T2 - T1 ( deg C )Output Power(W) 19.5044.1024.60861.0 4. Harmonics HarmonicsFrequency (MHz)Load ConditionFIS(uV/m) @300m 2nd4917700cc center3.27 3rd7014700cc center1.32 4th9798700cc center1.91 Note : 2nd and 3rd Harmonics are measured with load 300cc and 700cc in the center or right front position. 5. Permissible Formula SQR(861/500)×25uV/m @300m Permissible32.81 Report No. CALR-FCC-097 Page. 2 6. Side Band Frequency (MHz) FIS(uV/m) @300 Load Condition 24009.34700cc center 25000.51700cc center 7. Frequency Run (1) Frequency VS Line Voltage Variation Test Test Results ( Room Temperature : 20 deg C Line VoltageFrequencyDeviation for ISM Variation ( V )( MHz ) Frequency ( MHz ) 150 ( 125% )246313 135 ( 112.5% )246212 120 ( Nominal )246919 108 ( 90% )246515 96 ( 80%)246212 Load : 1000 cc water in 1000 cc glass beaker (2) Frequency VS Load Variation Test Test Results ( Room Temperature : 20 deg C Volume of FrequencyDeviation for ISM water ( cc )( MHz ) Frequency ( MHz ) 1000246919 800246111 600247424 400246919 2002449-1 Load : 1000 cc water in 1000 cc glass beaker 8. Fundamental Level Frequency (MHz)FIS(dBuV/m) @3mLoad condition 245694.25700cc center 9. Spurious any emission < 2400MHz & > 2500MHz excluding Harmonics Frequency (MHz)FIS(dBuV/m) @3mLoad condition 239765.71000cc center Tested By M. Okazaki Applications Manager of Magnetron Panasonic Industrial Company 25-Feb-99 Report No. CALR-FCC-097 Page. 3 Description of Instrumentation and calculation (1) Measurement equipment a. Field Strength Meter : Electro-Metrics Model EMC-50 Bandwidth Setting : 1 MHz Detector Function : Linear Average Detection b. Receiving Antenna : Electro-Metrics Model RGA-180 Frequency Range : 1 - 18 GHz c. Microwave Survey Meter : Narda Model 8110B (2) Test Condition a. Antenna Height Variation : 1.0 - 1.5 m b. Distance of Antenna to Test unit : 3.0 m c. Test Unit Height : 1.0 m (3) Calculation Formula Field Strength at 3 m ( dBuV/m ) = Receiver Reading + Antenna Factor + Cable Loss ( dBuV )(dB/m )( dB ) Field Strength at 300 m ( dBμV/m ) Field Strength at 3 m ( dBuV/m ) = K * 10 20 K : Conversion Factor for 3 m to 300 m Frequency Antenna FactorCable LossConv. Factor (MHz)(dB/m)(dB)K 240029.00.70.0061 Fundamental29.30.70.0062 250029.50.70.0063 490033.40.90.01 735036.51.20.01 980038.21.40.01 Example : 2nd Harmonics Receiver Reading = 20 dB @ 3 m 20 + 33.4 + 0.9 FIS = 0.01 * 10 2020=5.19(uV/m) @300 m
