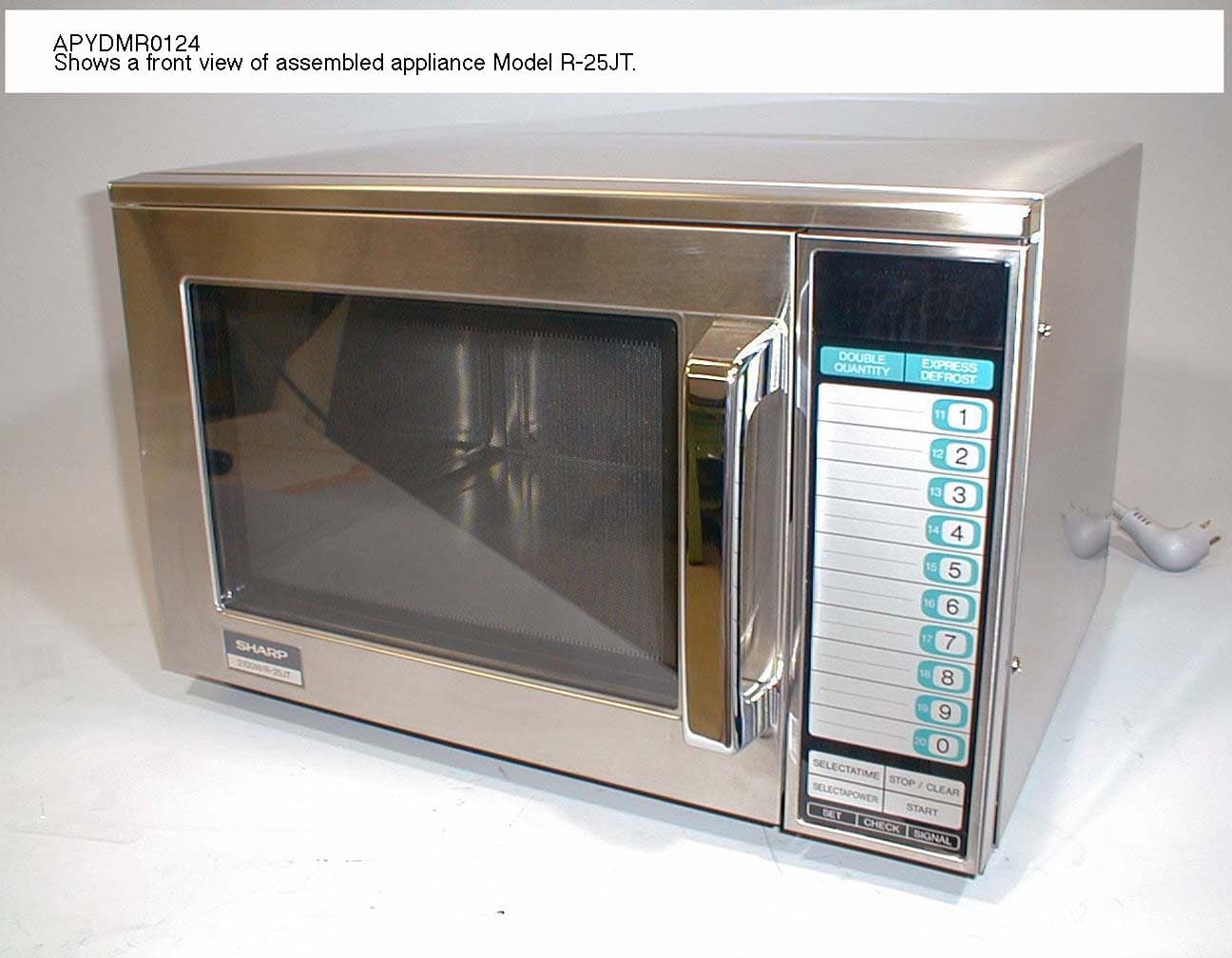

APYDMR0124Commercial Microwave Oven

A31585,R22GV,/22GT/23GT/24GT/25JT TO PHONE: SERVICE and PARTS (for your nearest Sharp Authorized Servicer and Parts Distributor) United States .................................. 1-800-BE-SHARP(237-4277) ADDITIONAL CUSTOMER INFORMATION ............................................. 201-529-8712 TO WRITE: For additional information: Commercial Microwave Oven Department Sharp Electronics Corporation Sharp Plaza, Box 650 Mahwah, NJ 07430-2135 For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. 1200 WATTS/1600 WATTS/1800 WATTS/2100 WATTS-HEAVY DUTY COMMERCIAL MICROWAVE OVEN OPERATION MANUAL ® MODELS R-22GV/R-22GT/R-23GT/R-24GT/R-25JT FOR CUSTOMER ASSISTANCE To aid in reporting this commercial microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBERSERIAL NUMBER DATE OF PURCHASE DealerTelephone ServicerTelephone R22GV/22GT/22GT/24GT/25JT,cover99.6.10, 2:57 PM1 A31585,R22GV,/22GT/23GT/24GT/25JT 1 Manual Operations ........................................ 11 Time cooking .............................................. 11 Multiple sequence cooking ......................... 11 Express Defrost ......................................... 12 Express Defrost Chart ................................ 12 Counter check ............................................ 13 Other Convenient Features ........................... 14 Signal setting ............................................. 14 Demonstration mode .................................. 14 Care and Cleaning ........................................ 15 Cooking Guide .............................................. 16 Utensils ...................................................... 16 Guidelines for microwave heating .............. 17 Timing guide .............................................. 18 Heating and cooking time guide ................. 19 Reminders ..................................................... 21 Specifications ................................................ 21 Auto-Touch Guide ........................... 22•Back cover For Customer Assistance ................ Front cover Contents .......................................................... 1 Precautions to Avoid Possible Exposure to Excessive Microwave Energy ...................... 1 Limited Warranty ............................................. 2 Product Information Card ................................ 2 Important Safety Instructions ........................... 3 Service Call Check .......................................... 4 Grounding Instructions .................................... 5 Installation ....................................................... 6 Part Names ..................................................... 7 Before Operation ............................................. 8 Memory Operation .......................................... 8 Cooking with memory .................................. 8 Cooking double quantity with memory ......... 8 Memory program entry ................................. 9 Memory check ............................................ 10 (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY R22GV/22GT/22GT/24GT/25JT,01-0799.6.10, 2:57 PM1 A31585,R22GV,/22GT/23GT/24GT/25JT 2 Contract your Sharp Authorized Servicer to obtain on- site service for this Product. The Servicer will come to your location and if it is necessary to remove the Product, the Servicer will reinstall it. Be sure to have Proof of Purchase available. Where to Obtain Service: Non-functional accessories and light bulb. Additional Item(s) Excluded from Warranty Coverage (if any): Three (3) years for parts and labor in the end user’s place of business. Warranty Period for this Product: R-22GV/R-22GT/R-23GT/R-24GT or R-25JT Commercial Microwave Oven (Be sure to have this information available when you need service for your oven.) Your Product Model Number & Description: LIMITED WARRANTY TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP. Save the proof of purchase as it is needed should your ovenrequre warranty service. SHARP ELECTRONICS CORPORATION warrants to the first end-user purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part there of with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has bee…

Text truncated - open the document above for the full version.

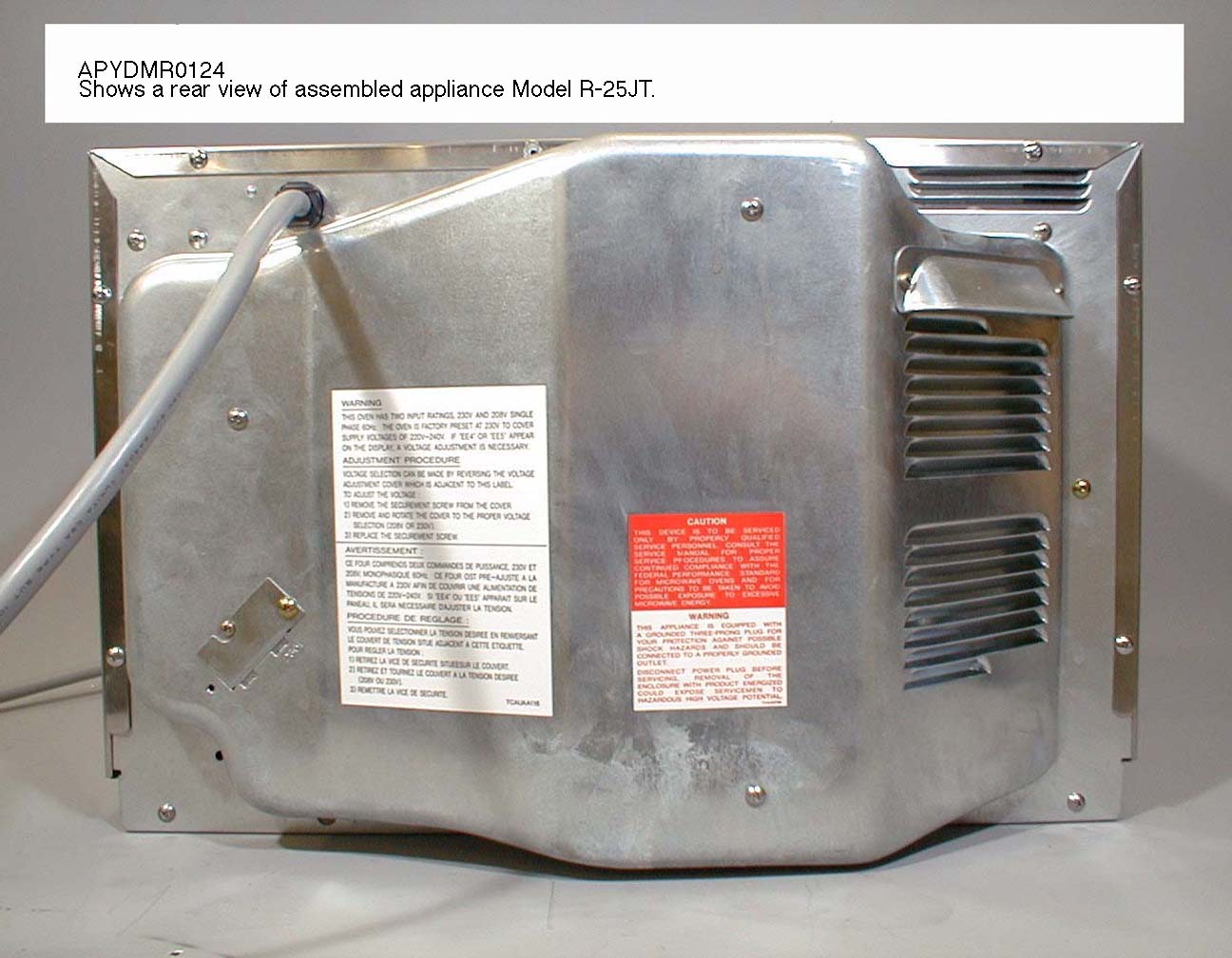

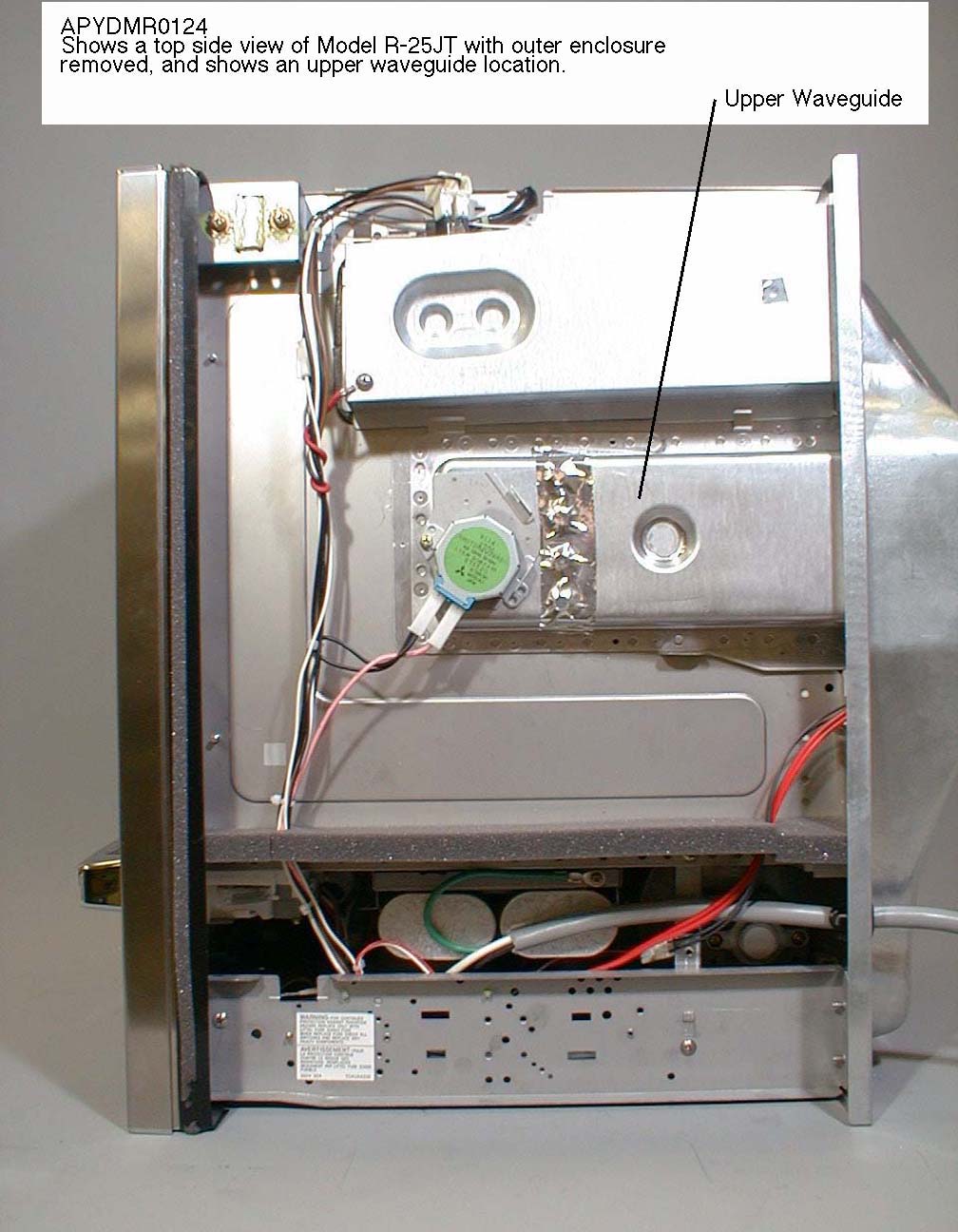

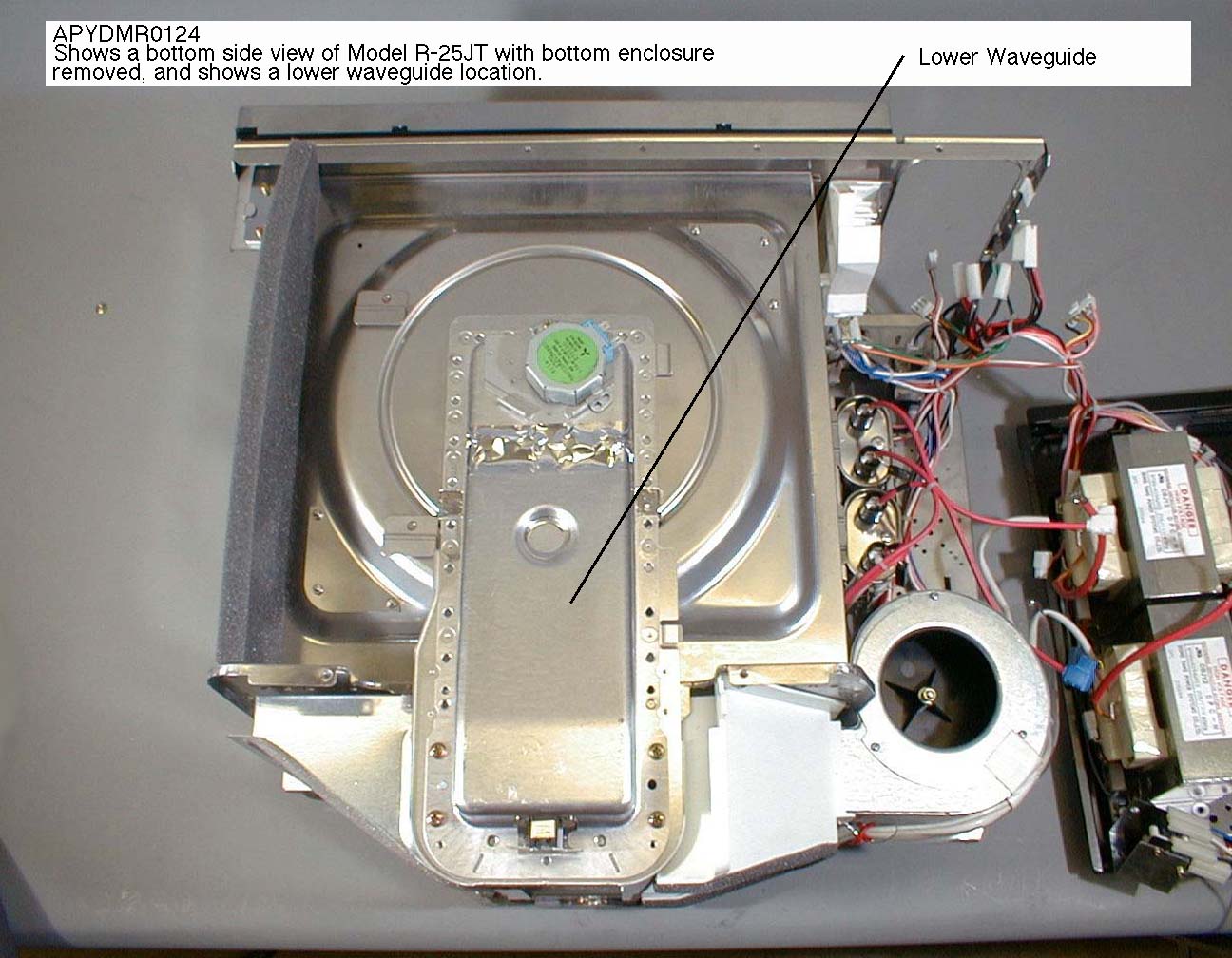

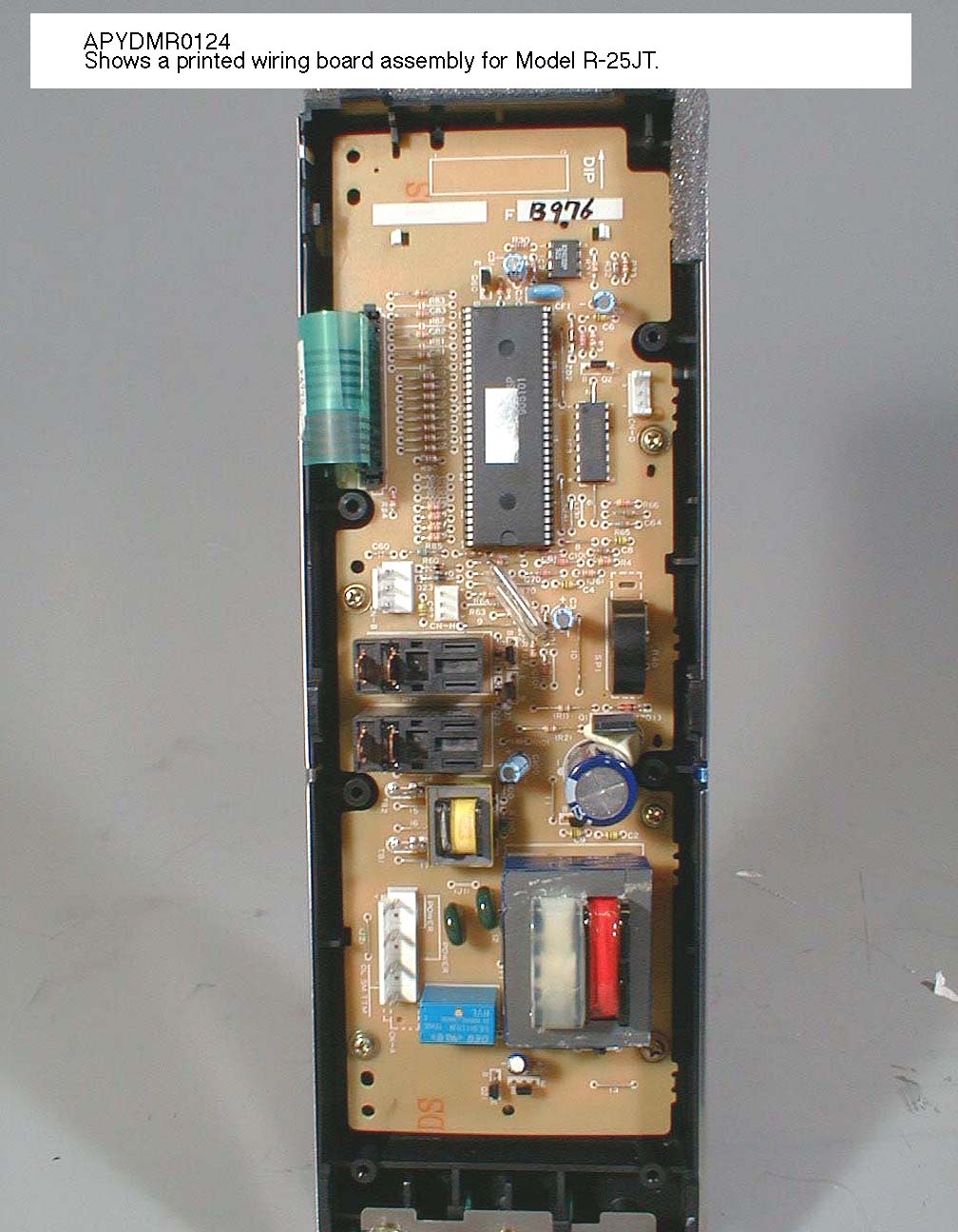

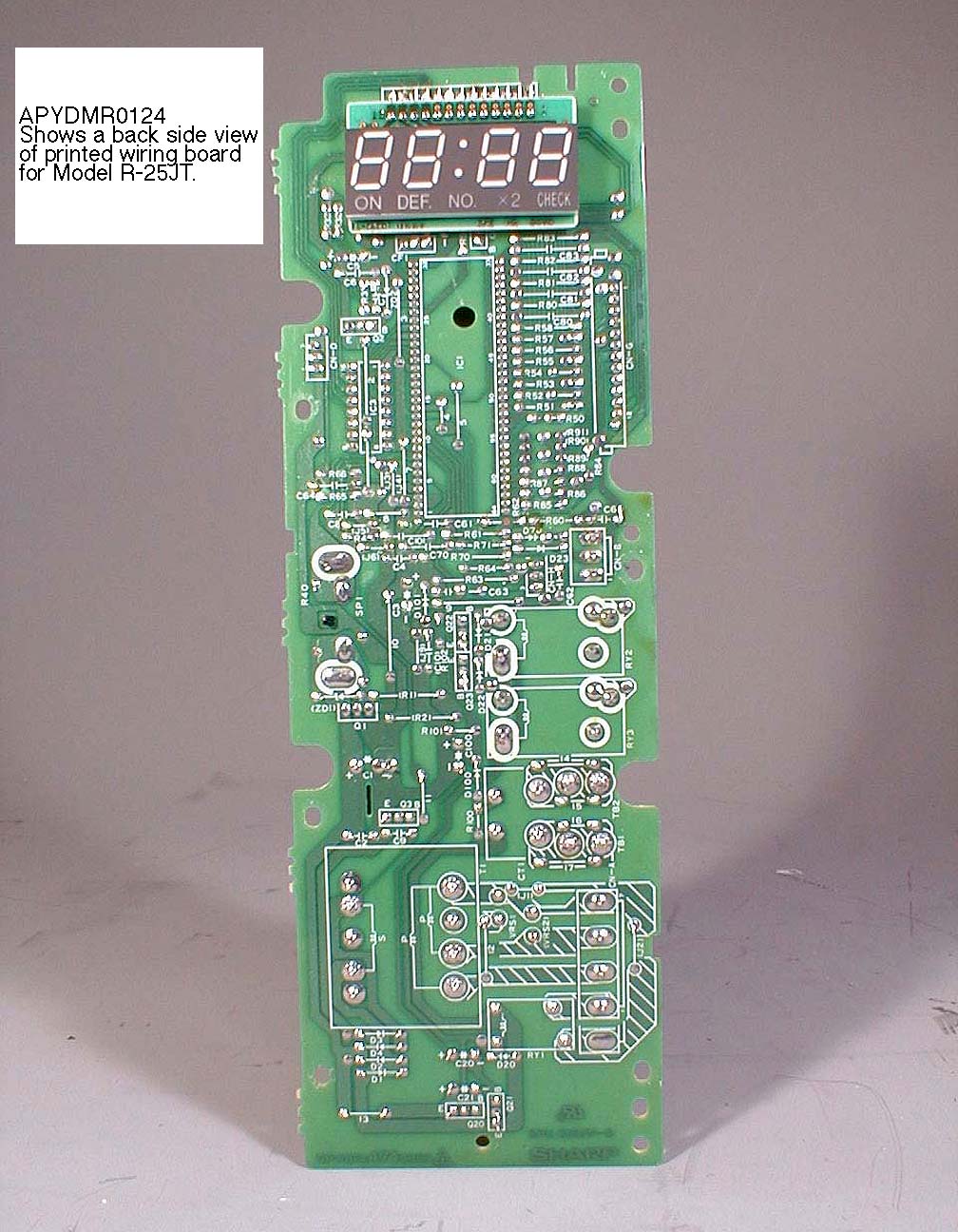

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name: Sharp Corporation, Reliability Control Group Address22-22 Nagaike-Cho, Abeno-Ku Osaka 5 4 5-8522, Japan Grantee Code:: APY Applicant Rep.: K. Aoyagi CONTACT PERSON: Name: Sharp Electronics Corporation Address: Sharp Plaza, Mahwah, New Jersey 07430 Applicant Rep.: Steve Petruska, Product Safety Dept. Telephone No.: 201-529-9299 REPORTED BY: Name:Sharp Corporation, Appliance Systems Group Address 3-1-72 Kitakamei-cho, Yao Osaka 581, Japan MEASUREMENT SITE: Name: Sharp Corporation, Kitchen Appliance Systems Div. EMI Anechoic Chamber Address: 3-1-72 Kitakamei-cho, Yao Osaka 581, Japan MANUFACTURER: Name: Sharp Corporation, Kitchen Appliance Systems Div., Yao Plant Address: 3-1-72 Kitakamei-cho, Yao Osaka 581, Japan FCC IDENTIFICATION: APYDMR0124 EQUIPMENT: Microwave Oven Model R-25JT Brand: Sharp Electronics Corporation Importer: Sharp Electronics Corporation ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 2100 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 2100 W (Measured by IEC705-1988 measurement method) (5) The voltage and current to magnetron: Two magnetrons are provided in this model. For Magnetron Cat. No. 2M248H(L) : 4.24 kVp, 330 mA (6) Function of each electro tube, semiconductor or other active circuit device: Fixed Magnetron, Types 2M248H(L) as power generator (7) Complete circuit diagram: Attached (8) Instruction book: Attached (9) Tune up procedure over the power range or at specific operating power levels: Not adjustable (10) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (11) A description of any circuit or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power: Suppression obtained by shielding design (12) Identification plate or label: Illustration attached Location of identification plate or label: Photo. attached

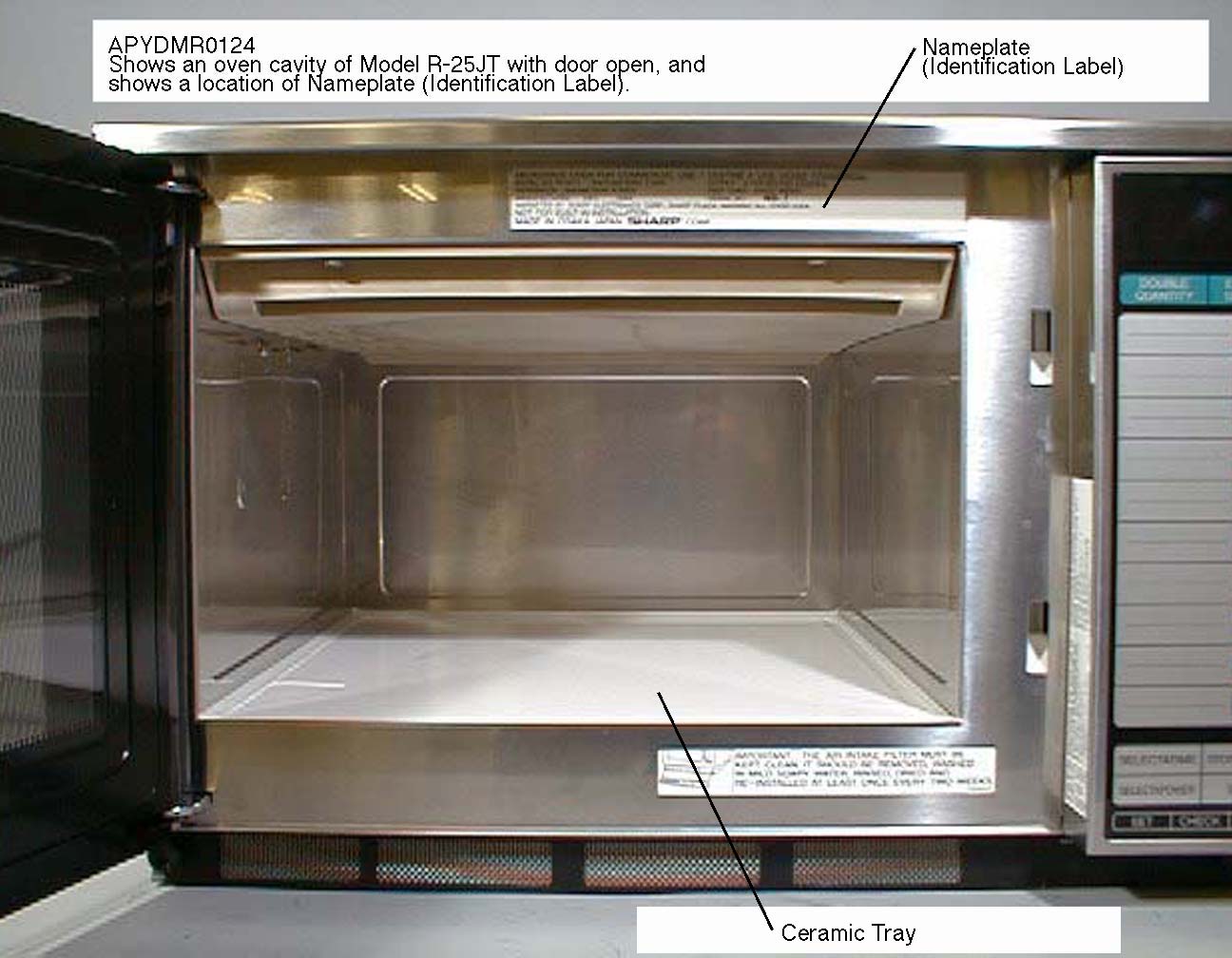

Identification Label (Nameplate Label)FCC ID: APYDMR0124 Label Material: Approx 0.066 mm thick film with back adhesion. For Model R-25JT FCC ID Code APY: FCC assigned grantee code for Sharp Corporation. DMR0124: Number assigned by the grantee to the model or the model family in a technically identical products. Factory ID Mark Y:Manufacturer identification marking for; Sharp Corporation, Kitchen Appliance Systems Div., Yao Plant. 190 mm FCC ID CodeFactory ID Mark 25 mm

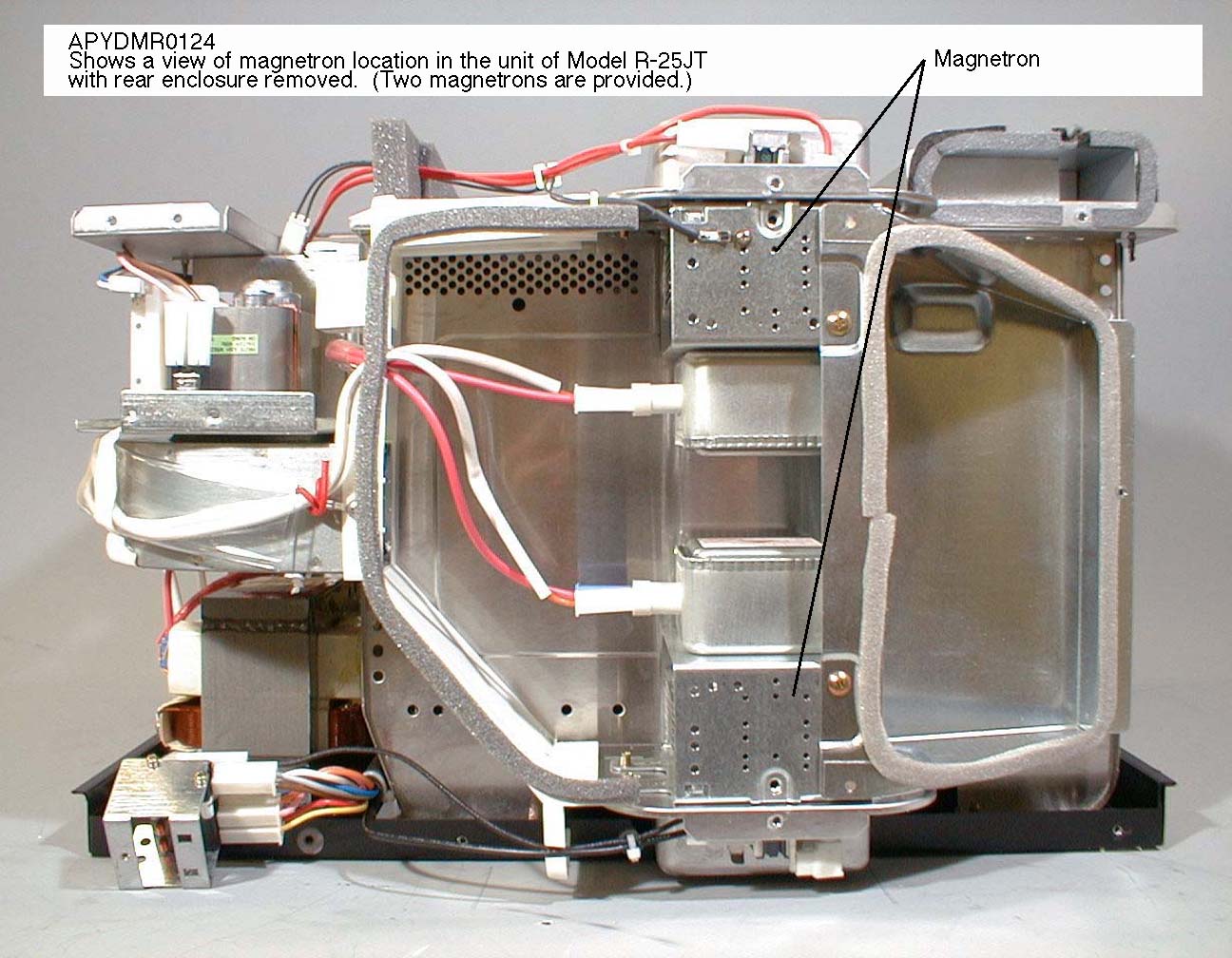

1. FREQUENCY MEASUREMENTS FCC ID: APYDMR0124 Tested Unit: Microwave Oven, Model R-25JT Magnetron Type No.: 2M248H(L), mfd by Toshiba Tested: June 10, 1999 (1-1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 2500 cc water in the glass beaker (Note: Since the RF output power is rated more than 1000 watts (rated output power is 2100 W), the load was increased 50 % per each 500 W or fraction thereof in excess of 1000 watts.) Line Voltage Variation (V) Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 184 (80%)+ 27 MHz - 35 MHz 207 (90%)+ 27 MHz - 32 MHz 230 (Nominal)+ 26 MHz - 26 MHz +/- 50 MHz 253 (110%)+ 22 MHz - 30 MHz 287 (125%)+ 24 MHz - 28 MHz (1-2) Frequency VS Load Variation Test Test Results (room temperature: 20 degC) Initial Load: 2500 cc water in the glass beaker (Note: Since the RF output power is rated more than 1000 watts (rated output power is 2100 W), the load was increased 50 % per each 500 W or fraction thereof in excess of 1000 watts.) Volume of Water (cc) Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 2500+ 26 MHz - 26 MHz 2000+ 24 MHz - 34 MHz 1500+ 24 MHz - 35 MHz +/- 50 MHz 1000+ 25 MHz - 35 MHz 500+ 28 MHz - 38 MHz 2. RADIATED FIELD STRENGTH DATA SHEET (FCC Measurement Procedure MP-5) FCC ID: APYDMR0124 Tested Model: R-25JT Magnetron: 2M248H(L), mfd by Toshiba Date: June 3-10, 1999 Frequency Load Place of Antenna Cable Reading Radiated the load Factor Loss Data Field Strength (MHz) (ml) (dB) (dB) (dBuV @:3m) (uV/m @:300m) Vertical Horizen Vertical Horizen Fundamental 2441 2500 Center 20.70 1.03 64 66 122.05 153.65 2nd Harmonic 4903 1750 Center 20.50 1.58 24 25 2.01 2.26 4903 1750 R.F.Corner 20.50 1.58 22 25 1.60 2.26 4903 750 Center 20.50 1.58 23 26 1.79 2.54 4903 750 R.F.Corner 20.50 1.58 23 26 1.79 2.54 3rd Harmonic 7370 1750 Center 22.00 2.10 23 27 2.26 3.59 7370 1750 R.F.Corner 22.00 2.10 23 25 2.26 2.85 7370 750 Center 22.00 2.10 23 28 2.26 4.03 7370 750 R.F.Corner 22.00 2.10 23 28 2.26 4.03 4th Harmonic 9800 1750 Center 20.00 2.61 Noise<25 Noise<25 Noise<2.4 Noise<2.4 Sprious 6855 1750 Center 21.60 2.00 32 32 6.03 6.03 8335 1750 Center 19.80 2.30 25 28 2.26 3.20 14700 1750 Center 19.20 3.68 26 29 4.72 6.67 17187 1750 Center 18.80 4.20 27 27 5.67 5.67 Emission Sideband 2400 2500 Center 20.70 1.01 37 39 5.35 6.74 2415 2500 Center 20.70 1.02 44 45 12.07 13.54 2485 2500 Center 20.70 1.03 22 26 0.99 1.56 2500 2500 Center 20.80 1.04 22 22 1.00 1.00 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above d ata. Microwave Leakage at 5 cm on fundamental : 0.08 mW/cm 2 Since the RF output power is rated more than 1000 watts (rated output power is 2100 W), the water load was increased 50% per each 500 W or fraction thereof in excess of 1000 watts. PHOTOGRAPH OF TEST EQUIPMENT #1 Spectrum AnalyzerField Strength MeterHorn Antenna 8566BNM-67 Turn Table Controller PHOTOGRAPH OF TEST EQUIPMENT #2 Horn Antenna Field Strength Meter NM-67 PHOTOGRAPH OF TEST EQUIPMENT #3 Microwave OvenWooden Table Test Sample Transparent Turn Table
