APYDMR0127Household Microwave Oven

® ® READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. CONTENTS • Precautions to Avoid Possible Exposure to Excessive Microwave Energy ................................ Inside Front Cover • For Customer Assistance ... Inside Front Cover • Consumer Limited Warranty ...................1 • Product Information Card ........................1 • Important Safety Instructions ..................2 • Unpacking and Installation Instructions ...3 • Grounding Instructions ............................3 • Information You Need to Know ............... 4 - 6 • Part Names ............................................. 7 - 8 • Before Operating .....................................9 • Manual Operation ....................................9 • Special Features ..................................... 10-12 • Other Convenient Features .....................13 • Cleaning & Care ......................................14 • Service Call Check ..................................15 • THE ULTIMATE ACCESSORY ...............15 • Specifications ..........................................16 • COOKBOOK ORDER FORM ..................16 • Guia Auto-Touch ................... Parte Interior de la Cubierta Trasera • Auto-Touch Guide ........................ Back Cover MICROWAVE OVEN OPERATION MANUAL MODELS R-310D,R-308D followed by letter indicating color K=black, W=white TO PHONE: DIAL 1-800- BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and COOKBOOK DIAL (201)529-8703 for : COOKING ASSISTANCE TO WRITE: For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 For cooking and operation questions: Susan Edwards/Test Kitchen Sharp Electronics Corporation Sharp Plaza, Box 650 Mahwah, NJ 07430-2135 TO ACCESS INTERNET: www.sharp-usa.com To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. MODEL NUMBER________________________SERIAL NUMBER______________ DATE OF PURCHASE______________________ DEALER____________________________TELEPHONE________________ SERVICER___________________________TELEPHONE________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. FOR CUSTOMER ASSISTANCE 1 CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequent…

Text truncated - open the document above for the full version.

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name: Sharp Corporation, Reliability Control Group Address22-22 Nagaike-Cho, Abeno-Ku Osaka 545-8522, Japan Grantee Code:: APY Applicant Rep.: K. Aoyagi CONTACT PERSON: Name: Sharp Electronics Corporation Address: Sharp Plaza, Mahwah, New Jersey 07430 Applicant Rep.: Steve Petruska, Product Safety Dept. Telephone No.: 201-529-9299 MEASUREMENT SITE: Name: Japan Quality Assurance Organization Kita-Kansai Testing Center, EMC Division Address: 7-1 Ishimaru 1-Chome Minoh-shi, Osaka 562, Japan MANUFACTURER: Name: Sharp Appliances (Thailand) Ltd. Address: 64 Moo 5, Tambol Bangsamuk Amphur Bangpakong Chachoengsao Province, Thailand FCC IDENTIFICATION: APYDMR0127 EQUIPMENT: Microwave Oven Models R-308D#, R-309D#, R-310D#, R-318D# R-320D#, R-330D#, R-335D# and R-340D# (#: Suffix letter denoting cosmetic color is provided.) Brand: Sharp Electronics Corp. Importer: Sharp Electronics Corp. ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 1150 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 1150 W (5) The voltage and current to magnetron: For Magnetron Cat. No. 2M246 : 3.96 kV peak, 352 mA (rms) (6) Function of each electro tube, semiconductor or other active circuit device: Fixed Magnetron, Type 2M246 as power generator (7) Complete circuit diagram: Attached. (8) Instruction book: Attached. (9) Tune up procedure over the power range or at specific operating power levels: Not adjustable (10) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (11) A description of any circuit or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power: Suppression obtained by shielding design (12) Identification plate or label: Illustration attached. Location of identification plate or label: Photo. Attached. ********** INFORMATION FOR CERTIFICATION (3) ********** DESCRIPTION OF THE MICROWAVE OVEN Unit Body Dimensions:520 mm wide, 302 mm high, 436 mm deep (include feet) Door Dimensions:423 mm wide, 277 mm high (Viewing Area: 293 mm wide, 146 mm high) Oven Cavity Dimensions:383 mm wide, 254 mm high, 399 mm deep (without tray) Feed Type and Location:Supplied by waveguide located side of oven Door Seal Type:Choke and Capacitive Seals Magnetron Type:2M246, mfd by LG Electronics

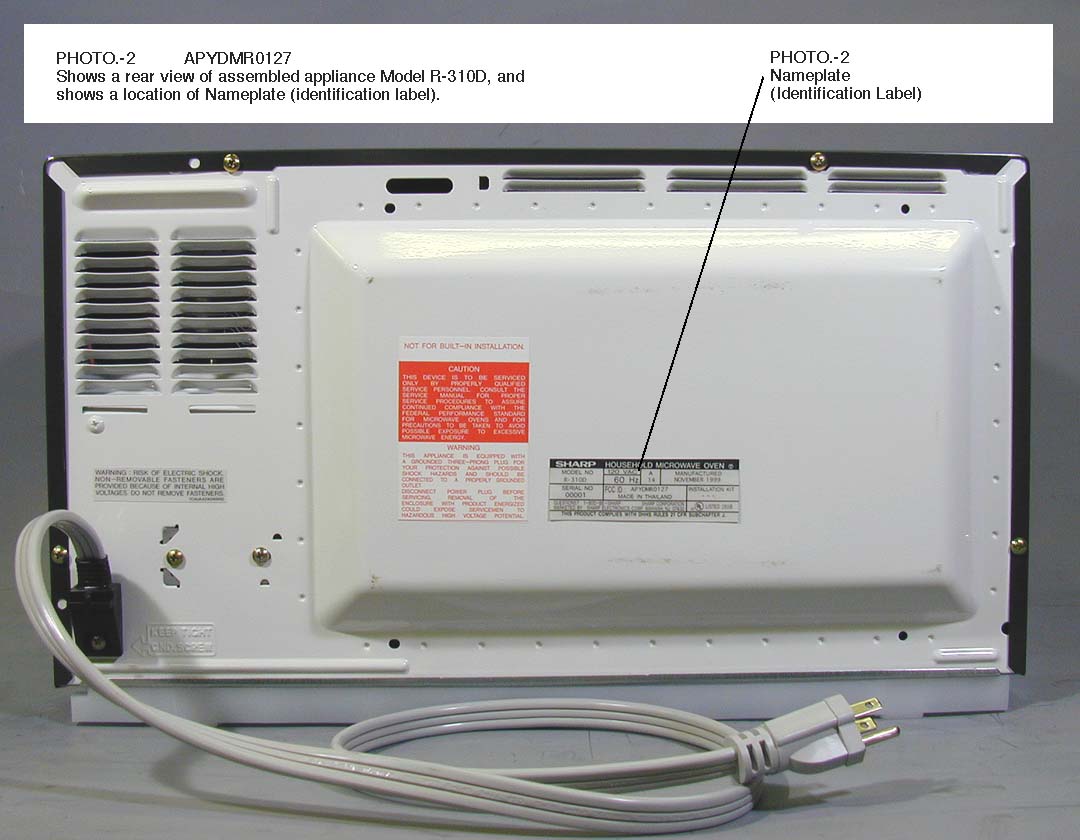

IDENTIFICATION LABEL (Nameplate label)FCC ID : APYDMR0127 Label Material : Approx. 0.063 mm thick film with back adhesion. For Models R-308D#, R-309D#, R-310D#, R-318D#, R-320D#, R-330D#, R-335D# and R-340D# (#: may be provided with suffix letter/number for denoting cosmetic color.) FCC ID Code APY: FCC assigned grantee code for Sharp Corporation. DMR0127 : Number assigned by the grantee to the model or the model family in a technically identical products. Factory ID Mark T : Manufacturer identification marking for Sharp Appliances (Thailand) Ltd. 95 mm 32 mm Model Number FCC ID Code Factory ID Mark
