APYDMR0129

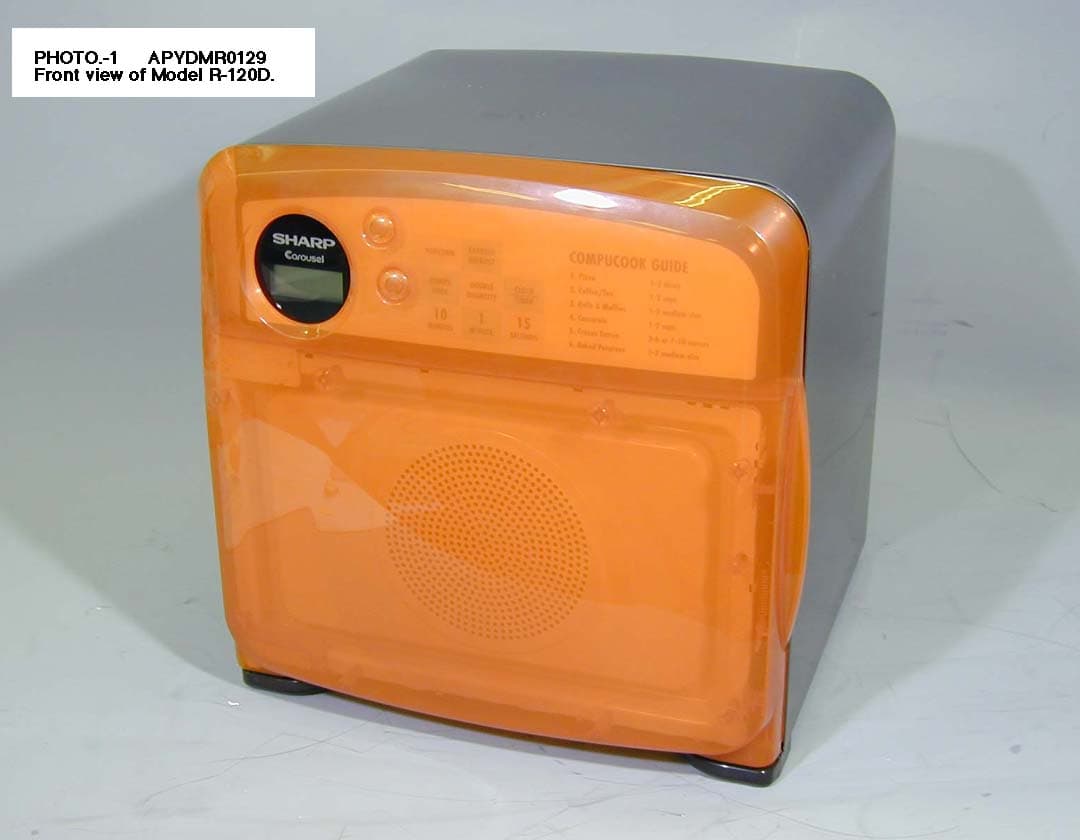

® READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. MICROWAVE OVEN OPERATION MANUAL ® MODEL R-120D followed by letter indicating color K=black, W=white B=blue, R=Amber • Precautions to Avoid Possible Exposure to Excessive Microwave Energy ............................ Inside Front Cover • For Customer Assistance Inside Front Cover • Product lnformation Card ........................... 1 • Consumer Limited Warranty....................... 1 • Important Safety Instructions ..................... 2 • Unpacking and Installation Instructions ...... 3 • Grounding Instructions ...............................3 • Information You Need to Know ................... 4 • Part Names ................................................7 • Control Panel Illustrations .......................... 7 • Before Operating ........................................ 8 • Manual Operation ....................................... 8 • Special Features ........................................ 8 • Cleaning and Care ................................... 11 • Service Call Check ...................................12 • Specifications ........................................... 12 • Cooking Reference ..................................13 • Guia Auto-Touch ............. Parte Interior de la Cubierta Trasera • Auto-Touch Guide .................... Back Cover CONTENTS TO PHONE: DIAL 1-800- BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and COOKBOOK DIAL (201)529-8703 for : COOKING ASSISTANCE TO WRITE: For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 For cooking and operation questions: Susan Edwards/Test Kitchen Sharp Electronics Corporation Sharp Plaza, Box 650 Mahwah, NJ 07430-2135 TO ACCESS INTERNET: www.sharp-usa.com To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. MODEL NUMBER________________________SERIAL NUMBER______________ DATE OF PURCHASE______________________ DEALER____________________________TELEPHONE________________ SERVICER___________________________TELEPHONE________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. FOR CUSTOMER ASSISTANCE 1 CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential d…

Text truncated - open the document above for the full version.

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name: Sharp Corporation, Reliability Control Group Address22-22 Nagaike-Cho, Abeno-Ku Osaka 545-8522, Japan Grantee Code:: APY Applicant Rep.: K. Aoyagi CONTACT PERSON: Name: Sharp Electronics Corporation Address: Sharp Plaza, Mahwah, New Jersey 07430 Applicant Rep.: Steve Petruska, Product Safety Dept. Telephone No.: 201-529-9299 MEASUREMENT SITE: Name: Sharp Corporation, Kitchen Appliance Systems Div. EMI Anechoic Chamber Address: 3-1-72 Kitakamei-cho, Yao Osaka 581-8585, Japan MANUFACTURER: Name: Sharp Appliances (Thailand) Ltd. Address: 64 Moo 5, Tambol Bangsamuk Amphur Bangpakong Chachoengsao Province, Thailand FCC IDENTIFICATION: APYDMR0129 EQUIPMENT Model Name: Microwave Oven Models R-120D# (#: Suffix letter denoting cosmetic color is provided.) Brand: Sharp Electronics Corp. Importer: Sharp Electronics Corp. ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 600 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 600 W (5) The voltage and current to magnetron: For Magnetron Cat. No. 2M231H(L) : 3.80 kV peak, 214 mA (Ave), or; For Magnetron Cat. No. OM52S : 4.04 kV peak, 208 mA (Ave) (6) Function of each electro tube, semiconductor or other active circuit device: Fixed Magnetron, Type 2M231H(L) or OM52S as power generator (7) Complete circuit diagram: Attached. (8) Instruction book: Attached. (9) Tune up procedure over the power range or at specific operating power levels: Not adjustable (10) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (11) A description of any circuit or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power: Suppression obtained by shielding design (12) Identification plate or label: Illustration attached. Location of identification plate or label: Photo. Attached. ********** INFORMATION FOR CERTIFICATION (3) ********** DESCRIPTION OF THE MICROWAVE OVEN Unit Body Dimensions:365 mm wide, 360 mm high, 357 mm deep (include feet) Door Dimensions:325 mm wide, 212 mm high (Viewing Area: 123 mm dia., with 2.8 mm dia openings) Oven Cavity Dimensions:299 mm wide, 176 mm high, 301 mm deep (without tray) Feed Type and Location:Supplied by waveguide located top of oven cavity Door Seal Type:Choke and Capacitive Seals Magnetron Type:2M231H(L), mfd by Toshiba; or OM52S, mfd by Samsung Electronics

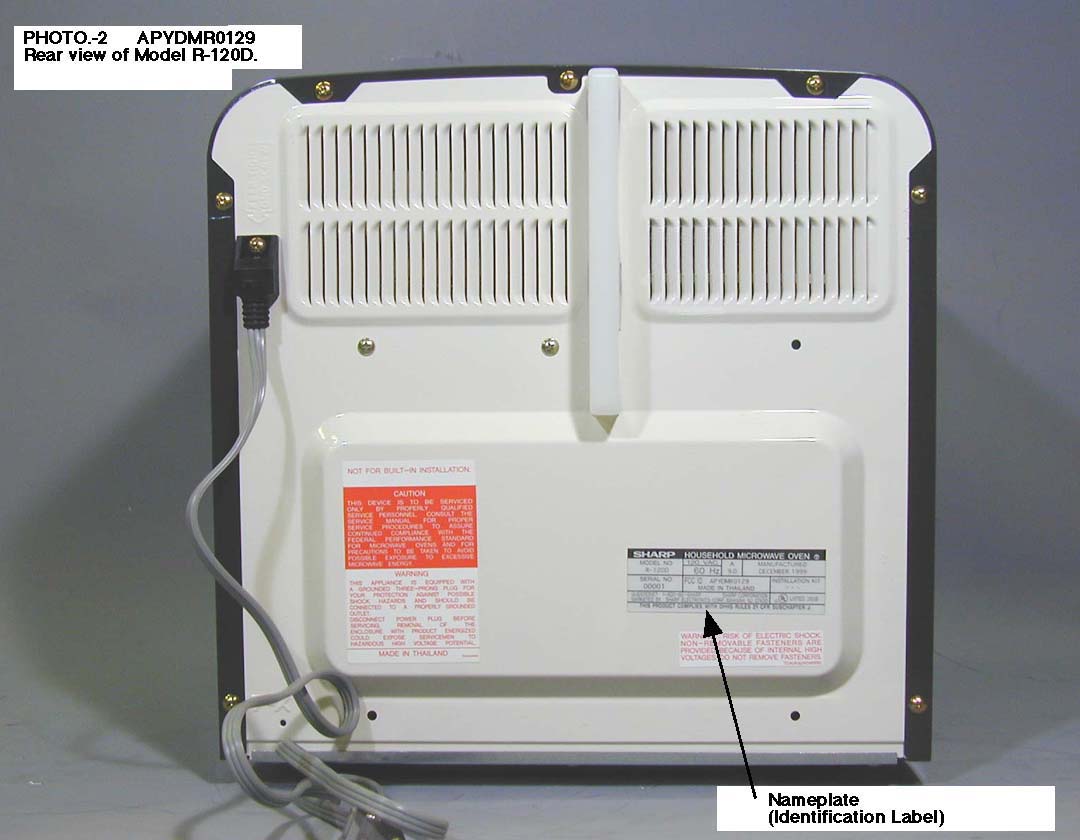

IDENTIFICATION LABEL (Nameplate label)FCC ID : APYDMR0129 Label Material : Approx. 0.063 mm thick film with back adhesion. For Models R-120D# (#: may be provided with suffix letter/number for denoting cosmetic color.) FCC ID Code APY: FCC assigned grantee code for Sharp Corporation. DMR0129 : Number assigned by the grantee to the model or the model family in a technically identical products. Factory ID Mark T : Manufacturer identification marking for Sharp Appliances (Thailand) Ltd. 95 mm 32 mm Model Number FCC ID Code Factory ID Mark

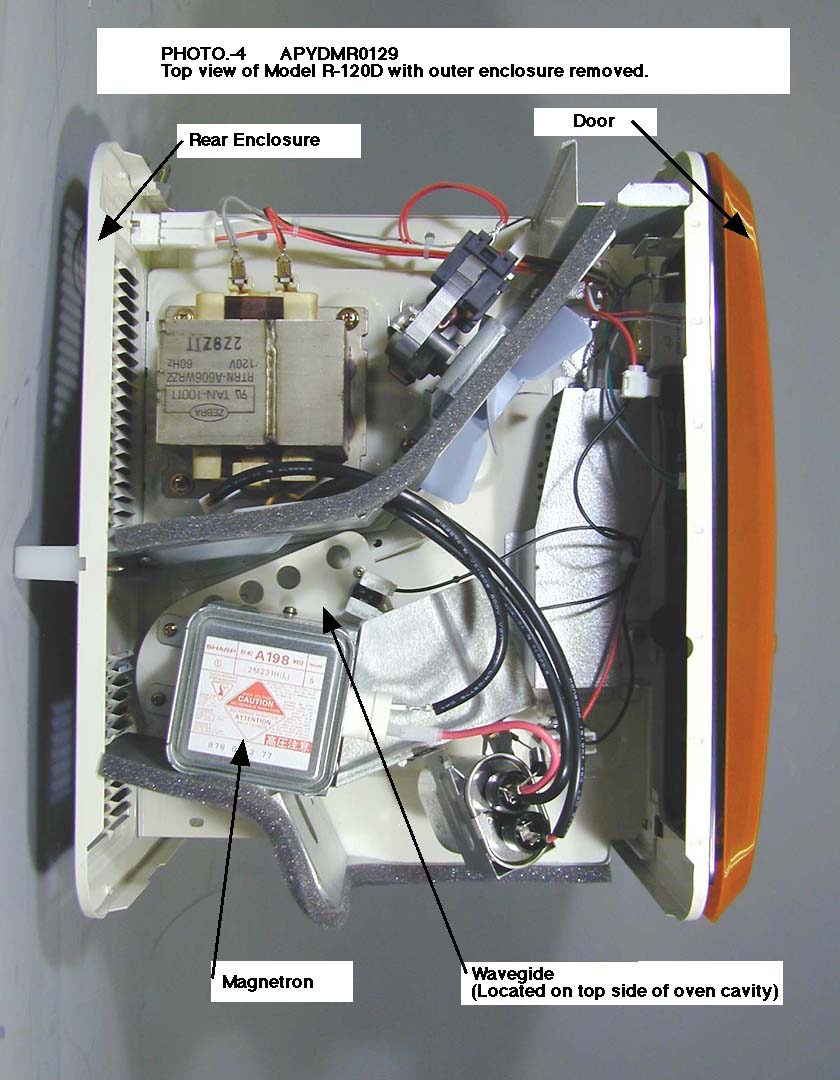

1. FREQUENCY MEASUREMENTS FCC ID: APYDMR0129 Tested Unit: Microwave Oven, Model R-120D Magnetron Type No.: 2M231H(L), mfd by Toshiba Tested: January 14, 2000 (1-1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1000 cc water in the glass beaker Line Voltage Variation (V) Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 96 (80%)+ 0 MHz - 30 MHz 108 (90%)+ 17 MHz - 21 MHz 120 (Nominal)+ 20 MHz - 28 MHz +/- 50 MHz 132 (110%)+ 18 MHz - 27 MHz 150 (125%)+ 22 MHz - 23 MHz (1-2) Frequency VS Load Variation Test Test Results (room temperature: 20 degC) Initial Load: 1000 cc water in the glass beaker Volume of Water (cc)Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 1000+ 20 MHz - 28 MHz 800+ 15 MHz - 16 MHz 600+ 25 MHz - 26 MHz +/- 50 MHz 400+ 20 MHz - 8 MHz 200+ 15 MHz - 31 MHz 2. RADIATED FIELD STRENGTH DATA SHEET (FCC Measurement Procedure MP-5) FCC ID: APYDMR0129 Tested Model: R-120D Magnetron: 2M231H(L), mfd by Toshiba Date: January 11 - 14, 2000 Frequency Load Place of Antenna Cable Reading Radiated the load Factor Loss Data Field Strength (MHz) (ml) (dB) (dB) (dBuV @:3m) (uV/m @:300m) Vertical Horizen Vertical Horizen Fundamental 2443 1000 Center 20.70 1.03 73 73 344.25 344.25 2nd Harmonic 4904 700 Center 20.50 1.58 27 21 2.84 1.43 4900 700 R.F.Corner 20.50 1.58 27 24 2.84 2.01 4899 300 Center 20.50 1.58 31 23 4.51 1.79 4887 300 R.F.Corner 20.50 1.58 30 24 4.02 2.01 3rd Harmonic 7261 700 Center 19.00 2.08 22 21 1.43 1.27 7240 700 R.F.Corner 19.00 2.08 22 21 1.43 1.27 7358 300 Center 19.20 2.10 27 25 2.60 2.07 7355 300 R.F.Corner 19.20 2.10 25 25 2.07 2.07 4th Harmonic 9892 700 Center 20.00 2.66 24 23 2.15 1.92 Sprious - 700 Center - - - - - - - 700 Center - - - - - - - 700 Center - - - - - - - 700 Center - - - - - - Emission Sideband 2400 1000 Center 20.70 1.01 37 37 5.35 5.35 2415 1000 Center 20.70 1.02 43 42 10.76 9.59 2485 1000 Center 20.70 1.03 23 22 1.11 0.99 2500 1000 Center 20.80 1.04 21 22 0.89 1.00 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above d ata. Microwave Leakage at 5 cm on fundamental : 0.08 mW/cm 2 1. FREQUENCY MEASUREMENTS FCC ID: APYDMR0129 Tested Unit: Microwave Oven, Model R-120D Magnetron Type No.: OM52S, mfd by Samsung Electronics Tested: January 19, 2000 (1-1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1000 cc water in the glass beaker Line Voltage Variation (V) Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 96 (80%)+ 8 MHz - 16 MHz 108 (90%)+ 23 MHz - 21 MHz 120 (Nominal)+ 25 MHz - 30 MHz +/- 50 MHz 132 (110%)+ 23 MHz - 23 MHz 150 (125%)+ 22 MHz - 26 MHz (1-2) Frequency VS Load Variation Test Test Results (room temperature: 20 degC) Initial Load: 1000 cc water in the glass beaker Volume of Water (cc)Frequency against the tolerance for center frequency 2450 MHz Allowed Tolerance for the ISM Band (2450 MHz) 1000+ 25 MHz - 30 MHz 800+ 28 MHz - 36 MHz 600+ 29 MHz - 17 MHz +/- 50 MHz 400+ 23 MHz - 9 MHz 200+ 20 MHz - 13 MHz 2. RADIATED FIELD STRENGTH DATA SHEET (FCC Measurement Procedure MP-5) FCC ID: APYDMR0129 Tested Model: R-120D Magnetron: OM52S, mfd by Samsung Electronics Date: January 17 - 19, 2000 Frequency Load Place of Antenna Cable Reading Radiated the load Factor Loss Data Field Strength (MHz) (ml) (dB) (dB) (dBuV @:3m) (uV/m @:300m) Vertical Horizen Vertical Horizen Fundamental 2443 1000 Center 20.70 1.03 63 60 108.86 77.07 2nd Harmonic 4906 700 Center 20.50 1.58 23 23 1.79 1.79 4572 700 R.F.Corner 20.40 1.50 24 22 1.97 1.57 4907 300 Center 20.50 1.58 34 33 6.37 5.68 4892 300 R.F.Corner 20.50 1.58 34 33 6.37 5.68 3rd Harmonic 7359 700 Center 19.20 2.10 28 25 2.92 2.07 7370 700 R.F.Corner 19.20 2.10 28 25 2.92 2.07 7364 300 Center 19.20 2.10 32 26 4.62 2.32 7348 300 R.F.Corner 19.20 2.10 30 27 3.67 2.60 4th Harmonic 9800 700 Center 20.00 2.62 Noise<24 Noise<24 Noise<2.14 Noise<2.14 Sprious - 700 Center - - - - - - - 700 Center - - - - - - - 700 Center - - - - - - - 700 Center - - - - - - Emission Sideband 2400 1000 Center 20.70 1.01 37 39 5.35 6.74 2415 1000 Center 20.70 1.02 43 45 10.76 13.54 2485 1000 Center 20.70 1.03 26 25 1.56 1.39 2500 1000 Center 20.80 1.04 28 28 2.00 2.00 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above d ata. Microwave Leakage at 5 cm on fundamental : 0.06 mW/cm 2 PHOTOGRAPH OF TEST EQUIPMENT #1 Spectrum AnalyzerField Strength MeterHorn Antenna 8566BNM-67 Turn Table Controller PHOTOGRAPH OF TEST EQUIPMENT #2 Horn Antenna Field Strength Meter NM-67 PHOTOGRAPH OF TEST EQUIPMENT #3 Microwave OvenWooden Table Test Sample Transparent Turn Table
