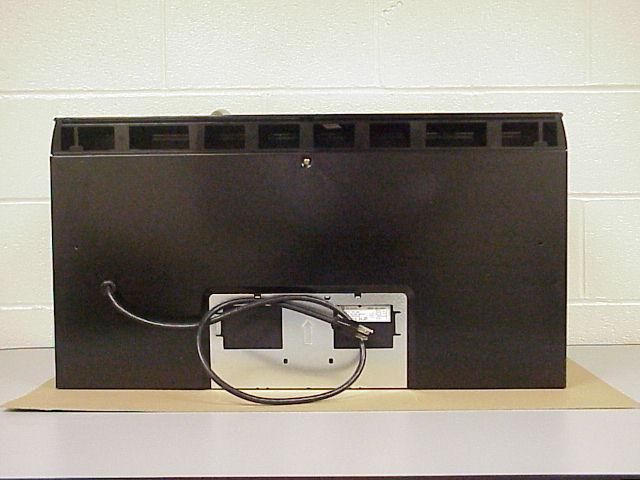

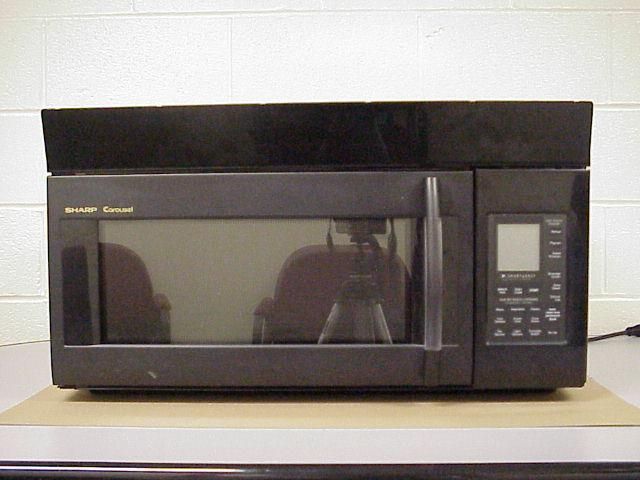

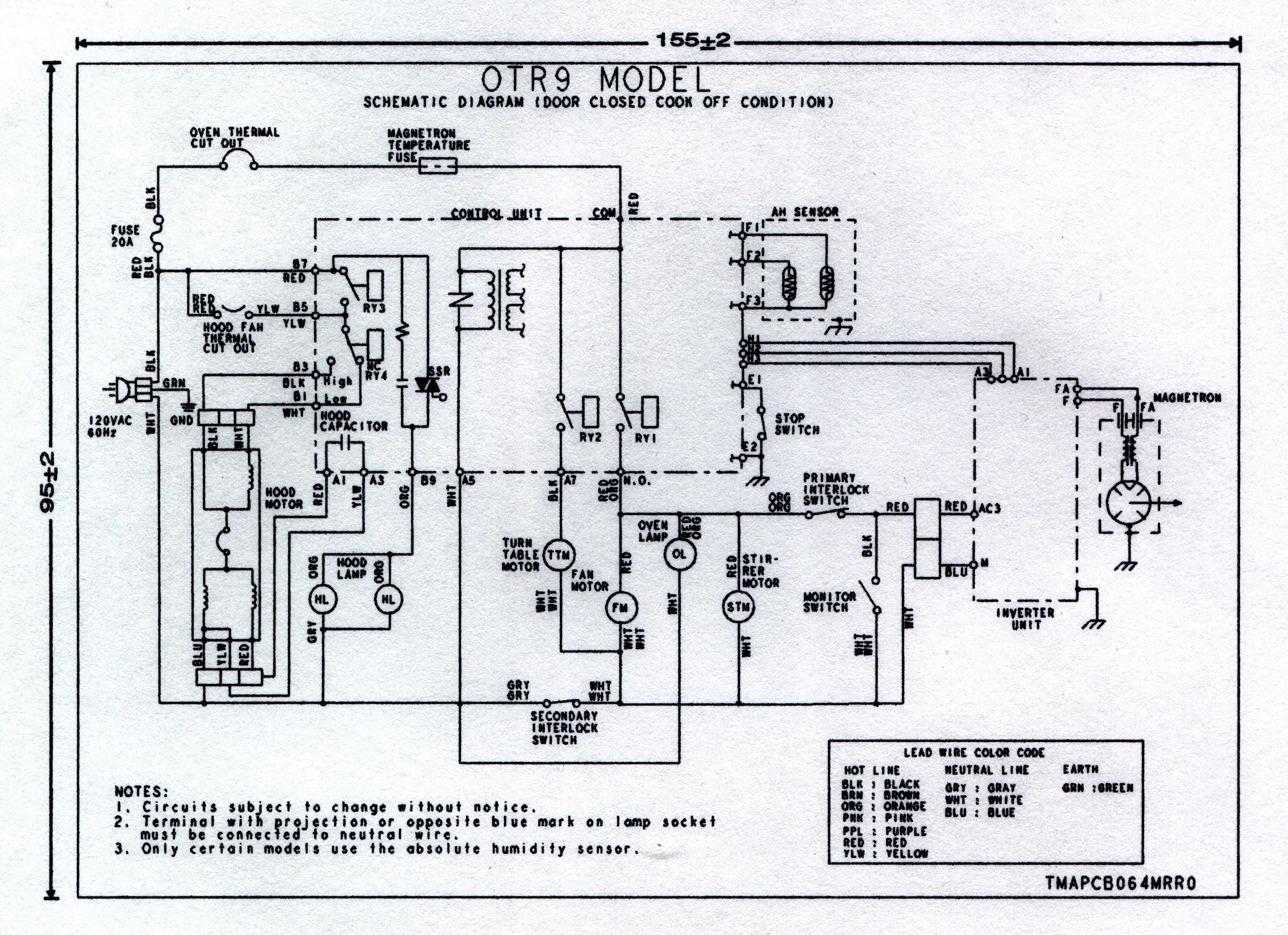

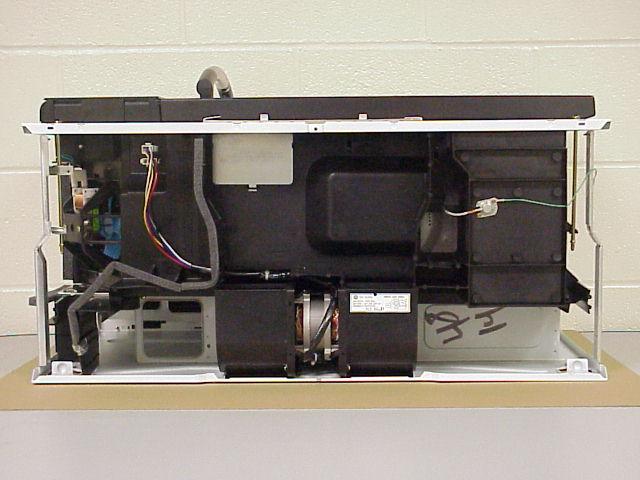

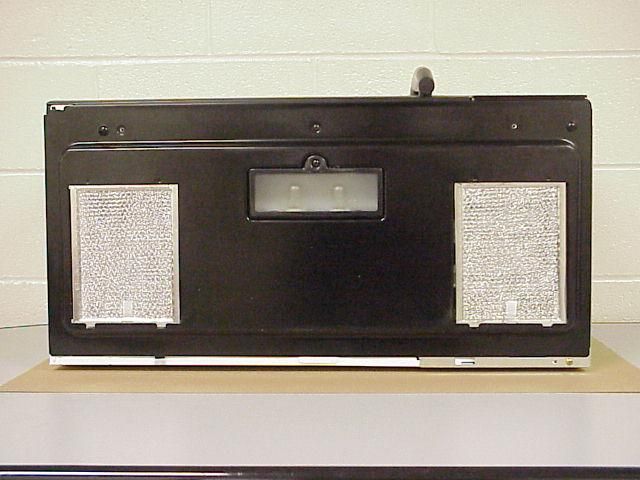

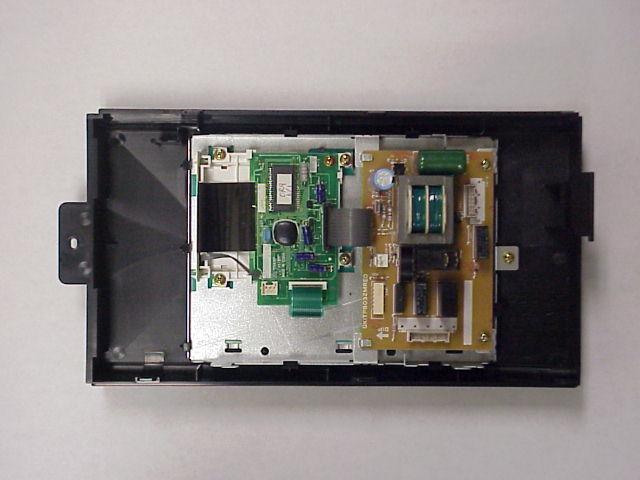

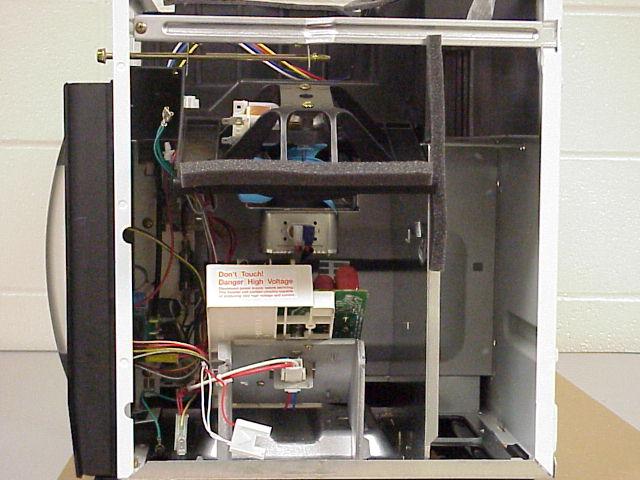

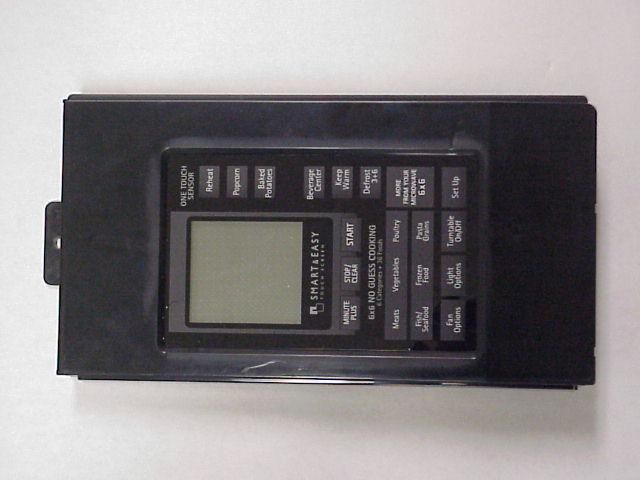

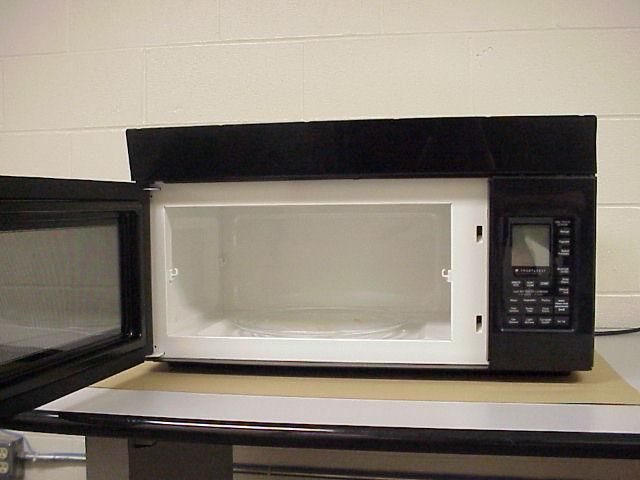

APYDMR0131Microwave Oven

2 CONTENTS To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBER_____________________SERIAL NUMBER_______________ DATE OF PURCHASE____________________ DEALER__________________________TELEPHONE__________________ SERVICER_________________________TELEPHONE__________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c)Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. FOR CUSTOMER ASSISTANCE TO PHONE : DIAL 1-800-BE-SHARP (237-4277) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and COOKBOOK DIAL (201)529-8703 for : COOKING ASSISTANCE TO WRITE : Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. TO ACCESS INTERNET : www.sharp-usa.com 3 CONTENTS 2For Customer Assistance 2Precautions to Avoid Possible Exposure to Excessive Microwave Energy 3 Contents 4Consumer Limited Warranty 4Product Information Card 5Important Safety Instructions 6Unpacking Instructions 6 Optional Accessories 6Grounding Instructions 7-9Information You Need to Know 7 About Your Oven 7 About Food 8 About Utensils and Coverings 8 About Children and the Microwave 9 About Microwave Cooking 9 About Safety 9-10Part Names 11-12Introduction to Touch Screen 12-14Before Operating 13 To Set The Clock 14 Stop/Clear 14-16Manual Operation 14 High Power Cooking 15 Variable Power Cooking 15 Multiple Sequence Cooking 16 Manual Defrost 16-17One Touch Sensor 17 Reheat / Popcorn / Baked Potatoes 17 One Touch Sensor Cooking Chart 18-196x6 No Guess Cooking 18 Vegetables 18 Meats-Poultry-Fish/Seafood-Frozen Foods- Pasta/Grains 19 6x6 No Guess Cooking Chart 20-25More From Your Microwave 6x6 20 Breakfast Bar / Lunch On The Run 20 Breakfast Bar / Lunch On The Run Chart 21 One Dish Dinners-Low Calorie Entrees Supper Soups And Sauces- Delicious Desserts 22 Recipes for One Dish Dinners 23 Recipes for Low Calorie Entrees 24 Recipes for Supper Soups And Sauces 25 Recipes for Delicious Desserts 26-28Defrost 3+6 26 Super Defrost 26 Super Defrost Chart 27 CompuDefrost 27 CompuDefrost Chart 28Beverage Center 28Keep Warm 29Fan Options 29Light Options 30Turntable On/Off 31-32Set Up 31 1. Clock 31 2. Auto Start 32 3. Sound Adjustment 32 4. Child Lock 32 5. Video Demo 32 6. Screen Contrast 32-34Other Convenient Features 32 Minute Plus 33 Minute Plus+ 33 Kitchen Timer 34 More or Less Time Adjustment 35Cleaning and Care 36 Replacing Parts 36 Oven Light 36 Work Light and Night Light 36 Charcoal Filter 37Specifications 37THE ULTIMATE ACCESSORY 38COOKBOOK ORDER FORM 38Service Call Check 39-40Quick Reference 39 One Touch Sensor 39 6x6 No Guess Cooking 39 More From Your Microwave 6x6 39 Beverage Center 39 Defrost 3+6 39 Set Up 40 Auto-Touch Guide 4 PRODUCT INFORMATION CARD The product information card should be completed within ten days of purchase and returned. We will keep it on file and help you access the information in case of loss, damage or theft. This will also enable us to contact you in the unlikely event that any adjustments or modifications are ever required for your oven. TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharp-usa.com. SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR OVEN EVER REQUIRE WARRANTY SERVICE. SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchas- ers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described above on behalf of Sh…

Text truncated - open the document above for the full version.

June 19,2000 Federal Communications Commission C/O Mellon Bank 525 William Penn Way Room 153-2713 Pittsburgh, PA 15259-0001 Attn.: Wholesale Lockbox Supervisor Subject: Part 18 Certification for Microwave Oven Models: R-1750, R-1751, R-1752, R-1754, PMOR30S, PMOR30B, & PMOR30R. Brand Name: Sharp & Dacor FCC ID Number: APYDMR0131 Applicant: Sharp Corporation Manufacturer: Sharp Manufacturing Company of America Dear Sirs, Sharp Manufacturing Company of America requests certification for the subject models under Part 18 of the FCC Rules. Enclosed you will find a completed FCC Form 731 and supporting exhibits. A list of exhibits is included directly behind the FCC Form 731. If you should have any questions concerning this application please contact myself, (901) 367- 5150 or Mr. Steve Petruska, (201) 529-9689. Thank you. Sincerely, Derek Shannon Derek Shannon Compliance Engineer Microwave Oven Division Enclosure FCC ID: APYDMR0131 INFORMATION FOR CERTIFICATION APPLICANT: Name:Sharp Corporation, Reliability Control Group Address:22-22 Nagaike-Cho, Abeno-Ku Osaka 545, Japan Grantee Code:APY Applicant Representative:Mr. K. Aoyagi REPORTED BY: Name:Sharp Manufacturing Company of America Address:Sharp Plaza Blvd., Memphis, TN 38193 CONTACT PERSON: Name:Sharp Electronics Corporation Address:Sharp Plaza, Mahwah, New Jersey 07430 Applicant Representative:Mr. Steve Petruska Telephone No.:(201) 529-9689 MANUFACTURER: Name:Sharp Manufacturing Company of America Address:Sharp Plaza Blvd., Memphis, TN 38193 FCC IDENTIFIER:APYMR0131 EQUIPMENT:Microwave Oven Models R-1750, R-1751, R-1752, R-1754,PMOR30S, PMOR30B, & PMOR30R. FCC ID:APYDMR0131 LIST OF EXHIBITS EXHIBIT A -Purpose of Filing EXHIBIT B -Block Diagram and Schematic Drawing EXHIBIT C -Operations Manual EXHIBIT D -Identification Label EXHIBIT E -Photographs EXHIBIT F -Measurement Report FCC ID: APYDMR0131 EXHIBIT A PURPOSE OF FILING The purpose of this filing is to request certification for a new model family of microwave ovens. The output power for this model family is 1100 watts as measured by the IEC 705 method, 1988 revision. These models are designed to be installed above a conventional range or cooktop. The Magnetrons used with these models have been used on previously certified products. The power transformer is a new Inverter design. The chassis design and waveguide are similar to the design for models listed under FCC ID APYDMR0123. There are some modifications in the dimensions of the cooking area. TECHNICAL REPORT APPLICATION FOR CERTIFICATION June 2000 FCC ID:APYDMR0131 MODEL NO.:R-1750, R-1751, R-1752, R-1754, . PMOR30S, PMOR30B, & PMOR30R MAGNETRON TYPE:2M268E ( Toshiba) EQUIPMENT CLASS: Part 18 Consumer Device FCC ID: APYDMR0131 MICROWAVE OVEN BLOCK DIAGRAM Note: Components outlined with dotted line are optional and may not be present on all models. Control Panel H.V. Transformer Magnetron Oven Cavity Fan Motor Lamp Turntable Motor Hood Motor Stirrer Motor Timer Motor Input 120 Vac Heating Element H.V Capacitor

FCC ID: APYDMR0131 EXHIBIT D IDENTIFICATION LABEL (NAMEPLATE) FCC ID NUMBER APY:FCC Grantee Code for Sharp Corporation DMR0131:Designation Assigned to This Model Family 99:99 Location of Nameplate Label in Oven

1. FREQUENCY MEASUREMENTS FCC ID: APYDMR0131 Tested Unit: Microwave Oven, OTR9 Chassis Magnetron Type No.: 2M268E(L), mfd by Toshiba Tested: June 13, 2000 (1-1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1500 cc water in the glass beaker (Note: Since the RF output power is rated 1100 watts (more than 1000 watts), the load was increased 50%) Line Voltage Variation (V) FrequencyAllowed Tolerance for the ISM Band (2450 MHz) 96 (80%)Lower: 2422 MHz Upper: 2470 MHz 108 (90%)Lower: 2424 MHz Upper: 2470 MHz 120 (Nominal)Lower: 2424 MHz Upper: 2470 MHz Lower: 2400 MHz Upper: 2500 MHz 132 (110%)Lower: 2428 MHz Upper: 2471 MHz 150 (125%)Lower: 2424 MHz Upper: 2472 MHz (1-2) Frequency VS Load Variation Test Test Results (room temperature: 20 degC) Initial Load: 1500 cc water in the glass beaker (Note: Since the RF output power is rated 1100 watts (more than 1000 watts), the load was increased 50%) Volume of Water (cc)FrequencyAllowed Tolerance for the ISM Band (2450 MHz) 1500Lower: 2424 MHz Upper: 2470 MHz 1200Lower: 2423 MHz Upper: 2471 MHz 900Lower: 2435 MHz Upper: 2470 MHz Lower: 2400 MHz Upper: 2500 MHz 600Lower: 2430 MHz Upper: 2469 MHz 300Lower: 2424 MHz Upper: 2470 MHz 2. RADIATED FIELD STRENGTH DATA SHEET (FCC Measurement Procedure MP-5) FCC ID: APYDMR0131 Tested Model: OTR9 Chassis Magnetron: 2M268E(L), mfd by Toshiba Date: June 14-16, 2000 Frequency Load Place of Antenna Cable the load Factor Loss (MHz) (ml) (dB) (dB) Vertical Horizen Vertical Horizen Fundamental 2452 1500 Center 20.70 1.03 79 77 689.25 547.49 2nd Harmonic 4902 1050 Center 20.50 1.58 28 24 3.19 2.01 4903 1050 R.F.Corner 20.50 1.58 26 26 2.54 2.54 4908 450 Center 20.50 1.58 31 28 4.51 3.19 4904 450 R.F.Corner 20.50 1.58 27 26 2.84 2.54 3rd Harmonic 7354 1050 Center 19.20 2.10 11 11 0.41 0.41 7354 1050 R.F.Corner 19.20 2.10 12 11 0.46 0.41 7358 450 Center 19.20 2.10 14 12 0.58 0.46 7357 450 R.F.Corner 19.20 2.10 13 12 0.52 0.46 4th Harmonic 9837 1050 Center 20.00 2.62 Noise<15 Noise<15 Noise<0.76 Noise<0.76 Spurious : 1000<F<4575 2382 1050 Center 20.70 1.01 40 44 7.51 11.90 2562 1050 Center 20.80 1.05 28 30 2.05 2.58 Spurious : 1000>F, 4575<F 6829 1050 Center 21.60 2.00 21 16 1.70 0.96 8333 1050 Center 19.80 2.30 15 13 0.72 0.57 14611 1050 Center 19.20 3.71 13 15 0.62 0.79 Emission Sideband 2400 1500 Center 20.70 1.01 46 42 15.08 9.52 2415 1500 Center 20.70 1.02 48 47 19.13 17.05 2485 1500 Center 20.70 1.03 23 21 1.11 0.88 2500 1500 Center 20.80 1.04 21 18 0.89 0.63 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above d ata. Microwave Leakage at 5 cm on fundamental : 0.15 mW/cm 2 Since the RF output power rating is more than 1000W (rated output power is 1100W), the water load used for the testing was i ncreased 50%. Reading Data (dBuV @:3m) Radiated Field Strength (uV/m @:300m) PHOTOGRAPH OF TEST EQUIPMENT #1 Spectrum AnalyzerField Strength MeterHorn Antenna 8566BNM-67 Turn Table Controller PHOTOGRAPH OF TEST EQUIPMENT #2 Horn Antenna Field Strength Meter NM-67 PHOTOGRAPH OF TEST EQUIPMENT #3 Microwave OvenWooden Table Test Sample Transparent Turn Table
