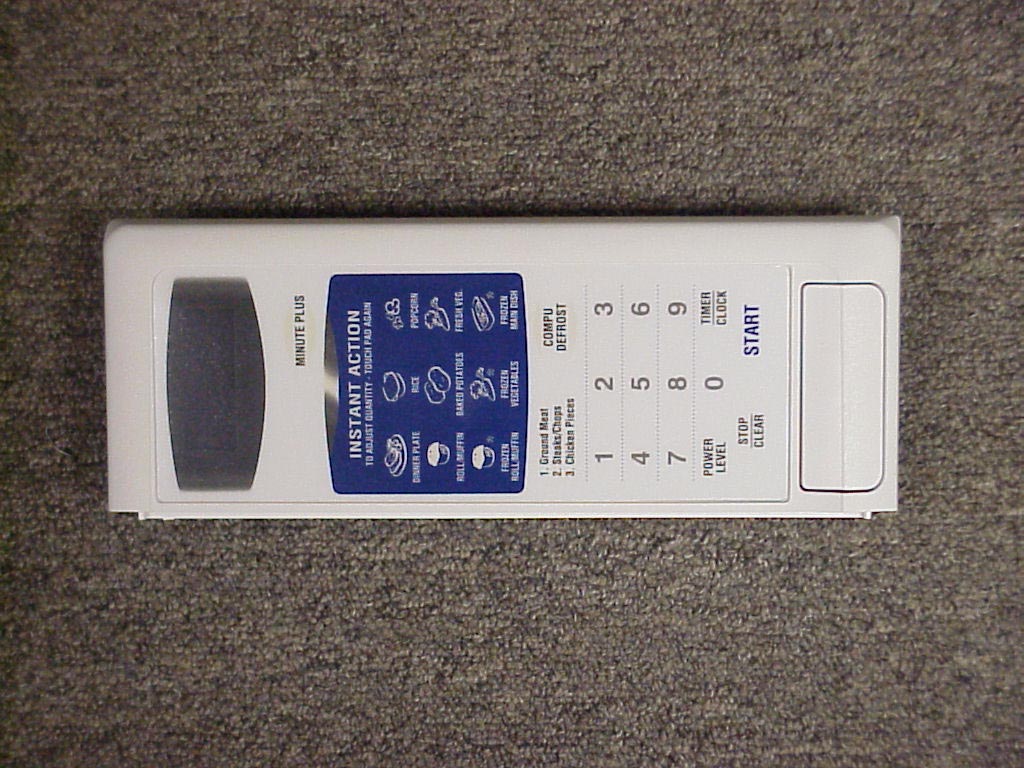

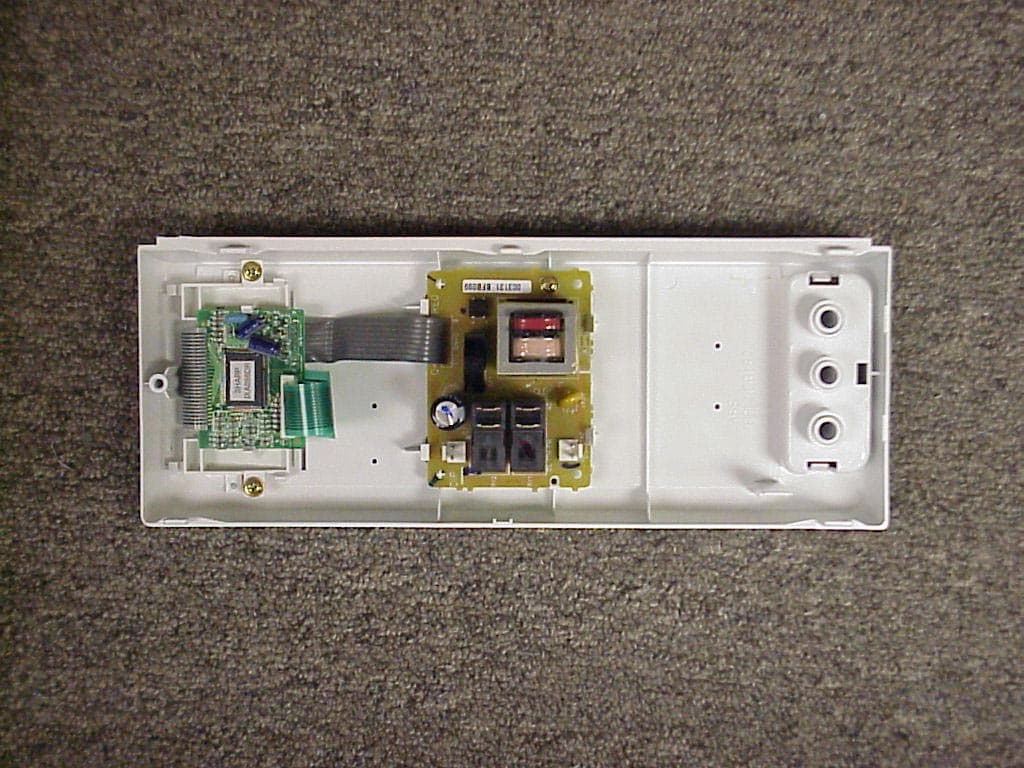

APYDMR0132Microwave Oven

READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. CONTENTS • For Customer Assistance ................. Inside Front Cover • Precautions to Avoid Possible Exposure to Excessive Microwave Energy .................. Inside Front Cover • Consumer Limited Warranty .......................1 • Product Information Card ...........................1 • Important Safety Instructions .....................2 • Unpacking and Installation Instructions ...3 • Grounding Instructions ...............................3 • Information You Need to Know ...................4-6 • Part Names ...................................................7 • Before Operating .........................................8 • Manual Operation ........................................9 • Special Features .......................................... 10-12 • Other Convenient Features ......................... 13-14 • Cleaning & Care ...........................................14 • Service Call Check .......................................15 • THE ULTIMATE ACCESSORY .....................15 • COOKBOOK ORDER FORM ........................16 • Specifications ..............................................16 • Cooking Charts ............................................ 17-20 • Guia Auto-Touch....................... Parte Interior de la Cuberta Trasera • Auto-Touch Guide ............................... Back Cover MODEL MICROWAVE OVEN OPERATION MANUAL ® R-307E Followed by letter indicating color K=black, W=white 307EW O/M-Dec 1812/19/00, 10:55 AM23 To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBER________________________SERIAL NUMBER______________ DATE OF PURCHASE______________________ DEALER____________________________TELEPHONE________________ SERVICER___________________________TELEPHONE________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. FOR CUSTOMER ASSISTANCE TO PHONE: DIAL 1-800-BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and COOKBOOK TO WRITE: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. TO ACCESS INTERNET: www.sharp-usa.com 307EW O/M-Dec 1812/19/00, 10:55 AM24 1 SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. THIS WARRANTY GIVES YOU SPE…

Text truncated - open the document above for the full version.

Dec. 22,2000 Federal Communications Commission C/O Mellon Bank 525 William Penn Way Room 153-2713 Pittsburgh, PA 15259-0001 Attn.: Wholesale Lockbox Supervisor Subject: Part 18 Certification for Microwave Oven Models: R-307EW Brand Name: Sharp FCC ID Number: APYDMR0132 Applicant: Sharp Corporation Manufacturer: Sharp Manufacturing Company of America Dear Sirs, Sharp Manufacturing Company of America requests certification for the subject models under Part 18 of the FCC Rules. Enclosed you will find a completed FCC Form 731 and supporting exhibits. A list of exhibits is included directly behind the FCC Form 731. If you should have any questions concerning this application please contact myself, (901) 367- 5150 or Mr. Steve Petruska, (201) 529-9689. Thank you. Sincerely, Derek Shannon Derek Shannon Compliance Engineer Microwave Oven Division Enclosure FCC ID: APYDMR0132 INFORMATION FOR CERTIFICATION APPLICANT: Name:Sharp Corporation, Reliability Control Group Address:22-22 Nagaike-Cho, Abeno-Ku Osaka 545, Japan Grantee Code:APY Applicant Representative:Mr. S. Miyasaka REPORTED BY: Name:Sharp Manufacturing Company of America Address:Sharp Plaza Blvd., Memphis, TN 38193 CONTACT PERSON: Name:Sharp Electronics Corporation Address:Sharp Plaza, Mahwah, New Jersey 07430 Applicant Representative:Mr. Steve Petruska Telephone No.:(201) 529-9689 MANUFACTURER: Name:Sharp Manufacturing Company of America Address:Sharp Plaza Blvd., Memphis, TN 38193 FCC IDENTIFIER:APYDMR0132 EQUIPMENT:Microwave Oven Models R-307EW FCC ID:APYDMR0132 LIST OF EXHIBITS EXHIBIT A -Purpose of Filing EXHIBIT B -Block Diagram and Schematic Drawing EXHIBIT C -Operations Manual EXHIBIT D -Identification Label EXHIBIT E -Photographs EXHIBIT F -Measurement Report FCC ID: APYDMR0132 EXHIBIT A PURPOSE OF FILING The purpose of this filing is to request certification for a new model family of microwave ovens. The output power for this model family is 900 watts as measured by the IEC 705 method, 1988 revision. These models are designed to be cord connected counter top Microwave Ovens. TECHNICAL REPORT APPLICATION FOR CERTIFICATION December 2000 FCC ID:APYDMR0132 MODEL NO.:R307EW MAGNETRON TYPE:2M253H ( Toshiba) EQUIPMENT CLASS: Part 18 Consumer Device FCC ID: APYDMR0132 MICROWAVE OVEN BLOCK DIAGRAM Note: Components outlined with dotted line are optional and may not be present on all models. Control Panel H.V. Transformer Magnetron Oven Cavity Fan Motor Lamp Turntable Motor Hood Motor Stirrer Motor Timer Motor Input 120 Vac Heating Element H.V Capacitor

FCC ID: APYDMR0132 EXHIBIT D IDENTIFICATION LABEL (NAMEPLATE) FCC ID NUMBER APY:FCC Grantee Code for Sharp Corporation DMR0132:Designation Assigned to This Model Family 99:99 Location of Nameplate Label in Oven

1. FREQUENCY MEASUREMENTS FCC ID : APYDMR0132 TESTED UNIT : Household Microwave Oven, VK Chassis Magnetron Type No. : 2M253H(L), mfd by Toshiba Tested : December 21, 2000 (1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1000 cc water in the glass beaker Line Voltage Variation (V) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 96 (80%) Upper: 2462 MHz Lower: 2437 MHz 108 (90%) Upper: 2476 MHz Lower: 2437 MHz 120 (Nominal) Upper: 2480 MHz Lower: 2441 MHz 132 (110%) Upper: 2478 MHz Lower: 2437 MHz 150 (125%) Upper: 2477 MHz Lower: 2443 MHz Upper: 2500 MHz Lower: 2400 MHz (2) Frequency VS Load Variation Test Test Results (Room Temperature: 20 degC) Initial Load: 1000 cc water in the glass beaker. Volume of Water (cc) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 1000 Upper: 2480 MHz Lower: 2441 MHz 800 Upper: 2471 MHz Lower: 2438 MHz 600 Upper: 2474 MHz Lower: 2437 MHz 400 Upper: 2474 MHz Lower: 2436 MHz 200 Upper: 2476 MHz Lower: 2436 MHz Upper: 2500 MHz Lower: 2400 MHz 2. RADIATED FIELD STRENGTH DATA SHEET (FCC Measurement Procedure MP-5)FCC ID: APYDMR0132 VK Chassis Magnetron: 2M253H(L), mfd by ToshibaDate: December 18 - 20, 2000 FrequencyLoadPlace ofAntennaCable Reading Radiated the loadFactorLoss Data Field Strength (MHz)(ml)(dB)(dB) (dBuV @:3m) (uV/m @:300m) VerticalHorizenVerticalHorizen Fundamental24461000Center20.701.037680486.83771.57 2nd Harmonic4905700Center20.501.5833295.683.58 4901700R.F.Corner20.501.5832275.062.84 4913300Center20.501.5833325.685.06 4916300R.F.Corner20.501.5835327.155.06 3rd Harmonic7340700Center22.002.1015120.900.64 7360700R.F.Corner22.002.1018171.271.14 7366300Center22.002.1018151.270.90 7360300R.F.Corner22.002.1015160.901.01 4th Harmonic9840700Center20.002.6522231.711.92 Sprious5248700Center20.701.6014140.650.65 6134700Center21.201.8417291.004.00 6830700Center21.602.0017231.072.14 17225700Center18.804.2218171.121.00 Emission Sideband24001000Center20.701.0118220.600.95 24151000Center20.701.0224251.211.35 24851000Center20.701.0310100.250.25 25001000Center20.801.0410100.250.25 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above data. Microwave Leakage at 5 cm on fundamental : 0.25 mW/cm 2 PHOTOGRAPH OF TEST EQUIPMENT #1 Spectrum AnalyzerField Strength MeterHorn Antenna 8566BNM-67 Turn Table Controller PHOTOGRAPH OF TEST EQUIPMENT #2 Horn Antenna Field Strength Meter NM-67 PHOTOGRAPH OF TEST EQUIPMENT #3 Microwave OvenWooden Table Test Sample Transparent Turn Table
