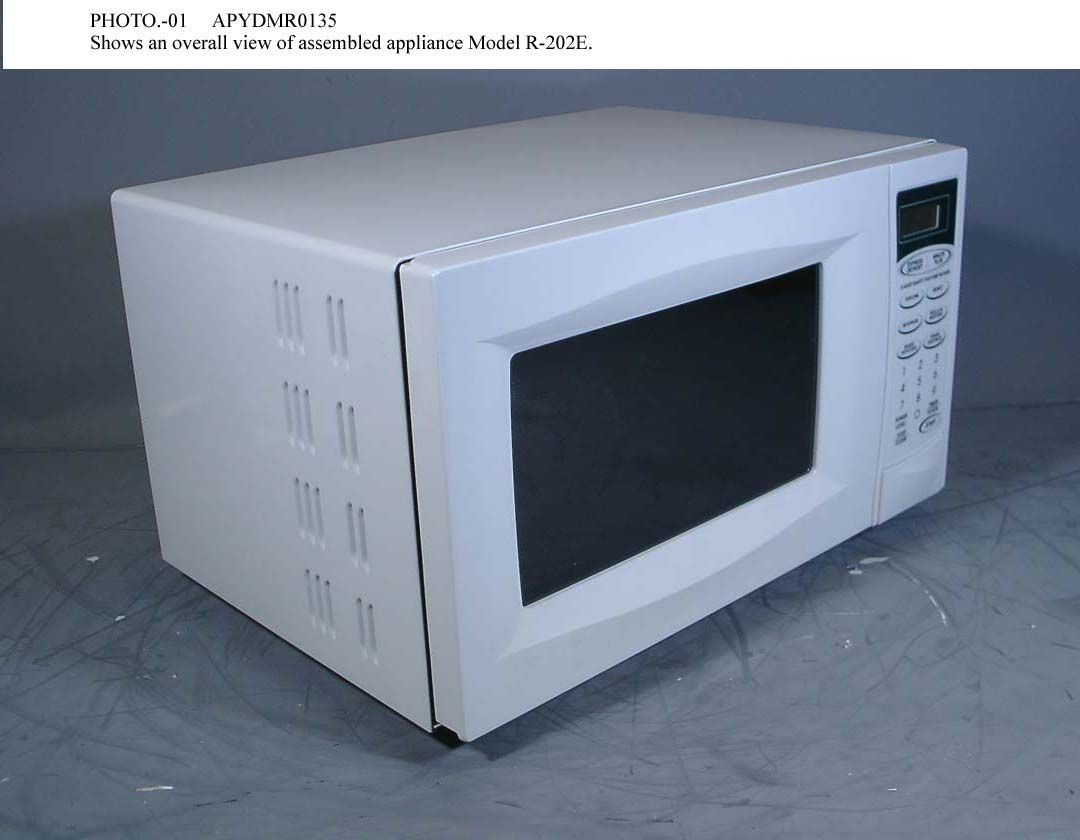

APYDMR0135Household Microwave Oven

12 ® ® CONTENTS •Precautions to Avoid Possible Exposure to Excessive Microwave Energy ................................. Inside Front Cover •For Customer Assistance .... Inside Front Cover •Consumer Limited Warranty ........................... 1 •Product lnformation Card ................................ 1 •Important Safety Instructions .......................... 2 •Unpacking and Installation Instructions ........... 3 •Grounding Instructions .................................... 3 •Information You Need to Know ....................... 4 •Part Names ..................................................... 7 •Before Operating ............................................. 9 •Manual Operation ............................................ 9 •Special Features ........................................... 10 Express Defrost .......................................... 10 Manual Defrost ............................................ 12 Instant Start ................................................. 12 •Other Convenient Features ........................... 14 •Cleaning and Care ........................................ 15 •Service Call Check ........................................ 16 •Specifications ................................................ 16 •Cooking Reference ....................................... 17 •Cookbook Information ................................... 17 •Auto-Touch Guide ......................... Back Cover •Guia Auto-Touch .................... Cubierta Trasera MICROWAVE OVEN OPERATION MANUAL MODELS R-202EW, R-203EW READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. 13 TO PHONE: DIAL 1-800- BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and SHARP CAROUSEL COOKBOOK TO WRITE: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 TO ACCESS INTERNET: www.sharp-usa.com To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. MODEL NUMBER______________________________SERIAL NUMBER___________________ DATE OF PURCHASE____________________________ DEALER__________________________________TELEPHONE_____________________ SERVICER_________________________________TELEPHONE_____________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door op- eration can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly quali- fied service personnel. FOR CUSTOMER ASSISTANCE 1 TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.Sharp-usa.com. Save the proof of purchase as it is needed should your oven ever require warranty service. CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANT- ABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PUR- CHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabili- ties and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted re…

Text truncated - open the document above for the full version.

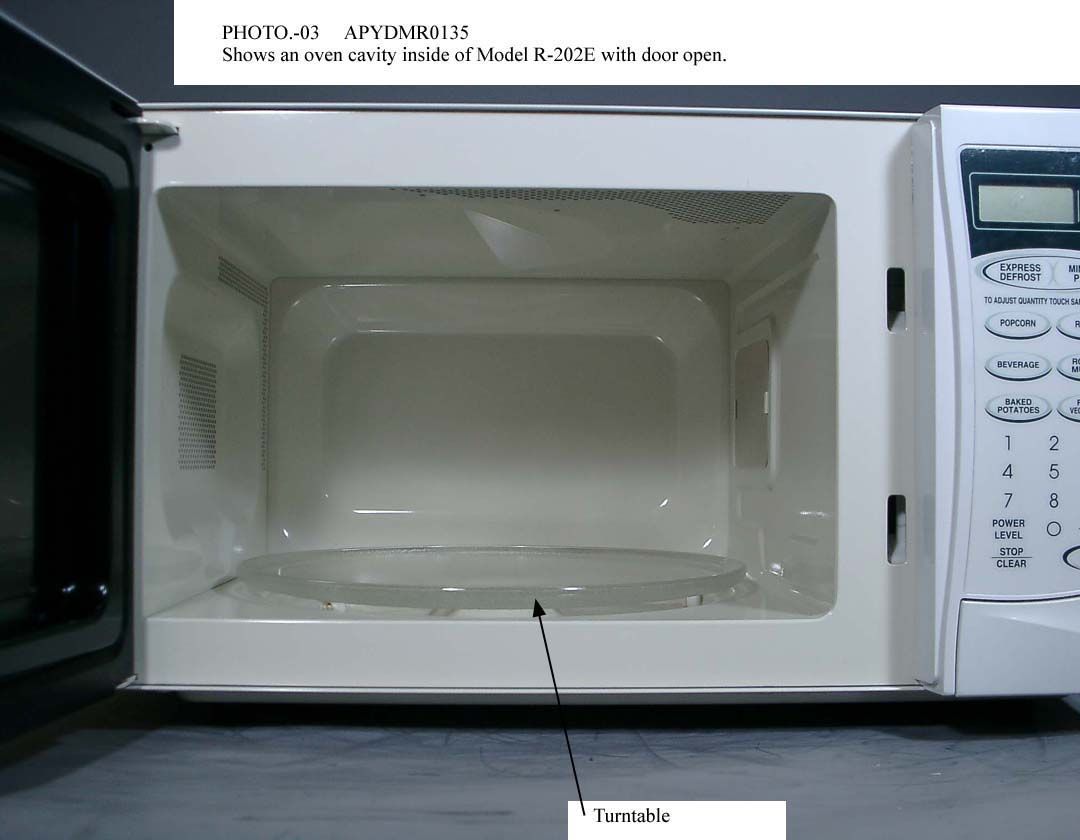

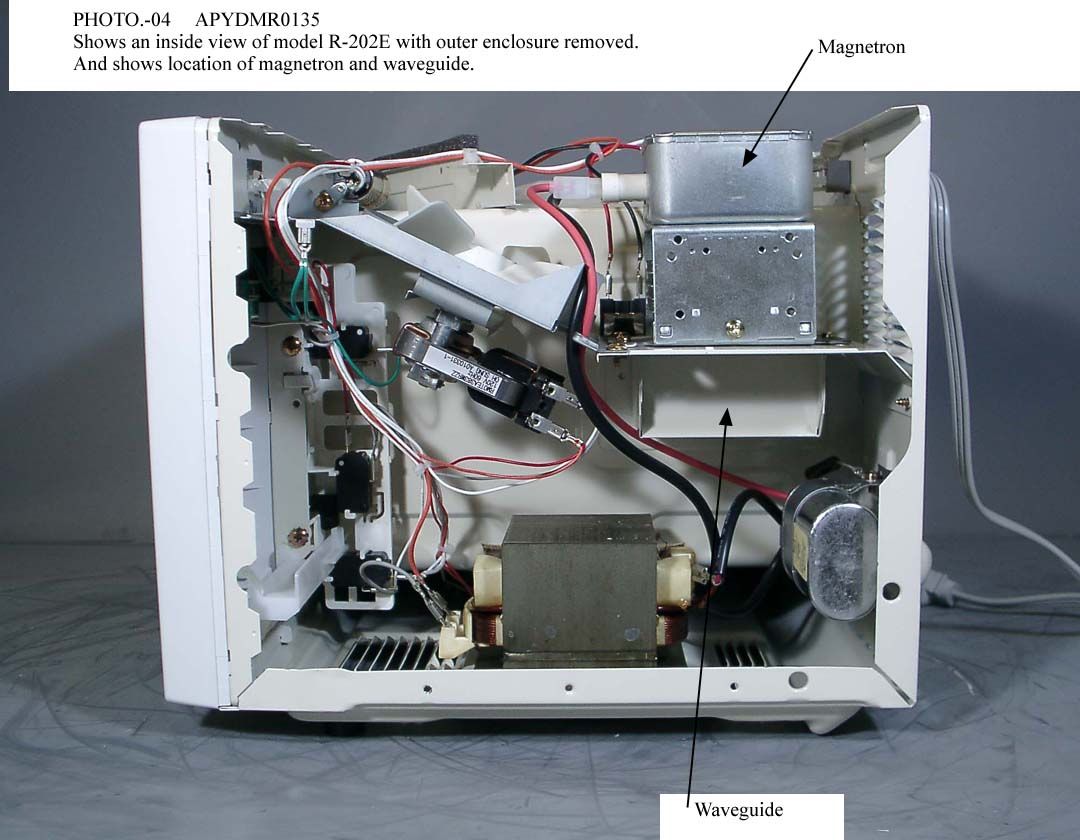

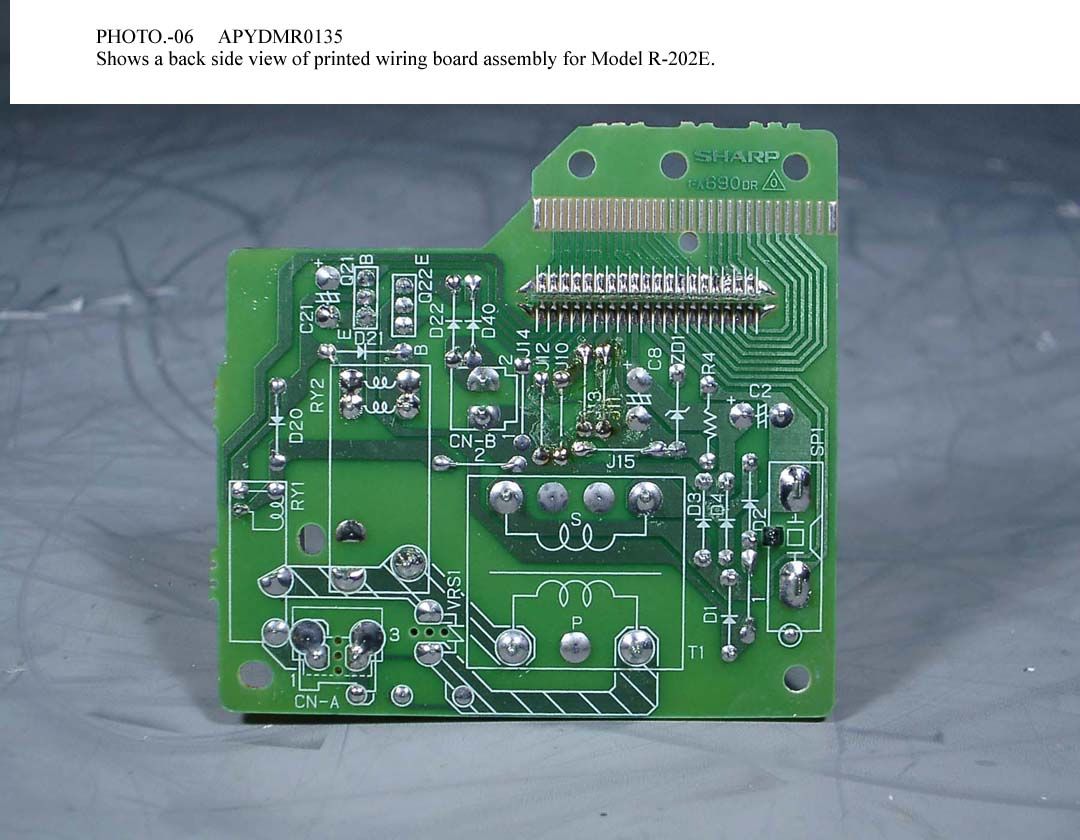

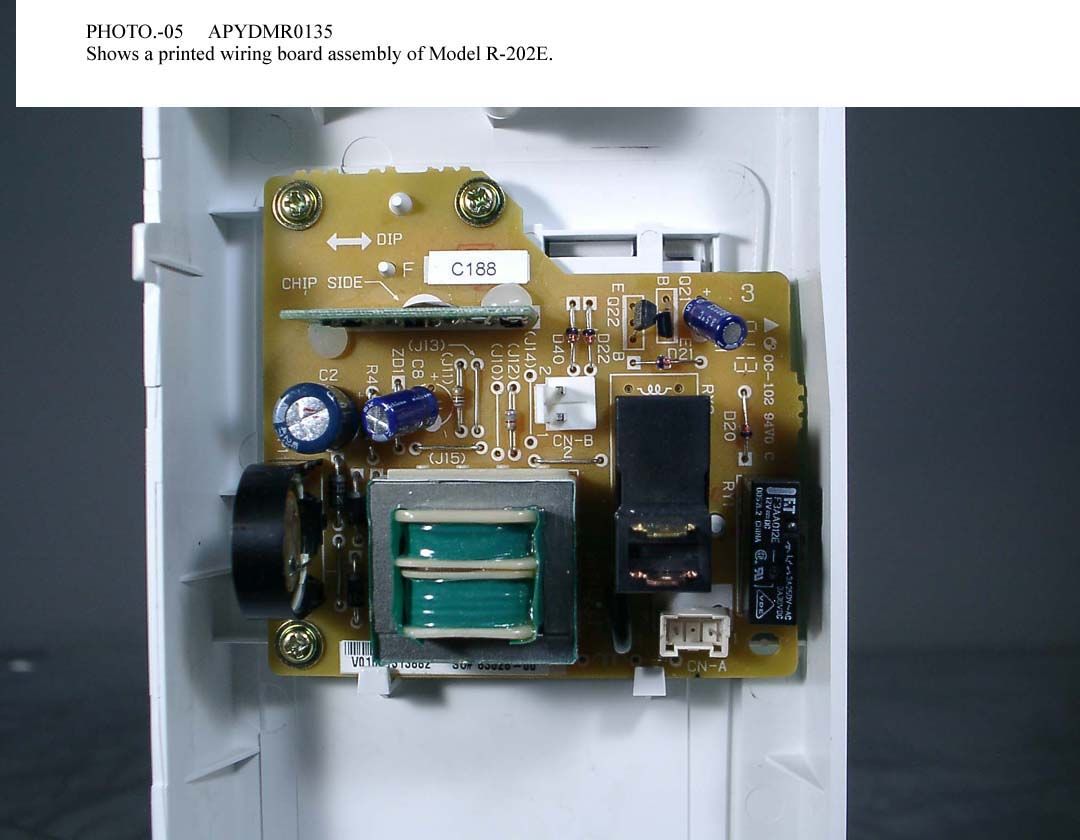

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name : Sharp Corporation, Reliability Control Group Address 22-22 Nagaike-Cho, Abeno-Ku Osaka 545-8522, Japan Grantee Code: : APY Applicant Rep. : S. Miyasaka CONTACT PERSON: Name : Sharp Electronics Corporation Address : Sharp Plaza, Mahwah, New Jersey 07430 Applicant Rep. : Steve Petruska, Product Safety Dept. Telephone No. : 201-529-9689 MEASUREMENT SITE: Name : Japan Quality Assurance Organization Kita-Kansai Testing Center, EMC Division Address : 7-1 Ishimaru 1-Chome Minoh-shi, Osaka 562-0027, Japan MANUFACTURER: Name : Sharp Appliances (Thailand) Ltd. Address : 64 Moo 5, Tambol Bangsamuk Amphur Bangpakong Chachoengsao Province, Thailand FCC IDENTIFICATION : APYDMR0135 EQUIPMENT Model Name : Microwave Oven Model R-202E# and R-203E# (#: Suffix letter denoting cosmetic color is provided.) Brand : Sharp Electronics Corp. Importer : Sharp Electronics Corp. ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 700 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 700 W (5) The voltage and current to magnetron: Magnetron Cat. No. 2M231AH(L) : 3.85 kV peak, 235 mA (rms) ; or Magnetron Cat. No. OM52S : 4.05 kV peak, 228 mA (rms) (6) Function of each electro tube, semiconductor or other active circuit device: Fixed Magnetron, Type 2M231AH(L) or OM52S as power generator (7) Complete circuit diagram: Attached (8) Instruction book: Attached (9) Tune up procedure over the power range or at specific operating power levels: Not adjustable (10) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (11) A description of any circuit or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power: Suppression obtained by shielding design (12) Identification plate or label: Illustration attached Location of identification plate or label: Photo. Attached ********** INFORMATION FOR CERTIFICATION (3) ********** DESCRIPTION OF THE MICROWAVE OVEN Unit Body Dimensions : 460 mm wide, 276 mm high, 352 mm deep (include feet) Door Dimensions : 368 mm wide, 252 mm high (Viewing Area: 239 mm wide, 122 mm high) Oven Cavity Dimensions : 321 mm wide, 225 mm high, 336 mm deep (without tray) Feed Type and Location : Supplied by waveguide located side of oven Door Seal Type : Choke and Capacitive Seals Magnetron Type : 2M231AH(L) mfd by Toshiba; or OM52S mfd by Samsung

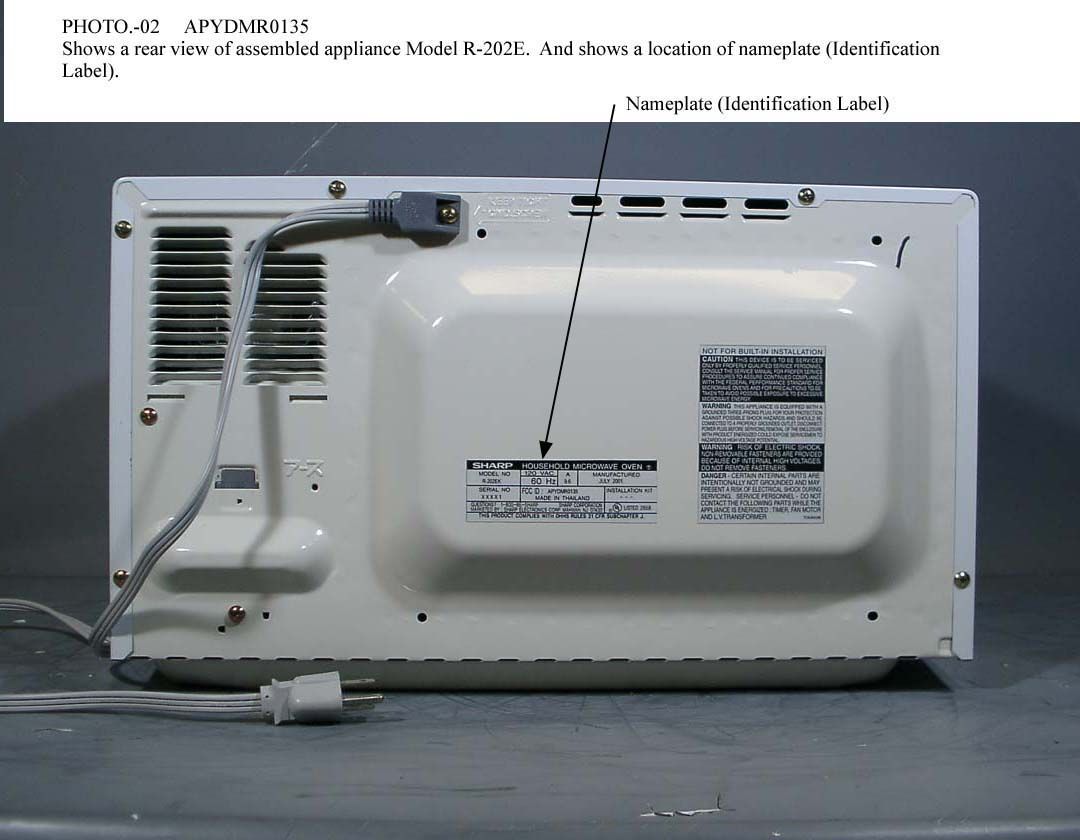

IDENTIFICATION LABEL (Nameplate label) FCC ID : APYDMR0135 Label Material : Approx. 0.063 mm thick film with back adhesion. For Models R-202E# and R-203E# (#: provided with suffix letter/number for denoting cosmetic color.) FCC ID Code APY : FCC assigned grantee code for Sharp Corporation. DMR0135 : Number assigned by the grantee to the model or the model family in a technically identical products. Factory ID Mark T : Manufacturer identification marking for Sharp Appliances (Thailand) Ltd. 95 mm 32 mm Model Number FCC ID Code Factory ID Mark

IssueDate:May30,2001 Page 1 of 24 EMC EMISSION - TEST REPORT JQA APPLICATION No.: KL80010094 Name of Product: Microwave Oven Model/Type No.: R-202E FCC ID: APYDMR0135 Applicant : Sharp Corporation, Reliability Control Group Address : 22-22, Nagaike-cho, Abeno-ku, Osaka 545-8522, Japan Manufacturer : Sharp Appliances (Thailand) Ltd. Address : 64 Moo 5, Tambol Bangsamuk, Amphur Bangpakong Chachoengsao, Province, Thailand Receive date of EUT: May 14, 2001 Final Judgement :Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) under METI Japan and Communications Research Lab. (CRL) under MPHPT Japan. THE TEST RESULTS only responds to the test sample. This test report shall not be reproduced except in full. Page 2 of 24 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 Test Conditions4-8 Configuration of EUT / Operation mode of the EUT9 - 10 EUT Modification / Responsible Party / Deviation from Standard11 Test results / Measurement Uncertainty12 - 13 Summary14 Test System-Arrangement (Drawings) 15 Preliminary Test and Test-setup (Drawings) 16 - 18 Test-setup (Photographs) at worst case 19 B) Test data RF Power Output20 ISM Frequency21 Magnetic Field Radiated Emission9 kHz - 30 MHz22 Electromagnetic Field Radiated Emission 30 MHz - 1000 MHz23 Electromagnetic Field Radiated Emission 1 GHz - 26 GHz24 JQA Application No. : KL80010094Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 JQA Application No. : KL80010094Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 Page 3 of 24 TEST REGULATION FCC Rules and Regulations Part 18 Subpart A, B and C (October 1, 2000) zz- Miscellaneous equipment- ISM Frequency Device {{- Medical diathermy- Non-ISM Frequency Device {- Industrial heaters and RF stabilized arc welder {- Induction cooking ranges Test procedure: The test was performed according to the procedures in FCC/OET MP-5 (1985). GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai : 1st and 2nd Open Sites (3 m Site) Test Facility located at Kameoka Open Site (3, 10 and 30 m, on common plane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 3) Average Measurement Method FCC filing No. : 950523A 1300F2 Description of the Equipment Under Test (EUT): 1) Name: Microwave Oven 2) Model/Type No.: R-202E 3) Product Type: Prototype 4) Category: ISM Frequency Device 5) EUT Authorization: - Verification- Certification- D.o.C.{z { 6) Highest frequency used/generated : 2450 MHz 7) Power Rating: AC 120V 60Hz 1 3-pin plugφ 8) Rated Power Output: 700 W Definitions for symbols used in this test report: z- Black box indicates that the listed condition, standard or equipment is applicable for this Report. {- Blank box indicates that the listed condition, standard or equipment is not applicable for this Report. JQA Application No. : KL80010094Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 Page 4 of 24 TEST CONDITIONS RF Power Output Measurement was performed in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan {-1stsite {-2ndsite z-Shieldedroom {- Anechoic chamber KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan {-Shieldedroom {-Opentestsite Used test instruments: Model No.Assigned C/Nast Cal. DateCal. Interval L z- 2533-2108011090April, 20011 Year z- 245506Q47097361April, 20011 Year z- SIII-5000Q47097350February, 20011 Year Environmental conditions: Temperature: 24 °C Humidity: 52 % JQA Application No. : KL80010094Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 Page 5 of 24 ISM Frequency Measurement was performed for line voltage variation from 80 % to 125 % of normal rated voltage, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan {-1stsite {-2ndsite {-Shieldedroom z- Anechoic chamber KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan {-Shieldedroom {-Opentestsite Used test instruments: Model No.Device IDast Cal. DateCal. Interval L z- 8566BA - 13December, 20001 Year {- 8593AA - 15 {- 4T-10D - 73 {- 4T-10D - 74 {- WJ-6611-513A - 23 {- WJ-6882-824A - 21 {- DBL-0618N515A - 33 {- 91888-2C - 41 - 1 z- 91889-2C - 41 - 2May, 20001 Year {- 94613-1C - 41 - 3 {- 91891-2C - 41 - 4 {- 94614-1C - 41 - 5 {-2-10D-40 z- TR5212B - 30March, 20011 Year z-CableC-40-11May,20001Year {-CableC-40-12 Environmental conditions: Temperature: 25 °C Humidity: 52 % JQA Application No. : KL80010094Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 Page 6 of 24 Magnetic Field Radiated Emission Measurement was performed in the frequency range of 9 kHz - 30 MHz, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan z- 1st open test site (3 meters) {- 2nd open test site (3 meters) KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan {{{{- 1st open test site- 3 m- 10 m- 30 m {{{- 2nd open test site- 3 m- 10 m Used test instruments: Model No.Device IDast Cal. DateCal. Interval L {-ESCS30A-1 z-ESH2A-2May,20001Year {-ESH2A-3 z- HFH2-Z2C - 2July, 20001 Year {- HFH2-Z2C - 3 Environmental conditions: Temperature: 25 °C Humidity: 52 % JQA Application No. : KL80010094Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 Page 7 of 24 Electromagnetic Field Radiated Emission Measurement was performe…

Text truncated - open the document above for the full version.

IssueDate:May30,2001 Page 1 of 24 EMC EMISSION - TEST REPORT JQA APPLICATION No.: KL80010093 Name of Product: Microwave Oven Model/Type No.: R-202E FCC ID: APYDMR0135 Applicant : Sharp Corporation, Reliability Control Group Address : 22-22, Nagaike-cho, Abeno-ku, Osaka 545-8522, Japan Manufacturer : Sharp Appliances (Thailand) Ltd. Address : 64 Moo 5, Tambol Bangsamuk, Amphur Bangpakong Chachoengsao, Province, Thailand Receive date of EUT: May 14, 2001 Final Judgement :Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) under METI Japan and Communications Research Lab. (CRL) under MPHPT Japan. THE TEST RESULTS only responds to the test sample. This test report shall not be reproduced except in full. Page 2 of 24 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 Test Conditions4-8 Configuration of EUT / Operation mode of the EUT9 - 10 EUT Modification / Responsible Party / Deviation from Standard11 Test results / Measurement Uncertainty12 - 13 Summary14 Test System-Arrangement (Drawings) 15 Preliminary Test and Test-setup (Drawings) 16 - 18 Test-setup (Photographs) at worst case 19 B) Test data RF Power Output20 ISM Frequency21 Magnetic Field Radiated Emission9 kHz - 30 MHz22 Electromagnetic Field Radiated Emission 30 MHz - 1000 MHz23 Electromagnetic Field Radiated Emission 1 GHz - 26 GHz24 JQA Application No. : KL80010093Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 JQA Application No. : KL80010093Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 Page 3 of 24 TEST REGULATION FCC Rules and Regulations Part 18 Subpart A, B and C (October 1, 2000) zz- Miscellaneous equipment- ISM Frequency Device {{- Medical diathermy- Non-ISM Frequency Device {- Industrial heaters and RF stabilized arc welder {- Induction cooking ranges Test procedure: The test was performed according to the procedures in FCC/OET MP-5 (1985). GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai : 1st and 2nd Open Sites (3 m Site) Test Facility located at Kameoka Open Site (3, 10 and 30 m, on common plane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 3) Average Measurement Method FCC filing No. : 950523A 1300F2 Description of the Equipment Under Test (EUT): 1) Name: Microwave Oven 2) Model/Type No.: R-202E 3) Product Type: Prototype 4) Category: ISM Frequency Device 5) EUT Authorization: - Verification- Certification- D.o.C.{z { 6) Highest frequency used/generated : 2450 MHz 7) Power Rating: AC 120V 60Hz 1 3-pin plugφ 8) Rated Power Output: 700 W Definitions for symbols used in this test report: z- Black box indicates that the listed condition, standard or equipment is applicable for this Report. {- Blank box indicates that the listed condition, standard or equipment is not applicable for this Report. JQA Application No. : KL80010093Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 Page 4 of 24 TEST CONDITIONS RF Power Output Measurement was performed in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan {-1stsite {-2ndsite z-Shieldedroom {- Anechoic chamber KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan {-Shieldedroom {-Opentestsite Used test instruments: Model No.Assigned C/Nast Cal. DateCal. Interval L z- 2533-2108011090April, 20011 Year z- 245506Q47097361April, 20011 Year z- SIII-5000Q47097350February, 20011 Year Environmental conditions: Temperature: 24 °C Humidity: 52 % JQA Application No. : KL80010093Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 Page 5 of 24 ISM Frequency Measurement was performed for line voltage variation from 80 % to 125 % of normal rated voltage, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan {-1stsite {-2ndsite {-Shieldedroom z- Anechoic chamber KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan {-Shieldedroom {-Opentestsite Used test instruments: Model No.Device IDast Cal. DateCal. Interval L z- 8566BA - 13December, 20001 Year {- 8593AA - 15 {- 4T-10D - 73 {- 4T-10D - 74 {- WJ-6611-513A - 23 {- WJ-6882-824A - 21 {- DBL-0618N515A - 33 {- 91888-2C - 41 - 1 z- 91889-2C - 41 - 2May, 20001 Year {- 94613-1C - 41 - 3 {- 91891-2C - 41 - 4 {- 94614-1C - 41 - 5 {-2-10D-40 z- TR5212B - 30March, 20011 Year z-CableC-40-11May,20001Year {-CableC-40-12 Environmental conditions: Temperature: 25 °C Humidity: 52 % JQA Application No. : KL80010093Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 Page 6 of 24 Magnetic Field Radiated Emission Measurement was performed in the frequency range of 9 kHz - 30 MHz, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan z- 1st open test site (3 meters) {- 2nd open test site (3 meters) KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan {{{{- 1st open test site- 3 m- 10 m- 30 m {{{- 2nd open test site- 3 m- 10 m Used test instruments: Model No.Device IDast Cal. DateCal. Interval L {-ESCS30A-1 z-ESH2A-2May,20001Year {-ESH2A-3 z- HFH2-Z2C - 2July, 20001 Year {- HFH2-Z2C - 3 Environmental conditions: Temperature: 25 °C Humidity: 52 % JQA Application No. : KL80010093Regulation : CFR 47 FCC Rules Part 18 ModelNo.:R-202EIssueDate :May30,2001 FCC ID: APYDMR0135 Page 7 of 24 Electromagnetic Field Radiated Emission Measurement was performe…
