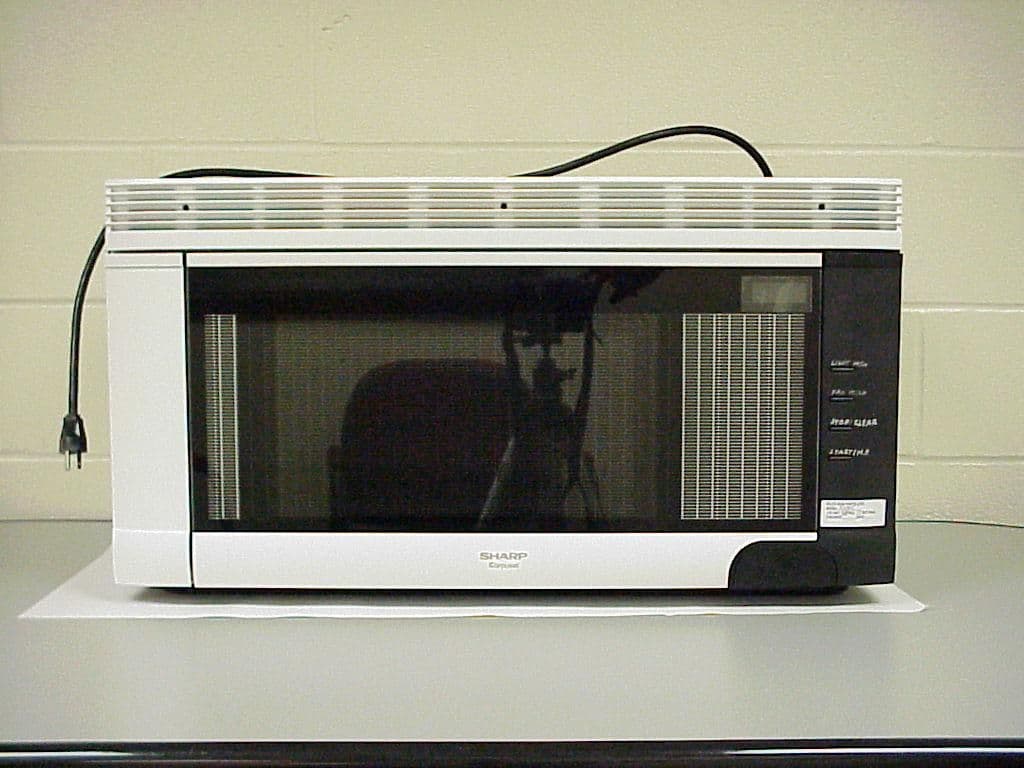

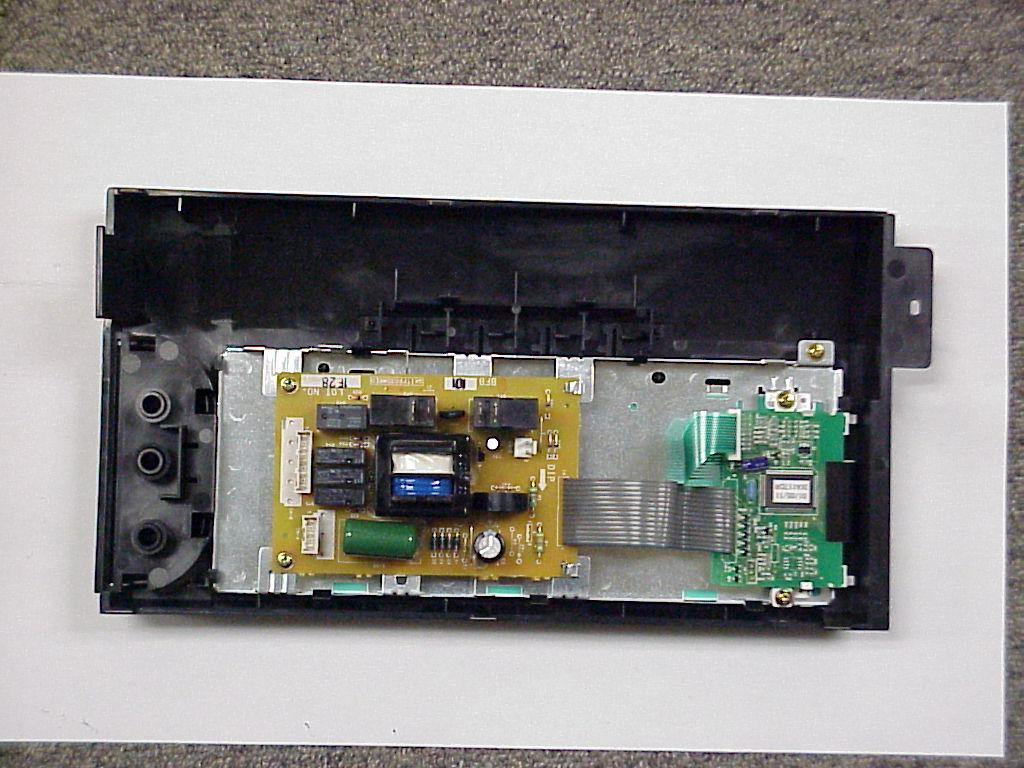

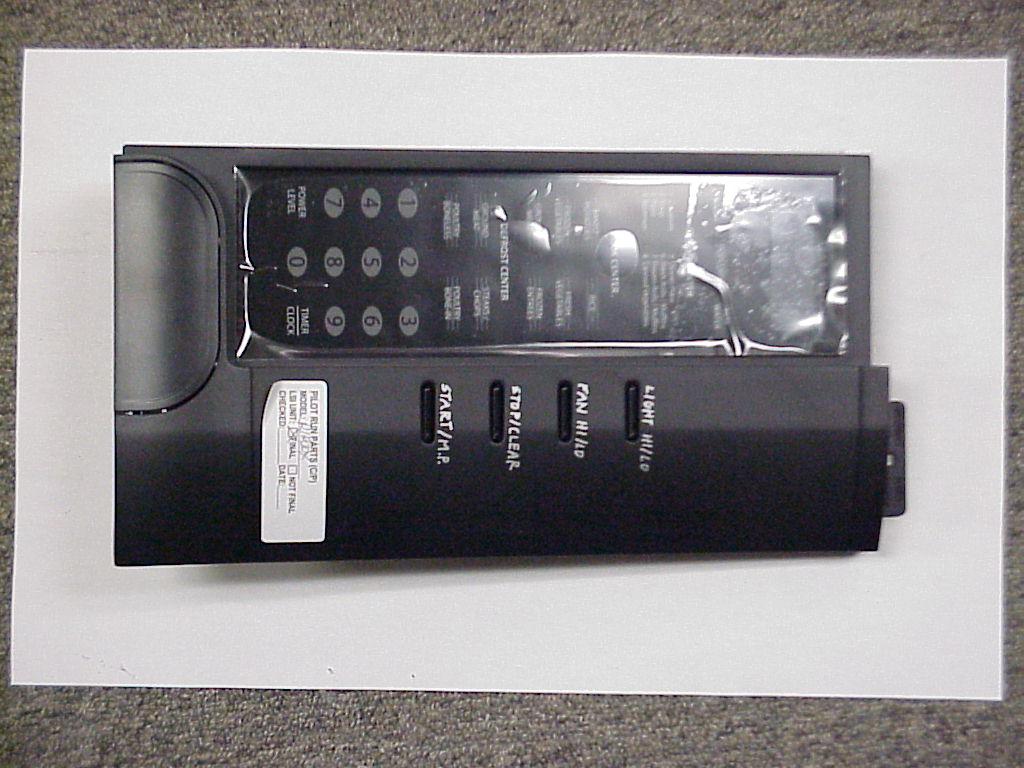

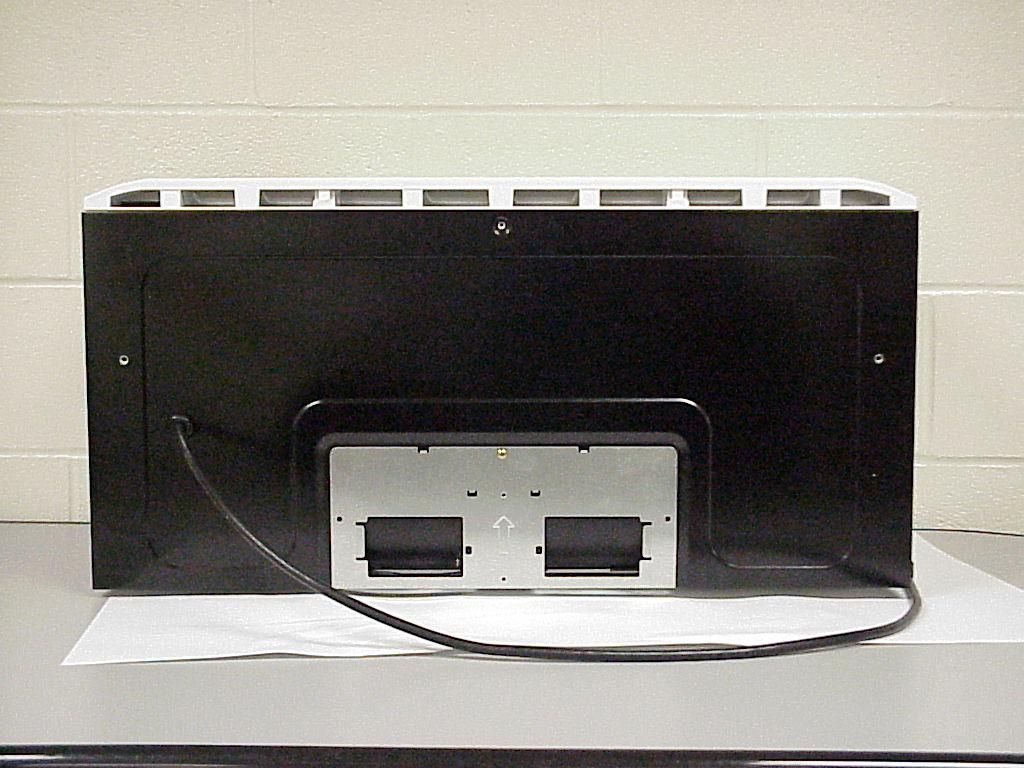

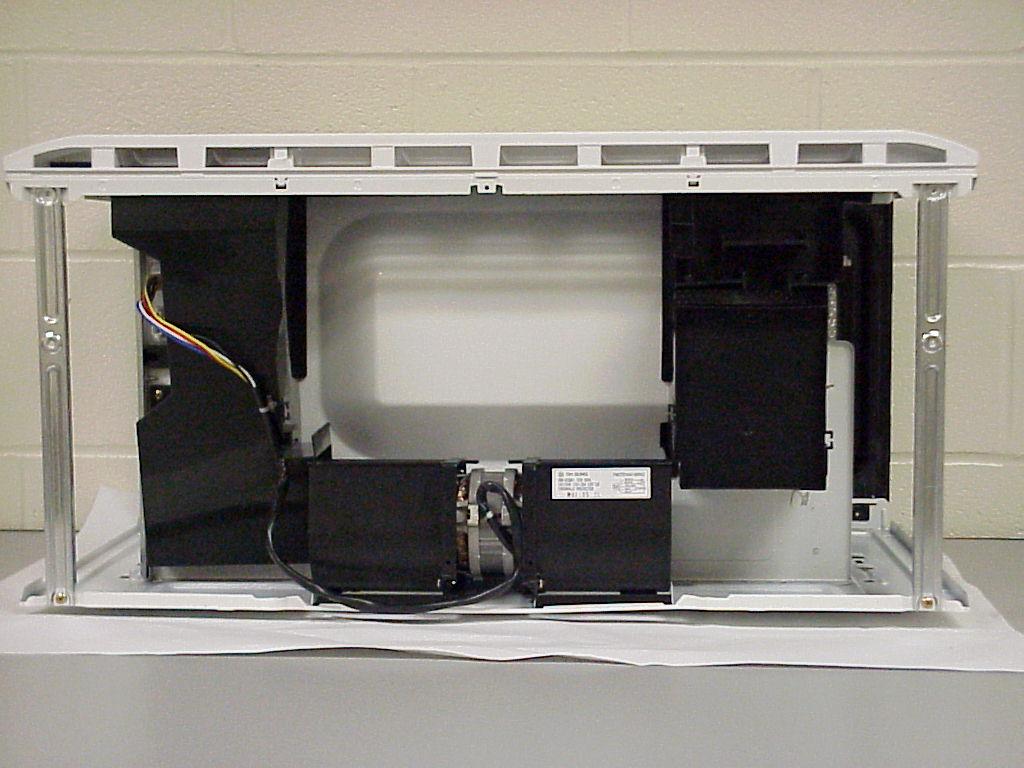

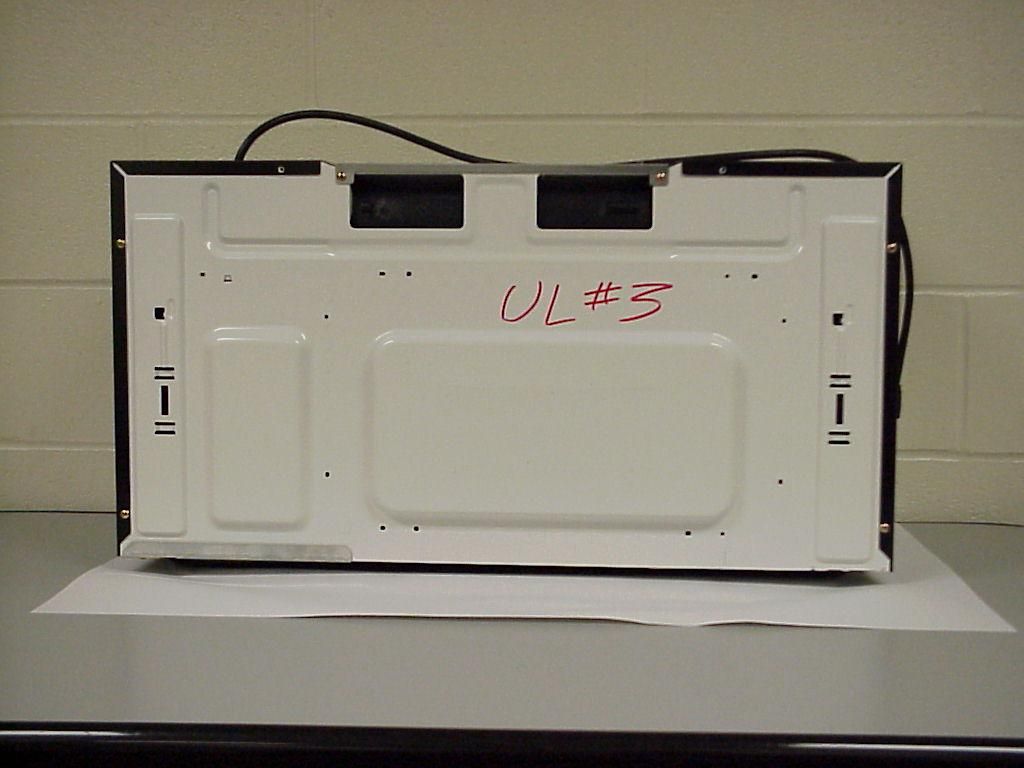

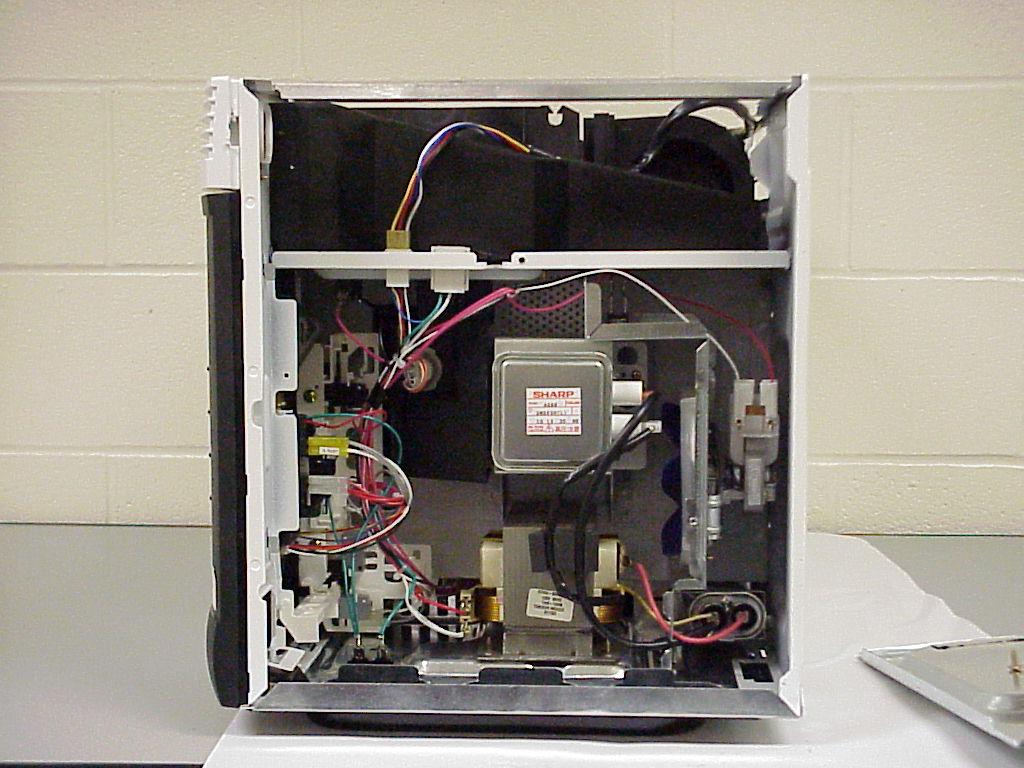

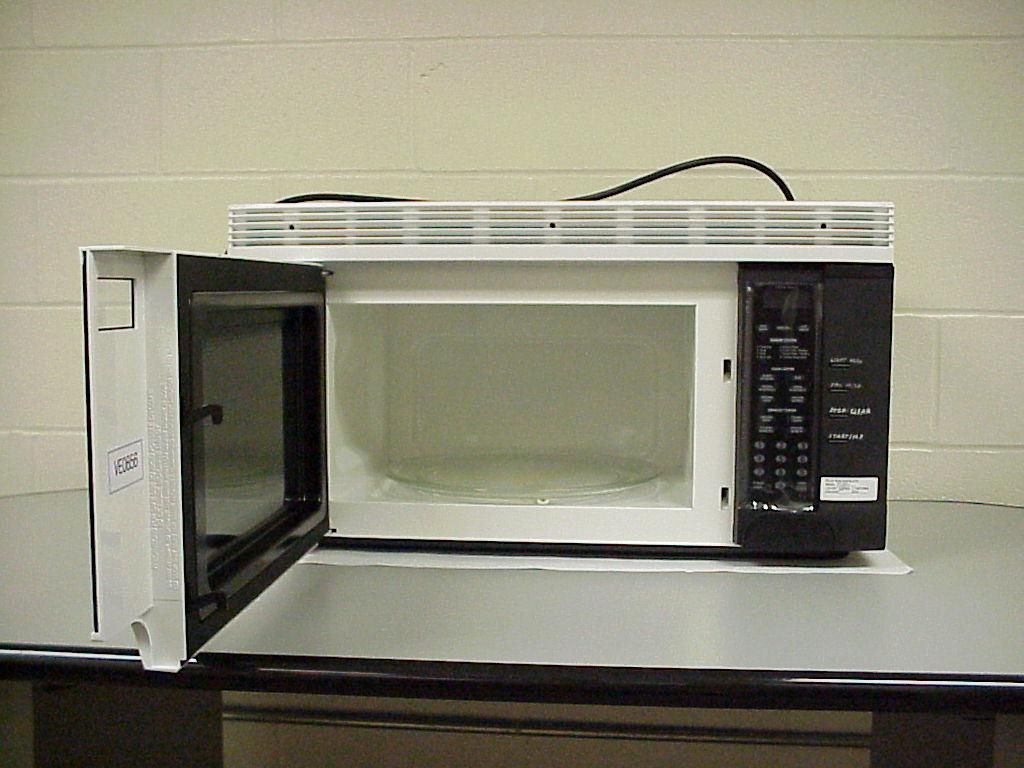

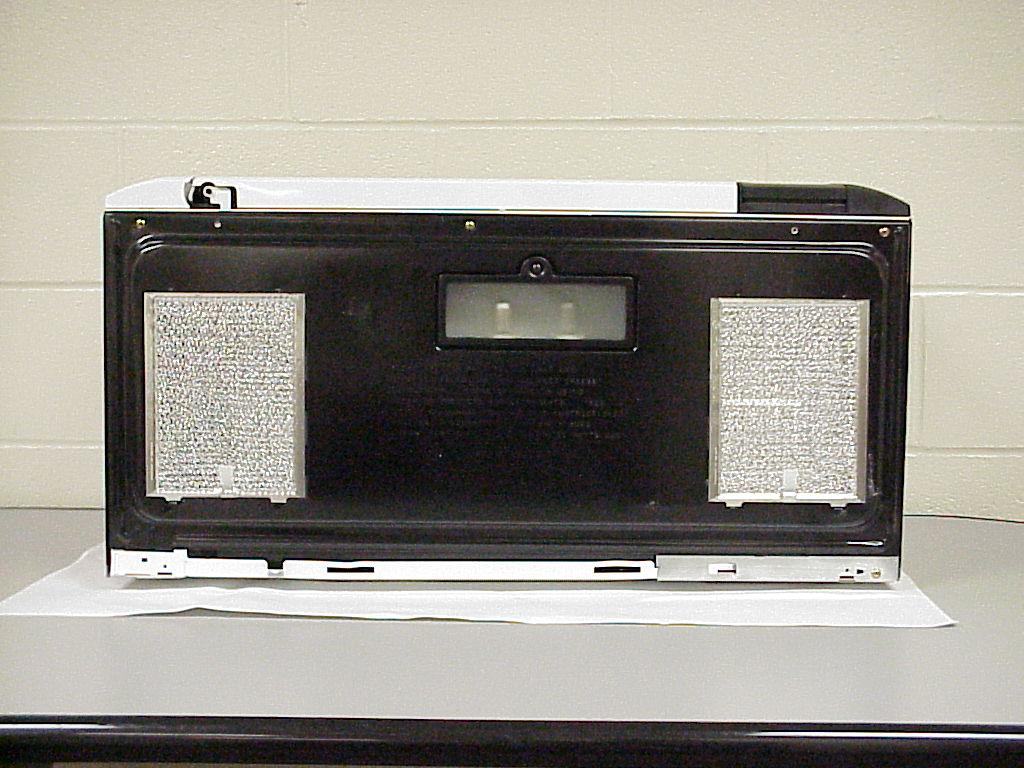

APYDMR0136Microwave Oven

OVER THE RANGE MODELS R-1500, R-1501, R-1505, R-1506 1.OTX#B2826/22/01, 1:54 PM1 2 To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBER________________________SERIAL NUMBER______________ DATE OF PURCHASE______________________ DEALER____________________________TELEPHONE________________ SERVICER___________________________TELEPHONE________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. TO PHONE: DIAL 1-800-BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and COOKBOOK TO WRITE: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 TO ACCESS INTERNET: www.sharp-usa.com FOR CUSTOMER ASSISTANCE Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. 1.OTX#B2826/22/01, 1:54 PM2 3 CONTENTS For Customer Assistance ..........................2 Precautions to Avoid Possible Exposure to Excessive Microwave Energy ..................................2 Contents ......................................................3 Consumer Limited Warranty .....................4 Product Information Card ..........................4 Important Safety Instructions ...................5 Unpacking Instructions .............................6 Optional Accessories ................................6 Grounding Instructions .............................6 Information You Need to Know .................7-9 About Your Oven ......................................7 About Food ...............................................7 About Utensils and Coverings ...................8 About Children and the Microwave ...........8 About Microwave Cooking ........................9 About Safety .............................................9 Part Names ................................................. 10-11 Before Operating ........................................12 To Set the Clock .......................................12 Stop/Clear .................................................12 Manual Operation .......................................13 Time Cooking ............................................13 To Set Power Level ..................................13 Manual Defrost ..........................................13 Special Features ......................................... 14-19 Keep Warm ...............................................14 Popcorn .....................................................14 Hot Water ..................................................14 Reheat Center ........................................... 15-16 Cook Center .............................................. 17-18 Defrost Center ...........................................19 Other Convenient Features ....................... 20-21 Multiple Sequence Cooking ......................20 Timer .........................................................20 More or Less Time Adjustment .................20 Minute Plus ...............................................20 Child Lock .................................................20 Audible Signal Elimination ........................21 Demonstration Mode .................................21 Light Hi/Lo .................................................21 Fan Hi/Lo ..................................................21 Cleaning and Care ......................................22 Replacing Parts ..........................................23 Service Call Check .....................................24 Specifications .............................................24 The Ultimate Accessory ............................25 Cookbook Order Form ...............................25 Notes ...........................................................26 Cooking / Reheating Chart ........................ 27-29 Guia Auto-Touch ........................................ 30-31 Auto-Touch Guide .................31-Back Cover 1.OTX#B2826/22/01, 1:54 PM3 4 SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is…

Text truncated - open the document above for the full version.

June 25,2001 Federal Communications Commission C/O Mellon Bank 525 William Penn Way Room 153-2713 Pittsburgh, PA 15259-0001 Attn.: Wholesale Lockbox Supervisor Subject: Part 18 Certification for Microwave Oven Models: R-1500,R-1501, R-1505,R-1506 Brand Name: Sharp FCC ID Number: APYDMR0136 Applicant: Sharp Corporation Manufacturer: Sharp Manufacturing Company of America Dear Sirs, Sharp Manufacturing Company of America requests certification for the subject models under Part 18 of the FCC Rules. Enclosed you will find a completed FCC Form 731 and supporting exhibits. A list of exhibits is included directly behind the FCC Form 731. If you should have any questions concerning this application please contact myself, (901) 367- 5150 or Mr. Steve Petruska, (201) 529-9689. Thank you. Sincerely, Derek Shannon Derek Shannon Compliance Engineer Microwave Oven Division Enclosure FCC ID: APYDMR0136 INFORMATION FOR CERTIFICATION APPLICANT: Name:Sharp Corporation, Reliability Control Group Address:22-22 Nagaike-Cho, Abeno-Ku Osaka 545, Japan Grantee Code:APY Applicant Representative:Mr. S. Miyasaka REPORTED BY: Name:Sharp Manufacturing Company of America Address:Sharp Plaza Blvd., Memphis, TN 38193 CONTACT PERSON: Name:Sharp Electronics Corporation Address:Sharp Plaza, Mahwah, New Jersey 07430 Applicant Representative:Mr. Steve Petruska Telephone No.:(201) 529-9689 MANUFACTURER: Name:Sharp Manufacturing Company of America Address:Sharp Plaza Blvd., Memphis, TN 38193 FCC IDENTIFIER: APYDMR0136 EQUIPMENT: Microwave Oven Models R-1500, R-1501, R-1505, R-1506 FCC ID:APYDMR0136 LIST OF EXHIBITS EXHIBIT A -Purpose of Filing EXHIBIT B -Block Diagram and Schematic Drawing EXHIBIT C -Operations Manual EXHIBIT D -Identification Label EXHIBIT E -Photographs EXHIBIT F -Measurement Report FCC ID: APYDMR0136 EXHIBIT A PURPOSE OF FILING The purpose of this filing is to request certification for a new model family of microwave ovens. The output power for this model family is 1000 watts as measured by the IEC 705 method, 1988 revision. These models are designed to be installed above a conventional range or Cooktop. TECHNICAL REPORT APPLICATION FOR CERTIFICATION June 2001 FCC ID: APYDMR0136 MODEL NO.: R-1500, R-1501, R-1505, R-1506 MAGNETRON TYPES: 2M253H ( Toshiba), 2M226 (LG), 2M167(Panasonic) EQUIPMENT CLASS: Part 18 Consumer Device FCC ID: APYDMR0136 MICROWAVE OVEN BLOCK DIAGRAM Note: Components outlined with dotted line are optional and may not be present on all models. Control Panel H.V. Transformer Magnetron Oven Cavity Fan Motor Lamp Turntable Motor Hood Motor Stirrer Motor Timer Motor Input 120 Vac Heating Element H.V Capacitor

FCC ID: APYDMR0136 EXHIBIT D IDENTIFICATION LABEL (NAMEPLATE) FCC ID NUMBER APY:FCC Grantee Code for Sharp Corporation DMR0136:Designation Assigned to This Model Family 99:99 Location of Nameplate Label in Oven

1. FREQUENCY MEASUREMENTS FCC ID : APYDMR0136 TESTED UNIT : Household Microwave Oven, Model R-1500 Magnetron Type No. : 2M226, mfd by LG Electronics Tested : May 31, 2001 (1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1000 cc water in the glass beaker Line Voltage Variation (V) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 96 (80%) Upper: 2463 MHz Lower: 2443 MHz 108 (90%) Upper: 2463 MHz Lower: 2452 MHz 120 (Nominal) Upper: 2465 MHz Lower: 2409 MHz 132 (110%) Upper: 2463 MHz Lower: 2440 MHz 150 (125%) Upper: 2466 MHz Lower: 2445 MHz Upper: 2500 MHz Lower: 2400 MHz (2) Frequency VS Load Variation Test Test Results (Room Temperature: 20 degC) Initial Load: 1000 cc water in the glass beaker. Volume of Water (cc) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 1000 Upper: 2465 MHz Lower: 2409 MHz 800 Upper: 2466 MHz Lower: 2409 MHz 600 Upper: 2467 MHz Lower: 2412 MHz 400 Upper: 2465 MHz Lower: 2439 MHz 200 Upper: 2476 MHz Lower: 2430 MHz Upper: 2500 MHz Lower: 2400 MHz 2. RADIATED FIELD STRENGTH DATA SHEET (FCC Measurement Procedure MP-5)FCC ID: APYDMR0136 Microwave Oven, Model R-1500Magnetron: 2M226, mfd by LG ElectronicsDate: May 31 - June 7, 2001 FrequencyLoadPlace ofAntennaCable Reading Radiated the loadFactorLoss Data Field Strength (MHz)(ml)(dB)(dB) (dBuV @:3m) (uV/m @:300m) VerticalHorizenVerticalHorizen Fundamental24521000Center20.701.0387771731.33547.49 2nd Harmonic4910700Center20.501.5833405.6812.71 4916700R.F.Corner20.501.5832365.068.02 4906300Center20.501.5836448.0220.14 4913300R.F.Corner20.501.58384610.0925.35 3rd Harmonic7377700Center19.202.1025292.073.27 7372700R.F.Corner19.202.1018200.921.16 7370300Center19.202.1024301.843.67 7380300R.F.Corner19.202.1025302.073.67 4th Harmonic9800700Center20.002.65Noise<10Noise<10Noise<0.43Noise<0.43 Sprious4435700Center20.301.4818160.960.76 8051700Center19.602.2513170.550.88 -700Center------ -700Center------ Emission Sideband24001000Center20.701.0120240.761.20 24151000Center20.701.0225231.351.08 24851000Center20.701.0316150.490.44 25001000Center20.801.0415150.450.45 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above data. Microwave Leakage at 5 cm on fundamental : 0.23 mW/cm 2 PHOTOGRAPH OF TEST EQUIPMENT #1 Spectrum AnalyzerField Strength MeterHorn Antenna 8566BNM-67 Turn Table Controller PHOTOGRAPH OF TEST EQUIPMENT #2 Horn Antenna Field Strength Meter NM-67 PHOTOGRAPH OF TEST EQUIPMENT #3 Microwave OvenWooden Table Test Sample Transparent Turn Table
