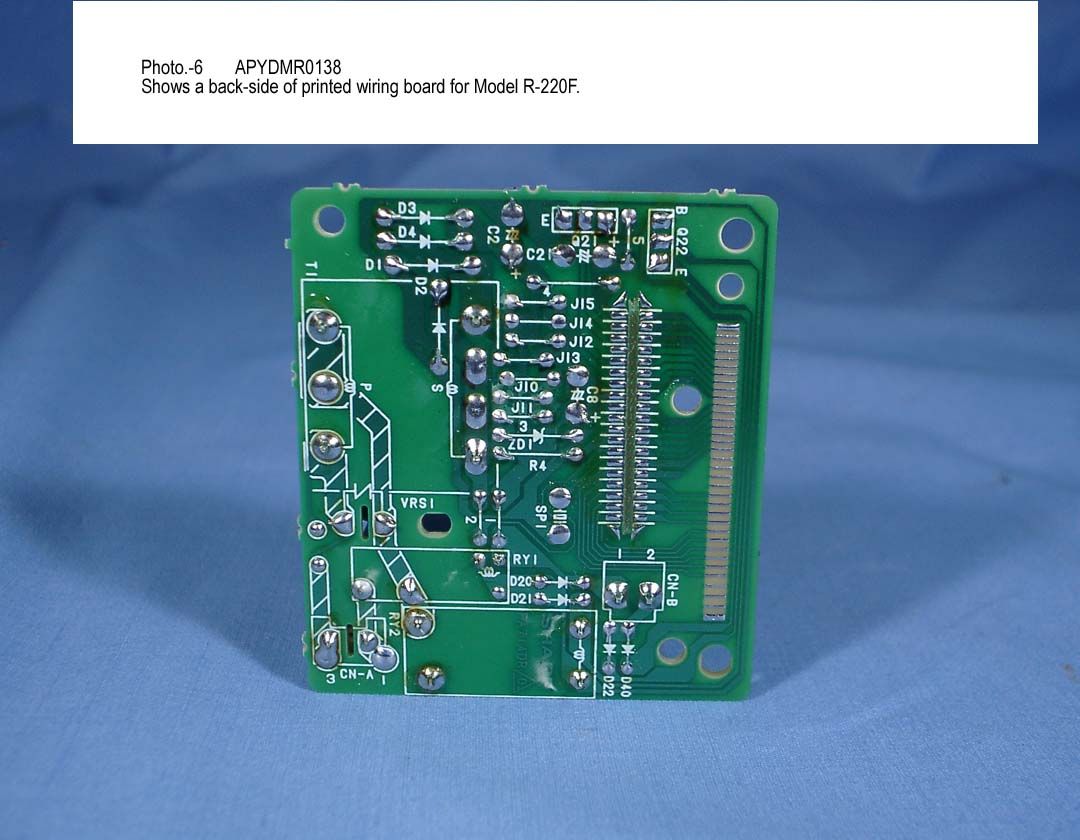

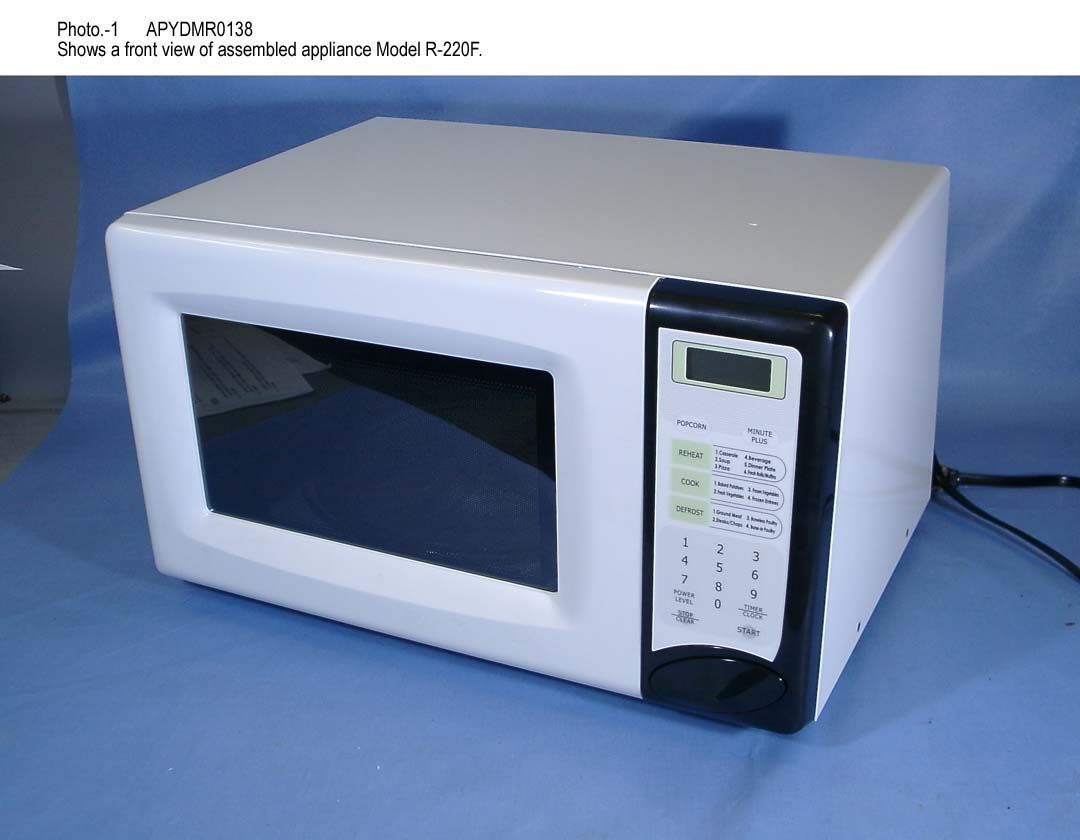

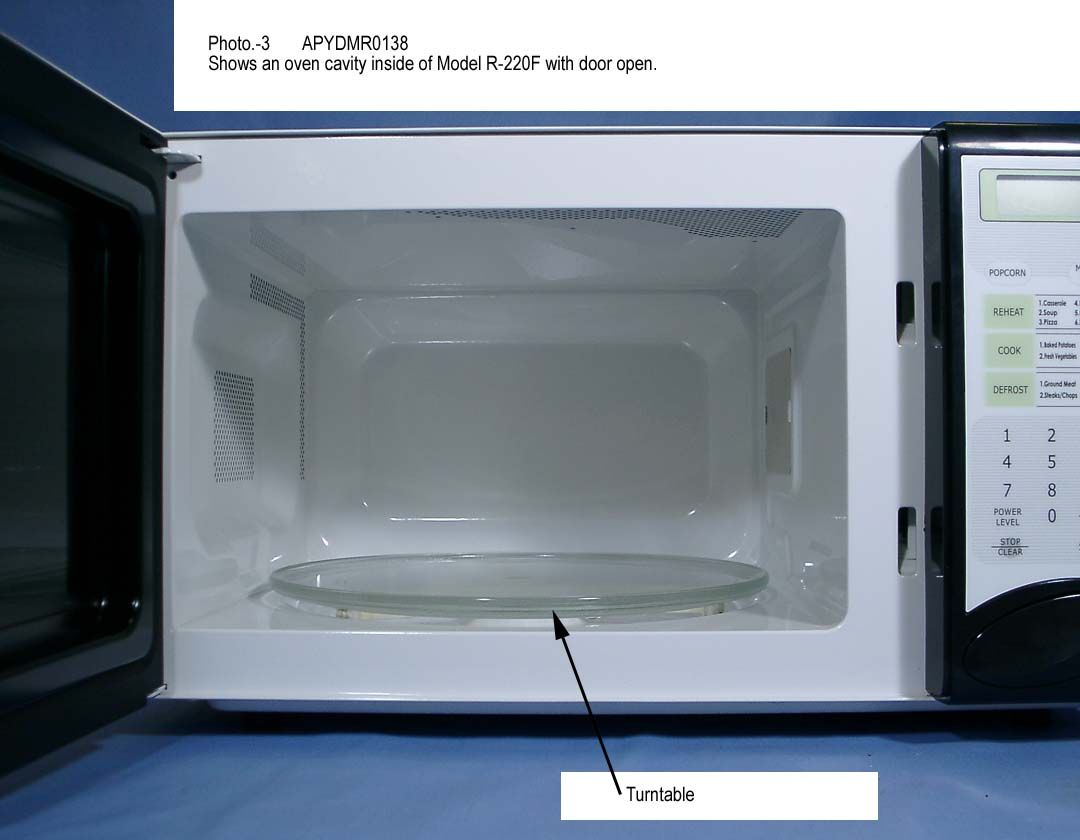

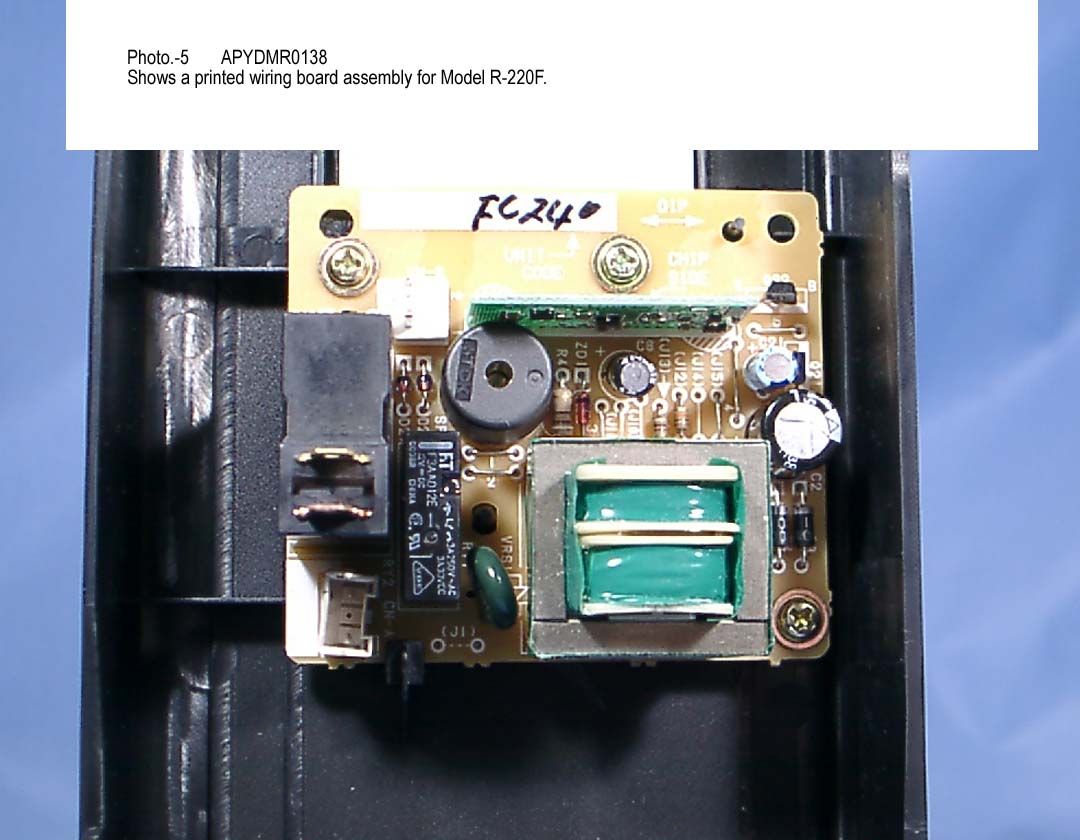

APYDMR0138Household microwave oven

1 ® ® CONTENTS •Precautions to Avoid Possible Exposure to Excessive Microwave Energy ................................. Inside Front Cover •For Customer Assistance .... Inside Front Cover •Consumer Limited Warranty ........................... 1 •Product lnformation Card ................................ 1 •Important Safety Instructions .......................... 2 •Unpacking and Installation Instructions ........... 3 •Grounding Instructions .................................... 3 •Information You Need to Know ....................... 4 •Part Names ..................................................... 7 •Before Operating ............................................. 9 •Manual Operation ............................................ 9 •Special Features ........................................... 10 Defrost ........................................................ 10 Manual Defrost ........................................... 11 Popcorn ...................................................... 11 Reheat / Cook ............................................. 12 •Other Convenient Features ........................... 14 •Cleaning and Care ........................................ 16 •Service Call Check ........................................ 17 •Specifications ................................................ 17 •Cooking Reference ....................................... 18 •The Ultimate Accessory ................................ 18 •Guia Auto-Touch ................. Parte Interior de la Cubierta Trasera •Auto-Touch Guide ......................... Back Cover MICROWAVE OVEN OPERATION MANUAL MODEL R-220F followed by letter W=white READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. 2 TO PHONE: DIAL 1-800- BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and SHARP CAROUSEL COOKBOOK TO WRITE: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 TO ACCESS INTERNET: www.sharp-usa.com To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. MODEL NUMBER______________________________SERIAL NUMBER___________________ DATE OF PURCHASE____________________________ DEALER__________________________________TELEPHONE_____________________ SERVICER_________________________________TELEPHONE_____________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door op- eration can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly quali- fied service personnel. FOR CUSTOMER ASSISTANCE 1 TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.Sharp-usa.com. Save the proof of purchase as it is needed should your oven ever require warranty service. CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANT- ABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PUR- CHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabili- ties and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way r…

Text truncated - open the document above for the full version.

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name : Sharp Corporation, Reliability Control Group Address 22-22 Nagaike-Cho, Abeno-Ku Osaka 545-8522, Japan Grantee Code: : APY Applicant Rep. : S. Miyasaka CONTACT PERSON: Name : Sharp Electronics Corporation Address : Sharp Plaza, Mahwah, New Jersey 07430 Applicant Rep. : Steve Petruska, Product Safety Dept. Telephone No. : 201-529-9689 MEASUREMENT SITE: Name : Sharp Corporation, Kitchen Appliance Systems Div. EMI Anechoic Chamber Address : 3-1-72 Kitakamei-cho, Yao Osaka 581-8585, Japan MANUFACTURER: Name : Sharp Appliances (Thailand) Ltd. Address : 64 Moo 5, Tambol Bangsamuk Amphur Bangpakong Chachoengsao Province, Thailand FCC IDENTIFICATION : APYDMR0138 EQUIPMENT Model Name : Microwave Oven Model R-214F# and R-220F# (#: Suffix letter denoting cosmetic color is provided.) Brand : Sharp Electronics Corp. Importer : Sharp Electronics Corp. ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 800 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 800 W (5) The voltage and current to magnetron: Magnetron Cat. No. 2M231AH(L) : 3.60 kV peak, 245 mA (rms) ; or Magnetron Cat. No. OM52S : 3.68 kV peak, 245 mA (rms) ; or Magnetron Cat. No. 2M213 : 3.36 kV peak, 255 mA (rms) (6) Function of each electro tube, semiconductor or other active circuit device: Fixed Magnetron, Type 2M231AH(L) or OM52S or 2M213 as power generator (7) Complete circuit diagram: Attached (8) Instruction book: Attached (9) Tune up procedure over the power range or at specific operating power levels: Not adjustable (10) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (11) A description of any circuit or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power: Suppression obtained by shielding design (12) Identification plate or label: Illustration attached Location of identification plate or label: Photo. Attached ********** INFORMATION FOR CERTIFICATION (3) ********** DESCRIPTION OF THE MICROWAVE OVEN Unit Body Dimensions : 460 mm wide, 276 mm high, 352 mm deep (include feet) Door Dimensions : 361 mm wide, 252 mm high (Viewing Area: 239 mm wide, 122 mm high) Oven Cavity Dimensions : 321 mm wide, 225 mm high, 336 mm deep (without tray) Feed Type and Location : Supplied by waveguide located side of oven Door Seal Type : Choke and Capacitive Seals Magnetron Type : 2M231AH(L) mfd by Toshiba; or OM52S mfd by Samsung; or 2M213 mfd by LG Electronics

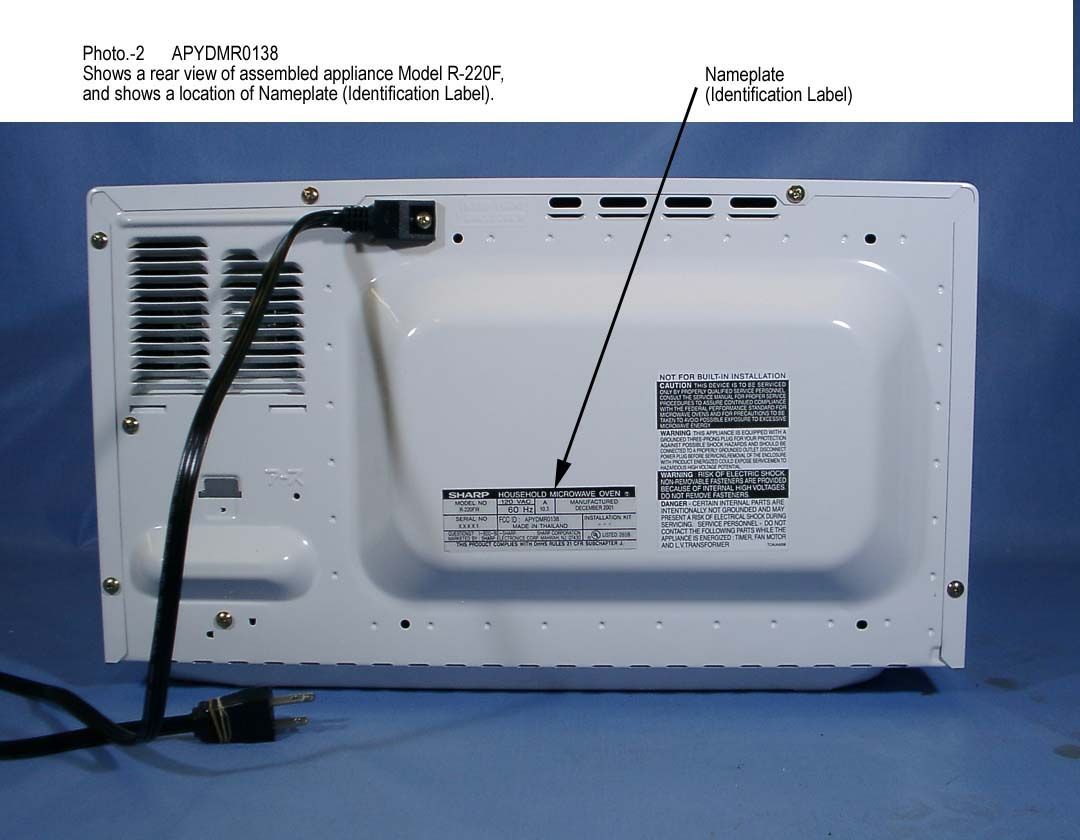

IDENTIFICATION LABEL (Nameplate label) FCC ID : APYDMR0138 Label Material : Approx. 0.063 mm thick film with back adhesion. For Models R-214F# or R-220F# (#: provided with suffix letter/number for denoting cosmetic color.) FCC ID Code APY : FCC assigned grantee code for Sharp Corporation. DMR0138 : Number assigned by the grantee to the model or the model family in a technically identical products. Factory ID Mark T : Manufacturer identification marking for Sharp Appliances (Thailand) Ltd. 95 mm 32 mm Model Number FCC ID Code Factory ID Mark

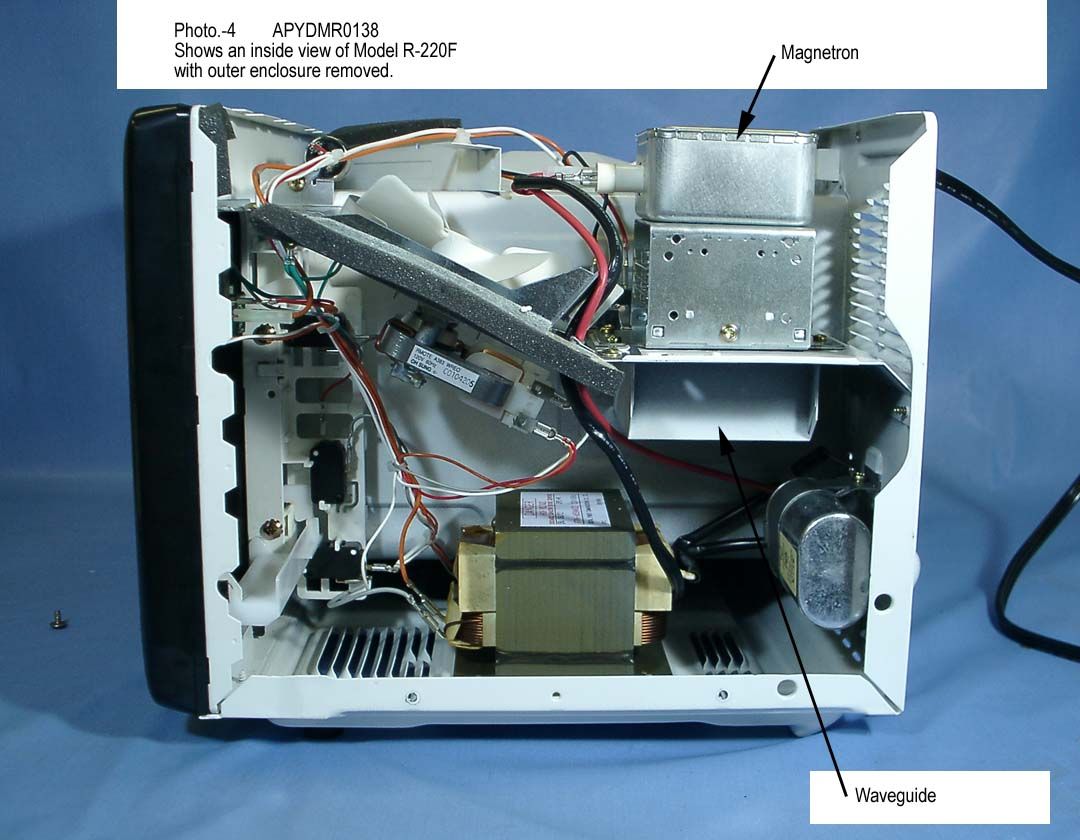

1. FREQUENCY MEASUREMENTS FCC ID : APYDMR0138 TESTED UNIT : Household Microwave Oven, Model R-220F Magnetron Type No. : 2M231AH(L), mfd by Toshiba Tested : November 8, 2001 (1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1000 cc water in the glass beaker Line Voltage Variation (V) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 96 (80%) Upper: 2457 MHz Lower: 2410 MHz 108 (90%) Upper: 2462 MHz Lower: 2415 MHz 120 (Nominal) Upper: 2461 MHz Lower: 2427 MHz 132 (110%) Upper: 2460 MHz Lower: 2415 MHz 150 (125%) Upper: 2459 MHz Lower: 2422 MHz Upper: 2500 MHz Lower: 2400 MHz (2) Frequency VS Load Variation Test Test Results (Room Temperature: 20 degC) Initial Load: 1000 cc water in the glass beaker. Volume of Water (cc) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 1000 Upper: 2461 MHz Lower: 2427 MHz 800 Upper: 2468 MHz Lower: 2417 MHz 600 Upper: 2468 MHz Lower: 2421 MHz 400 Upper: 2465 MHz Lower: 2405 MHz 200 Upper: 2461 MHz Lower: 2410 MHz Upper: 2500 MHz Lower: 2400 MHz 2. RADIATED FIELD STRENGTH DATA SHEET (FCC Measurement Procedure MP-5)FCC ID: APYDMR0138 Model R-220FMagnetron: 2M231AH(L), mfd by ToshibaDate: November 9 - 13, 2001 FrequencyLoadPlace ofAntennaCable Reading Radiated the loadFactorLoss Data Field Strength (MHz)(ml)(dB)(dB) (dBuV @:3m) (uV/m @:300m) VerticalHorizenVerticalHorizen Fundamental24451000Center20.701.036764172.67122.24 2nd Harmonic4912700Center20.501.5810100.400.40 4907700R.F.Corner20.501.5810100.400.40 4905300Center20.501.5811110.450.45 4915300R.F.Corner20.501.5810100.400.40 3rd Harmonic7372700Center19.202.1016170.730.82 7351700R.F.Corner19.202.1018130.920.52 7364300Center19.202.1017170.820.82 7375300R.F.Corner19.202.1017170.820.82 4th Harmonic9846700Center20.002.6516180.861.08 Sprious2382700Center20.701.0128281.891.89 5332700Center20.701.6515<100.74<0.41 6137700Center21.201.8211180.501.12 14726700Center19.203.7013110.620.50 17673700Center18.504.3215110.780.49 Emission Sideband24001000Center20.701.0120220.760.95 24151000Center20.701.0224161.210.48 24851000Center20.701.03770.180.18 25001000Center20.801.04670.160.18 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above data. Microwave Leakage at 5 cm on fundamental : 0.11 mW/cm 2 1. FREQUENCY MEASUREMENTS FCC ID : APYDMR0138 TESTED UNIT : Household Microwave Oven, Model R-220F Magnetron Type No. : OM52S, mfd by Samsung Tested : November 14, 2001 (1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1000 cc water in the glass beaker Line Voltage Variation (V) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 96 (80%) Upper: 2459 MHz Lower: 2421 MHz 108 (90%) Upper: 2463 MHz Lower: 2421 MHz 120 (Nominal) Upper: 2462 MHz Lower: 2421 MHz 132 (110%) Upper: 2463 MHz Lower: 2420 MHz 150 (125%) Upper: 2470 MHz Lower: 2425 MHz Upper: 2500 MHz Lower: 2400 MHz (2) Frequency VS Load Variation Test Test Results (Room Temperature: 20 degC) Initial Load: 1000 cc water in the glass beaker. Volume of Water (cc) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 1000 Upper: 2462 MHz Lower: 2421 MHz 800 Upper: 2468 MHz Lower: 2406 MHz 600 Upper: 2468 MHz Lower: 2420 MHz 400 Upper: 2467 MHz Lower: 2410 MHz 200 Upper: 2462 MHz Lower: 2448 MHz Upper: 2500 MHz Lower: 2400 MHz 2. RADIATED FIELD STRENGTH DATA SHEET (FCC Measurement Procedure MP-5)FCC ID: APYDMR0138 Model R-220FMagnetron: OM52S, mfd by SamsungDate: November 14 - 16, 2001 FrequencyLoadPlace ofAntennaCable Reading Radiated the loadFactorLoss Data Field Strength (MHz)(ml)(dB)(dB) (dBuV @:3m) (uV/m @:300m) VerticalHorizenVerticalHorizen Fundamental24451000Center20.701.036564137.15122.24 2nd Harmonic4913700Center20.501.5821251.432.26 4940700R.F.Corner20.501.5818231.011.79 4908300Center20.501.5815280.713.19 4929300R.F.Corner20.501.5819221.131.60 3rd Harmonic7378700Center19.202.1017240.821.84 7381700R.F.Corner19.202.1013170.520.82 7360300Center19.202.1015210.651.30 7377300R.F.Corner19.202.1014170.580.82 4th Harmonic9835700Center20.002.6515130.760.61 Sprious2365700Center20.701.0121190.840.66 2509700Center20.801.0423201.130.80 Emission Sideband24001000Center20.701.0115110.430.27 24151000Center20.701.0242299.592.15 24851000Center20.701.0311100.280.25 25001000Center20.801.0412150.320.45 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above data. Microwave Leakage at 5 cm on fundamental : 0.09 mW/cm 2 1. FREQUENCY MEASUREMENTS FCC ID : APYDMR0138 TESTED UNIT : Household Microwave Oven, Model R-220F Magnetron Type No. : 2M213, mfd by LG Electronics Tested : November 19, 2001 (1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1000 cc water in the glass beaker Line Voltage Variation (V) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 96 (80%) Upper: 2453 MHz Lower: 2420 MHz 108 (90%) Upper: 2456 MHz Lower: 2429 MHz 120 (Nominal) Upper: 2454 MHz Lower: 2423 MHz 132 (110%) Upper: 2457 MHz Lower: 2422 MHz 150 (125%) Upper: 2462 MHz Lower: 2435 MHz Upper: 2500 MHz Lower: 2400 MHz (2) Frequency VS Load Variation Test Test Results (Room Temperature: 20 degC) Initial Load: 1000 cc water in the glass beaker. Volume of Water (cc) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 1000 Upper: 2454 MHz Lower: 2423 MHz 800 Upper: 2462 MHz Lower: 2419 MHz 600 Upper: 2463 MHz Lower: 2424 MHz 400 Upper: 2462 MHz Lower: 2411 MHz 200 Upper: 2459 MHz Lower: 2443 MHz Upper: 2500 MHz Lower: 2400 MHz 2. RADIATED FIELD STRENGTH DATA SHEET (FCC Measurement Procedure MP-5)FCC ID: APYDMR0138 Model R-220FMagnetron: 2M213, mfd LG ElectronicsDate: November 19 - 21, 2001 FrequencyLoadPlace ofAntennaCable Reading Radiated the loadFactorLoss Data Field Strength (MHz)(ml)(dB)(dB) (dBuV @:3m) (uV/m @:300m) VerticalHorizenVerticalHorizen Fundamental24371000Center20.701.036868193.14193.14 2nd Harmonic4902700Center20.501.5833335.6…
