APYDMR0139Household Microwave Oven

® ® READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. CONTENTS •Precautions to Avoid Possible Exposure to Excessive Microwave Energy ................................ Inside Front Cover •For Customer Assistance ... Inside Front Cover •Consumer Limited Warranty ...................1 •Product Information Card ........................1 •Important Safety Instructions ..................2 •Unpacking and Installation Instructions ...3 •Grounding Instructions ............................3 •Information You Need to Know ............... 4 - 6 •Part Names ............................................. 7 - 8 •Before Operating .....................................9 •Manual Operation .................................... 9-13 •Automatic Cooking .................................. 13-20 •Special Features ..................................... 21-25 Popcorn ................................................21 Reheat / Compu Cook ..........................22 Compu Defrost ......................................24 Manual Defrost .....................................25 •Other Convenient Features ..................... 26-28 •Cleaning & Care ......................................29 •Service Call Check ..................................30 •Specifications ..........................................30 •Guia Auto-Touch .................... Parte Interior de la Cubierta Trasera •Auto-Touch Guide ........................ Back Cover HIGH SPEED OVEN OPERATION MANUAL MODEL R-90GC TO PHONE: DIAL 1-800- BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and SHARP CAROUSEL COOKBOOK TO WRITE: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 TO ACCESS INTERNET: www.sharp-usa.com To aid in reporting this HIGH SPEED oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. MODEL NUMBER________________________SERIAL NUMBER______________ DATE OF PURCHASE______________________ DEALER____________________________TELEPHONE________________ SERVICER___________________________TELEPHONE________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. FOR CUSTOMER ASSISTANCE 1 CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE…

Text truncated - open the document above for the full version.

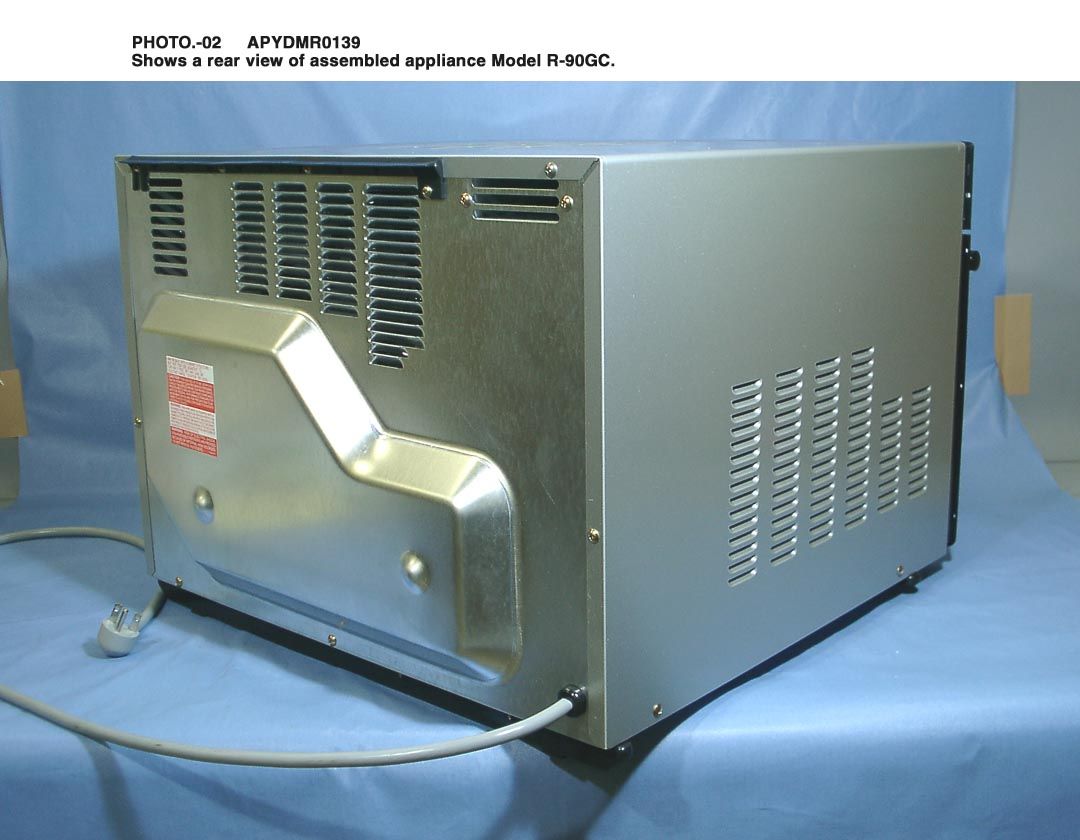

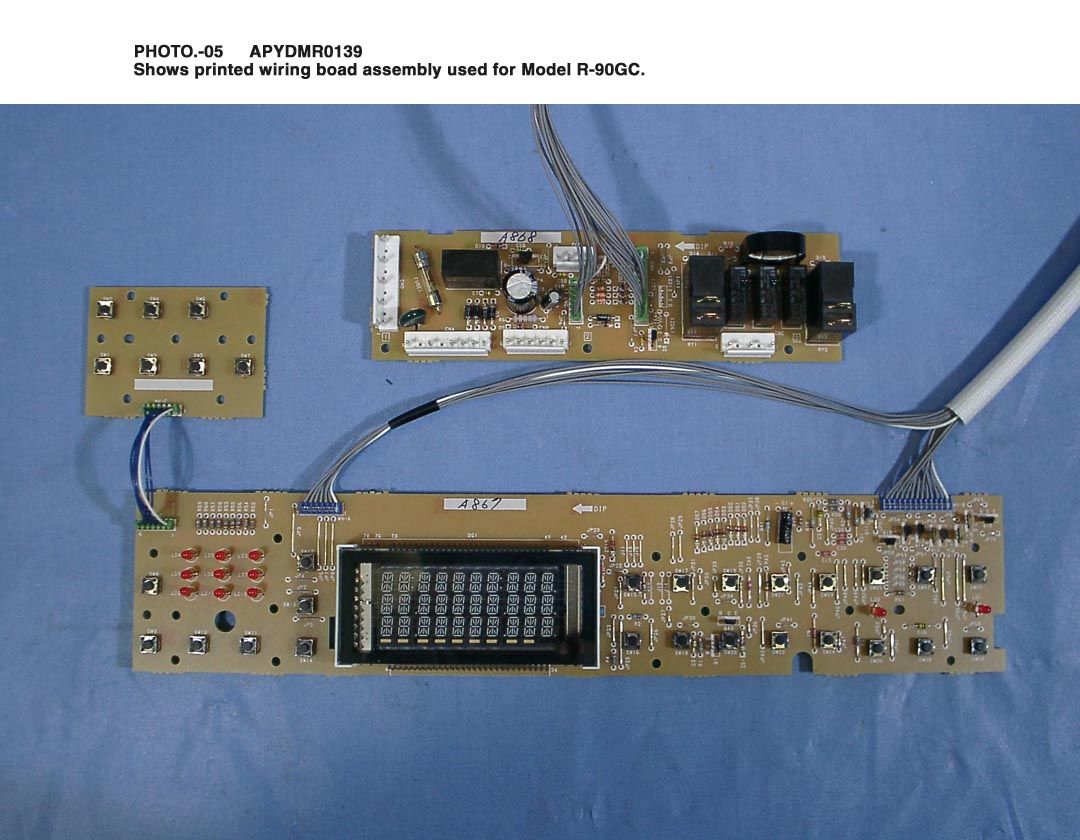

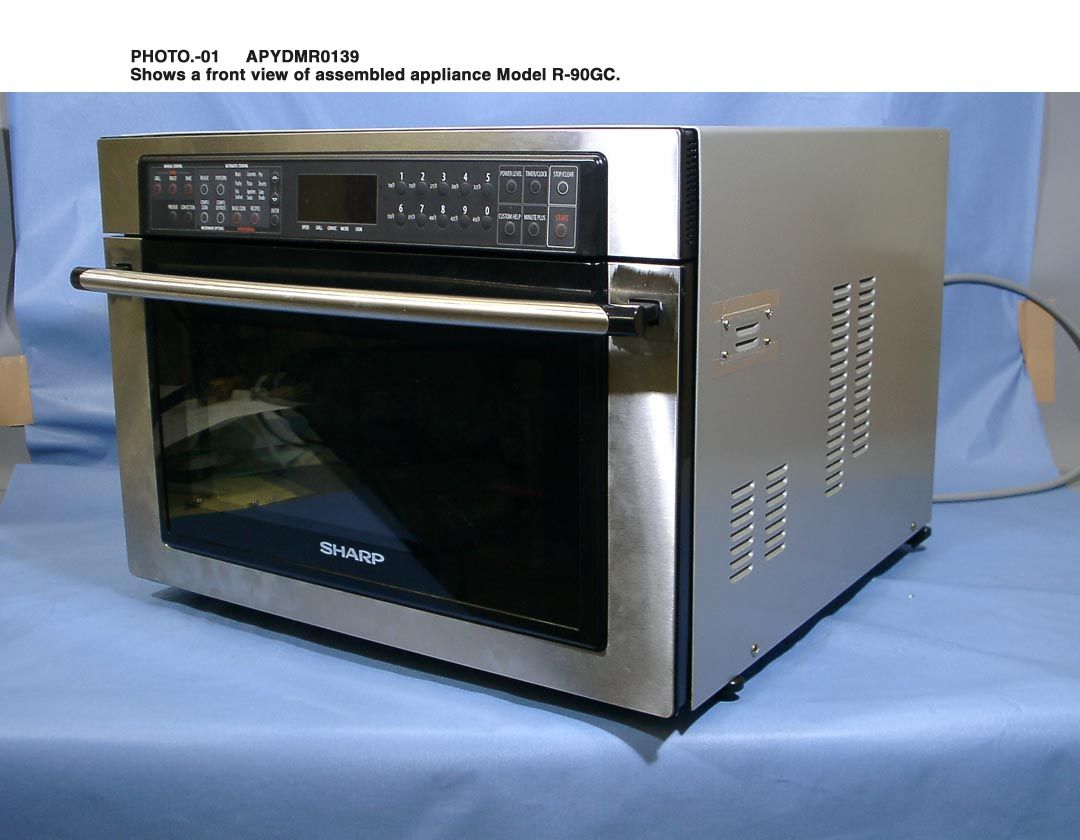

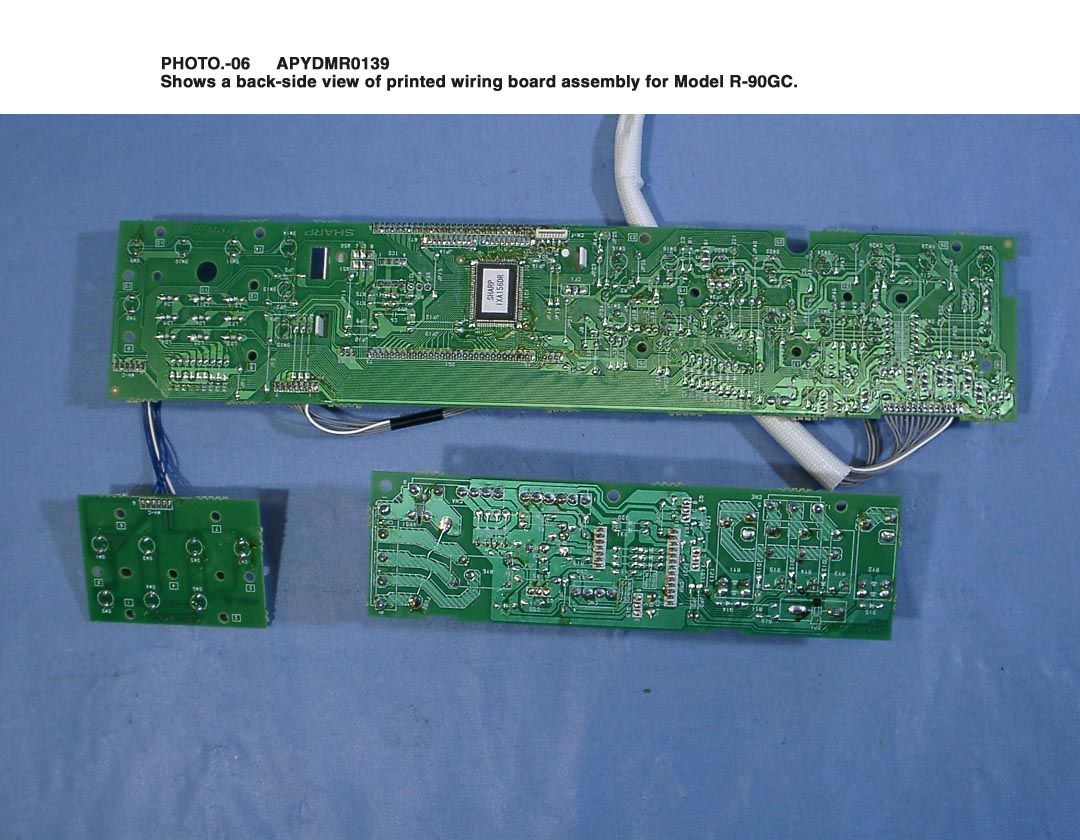

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name : Sharp Corporation, Reliability Control Group Address 22-22 Nagaike-Cho, Abeno-Ku Osaka 545-8522, Japan Grantee Code: : APY Applicant Rep. : S. Miyasaka CONTACT PERSON: Name : Sharp Electronics Corporation Address : Sharp Plaza, Mahwah, New Jersey 07430 Applicant Rep. : Steve Petruska, Product Safety Dept. Telephone No. : 201-529-9689 MEASUREMENT SITE: Name : Sharp Corporation, Kitchen Appliance Systems Div. EMI Anechoic Chamber Address : 3-1-72 Kitakamei-cho, Yao Osaka 581-8585, Japan MANUFACTURER: Name : Sharp Corporation, Kitchen Appliance Systems Div., Yao Factory Address : 3-1-72 Kitakamei-cho, Yao, Osaka 581-8585, Japan or Name Sharp Appliances (Thailand) Ltd. Address 64 Moo 5, Tambol Bangsamuk Amphur Bangpakong Chachoengsao Province, Thailand FCC IDENTIFICATION : APYDMR0139 EQUIPMENT Model Name : Microwave Oven Model R-90GC Brand : Sharp Electronics Corp. Importer : Sharp Electronics Corp. ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 1000 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 1000 W (5) The voltage and current to magnetron: Magnetron Cat. No. 2M253H(L) : 3.88 kV peak, 360 mA (rms) (6) Function of each electro tube, semiconductor or other active circuit device: Fixed Magnetron, Type 2M253H(L) as power generator (7) Complete circuit diagram: Attached (8) Instruction book: Attached (9) Tune up procedure over the power range or at specific operating power levels: Not adjustable (10) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (11) A description of any circuit or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power: Suppression obtained by shielding design (12) Identification plate or label: Illustration attached Location of identification plate or label: Photo. Attached ********** INFORMATION FOR CERTIFICATION (3) ********** DESCRIPTION OF THE MICROWAVE OVEN Unit Body Dimensions : 552 mm wide, 405 mm high, 620 mm deep (include feet and handle) Door Dimensions : 534 mm wide, 293 mm high (Viewing Area: 343 mm wide, 166 mm high) Oven Cavity Dimensions : 411 mm wide, 241 mm high, 350 mm deep (without tray) Feed Type and Location : Supplied by waveguide located right side of oven Door Seal Type : Choke and Capacitive Seals Magnetron Type : 2M253H(L) mfd by Toshiba

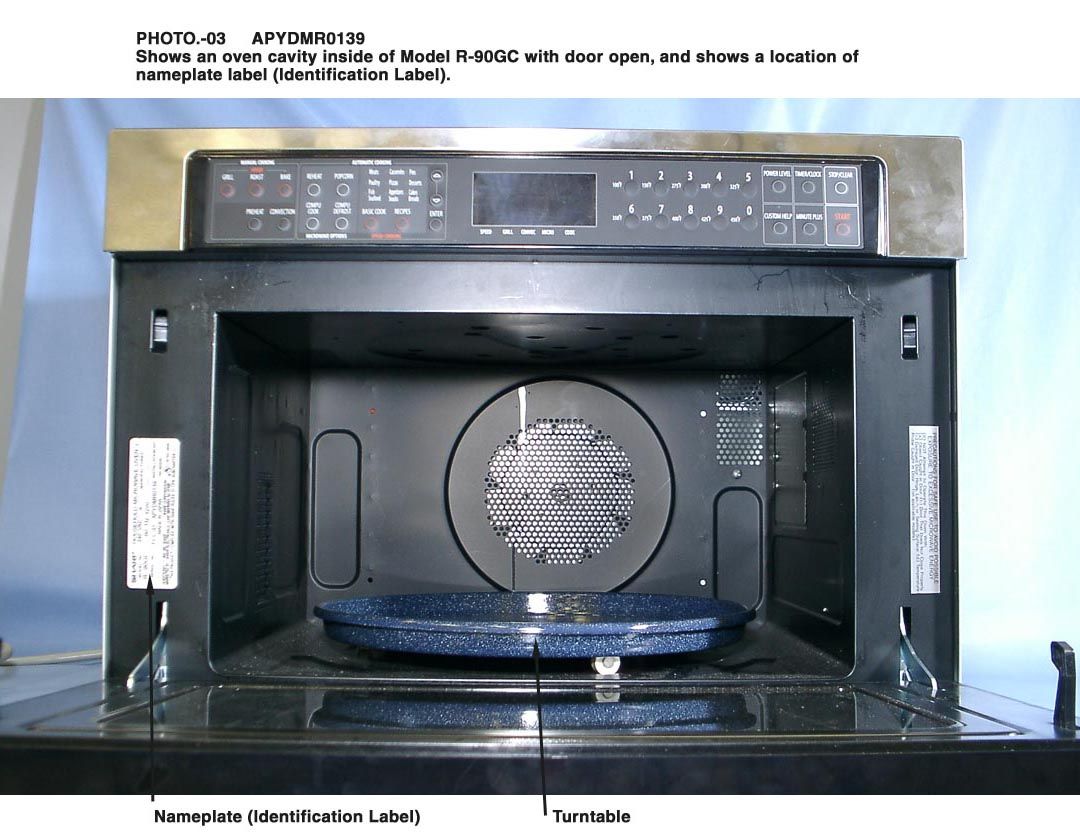

IDENTIFICATION LABEL (Nameplate label) FCC ID : APYDMR0139 Label Material : Approx. 0.063 mm thick film with back adhesion. For Sharp Corp., Yao factory For Sharp Appliances (Thailand) Ltd. FCC ID Code APY : FCC assigned grantee code for Sharp Corporation. DMR0139 : Number assigned by the grantee to the model or the model family in a technically identical products. Factory ID Mark Y : Manufacturer identification marking for Sharp Corp., Kitchen Appliance Systems Div., Yao Factory T : Manufacturer identification marking for Sharp Appliances (Thailand) Ltd. 95 mm 32 mm FCC ID Code 95 mm 32 mm FCC ID Code Factory ID Mark FactoryID Mark

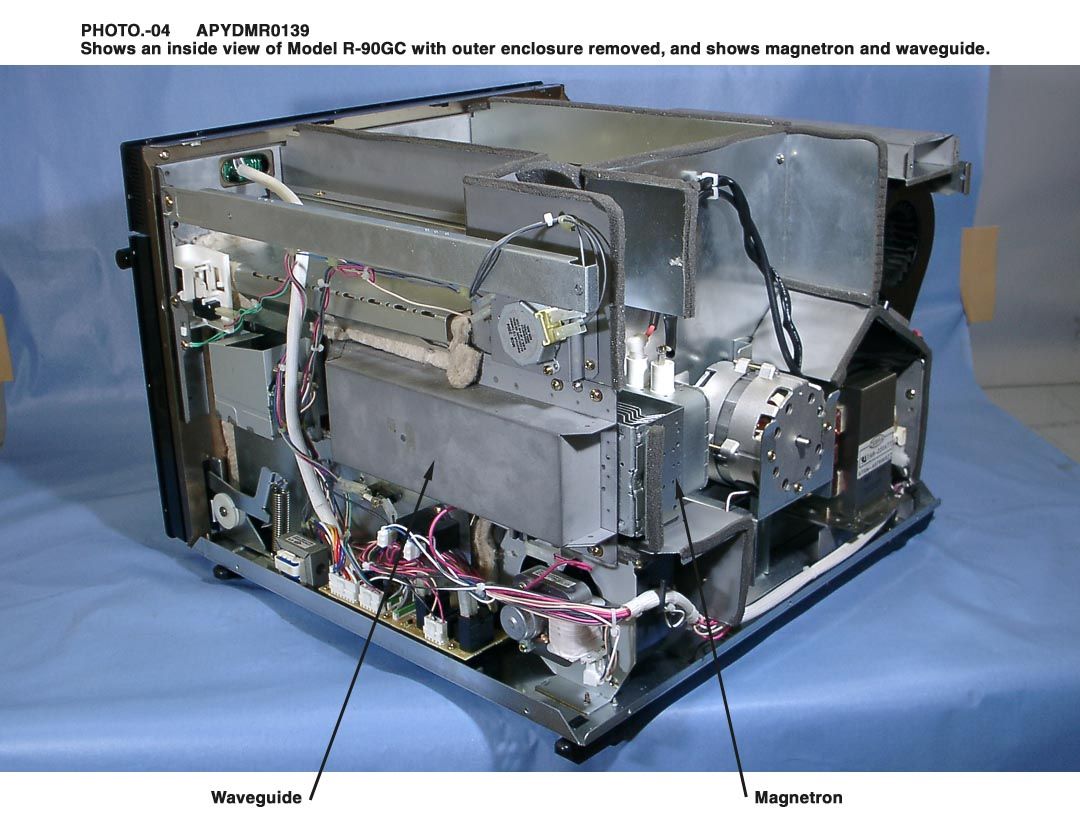

1. FREQUENCY MEASUREMENTS FCC ID : APYDMR0139 TESTED UNIT : Household Microwave Oven, Model R-90GC Magnetron Type No. : 2M253H(L), mfd by Toshiba Tested : May 8, 2002 (1) Frequency VS Line Voltage Variation Test Test Result (Room Temperature: 20 degC) Load: 1000 cc water in the glass beaker Line Voltage Variation (V) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 180 (75%) Upper: 2470 MHz Lower: 2414 MHz 216 (90%) Upper: 2472 MHz Lower: 2414 MHz 240 (Nominal) Upper: 2470 MHz Lower: 2414 MHz 264 (110%) Upper: 2471 MHz Lower: 2413 MHz 300 (125%) Upper: 2471 MHz Lower: 2413 MHz Upper: 2500 MHz Lower: 2400 MHz (2) Frequency VS Load Variation Test Test Results (Room Temperature: 20 degC) Test Voltage: 240 V, 60Hz Initial Load: 1000 cc water in the glass beaker. Volume of Water (cc) Frequency Allowed Tolerance for the ISM Band (2450 MHz) 1000 Upper: 2470 MHz Lower: 2414 MHz 800 Upper: 2469 MHz Lower: 2408 MHz 600 Upper: 2471 MHz Lower: 2407 MHz 400 Upper: 2469 MHz Lower: 2406 MHz 200 Upper: 2455 MHz Lower: 2412 MHz Upper: 2500 MHz Lower: 2400 MHz 2. RADIATED FIELD STRENGTH DATA SHEET (FCC Measurement Procedure MP-5)FCC ID: APYDMR0139 Model R-90GCMagnetron: 2M253H(L), mfd by ToshibaDate: April 23 - May 08, 2002 FrequencyLoadPlace ofAntennaCable Reading Radiated the loadFactorLoss Data Field Strength (MHz)(ml)(dB)(dB) (dBuV @:3m) (uV/m @:300m) VerticalHorizenVerticalHorizen Fundamental24541000Center20.701.0384841226.621226.62 2nd Harmonic4884700Center20.501.5837209.001.27 4881700R.F.Corner20.501.5835217.151.43 4877300Center20.501.58392711.322.84 4881300R.F.Corner20.501.5837219.001.43 3rd Harmonic7328700Center19.202.1030173.670.82 7352700R.F.Corner19.202.1025132.070.52 7320300Center19.202.1029163.270.73 7321300R.F.Corner19.202.1024131.840.52 4th Harmonic9782700Center20.002.6235217.601.52 Sprious2395700Center20.701.0036354.764.24 2509700Center20.801.0523251.131.42 14628700Center19.203.6817260.992.78 17078700Center18.704.2021161.570.88 700Center Emission Sideband24001000Center20.701.0133313.382.68 24151000Center20.701.02444112.078.54 24851000Center20.701.0317170.550.55 25001000Center20.801.0422201.000.80 Emission observed from 100 MHz through 18 GHz by spectrum analyzer. No significant emission was detected except for above data. Microwave Leakage at 5 cm on fundamental : 0.23 mW/cm 2 PHOTOGRAPH OF TEST EQUIPMENT #1 Spectrum AnalyzerField Strength MeterHorn Antenna 8566BNM-67 Turn Table Controller PHOTOGRAPH OF TEST EQUIPMENT #2 Horn Antenna Field Strength Meter NM-67 PHOTOGRAPH OF TEST EQUIPMENT #3 Microwave OvenWooden Table Test Sample Transparent Turn Table
