APYDMR0142Household Microwave Oven

® ® READ ALL INSTRUCTIONS CAREFULLY BEFORE USING • Precautions to Avoid Possible Exposure to Excessive Microwave Energy ................................ Inside Front Cover •For Customer Assistance ... Inside Front Cover •Consumer Limited Warranty ...................1 •Product Information Card ........................1 •Important Safety Instructions ..................2 • Unpacking and Installation Instructions ...3 •Grounding Instructions ............................3 •Information You Need to Know ............... 4 - 7 •Part Names .............................................8- 9 •Before Operating .....................................10 •Manual Operation .................................... 10-12 •Special Features ..................................... 12-15 Automatic Cooking ................................12 Instant Action ........................................16 Express Defrost ....................................18 Manual Defrost .....................................19 •Other Convenient Features ..................... 20-21 •Cleaning and Care ..................................22 •Service Call Check ..................................23 • Specifications ..........................................24 DIAL 1-800- BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 www.sharpusa.com To aid in reporting this toaster oven with microwave in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. (a)Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c)Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. 1 SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. Your Product Model Number & Description: Warranty Period for this Product: Additional Item(s) Excluded from Warranty Coverage (if any): Where to Obtain Service: What to do to Obtain Service: R-55TS, Home Use Carousel Microwave Oven. (Be sure to have this information available when you need service for your Product.) One (1) year parts and labor. The warranty period continues for an additional four (4) years, for a total of five (5) years, with respect to the magnetron tube in the Product for parts only; labor and service are not provided free of charge for this additional period. Non-functional accessories, turntable and light bulb. From a Sharp Authorized Servicer located In the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP (1-800-237-4277). Ship prepaid or carry in your…

Text truncated - open the document above for the full version.

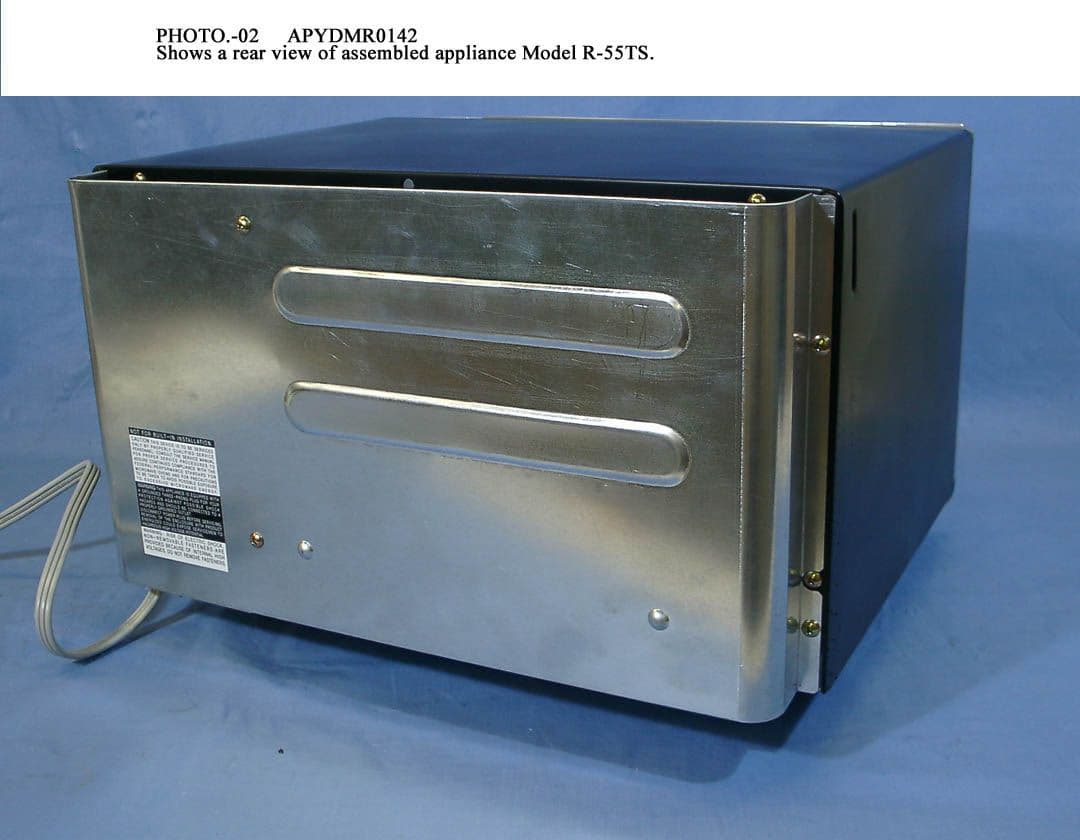

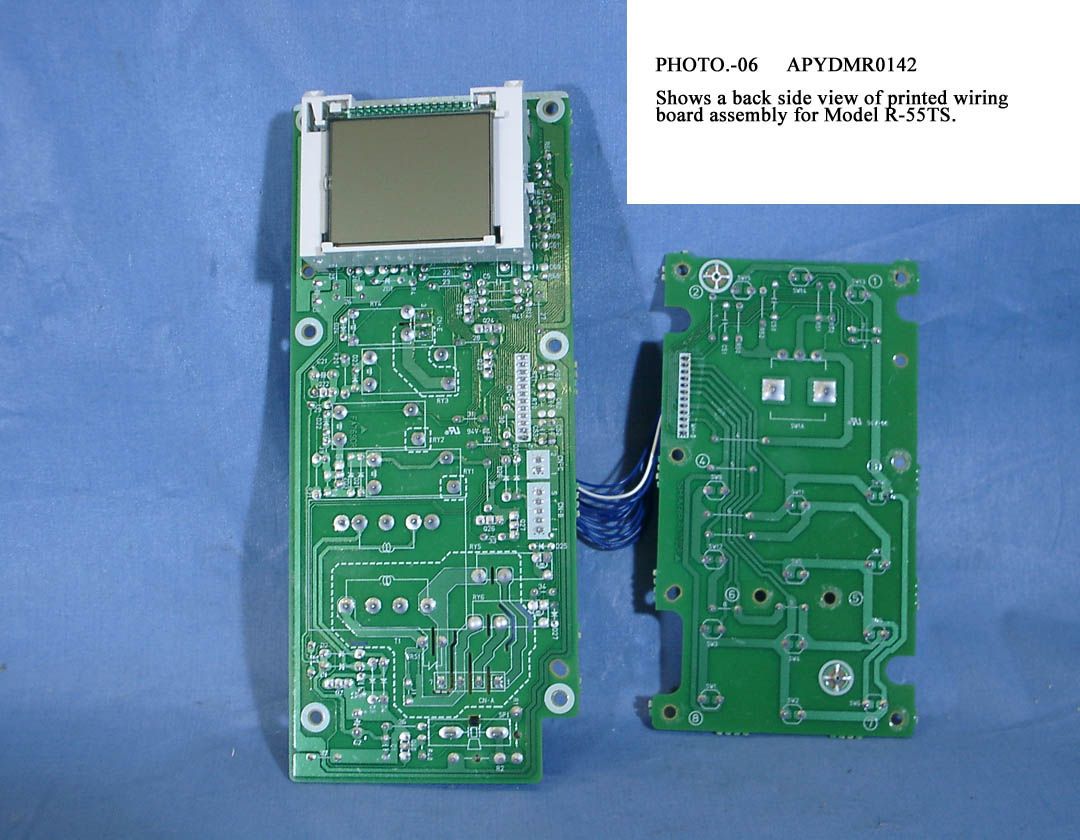

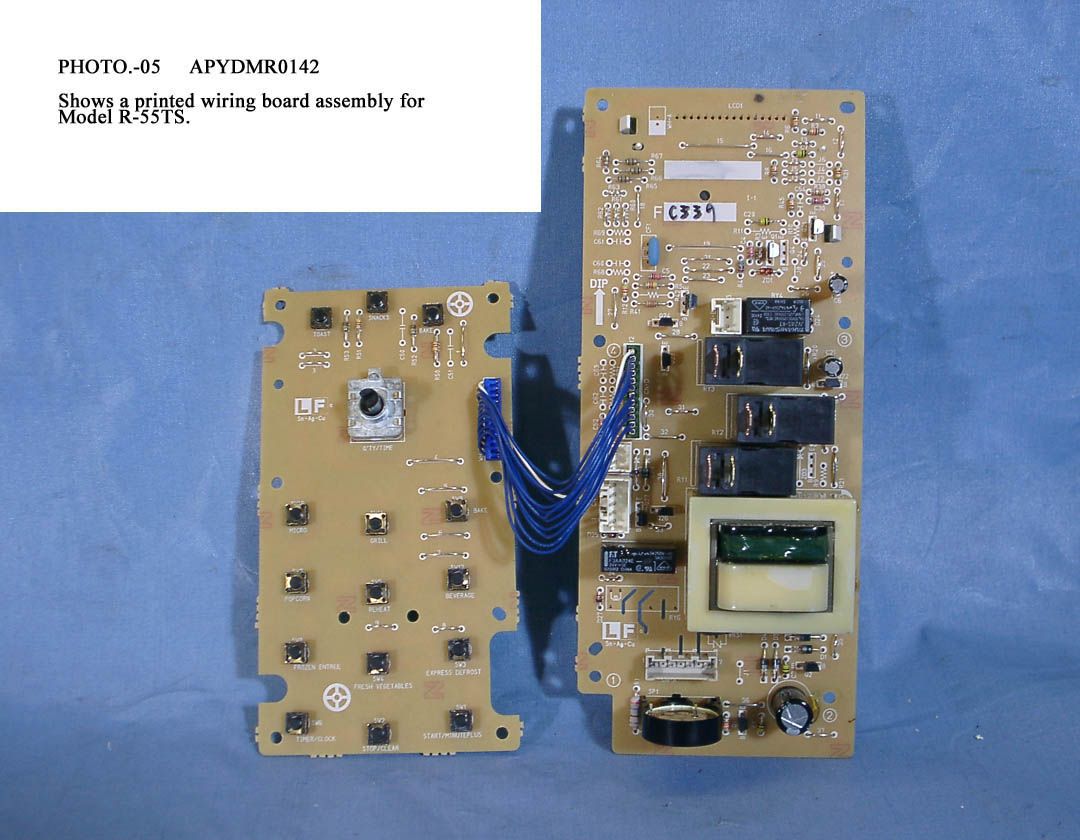

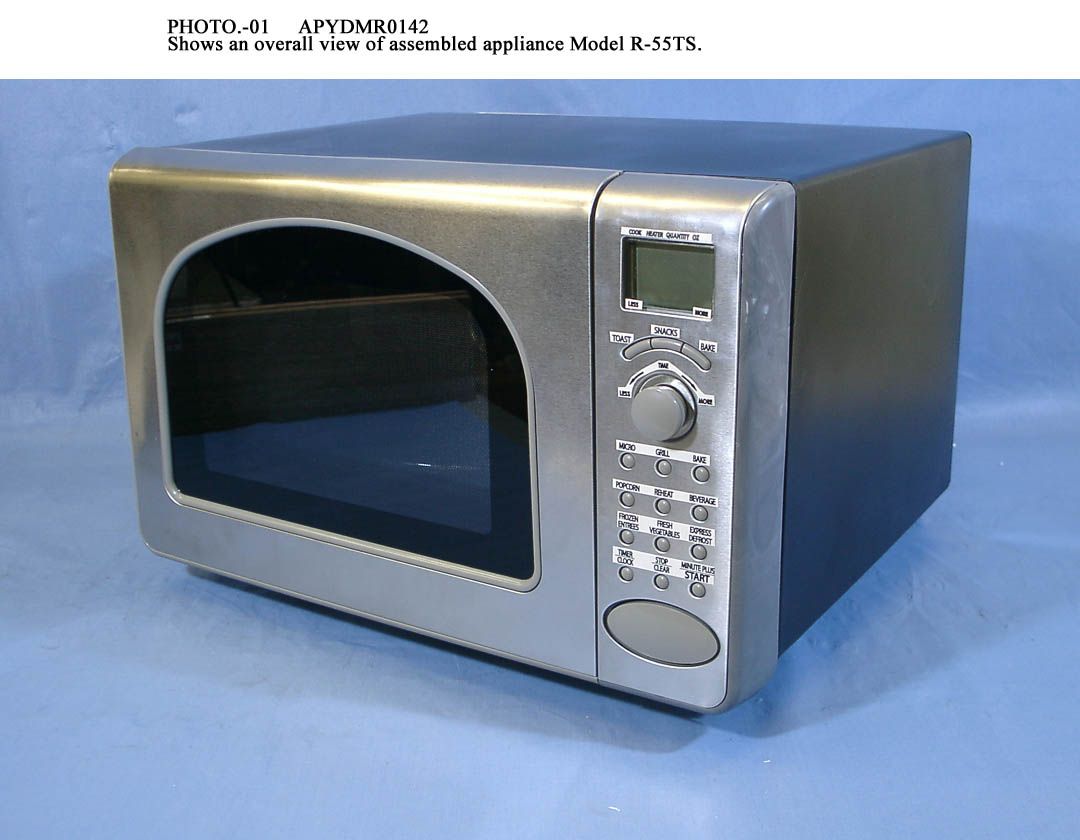

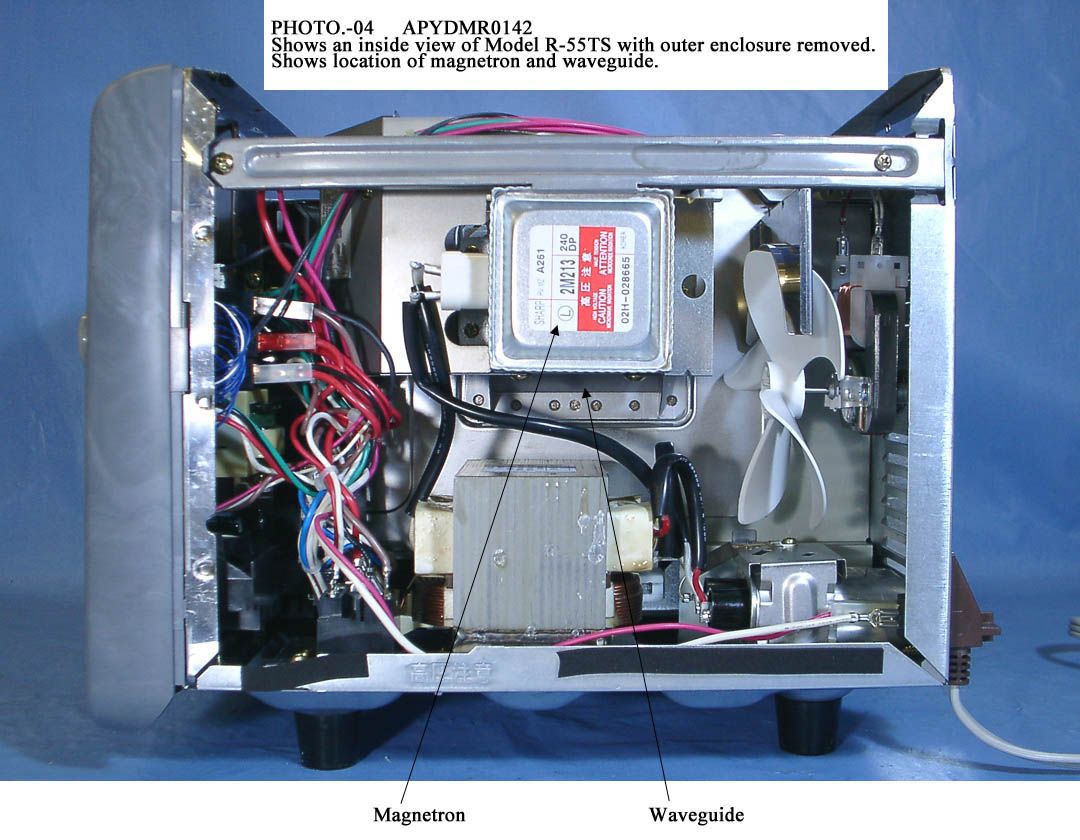

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name : Sharp Corporation, Reliability Control Group Address 22-22 Nagaike-Cho, Abeno-Ku Osaka 545-8522, Japan Grantee Code: : APY Applicant Rep. : S. Miyasaka CONTACT PERSON: Name : Sharp Electronics Corporation Address : Sharp Plaza, Mahwah, New Jersey 07430 Applicant Rep. : Steve Petruska, Product Safety Dept. Telephone No. : 201-529-9689 MEASUREMENT SITE: Name : Japan Quality Assurance Organization Chubu Testing Center, Shikatsu Branch Address : 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun Aichi 481-0005, Japan MANUFACTURER: Name : Shanghai Sharp Electronics Corp. Address : 1111 Jin Hai Road Jinqiao Export Processing Zone 201206 Shanghai, China FCC IDENTIFICATION : APYDMR0142 EQUIPMENT Model Name : Microwave Oven Model R-55TS Brand : Sharp Electronics Corp. Importer : Sharp Electronics Corp. ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 650 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 650 W (5) The voltage and current to magnetron: Magnetron Cat. No. 2M213 : 3.0 kV peak, 270 mA (6) Function of each electro tube, semiconductor or other active circuit device: Fixed Magnetron, Type 2M213 as power generator (7) Complete circuit diagram: Attached (8) Instruction book: Attached (9) Tune up procedure over the power range or at specific operating power levels: Not adjustable (10) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (11) A description of any circuit or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power: Suppression obtained by shielding design (12) Identification plate or label: Illustration attached Location of identification plate or label: Photo. Attached ********** INFORMATION FOR CERTIFICATION (3) ********** DESCRIPTION OF THE MICROWAVE OVEN Unit Body Dimensions : 450 mm wide, 291 mm high, 390 mm deep (include feet) Door Dimensions : 364 mm wide, 268 mm high (Viewing Area: 240mm wide, 129 mm high) Oven Cavity Dimensions : 302 mm wide, 170 mm high, 287 mm deep (without tray) Feed Type and Location : Supplied by waveguide located side of oven Door Seal Type : Choke and Capacitive Seals Magnetron Type : 2M213 mfd by LG Electronics

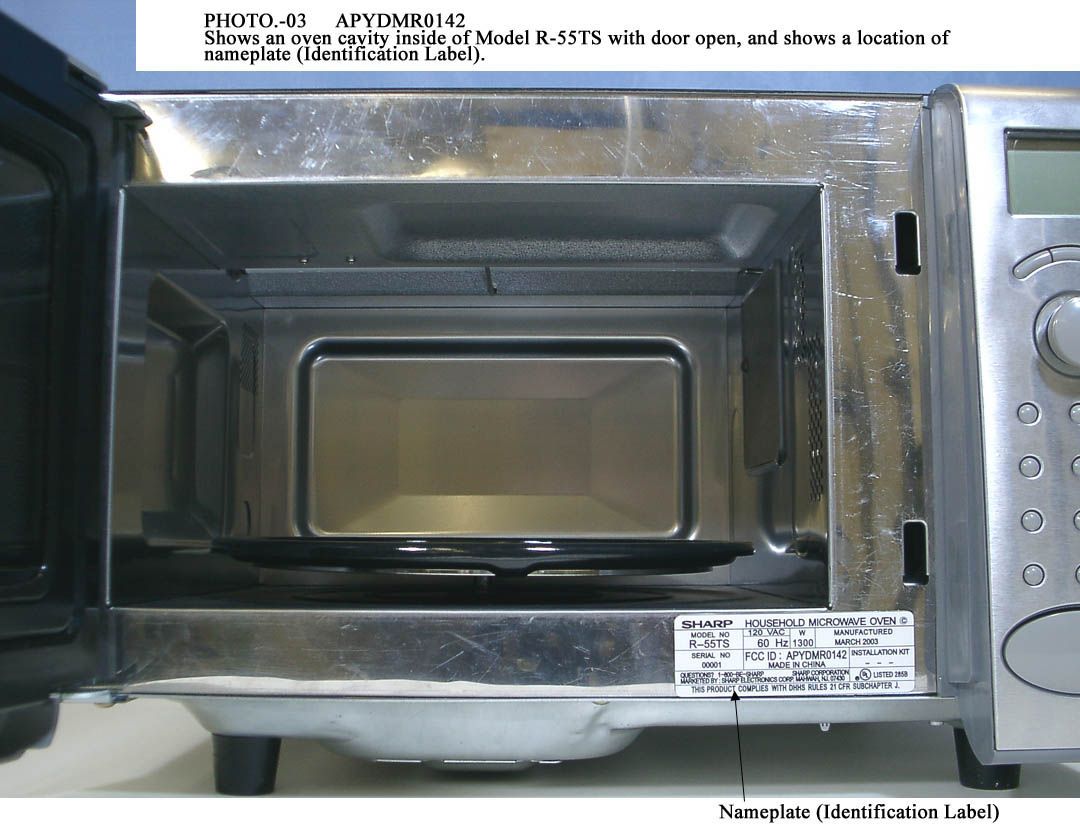

RR-55TS55TS 6060 HzHz C THIS PRODUCTTHIS PRODUCT COMPLIESCOMPLIES WITHWITH DHHSDHHS RULESRULES 21 CFR21 CFR SUBCHAPTERSUBCHAPTER J.J. QUESTIONS? 1QUESTIONS? 1 - 800800 - BEBE - SHARP SHARP CORPORATIONSHARP SHARP CORPORATION MARKETED BY : SHARP ELECTRONICS CORP. MAHWAH, NJ. 07430MARKETED BY : SHARP ELECTRONICS CORP. MAHWAH, NJ. 07430 HOUSEHOLDHOUSEHOLD MICRMICROWAVOWAV E OVENOVEN MODELMODEL NONO SERIALSERIAL NONO INSTALLATION KITINSTALLATION KIT - - - - - - 120120 VACVAC MANUFACTUREDMANUFACTURED W 13001300 LISL I S TEDT E D 285B 2 8 5 B MADE IN CHINA MADE IN CHINA FCC ID FCC ID : APYDMR0142 APYDMR0142 MARCH 2003MARCH 2003 0000100001 IDENTIFICATION LABEL (Nameplate label) FCC ID: APYDMR0142 Label Material: Approx. 0.0063 mm thick film with back adhesion. Model Number 95 mm Factory ID Mark 32 mm FCC ID Code FCC ID Code APY : FCC assigned grantee code for Sharp Corporation. DMR0142 : Number assigned by the grantee to the model or the model family in a technically identical products. Factory ID Mark C : Manufacturer identification marking for Shanghai Sharp Electronics Corp.

JQA APPLICATION No. 50-20339 FCC ID APYDMR0142 Model No. R-55TS Issue DateFebruary 05, 2003 Regulation CFR 47 FCC Rules Part 18 Page 2 of 23 TABLE OF CONTENTS Page 1. Documentation 1.1 General Information 3 1.2 Test Regulation 3 1.3 Test Conditions 4 - 8 1.4 EUT Modifications / Deviation of Method 9 1.5 Test Results / Uncertainty 10 - 11 1.6 Summary 12 1.7 Configuration of EUT / Operation of EUT 13 – 14 1.8 Preliminary Test and Test Set-up(Drawings & Photographs) 15 – 18 2. Test Data 2.1 RF Power Output 19 2.2 ISM Frequency 20 2.3 Radiated Emission (Magnetic Field) 9 KHz - 30 MHz 21 2.4 Radiated Emission (Electric Field) 30 MHz - 1000 MHz 22 2.5 Radiated Emission (Electric Field) 1 GHz - 24.5 MHz 23 JQA APPLICATION No. 50-20339 FCC ID APYDMR0142 Model No. R-55TS Issue DateFebruary 05, 2003 Regulation CFR 47 FCC Rules Part 18 Page 3 of 23 1.1 GENERAL INFORMATION 1.1.1 Test Facility : 1) Test Facility located at Chubu Testing Center SHIKATSU Branch : An anechoic Chamber (3 m and 10 m, on common plane) and a shielded Room Date of Listing : September 11, 2002 FCC filing No.:31040/SIT 1300F2 2) Chubu Testing Center SHIKATSU Branch is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200190-0 1.1.2 Description of the Equipment Under Test : 1) Type of Equipment Household Microwave Oven 2) Model/Type No. R-55TS 3) Type of Magnetron #2M213 4) Category ISM Frequency Device 5) EUT Authorization Certification 6) FCC ID APYDMR0142 7) Product Type Prototype 8) Serial No. N/A 9) Date of manufacturer January, 2003 10) Trade Name Sharp 11) Fundamental Frequency 4.0, 2450.0 MHz Generated in the EUT 12) Highest Frequency 2450.0 MHz Used in the EUT 13) Power Rating 120VAC 60Hz 1-Phase 14) Rated Power Output 650 W 15) EUT Grounding Grounded at the plug end of the power line cord. 1.1.3 Definitions for symbols used in this test report : Black box indicates that the listed condition, Regulation or equipment is applicable for this report. Blank box indicates that the listed condition, Regulation or equipment is not applicable for this report. 1.2 TEST REGULATION FCC Rules and Regulations Part 18 Subpart A, B and C(October 1, 2001). Test Procedure : The test was performed according to the procedures in FCC/OET MP-5(1986). JQA APPLICATION No. 50-20339 FCC ID APYDMR0142 Model No. R-55TS Issue DateFebruary 05, 2003 Regulation CFR 47 FCC Rules Part 18 Page 4 of 23 1.3 TEST CONDITIONS 1.3.1 The measurement of the RF Power Output was performed in the following test site. Test Location : KITA KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, JAPAN Anechoic Chamber Shielded Room Used Test Instruments : Model No. Assigned C/N Last Cal. Interval 2533-21 08011097 2002/04/30 1 Year 245506 14204002 2002/04/30 1 Year SIII-5000 Q47097350 2002/02/28 1 Year Environmental Conditions : Temperature: 24.0 Humidity: 53.0 JQA APPLICATION No. 50-20339 FCC ID APYDMR0142 Model No. R-55TS Issue DateFebruary 05, 2003 Regulation CFR 47 FCC Rules Part 18 Page 5 of 23 1.3.2 The measurement of the ISM Frequency was performed for line voltage variation 80% to 125% of normal rated voltage, in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber ( 3 meter site) Anechoic Chamber (10 meter site) Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Spectrum Analyzer 8566B Hewlett Packard 2937A06026 2002/07/24 1 Year Horn Antenna 3160-03 EMCO 9911-1065 2002/05/23 1 Year RF Cable - Hewlett Packard A-2 2002/05/02 1 Year Environmental Conditions : Temperature: 24.0 Humidity: 42.0 JQA APPLICATION No. 50-20339 FCC ID APYDMR0142 Model No. R-55TS Issue DateFebruary 05, 2003 Regulation CFR 47 FCC Rules Part 18 Page 6 of 23 1.3.3 The measurement of the Radiated Emission(Magnetic Field) was performed in the frequency range of 9 kHz – 30 MHz, in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Field Strength Meter ESH 2 Rohde & Schwarz 864125/007 2002/04/18 1 Year Loop Antenna 6502 EMCO 8811-2249 2002/04/04 1 Year RF Cable 3D-2W Fujikura S-A 2002/05/02 1 Year Environmental Conditions : Temperature: 20.0 Humidity: 22.0 JQA APPLICATION No. 50-20339 FCC ID APYDMR0142 Model No. R-55TS Issue DateFebruary 05, 2003 Regulation CFR 47 FCC Rules Part 18 Page 7 of 23 1.3.4 The measurement of the Radiated Emission(Electric Field) was performed horizontal and vertical polarization, in frequency range 30MHz 1000MHz, in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber ( 3 meters) Anechoic Chamber (10 meters) Validation of Site Attenuation : 1) Last Confirmed Date : May 02, 2002 2) Interval : 1 Year Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Field Strength Meter ESVP Rohde & Schwarz 860687/029 2002/06/07 1 Year Biconical Antenna BBA9106 Schwarzbeck ANT-5-003 2003/01/17 1 Year Log-periodic Antenna UHALP9107 Schwarzbeck ANT-5-001 2003/01/17 1 Year RF Cable 5D-2W Fujikura A-3 2002/05/02 1 Year RF Cable 5D-2W Fujikura A-10 2002/05/02 1 Year Environmental Conditions : Temperature: 20.0 Humidity: 22.0 JQA APPLICATION No. 50-20339 FCC ID APYDMR0142 Model No. R-55TS Issue DateFebruary 05, 2003 Regulation CFR 47 FCC Rules Part 18 Page 8 of 23 1.3.5 The measurement of the Radiated Emission(Electric Field) was performed horizontal and vertical polarization, in frequency range 1GHz 26GHz, in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun…
