APYDMR0148Household Microwave Oven

1 ® ® READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. CONTENTS •Precautions to Avoid Possible Exposure to Excessive Microwave Energy ................................ Inside Front Cover •For Customer Assistance ... Inside Front Cover •Consumer Limited Warranty ...................1 •Product Information Card ........................1 •Important Safety Instructions ..................2 •Unpacking and Installation Instructions ...3 •Grounding Instructions ............................3 •Information You Need to Know ............... 4 - 6 •Part Names ............................................. 7 - 8 •Before Operating .....................................9 •Manual Operation ....................................9 •Special Features ..................................... 10-14 Defrost ..................................................10 Manual Defrost .....................................11 Popcorn ................................................11 Reheat / Cook ....................................... 12-14 Short Cuts .............................................15 •Other Convenient Features ..................... 16-17 •Cleaning and Care ..................................17 •Service Call Check ..................................18 •Specifications ..........................................19 •Cookbook Information .............................19 •Cookbook Order Form ............................20 •Guia Auto-Touch ................... Parte Interior de la Cubierta Trasera •Auto-Touch Guide ........................ Back Cover MICROWAVE OVEN OPERATION MANUAL MODELS R-308K, R-309K followed by letter indicating color K=black, W=white, S=silver TO PHONE: DIAL 1-800- BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and SHARP CAROUSEL COOKBOOK TO WRITE: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 TO ACCESS INTERNET: www.sharpusa.com To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. MODEL NUMBER________________________SERIAL NUMBER______________ DATE OF PURCHASE______________________ DEALER____________________________TELEPHONE________________ SERVICER___________________________TELEPHONE________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. FOR CUSTOMER ASSISTANCE 1 CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. So…

Text truncated - open the document above for the full version.

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name : Sharp Corporation, Reliability Control Group Address 22-22 Nagaike-Cho, Abeno-Ku Osaka 545-8522, Japan Grantee Code: : APY Applicant Rep. : H. Nishira CONTACT PERSON: Name : Sharp Electronics Corporation Address : Sharp Plaza, Mahwah, New Jersey 07430 Applicant Rep. : Steve Petruska, Product Safety Dept. Telephone No. : 201-529-9689 MEASUREMENT SITE: Name : Japan Quality Assurance Organization Chubu Testing Center, Shikatsu Branch Address : 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun Aichi 481-0005, Japan MANUFACTURER: Name : Sharp Appliances (Thailand) Ltd. Address : 64 Moo 5, Tambol Bangsamuk Amphur Bangpakong Chachoengsao Province, Thailand FCC IDENTIFICATION : APYDMR0148 EQUIPMENT Model Name : Microwave Oven Model R-308K# and R-309K# (#: Suffix letter denoting cosmetic color is provided.) Brand : Sharp Electronics Corp. Importer : Sharp Electronics Corp. ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 1100 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 1100 W (5) The voltage and current to magnetron: Magnetron Cat. No. 253H(L) : 4.08 kV peak, 320 mA; or Magnetron Cat. No. 2M226 : 4.04 kV peak, 320 mA; or Magnetron Cat. No. 2M167B : 4.00 kV peak, 320 mA (6) Function of each electro tube, semiconductor or other active circuit device: Fixed Magnetron, Type 2M253H(L) or 2M226 or 2M167B as power generator (7) Complete circuit diagram: Attached (8) Instruction book: Attached (9) Tune up procedure over the power range or at specific operating power levels: Not adjustable (10) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (11) A description of any circuit or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power: Suppression obtained by shielding design (12) Identification plate or label: Illustration attached Location of identification plate or label: Photo. Attached ********** INFORMATION FOR CERTIFICATION (3) ********** DESCRIPTION OF THE MICROWAVE OVEN Unit Body Dimensions : 520 mm wide, 310 mm high, 433 mm deep (include feet) Door Dimensions : 424 mm wide, 293 mm high (Viewing Area: 293 mm wide, 146 mm high) Oven Cavity Dimensions : 375.5 mm wide, 229.8 mm high, 387 mm deep (without tray) Feed Type and Location : Supplied by waveguide located side of oven Door Seal Type : Choke and Capacitive Seals Magnetron Type : 2M253H(L) mfd by Toshiba; or 2M226 mfd by LG Electronics; or 2M167B mfd by Matsushita

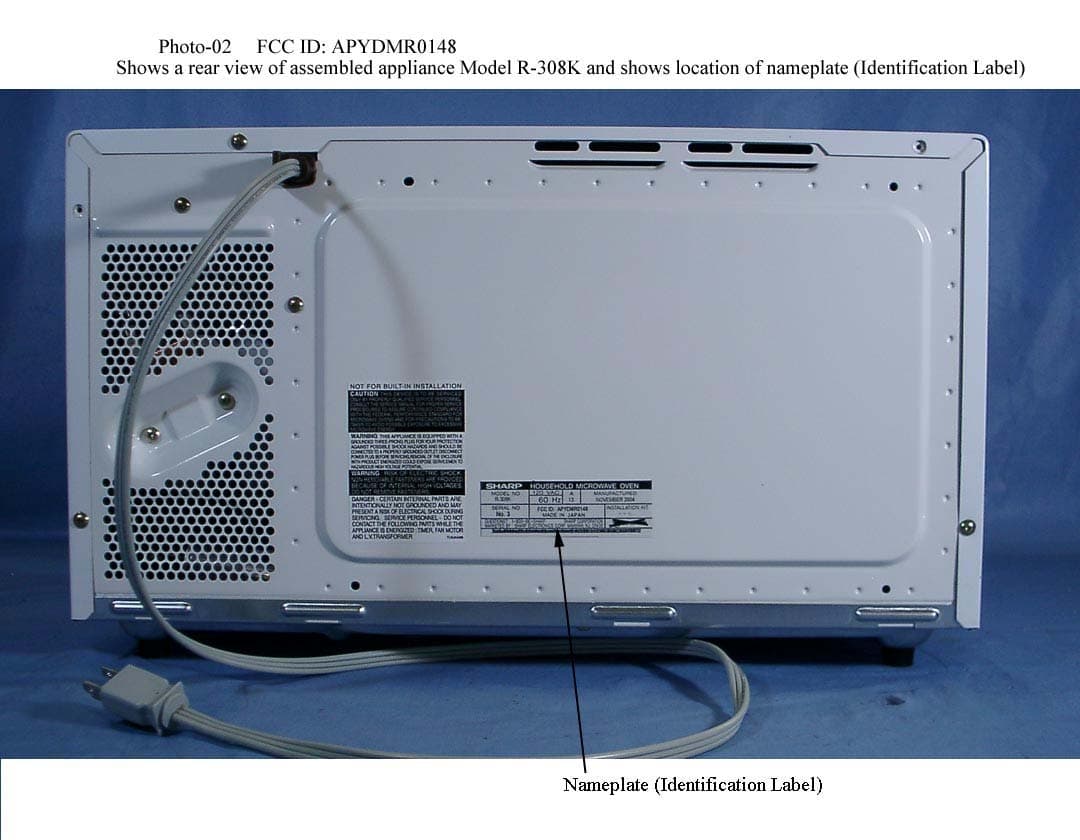

IDENTIFICATION LABEL (Nameplate label) FCC ID : APYDMR0148 Label Material : Film with back side adhesion. For Models R-308K# and R-309K# (#: provided with suffix letter/number for denoting cosmetic color.) FCC ID Code APY : FCC assigned grantee code for Sharp Corporation. DMR0148 : Number assigned by the grantee to the model or the model family in a technically identical products. Factory ID Mark T : Manufacturer identification marking for Sharp Appliances (Thailand) Ltd. FCC ID Code Model Number 95 mm Factory ID Mark 32 mm

JQA APPLICATION No.50-40353 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 2 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1. Documentation 1.1 General Information 3 1.2 Test Regulation 3 1.3 Test Conditions 4 - 9 1.4 EUT Modifications / Deviation of Method 10 1.5 Test Results / Uncertainty 11 - 12 1.6 Summary 13 1.7 Configuration of EUT / Operation of EUT 14 – 15 1.8 Preliminary Test and Test Set-up(Drawings & Photographs) 16 – 21 2. Test Data 2.1 RF Power Output 22 2.2 ISM Frequency 23 2.3 AC Power Line Conducted Emission 150kHz - 30MHz 24 2.4 Radiated Emission (Magnetic Field) 9 KHz - 30 MHz 25 2.5 Radiated Emission (Electric Field) 30 MHz - 1000 MHz 26 2.6 Radiated Emission (Electric Field) 1 GHz - 24.5 GHz 27 JQA APPLICATION No.50-40353 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 3 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.1 GENERAL INFORMATION 1.1.1 Test Facility : 1) Test Facility located at Chubu Testing Center SHIKATSU Branch : An anechoic Chamber (3 m and 10 m, on common plane) and a shielded Room Date of Listing : September 11, 2002 FCC filing No.:31040/SIT 1300F2 2) Chubu Testing Center SHIKATSU Branch is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200190-0 1.1.2 Description of the Equipment Under Test : 1) Type of Equipment Household Microwave Oven 2) Model/Type No. R-308K 3) Type of Magnetron 2M253H(L) 4) Category ISM Frequency Device 5) EUT Authorization Certification 6) FCC ID APYDMR0148 7) Product Type Prototype 8) Serial No. N/A 9) Date of manufacturer November, 2004 10) Trade Name SHARP 11) Fundamental Frequency 2.0, 2450.0 MHz Generated in the EUT 12) Highest Frequency 2450.0 MHz Used in the EUT 13) Power Rating 120VAC 60Hz 1-Phase 14) Rated Power Output 1100 W 15) EUT Grounding Grounded at the plug end of the power line cord. 1.1.3 Definitions for symbols used in this test report : Black box indicates that the listed condition, Regulation or equipment is applicable for this report. Blank box indicates that the listed condition, Regulation or equipment is not applicable for this report. 1.2 TEST REGULATION FCC Rules and Regulations Part 18 Subpart A, B and C(October 1, 2002). Test Procedure : The test was performed according to the procedures in FCC/OET MP-5(1986). JQA APPLICATION No.50-40353 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 4 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITIONS 1.3.1 The measurement of the RF Power Output was performed in the following test site. Test Location : KITA KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, JAPAN Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Digital Power Meter 3181-01 HIOKI 08011085 May, 2004 1 Year Stop Watch S111-5000 SEIKO Q47097350 February, 2004 1 Year Digital Thermometer 2455 YOKOGAWA Q47097361 March, 2004 1 Year Environmental Conditions : Temperature: 22.0 Humidity: 66.0 JQA APPLICATION No.50-40353 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 5 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the ISM Frequency was performed for line voltage variation 80% to 125% of normal rated voltage, in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Spectrum Analyzer 8566B Hewlett Packard 2937A06026 July, 2004 1 Year Horn Antenna 3160-03 EMCO 9911-1065 May, 2004 1 Year RF Cable - Hewlett Packard A-2 May, 2004 1 Year Environmental Conditions : Temperature: 24.0 Humidity: 54.0 JQA APPLICATION No.50-40353 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 6 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.3 The measurement of the AC Power Line Conducted Emission was performed in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber Shielded Room Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Field Strength Meter ESH 2 Rohde & Schwarz 864125/007 May, 2004 1 Year LISN(for EUT) KNW-407 Kyoritsu Electrical 8-901-20 Jun, 2004 1 Year RF Cable 3D-2W Fujikura S-A May, 2004 1 Year RF Cable 3D-2W Fujikura S-B May, 2004 1 Year 50ohm Termination CT01 TME No.1 May, 2004 1 Year Environmental Conditions : Temperature: 24.0 Humidity: 38.0 JQA APPLICATION No.50-40353 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 7 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.4 The measurement of the Radiated Emission(Magnetic Field) was performed in the frequency range of 9 kHz – 30 MHz, in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Field Strength Meter ESH 2 Rohde & Schwarz 864125/007 May, 2004 1 Year Loop Antenna 6502 EMCO 8811-2249 April, 2004 1 Year RF Cable 3D-2W Fujikura S-A May, 2004 1 Year Environmental Conditions : Temperature: 20.0 Humidity: 38.0 JQA APPLICATION No.50-40353 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 8 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.5 The measurement of the Radiated Emission(Electric Field) was performed horizontal and vertical polarization, in frequency range 30MHz 1000MHz, in the following test site. …

Text truncated - open the document above for the full version.

JQA APPLICATION No. 50-40354 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 2 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1. Documentation 1.1 General Information 3 1.2 Test Regulation 3 1.3 Test Conditions 4 - 9 1.4 EUT Modifications / Deviation of Method 10 1.5 Test Results / Uncertainty 11 - 12 1.6 Summary 13 1.7 Configuration of EUT / Operation of EUT 14 – 15 1.8 Preliminary Test and Test Set-up(Drawings & Photographs) 16 – 21 2. Test Data 2.1 RF Power Output 22 2.2 ISM Frequency 23 2.3 AC Power Line Conducted Emission 150kHz - 30MHz 24 2.4 Radiated Emission (Magnetic Field) 9 KHz - 30 MHz 25 2.5 Radiated Emission (Electric Field) 30 MHz - 1000 MHz 26 2.6 Radiated Emission (Electric Field) 1 GHz - 24.5 GHz 27 JQA APPLICATION No. 50-40354 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 3 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.1 GENERAL INFORMATION 1.1.1 Test Facility : 1) Test Facility located at Chubu Testing Center SHIKATSU Branch : An anechoic Chamber (3 m and 10 m, on common plane) and a shielded Room Date of Listing : September 11, 2002 FCC filing No.:31040/SIT 1300F2 2) Chubu Testing Center SHIKATSU Branch is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200190-0 1.1.2 Description of the Equipment Under Test : 1) Type of Equipment Household Microwave Oven 2) Model/Type No. R-308K 3) Type of Magnetron 2M226 4) Category ISM Frequency Device 5) EUT Authorization Certification 6) FCC ID APYDMR0148 7) Product Type Prototype 8) Serial No. N/A 9) Date of manufacturer November, 2004 10) Trade Name SHARP 11) Fundamental Frequency 2.0, 2450.0 MHz Generated in the EUT 12) Highest Frequency 2450.0 MHz Used in the EUT 13) Power Rating 120VAC 60Hz 1-Phase 14) Rated Power Output 1100 W 15) EUT Grounding Grounded at the plug end of the power line cord. 1.1.3 Definitions for symbols used in this test report : Black box indicates that the listed condition, Regulation or equipment is applicable for this report. Blank box indicates that the listed condition, Regulation or equipment is not applicable for this report. 1.2 TEST REGULATION FCC Rules and Regulations Part 18 Subpart A, B and C(October 1, 2002). Test Procedure : The test was performed according to the procedures in FCC/OET MP-5(1986). JQA APPLICATION No. 50-40354 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 4 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITIONS 1.3.1 The measurement of the RF Power Output was performed in the following test site. Test Location : KITA KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, JAPAN Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Digital Power Meter 3181-01 HIOKI 08011085 May, 2004 1 Year Stop Watch S111-5000 SEIKO Q47097350 February, 2004 1 Year Digital Thermometer 2455 YOKOGAWA Q47097361 March, 2004 1 Year Environmental Conditions : Temperature: 22.0 Humidity: 66.0 JQA APPLICATION No. 50-40354 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 5 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the ISM Frequency was performed for line voltage variation 80% to 125% of normal rated voltage, in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Spectrum Analyzer 8566B Hewlett Packard 2937A06026 July, 2004 1 Year Horn Antenna 3160-03 EMCO 9911-1065 May, 2004 1 Year RF Cable - Hewlett Packard A-2 May, 2004 1 Year Environmental Conditions : Temperature: 24.0 Humidity: 54.0 JQA APPLICATION No. 50-40354 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 6 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.3 The measurement of the AC Power Line Conducted Emission was performed in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber Shielded Room Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Field Strength Meter ESH 2 Rohde & Schwarz 864125/007 May, 2004 1 Year LISN(for EUT) KNW-407 Kyoritsu Electrical 8-901-20 Jun, 2004 1 Year RF Cable 3D-2W Fujikura S-A May, 2004 1 Year RF Cable 3D-2W Fujikura S-B May, 2004 1 Year 50ohm Termination CT01 TME No.1 May, 2004 1 Year Environmental Conditions : Temperature: 24.0 Humidity: 38.0 JQA APPLICATION No. 50-40354 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 7 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.4 The measurement of the Radiated Emission(Magnetic Field) was performed in the frequency range of 9 kHz – 30 MHz, in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Field Strength Meter ESH 2 Rohde & Schwarz 864125/007 May, 2004 1 Year Loop Antenna 6502 EMCO 8811-2249 April, 2004 1 Year RF Cable 3D-2W Fujikura S-A May, 2004 1 Year Environmental Conditions : Temperature: 20.0 Humidity: 38.0 JQA APPLICATION No. 50-40354 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 8 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.5 The measurement of the Radiated Emission(Electric Field) was performed horizontal and vertical polarization, in frequency range 30MHz 1000MHz, in the following test sit…

Text truncated - open the document above for the full version.

JQA APPLICATION No. 50-40355 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 2 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1. Documentation 1.1 General Information 3 1.2 Test Regulation 3 1.3 Test Conditions 4 - 9 1.4 EUT Modifications / Deviation of Method 10 1.5 Test Results / Uncertainty 11 - 12 1.6 Summary 13 1.7 Configuration of EUT / Operation of EUT 14 – 15 1.8 Preliminary Test and Test Set-up(Drawings & Photographs) 16 – 21 2. Test Data 2.1 RF Power Output 22 2.2 ISM Frequency 23 2.3 AC Power Line Conducted Emission 150kHz - 30MHz 24 2.4 Radiated Emission (Magnetic Field) 9 KHz - 30 MHz 25 2.5 Radiated Emission (Electric Field) 30 MHz - 1000 MHz 26 2.6 Radiated Emission (Electric Field) 1 GHz - 24.5 GHz 27 JQA APPLICATION No. 50-40355 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 3 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.1 GENERAL INFORMATION 1.1.1 Test Facility : 1) Test Facility located at Chubu Testing Center SHIKATSU Branch : An anechoic Chamber (3 m and 10 m, on common plane) and a shielded Room Date of Listing : September 11, 2002 FCC filing No.:31040/SIT 1300F2 2) Chubu Testing Center SHIKATSU Branch is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200190-0 1.1.2 Description of the Equipment Under Test : 1) Type of Equipment Household Microwave Oven 2) Model/Type No. R-308K 3) Type of Magnetron 2M167B 4) Category ISM Frequency Device 5) EUT Authorization Certification 6) FCC ID APYDMR0148 7) Product Type Prototype 8) Serial No. N/A 9) Date of manufacturer November, 2004 10) Trade Name SHARP 11) Fundamental Frequency 2.0, 2450.0 MHz Generated in the EUT 12) Highest Frequency 2450.0 MHz Used in the EUT 13) Power Rating 120VAC 60Hz 1-Phase 14) Rated Power Output 1100 W 15) EUT Grounding Grounded at the plug end of the power line cord. 1.1.3 Definitions for symbols used in this test report : Black box indicates that the listed condition, Regulation or equipment is applicable for this report. Blank box indicates that the listed condition, Regulation or equipment is not applicable for this report. 1.2 TEST REGULATION FCC Rules and Regulations Part 18 Subpart A, B and C(October 1, 2002). Test Procedure : The test was performed according to the procedures in FCC/OET MP-5(1986). JQA APPLICATION No. 50-40355 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 4 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITIONS 1.3.1 The measurement of the RF Power Output was performed in the following test site. Test Location : KITA KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, JAPAN Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Digital Power Meter 3181-01 HIOKI 08011085 May, 2004 1 Year Stop Watch S111-5000 SEIKO Q47097350 February, 2004 1 Year Digital Thermometer 2455 YOKOGAWA Q47097361 March, 2004 1 Year Environmental Conditions : Temperature: 22.0 Humidity: 66.0 JQA APPLICATION No. 50-40355 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 5 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the ISM Frequency was performed for line voltage variation 80% to 125% of normal rated voltage, in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Spectrum Analyzer 8566B Hewlett Packard 2937A06026 July, 2004 1 Year Horn Antenna 3160-03 EMCO 9911-1065 May, 2004 1 Year RF Cable - Hewlett Packard A-2 May, 2004 1 Year Environmental Conditions : Temperature: 24.0 Humidity: 54.0 JQA APPLICATION No. 50-40355 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 6 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.3 The measurement of the AC Power Line Conducted Emission was performed in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber Shielded Room Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Field Strength Meter ESH 2 Rohde & Schwarz 864125/007 May, 2004 1 Year LISN(for EUT) KNW-407 Kyoritsu Electrical 8-901-20 Jun, 2004 1 Year RF Cable 3D-2W Fujikura S-A May, 2004 1 Year RF Cable 3D-2W Fujikura S-B May, 2004 1 Year 50ohm Termination CT01 TME No.1 May, 2004 1 Year Environmental Conditions : Temperature: 24.0 Humidity: 38.0 JQA APPLICATION No. 50-40355 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 7 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.4 The measurement of the Radiated Emission(Magnetic Field) was performed in the frequency range of 9 kHz – 30 MHz, in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Field Strength Meter ESH 2 Rohde & Schwarz 864125/007 May, 2004 1 Year Loop Antenna 6502 EMCO 8811-2249 April, 2004 1 Year RF Cable 3D-2W Fujikura S-A May, 2004 1 Year Environmental Conditions : Temperature: 20.0 Humidity: 38.0 JQA APPLICATION No. 50-40355 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 8 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.5 The measurement of the Radiated Emission(Electric Field) was performed horizontal and vertical polarization, in frequency range 30MHz 1000MHz, in the following test si…

Text truncated - open the document above for the full version.

JQA APPLICATION No.50-40353 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 2 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1. Documentation 1.1 General Information 3 1.2 Test Regulation 3 1.3 Test Conditions 4 - 9 1.4 EUT Modifications / Deviation of Method 10 1.5 Test Results / Uncertainty 11 - 12 1.6 Summary 13 1.7 Configuration of EUT / Operation of EUT 14 – 15 1.8 Preliminary Test and Test Set-up(Drawings & Photographs) 16 – 21 2. Test Data 2.1 RF Power Output 22 2.2 ISM Frequency 23 2.3 AC Power Line Conducted Emission 150kHz - 30MHz 24 2.4 Radiated Emission (Magnetic Field) 9 KHz - 30 MHz 25 2.5 Radiated Emission (Electric Field) 30 MHz - 1000 MHz 26 2.6 Radiated Emission (Electric Field) 1 GHz - 24.5 GHz 27 JQA APPLICATION No.50-40353 FCC ID APYDMR0148 Model No. R-308K Issue DateDecember 16, 2004 Regulation CFR 47 FCC Rules Part 18 Page 3 of 27 JAPAN QUALITY ASSURANCE ORGANIZATION 1.1 GENERAL INFORMATION 1.1.1 Test Facility : 1) Test Facility located at Chubu Testing Center SHIKATSU Branch : An anechoic Chamber (3 m and 10 m, on common plane) and a shielded Room Date of Listing : September 11, 2002 FCC filing No.:31040/SIT 1300F2 2) Chubu Testing Center SHIKATSU Branch is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200190-0 1.1.2 Description of the Equipment Under Test : 1) Type of Equipment Household Microwave Oven 2) Model/Type No. R-308K 3) Type of Magnetron 2M253H(L) 4) Category ISM Frequency Device 5) EUT Authorization Certification 6) FCC ID APYDMR0148 7) Product Type Prototype 8) Serial No. N/A 9) Date of manufacturer November, 2004 10) Trade Name SHARP 11) Fundamental Frequency 2.0, 2450.0 MHz Generated in the EUT 12) Highest Frequency 2450.0 MHz Used in the EUT 13) Power Rating 120VAC 60Hz 1-Phase 14) Rated Power Output 1100 W 15) EUT Grounding Grounded at the plug end of the power line cord. 1.1.3 Definitions for symbols used in this test report : Black box indicates that the listed condition, Regulation or equipment is applicable for this report. Blank box indicates that the listed condition, Regulation or equipment is not applicable for this report. 1.2 TEST REGULATION FCC Rules and Regulations Part 18 Subpart A, B and C(October 1, 2002). Test Procedure : The test was performed according to the procedures in FCC/OE…
