APYDMR0149Household Microwave Oven

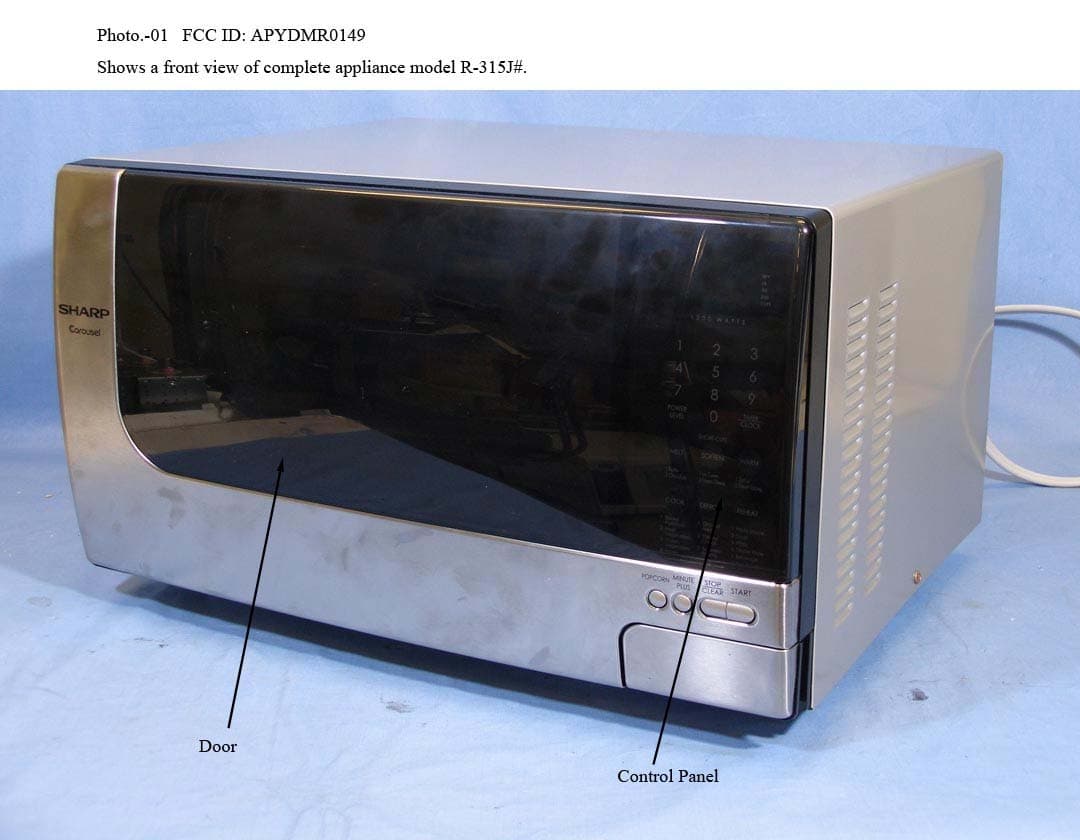

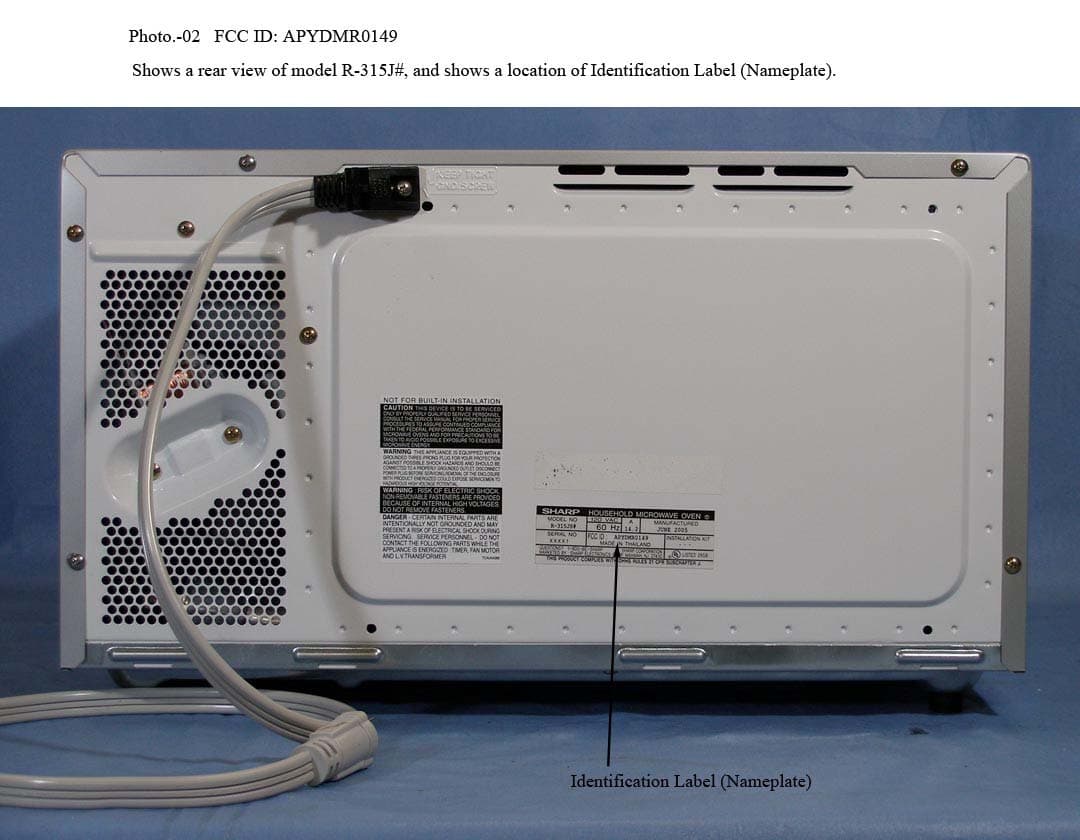

FCC ID : APYDMR0149 IDENTIFICATION LABEL (Nameplate Label) Label Material: Film with back side adhesion. Model Number 95 mm 32 mm Factory ID Mark FCC ID Code FCC ID Code APY : FCC assigned grantee code for Sharp Corporation. DMR0149 : Number assigned by the grantee to the model or the model family in a technically identical products. Factory ID Mark T : Manufacturer identification marking for Sharp Appliances (Thailand) Ltd. Identification Label (Nameplate)

MAGNETRON RECTIFIER CAPACITOR POWER TRANSFORMER MONITORSWITCH PRIMARY INTERLOCK RELAY (RY2) N.O. DOOR SENSING SWITCH B2 B1 COM. FAN MOTOR TURN- TABLE MOTOR SECONDARY INTERLOCK SWITCH OVEN LAMP COM. CONTROL UNIT OVEN LAMP RELAY (RY1) THERMAL CUT-OUT (OVEN) TEMPERATURE FUSE (MAGNETRON) N.O. LINE CROSS CAPACITOR 1.0 uF / AC 250V NOISE SUPPRESSION COIL LINE BYPASSCAPACITOR0.0033 uF / AC125V LINE BYPASSCAPACITOR0.0033 uF / AC125V FUSE 20A NOISE FILTER 120V AC 60Hz OL TTM FM SCHEMATIC DIAGRAM (DOOR CLOSED, COOK OFF CONDITION) (option) L N MICROWAVE OVEN R-310J#, R-315J#, R-320H#

JAPAN QUALITY ASSURANCE ORGANIZATION SHIKATSU BRANCH, CHUBU Testing Center 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005 Japan Phone. +81-568-23-0023 / Facsimile. +81-568-23-0116 Issue Date : April 20, 2005 Page 1 of 28 EMI TEST REPORT JQA File No. 50-50008 Model/Type No. R-315JSF Type of Equipment Household Microwave Oven Regulation applied FCC Rules and Regulations Part 18 FCC ID APYDMR0149 Applicant Sharp Corporation, Reliability Control Group Address 22-22 Nagaike-Cho, Abeno-Ku, Osaka 545-8522, Japan Manufacturer Sharp Appliances (Thailand) Ltd. Address 64 Moo 5, Tambol Bangsamuk, Amphur Bangpakong, Chachoengsao, Province, Thailand Received date of EUT March 14, 2005 Final Judgment Passed TEST RESULT IN THIS REPORT are obtained in used of equipments that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. THE TEST RESULTS only responds to the test sample. THIS REPORT should not be reproduced, except in full, without the approval of the JQA Chubu Testing Center. JQA File No. 50-50008 FCC ID APYDMR0149 Model No. R-315JSF Issue DateApril 20, 2005 Regulation CFR 47 FCC Rules Part 18 Page 2 of 28 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1. Documentation 1.1 General Information 3 1.2 Test Regulation 3 1.3 Test Conditions 4 - 10 1.4 EUT Modifications / Deviation of Method 11 1.5 Test Results / Uncertainty 12 - 13 1.6 Summary 14 1.7 Configuration of EUT / Operation of EUT 15 – 16 1.8 Preliminary Test and Test Set-up(Drawings & Photographs) 17 – 22 2. Test Data 2.1 RF Power Output 23 2.2 ISM Frequency 24 2.3 AC Power Line Conducted Emission 150kHz - 30MHz 25 2.4 Radiated Emission (Magnetic Field) 9 KHz - 30 MHz 26 2.5 Radiated Emission (Electric Field) 30 MHz - 1000 MHz 27 2.6 Radiated Emission (Electric Field) 1 GHz - 24.5 GHz 28 JQA File No. 50-50008 FCC ID APYDMR0149 Model No. R-315JSF Issue DateApril 20, 2005 Regulation CFR 47 FCC Rules Part 18 Page 3 of 28 JAPAN QUALITY ASSURANCE ORGANIZATION 1.1 GENERAL INFORMATION 1.1.1 Test Facility : 1) Test Facility located at Chubu Testing Center SHIKATSU Branch : An anechoic Chamber (3 m and 10 m, on common plane) and a shielded Room Date of Listing : September 11, 2002 FCC filing No.:31040/SIT 1300F2 2) Chubu Testing Center SHIKATSU Branch is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200190-0 1.1.2 Description of the Equipment Under Test : 1) Type of Equipment Household Microwave Oven 2) Model/Type No. R-315JSF 3) Type of Magnetron 2M248H(L) 4) Category ISM Frequency Device 5) EUT Authorization Certification 6) FCC ID APYDMR0149 7) Product Type Prototype 8) Serial No. N/A 9) Date of manufacturer February, 2005 10) Trade Name SHARP 11) Fundamental Frequency 2.0, 2450.0 MHz Generated in the EUT 12) Highest Frequency 2450.0 MHz Used in the EUT 13) Power Rating 120VAC 60Hz 1-Phase 14) Rated Power Output 1200 W 15) EUT Grounding Grounded at the plug end of the power line cord. 1.1.3 Definitions for symbols used in this test report : Black box indicates that the listed condition, Regulation or equipment is applicable for this report. Blank box indicates that the listed condition, Regulation or equipment is not applicable for this report. 1.2 TEST REGULATION FCC Rules and Regulations Part 18 Subpart A, B and C(October 1, 2002). Test Procedure : The test was performed according to the procedures in FCC/OET MP-5(1986). JQA File No. 50-50008 FCC ID APYDMR0149 Model No. R-315JSF Issue DateApril 20, 2005 Regulation CFR 47 FCC Rules Part 18 Page 4 of 28 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITIONS 1.3.1 The measurement of the RF Power Output was performed in the following test site. Test Location : KITA KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, JAPAN Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Clamp on Power Meter 3167 HIOKI 08011116 Jun, 2004 1 Year Stop Watch 8N5502 SEIKO Q47097355 July, 2004 1 Year Digital Thermometer 2455 YOKOGAWA Q47097361 March, 2005 1 Year Environmental Conditions : Temperature: 29.0 Humidity: 60.0 JQA File No. 50-50008 FCC ID APYDMR0149 Model No. R-315JSF Issue DateApril 20, 2005 Regulation CFR 47 FCC Rules Part 18 Page 5 of 28 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.2 The measurement of the ISM Frequency was performed for line voltage variation 80% to 125% of normal rated voltage, in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber No.2 Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Spectrum Analyzer 8566B Hewlett Packard 2937A06026 July, 2004 1 Year Horn Antenna 3160-03 EMCO 9911-1065 May, 2004 1 Year RF Cable - Hewlett Packard A-2 May, 2004 1 Year Environmental Conditions : Temperature: 22.0 Humidity: 52.0 JQA File No. 50-50008 FCC ID APYDMR0149 Model No. R-315JSF Issue DateApril 20, 2005 Regulation CFR 47 FCC Rules Part 18 Page 6 of 28 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3.3 The measurement of the AC Power Line Conducted Emission was performed in the following test site. Test Location : Chubu Testing Center SHIKATSU Branch 53-1, Yamaura, Yakushiji, Shikatsu-cho, Nishikasugai-gun, Aichi 481-0005, JAPAN Anechoic Chamber No.1 Shielded Room Used Test Instruments : Type Model No. Manufacturer Serial No. Last Cal. Interval Field Strength Meter ESH 2 Rohde & Schwarz 864125/007 May, 2004 1 Year LISN(for EUT) KNW-407 Kyoritsu Electrical 8-901-20 Jun, 2004 1 Year RF Cable 3D-2W Fujikura S-A May, 2004 1 Year RF Cable 3D-2W Fujikura S-B May, 2004 1 Year 50ohm Termination CT01 TME No.1 May, 2004 1 Year Environmental Conditions : Temperature: 20.0 Humidity: 38.0 JQA File No. 50-50008 FCC ID APY…

Text truncated - open the document above for the full version.

JQA File No. 50-50008 FCC ID APYDMR0149 Model No. R-315JSF Issue DateApril 20, 2005 Regulation CFR 47 FCC Rules Part 18 TEST SET-UP (Photograph) Conducted Emissions - Front View - - Side View - JQA File No. 50-50008 FCC ID APYDMR0149 Model No. R-315JSF Issue DateApril 20, 2005 Regulation CFR 47 FCC Rules Part 18 Radiated Emissions - Front View - - Rear View -
