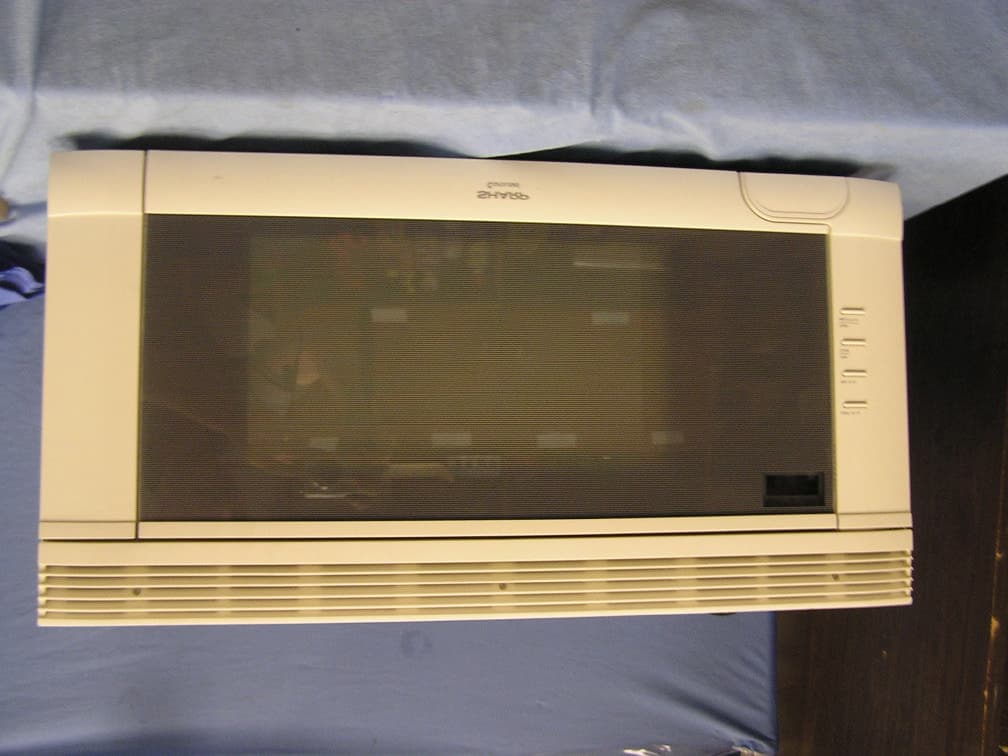

APYDMR0160Microwave Oven

OVER THE RANGE MODELS R-1500, R-1501, R-1505, R-1506 1.OTX#B2826/22/01, 1:54 PM1 2 To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBER________________________SERIAL NUMBER______________ DATE OF PURCHASE______________________ DEALER____________________________TELEPHONE________________ SERVICER___________________________TELEPHONE________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. TO PHONE: DIAL 1-800-BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and COOKBOOK TO WRITE: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 TO ACCESS INTERNET: www.sharp-usa.com FOR CUSTOMER ASSISTANCE Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. 1.OTX#B2826/22/01, 1:54 PM2 3 CONTENTS For Customer Assistance ..........................2 Precautions to Avoid Possible Exposure to Excessive Microwave Energy ..................................2 Contents ......................................................3 Consumer Limited Warranty .....................4 Product Information Card ..........................4 Important Safety Instructions ...................5 Unpacking Instructions .............................6 Optional Accessories ................................6 Grounding Instructions .............................6 Information You Need to Know .................7-9 About Your Oven ......................................7 About Food ...............................................7 About Utensils and Coverings ...................8 About Children and the Microwave ...........8 About Microwave Cooking ........................9 About Safety .............................................9 Part Names ................................................. 10-11 Before Operating ........................................12 To Set the Clock .......................................12 Stop/Clear .................................................12 Manual Operation .......................................13 Time Cooking ............................................13 To Set Power Level ..................................13 Manual Defrost ..........................................13 Special Features ......................................... 14-19 Keep Warm ...............................................14 Popcorn .....................................................14 Hot Water ..................................................14 Reheat Center ........................................... 15-16 Cook Center .............................................. 17-18 Defrost Center ...........................................19 Other Convenient Features ....................... 20-21 Multiple Sequence Cooking ......................20 Timer .........................................................20 More or Less Time Adjustment .................20 Minute Plus ...............................................20 Child Lock .................................................20 Audible Signal Elimination ........................21 Demonstration Mode .................................21 Light Hi/Lo .................................................21 Fan Hi/Lo ..................................................21 Cleaning and Care ......................................22 Replacing Parts ..........................................23 Service Call Check .....................................24 Specifications .............................................24 The Ultimate Accessory ............................25 Cookbook Order Form ...............................25 Notes ...........................................................26 Cooking / Reheating Chart ........................ 27-29 Guia Auto-Touch ........................................ 30-31 Auto-Touch Guide .................31-Back Cover 1.OTX#B2826/22/01, 1:54 PM3 4 SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is…

Text truncated - open the document above for the full version.

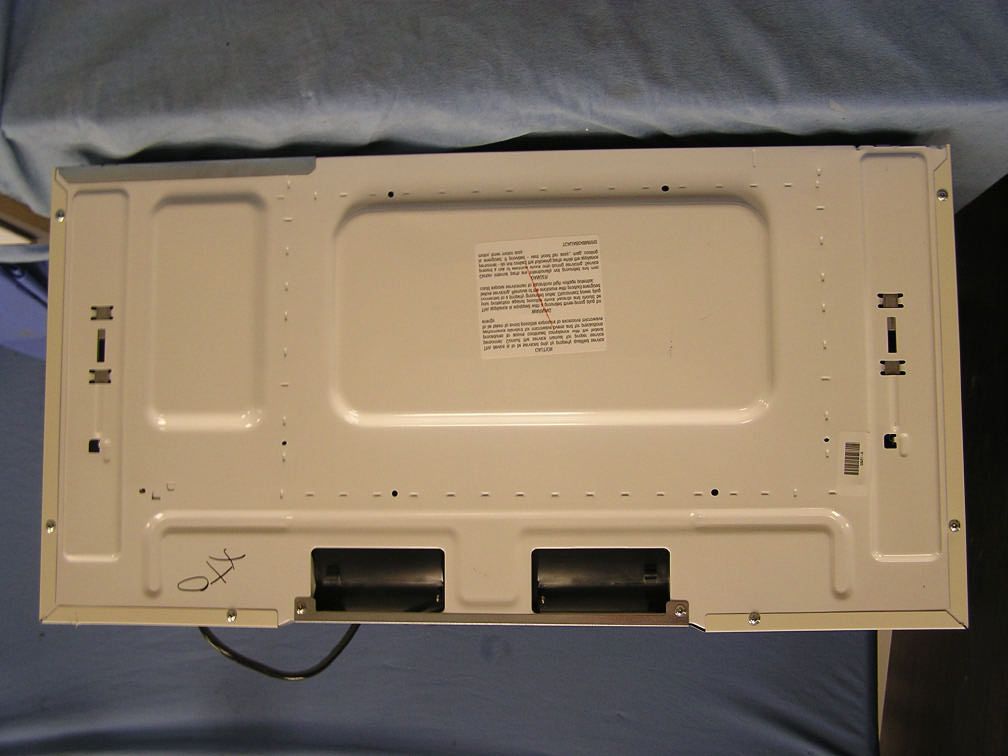

PROPOSED FCC ID LABEL AND LOCATION SHARP CORPORATION FCC ID: APYDMR0160 FCC ID LABEL LOCATION

SHARP REVISIONS 4 3 2 1 MADE BYAPPROVALS MAT. NO.FIN. NO.PROCESS NO. DATE MICROWAVE OVEN ENGINEERING * * SCALE UNIT mm TITLE LAST LETTER USED 1st2nd3rdthISSUE TYP.=TYPICAL REF.=REFERENCE MODEL F AMILY ISSUED MDL. NO. PARTS NO. SHARP MANUFACTURING COMPANY OF AMERICA JULIAN MARTIN APRIL 20, 2005 1 1 SCHEMATIC DIAGRAM TMAPCB100MRR0 PAPER: ADHESIVE: RELEASE LINER: PIGMENT: VARNISH: ARTWORK SUPPLIED BY SMCA FITCHBURG 60-lb White Britekote FITCHBURG 630 permanent FITCHBURG 40-lb Semi-bleach Kraft Water Ink Technologies WG0421 (Jet Black) B.A.S.F. 79U5566 (Flexo Gem O. P.) Prohibited Substances: CFCs/Halon/Carbon tetrachloride/1.1.1-Trichloroethane (Methyl chloroform) 1 2 This product, Assembly, or component must not contain any of the above mentioned substances. This product, Assembly, or component is not manufactured using any of the above mentioned substances. <PROHIBITION TO USE OZONE DEPLETING SUBSTANCES> OTX OTX (OEM) Model SCHEMATIC DIAGRAM (DOOR CLOSED COOK OFF CONDITION) NOTES: 1. CIRCUITS SUBJECT TO CHANGE WITHOUT NOTICE. 2. TERMINAL WITH PROJECTION OR OPPOSITE BLUE MARK ON LAMP SOCKET MUST BE CONNECTED TO NEUTRAL WIRE. 3. ONLY CERTAIN MODELS USE THE ABSOLUTE HUMIDITY SENSOR. 4. POWER TRANSFORMER LEFT (FINISH LEAD) TERMINAL MUST BE CONNECTED TO THE NEUTRAL (WHITE) WIRE. TMAPCB100MRR0 MAG. TEMP. FUSE CAVITY THERMAL CUTOUT 120VAC 60Hz HOOD FAN THERMAL CUT OUT RED PPL COM. RED RED WHT BLK WHT WHT WHT GR Y BRN WHT RED RED WHT YL W YL W BLK WHT ORG GRN A5 A7 A1 A3 A9 N.O. E2 E1 RY6 HOOD MOTOR CONTROL UNIT N.O. (R Y1) (R Y2) COM. DOOR SENSING SWITCH TTM FMOL HL HL TURN TABLE MOTOR FAN MOTOR OVEN LAMP HOOD LAMP GR Y MONITOR SWITCH PRIMARY INTERLOCK SWITCH RED BLU POWER TRANSFORMER MAGNETRON HIGH VOLTAGE CAPACITOR xx uF HOOD CAPACITOR RED BRN WHT SECONDARY INTERLOCK RELAY OVEN LAMP RELAY ORG ORG RED RED COM RED RED ORG WHT RY5 GRY 155+2 95+2 BLK WHT WHT WHT GR Y GND BRN WHT F1 F2 F3 SENSOR BRN H RED RED ORG RED RED HIGH VOLTAGE RECTIFIER WHT N.C. WHT BLU WHT LEAD WIRE COLOR CODE HOT LINE BLK : BLACK BRN : BROWN ORG : ORANGE PNK : PINK PPL : PURPLE RED : RED YLW : YELLOW NEUTRAL LINE GRY : GRAY WHT : WHITE BLU : BLUE EARTH GRN : GREEN HUMIDITY OTX ELUX OTX ELECTROLUX C3 COM. N.O. PPL WHT RED BLU N O I S E S U P R E S S I O N C O I L R E S I S T O R 4 7 0 k W 1 / 2 W L I N E C R O S S C A P A C I T O R 1 . 0 u F 2 7 5 V L I N E B Y P A S S C A P A C I T O R 0 . 0 0 3 3 u F 2 5 0 V F U S E 2 0 A L I N E B Y P A S S C A P A C I T O R 0 . 0 0 3 3 u F 2 5 0 V NOISE FILTER N L GND

FCC CFR47 PART 18 SUBPART C ISM EQUIPMENT TEST REPORT FOR MICROWAVE OVEN MODEL NUMBER: OTX MAGNETRON MODEL: 2M253H(L), 2M167B FCC ID: APYDMR0160 REPORT NUMBER: 05U3346-1 ISSUE DATE: MAY 4, 2005 Prepared for SHARP CORPORATION 22-22 NAGAIKE-CHO, ABENO-KU RELIABILITY CONTROL GROUP OSAKA, JAPAN, 545-8522 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05U3346-1 DATE: MAY 4, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0160 Page 2 of 43 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Revisions Revised By REPORT NO: 05U3346-1 DATE: MAY 4, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0160 Page 3 of 43 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1 ATTESTATION OF TEST RESULTS............................................................................................. 4 2 PRODUCT DESCRIPTION .............................................................................................................. 5 3 TEST FACILITY................................................................................................................................ 5 4 ACCREDITATION AND LISTING ................................................................................................. 5 5 MEASUREMENT EQUIPMENT LIST ........................................................................................... 6 6 LIMITS AND RESULTS ................................................................................................................... 7 6.1 RADIATION HAZARD MEASUREMENT .................................................................................... 7 6.2 INPUT POWER .......................................................................................................................... 10 6.3 RF OUTPUT POWER MEASUREMENT ................................................................................... 11 6.4 OPERATING FREQUENCY MEASUREMENTS ....................................................................... 12 6.4.1 VARIATION IN OPERATING FREQUENCY WITH TIME........................................... 13 6.4.2 VARIATION IN OPERATING FREQUENCY WITH VOLTAGE ................................. 16 6.5 RADIATED EMISSIONS.............................................................................................................23 6.5.1 RADIATED EMISSIONS – BELOW 1GHz ..................................................................... 25 6.5.2 RADIATED EMISSIONS – ABOVE 1GHz ...................................................................... 33 6.6 CONDUCTED EMISSIONS ....................................................................................................... 35 7 SETUP PHOTO ................................................................................................................................ 41 REPORT NO: 05U3346-1 DATE: MAY 4, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0160 Page 4 of 43 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1 ATTESTATION OF TEST RESULTS COMPANY NAME: SHARP ELECTRONIC CORP 22-22 NAGAIKE-CHO, ABENO-KU RELIABILITY CONTROL GROUP OSAKA, JAPAN, 545-8522 EUT DESCRIPTION: MICROWAVE OVEN MODEL NUMBER: OTX . SERIAL NUMBER: 427373 MAGNETRON MODELS: 2M167B, 2M253H(L) DATE TESTED: APRIL 13 - 18, 2005 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 18 SUBPART C & FCC METHEROD OF MEASUREMENTS OF RADIO NOISE EMISSION FROM INDUSTRIAL, SCIENTIFIC, AND MEDICAL EQUIPMENT FCC / OST MP-5 NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: YAN ZHENG WILLIAM ZHUANG EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 05U3346-1 DATE: MAY 4, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0160 Page 5 of 43 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2 PRODUCT DESCRIPTION The equipment under test is a microwave oven sold for consumer use. Model: OTX is a 1000W microwave oven with digital controls panel. Magnetron Model: 2M253H(L) and 2M167B. 3 TEST FACILITY The open area test sites and conducted measurement facilities used to collect the radiated data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22. 4 ACCREDITATION AND LISTING The test facilities used to perform radiated and conducted emissions …

Text truncated - open the document above for the full version.

REPORT NO: 05U3346-1 DATE: APRIL 19, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0160 Page 41 of 43 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7 SETUP PHOTO Radiation Hazard Measurement Operating Frequency Measurements REPORT NO: 05U3346-1 DATE: APRIL 19, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0160 Page 42 of 43 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. AC Line Conduction Front AC Line Conduction back REPORT NO: 05U3346-1 DATE: APRIL 19, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0160 Page 43 of 43 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Radiation Measurement Below 1GHz Radiation Measurements Above 1GHz END OF REPORT
