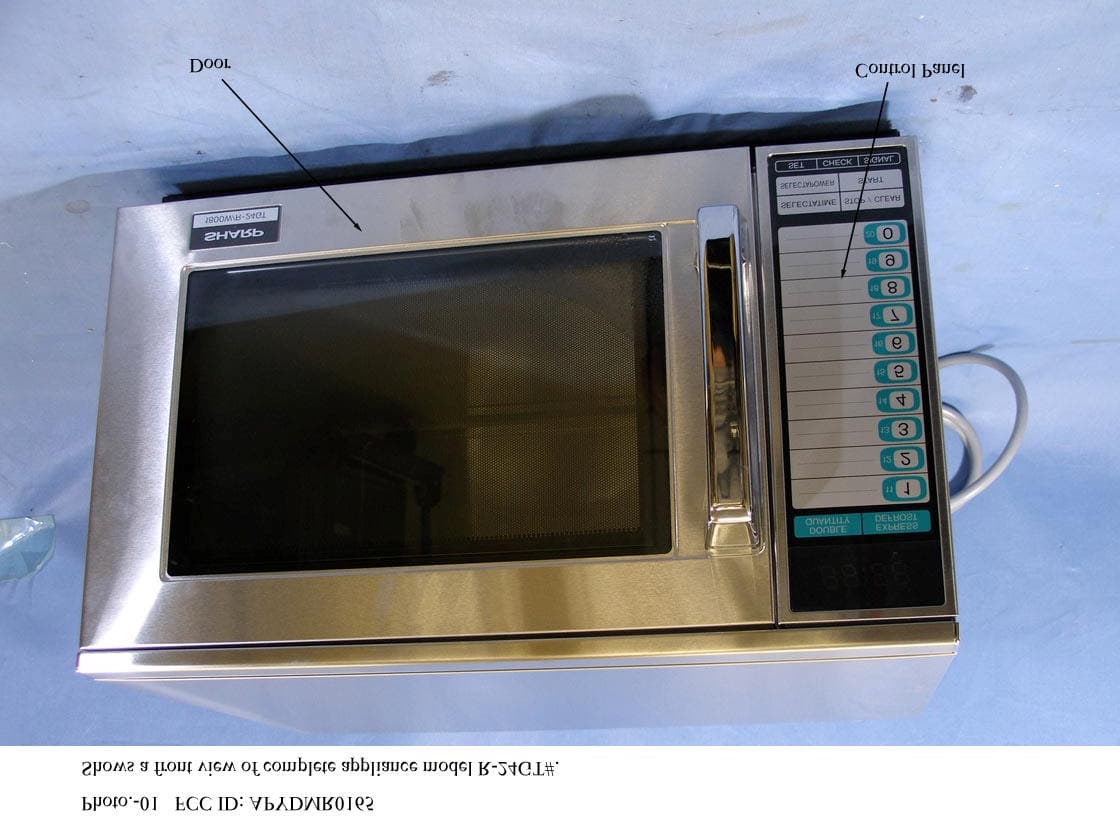

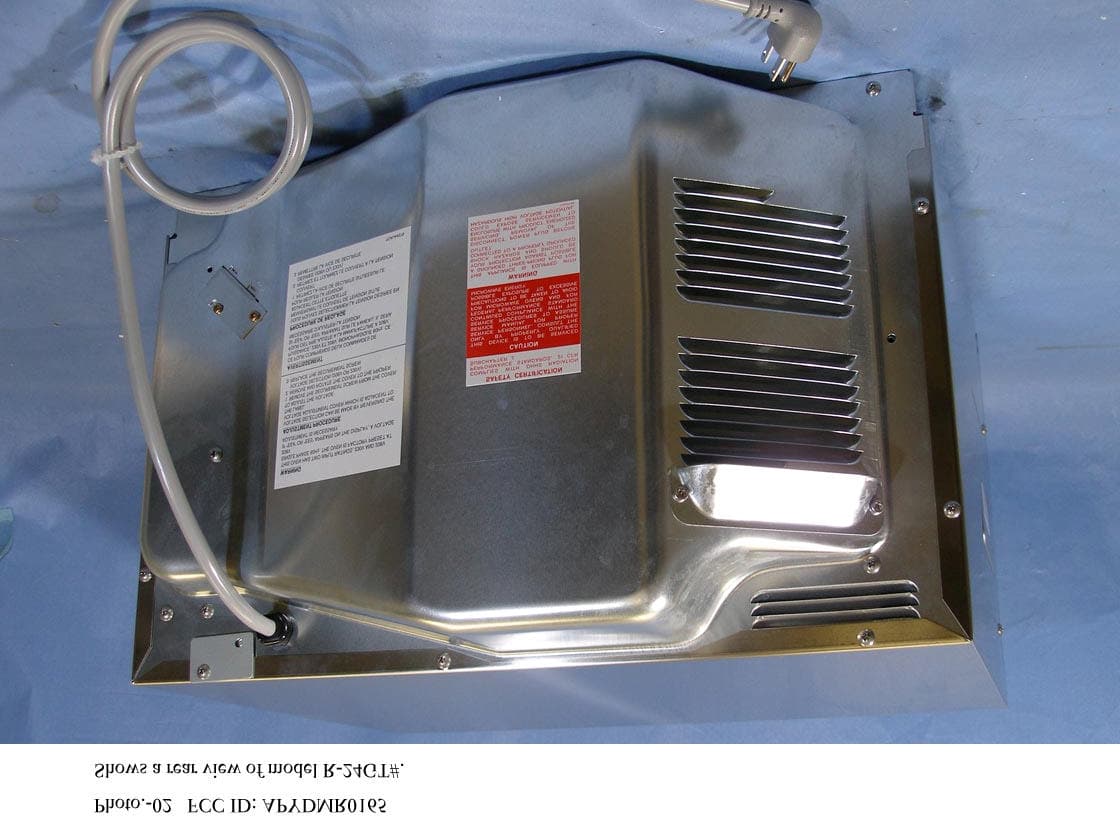

APYDMR0165Microwave Oven

A31585,R22GV,/22GT/23GT/24GT/25JT TO PHONE: SERVICE and PARTS (for your nearest Sharp Authorized Servicer and Parts Distributor) United States .................................. 1-800-BE-SHARP(237-4277) ADDITIONAL CUSTOMER INFORMATION ............................................. 201-529-8706 TO WRITE: For additional information: Commercial Microwave Oven Department Sharp Electronics Corporation Sharp Plaza, Box 650 Mahwah, NJ 07430-2135 For service problems, warranty information, missing items and other assistance: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. 1200 WATTS/1600 WATTS/1800 WATTS/2100 WATTS-HEAVY DUTY COMMERCIAL MICROWAVE OVEN OPERATION MANUAL ® MODELS R-22GV/R-22GT/R-23GT/R-24GT/R-25JT FOR CUSTOMER ASSISTANCE To aid in reporting this commercial microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBERSERIAL NUMBER DATE OF PURCHASE DealerTelephone ServicerTelephone A31585,R22GV,/22GT/23GT/24GT/25JT 1 Time cooking.............................................. 11 Multiple sequence cooking ......................... 11 Express Defrost ......................................... 12 Express Defrost Chart ................................ 12 Counter check ............................................ 13 Other Convenient Features ........................... 14 Signal setting ............................................. 14 Demonstration mode .................................. 14 Care and Cleaning ........................................ 14 Cooking Guide .............................................. 16 Utensils ...................................................... 16 Guidelines for microwave heating .............. 17 Timing guide .............................................. 18 Heating and cooking time guide ................. 19 Reminders ..................................................... 21 Specifications ................................................ 21 Auto-Touch Guide ........................... 22•Back cover For Customer Assistance ................ Front cover Contents .......................................................... 1 Precautions to Avoid Possible Exposure to Excessive Microwave Energy ...................... 1 Limited Warranty ............................................. 2 Important Safety Instructions ........................... 3 Service Call Check .......................................... 4 Grounding Instructions .................................... 5 Installation ....................................................... 6 Part Names ..................................................... 7 Before Operation ............................................. 8 Memory Operation .......................................... 8 Cooking with memory .................................. 8 Cooking double quantity with memory ......... 8 Memory program entry ................................. 9 Memory check ............................................ 10 Manual Operations ........................................ 11 (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY A31585,R22GV,/22GT/23GT/24GT/25JT 2 Contract your Sharp Authorized Servicer to obtain on- site service for this Product. The Servicer will come to your location and if it is necessary to remove the Product, the Servicer will reinstall it. Be sure to have Proof of Purchase available. Where to Obtain Service: Non-functional accessories and light bulb. Additional Item(s) Excluded from Warranty Coverage (if any): Three (3) years for parts and labor in the end user’s place of business. Warranty Period for this Product: R-22GV/R-22GT/R-23GT/R-24GT or R-25JT Commercial Microwave Oven (Be sure to have this information available when you need service for your oven.) Your Product Model Number & Description: LIMITED WARRANTY TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP. Save the proof of purchase as it is needed should your oven require warranty service. SHARP ELECTRONICS CORPORATION warrants to the first end-user purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part there of with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth …

Text truncated - open the document above for the full version.

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name : Sharp Corporation, Reliability Control Group Address 22-22 Nagaike-Cho, Abeno-Ku Osaka 545-8522, Japan Grantee Code: : APY Applicant Rep. : H. Nishira CONTACT PERSON: Name : Sharp Electronics Corporation Address : Sharp Plaza, Mahwah, New Jersey 07430 Applicant Rep. : Steve Petruska, Product Safety Dept. Telephone No. : 201-529-9689 MEASUREMENT SITE: Name : Japan Quality Assurance Organization Kita-Kansai Testing Center Address : 7-7, Ishimaru 1-Chome, Mino-Shi Osaka 562-0027, Japan MANUFACTURER: Name : Sharp Corporation, Kitchen Appliance Systems Div., Yao Factory Address : 3-1-72 Kitakamei-cho Yao, Osaka 581-8585, Japan FCC IDENTIFICATION : APYDMR0165 EQUIPMENT Model Name : Microwave Oven Model R-24GT# Brand : Sharp Electronics Corp. Importer : Sharp Electronics Corp. ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 1800 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 1800 W (by IEC method) (5) The voltage and current to magnetron: Two magnetrons are provided. Magnetron Cat. No. 2M281H(L) : 3.9 kV peak, 300 mA (6) Function of each electro tube, semiconductor or other active circuit device: Two magnetrons are provided. Fixed magnetron, Type 2M281H(L) mfd by Toshiba as power generator (7) Tune up procedure over the power range or at specific operating power levels: Not adjustable (8) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (9) Description of the microwave oven: Unit Body Dimensions : 510 mm wide, 335 mm high, 511 mm deep Door Dimensions : 408 mm wide, 286 mm high (Viewing Area: 279 mm wide, 163 mm high) Oven Cavity Dimensions : 332 mm wide, 237 mm high, 333 mm deep Feed Type and Location : Supplied by two waveguides located top and bottom sides of oven. Door Seal Type : Choke and Capacitive Seals Magnetron Type : 2M281H(L) mfd by Toshiba

1 Helen Zhao Subject:FW: TCB Application, Sharp Microwave Oven, Model R-24GT-F, FCC ID: APYDMR0165 Test Report, APYDMR0164,R25JT ... Test Report, APYDMR0165, R24GT... From: Petruska, Steve Sent: Wednesday, June 01, 2005 9:43 AM To: Helen Zhao Cc: Mike Kuo Subject: RE: TCB Application, Sharp Microwave Oven, Model R-24GT-F, FCC ID: APYDMR0165 Hi Helen, Thanks for your prompt review. We contacted JQA and obtained the attached corrected test report for applications: APYDMR0165. Best regards, Steve Petruska Sharp Electronics Corp. -----Original Message----- From: Helen Zhao [mailto:[email protected]] Sent: Tuesday, May 31, 2005 5:34 PM To: Petruska, Steve Cc: Mike Kuo Subject: RE: TCB Application, Sharp Microwave Oven, Model R-24GT-F, FCC ID: APYDMR0165 Hello Steve, Please ask JQA to answer the following question: Question #1: Please correct two errors in the test report: a) Page 25 - The formula to calculate RF output power [(4.2 x 1000 x (t2-t1) / 46.7] is incorrect. please correct. b) Page 31 & 32 - The radiated emission limits listed here are for APYDMR0164, not for APYDMR0165. Please correct. Thank you, Helen

FCC ID: APYDMR0165 IDENTIFICATION LABEL (Nameplate Label) Label Material: Film with back side adhesion. Model Number Factory ID Mark FCC ID Code 190 mm 20 mm FCC ID Code APY : FCC assigned grantee code for Sharp Corporation. DMR0165: Number assigned by grantee to the model or the model family in a technically identical products. Factory ID Mark Y : Manufacturer identification marking for Sharp Corp., Kitchen Appliance Systems Div., Yao Factory Identification Label (Nameplate) MICROWAVE OVEN FOR COMMERCIAL USE / DESTINE A UNE USAGE COMMERCIAL MODEL NO. R-24GT-F 208/230 V A.C. 60 Hz 2.9 kW GENERATOR : MAGNETRON 3.9 kV MANUFACTURED : JULY 2005 MARKETED BY SHARP ELECTRONICS CORP., SHARP PLAZA, MAHWAH, N.J. 07430 U.S.A. NOT FOR BUILT-IN INSTALLATION OUTPUT : 1.8 kW (IEC705) 2450 MHz TEST LOAD : 275 CC WATER SERIAL NO. : XXXXX1 MADE IN OSAKA JAPAN CORP. FCC ID : APYDMR0165 285B Y TSPCND755WR

OVEN LAMP BLOWER MOTOR 208/230V 60Hz MAGNETRON (1) BM STIRRER MOTOR SM SM H3 H1 MAGNETRON THERMISTOR DOOR SENSING SWITCH A1A3B2B1 A7 RY2 TAB1TAB2 RY3 OVEN TEMP. FUSE BLOWER MOTOR TEMP. FUSE B3 OVENTHERMISTOR (1) OVENTHERMISTOR (2) PRIMARY INTERLOCK RELAY (1) MONITOR SWITCH (2)MONITOR SWITCH (1) POWER TRANSFORMER (1) CAPACITOR (1) 0.94 uF CAPACITOR (2) 0.94 uF POWER TRANSFORMER (2) H.V. RECTIFIER (1) H.V. RECTIFIER (2) MAGNETRON (2) RY1 A5 OL COM NC V.S. SW (1) COM NC NC COM V.S.SW (3) VOLTAGE SELECT SWITCH (V.S.SW) (2) SECONDARY INTERLOCK SWITCH(1) OL MAGNETRON TEMP. FUSE(1) MAGNETRON TEMP. FUSE(2) FUSE 20A LINE CROSS CAPACITOR1.0 uF AC250V LINE BYPASS CAPACITOR0.0033fF AC250V LINE BYPASS CAPACITOR 0.0033fF AC250V NOISE SUPPRESSION COIL (OPTION) MODEL R-23GT-F, R-24GT-F, R-25JT-F SCHEMATIC DIAGRAM (DOOR CLOSED, COOK OFF CONDITION) * 208 V CONDITION PRIMARY INTERLOCK RELAY (1) SECONDARY INTERLOCK SWITCH(2)

JAPAN QUALITY ASSURANCE ORGANIZATION JAPAN QUALITY ASSURANCE ORGANIZATION KITA-KANSAI TESTING CENTER 7-7, Ishimaru 1-Chome, Minoh-shi, Osaka 562-0027 Japan. Phone. +81-72-729-2243/Facsimile. +81-72-728-6848 IssueDate:May25,2005 Page 1 of 34 TEST REPORTEMCEMISSION - JQA APPLICATION No.: KL80050090R Name of Product: Microwave Oven Model/Type No.: R-24GT-F FCC ID: APYDMR0165 : Sharp Corporation, Kitchen Appliances Systems Div.Applicant : 3-1-72 Kitakamei-Cho, Yao, Osaka 581-8585, JapanAddress : Sharp Corporation, Kitchen Appliances Systems Div.Manufacturer : 3-1-72 Kitakamei-Cho, Yao, Osaka 581-8585, JapanAddress April 25, 2005Receive date of EUT: PassedFinal Judgement: are obtained in use of equipment that is traceable to National TEST RESULTS IN THIS REPORT Institute of Advanced Industrial Science and Technology (AIST) under METI Japan and National Institute of Information and Communications Technology (NICT) under MPHPT Japan. only responds to the test sample. This test report shall not be reproduced THE TEST RESULTS except in full. Authorized by: YuichiManagerFukumoto, JQA KITA-KANSAI Testing Center JAPAN QUALITY ASSURANCE ORGANIZATION Page 2 of 34 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 Test Conditions4-9 Configuration of EUT / Operation mode of the EUT10 - 11 EUT Modification / Responsible Party / Deviation from Standard12 Test results / Measurement Uncertainty13 - 16 Summary17 18Test System-Arrangement (Drawings) 19 - 22Test-setup (Drawings) 23Test-setup (Photographs) at worst case B) Test data RF Power Output24 - 25 ISM Frequency26 Conducted Emission150 kHz - 30 MHz27 - 28 MagneticFieldRadiatedEmission9kHz-30MHz29-30 Electromagnetic Field Radiated Emission30 MHz - 1000 MHz31 - 32 Electromagnetic Field Radiated Emission1 GHz - 26 GHz33 - 34 JQA Application No. : KL80050090RRegulation: CFR 47 FCC Rules Part 18 Model No.: R-24GT-FIssue Date: May 25, 2005 FCC ID: APYDMR0165 JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050090RRegulation: CFR 47 FCC Rules Part 18 Model No.: R-24GT-FIssue Date: May 25, 2005 FCC ID: APYDMR0165 Page 3 of 34 TEST REGULATION FCC Rules and Regulations Part 18 Subpart A, B and C (October 1, 2003) - Miscellaneous equipment- ISM Frequency Devicezz - Medical diathermy- Non-ISM Frequency Device{{ - Industrial heaters and RF stabilized arc welder{ -Inductioncookingranges{ Test procedure: The test was performed according to the procedures in FCC/OET MP-5 (1986). GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai: 1st Open Site (3 m Site) Test Facility located at Kameoka: 1st Open Site (3, 10 and 30 m, on common plane) :2ndOpenSite(3and10m,oncommonplane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognizedunder the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 3) Average Measurement Method FCC filing No. : 950523A 1300F2 Description of the Equipment Under Test (EUT): 1) Name: Microwave Oven 1) Model/Type No.: R-24GT-F 3) Product Type: Prototype 4) Category: ISM Frequency Device 5) EUT Authorization:- Verification- Certification- D.o.C.{z { 6) Highest frequency used/generated: 2450 MHz 7) Rated RF Power Output: 1800 W 9) Power Rating: AC 208/230V 60Hz Definitions for symbols used in this test report: - Black box indicates that the listed condition, standard or equipment is applicablez for this Report. - Blank box indicates that the listed condition, standard or equipment is not applicable{ for this Report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050090RRegulation: CFR 47 FCC Rules Part 18 Model No.: R-24GT-FIssue Date: May 25, 2005 FCC ID: APYDMR0165 Page 4 of 34 TEST CONDITIONS RF Power Output Measurement was performed in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan -Shieldedroomz - Anechoic chamber{ - 1st open test site{ KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan -Shieldedroom{ - 1st open test site{ - 2nd open test site{ Used test instruments: Model No.Assigned C/Nast Cal. DateCal. IntervalL - 2533-2108011090June, 20041 Yearz - 245506Q47097361March, 20051 Yearz - SIII-5000Q47097350February, 20051 Yearz Environmental conditions: Temperature:28 °CHumidity:50% JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050090RRegulation: CFR 47 FCC Rules Part 18 Model No.: R-24GT-FIssue Date: May 25, 2005 FCC ID: APYDMR0165 Page 5 of 34 ISM Frequency Measurement was performed for line voltage variation from 80 %to 125 % of normal rated voltage, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan - Shielded room - Anechoic chamber{ - 1st open test site{ KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan -Shieldedroom{ - 1st open test sitez - 2nd open test site{ Used test instruments: Model No.Device IDast Cal. DateCal. IntervalL - 8566BA - 13{ - 8593AA - 15{ - E4446AA - 39October, 20041 Yearz - 4T-10D - 73{ - 4T-10D - 74{ - WJ-6611-513A - 23{ - WJ-6882-824A - 21{ - DBL-0618N515A - 33{ - 91888-2C - 41 - 1{ - 91889-2C - 41 - 2May, 20041 Yearz - 94613-1C - 41 - 3{ - 91891-2C - 41 - 4{ - 94614-1C - 41 - 5{ -2-10D-40June,20041Yearz -TR5212B-30March,20051Yearz - CableC - 40 - 8May, 20041 Yearz -CableC-40-11{ -CableC-40-12{ Environmental conditions: Temperature:19 °CHumidity:78% (Date : May 23, 2005) Temperature:24 °CHumidity:40% (Date : May 24, 2005) JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050090RRegulation: CFR 47 FCC Rules Part 18 Model No.: R-24GT-FIssue Date: May 25, 2005 FCC ID: APYDMR0165 Page 6 of 34 AC Powerline Conducted Emission Measurement was performed in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, M…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050090Regulation : CFR 47 FCC Rules Part 18 Model No.: R-24GT-FIssue Date : May 25, 2005 FCC ID: APYDMR0165 Page 23 of 34 Test-Setup(Photographs)atworstcase Conducted Emission 150kHz - 30MHz:Radiated Emission 30MHz - 1000MHz: Front ViewFront View Side ViewRear View
