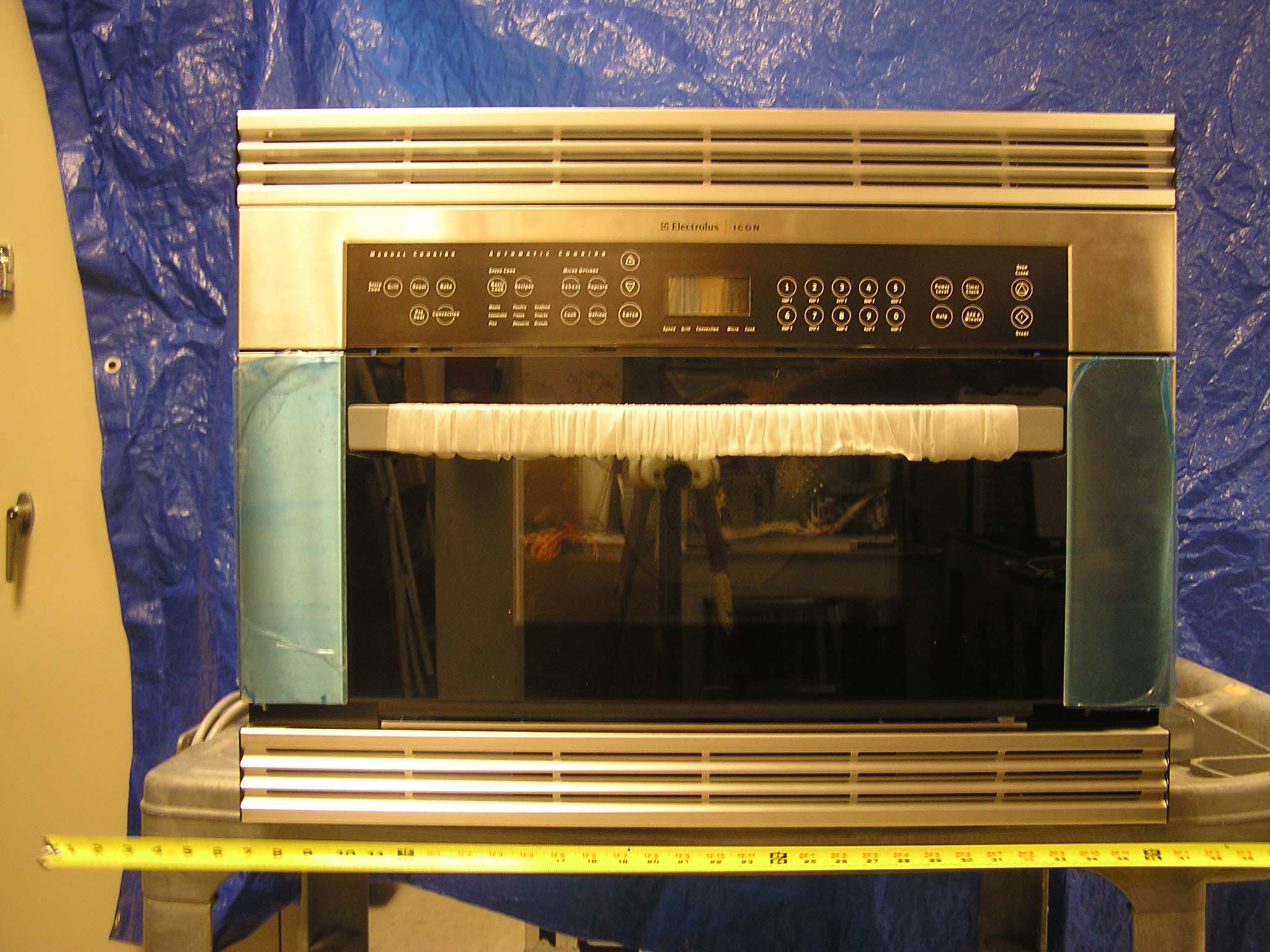

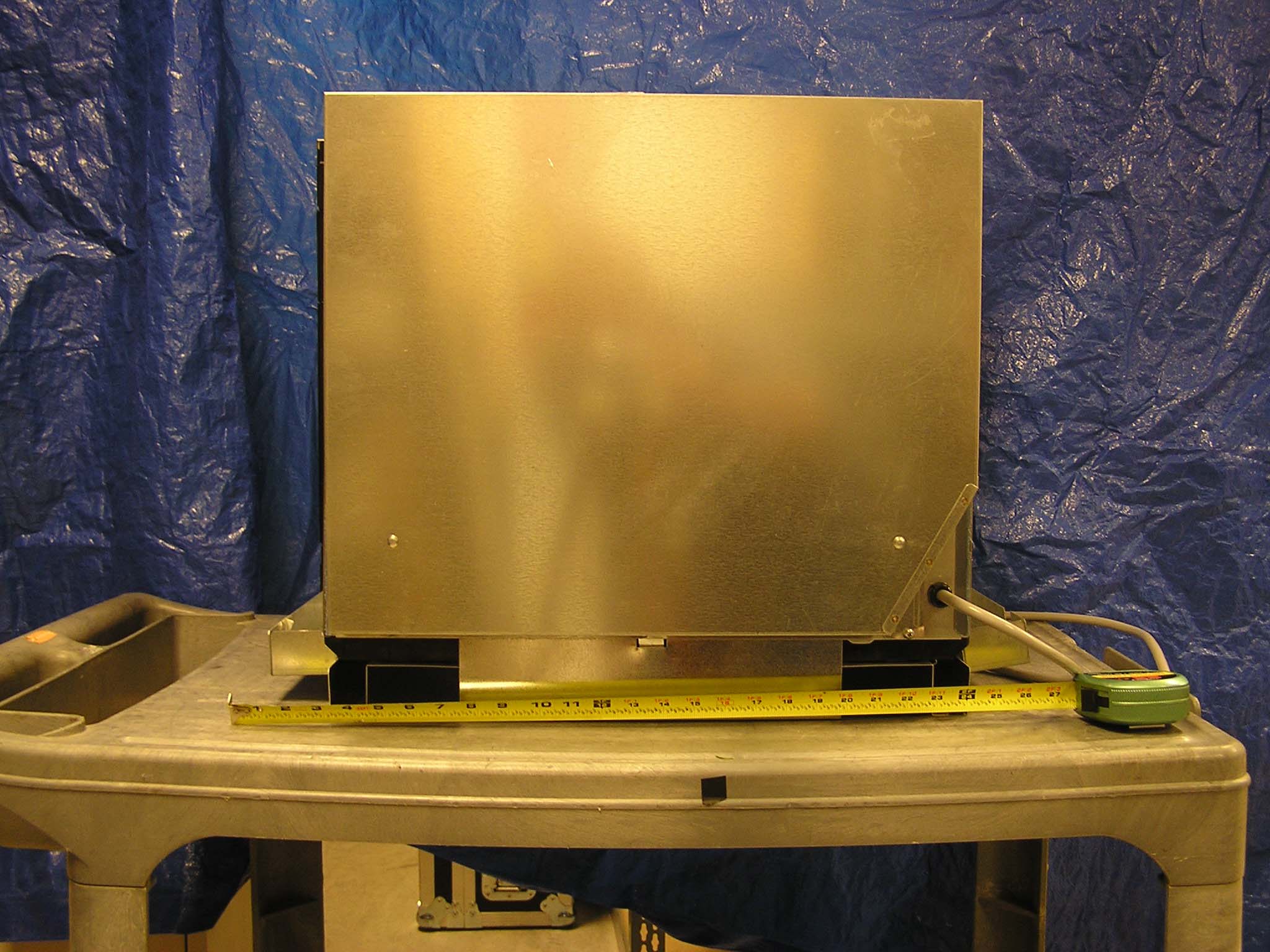

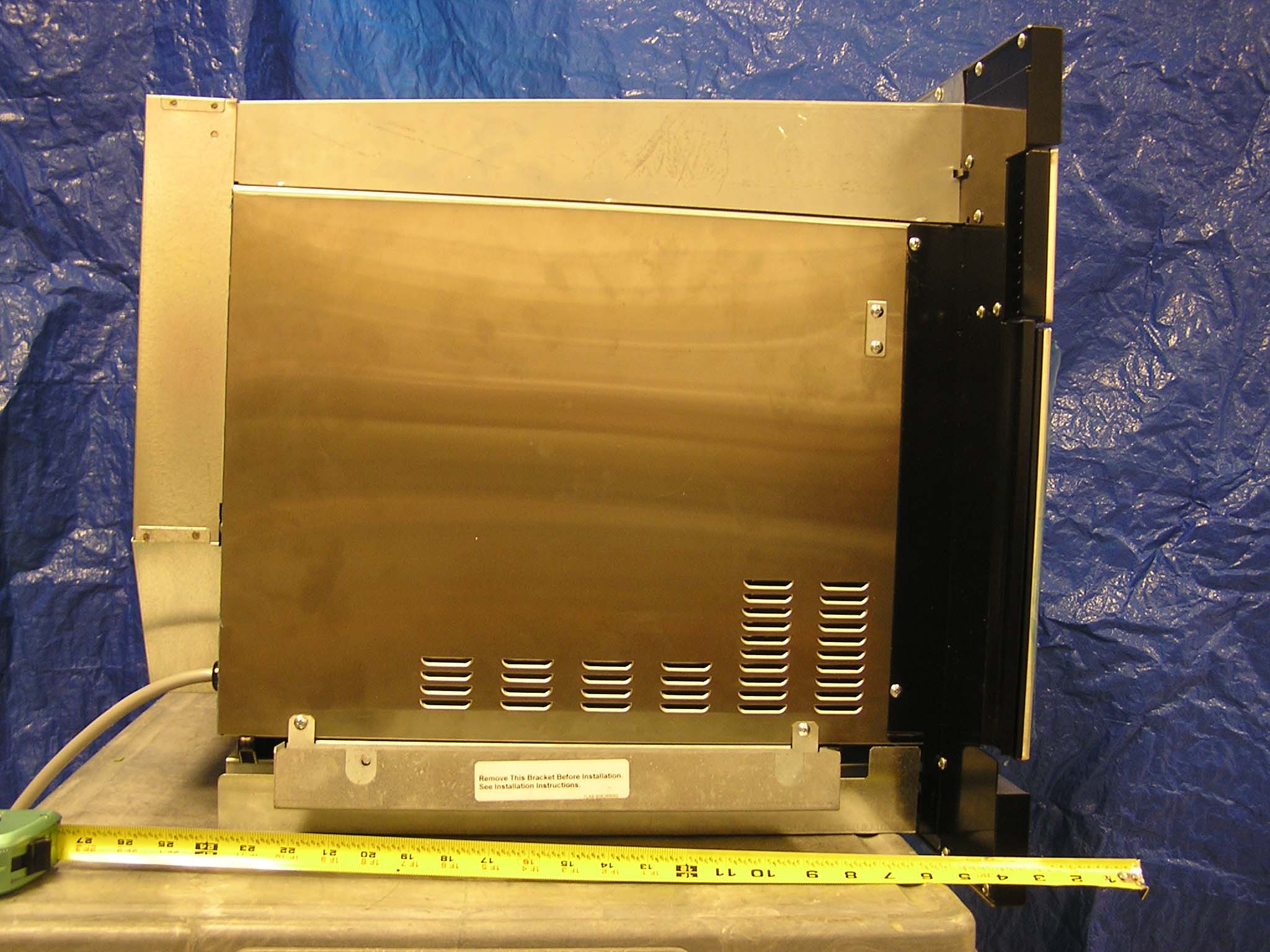

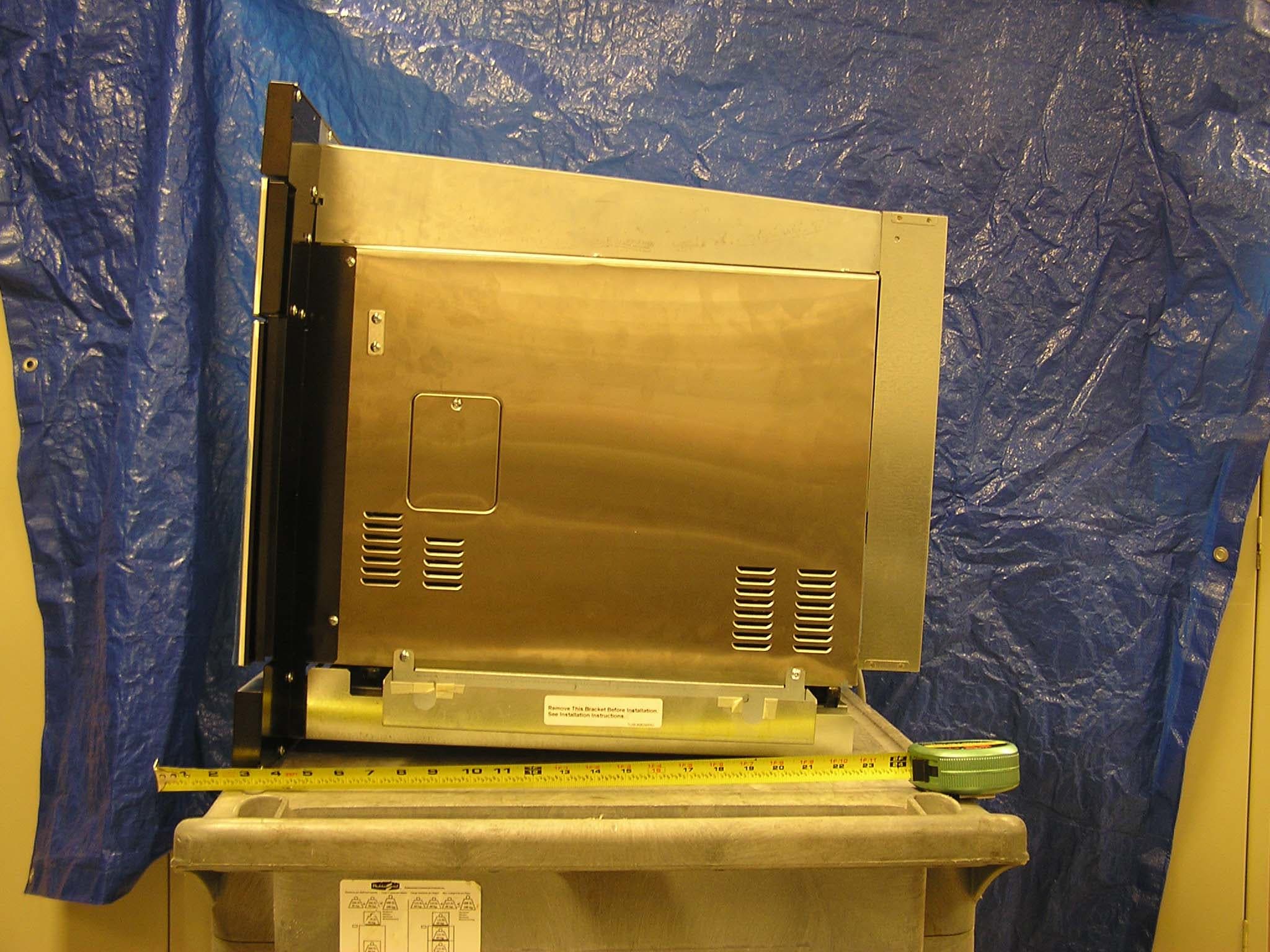

APYDMR0166Microwave Oven

TINSEB425MRRO Us e & C a r e G u i d e B u i l t - I n H i g h S p e e d O v e n ©2003 Electrolux Home Products, Inc. Post Office Box 212378, Augusta, Georgia 30917, USA All right reserved. Printed in the USA 2 Finding Information MAKE A RECORD FOR FUTURE USE Brand ____________________________________________________________________________ Purchase Date _____________________________________________________________________ Model Number _____________________________________________________________________ Serial Number _____________________________________________________________________ NOTE See the Features page later in this manual for the location of your product’s serial number. QUESTIONS? For toll-free telephone support in the U.S. and Canada. 1-877-4ELECTROLUX (1-877-435-3287) For online support and internet product information: www.electrolux.com PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. 3 Finding Information TABLE OF CONTENTS FINDING INFORMATION ..................... 2-3 MAKE A RECORD FOR FUTURE USE .............. 2 QUESTIONS? ..................................................... 2 TABLE OF CONTENTS ...................................... 3 IMPORTANT SAFETY INSTRUCTIONS .. 4-5 UNPACKING & INSTALLATION INSTRUCTION 6 GROUNDING INSTRUCTIONS ................ 7 INFORMATION YOU NEED TO KNOW ... 8-12 ABOUT YOUR OVEN ......................................... 8 ABOUT MICROWAVE COOKING ....................... 8 ABOUT CHILDREN ............................................. 9 ABOUT FOOD ..................................................... 9 ABOUT UTENSILS AND COVERINGS ............. 10 ABOUT SPEED COOKING AND CONVECTION COOKING ........................................................... 12 ABOUT SAFETY ................................................. 12 PART NAMES ........................................... 13-14 OVEN PARTS ..................................................... 13 INTERACTIVE DISPLAY ..................................... 14 CONTROL PANEL .............................................. 14 BEFORE OPERATING ............................. 15 TO SET THE CLOCK .......................................... 15 STOP/CLEAR ...................................................... 15 MANUAL COOKING ................................. 16-18 SPEED COOKING .............................................. 16 CONVECTION COOKING .................................. 17 MICROWAVE TIME COOKING ........................... 18 AUTOMATIC COOKING ........................... 19-32 SPEED COOKING .............................................. 19 BASIC COOK CHART ........................................ 20-23 RECIPES ............................................................ 24-28 MICROWAVE OPTIONS ..................................... 29 POPCORN .......................................................... 29 POPCORN CHART ............................................. 29 REHEAT / COOK ................................................ 29 REHEAT CHART ................................................. 30 COOK CHART .................................................... 30-31 DEFROST ........................................................... 31 DEFROST CHART .............................................. 32 MANUAL DEFROST ........................................... 32 OTHER CONVENIENT FEATURES ......... 33-35 DEMONSTRATION MODE ................................. 33 AUTOMATIC COOKING TIME ADJUSTMENT ... 33 TIMER ................................................................. 33 MULTIPLE SEQUENCE COOKING .................... 33 HELP ................................................................... 34 ADD A MINUTE ................................................... 35 HELP (INTERACTIVE DISPLAY) ........................ 35 CLEANING AND CARE ............................ 36 SERVICE CALL CHECK .......................... 37 SPECIFICATION ....................................... 38 WARRANTY INFORMATION .................... 39 44 Important Safety Instructions When using electrical appliances basic safety precautions should be followed, including the following: WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. 2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” on page 2. 3. This appliance must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” on page 7. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs and sealed containers—for example, closed glass jars—are able to explode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in this manual. Do not use cor- rosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified servi…

Text truncated - open the document above for the full version.

1 From:Claire Hoque Sent:Wednesday, September 07, 2005 4:15 PM To:Helen Zhao Cc:Kathy Yao Subject:answer: Sharp Corporation , FCC ID: APYDMR0166, Assessment NO.: AN05T5106, Notice#1 User Manual - revised.pdf 05U3560 FCC Report_Final_Revis... Hi Helen, Here are the answers. Question #1: The test report indicates EUT is a 950W microwave oven, but the user manual indicates it is a 1000W oven. Please verify which is correct and make necessary modification. <answer>It's a typo. Please see revised report on page 6. Question #2: The test report indicates frequency stability vs. voltage was tested at 225V and 256V, as claimed below and above 7% of the nominal voltage 240V, however the user manual indicates the device will stop working "if the voltage rises above 7% or falls below 10% of the needed 240V", i.e. from 214V to 257V. Please resubmit test data. <answer>Client claims the low voltage we tested is 222V-225V,client modified the user manual from +/-10% to +/- 7%. See attached user manual(page 37). Test report is also revised. Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION SHARP CORPORATION FCC ID: APYDMR0166 FCC ID LABEL LOCATION

SHARP REVISIONS 4 3 2 1 MADE BYAPPROVALS MAT. NO.FIN. NO.PROCESS NO. DATE MICROWAVE OVEN ENGINEERING * * SCALE UNIT mm TITLE LAST LETTER USED 1st2nd3rdthISSUE TYP.=TYPICAL REF.=REFERENCE MODEL F AMILY ISSUED MDL. NO. PARTS NO. SHARP MANUFACTURING COMPANY OF AMERICA 155+2 95+2 TY KOUCH MAY 03, 2005 1 1 SCHEMATIC DIAGRAM TMAPCB102MRR0 PAPER: ADHESIVE: RELEASE LINER: PIGMENT: VARNISH: ARTWORK SUPPLIED BY SMCA FITCHBURG 60-lb White Britekote FITCHBURG 630 permanent FITCHBURG 40-lb Semi-bleach Kraft Water Ink Technologies WG0421 (Jet Black) B.A.S.F. 79U5566 (Flexo Gem O. P.) Prohibited Substances: CFCs/Halon/Carbon tetrachloride/1.1.1-Trichloroethane (Methyl chloroform) 1 2 This product, Assembly, or component must not contain any of the above mentioned substances. This product, Assembly, or component is not manufactured using any of the above mentioned substances. <PROHIBITION TO USE OZONE DEPLETING SUBSTANCES> E30SO75DSS HSO <ENVIRONMENTAL IMPACT SUBSTANCES CONTAINED 1) Result of "Survey of Chemical Substances Contained in Parts and materials" (JGP File) 2) Report on Environmental Impact Substances Contained in Parts and Materials. 3) Food sanitation law's test data Required Survey Sheets Request 1) Please fill in the required matter in the Report on Environmental Impact Substance Contained in Parts and Materials, append to the Copy of the drawing, and submit to Sharp 2) Please fill in the required matter into the survey spreadsheet (JPG file) requested separately, and submit to Sharp 3) Please follow directions from Sharp about other document to submit. ELIMINATING FOOTNOTES AND LVT MODIFICATION DM-6888 06-21-05 TK TMAPCB102MRR0 NOTES: 1. Circuits / Wire Colors subject to change without notice. LV TRANSFORMER C2 C1 C4 C3 T6 T7 T4 A3 T2 A1 D9 RY2 RY1RY5RY4RY3 RY6 (DOOR CLOSED,COOKOFF CONDITION) RECTIFIER SOLID-STATE RELAY INTERLOCK RELAY PRIMARY SECONDARY INTERLOCK SWITCH FAN MOTOR UNIT CONTROL MONITOR SWITCH 1.0 mFCAPACITORAC 2300V MAGNETRON RED BLK DAMPERSWITCH SWITCHDOOR SENSING JET MOTOR TURNTABLE MOTOR N.O. N.O. JM DM FM FM OL TTM THERMISTOR SOLID-STATE RELAY SIDE HEATER TOP HEATER COM. COM. DAMPER MOTOR B3 B4 B1 B2 B5 B6 D7 D5 D3 E3 E5 E1 SIDE HEATER CUT-OUT THERMAL CUT-OUT TOP HEATER THERMAL MG. FUSE TEMP. OVEN LAMP F10A FUSE D1 WITH 150°C THERMOSTATTRANSFORMERPOWERIN PRIMARY WINDING GND 240V 60Hz RED GRY SCHEMATIC DIAGRAM (HS0 OEM) RED BLK BLK RED BRN BLK RED BRN BLK RED RED BLK ORG BRN ORG BRN RED BLK ORG BLK ORG BLK ORG RED RED RED ORG ORG ORG BLK RED GRY WHT GRY BLK GRY GRY GRY WHT GRY WHT GRY GRY WHT GRY WHT GRY WHT WHT RED BLU GRY WHT WHT GRY N.O. COM. GRY BLK WHT GRN ORG BLU BLK RED BLK BLU BLU RED G R N BLK BRN GRN WHT GRN GRN WHT ORG RED T1 T3 FUSE1 2.5A BLK WHT L L GRN : GREEN BLU : BLUE WHT : WHITE GRY : GRAY YLW : YELLOW RED : RED PPL : PURPLE PNK : PINK ORG : ORANGE BRN : BROWN BLK : BLACK LEAD WIRE COLOR CODE

FCC CFR47 PART 18 SUBPART C ISM EQUIPMENT TEST REPORT FOR MICROWAVE OVEN MODEL NUMBER: E30S075DSS MAGNETRON MODEL: 2M253H(L) FCC ID: APYDMR0166 REPORT NUMBER: 05U3560 ISSUE DATE: SEPTEMBER 06, 2005 Prepared for SHARP CORPORATION 22-22 NAGAIKE-CHO, ABENO-KU RELIABILITY CONTROL GROUP OSAKA, JAPAN, 545-8522 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05U3560-1 DATE: SEPTEMBER 06, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0166 Page 2 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Date Revisions Revised By A 8/29/05 Initial Issue Thu B 9/6/05 Revised the percentage of voltage measurement on page 14 according to Client’s specified manual and correct the typo of 1000W on page 6. Thu REPORT NO: 05U3560-1 DATE: SEPTEMBER 06, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0166 Page 3 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. PRODUCT DESCRIPTION .............................................................................................................. 6 6. MEASUREMENT EQUIPMENT LIST ........................................................................................... 6 7. LIMITS AND RESULTS ................................................................................................................... 7 7.1. RADIATION HAZARD MEASUREMENT .................................................................................... 7 7.2. INPUT POWER ............................................................................................................................ 9 7.3. RF OUTPUT POWER MEASUREMENT ................................................................................... 10 7.4. OPERATING FREQUENCY MEASUREMENTS ....................................................................... 11 7.4.1. VARIATION IN OPERATING FREQUENCY WITH TIME........................................... 12 7.4.2. VARIATION IN OPERATING FREQUENCY WITH VOLTAGE ................................. 14 7.5. RADIATED EMISSIONS.............................................................................................................18 7.5.1. RADIATED EMISSIONS – BELOW 1GHz ..................................................................... 20 7.5.2. RADIATED EMISSIONS – ABOVE 1GHz ...................................................................... 24 7.6. CONDUCTED EMISSIONS ....................................................................................................... 25 8. SETUP PHOTO ................................................................................................................................ 29 REPORT NO: 05U3560-1 DATE: SEPTEMBER 06, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0166 Page 4 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SHARP ELECTRONIC CORP 22-22 NAGAIKE-CHO, ABENO-KU RELIABILITY CONTROL GROUP OSAKA, JAPAN, 545-8522 EUT DESCRIPTION: MICROWAVE OVEN MODEL NUMBER: E30S075DSS . SERIAL NUMBER: 7G53006092 MAGNETRON MODEL: 2M253H (L) DATE TESTED: AUGUST 11-25, 2005 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 18 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN THANH NGUYEN EMC SUPERVISOR EMC TECHNICIAN COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 05U3560-1 DATE: SEPTEMBER 06, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0166 Page 5 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with FCC Part 18 Subpart C, ANS…

Text truncated - open the document above for the full version.

REPORT NO: 05U3560-1 DATE: AUGUST 29, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0166 Page 29 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTO Radiation Hazard Measurement Operating Frequency Measurements REPORT NO: 05U3560-1 DATE: AUGUST 29, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0166 Page 30 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. AC Line Conduction Front AC Line Conduction back REPORT NO: 05U3560-1 DATE: AUGUST 29, 2005 EUT: MICROWAVE OVEN FCC ID: APYDMR0166 Page 31 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Radiation Measurement front Radiation Measurements back END OF REPORT
