APYDMR0167Microwave Oven

READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. C O N T E N T S • For Customer Assistance ..... 2 • Precautions to Avoid Possible Exposure to Excessive Microwave Energy .................... 2 • Consumer Limited Warranty ....................... 3 • Product Information Card ........................... 3 • Important Safety Instructions ..................... 4 • Unpacking and Installation Instructions .... 5 • Grounding Instructions ............................... 5 • Information You Need to Know ................... 6-8 • Part Names ................................................... 9-10 • Before Operating .......................................... 11 • Manual Operation ......................................... 12 • Special Features .......................................... 13-17 • Other Convenient Features ......................... 18-19 • Cleaning and Care ....................................... 20 • Service Call Check ....................................... 21 • Cookbook Information ................................. 21 • Specifications ............................................... 22 • Cookbook Order Form ................................. 22 • Guia Auto-Touch .......................................... 23 • Auto-Touch Guide ................................. Back Cover MODELS R-403K / R-405K MICROWAVE OVEN OPERATION MANUAL ® 2 To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBER _______________________ SERIAL NUMBER _____________ DATE OF PURCHASE ______________________ DEALER ___________________________ TELEPHONE ________________ SERVICER ___________________________ TELEPHONE ________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. TO PHONE: DIAL 1-800-BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION DIAL 1-800-642-2122 for : ACCESSORIES and COOKBOOK TO WRITE: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 TO ACCESS INTERNET: www.sharpusa.com Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. F O R C U S T O M E R A S S I S T A N C E 3 SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. Your Product Model Number & Description: R-403K or R-405K Home Use Carousel Microwave…

Text truncated - open the document above for the full version.

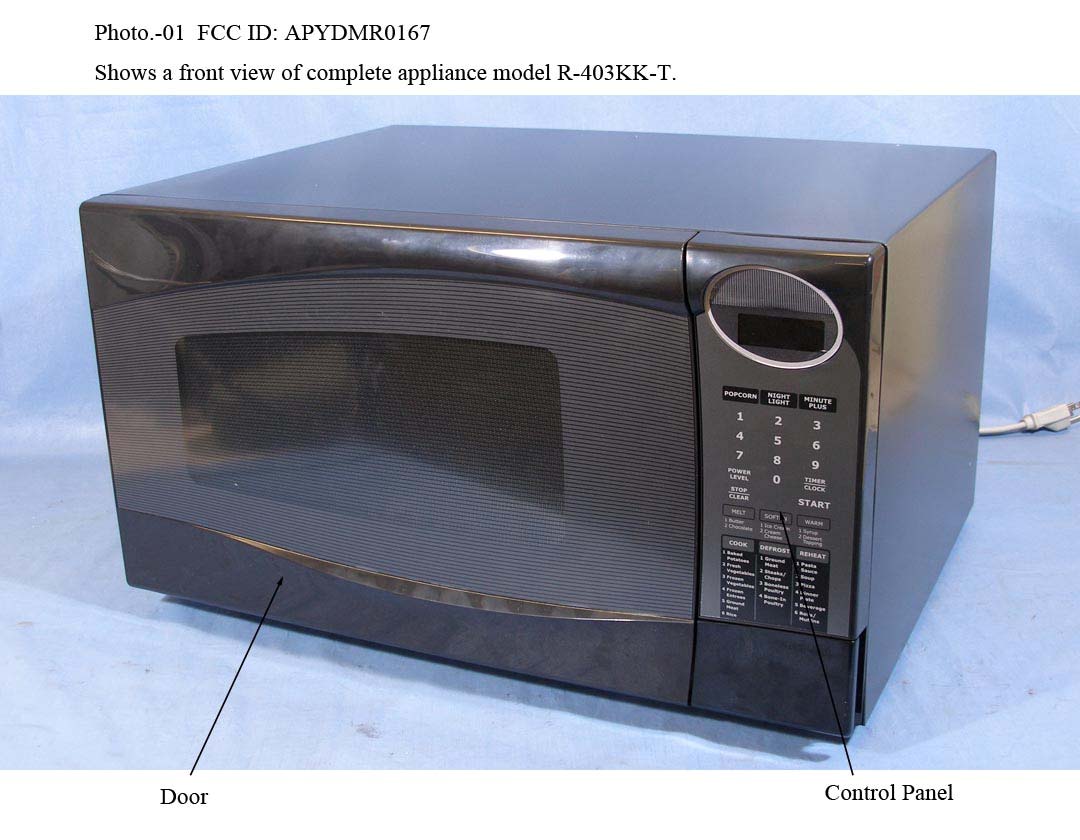

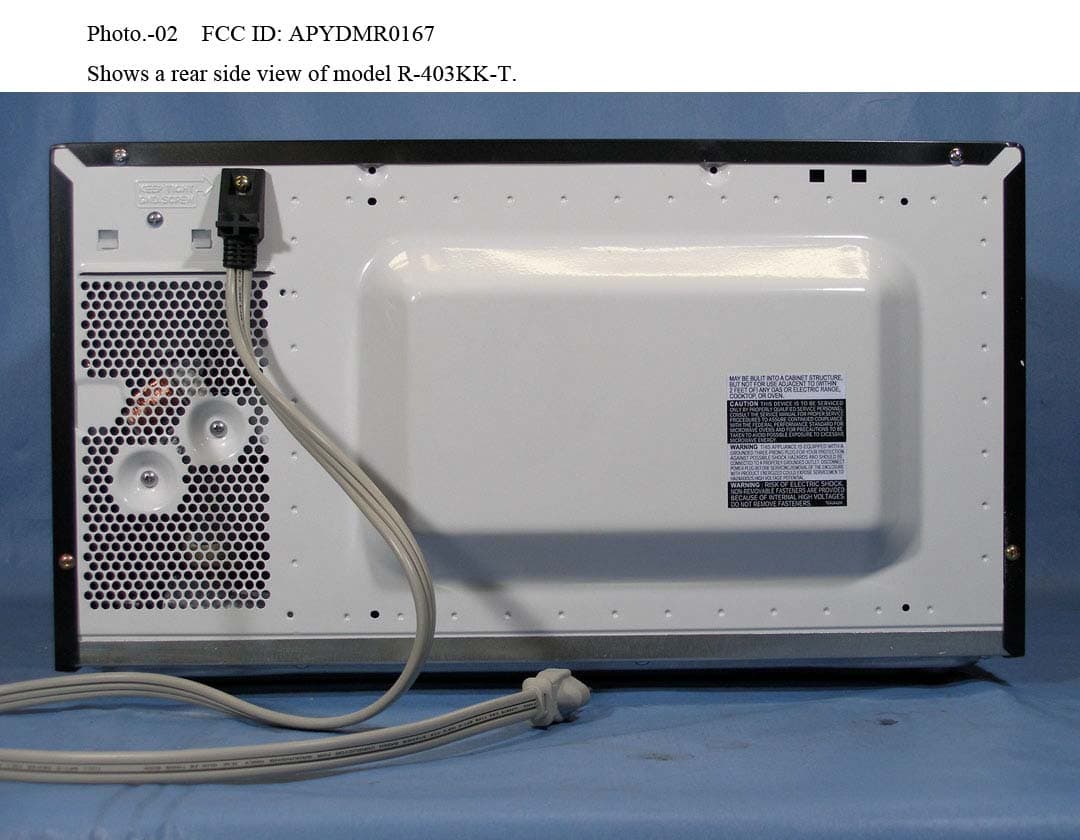

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name : Sharp Corporation, CS Promotion Group, Quality Assurance Center Address 22-22 Nagaike-Cho, Abeno-Ku Osaka 545-8522, Japan Grantee Code: : APY Applicant Rep. : K. Fukushima CONTACT PERSON: Name : Sharp Electronics Corporation Address : Sharp Plaza, Mahwah, New Jersey 07430 Applicant Rep. : Steve Petruska, Product Safety Dept. Telephone No. : 201-529-9689 MEASUREMENT SITE: Name : Japan Quality Assurance Organization Kita-Kansai Testing Center Address : 7-1 Ishimaru 1-Chome Minoh-shi, Osaka 562-0027, Japan MANUFACTURER: Name : Sharp Appliances (Thailand) Ltd. Address : 64 Moo 5, Tambol Bangsamuk Amphur Bangpakong Chachoengsao Province, Thailand FCC IDENTIFICATION : APYDMR0167 EQUIPMENT Model Name : Microwave Oven Model R-403KK-T Brand : Sharp Electronics Corp. Importer : Sharp Electronics Corp. ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 1100 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 1100 W (5) The voltage and current to magnetron: Magnetron Cat. No. 2M253J(L) : 3.8 kV peak, 349 mA (6) Function of each electro tube, semiconductor or other active circuit device: Fixed Magnetron, Type 2M253J(L) as power generator (7) Complete circuit diagram: Attached (8) Instruction book: Attached (9) Tune up procedure over the power range or at specific operating power levels: Not adjustable (10) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (11) A description of any circuit or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power: Suppression obtained by shielding design (12) Identification plate or label: Illustration attached Location of identification plate or label: Photo. Attached ********** INFORMATION FOR CERTIFICATION (3) ********** DESCRIPTION OF THE MICROWAVE OVEN Unit Body Dimensions : 549 mm wide, 314 mm high, 444 mm deep Door Dimensions : 450 mm wide, 293 mm high (Viewing Area: 300 mm wide, 153 mm high) Oven Cavity Dimensions : 393mm wide, 261 mm high, 426 mm deep Feed Type and Location : Supplied by waveguide located side of oven Door Seal Type : Choke and Capacitive Seals Magnetron Type : 2M253J(L) mfd by Toshiba

T COMPLIES WITH DHHS RADIATION PERFORMANCE STANDARDS 21 CFR SUBCHAPTER J. 120 V.A.C. 1.60kW 60Hz SINGLE PHASE OUTPUT 1100W 2450MHz MARKETED BY : SHARP ELECTRONICS CORP. MAHWAH NJ 07430 MADE IN THAILAND SERIAL NO. MANUFACTURED : "THIS OVEN CAN BE INSTALLED WITH BUILT-IN-KIT RK-40K24" SHARP CORPORATION HOUSEHOLD MICROWAV E OVEN MODEL NO. R - 403KK - T QUESTIONS? 1 - 800 - BE-SHARP JANUARY 2006 FCC ID : APYDMR0167 285B XXXX1 FCC ID: APYDMR167 IDENTIFICATION LABEL (Nameplate Label) Label Materia: Film with back side adhesion Model Number Factory ID Mark FCC ID Code 146.05 mm 31.75 mm FCC ID Code: APY : FCC assigned grantee code for Sharp Corporation. DMR0167 : Number assigned by the grantee to the model or the model family in a technically identical products. Factory ID Mark: T : Manufacturer identification marking for Sharp Appliances (Thailand) Ltd. Identification Label (Nameplate)

NOISE FILTER OVEN THERMAL CUTOUT TEMPERATURE MAGNETRON FUSE N.O. N.O. COM. COM. CONTROL UNIT SCHEMATIC DIAGRAM (DOOR CLOSED, COOK OFF CONDITION) 120VAC 60Hz L N MONITOR FUSE (20A) (RY1) OVEN LAMP RELAY (RY2) SECONDARY INTERLOCK RELAY DOOR SENSING SWITCH B2 B1 OL OVEN LAMP TTM TURN TABLE MOTOR FM FAN MOTOR PRIMARY INTERLOCK SWITCH MONITOR SIWTCH POWER TRANSFORMER HIGH VOLTAGE CAPACITOR 0.94 uF HIGH VOLTAGE RECTIFIER MAGNETRON MICROWAVE OVEN MODEL: R-403KK-T

JAPAN QUALITY ASSURANCE ORGANIZATION JAPAN QUALITY ASSURANCE ORGANIZATION KITA-KANSAI TESTING CENTER 7-7, Ishimaru 1-Chome, Minoh-shi, Osaka 562-0027 Japan. Phone. +81-72-729-2243/Facsimile. +81-72-728-6848 IssueDate:December12,2005 Page 1 of 27 TEST REPORTEMCEMISSION - JQA APPLICATION No.: KL80050512 Name of Product: Microwave Oven Model/Type No.: R-403KK-T FCC ID: APYDMR0167 : Sharp Corporation, CS Promotion Group,Applicant Quality Assurance Center : 22-22 Nagaike-cho, Abeno-ku, Osaka,545-8522, JapanAddress : Sharp Appliances(Thailand) Ltd.Manufacturer : 64 Moo 5, Tambol Bangsamuk, Amphur BangpakongAddress Chachoengsao, Province, Thailand November 21, 2005Receive date of EUT: PassedFinal Judgement: are obtained in use of equipment that is traceable to National TEST RESULTS IN THIS REPORT Institute of Advanced Industrial Science and Technology (AIST) under METI Japan and National Institute of Information and Communications Technology (NICT) under MPHPT Japan. only responds to the test sample. This test report shall not be reproduced THE TEST RESULTS except in full. Authorized by: YuichiManagerFukumoto, JQA KITA-KANSAI Testing Center JAPAN QUALITY ASSURANCE ORGANIZATION Page 2 of 27 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 Test Conditions4-9 Configuration of EUT / Operation mode of the EUT10 - 11 EUT Modification / Responsible Party / Deviation from Standard12 Test results / Measurement Uncertainty13 - 14 Summary15 16Test System-Arrangement (Drawings) 17 - 20Test-setup (Drawings) 21Test-setup (Photographs) at worst case B) Test data RF Power Output22 ISM Frequency23 Conducted Emission150 kHz - 30 MHz24 Magnetic Field Radiated Emission9 kHz - 30 MHz25 Electromagnetic Field Radiated Emission 30 MHz - 1000 MHz26 Electromagnetic Field Radiated Emission 1 GHz - 26 GHz27 JQA Application No. : KL80050512Regulation : CFR 47 FCC Rules Part 18 Model No.: R-403KK-TIssue Date : December 12, 2005 FCC ID: APYDMR0167 JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050512Regulation : CFR 47 FCC Rules Part 18 Model No.: R-403KK-TIssue Date : December 12, 2005 FCC ID: APYDMR0167 Page 3 of 27 TEST REGULATION FCC Rules and Regulations Part 18 Subpart A, B and C - Miscellaneous equipment- ISM Frequency Devicezz - Medical diathermy- Non-ISM Frequency Device{{ - Industrial heaters and RF stabilized arc welder{ -Inductioncookingranges{ Test procedure: The test was performed according to the procedures in FCC/OET MP-5 (1986). GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai : 1st Open Site (3 m Site) Test Facility located at Kameoka: 1st Open Site (3, 10 and 30 m, on common plane) :2ndOpenSite(3and10m,oncommonplane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognizedunder the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 3) Average Measurement Method FCC filing No. : 950523A 1300F2 Description of the Equipment Under Test (EUT): 1) Name: Microwave Oven 1) Model/Type No.: R-403KK-T 3) Product Type: Prototype 4) Category: ISM Frequency Device 5) EUT Authorization: - Verification- Certification- D.o.C.{z { 6) Highest frequency used/generated : 2450 MHz 7) Rated RF Power Output: 1100 W 9) Power Rating: AC 120V 60Hz Definitions for symbols used in this test report: - Black box indicates that the listed condition, standard or equipment is applicablez for this Report. - Blank box indicates that the listed condition, standard or equipment is not applicable{ for this Report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050512Regulation : CFR 47 FCC Rules Part 18 Model No.: R-403KK-TIssue Date : December 12, 2005 FCC ID: APYDMR0167 Page 4 of 27 TEST CONDITIONS RF Power Output Measurement was performed in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan -Shieldedroomz - Anechoic chamber{ - 1st open test site{ KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan -Shieldedroom{ - 1st open test site{ - 2nd open test site{ Used test instruments: Model No.Assigned C/Nast Cal. DateCal. IntervalL - 2533-2108011090June, 20051 Yearz - 245506Q47097361March, 20051 Yearz - SIII-5000Q47097350February, 20051 Yearz Environmental conditions: Temperature: 28 °C Humidity: 67 % JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050512Regulation : CFR 47 FCC Rules Part 18 Model No.: R-403KK-TIssue Date : December 12, 2005 FCC ID: APYDMR0167 Page 5 of 27 ISM Frequency Measurement was performed for line voltage variation from 80 %to 125 % of normal rated voltage, in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan -Shieldedroom{ - Anechoic chamberz - 1st open test site{ KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan -Shieldedroom{ - 1st open test site{ - 2nd open test site{ Used test instruments: Model No.Device IDast Cal. DateCal. IntervalL - 8566BA - 13{ - 8593AA - 15{ - E4446AA - 39Ocotober, 20051 Yearz - 4T-10D - 73{ - 4T-10D - 74{ - WJ-6611-513A - 23{ - WJ-6882-824A - 21{ - DBL-0618N515A - 33{ - 91888-2C - 41 - 1{ - 91889-2C - 41 - 2May, 20051 Yearz - 94613-1C - 41 - 3{ - 91891-2C - 41 - 4{ - 94614-1C - 41 - 5{ -2-10D-40June,20051Yearz -TR5212B-30March,20051Yearz - CableC - 40 - 8May, 20051 Yearz -CableC-40-11{ -CableC-40-12{ Environmental conditions: Temperature: 22 °C Humidity: 50 % JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050512Regulation : CFR 47 FCC Rules Part 18 Model No.: R-403KK-TIssue Date : December 12, 2005 FCC ID: APYDMR0167 Page 6 of 27 AC Powerline Conducted Emission Measurement was performed in the following test site. Test location: KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Jap…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050512Regulation : CFR 47 FCC Rules Part 18 Model No.: R-403KK-TIssue Date : December 12, 2005 FCC ID: APYDMR0167 Page 21 of 27 Test-Setup (Photographs) at worst case Conducted Emission :Radiated Emission : Rear ViewFront View Rear View
