EN-1 MODEL NUMBER SERIAL NUMBER DATE OF PURCHASE Dealer Telephone Servicer Telephone TO PHONE: SERVICE and PARTS (for your nearest Sharp Authorized Servicer and Parts Distributor) ADDITIONAL CUSTOMER INFORMATION 1-877-427-7696 TO WRITE: Sharp Electronics Corporation Customer Assistance Center 1300 Naperville Drive Romeoville, IL 60446-1091 Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your day- time telephone number (including area code) and description of the problem. TO ACCESS INTERNET: www.sharpusa.com 1200 W//1800 W/2200 W-HEAVY DUTY COMMERCIAL MICROWAVE OVEN OPERATION MANUAL MODELS R-CD1200M/CD1800M/CD2200M FOR CUSTOMER ASSISTANCE To aid in reporting this commercial microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. EN-1 CONTENTS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualifi ed service personnel. For Customer Assistance Front cover Contents 1 Precautions to Avoid Possible Exposure to Excessive Microwave Energy 1 Limited Warranty 2 Important Safety Instructions 3 Service Call Check 4 Grounding Instructions 5 Installation 6 Part Names 7 Before Operation 8 Memory Operation 8 Memory Cooking 8 Cooking double/triple quantity with memory 9 Express Defrost with Memory 10 Manual Operations 10 Time Cooking 10 Single Stage Cooking 10 Multi Stage Cooking 10 Express Defrost 11 Express Defrost Chart 11 Program & Customize 12 Custom Help 12 Counter Check 14 To Reset the Counter to “0” 15 Saving Memories 18 Other Convenient Features 23 Demonstration Mode 23 Monitor 23 Care and Cleaning 23 Cooking Guide 25 Utensils 25 Guidelines for microwave heating 26 Timing guide 27 Heating and cooking time guide 28 Reminders 30 Specifi cations 30 EN-2 LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the fi rst end-user purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part there of with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modifi ed in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. To the extent permitted by applicable state law, the warranties set forth herein are in lieu of, and exclusive of, all other warranties, express or implied. Specifi cally, ALL OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE EXCLUDED. ALL EXPRESS AND IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE, AND FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. If, under applicable state law, implied warranties may not validly be disclaimed or excluded, the duration of such implied warranties is limited to the period(s) from the date of purchase set forth below. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described above shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfi llment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow limits on warranties or on remedies for breach in certain transactions; in such states, the limits herein may not apply. Your Product Model Number & Description: R-CD1200M, R-CD2200M or R-CD1800M Commercial Microwave Oven (Be sure to have this information available when you need service for your oven.) Warranty Period for this Product: Three (3) years for parts and labor in the end user’s place of business. Additional Item(s) Excluded from Warranty Coverage (if any): Non-functional accessories and light bulb. Where to Obtain Service: Contract your Sharp Authorized Servicer to obtain on-site service for this Product. The Servicer will come to your location and if it is necessary to remove the Pr…

Text truncated - open the document above for the full version.

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name : Sharp Corporation, CS Promotion Group, Product Safety Promotion Center Address 22-22 Nagaike-Cho, Abeno-Ku Osaka 545-8522, Japan Grantee Code: : APY Applicant Rep. : M. Nishikawa CONTACT PERSON: Name : Sharp Electronics Corporation Address : Sharp Plaza, Mahwah, New Jersey 07430 Applicant Rep. : Steve Petruska, Product Safety Dept. Telephone No. : 201-529-9689 MEASUREMENT SITE: Name : Japan Quality Assurance Organization Kita-Kansai Testing Center Address : 7-1 Ishimaru 1-chome, Minoh-shi, Osaka 562-0027, Japan MANUFACTURER: Name : Sharp Appliances (Thailand) Ltd. Address : 64 Moo 5, Tambol Bangsamuk Amphur Bangpakong Chachoengsao Province, Thailand FCC IDENTIFICATION : APYDMR0169 EQUIPMENT Model Name : Microwave Oven Model R-CD1200M Brand : Sharp Electronics Corp. Importer : Sharp Electronics Corp. ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 1200 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 1200 W (by IEC method) (5) The voltage and current to magnetron: Two magnetrons are provided. Each Magnetron Cat. No. 2M248K(L) : 4.1kV peak, 195 mA (6) Function of each electro tube, semiconductor or other active circuit device: Two magnetrons are provided. Fixed Magnetrons, Type 2M248K(L) as power generator (7) Complete circuit diagram: Attached (8) Instruction book: Attached (9) Tune up procedure over the power range or at specific operating power levels: Not adjustable (10) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (11) A description of any circuit or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power: Suppression obtained by shielding design (12) Identification plate or label: Illustration attached Location of identification plate or label: Photo. Attached ********** INFORMATION FOR CERTIFICATION (3) ********** DESCRIPTION OF THE MICROWAVE OVEN Unit Body Dimensions : 445 mm wide, 346 mm high, 520 mm deep (without handle) Door Dimensions : 443 mm wide, 258 mm high (Viewing Area: 306 mm wide, 104 mm high) Oven Cavity Dimensions : 355 mm wide, 177 mm high, 326 mm deep Feed Type and Location : Supplied by waveguide located top and bottom of oven Door Seal Type : Choke and Capacitive Seals Magnetron Type : 2M248K(L) mfd by Toshiba

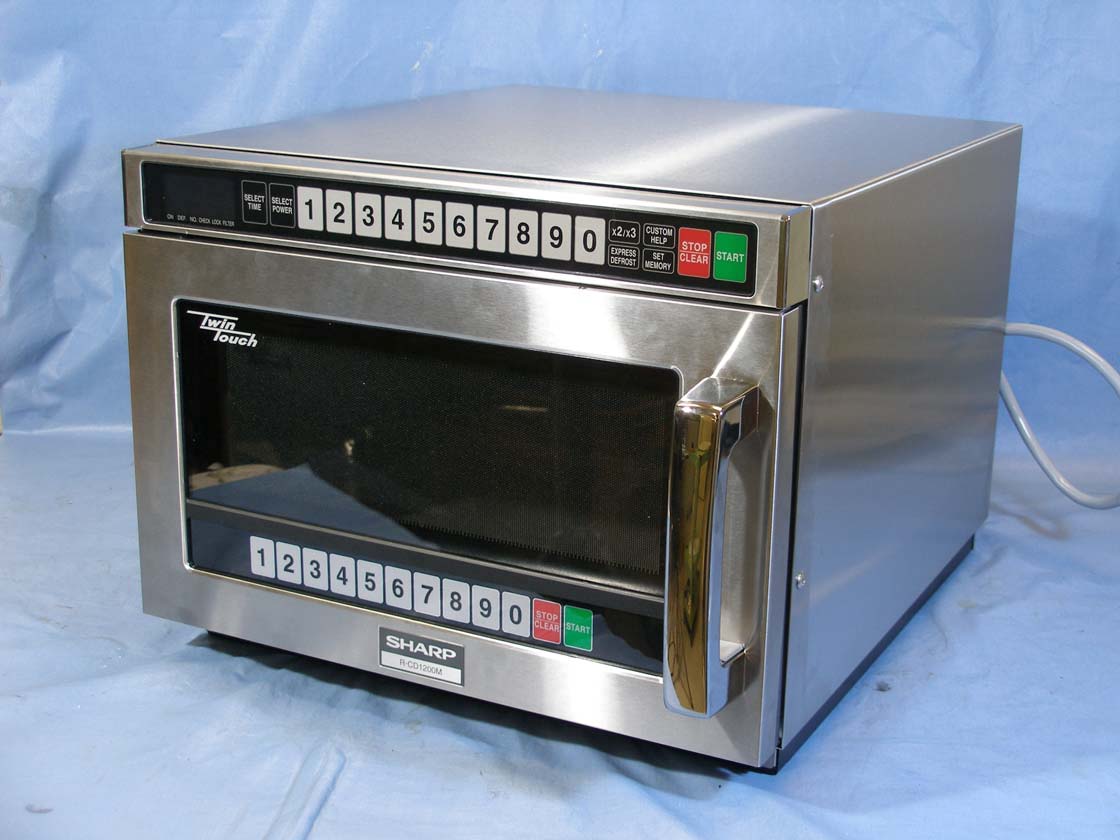

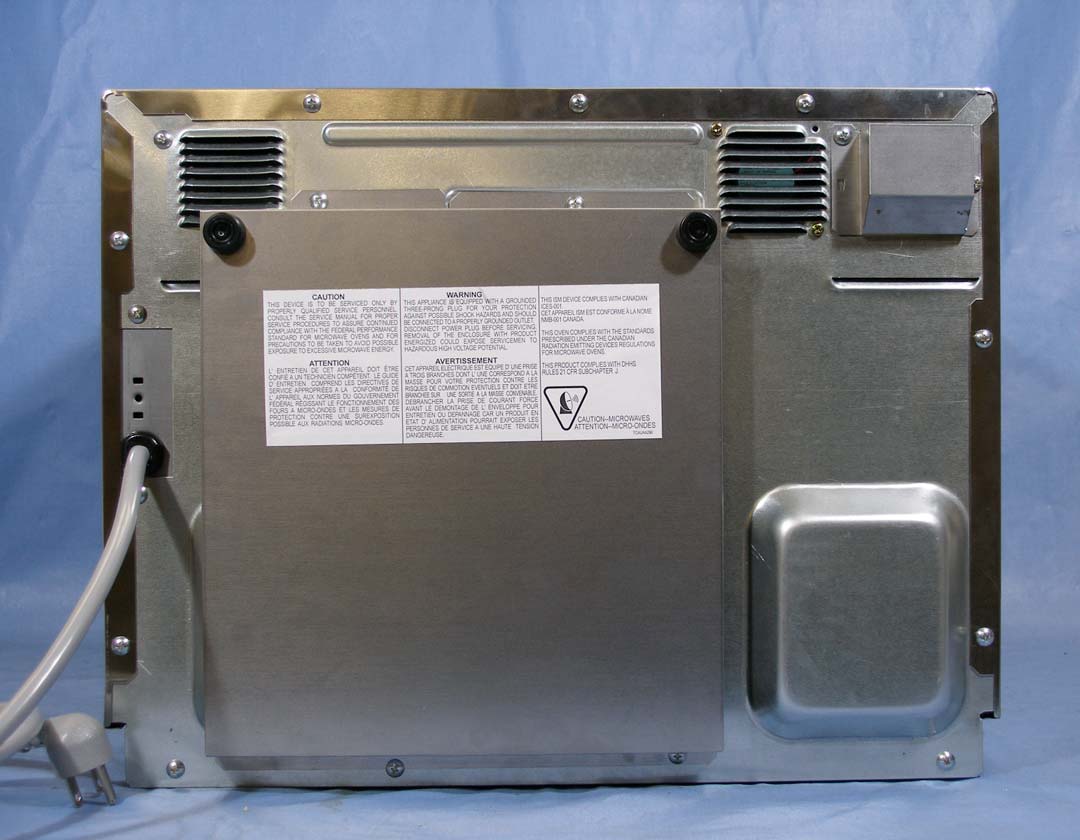

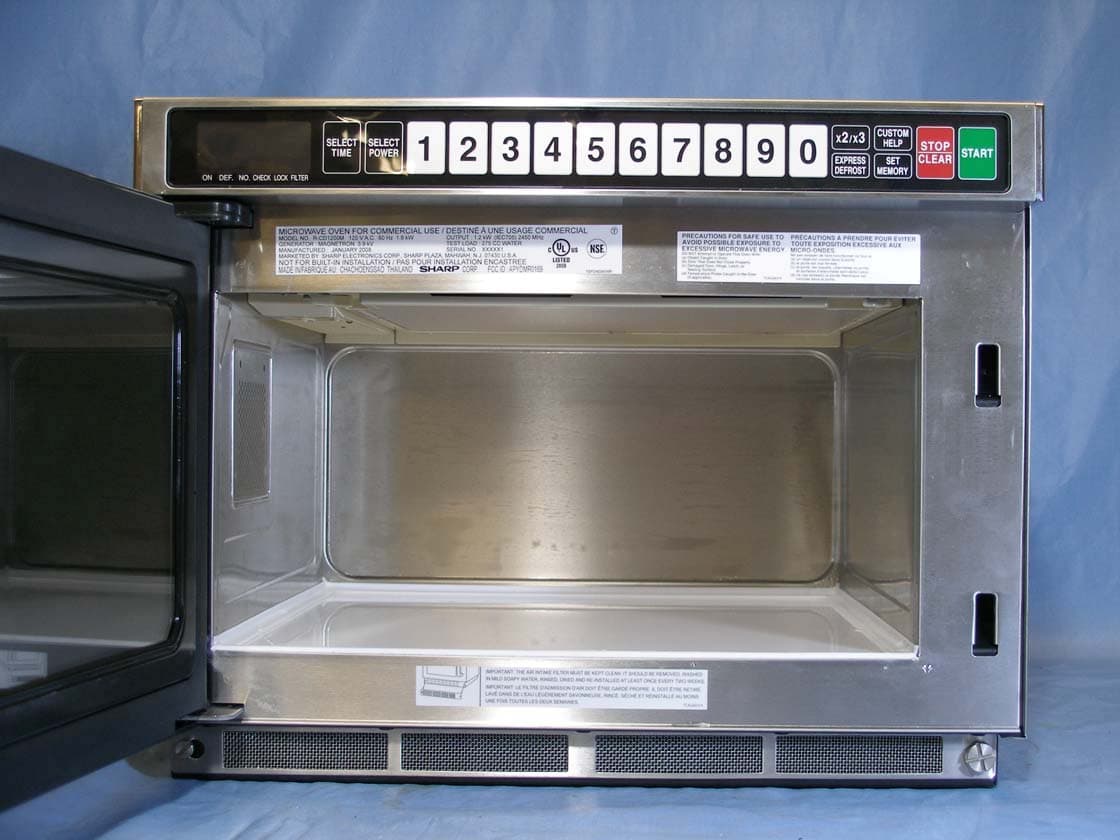

Photographs of appliance FCC ID: APYDMR0169 Fig. 1 Shows front view of appliance Control Panel Outer Case Door Door Handle Photographs of appliance FCC ID: APYDMR0169 Fig. 2 Shows oven cavity inside with door open. And shows identification label (nameplate) location. Identification Label (Nameplate label) Photographs of appliance FCC ID: APYDMR0169 Fig. 3 Shows rear side of appliance Photographs of appliance FCC ID: APYDMR0169 Fig. 4 Shows bottom side of appliance.

MICROWAVE OVEN FOR COMMERCIAL USE / DESTINE A UNE USAGE COMMERCIAL MODEL NO. R-CD1200M 120 V A.C. 60 Hz 1.9 kW GENERATOR : MAGNETRON 4.1 kV MANUFACTURED : JANUARY 2008 MARKETED BY SHARP ELECTRONICS CORP., SHARP PLAZA, MAHWAH, N.J. 07430 U.S.A. NOT FOR BUILT-IN INSTALLATION / PAS POUR INSTALLATION ENCASTREE OUTPUT : 1.2 kW (IEC705) 2450 MHz TEST LOAD : 275 CC WATER SERIAL NO. : XXXXX1 MADE IN/FABRIQUE AU: CHACHOENGSAO THAILAND CORP. FCC ID : APYDMR0169 TSPCNE041WR 285B T IDENTIFICATION LABEL (NAMEPLATE LABEL) FCC ID: APYDMR0169 Model Nubmer Factory ID FCC ID Code 175 mm 25 mm FCC ID APY : FCC assigned grantee code for Sharp Corporation. DMR0169 : Number assigned by grantee to the models or the model family in a technically identical products. Factory ID T : Manufacturer identification marking for Sharp Appliances (Thailand) Ltd. Identification Label (Nameplate label)

RY1 Shaded area is protected from ground fault by additional tube. R-CD1200M

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 27 Technical document No. 23663-0601 JQA File No. : KL80070450 Issued Date : January 23, 2008 TEST REPORT APPLICANT : Sharp Corporation, CS Promotion Group, Quality Assurance Center ADDRESS : 22-22 Nagaike-cho, Abeno-ku, Osaka, 545-8522, Japan PRODUCTS : Microwave Oven MODEL NO. : R-CD1200M SERIAL NO. : -- FCC ID : APYDMR0169 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 18 TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : December 19, 2007 - December 28, 2007 This report must not used by the client to claim product endorsement by NVLAP or Yuichi Fukumoto NIST or any agency of the U.S. Government. Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division NVLAP LAB CODE 200191-0 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070450 Issue Date : January 23, 2008 Model No. : R-CD1200M FCC ID : APYDMR0169 Regulation : CFR 47 FCC Rules and Regulations Part 18 Page 2 of 27 Technical document No. 23663-0601 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recognition of Test Laboratory.............................................................................................................3 4 Description of the Equipment Under Test...........................................................................................4 5 Test Condition........................................................................................................................................5 6 Preliminary Test and Test Setup.........................................................................................................7 7 Equipment Under Test Modification..................................................................................................12 8 Responsible Party................................................................................................................................12 9 Deviation from Standard.....................................................................................................................12 10 Test Results..........................................................................................................................................13 11 Summary..............................................................................................................................................15 12 Operating Condition............................................................................................................................16 13 Test Configuration...............................................................................................................................16 14 Equipment Under Test Arrangement (Drawings)............................................................................17 15 Equipment Under Test Arrangement (Photographs).......................................................................18 Appendix A: Test Data ................................................................................................................................... 20 A.1 Power Output.......................................................................................................................................20 A.2 ISM Frequency.....................................................................................................................................21 A.3 Conducted Powerline...........................................................................................................................22 A.4 Radiated Emission...............................................................................................................................23 Appendix B: Test Instruments....................................................................................................................... 26 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT “EUT” means Equipment Under the Test. “N/A” means that Not Applicable. “N/T” means that Not Tested. - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070450 Issue Date : January 23, 2008 Model No. : R-CD1200M FCC ID : APYDMR0169 Regulation : CFR 47 FCC Rules and Regulations Part 18 Page 3 of 27 Technical document No. 23663-0601 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 18 Industrial, Scientific, and Medical Equipment Test Procedure : FCC/OET MP-5 (1986) FCC Methods of Measurements of Radio Noise Emissions from Industrial, Scientific, and Medical equipment 2 Test Locat…
