APYDMR0176Household Microwave Oven

Sharp Corporation

Click to zoom

Application Details

Equipment Class: 8CC - Part 18 Consumer Device
Date of Grant: Jul 16, 2014
Application Purpose: Original Equipment
Date of Application: Jul 16, 2014
Equipment Note: Household Microwave Oven
Frequency Range: 2450.00000000 - 2450.00000000
Company: Sharp Corporation
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Read all instructions carefully before using the oven. CONVECTION MICROWAVE OVEN OPERATION MANUAL MODEL R-830B DRAFT MAy 21, 2014 232 To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial number located on the unit. We also suggest you record all the information listed and retain for future reference. MODEL NUMBER _______________________ SERIAL NUMBER _____________ DATE OF PURCHASE ______________________ DEALER ___________________________ TELEPHONE ________________ SERvICER ___________________________ TELEPHONE ________________ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. TO PHONE: DIAL 1-800-BE-SHARP ( 237-4277 ) for : SERVICE (for your nearest Sharp Authorized Servicer) PARTS (for your authorized parts distributor) ADDITIONAL CUSTOMER INFORMATION ACCESSORIES and COOKBOOK TO WRITE: Sharp Electronics Corporation Attn: Customer Assistance Center Sharp Plaza Blvd. Memphis, TN 38193 TO ACCESS INTERNET: www.sharpusa.com Please provide the following information when you write or call: model number, serial number, date of purchase, your complete mailing address (including zip code), your daytime telephone number (including area code) and description of the problem. FOR CUSTOMER ASSISTANCE 232 CONTENTS For Customer Assistance .............................. 2 Precautions to Avoid Possible Exposure to Excessive Microwave Energy ...................... 2 Contents .......................................................... 3 Consumer Limited Warranty ......................... 4 Product Information Card .............................. 4 Important Safety Instructions ....................... 5 Installation Instructions ................................. 6 Grounding Instructions ................................. 6 Information You Need to Know ..................... 7-9 About Your Oven ........................................... 7 About Food .................................................... 7 About Microwave Cooking ............................ 8 About Safety ................................................. 8 About Children and the Microwave ................ 8 About Utensils and Coverings ....................... 9 Part Names ..................................................... 10 Touch-Control Panel ...................................... 11 Before Operating ........................................... 12 Getting Started .............................................. 12 To Set the Clock ............................................ 12 Stop/Clear .................................................... 12 Microwave Operation ..................................... 13-15 Microwave Time Cooking .............................. 13 To Set Power Lever ....................................... 13 Auto Defrost ................................................. 14 Auto Defrost Chart ....................................... 14 Instant Action................................................. 14 Instant Action Chart ...................................... 15 Convection/Automatic Mix Operation .......... 16-19 Convection Cooking ...................................... 16 Automatic Mix Cooking ................................. 17 Roasting ........................................................ 17 Auto Roast .................................................... 18 Auto Roast Chart........................................... 18 Auto Cook ..................................................... 19 Auto Cook Chart............................................ 19 Other Convenient Features .......................... 20-21 Multiple Sequence Cooking .......................... 20 Child Lock ..................................................... 20 Help (Information on pads) ........................... 20 Settings ......................................................... 20-21 1. Auto Start............................................... 20 2. Audible Signal Elimination ..................... 20 3. Demo Mode ........................................... 21 Help (On display) .......................................... 21 Kitchen Timer ................................................ 21 +30 SEC ....................................................... 21 Less and More .............................................. 21 Cleaning and Care .......................................... 22 Service Call Check ......................................... 23 Specifications ................................................. 24 Cooking Guides .............................................. 25-38 Introduction ................................................... 25 Auto Roast .................................................... 26 Main Dish Recipes ........................................ 26-30 Roasting ........................................................ 31 Roasting Recipes .......................................... 31-32 Baking ........................................................... 33 Baking Recipes ............................................. 34-38 INFO DISPLAY COOKING SYSTEM Thank you for buying a Sharp Microwave Oven. Your new oven has an “Information Display System” which offers you step-by-step instructions to easily guide you through each feature. Your oven also has a HELP pad for instructions on using Auto…

Text truncated - open the document above for the full version.

External Photos

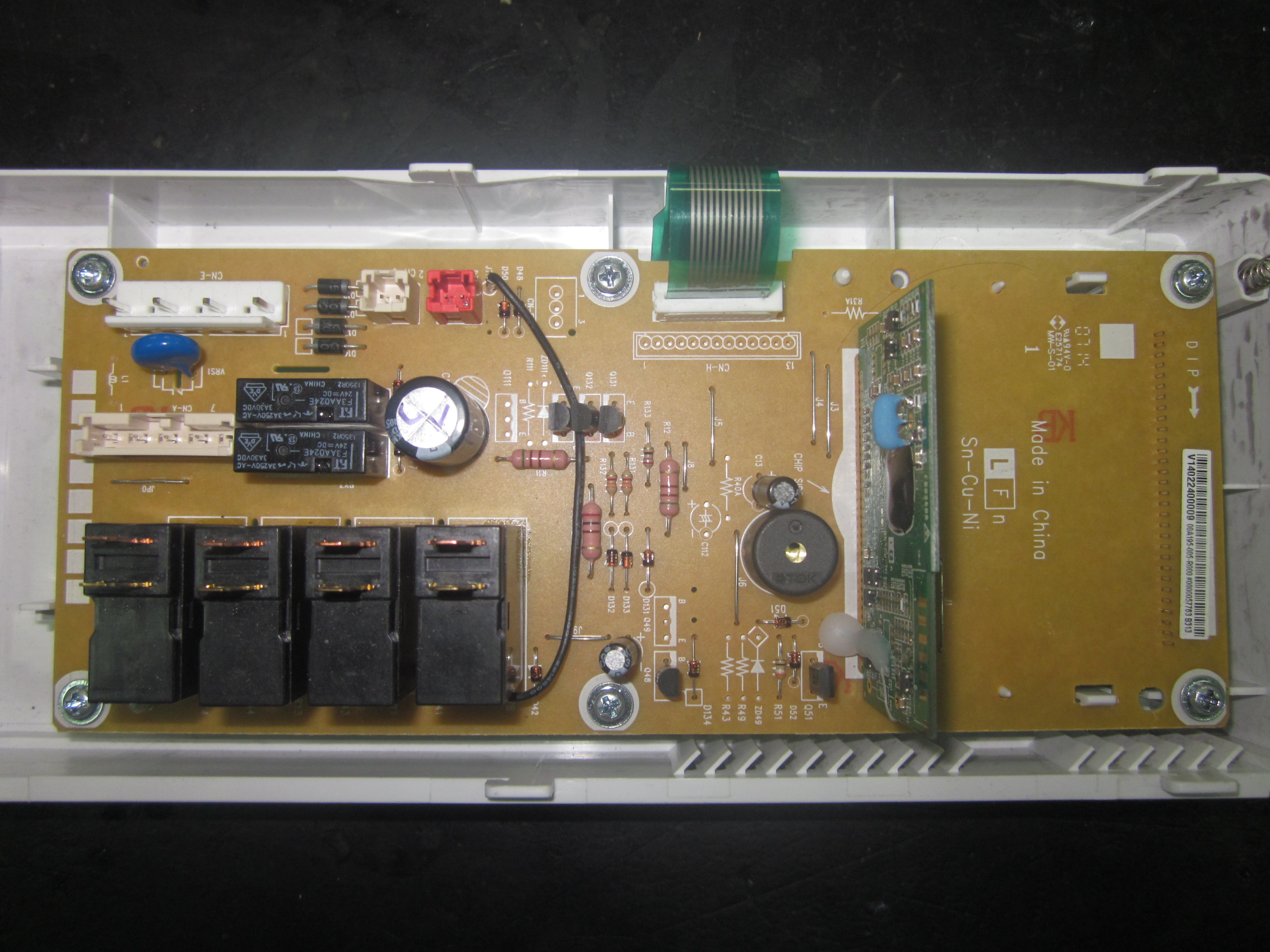

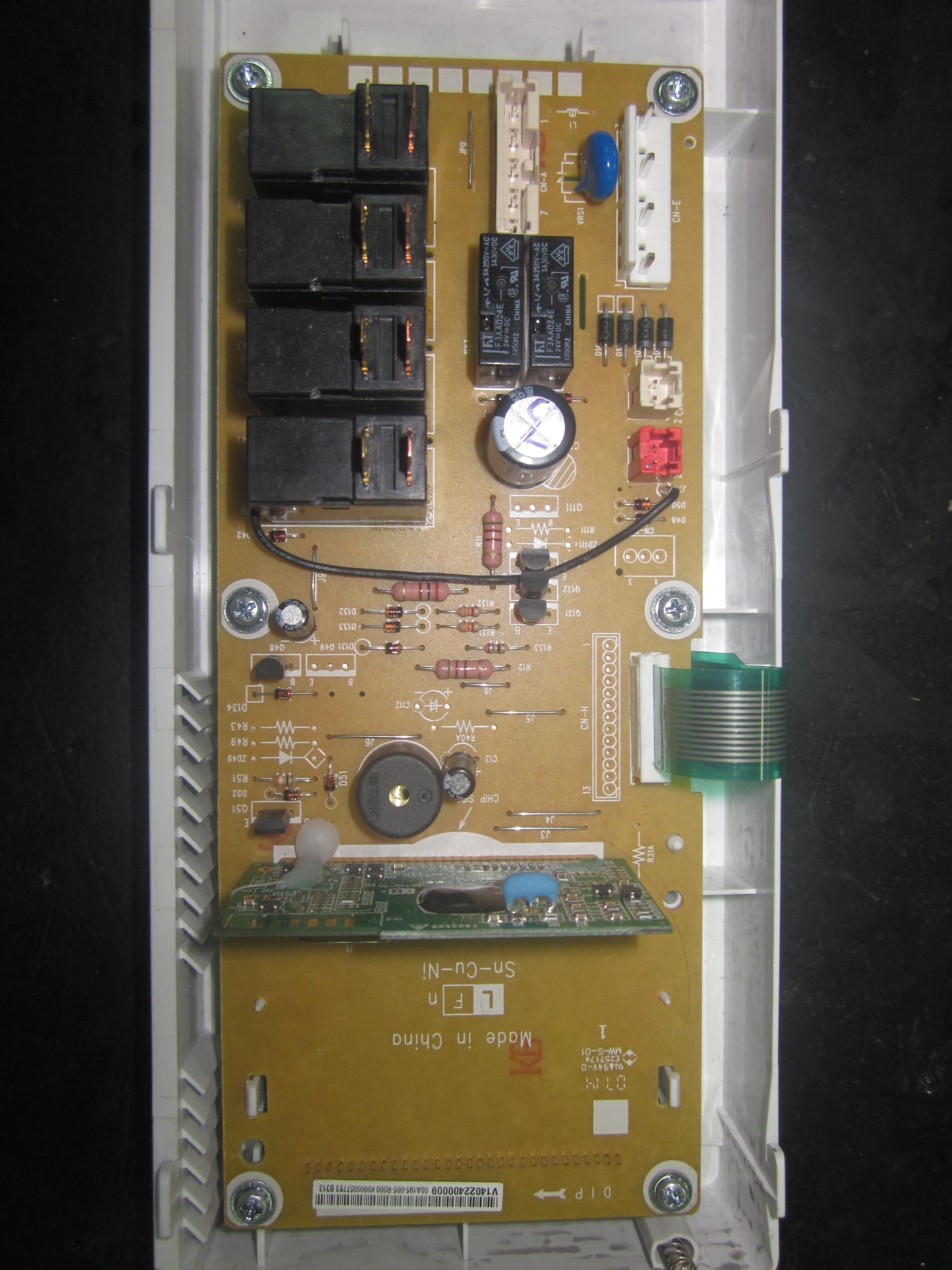

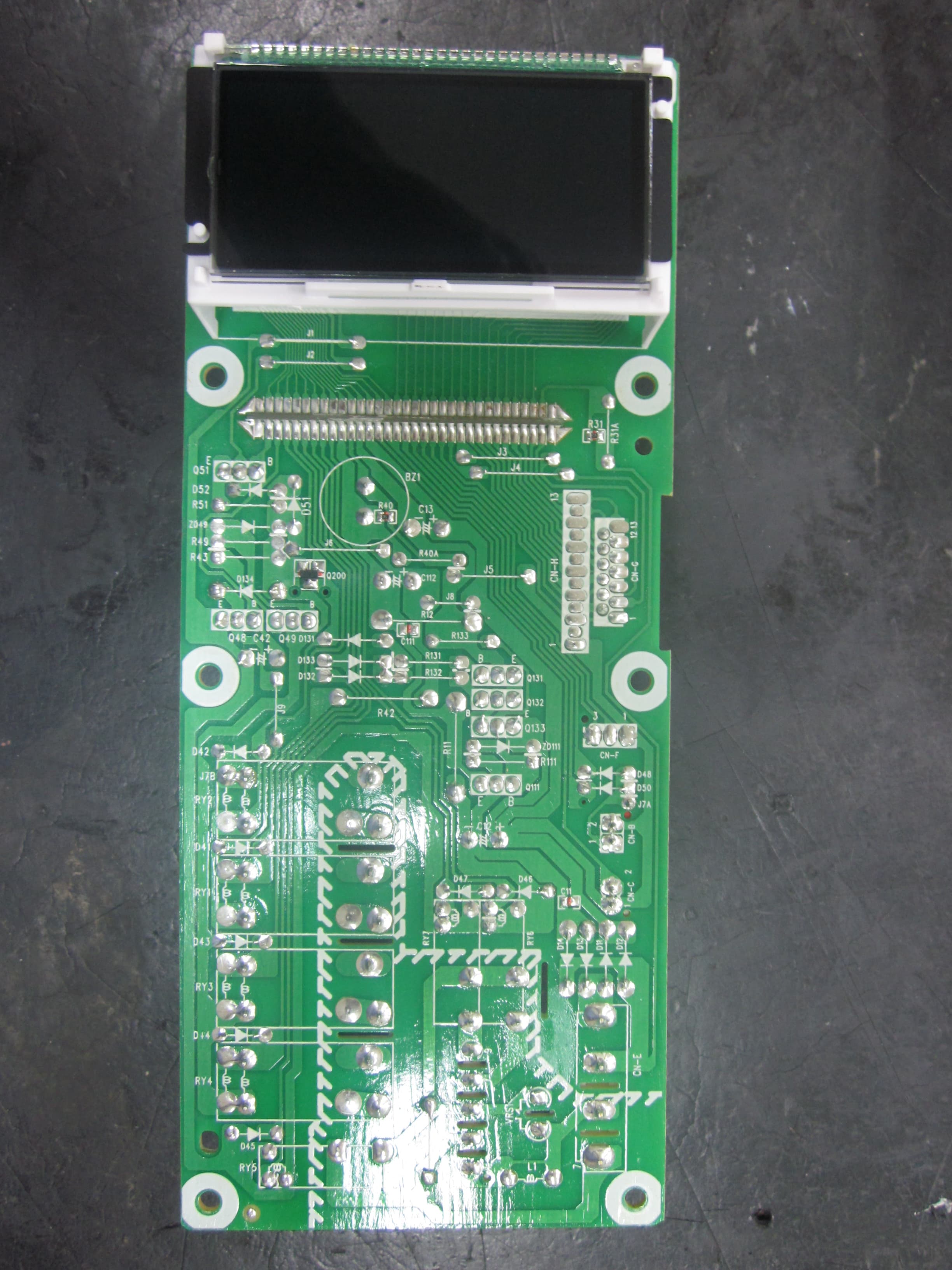

Photographs of appliance Model R-830BK, R-830BW, R-830BS FCC ID: APYDMR0176 Fig. 1: Front view of appliance Fig. 2: Rear view of appliance Photographs of appliance Model R-830BK, R-830BW, R-830BS FCC ID: APYDMR0176 Fig. 3: Bottom view of appliance. Fig. 4: Inside oven cavity with door open. Photographs of appliance Model R-830BK, R-830BW, R-830BS FCC ID: APYDMR0176 Fig. 5: Internal right side view with outer enclosure removed. Waveguide Magnetron Photographs of appliance Model R-830BK, R-830BW, R-830BS FCC ID: APYDMR0176 Fig. 6: Control unit PWB assembly. Fig. 7: Back-side of control unit PWB assembly.

ID Label/Location Info

IDENTIFICATION LABEL (NAMEPLATE LABEL) FCC ID: APYDMR0176 Model Nubmer FCC ID Code 95.25 mm 31.75 mm Identification Label (Nameplate label) is affixed on oven cavity front surface FCC ID APY : FCC assigned grantee code for Sharp Corporation. DMR0176 : Number assigned by grantee to the models or the model family in a technically identical products. Location of Identification Label (Nameplate label) AUGUST 2014 000001

Internal Photos

Operational Description

********** INFORMATION FOR CERTIFICATION (1) ********** APPLICANT: Name : Sharp Corporation CS & Environmental Promotion Division, Quality Compliance Dept. Address 22-22 Nagaike-Cho, Abeno-Ku Osaka 545-8522, Japan Grantee Code: : APY Applicant Rep. : M. Nishikawa CONTACT PERSON: Name : Sharp Electronics Corporation Address : Sharp Plaza, Mahwah, New Jersey 07495 Applicant Rep. : Steve Petruska, Product Safety Dept. Telephone No. : 201-529-9689 MEASUREMENT SITE: Name : Japan Quality Assurance Organization Kita-Kansai Testing Center Saito EMC Branch Address : 7-3-10, Saito Asagi, Ibaraki-shi, Osaka 561-0027, Japan MANUFACTURER: Name : Sharp Appliances (Thailand) Ltd. Address : 64 Moo 5, Tambol Bangsamuk Amphur Bangpakong Chachoengsao Province, Thailand FCC IDENTIFICATION : APYDMR0176 EQUIPMENT Model Name : Microwave Oven, Models R-830BK, R-830BW, R-830BS Brand : Sharp Electronics Corp. Importer : Sharp Electronics Corp. ----------------------------------------------------------------------------------------------------------------------------------------- ********** INFORMATION FOR CERTIFICATION (2) ********** (1) Type(s) of emission: Not Applicable (2) Frequency range: 2450 MHz (3) Range of operating power and description of means provided for variation of operating power: RF output power 900 W (Average power output is controlled by ON/OFF switching cycles.) (4) Max. power rating as described in the applicable rules: 900 W (by IEC method) (5) The voltage and current to magnetron: Magnetron Cat. No. 2M303H(L) : 4.1 kV peak, 330 mA (6) Function of each electro tube, semiconductor or other active circuit device: Fixed Magnetrons, Type 2M303H(L) as power generator (7) Complete circuit diagram: Attached (8) Instruction book: Attached (9) Tune up procedure over the power range or at specific operating power levels: Not adjustable. (10) A description of all circuitry and devices provided for determining and stabilizing frequency: Fixed by magnetron and oven design (11) A description of any circuit or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting the operating power: Suppression obtained by shielding design (12) Identification plate or label: Illustration attached Location of identification plate or label: Photo. Attached ********** INFORMATION FOR CERTIFICATION (3) ********** DESCRIPTION OF THE MICROWAVE OVEN Unit Body Dimensions : 520 mm wide, 310 mm high, 486 mm deep Door Dimensions : 415 mm wide, 277 mm high (Viewing Area: 272 mm wide, 141 mm high) Oven Cavity Dimensions : 343 mm wide, 209 mm high, 357 mm deep Feed Type and Location : Supplied by waveguide located side of oven. Door Seal Type : Choke and Capacitive Seals Magnetron Type : 2M303H(L) mfd by Toshiba

Schematics

Schematic Diagram of Microwave Oven R-830BK, R-830BW, R-830BS Door Closed, Cook Off Condition

Test Report

Page 1 of 27 Technical document No. 23162-1301 JQA File No. :KL80140073 Issue Date :July 15, 2014 T E S T R E P O R T Applicant:Sharp Corporation, CS & Env. Promotion Div. Quality Compliance Dept. Address:22-22 Nagaike-cho, Abeno-ku, Osaka 545-8522, Japan Products:Household Microwave Oven Model No.:R-830BK Serial No.:00002 FCC ID:APYDMR0176 Test Standard:CFR 47 FCC Rules and Regulations Part 18 Test Results:Passed Date of Test:May 28~July 9, 2014 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140073Issue Date : July 15, 2014 Model No.: R-830BKFCC ID: APYDMR0176 Standard: CFR 47 FCC Rules and Regulations Part 18 Page 2 of 27 Technical document No. 23162-1301 TABLE OF CONTENTS Page 1Description of the Equipment Under Test...................................................................................... 3 2Summary of Test Results................................................................................................................ 4 3Test Procedure................................................................................................................................. 5 4Test Location................................................................................................................................... 5 5Recognition of Test Laboratory....................................................................................................... 5 6Details of the Equipment Under Test............................................................................................. 6 7Details of the Test Item................................................................................................................... 7 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT: Equipment Under TestEMC: Electromagnetic Compatibility AE: Associated EquipmentEMI: Electromagnetic Interference N/A: Not ApplicableEMS: Electromagnetic Susceptibility N/T: Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140073Issue Date : July 15, 2014 Model No.: R-830BKFCC ID: APYDMR0176 Standard: CFR 47 FCC Rules and Regulations Part 18 Page 3 of 27 Technical document No. 23162-1301 1Description of the Equipment Under Test 1.Manufacturer:Sharp Appliances (Thailand) Ltd. 64 Moo 5, Tambol Bangsamuk, Amphur Bangpakong Chachoengsao, Province, Thailand 2.Products:Household Microwave Oven 3.Model No.:R-830BK 4.Serial No.:00002 5.Type of Magnetron:2M303H(L) by TOSHIBA 6.Product Type:Prototype 7.Date of Manufacture:May, 2014 8.Power Rating:120VAC 60Hz, 13.8A 9.Rated RF Power Output:900 W 10.EUT Grounding:Grounded at the plug end of the power line 11.Category:Any type unless otherwise specified (miscellaneous) :Consumer device 12.EUT Authorization:Certification 13.Operating Frequency:2450 MHz (ISM frequency) 14.Upper Frequency of:25.0 GHz Measurement 15.Received Date of EUT:May 28, 2014 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140073Issue Date : July 15, 2014 Model No.: R-830BKFCC ID: APYDMR0176 Standard: CFR 47 FCC Rules and Regulations Part 18 Page 4 of 27 Technical document No. 23162-1301 2Summary of Test Results Applied Standard: CFR 47 FCC Rules and Regulations Part 18 Industrial, Scientific, and Medical Equipment - The test result waspassedfor the test requirements of the applied standard. - The test result wasfailedfor the test requirements of the applied standard. - The test result wasnot judgedthe test requirements of the applied standard. In the approval of test results, -Determining compliance with the limits in this report was based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. -No deviations were employed from the applied standard. -No modifications were conducted by JQA to achieve compliance to the limitations. Reviewed by:Tested by: Shigeru KinoshitaAkio Hosoda Deputy ManagerAdvisor JQA KITA-KANSAI Testing CenterJQA KITA-KANSAI Testing Center SAITO EMC BranchSAITO EMC Branch JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140073Issue Date : July 15, 2014 Model No.: R-830BKFCC ID: APYDMR0176 Standard: CFR 47 FCC Rules and Regulations Part 18 Page 5 of 27 Technical document No. 23162-1301 3Test Procedure The tests documented in this report were performed in accordance with MP-5. FCC/OET MP-5(1986) FCC Methods of Measurements of Radio Noise Emissions from Industrial Scientific, and Medical equipment 4Test Location Japan Quality Assurance Organization (JQA) KITA-KANSAI Testing Center 7-7, Ishimaru, 1-chome, Minoh-shi, Osaka, 562-0027, Japan SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan 5Recognition of Test Laboratory JQA KITA-KANSAI Testing Center SAITO EMC Branch is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility is registered by the following bodies. VLAC Accreditation No.: VLAC-001-2 (Expiry date : March 30, 2014) VCCI Regis…

Text truncated - open the document above for the full version.

Test Setup Photos

JQA File No. : KL80140073Issue Date : July 15, 2014 Model No.: R-830BKFCC ID: APYDMR0176 Standard: CFR 47 FCC Rules and Regulations Part 18 Page 15 of 27 Technical document No. 23162-1301 7.3.5Test Setup (Photographs) AC Powerline Conducted Emission – Rear View– –Side View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140073Issue Date : July 15, 2014 Model No.: R-830BKFCC ID: APYDMR0176 Standard: CFR 47 FCC Rules and Regulations Part 18 Page 19 of 27 Technical document No. 23162-1301 7.4.5Test Setup (Photographs) Radiated Emission (9kHz – 30MHz) – Front View – – Rear View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140073Issue Date : July 15, 2014 Model No.: R-830BKFCC ID: APYDMR0176 Standard: CFR 47 FCC Rules and Regulations Part 18 Page 23 of 27 Technical document No. 23162-1301 7.5.5Test Setup (Photographs) Radiated Emission (30MHz – 1000MHz) – Front View – – Rear View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140073Issue Date : July 15, 2014 Model No.: R-830BKFCC ID: APYDMR0176 Standard: CFR 47 FCC Rules and Regulations Part 18 Page 27 of 27 Technical document No. 23162-1301 7.6.5Test Setup (Photographs) Radiated Emission (Above 1GHz) – Front View – －Rear View－ Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION
