APYDMR0178Microwave Oven
Sharp Corporation
Click to zoom
Application Details
- Equipment Class
- 8CC - Part 18 Consumer Device
- Date of Grant
- Feb 26, 2015
- Application Purpose
- Original Equipment
- Date of Application
- Feb 26, 2015
- Equipment Note
- Microwave Oven
- Frequency Range
- 2450.00000000 - 2450.00000000
- Company
- Sharp Corporation
- Country
- Japan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
Drop Down Door Microwave Ovens Use & Care Guide 2 | Wolf Customer Care 800.222.7820 Contents 4 Safety Precautions 8 Drop Down Door Microwave Oven Features 9 Microwave Oven Operation 17 Care Recommendations 18 Troubleshooting 19 Wolf Warranty DROP DOWN DOOR MICROWAVE OVENS Customer Care The model and serial number are printed on the enclosed product registration card. Both numbers are also listed on the product rating plate. Refer to page 8 for rating plate location. For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. Record this information below for future reference. If your product ever needs attention, be sure to use a Wolf factory certified service provider recommended by our customer care center, or select one from our list of providers available at wolfappliance.com/locator. All factory certi- fied service providers are carefully selected and thoroughly trained by us. SERVICE INFORMATION Model Number Serial Number Date of Installation Certified Service Name Certified Service Number Authorized Dealer Dealer Number Important Note To ensure this product is installed and operated as safely and efficiently as possible, take note of the following types of highlighted information throughout this guide: IMPORTANT NOTE highlights information that is especially important. CAUTION indicates a situation where minor injury or product damage may occur if instructions are not followed. WARNING states a hazard that may cause serious injury or death if precautions are not followed. IMPORTANT NOTE: Throughout this guide, dimensions in parentheses are millimeters unless otherwise specified. wolfappliance.com | 3 Thank You Thank you for your purchase. We look forward to being part of your home for decades to come. As a third-generation family-owned company, we take a very personal stake in the preparation of your familyβs food. We built our business and our reputation on helping families serve the finest food possible. With your purchase, you receive one of the strongest warranties in the appliance industry. Take a moment to read the full warranty statement on page 19. Itβs also important to register your Wolf appliance to ensure that you donβt miss out on exclusive owner ben- efits, such as; assurance that you will be taken care of in the unlikely event that service becomes necessary during the warranty period, and a proof-of-purchase record in case of a home insurance claim. You may register by one of the following options: β’ Mail in the completed Wolf product registration card. β’ Register online at wolfappliance.com/register and create a personalized My Sub-Zero/ Wolf account using the serial number on your product. β’ Register by phone by calling Wolf Customer Care at 800-222-7820. As a Wolf owner, you can count on ongoing support, day in and day out. Our customer care center is available 24 hours a day, seven days a week and staffed by knowledgeable product experts at our factory in Madison, Wisconsin. Should the need arise, simply call 800-222-7820 and speak with one of our product experts. They will help troubleshoot any issues you might have. We are confident this guide will answer your questions about the features, operation, and maintenance of your Wolf, but if you have additional questions, please contact us at 800-222-7820 or visit us online at wolfappliance.com. 4 | Wolf Customer Care 800.222.7820 SAFETY PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. β’ If food being heated begins to smoke, DO NOT OPEN THE DOOR. Turn off and unplug the oven and wait until the food has stopped smoking. Opening the door while food is smoking may cause a fire. β’ Only use microwave-safe containers and utensils. Do not leave the oven unattended when using disposable plastic, paper or other combustible food containers. β’ Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire. β’ The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. IMPORTANT INSTRUCTIONS TO AVOID THE POSSIBILITY OF INJURY: WARNING Do not operate the oven if it is damaged or malfunctioning. Check the following before use: a) The door; make sure the door closes properly and ensure it is not misaligned or warped. b) The hinges and door safety latches; check to make sure they are not broken or loose. c) The door seals and sealing surfaces; ensure that they have not been damaged. d) Inside the oven cavity or on the door; make sure there are no dents. e) The power supply cord and plug; ensure that they are not damaged. wolfappliance.com | 5 SAFETY PRECAUTIONS IMPORTANT INSTRUCTIONS TO AVOID THE POSSIBILITY OF INJURY: β’ Never adjust, repair or modify the oven yourself. β’ It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy. β’ Do not allow grease or dirt to build up on the door seals and adjacent parts. Follow the instructions for Care Recommendations on page 17. Clean the oven at regular intervals and remove any food deposits. Failure to maintain the oven in a clean condition could lead to a deterioration of the sur- face that could adversely affect the life of the appli- ance and possibly result in a hazardous situation. β’ Do not attempt to replace the oven lamp yourself or allow anyone who is not authorized to do so. If the oven lamp fails, please consult your dealer or call an authorized service agent. TO AVOID THE DANGER OF FIRE: β’ The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emer- gency. The AC power supply must be 110/120V, 60Hz, with a minimum 15 A distribution circuit brβ¦
Text truncated - open the document above for the full version.
External Photos

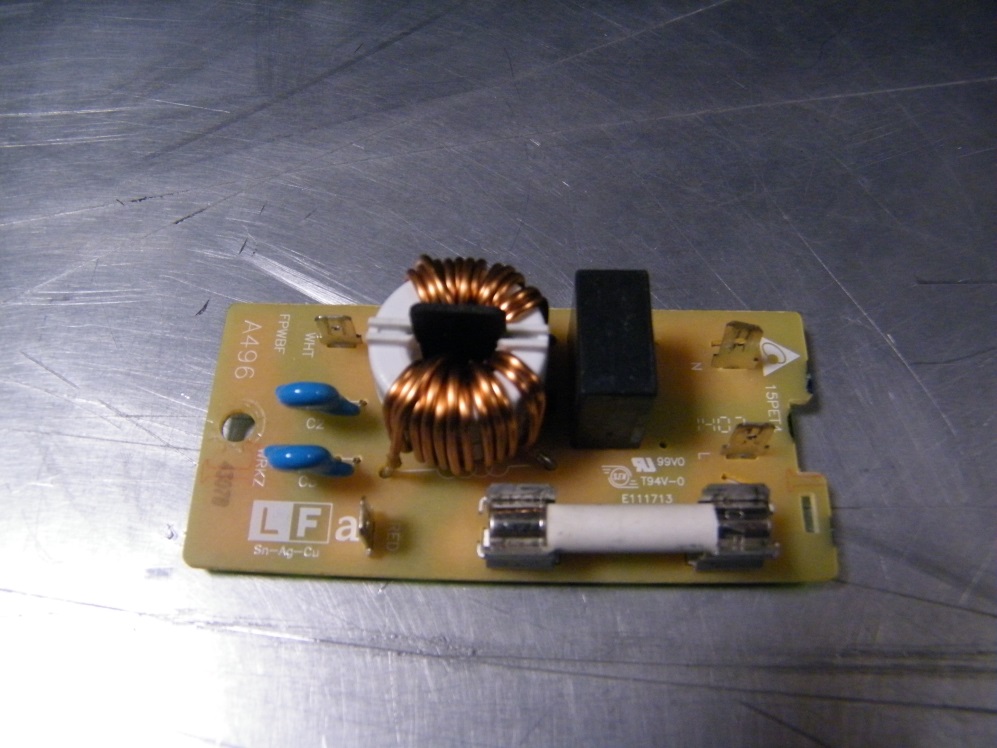

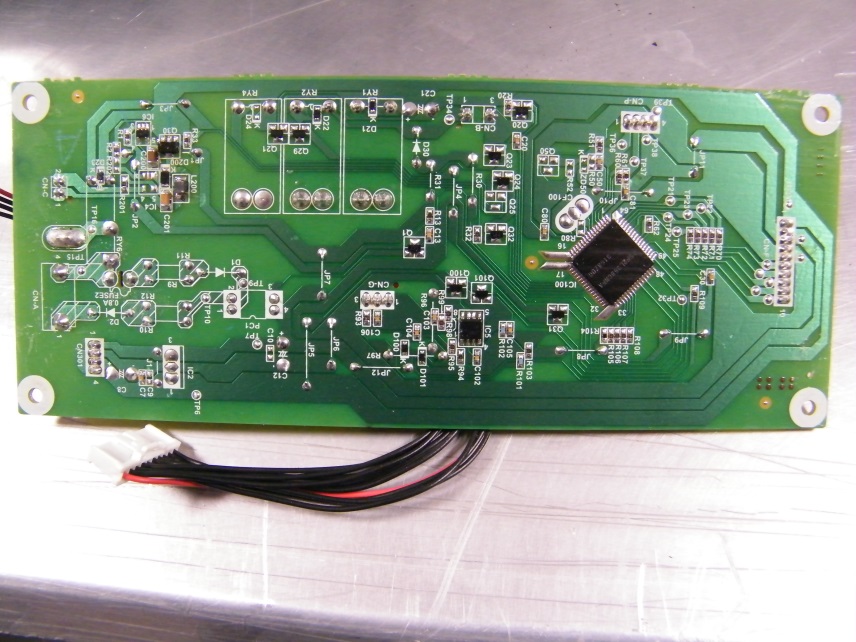

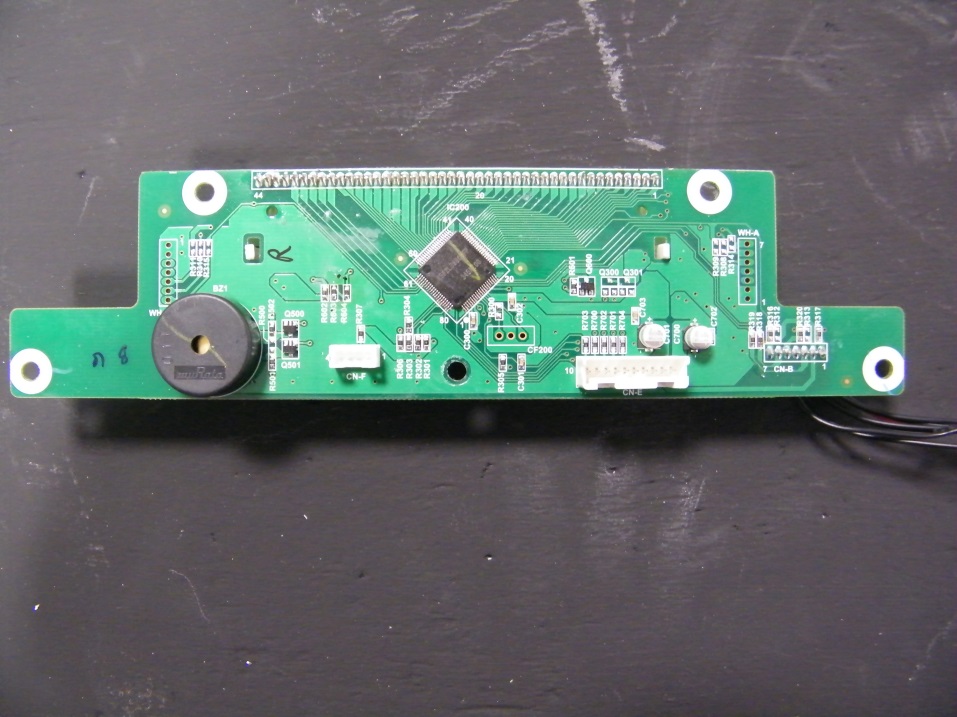

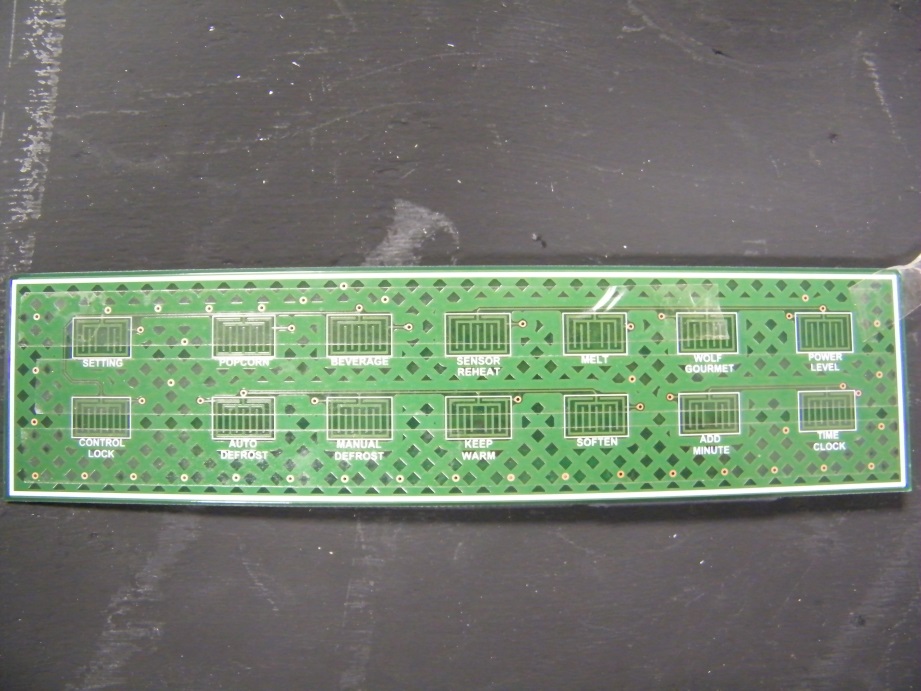

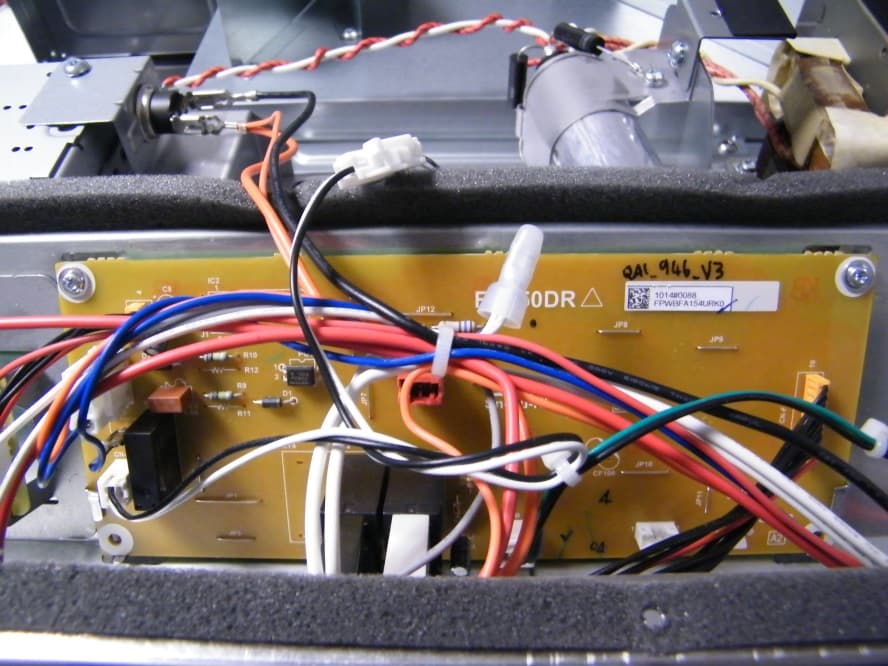

Front View β 24 Inch Stainless Model Front View β 30 Inch Stainless Model Front View β 30 Inch Glass Model Inside Oven Cavity with Roller Stay fitted Inside Oven Cavity with Glass Plate fitted Right Hand Side Left Hand Side Rear View Bottom View Internal β Cap and Diode Internal β Control Unit Internal β Left Side View Internal β Right Side View Internal β Mag & Cap Area Internal β Mag Internal β NFU & Fan Internal β Power Module Barantec Control Panel β Front View Barantec Control Panel β Rear View Barantec Control Panel β Inside View Barantec Control β Front View Barantec Control β Front View Barantec Control β Rear View Barantec Control β Rear View Display unit β Front View Display Unit β Rear View Glass Control Panel β Front View Glass Control Panel β Inside View Touch Key Left β Front View Touch Key β Rear View Touch Key Right β Front View Touch Key β Rear View Power Module β Front View Power Module β Rear View PWB β Control Unit Front View PWB β Control Unit Rear View PWB β Noise Filter Unit Front View PWB β Noise Filter Unit Rear View
Internal Photos
Front View β 24 Inch Stainless Model Front View β 30 Inch Stainless Model Front View β 30 Inch Glass Model Inside Oven Cavity with Roller Stay fitted Inside Oven Cavity with Glass Plate fitted Right Hand Side Left Hand Side Rear View Bottom View Internal β Cap and Diode Internal β Control Unit Internal β Left Side View Internal β Right Side View Internal β Mag & Cap Area Internal β Mag Internal β NFU & Fan Internal β Power Module Barantec Control Panel β Front View Barantec Control Panel β Rear View Barantec Control Panel β Inside View Barantec Control β Front View Barantec Control β Front View Barantec Control β Rear View Barantec Control β Rear View Display unit β Front View Display Unit β Rear View Glass Control Panel β Front View Glass Control Panel β Inside View Touch Key Left β Front View Touch Key β Rear View Touch Key Right β Front View Touch Key β Rear View Power Module β Front View Power Module β Rear View PWB β Control Unit Front View PWB β Control Unit Rear View PWB β Noise Filter Unit Front View PWB β Noise Filter Unit Rear View
Test Report
Test Report (PDF copy) FCC Testing of the VTFW NA 30β USA Microwave Oven For Sharp Manufacturing Company of UK Document number 11616/TR/1 Project number C1801 Author: ...................................................................................................... Mr B Renton EMC Engineer Checked: .................... ................ ............................................................. M Render Senior Engineer Approved: .................... ......... ....... ............................................................. M Render Senior Engineer Issue Description Issue by Date 1 Issue One BR 19 th December 2014 Disclaimers: The uncertainties are for a confidence probability of not less than 95% This report shall not be reproduced without the prior written approval of York EMC Services (2007) Ltd Sharp Manufacturing Co of UK FCC testing of the VTFW NA 30 inch Microwave oven 11616/TR/1 York EMC Services Ltd Page 2 of 33 Issue 1 CONTENTS 1 Introduction ................................................................................................................... 3 2 Test Specification .......................................................................................................... 4 2.1 Environment .......................................................................................................................... 4 2.2 Relevant standards ............................................................................................................... 4 2.2.1 Emissions .......................................................................................................................... 4 2.2.2 Immunity ............................................................................................................................ 4 2.2.3 Operating modes .............................................................................................................. 4 3 Test Results .................................................................................................................. 5 3.1 Power Output measurements (Calorimetric direct method) .................................................. 5 3.2 Frequency measurements..................................................................................................... 6 3.2 Conducted emissions (150kHz to 30MHz) ............................................................................ 8 3.3 Radiated emissions (100MHz to 1000MHz)........................................................................ 11 3.4 Radiated emissions (1GHz to 18GHz) ................................................................................ 12 3.5 Radiated emissions (18GHz to 24.5GHz) ........................................................................... 14 3.6 Calculation of Electric Field Strength Limit .......................................................................... 15 4 Summary ..................................................................................................................... 16 4.1 Emissions ............................................................................................................................ 16 4.2 Compliance statement ......................................................................................................... 16 5 Appendices ................................................................................................................. 17 5.1 Appendix 1 Conducted emission test method ..................................................................... 17 5.2 Appendix 2 Radiated emission test method (30MHz to 1000MHz) .................................... 18 5.3 Appendix 3 Radiated emission test method (1GHz to 24.5GHz) ........................................ 19 5.4 Appendix 4 Conducted emission test results ...................................................................... 20 5.5 Appendix 5 Radiated emission test results ......................................................................... 21 5.6 Appendix 6 Frequency variation measurements ................................................................. 24 5.7 Appendix 7 EUT test configurations .................................................................................... 25 5.8 Appendix 8 Equipment used ............................................................................................... 28 5.9 Appendix 9 Open Area Test Site Description...................................................................... 29 5.10 Appendix 10 Calibration data .............................................................................................. 32 5.11 Appendix 11 Test Report History ........................................................................................ 33 Sharp Manufacturing Co of UK FCC testing of the VTFW NA 30 inch Microwave oven 11616/TR/1 York EMC Services Ltd Page 3 of 33 Issue 1 1 Introduction Name and address of laboratory: York EMC Services Ltd Three Lane Ends Business Centre Methley Road Castleford West Yorkshire WF10 1PN UKAS testing laboratory Nο° 1574 Name and address of client: Sharp Manufacturing UK Limited Davy Way Llay Wrexham Clwyd LL12 0PG The test results contained in this test report relate only to the unit(s) tested. Equipment under test VTFW 30 inch Glass Fronted Microwave Oven EUT Model No. MDD30CM/B/TH Serial No. UKM1054 Noise filter board No. FPWBFA496WRKZ HV capacitor No. RC-QZA389WRZZ Transformer No. RTRN-A041URE0 Magnetron No. RV-MZA398WRZZ Date of receipt 8 th October 2014 Number tested One Date(s) of test(s) 9 th , 10 th , 14th, 15 th , 16th, 17 th and 20th October 2014. 5 th , 6 th and 7 th November 2014 Date(s) when EUT was out of laboratoryβs control None Personnel witnessing tests The tests were carried out on an unwitnessed basis. Any other relevant information: The operating frequency of the EUT was declared as 2.45GHz; therefore, as per FCC MP-5, section 2.3(a), measurements were made to the tenth harmonic, which is 24.5GHz. β¦
Text truncated - open the document above for the full version.
Contact Information
Applicant
Taihei Ohtsuka(Deputy Division Manager, ESG & Q promotion unit)
Test Firm
York EMC Services Ltd.Nick Wainwright
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 18 | 2.45 GHz - 2.45 GHz | - |
