APYHRO000291900MHz GSM/GPRS Cellular Phone

Sharp Corporation

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Mar 23, 2003
Application Purpose: Original Equipment
Date of Application: Mar 23, 2003
Equipment Note: 1900MHz GSM/GPRS Cellular Phone
Frequency Range: 1850.20000000 - 1909.80000000
Company: Sharp Corporation
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

7Your Phone Your Phone Please check the following carefully. Your phone should come complete with: • GSM 900/1800/1900 GPRS phone • Rechargeable Li-ion battery • AC charger • Hands free •CD-ROM • User guide Accessories • Li-ion spare battery (XN-1BT11) • Cigarette lighter charger (XN-1CL10) • Car holder (XN-1CH11) • Data cable (RS232C cable: XN-1DC10) Some of the above accessories may not be offered by region. For details, please contact your dealer. (option) Getting Started8 Getting Started 9Getting Started 1. Earpiece 2. Navigation Keys (Arrow Keys): Move the cursor to select menu items, adjust the earpiece volume, etc. Up/Down arrow keys:Search the Phonebook entries in stand-by mode. Left arrow key:Adjusts the earpiece volume in stand-by mode. Right arrow key:Displays the Phonebook menu in stand-by mode. 3. Centre Key:Displays the Main Menu and executes the functions. in this manual indicates this key. 4. Left Soft Key:Executes the function at the bottom left on the screen. 5. Send Key:Makes or accepts calls, views the call in stand-by mode. 6. Voice Mail Key:Used to connect to Voice mail centre. (Depends on the SIM card.) 7. * /Shift Key:Used to enter * or switch the text mode. 8. Main-Screen Display 9. Hands free Connector 10. Right Soft Key:Executes the function at the bottom right on the screen. 11. End/Power Key:Ends a call, turns power on/ off. 12. Keypad 13. Microphone 14. External Connector: Used to connect either the charger or data cable. 15. Aerial 16. Sub-Screen Display 17. Camera 18. Mirror:For self portraits. 19. LED Indicator 20. Infrared Port:Sends and receives data via infrared. 21. Speaker 22. Side Keys Up/Down keys:Move the cursor to select menu items, etc. 23. Battery Cover Getting Started10 Inserting the SIM Card and the Battery 1.Slide off the battery cover. 2.Slide the SIM card into the SIM holder. SIM card 11Getting Started 3.Hold the battery so that the metal contacts of the battery are facing down, slide the guides on the top of the battery into the battery slots , and then insert it . 4.Replace the battery cover so that the marks are aligned and slide it as shown. Note • Make sure that only 3V SIM cards are used. • Use only the approved battery (XN-1BT11). Getting Started12 Removing the SIM Card and the Battery 1.Make sure to turn off your phone and disconnect charger and other accessories. Slide off the battery cover. 2.Pick up the battery using the protruding edge and remove the battery from the phone. 3.Slide the SIM card by pushing the back of the card and remove it from the SIM holder. 13Getting Started Battery Disposal The device is supported by a battery. In order to protect the environment, please read the following points concerning battery disposal: • Take the used battery to your local waste depot, dealer or customer service centre for recycling. • Do not expose the used battery to an open flame, into water or dispose with the household waste. Charging the Battery You must charge the battery for at least 2 hours before using your phone for the first time. To Charge Using the Charger 1.Connect the charger to the external socket located at the bottom of the phone with the charger’s “PUSH TOP” mark facing towards you, and to an AC outlet. The LED indicator lights in red. Standard charging time: Approx. 2 hours. Note • Charging time may be longer than above depending on the state of a battery and a surrounding situation. (See “Battery” on page 125.) LED indicator Getting Started14 To disconnect the charger Push and hold the side buttons of the charger, then disconnect the charger from the external socket of the phone. 2.When charging is complete, the LED indicator turns off. Unplug the charger from the AC outlet, then unplug the charger connector from the phone. Note • Do not use any non approved charger, this may damage your phone and invalidate any warranty, please see “Battery” on page 125 for details. • When the phone is charging, the animated battery status icon () will be displayed in the upper right of the screen. To Charge Using the Cigarette Lighter Charger The cigarette lighter charger (option) supplies power for charging from the cigarette lighter socket of a car. Battery Level Indicator The current battery level is displayed in the upper right hand side of the screen and the Sub-screen. Low Battery During Use When the battery is running low, an alarm will sound and the “” will appear on the screen and the Sub- screen. If you are using your phone and you hear the “low battery” alarm, attach your charger as soon as possible. The phone may not be able to continue normal operation if you continue to use it. The battery may only last five minutes before the phone itself powers down during a call. Charge LevelIndicators Full level (greater than 60%) Partial level (less than 60%) Partial level (less than 30%) Low level (less than 10%) Charging the battery is recommended. Empty Charge the battery. 15Getting Started Turning Your Phone On and Off To turn the power on, press and hold for approximately 2 seconds. The stand-by screen appears. To turn the power off, press and hold for approximately 2 seconds. Entering the PIN Code If activated you will be asked to enter a PIN (Personal Identification Number) code after turning on your phone. 1.Enter your PIN code. 2.Press . Note • If your PIN code is entered incorrectly three times in a row, the SIM card is locked. See “Enabling/ Disabling the PIN Code” on page 100. Display Indicators Status Indicators Right softkey Left softkey Getting Started16 1./:Indicates the strength of received signal/the service is out of range. 2.:Appears when in call. 3. ///: Indicates the input mode (Upper case only the first letter of the word mode/ Upper case mode/Lower case mode/ Numeric mode). 4.:Appears when the T9 text input mode is activated. 5.//: Appears when a new SMS, MMS Alert or WAP Alert has arrived. 6./:Appears when viewing secured WAP browser. 7./:Appears when a picture or image/ sound is attached to MMS. 8.:I…

Text truncated - open the document above for the full version.

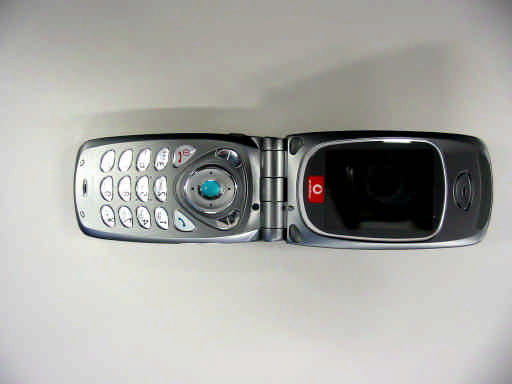

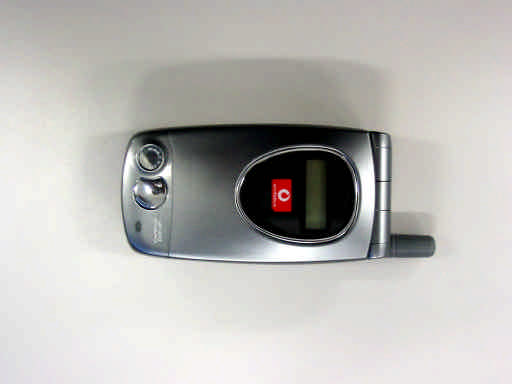

External Photos

Sharp Elect. FCC ID:APYHRO00029 External Photos

ID Label/Location Info

FCC ID Label & FCC ID Label placement location

Internal Photos

Sharp Elect. FCC ID:APYHRO00029 Internal Photos

Operational Description

THEORY OF OPERATION a The DC V/I at the final RF amplifier device DC voltage4.2V DC current20uA b) Freq. Stabilizing, Limiting TX Power TCX951VCTCXOThis is a reference source of frequency synthesizer IC901RF-ICThis is a RF transceiver IC for GSM900/DCS1800/PCS1900 Triple band cellular systems. This incorporates triple RF LNAs , triple direct conversion mixers which are IQ demodulators , a auto offset calibrated programmable gain amplifier with baseband filter for both IQ chains , RF synthesizer for the receiver , and IQ modulator , offset PLL and IF synthesizer for the triple band transmitter . IC971RFVCOThe RFVCO generates the RF local signal with voltage control IC851TXVCOThe TXVCO generates TX sugnal with voltage control IC831PAThe PA amplify the TXVCO's output signal with power control IC881APC IC This IC controls output power by closed loop with coupler c) Gausian Filter for MSK The GMSK modulator is implemented using digital logic and a ROM look-up table. The input data is differentially encoded and used to address a ROM which combines the Gaussian pulse shaping and the minimum shift-keying (MSK) modulation. The Gaussian pulse shaping has an impulse response of four bit periods. The resulting signal has a bandwidth-time period (BT) product of 0.3.

Operational Description

Model Description Model Name : GX10i Type of Emission : 313KGXWDT Brand Name : Not Fixed Type of Equipment : Tri-Band (GSM/DCS/PCS) cellular Phone Specification Frequency Band Tri Band GSM900/DCS1800/PCS1900 900MHz: Tx 880.2 to 914.8MHz Rx 925.2 to 959.8MHz 1800MHz: Tx 1710.2 to 1784.8MHz Rx 1805.2 to 1879.8MHz 1900MHz: Tx 1851.25 – 1908.75MHz Rx 1930.2 to 1989.8MHz (900/1800 Band do not operate in USA) Tx Power900MHz 33dBm2dB 1800MHz 30dBm±2dB 1900MHz 30dBm±2dB Average Power is estimated about Tx Power / 8 Type of ModulationGXW Transmission TechnologyTDMA (8 slot) Voice CodecEFR/ FR/ HR GPRSClass B, Multislot Class 10 AntennaIntegarated Antenna SIMPlug-in 3V SIM card slot SIM application toolkit release 99, class 3 Display Main LCD65,536color TFT, 120(w) x 160(H) with Backlight Sub LCDMonochrome FSTN, 96(w) x 26(H) with Backlight Status LEDUsing 2-colour LED module (Green and Red) CameraIntegrated CMOS Resolution110K pixcel WAP BrowserWAP ver. 1.2.1 Battery/ Talktime Capacity720mAh Battery typeRechargable Lithium Ion Battery Target standby timeTBD Target talk timeTBD Dimensions Target size94(H) x 49(W) x 26(D)mm Target weight107g Key LayoutSoft key 1, Soft key 2, Navigationkey, Menu key, 0 - 9 numeric key, Send/ End key, *, # and 2 side keys. IrDAVer 1.2 Head set jack PDC shared connector SIM card terminal Integrated charger circuit Head set AC Charger Input AC 110 to 230V Output DC 5.2V Battery DC3.7V 720mAh Accessory External I/F Items MAIN SPECIFICATION IrDA

Operational Description

RF Exposure Info

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Tri-Bands (GSM/DCS/PCS) Cellular Phone MODEL: GX-10i FCC ID: APYHRO00029 March 17, 2003 REPORT NO: 03U1890-1 Prepared for Sharp Corporation 2-13-1, Iida Hachihonmatsu Higashihiroshima-City Hiroshima, 739-0192 Japa Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 03U1890-1 DATE: March 17, 2003 FCC ID: APYHRO00029 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: March 17, 2003 REPORT NO: 03U1890-1 APPLICANT: Sharp Corporation 2-13-1, Iida Hachihonmatsu Higashihiroshima-City, Hiroshima 739-0192 Japan MODEL: GX-10i FCC ID: APYHRO00029 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM+GPRS Operating Mode: Maximum continuous output Tx Frequency: 1850.2 ~ 1909.8 MHz Max. O/P Power: GSM mode - 28.86 dBm (Conducted) GPRS mode - 29.07 dBm (Conducted) Max. SAR (1g): 0.518 W/Kg (Left head - touched position) 0.161 W/Kg (Body worn – GSM mode) 0.434 W/Kg (Body worn – GPRS mode) Application Type: Certification FCC Rule Part(s): 24 (E) Note: This device contains 900MHz and 1800GSM functions not operational in US territories. This report is only applicable for 1900MHz PCS band. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03U1890-1 DATE: March 17, 2003 FCC ID: APYHRO00029 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EUT DESCRIPTION .................................................................................................... 4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ...................... 5 3. DOSIMETRIC ASSESSMENT SETUP .......................................................................... 5 3.1. MEASUREMENT SYSTEM DIAGRAM ........................................................................................................6 3.2. SYSTEM COMPONENTS ............................................................................................................................7 4. EVALUATION PROCEDURE ...................................................................................... 9 5. MEASUREMENT UNCERTAINTY .............................................................................. 12 6. EXPOSURE LIMIT .................................................................................................... 13 7. EUT ARRANGEMENT .............................................................................................. 14 8. MEASUREMENT RESULTS ...................................................................................... 15 8.1. SYSTEM VALIDATION ..............................................................................................................................15 8.2. TEST LIQUID CONFIRMATION.................................................................................................................16 8.3. EUT TUNE-UP PROCEDURES .................................................................................................................17 8.4. EUT SETUP PHOTOS ...............................................................................................................................18 8.5. SAR MEASUREMENT RESULTS..............................................................................................................21 9. EUT PHOTOS .......................................................................................................... 22 10. EQUIPMENTS LIST & CALIBRATION INFORMATION ............................................... 23 11. REFERENCES ......................................................................................................... 24 12. ATTACHMENTS ...................................................................................................... 25 REPORT NO: 03U1890-1 DATE: March 17, 2003 FCC ID: APYHRO00029 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: Sharp Corporation 2-13-1, Iida Hachihonmatsu Higashihiroshima-City, Hiroshima 739-0192 Japan MODEL: GX-10i FCC ID: APYHRO00029 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM+GPRS Operating Mode: Maximum continuous output Tx Frequency: 1850.2 ~ 1909.8 MHz Max. O/P Power: GSM mode - 28.86 dBm (Conducted) GPRS mode - 29.07 dBm (Conducted) Max. SAR (1g): 0.518 W/Kg (Left head - touched position…

Text truncated - open the document above for the full version.

RF Exposure Info

Date/Time: 03/17/03 10:17:12 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.518mW.da4 DUT: Sharp Type & Serial Number: GX-10i Program: Left Head -Touched position; Air temp 24 deg C & Liquid temp 21 deg C Communication System: GSM 1900; Frequency: 1850.2 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3826 mho/m, ε = 40.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 6.52 V/m Peak SAR = 0.896 mW/g SAR(1 g) = 0.518 mW/g; SAR(10 g) = 0.271 mW/g Power Drift = -0.11 dB Area Scan (16x10x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -18.8 -17 -15.1 -13.2 -11.3 -9.42 -7.54 -5.65 -3.77 -1.88 0 Date/Time: 03/17/03 11:12:12 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.485mW.da4 DUT: Sharp Type & Serial Number: GX-10i Program: Left Head -Touched position; Air temp 24 deg C & Liquid temp 20.8 deg C Communication System: GSM 1900; Frequency: 1880 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3826 mho/m, ε = 40.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 6.19 V/m Peak SAR = 0.865 mW/g SAR(1 g) = 0.485 mW/g; SAR(10 g) = 0.249 mW/g Power Drift = -0.12 dB Area Scan (16x10x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -19.9 -17.9 -15.9 -13.9 -12 -9.96 -7.97 -5.98 -3.98 -1.99 0 Date/Time: 03/17/03 11:50:32 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.391mW.da4 DUT: Sharp Type & Serial Number: GX-10i Program: Left Head -Touched position; Air temp 24 deg C & Liquid temp 20.4 deg C Communication System: GSM 1900; Frequency: 1909.8 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3826 mho/m, ε = 40.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 5.42 V/m Peak SAR = 0.698 mW/g SAR(1 g) = 0.391 mW/g; SAR(10 g) = 0.2 mW/g Power Drift = -0.05 dB Area Scan (16x10x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -20.2 -18.2 -16.2 -14.1 -12.1 -10.1 -8.08 -6.06 -4.04 -2.02 0 Date/Time: 03/17/03 12:23:44 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0843 mW.da4 DUT: Sharp Type & Serial Number: GX-10i Program: Left Head -Tilted position; Air temp 24 deg C & Liquid temp 20.4 deg C Communication System: GSM 1900; Frequency: 1850.2 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3826 mho/m, ε = 40.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 8.12 V/m Peak SAR = 0.121 mW/g SAR(1 g) = 0.0843 mW/g; SAR(10 g) = 0.0506 mW/g Power Drift = -0.004 dB Area Scan (16x10x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -18.8 -16.9 -15 -13.2 -11.3 -9.4 -7.52 -5.64 -3.76 -1.88 0 Date/Time: 03/17/03 12:58:20 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0762mW.da4 DUT: Sharp Type & Serial Number: GX-10i Program: Left Head -Tilted position; Air temp 24 deg C & Liquid temp 20.3 deg C Communication System: GSM 1900; Frequency: 1880 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3826 mho/m, ε = 40.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 7.98 V/m Peak SAR = 0.114 mW/g SAR(1 g) = 0.0762 mW/g; SAR(10 g) = 0.0451 mW/g Power Drift = -0.1 dB Area Scan (17x10x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -19.4 -17.5 -15.5 -13.6 -11.6 -9.7 -7.76 -5.82 -3.88 -1.94 0 Date/Time: 03/17/03 13:35:02 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.0598mW.da4 DUT: Sharp Type & Serial Number: GX-10i Program: Left Head -Tilted position; Air temp 24 deg C & Liquid temp 20.4 deg C Communication System: GSM 1900; Frequency: 1909.8 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3826 mho/m, ε = 40.15, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 7.08 V/m Peak SAR = 0.0904 mW/g SAR(1 g) = 0.0598 mW/g; SAR(10 g) = 0.0351 mW/g Power Drift = -0.05 dB Area Scan (17x10x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -20.9 -18.8 -16.7 -14.6 -12.5 -10.4 -8.36 -6.27 -4.18 -2.09 0 Date/Time: 03/17/03 14:41:12 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.449mW.da4 DUT: Sharp Type & Serial Number: GX-10i Program: Right Head -Touched position; Air temp 24 deg C & Liquid temp 20.6 deg C Communication System: GSM 190…

Text truncated - open the document above for the full version.

RF Exposure Info

Date/Time: 03/17/03 09:22:50 Test Laboratory: Compliance Certification Services File Name: D1800V2 SN 294_8.94 mW.da4 DUT: Dipole 1800 MHz Type & Serial Number: D1800V2 SN 294 Program: System Validation (ET3DV6 SN: 1577); Air temp. 24 deg C, liquid temp. 21 deg C Communication System: CW_1800 MHz; Frequency: 1800 MHz; Duty Cycle: 1:1 Medium: Head 1800 MHz ( σ = 1.3919 mho/m, ε = 38.83, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.6, 5.6, 5.6); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 90.4 V/m Peak SAR = 15.1 mW/g SAR(1 g) = 8.94 mW/g; SAR(10 g) = 4.7 mW/g Power Drift = -0.02 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.7 -15 -13.4 -11.7 -10 -8.35 -6.68 -5.01 -3.34 -1.67 0

RF Exposure Info

REPORT NO: 03U1890-1 DATE: April 17, 2003 FCC ID: APYHRO00029 COMPLIANCE CERTIFICATION SERVICES Page: 1 of 2 MEASUREMENT RESULTS S YSTEM VALIDATION RESULTS Ambient conduction: Temperature: 23°C; Relative humidity: 39% System Validation Dipole: D1800V2 SN: 294 Date: April 17, 2003 TypeTem p. [°C]Dipth [cm ] HeadP e rm itiv ity :4 039.25-1.88± 10 Conductivity:1.41.3822-1.27± 5 1g SAR:38.137.08-2.68± 10 21.00 Deviation[% ]Lim ited[%]P a ra m e te rsT a rg e t M e a s u re d Medium 15.00 1800 M Hz LIQUID CONFIRMATION RESULTS Ambient conduction – Temperature: 23 °C; Relative humidity: 39% Date: April 17, 2003 TypeTem p. [°C] Dipth (cm ) HeadP erm itivity:4039.54-1.15± 10 1900 MhzC onductivity:1.41.41110.79± 5 21.00 Deviation[% ]Lim ited[% ]Param etersTarget Measured Medium 15.00 SAR MEASUREMENT RESULTS Modulation Type: GSM (Duty Cycle = 12.5%, Crest Factor: 8) EUT Set-up Configuration 1 - Left Head Depth of liquid: 15.0 cm Date: April 17, 2003 EUT Set-up Configuration Frequency Conducted power [dBm] (Peak) EUT Position Antenna Channel MHz Before After Liquid Temp [°C] SAR (W/kg) Limit (W/k g) 512 1850.2 29.36 29.31 20.4 Cube0: 0.0843 Cube1: 0.0525 661 1880.0 29.35 29.30 20.4 Cube0: 0.0768 Cube1: 0.0552 Tilted Fixed 810 1909.8 29.36 29.31 20.5 Cube0: 0.061 Cube1: 0.0496 1.6 EUT Set-up Configuration 2 - Right Head EUT Set-up Configuration Frequency Conducted power [dBm] (Peak) EUT Position Antenna Channel MHz Before After Liquid Temp [°C] SAR (W/kg) Limit (W/k g) 512 1850.2 29.36 29.31 20.5 Cube0: 0.0669 Cube1: 0.0522 661 1880.0 29.35 29.30 20.5 Cube0: 0.0667 Cube1: 0.0426 Tilted Fixed 810 1909.8 29.36 29.31 20.4 Cube0: 0.0536 Cube1: 0.0385 1.6 Note (s): Please refer to attachment for the result presentation in plot format. REPORT NO: 03U1890-1 DATE: April 17, 2003 FCC ID: APYHRO00029 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 2 ATTACHMENTS Exhibit Contents No. of page (s) 1 System Validation Plot 1 2 SAR Test Plots 14 End of Report

RF Exposure Info

Date/Time: 04/17/03 19:00:36 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0843 mW.da4 Left Head ( Tilted position ) SAR in dB -18.3 -16.4 -14.6 -12.8 -11 -9.14 -7.31 -5.48 -3.65 -1.83 0 Date/Time: 04/17/03 19:00:36 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0843 mW.da4 DUT: Sharp Type & Serial Number: GS-200 Program: Left Head -Tilted position; Air temp 23 deg C & Liquid temp 20.4 deg C Communication System: GSM 1900; Frequency: 1850.2 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.4111 mho/m, ε = 39.54, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 8.15 V/m Peak SAR = 0.12 mW/g SAR(1 g) = 0.0843 mW/g; SAR(10 g) = 0.0513 mW/g Power Drift = -0.12 dB Area Scan (16x10x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -18.3 -16.4 -14.6 -12.8 -11 -9.14 -7.31 -5.48 -3.65 -1.83 0 Date/Time: 04/17/03 19:00:36 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.0525 mW.da4 DUT: Sharp Type & Serial Number: GS-200 Program: Left Head -Tilted position; Air temp 23 deg C & Liquid temp 20.4 deg C Communication System: GSM 1900; Frequency: 1850.2 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.4111 mho/m, ε = 39.54, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 8.15 V/m Peak SAR = 0.0767 mW/g SAR(1 g) = 0.0525 mW/g; SAR(10 g) = 0.0327 mW/g Power Drift = -0.12 dB Area Scan (16x10x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -17.9 -16.1 -14.3 -12.5 -10.7 -8.93 -7.14 -5.36 -3.57 -1.79 0 Date/Time: 04/17/03 19:51:42 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0768 mW.da4 DUT: Sharp Type & Serial Number: GS-200 Program: Left Head -Tilted position; Air temp 23 deg C & Liquid temp 20.4 deg C Communication System: GSM 1900; Frequency: 1880 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.4111 mho/m, ε = 39.54, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 7.77 V/m Peak SAR = 0.113 mW/g SAR(1 g) = 0.0768 mW/g; SAR(10 g) = 0.0463 mW/g Power Drift = 0.03 dB Area Scan (16x10x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -19.4 -17.4 -15.5 -13.6 -11.6 -9.68 -7.74 -5.81 -3.87 -1.94 0 Date/Time: 04/17/03 19:51:42 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.0552 mW.da4 DUT: Sharp Type & Serial Number: GS-200 Program: Left Head -Tilted position; Air temp 23 deg C & Liquid temp 20.4 deg C Communication System: GSM 1900; Frequency: 1880 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.4111 mho/m, ε = 39.54, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 7.77 V/m Peak SAR = 0.0819 mW/g SAR(1 g) = 0.0552 mW/g; SAR(10 g) = 0.034 mW/g Power Drift = 0.03 dB Area Scan (16x10x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -18.2 -16.3 -14.5 -12.7 -10.9 -9.08 -7.26 -5.45 -3.63 -1.82 0 Date/Time: 04/17/03 20:34:06 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.061 mW.da4 DUT: Sharp Type & Serial Number: GS-200 Program: Left Head -Tilted position; Air temp 23 deg C & Liquid temp 20.5 deg C Communication System: GSM 1900; Frequency: 1909.8 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.4111 mho/m, ε = 39.54, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Softwa…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Taihei Ohtsuka(Deputy Division Manager, ESG & Q promotion unit)

[email protected]+81-50-5433-4157Fax: -

Test Firm

Japan Quality Assurance Org.Takaharu Hada

[email protected]81-554-43-5517Fax: 81-554-43-6316

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	1.514 W	313KGXW	2.5000000000 ppm

Confidentiality

Long Term

Grant Notes

Power is EIRP. This device contains 900 MHz and 1800 MHz GSM functions that are not operational in U.S. Territories. This filing is only applicable for 1900 MHz PCS operations. This device was tested with a 1.5 cm device-to-body spacing gap and was not tested with any body-worn accessories made by Sharp or any other manufacturer. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5 cm separation between the device, including its antenna whether extended or retracted, and the user body. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR values are - Head: 0.518 W/kg; Body-worn: 0.434 W/kg.
