APYHRO000351900MHz GSM Cellular Phone W/Bluetooth

Declaration of Conformity Hereby, Sharp Telecommunications of Europe Ltd, declares that this GX15 is in compliance with the essential require- ments and other relevant provisions of Directive 1999/5/ EC. A copy of the original declaration of conformity can be found at the following Internet address: http://www.sharp-mobile.com Introduction1 Introduction Congratulations and thank you for choosing the GX15. About This User Guide This user guide is carefully designed to help you learn about your phone’s features and operations quickly and effectively. NOTICE • We strongly recommend that you keep separate permanent written records of all important data. Data may be lost or altered in virtually any electronic memory product under certain circumstances. Therefore, we assume no responsibility for data lost or otherwise rendered unusable, whether as a result of improper use, repairs, defects, battery replacement, use after the specified battery life has expired or any other cause. • We assume no responsibility, directly or indirectly, for financial losses or claims from third parties resulting from the use of this product and any of its functions, such as stolen credit card numbers, the loss or alteration of stored data, etc. • All company and/or product names are trademarks and/or registered trademarks of their respective holders. • Screen layout illustrated in this user guide may differ from the actual one. The information described in this user guide is subject to change without notice. • All the functions described in this user guide may not be supported in all networks. • We assume no responsibility for downloaded contents, information, etc. from network. • Occasionally, a few black or bright pixels may appear on the screen. Please note that this will not have any impact on any of the features or performance. Copyright According to copyright laws, the reproduction, alteration and use of material which is protected by copyright (music, pictures, etc.) is only permitted for personal or private use. If the user is not in possession of more extensive copyright or has not received the explicit permission from the copyright owner to reproduce, alter or use a copy which has been made or modified in this way, this is considered to be a violation of the copyright laws and gives the copyright owner the right to claim for damages. For this reason, avoid the illegal use of material which is protected by copyright. Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries. 2Introduction This product is licensed under the MPEG-4 Visual Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the MPEG-4 Video Standard (“MPEG-4 Video”) and/or (ii) decode MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a licensed video provider. No license is granted or implied for any other use. Additional information may be obtained from MPEG LA. See http://www.mpegla.com. This product is licensed under the MPEG-4 Systems Patent Portfolio License for encoding in compliance with the MPEG- 4 Systems Standard, except that an additional license and payment of royalties are necessary for encoding in connection with (i) data stored or replicated in physical media which is paid for on a title by title basis and/or (ii) data which is paid for on a title by title basis and is transmitted to an end user for permanent storage and/or use. Such additional license may be obtained from MPEG LA, LLC. See http:// www.mpegla.com for additional details. Powered by JBlend™ Copyright 1997- 2004 Aplix Corporation. All rights reserved. JBlend and all JBlend-based trademarks and logos are trademarks or registered trademarks of Aplix Corporation in Japan and other countries. Powered by Mascot Capsule ® /Micro3D Edition™ Mascot Capsule ® is a registered trademark of HI Corpora- tion ©2002-2004 HI Corporation. All Rights Reserved. Licensed by Inter Digital Technology Corporation under one or more of the following United States Patents and/or their domestic or foreign counterparts and other patents pend- ing, including U.S. Patents: 4,675,863: 4,779,262: 4,785,450 & 4,811,420. Licensed under U.S. Patent 4,558,302 and foreign counter- parts. T9 Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Australian Pat. No. 727539; Canadian Pat. No. 1,331,057; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro. Pat. No. 0 842 463 (96927260.8) DE/ DK, FI, FR, IT, NL,PT.ES,SE,GB; Republic of Korea Pat. Nos. KR201211B1 and KR226206B1; and additional patents are pending worldwide. Bluetooth is a trademark of the Bluetooth SIG, Inc. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sharp is under license. Other trademarks and trade names are those of their respective owners. CP8 PATENT Introduction3 Useful Functions and Services Your phone offers you the following features: • A built-in digital camera for taking pictures and video clips. • A message function for reading and creating SMS messages. • MMS (Multimedia Messaging Services) for personalising your phone in various ways. • A WAP browser for accessing information on the mobile Internet. • Java™ applications. You can also download various applications from Vodafone via the mobile Internet. • A melody editing function for creating original ringtones using up to 32 voices. • A voice recorder function for recording and playing back voice clips. •A Bluetooth ® wireless technology interface for establishing contact and transmitting data with certain devices. You can transmit pictures, sounds, and video clips to OBEX-enabled phones. • An infrared interface for data communication. You can transmit pictures, sounds, and video clips to OBEX-enabled ph…

Text truncated - open the document above for the full version.

Model Description Model Name : GX15 Type of Emission : 241KGXW(PCS1900) Brand Name : vodafone by SHARP Type of Equipment : Tri-Band (GSM/DCS/PCS) cellular Phone/Bluetooth enable Specification Frequency Band(GSM)Tri-Band GSM900/DCS1800/PCS1900 900MHz : Tx 880.2 to 914.8MHz Rx 925.2 to 959.8MHz 1800MHz: Tx 1710.2 to 1784.8MHz Rx 1805.2 to 1879.8MHz 1900MHz: Tx 1850.2 to 1909.8MHz Rx 1930.2 to 1989.8MHz (900/1800 Band do not operate in USA) Frequency Band(Bluetooth) TX/RX: 2402 to 2480MHz Tx Power(GSM)900MHz 33dBm±2dB 1800MHz 30dBm±2dB 1900MHz 30dBm±2dB Average Power is estimated about Tx Power / 8 Tx Power(Bluetooth)+4dBm, Class2 Type of Modulation(GSM)GXW Type of Modulation(Bluetooth)GFSK Transmission TechnologyFDMA/TDMA (for GSM), FHSS(for Bluetooth) GPRSClass B, Class 10 Antenna(GSM)Internal Antenna Antenna(Bluetooth)Internal Antenna SIMPlug-in 3V SIM card slot SIM application toolkit release 99, class 3 IrDAVer 1.2 Display Main LCD65,536color TFT, 120(W) x 160(H) dots with Backlight Camera Resolution350K pixcel WAP BrowserWAP ver. 2.0 Battery/ Talktime Capacity780mAh Battery typeRechargable Lithium Ion Battery Target standby timeTBD Target talk timeTBD Dimensions Target size105(H) x 45(W) x 17(D)mm Target weight95g Key LayoutLeft Soft key, Right Soft key, Navigation keys, Centre key, 0 - 9 numeric key, Send key, End/Power Key, Camera key, *, # and side-up/side-down keys. Head set jack PDC shared connector SIM card terminal Integrated charger circuit Head set AC Charger Input AC 110 to 240V Output DC 5.2V Battery DC3.7V 780mAh USB Data Cable Cigarette Lighter Charger Input DC 12V/24V Output DC 5.2V Accessory Items External I/F MAIN SPECIFICATION

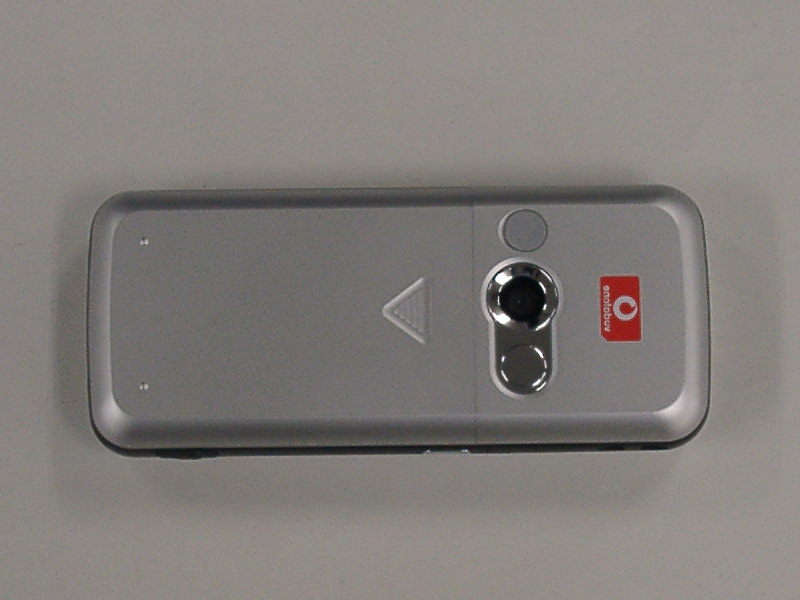

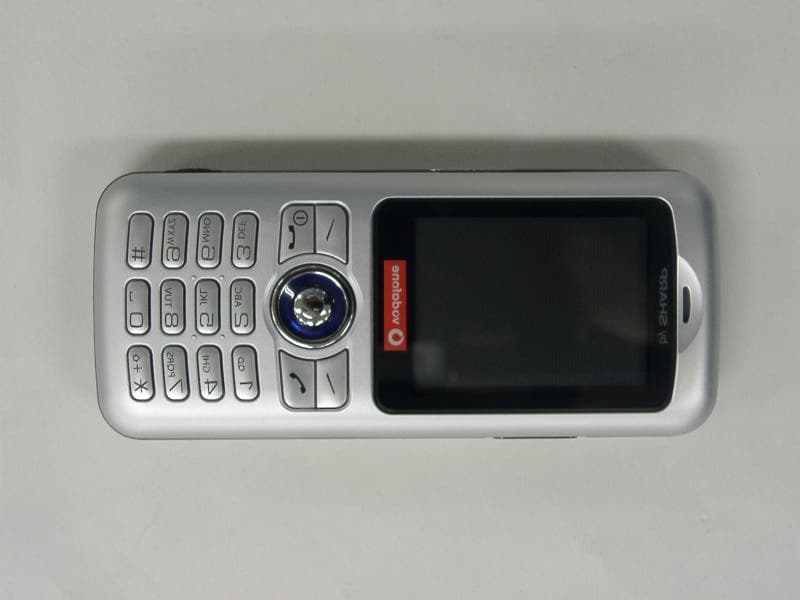

GX15Photo(External)

GX15Photo(Internal) GX15Photo(Internal) BlueTooth chip GX15Photo(Internal)

IssueDate:April15,2004 Page 1 of 22 TEST REPORTEMCSAR - JQA APPLICATION No.: KL80040001 Name of Product: GSM-PCS Phonewith Bluetooth for USA and EU Model/Type No.: GX15 FCC ID: APYHRO00035 : Sharp Corporation, Communication Systems GroupApplicant : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima,Address 739-0192, Japan : Sharp Corporation, Communication Systems GroupManufacturer : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima,Address 739-0192, Japan April 3, 2004Receive date of EUT: PassedFinal Judgement: are obtained TEST RESULTS IN THIS REPORT in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) under METI Japan, National Institute of Information and Communications Technology (NICT) under MPHPT Japan, and Authorized by:Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. only responds to the test THE TEST RESULTS Takashi Yamanaka, Directorsample. This test report shall not be reproduced JQA KITA-KANSAI Testing Centerexcept in full. Page 2 of 22 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 - 5 SAR Measurement Set-up6 Test Configuration Positions7 - 9 Measurement Process10 Measurement Uncertainties11 Test Conditions12 EUT Tune-up Procedure13 EUT Modification / Responsible Party / Deviation from Standard14 Test results15 Summary16 EUT Photographs17 B) Test data Test System Validation18 Tissue Simulant Verification19 SAR Measurement Data20 - 21 Appendix22 JQA Application No. : KL80040001Regulation : CFR 47 FCC Rules Part 2 Model No.: GX15Issue Date : April 15, 2004 FCC ID: APYHRO00035 JQA Application No. : KL80040001Regulation : CFR 47 FCC Rules Part 2 Model No.: GX15Issue Date : April 15, 2004 FCC ID: APYHRO00035 Page 3 of 22 TEST REGULATION FCC Rules and Regulations Parts 2 Subpart J (October 1, 2002) - Mobile Devices (§2.1091)- Occupational/Controlled Exposure{{ - Portable Devices (§2.1093)- General Population/Uncontrolled Exposurezz Test procedure: The SAR measurement procedures were specified in FCC/OET Bulletin 65 Supplement C (July, 2001) and IEEE Std 1528 -2003 TM TheexposurelimitswerespecifiedinANSI/IEEEC95.1-1999. GENERAL INFORMATION Description of the Equipment Under Test (EUT): 1) Name: GSM-PCS Phone with Bluetooth for USA and EU 2) Model/Type No.: GX15 3) Product Type: Pre-production (S/N: PP-236) 4) EUT Authorization: - Verification- Certification- D.o.C.{z { 5) Transmitting Frequency: 1850.20 MHz - 1909.80 MHz (PCS1900) 2402.00 MHz - 2480.00 MHz (Bluetooth) 6) Receiving Frequency: 1930.20 MHz - 1989.80 MHz (PCS1900) 2402.00 MHz - 2480.00 MHz (Bluetooth) 7) Max. RF Output Power: 29.20 dBm 8) Power Rating: 3.9VDC Note : This device contains GSM 900 MHz and DCS 1800 MHz functions not operational in U.S. territories. This report is only appliance for PCS 1900 MHz band. Definitions for symbols used in this test report: - Black box indicates that the listed condition, standard or equipment is applicablez for this Report. - Blank box indicates that the listed condition, standard or equipment is not applicable{ for this Report. JQA Application No. : KL80040001Regulation : CFR 47 FCC Rules Part 2 Model No.: GX15Issue Date : April 15, 2004 FCC ID: APYHRO00035 Page 4 of 22 Description of the Antenna: Type: Inverted F type antenna Dimensions: Maximum width 38.5 mm Maximum length 25.5 mm Location: Inside the back cover [Bluetooth Antenna] Type: Inverted L type antenna Dimensions: Maximum width 7.5 mm Maximum length 13.0 mm Location: Inside the back cover Battery Option: Lithium-ion Battery Pack XN-1BT30 (780mAh) Probe Specification: Construction: Symmetricaldesign with triangular core Built-in optical fiber for surface detection system Built-in shielding against static changes Calibration: In air form 10 MHz to 2.5 GHz In head tissue simulating liquid (HSL) and muscle tissue simulating liquid 900 MHz (accuracy ± 11.3%; k=2) 1800 MHz (accuracy ± 11.7%; k=2) 2450 MHz (accuracy ± 9.7%; k=2) Frequency: 10MHzto3GHz(dosimetry); Linearity: ±0.2 dB (30 MHz to 3 GHz) Directivity: ± 0.2 dB in HSL (rotation around probe axis) ± 0.4 dB in HSL (rotation normal probe axis) Dynamic Range: 5 μW/g to >100mW/g;Linearity:±0.2dB Surface Detection : ± 0.2 mm repeatability in air and clear liquids over diffuse reflecting surfaces Dimensions: Overall length 330 mm Tip length16 mm Body diameter 12 mm Tip diameter 6.8 mm Distance from probe tip to dipole centers 2.7 mm JQA Application No. : KL80040001Regulation : CFR 47 FCC Rules Part 2 Model No.: GX15Issue Date : April 15, 2004 FCC ID: APYHRO00035 Page 5 of 22 Twin SAM Phantom: The shell corresponds to the specifications of the Specific Anthropomorphic Mannequin (SAM) phantom defined in IEEE 1528-200X, CENELEC 50361 and IEC 62209. It enables the dosimetric evaluation of left and right head phone usage as well as body mounted usage at the flat phantom region. A cover prevents evaporation of the liquid. Reference markings on the phantom allow the complete setup of all predefined phantom positions and measurement grids by manually teaching three points with the robot. Shell Thickness: 2 ± 0.2 mm Filling Volume: Volume Approx. 25 liters Dimensions: 810 × 1000 × 500 mm (H × L × W) Mounting Device for Transmitters: The Mounting Device enables the rotation of the mounted transmitter in spherical coordinates, whereby the rotation point is the ear opening. The devices can be easily and accurately positioned according to IEC, IEEE, CENELEC, FCC or other specifications. The device holder can be locked at different phantom locations (left head, right head, flat phantom). Typical Composition of Ingredients for Liquid Tissue: IngredientsFrequency (MHz) (% by weight)83519002450 HeadBodyHeadBodyHeadBody Water41.4552.4054.9040.4062.7073.20 Salt (NaCl)1.451.400.180.500.500.04 Sugar56.0045.000.0058.000.000.00 HEC1.001.000.001.000.000.00 Bactericide 0.100.100.000.100.000.00 Triton X-1000.…

Text truncated - open the document above for the full version.

APPENDIX Exhibit 1 System Validation Plots Date/Time: 04/07/04 11:14:34 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Validation_HSL1800_040407.da4 System Validation DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 2d038 Program: Validation Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL1800 (σ = 1.389 mho/m, ε r = 38.53, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(5.15, 5.15, 5.15); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 92.1 V/m Power Drift = -0.02 dB Maximum value of SAR = 10.6 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 17.3 W/kg SAR(1 g) = 9.91 mW/g; SAR(10 g) = 5.18 mW/g Reference Value = 92.1 V/m Power Drift = -0.02 dB Maximum value of SAR = 11.1 mW/g 0 dB = 11.1mW/g Date/Time: 04/08/04 10:54:30 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Validation_M1800_040408.da4 System Validation DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 2d038 Program: Validation Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: M1800 (σ = 1.554 mho/m, ε r = 52.23, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(4.65, 4.65, 4.65); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Reference Value = 88.6 V/m Power Drift = -0.05 dB Maximum value of SAR = 10.7 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 16.6 W/kg SAR(1 g) = 9.93 mW/g; SAR(10 g) = 5.27 mW/g Reference Value = 88.6 V/m Power Drift = -0.05 dB Maximum value of SAR = 11.1 mW/g 0 dB = 11.1mW/g

APPENDIX Exhibit 2 SAR Test Plots Date/Time: 04/07/04 12:41:14 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Left_low_touch.da4 Cheek/Touch 0512ch (1850.20MHz) DUT: GSM-PCS Phone with Bluetooth; Type: GX15; Serial: PP-236 Program: Left Head Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.5 Medium: HSL1900 (σ = 1.373 mho/m, ε r = 38.73, ρ = 1000 kg/m 3 ) Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(5.15, 5.15, 5.15); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Cheek/Touch Position/Area Scan (13x8x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 8.91 V/m Power Drift = 0.04 dB Maximum value of SAR = 0.295 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.397 W/kg SAR(1 g) = 0.274 mW/g; SAR(10 g) = 0.163 mW/g Reference Value = 8.91 V/m Power Drift = 0.04 dB Maximum value of SAR = 0.303 mW/g 0 dB = 0.303mW/g Date/Time: 04/07/04 13:02:56 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Left_middle_touch.da4 Cheek/Touch 0661ch (1880.00MHz) DUT: GSM-PCS Phone with Bluetooth; Type: GX15; Serial: PP-236 Program: Left Head Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.5 Medium: HSL1900 (σ = 1.373 mho/m, ε r = 38.73, ρ = 1000 kg/m 3 ) Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(5.15, 5.15, 5.15); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Cheek/Touch Position/Area Scan (13x8x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 9.3 V/m Power Drift = 0.08 dB Maximum value of SAR = 0.304 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.415 W/kg SAR(1 g) = 0.282 mW/g; SAR(10 g) = 0.166 mW/g Reference Value = 9.3 V/m Power Drift = 0.08 dB Maximum value of SAR = 0.308 mW/g 0 dB = 0.308mW/g Date/Time: 04/07/04 13:24:26 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Left_high_touch.da4 Cheek/Touch 0810ch (1909.80MHz) DUT: GSM-PCS Phone with Bluetooth; Type: GX15; Serial: PP-236 Program: Left Head Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.5 Medium: HSL1900 (σ = 1.373 mho/m, ε r = 38.73, ρ = 1000 kg/m 3 ) Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(5.15, 5.15, 5.15); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Cheek/Touch Position/Area Scan (13x8x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 9.95 V/m Power Drift = -0.05 dB Maximum value of SAR = 0.354 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.521 W/kg SAR(1 g) = 0.349 mW/g; SAR(10 g) = 0.2 mW/g Reference Value = 9.95 V/m Power Drift = -0.05 dB Maximum value of SAR = 0.387 mW/g 0 dB = 0.387mW/g Date/Time: 04/07/04 15:05:06 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Left_low_tilt.da4 Ear/Tilt 0512ch (1850.20MHz) DUT: GSM-PCS Phone with Bluetooth; Type: GX15; Serial: PP-236 Program: Left Head Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.5 Medium: HSL1900 (σ = 1.373 mho/m, ε r = 38.73, ρ = 1000 kg/m 3 ) Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(5.15, 5.15, 5.15); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Ear/Tilt Position/Area Scan (13x8x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 7.14 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.0821 mW/g Ear/Tilt Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.125 W/kg SAR(1 g) = 0.0787 mW/g; SAR(10 g) = 0.0493 mW/g Reference Value = 7.14 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.0837 mW/g 0 dB = 0.0837mW/g Date/Time: 04/07/04 14:42:12 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION File Name: Left_middle_tilt.da4 Ear/Tilt 0661ch (1880.00MHz) DUT: GSM-PCS Phone with Bluetooth; Type: GX15; Serial: PP-236 Program: Left Head Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.5 Medium: HSL1900 (σ = 1.373 mho/m, ε r = 38.73, ρ = 1000 kg/m 3 ) Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1678; ConvF(5.15, 5.15, 5.15); Calibrated: 2004/02/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2004/02/06 zPhantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 zMeasurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Ear/Tilt Position/Area Scan (13x8x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 7.43 V/m Power Drift = 0.07 dB Maximum value of SAR = 0.0864 mW/g Ear/Tilt Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.132 W/kg SAR(1 g) = 0.0824 mW…

Text truncated - open the document above for the full version.

APPENDIX Exhibit 3 Dosimetric E-Field Probe - ET3DV6, S/N: 1678 Calibration Data

APPENDIX Exhibit 4 System Validation Dipole - D1800V2, S/N: 2d038 Calibration Data

Date/Time: 08/31/04 15:34:36 Test Laboratory: Compliance Certification Services File Name: 1_Left Hand Side_GSM1900.da4 DUT: Sharp; Type: GX15; Serial: N/A Program Name: Compliance Testing: OET 65 Supplement C Protocol (Left-Hand Side) Ambient Temp.: 25.0 deg. C; Liquid Temp.: 24.0 deg. C Area scan setting - Find secondary maximum within: 2.0 dB (58.35%) Zoom Scan setting - Maximum number of cubes to merasure: 2 Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 1909.8 MHz; σ = 1.42 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(8.98, 8.98, 8.98); Calibrated: 7/18/2004 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 Touch position - Middle 2/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.381 mW/g Touch position - Middle 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 10.6 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 0.449 W/kg SAR(1 g) = 0.304 mW/g; SAR(10 g) = 0.178 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.378 mW/g 0 dB = 0.378mW/g Date/Time: 08/31/04 15:34:36 Test Laboratory: Compliance Certification Services File Name: 1_Left Hand Side_GSM1900.da4 DUT: Sharp; Type: GX15; Serial: N/A Program Name: Compliance Testing: OET 65 Supplement C Protocol (Left-Hand Side) Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8 Medium parameters used (interpolated): f = 1909.8 MHz; σ = 1.42 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Left Section Touch position - Middle 2/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.243 mW/g Date/Time: 08/31/04 17:06:26 Test Laboratory: Compliance Certification Services File Name: 2_Body worn_GPRS_2 Slots.da4 DUT: Sharp; Type: GX15; Serial: N/A Program Name: Compliance Testing: OET 65 Supplement C Protocol (Left-Hand Side) Ambient Temp.: 25.0 deg. C; Liquid Temp.: 24.0 deg. C Area scan setting - Find secondary maximum within: 2.0 dB (58.35%) Zoom Scan setting - Maximum number of cubes to merasure: 2 Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:4 Medium parameters used (interpolated): f = 1909.8 MHz; σ = 1.56 mho/m; ε r = 53.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(8.1, 8.1, 8.1); Calibrated: 7/18/2004 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 d = 15 mm/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.689 mW/g d = 15 mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 13.2 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.793 W/kg SAR(1 g) = 0.558 mW/g; SAR(10 g) = 0.361 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.691 mW/g 0 dB = 0.691mW/g Date/Time: 08/31/04 17:06:26 Test Laboratory: Compliance Certification Services File Name: 2_Body worn_GPRS_2 Slots.da4 DUT: Sharp; Type: GX15; Serial: N/A Program Name: Compliance Testing: OET 65 Supplement C Protocol (Left-Hand Side) Communication System: GSM1900; Frequency: 1909.8 MHz;Duty Cycle: 1:4 Medium parameters used (interpolated): f = 1909.8 MHz; σ = 1.56 mho/m; ε r = 53.1; ρ = 1000 kg/m 3 Phantom section: Flat Section d = 15 mm/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.429 mW/g

Date/Time: 08/31/04 13:52:12 Test Laboratory: Compliance Certification Services File Name: D1900V2 SN5d043_083104.da4 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Program Name: System Performance Check at 1900 MHz Ambient Temp.: deg. 25.0 C; Liquid Temp.: 24.0 deg. C Area scan seting - Find secondary maximum within: 2.0 dB (58.35%) Zoom scan setting - Maximum number of cubes to merasure: 2 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3531; ConvF(8.98, 8.98, 8.98); Calibrated: 7/18/2004 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 123 d=10mm; Pin=250mW 2/Area Scan (6x6x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 6.14 mW/g d=10mm; Pin=250mW 2/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 102.0 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 9.7 mW/g; SAR(10 g) = 5.04 mW/g Maximum value of SAR (measured) = 14 mW/g 0 dB = 14mW/g Date/Time: 08/31/04 13:52:12 Test Laboratory: Compliance Certification Services File Name: D1900V2 SN5d043_083104.da4 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm; Pin=250mW 2/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 18.2 mW/g

IssueDate:April15,2004 Page 1 of 36 TEST REPORTEMCEMISSION - JQA APPLICATION No.: KL80040002 Name of Product: GSM-PCS Phone with Bluetooth for USA and EU Model/Type No.: GX15 FCC ID: APYHRO00035 Applicant: Sharp Corporation, Communication Systems Group Address: 2-13-1, Iida Hachihonmatsu, Higashihiroshima-city, : Hiroshima 739-0192, JAPAN Manufacturer: Sharp Corporation, Communication Systems Group Address: 2-13-1, Iida Hachihonmatsu, Higashihiroshima-city, : Hiroshima 739-0192, JAPAN April 3, 2004Receive date of EUT: passedFinal Judgement: are obtained in use of equipment that is traceable to National TEST RESULTS IN THIS REPORT Institute of Advanced Industrial Science and Technology (AIST) under METI Japan and National Institute of Information and Communications Technology(NICT) under MPHPT Japan. only responds to the test sample. This test report shall not be reproduced THE TEST RESULTS except in full. Authorized by: Takashi Yamanaka, Director JQA KITA-KANSAI Testing Center Page 2 of 36 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 - 4 Test Conditions5-18 Configuration of EUT / Operation mode of the EUT19 - 20 EUT Modification / Responsible Party / Deviation from Standard21 Test results / Measurement Uncertainty22 - 24 Summary25 26Test System-Arrangement (Drawings) 27Test-setup (Photographs) at worst case B) Test data - PCS1900 - Transmitter Power(TP)28 Antenna Conducted Spurious Emission29 - 30 Transmitter Power(EIRP)31 Unwanted Radiation32 - 33 Occupied Bandwidth34 Band-Edge Emission35 Frequency Stability36 JQA Application No.: KL80040002Regulation: CFR 47…
