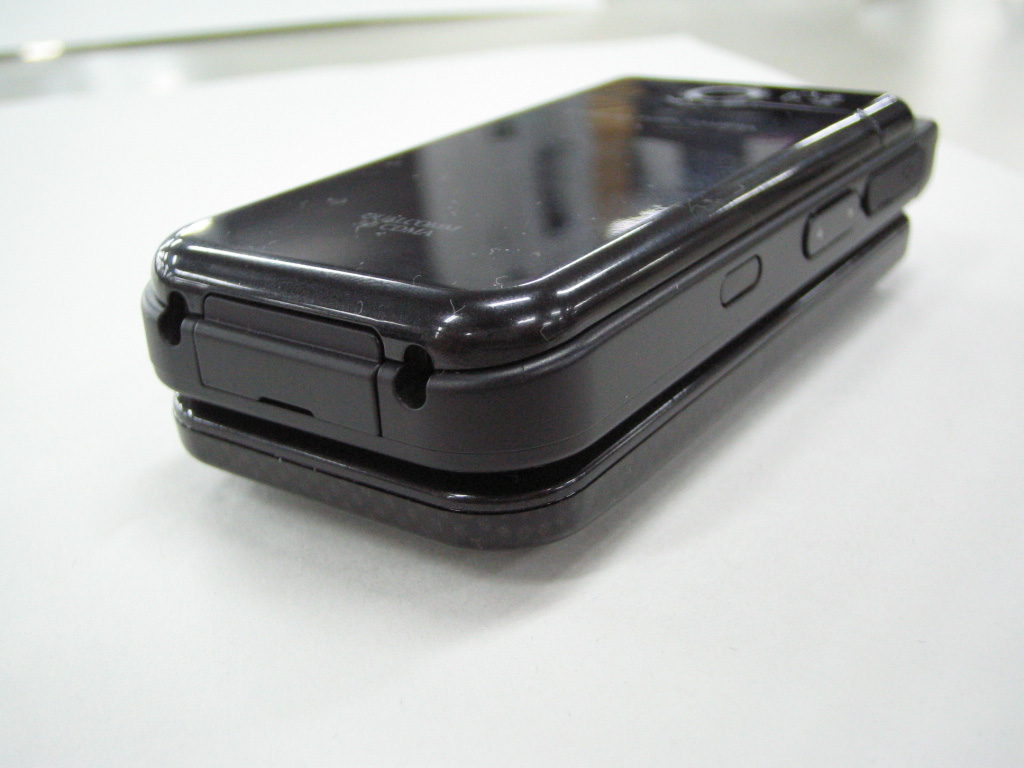

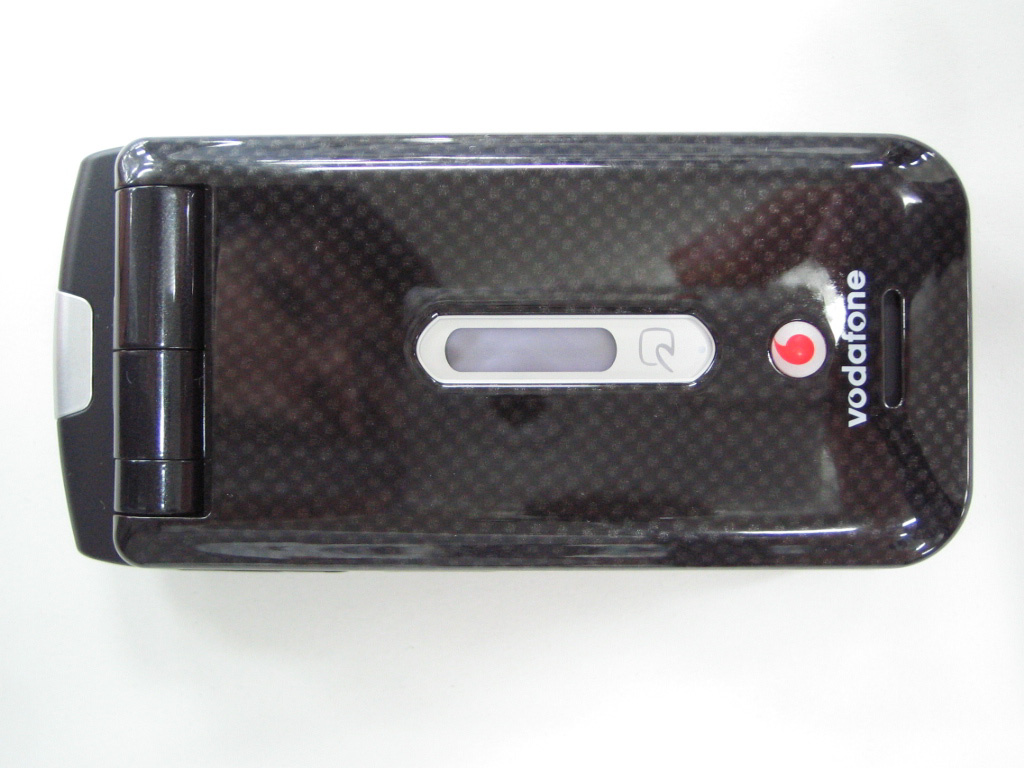

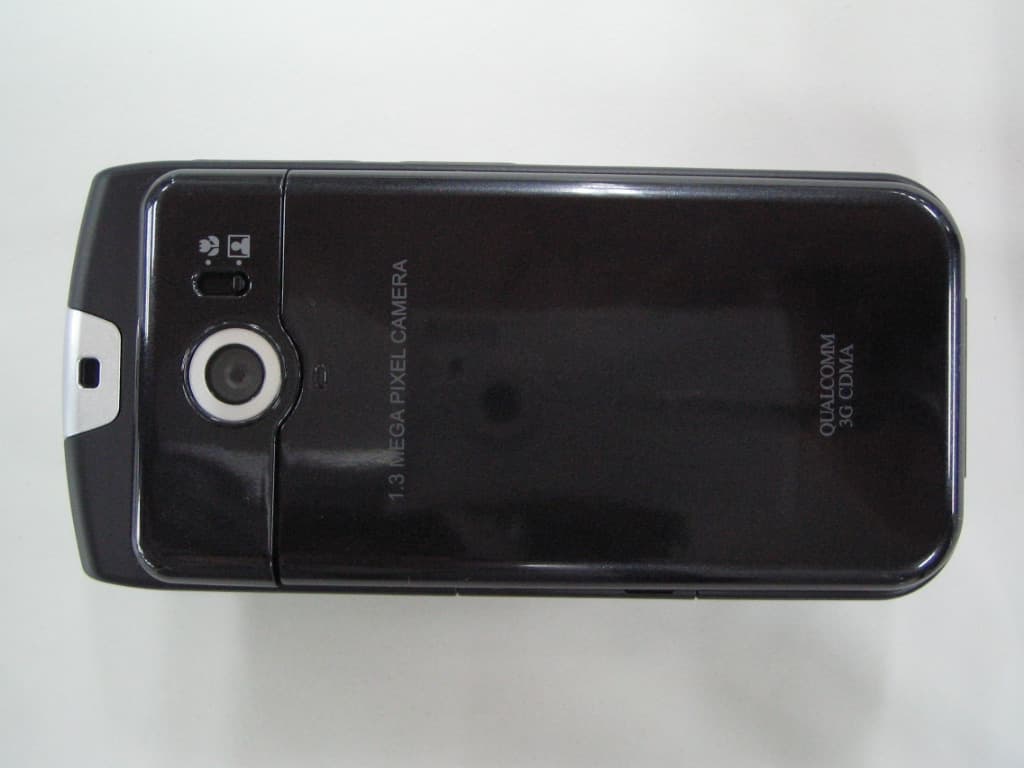

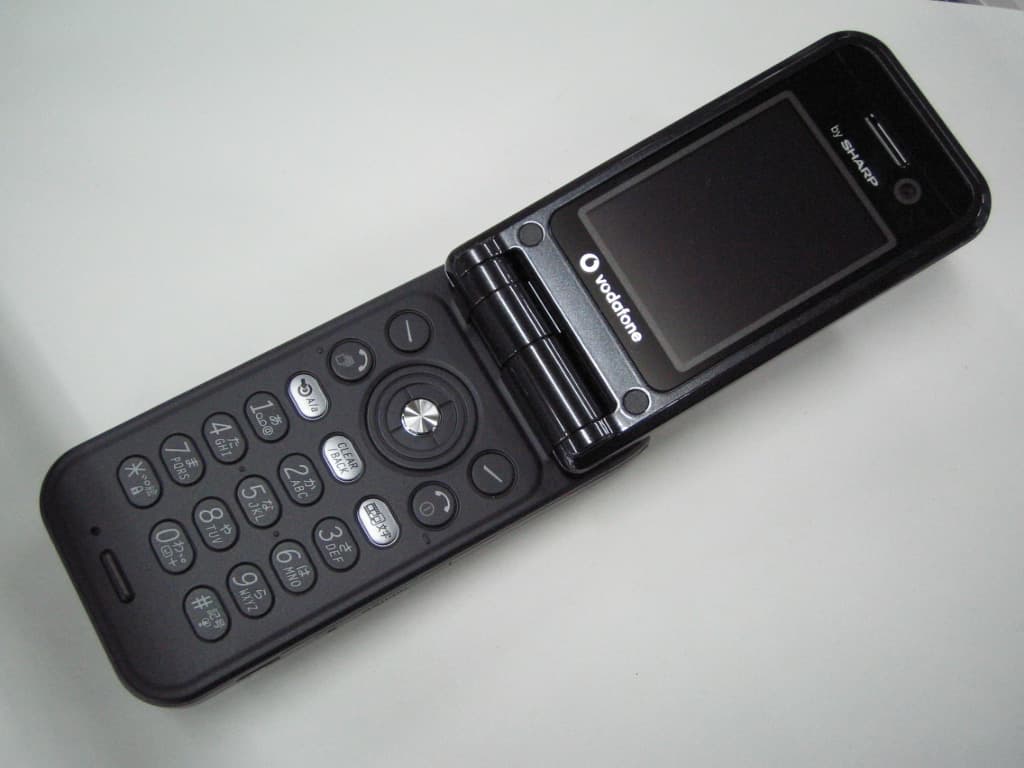

APYHRO00043PCS Cellular Phone W/ Bluetooth

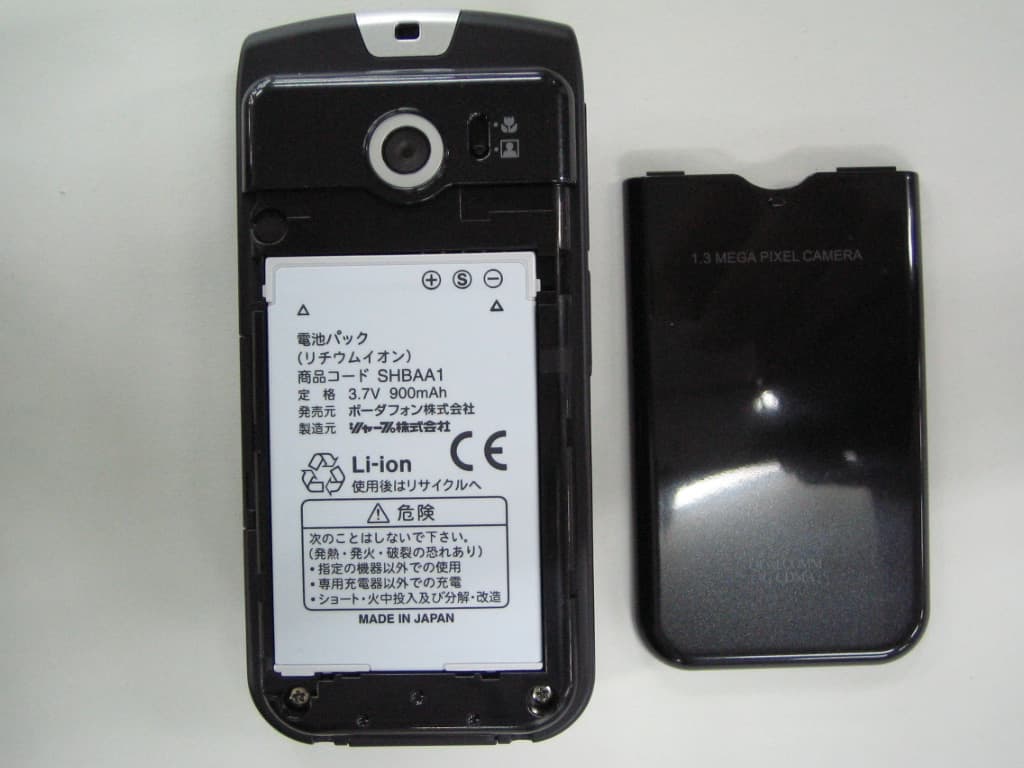

18-1 Abridged English Manual For more information about handset operations and functions, please go to the Vodafone K.K. Website (www.vodafone.jp) for the full manual* or dial 157 from a Vodafone handset for Customer Service. * Please note, full English manual was created for Sharp 703, sold in the UK, and thus may include information/features specific to that model and exclude Japan-specific services, etc. L260_insatsu.book 1 ページ ２００５年８月２４日 水曜日 午前１１時２６分 18-2 Abridged English Manual 18 Accessories ■ Lithium-ion Battery (Type 1) (SHBAA1)* ■ Headphones ■ AC Charger (SHCAA1)* ■ Utility Software (CD-ROM) * May also be purchased separately. Tip X . For accessory-related information, please contact Vodafone Customer Centre, General Information ( AP.18-44 ). . 703SHf is compatible with miniSD™ Memory Card; miniSD™ Memory Card is not included in this package. Purchase miniSD™ Memory Card to use Memory Card-related handset functions. L260_insatsu.book 2 ページ ２００５年８月２４日 水曜日 午前１１時２６分 18-3 Abridged English Manual 18 . Read safety precautions before using handset. . Observe precautions to avoid injury to self or others, or damage to property. . Vodafone is not liable for any damages resulting from use of this product. ■ Symbols Make sure you thoroughly understand these symbols before reading on. Symbols and their meanings are described below: Safety Precautions Before Using Handset 0 DANGER Great risk of death or serious injury from improper use 0 WARNING Risk of death or serious injury from improper use 0 CAUTION Risk of injury or damage to property from improper use 12345 Prohibited Actions 67 Compulsory Actions 0 Attention Required 0 DANGER Handset, Battery & Charger 6 Use only the specified battery, Charger or Holder. Using non-specified equipment may cause malfunctions, electric shock or fire due to battery leakage, overheating or bursting. 1 Do not short-circuit Charger Terminals. Keep metal objects away from Charger Terminals. Keep handset away from jewellery. Battery may leak, overheat, burst or ignite causing injury. Use a case to carry handset. Battery 1 Prevent injury from battery leakage, breakage or fire. Do not:« Heat or dispose of battery in fire. « Disassemble, modify or break battery. « Damage or solder battery. « Use a damaged or deformed battery. « Use non-specified charger. « Force battery into handset. « Charge or place battery near fire, heat sources or expose it to extreme heat. « Use battery for other equipment. 1 If battery fluid gets into eyes, do not rub them. Rinse with clean water and consult a doctor immediately. Eyes may be severely damaged. L260_insatsu.book 3 ページ ２００５年８月２４日 水曜日 午前１１時２６分 18-4 Abridged English Manual 18 0 WARNING Handset, Battery & Charger 1 Do not insert foreign objects into handset. Do not place metal or flammable objects in handset, Charger or Holder. This may cause fire or electric shock. Keep handset out of the reach of children. 3 Keep handset out of rain or extreme humidity. Fire or electric shock may occur. 1 Keep handset away from liquid-filled containers. Keep handset, Charger and Holder away from chemicals/liquids. Fire or electric shock may result. 1 Avoid sources of fire. Prevent fire or explosion. Do not use handset in the presence of gas or fine particles (coal, dust, metal, etc.). 1 Keep handset, Charger or Holder away from microwave ovens. Battery or handset may leak, burst, overheat or ignite and cause accidents. 2 Do not disassemble or modify handset.« Do not open housing of handset, Charger or Holder; may cause electric shock or injury. Contact Vodafone Customer Centre, Customer Assistance for repairs. « Do not modify handset, Charger or Holder. Fire or electric shock may result. 1 Do not subject handset to shocks. Subjecting handset, Charger or Holder to shocks may cause malfunction or injury. Should the handset break, remove the battery and contact Vodafone Customer Centre, Customer Assistance. Discontinue handset use. Fire or electric shock may occur. 7 If water or foreign matter is inside handset: Discontinue handset use to prevent fire or electric shock. Turn handset power off, remove battery, unplug Charger and contact Vodafone Customer Centre, Customer Assistance. 7 If an abnormality occurs: Should there be unusual sound, smoke or odour, discontinue handset use to avoid fire or electric shock. Turn handset power off, remove battery and unplug Charger and contact Vodafone Customer Centre, Customer Assistance. L260_insatsu.book 4 ページ ２００５年８月２４日 水曜日 午前１１時２６分 18-5 Abridged English Manual 18 Handset 1 Preventing accidents« For safety, never use handset while driving. Pull over beforehand. Mobile phone use while driving is prohibited by the revised Road Traffic Law (effective 1 November 2004). « Do not use headphones while driving or riding a bicycle. Accidents may result. « Moderate volume outside, especially at level/road crossings to avoid accidents. 1 Do not swing handset by handstrap. May result in injury or breakage. 6 Turn handset power off before boarding aircraft. Using wireless devices aboard aircraft may cause electronic malfunctions or endanger aircraft operation. 6 Adjust vibration and Ringtone settings: Select settings carefully if you have a heart condition or wear pacemaker/defibrillator. 6 During thunderstorms, turn power off; find cover. There is a risk of lightning strike or electric shock. Charger 1 Use only the specified voltage. Non-specified voltages may cause fire or electric shock.« AC Charger: 100 - 240 VAC , Vodafone is not liable for problems caused by charging handset abroad. « In-Car Charger: 12/24 VDC 1 Do not use commercially available transformers. Use of AC Charger with commercially available transformers may cause fire, electric shock or damage. 1 Do not use In-Car Charger inside vehicles with a positive earth. Fire may result. Use In-Car Charger only inside vehicles with a negative earth. 4 Charger Care Do not touch blades with wet hands. Electric shock may occur. 1 « Do not use multiple cords in o…

Text truncated - open the document above for the full version.

Model Description FCC ID : APYHRO00043 Model Name : 703SHf ( Development Code: Lyra II ,Internal Name: JN-J260 / JN-L260) Type of Emission : 246KGXW Brand Name : Vodafone by Sharp Type of Equipment : WCDMA & Tri-band (900/1800/1900) GSM Dual mode Mobile Phone / Bluetooth Enable Specification Items WCDMA : TX 1922.6 to 1977.4MHz RX 2112.6 to 2167.4MHz 900MHz : Tx 880.2 to 914.8MHz Rx 925.2 to 959.8MHz 1800MHz : Tx 1710.2 to 1784.8MHz Rx 1805.2 to 1879.8MHz 1900MHz : Tx 1850.2 to 1909.8MHz Rx 1930.2 to 1989.8MHz (WCDMA & GSM900/1800MHz Band do not operate in USA) Frequency Band Bluetooth : TX 2402MHz to 2480MHz RX 2402MHz to 2480MHz Tx Power (Mobile Phone) WCDMA 23dBm±1dB 900MHz 33dBm2dB 1800MHz 30dBm±2dB 1900MHz 30dBm±2dB Tx Power (Bluetooth) +4dBm, Class2 Type of Modulation (Mobile Phone) WCDMA : G1A, G1B, G1C, G1D, G1E, G1F, G1X, G7W GSM : GXW Bluetooth : GFSK Transmission Technology WCDMA : DS/CDMA, FDD GSM : FDMA/TDMA Bluetooth : FHSS Voice Codec WCDMA : AMR GSM : EFR/ FR/ HR GPRS Class B, Class 10 (Total 5slots, TX: max 2 / RX: max 4) Antenna (Mobile & Bluetooth) Integrated Antenna: Reversed Mono-pole L-Type SIM Plug-in 3V SIM card slot Display Main LCD 262,144color TFT(ASV), 240(W)320(H) with Backlight Sub LCD Monochrome FSTN,12(W)72(H) with Backlight Camera Main camera has a lever for taking close-up picture. (Main) C-MOS 1.3M pixel Resolution (Sub) C-MOS 110,000 pixel WAP Browser OPENWAVE (WAP 2.0) Battery/Talk time Capacity 900mAh Battery Type Rechargeable Lithium-Ion Battery Standby time T.B.D MAIN SPECIFICATION Talk time T.B.D [ Target: 150min(WCDMA) / 240min(GSM) ] Dimensions Target size 47.3 x 100.8 x 24.4 Target weight 110g Key Layout Soft key1, Soft key2, Navigation key, Center key, Custom key, 0-9mumeric key, Send/End key, *,# and 3 side key Bar code (JAN/QR) Scan / Decode , Encode (make a image file) Bluetooth Ver 1.1(Headset/Handsfree/Dial up/Object push) IrDA Ver 1.2 External Connector FeliCa for Electronic Money Service (Edy) SD SD Audio Ver 1.0 Head set for Stereo Headset(10 pins) MCPC connector USB, PC Link cable SIM card terminal 1slot SD card terminal for mini SD card [1 slot] External Interface Integrated charger circuit The terminals of charging are for using a cradle. Stereo Handsfree Earphone with Mic AC Charger Input AC 100 to 240V , Output DC 5.2V Accessory Battery Lithium-Ion, DC3.7V/ 900mAh

Test report No. : 25KE0218-HO-1b Page : 1 of 40 Issued date : August 26, 2005 Revised date : September 22, 2005 FCC ID : APYHRO00043 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) EMI TEST REPORT Test Report No. : 25KE0218-HO-1b Applicant : Sharp Corporation Type of Equipment : GSM & WCDMA Cellular Phone Model No. : 703SHf FCC ID : APYHRO00043 Test standard : FCC Part 15 Subpart C Section 15.207, Section 15.247: 2005 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with the above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. Date of test: _____________________________ Tested by: ______________________________ ______________________________ Kenichi Adachi EMC Services Norihisa Hashimoto EMC Services Approved by : ______________________________ Naoki Sakamoto Group Leader of EMC Services August 18, 19, and 24, 2005 Test report No. : 25KE0218-HO-1b Page : 2 of 40 Issued date : August 26, 2005 Revised date : September 22, 2005 FCC ID : APYHRO00043 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) CONTENTS PAGE SECTION 1: Client information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.)..................................................................................... 3 SECTION 3: Test specification, procedures & results...................................................................... 5 SECTION 4: Operation of E.U.T. during testing .............................................................................. 8 SECTION 5: Conducted Emission...................................................................................................... 9 SECTION 6: Spurious Emission....................................................................................................... 10 SECTION 7: Bandwidth .................................................................................................................... 11 SECTION 8: Maximum Peak Output Power .................................................................................. 11 SECTION 9: Carrier Frequency Separation ................................................................................... 11 SECTION 10: Number of Hopping Frequency ............................................................................... 11 SECTION 11: Dwell time................................................................................................................... 11 APPENDIX 1: Photographs of test setup .........................................................................................12 Conducted Emission ............................................................................................................................12 Spurious Emission (Radiated) ............................................................................................................13 Worst Case Position (X-axis:Horizontal / Z-axis:Vertical) ..............................................................14 APPENDIX 2:Test instruments ......................................................................................................... 15 APPENDIX 3: Data of EMI test......................................................................................................... 16 Conducted Emission ............................................................................................................................16 Carrier Frequency Separation............................................................................................................19 20dB Bandwidth...................................................................................................................................21 Number of Hopping Frequency ..........................................................................................................23 Dwell time .............................................................................................................................................25 Maximum Peak Output Power ...........................................................................................................28 Radiated Spurious Emission ...............................................................................................................30 Conducted Spurious Emission ............................................................................................................36 99% Occupied Bandwidth ..................................................................................................................40 Test report No. : 25KE0218-HO-1b Page : 3 of 40 Issued date : August 26, 2005 Revised date : September 22, 2005 FCC ID : APYHRO00043 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) SECTION 1: Client information Company Name : Sharp Corporation Brand Name : SHARP Address : 2-13-1 Iida Hachihonmatsu HigashiHiroshima-City,Hiroshima-pref. Japan Telephone Number : +81-82-420-1592 Facsimile Number : +81-82-420-1852 Contact Person : Keichoh Arima SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : GSM & WCDMA Cellular Phone Model No. : 703SHf Serial No. : 004400/01/056813/5 for Antenna Terminal 004400/01/056817/6 for Radiated Emission and Conducted Emission Country of Manufacture : China Condition of EUT : Production prototype (…

Text truncated - open the document above for the full version.

Test report No. : 25KE0218-HO-1a Page : 12 of 40 Issued date : August 26, 2005 Revised date : August 29, 2005 FCC ID : APYHRO00043 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 25KE0218-HO-1a Page : 13 of 40 Issued date : August 26, 2005 Revised date : August 29, 2005 FCC ID : APYHRO00043 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Spurious Emission (Radiated) Front Rear Test report No. : 25KE0218-HO-1a Page : 14 of 40 Issued date : August 26, 2005 Revised date : August 29, 2005 FCC ID : APYHRO00043 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Worst Case Position (X-axis:Horizontal / Z-axis:Vertical) X-axis Y-axis Z-axis
