APYHRO00045PCS Cellular Phone W/ Bluetooth

20-1 Abridged English Manual For more information about handset operations and functions, please go to the Vodafone K.K. Website (www.vodafone.jp) for the full manual* or dial 157 from a Vodafone handset for Customer Service. *P lease note that the full manual may not be available in English at time of purchase. In this case, call Customer Service or check Vodafone Website again at a later date. J510_insatsu.book 1ページ ２００６年３月８日 水曜日 午後４時３９分 20-2 Abridged English Manual 20 Accessories ■ Lithium-ion Battery (Type 1)(SHBAJ1) ■ AC Charger (SHCAA1) ■ Utility Software (CD-ROM) ★ * * Upgrades or updates of included Utility Software may become available on the Vodafone Website (http://www.vodafone.jp) without prior notification. Please check for the newest versions of utility applications and download as required. ★ Complimentary sample not available for purchase Note X Supplied Utility Software is designed exclusively for 904SH. Tip X . For accessory-related information, please contact Vodafone Customer Centre, General Information (see P.20-49 ). . 904SH is compatible with miniSD™ Memory Card; miniSD™ Memory Card is not included in this package. Purchase miniSD™ Memory Card to use Memory Card-related handset functions. . In this manual, miniSD™ Memory Card is referred to as "Memory Card". J510_insatsu.book 2ページ ２００６年３月８日 水曜日 午後４時３９分 20-3 Abridged English Manual 20 . Read safety precautions before using handset. . Observe precautions to avoid injury to self or others, or damage to property. . Vodafone is not liable for any damages resulting from use of this product. ■ Symbols Make sure you thoroughly understand these symbols before reading on. Symbols and their meanings are described below: Safety Precautions Before Using Handset 0 DANGER Great risk of death or serious injury from improper use 0 WARNING Risk of death or serious injury from improper use 0 CAUTION Risk of injury or damage to property from improper use 12345 Prohibited Actions 67 Compulsory Actions 0 Attention Required 0 DANGER Handset, Battery & Charger 6 Use specified battery, Charger and Desktop Holder. Using non-specified equipment may cause malfunctions, electric shock or fire due to battery leakage, overheating or bursting. 1 Do not short-circuit Charger terminals. Keep metal objects away from Charger terminals. Keep handset away from jewellery. Battery may leak, overheat, burst or ignite causing injury. Use a case to carry handset. Battery 1 Prevent injury from battery leakage, breakage or fire. Do not:« Heat or dispose of battery in fire « Open/modify/disassemble battery « Damage or solder battery « Use a damaged or deformed battery « Use non-specified charger « Force battery into handset « Charge battery near fire or sources of heat; or expose it to extreme heat « Use battery for other equipment 6 If battery fluid contacts eyes, do not rub them. Rinse with clean water and consult a doctor immediately. Eyes may be severely damaged. J510_insatsu.book 3ページ ２００６年３月８日 水曜日 午後４時３９分 20-4 Abridged English Manual 20 0 WARNING Handset, Battery & Charger 1 Do not insert foreign objects into the handset, Charger or Desktop Holder. Do not insert metal or flammable objects into handset, Charger or Desktop Holder; may cause fire or electric shock. Keep out of children's reach. 3 Keep handset out of rain or extreme humidity. Fire or electric shock may result. 1 Do not use Mobile Light near people's faces. Eyesight may be temporarily affected leading to accidents.CAUTION:Use of controls, adjustments or performance of procedure other than those specified herein may result in hazardous radiation exposure. As the emission level from Mobile Light LED used in this product is harmful to the eyes, do not attempt to disassemble the cabinet. Servicing is limited to qualified servicing station only. CLASS 1LED Product EN60825-1:1994 A1:2002 & A2:2001 1 Keep handset away from liquid-filled containers. Keep the handset, Charger and Desktop Holder away from chemicals or liquids; fire or electric shock may result. 1 Keep battery, handset, Charger or Desktop Holder away from microwave ovens. Battery, handset, Charger or Desktop Holder may leak, burst, overheat or ignite, leading to accidents or injury. 2 Do not disassemble or modify handset or related hardware.« Do not open handset, Charger or Desktop Holder; may cause electric shock or injury. Contact Vodafone Customer Centre, Customer Assistance for repairs. « Do not modify handset, Charger or Desktop Holder; fire or electric shock may result. 7 If water or foreign matter is inside handset: Discontinue handset use to prevent fire/electric shock. Turn off handset, remove battery and unplug Charger, then contact Vodafone Customer Centre, Customer Assistance. 1 Avoid sources of fire. Prevent fire or explosion. Do not use handset in the presence of gas or fine particles (coal, dust, metal, etc.). 1 Do not subject handset to strong shocks or impacts. Strong shocks or impacts to handset, Charger or Desktop Holder may cause malfunction or injury. Should handset be damaged, remove battery then contact Vodafone Customer Centre, Customer Assistance. Discontinue handset use; fire or electric shock may occur. 7 If an abnormality occurs: If a handset emits an unusual sound, smoke or odour, discontinue use; may cause fire or electric shock. Turn off handset, remove battery and unplug Charger; contact Vodafone Customer Centre, Customer Assistance. J510_insatsu.book 4ページ ２００６年３月８日 水曜日 午後４時３９分 20-5 Abridged English Manual 20 Handset 1 Take measures to prevent accidents.« For safety, never use handset while driving. Pull over beforehand. Mobile phone use while driving is prohibited by the revised Road Traffic Law (effective 1 November 2004). « Do not use headphones while driving or riding a bicycle. Accidents may result. « Moderate volume outside, especially at level/road crossings to avoid accidents. 1 Do not swing handset by handstrap. May result in injury or breakage. 6 Turn handset power off before boarding aircraft. …

Text truncated - open the document above for the full version.

20-29 Abridged English Manual 20 Save names with phone numbers, mail addresses, etc. to Phone Book. * Not supported on USIM Card. , Save up to 750 entries to handset Phone Book. On USIM Card, the number of entries you can save depends on the card specification. Depending on the USIM Card in use, some items may not be supported, and character entry limits or number of Categories may be lower. Also, the number of phone numbers or mail addresses per entry may be lower. Saving to Phone Book Phone Book Entry Items Item Description Last Name: Enter up to 32 characters. (Select Name: when saving to USIM Card.) First Name:Reading: Enter up to 64 characters Add Phone Number: Enter up to three numbers on handset/two on USIM Card (32 digits each) Add Email Address: Enter up to three addresses on handset/one on USIM Card (128 single-byte alphanumerics each) Category: Sort entries into 16 Categories (handset) and 11 Categories (USIM Card). Category names can be changed. Set Ringtone by Category (handset only). Address:* Enter postal code (20 characters), country name (32 characters), state/province (64 characters), city name (64 characters) and street name/number (64 characters) Homepage:* Save URLs. Enter up to 1024 bytes. Item Description Note:* Add personal details. Enter up to 256 characters. Birthday:* Enter birth date Picture:* Set an image to appear for incoming calls/mail Tone/Video for Voice Call:* Customise handset response to calls/mail Tone/Video for Video Call:*Tone/Video for New Message:*Light for Voice Call:*Light for Video Call:*Light for New Message:*Vibration for incoming Call:*Vibration for New Message:*Location Information:* Enter location information of other handsets Secret:* Restrict access to Phone Book entries by saving them as Secret Mode entries Note X Back-up Important Information When battery is exhausted/removed for long periods, Phone Book entries may be lost; handset damage may also affect handset information recovery. Vodafone is not liable for damages from lost/altered data. J510_insatsu.book 29 ページ ２００６年３月８日 水曜日 午後４時３９分 20-30 Abridged English Manual 20 Enter a name, reading, phone number and mail address. 1 Press % , select Phone Book and press % 2 Select Add New Entry and press % 3 Select Last Name: and press % 4 Enter last name and press % 5 Select First Name: and press % 6 Enter first name and press % Characters entered for names appear after Reading: . 7 Select Add Phone Number: and press % 8 Enter a phone number and press % 9 Select an icon and press % 1 11 1 0 00 0 Select Add Email Address: and press % 1 11 1 1 11 1 Enter a mail address and press % 1 11 1 2 22 2 Select an icon and press % 1 11 1 3 33 3 Press A ß 1 Press b and select an entry 2 Press B ø 3 Select Edit and press % 4 Select an item and press % 5 Edit contents and press % After numbers/mail addresses, select an icon and press % . 6 Press A ß New Phone Book Entries Tip X Correcting Reading Select Reading: and press % . Make corrections and press % . Note X Enter a name, phone number or mail address to create a Phone Book entry. Tip X Setting Storage Media Press % S Select Phone Book S Press % S Select Settings S Press % S Select Save New Entry S Press % S Select Phone , USIM Memory or Ask Each Time S Press % . For Ask Each Time , select storage media for each new entry. Editing Phone Book J510_insatsu.book 30 ページ ２００６年３月８日 水曜日 午後４時３９分 20-31 Abridged English Manual 20 1 Select a record (see P.20-24 "Calling from Received Calls") 2 Press B ø , select Save Number and press % 3 New Entry 1 Select As New Entry and press % 2 Perform Steps 3 - 13 on P.20-30 Add to Existing Entry 1 Select a Phone Book entry and press % 2 Press A ß 1 Press % , select Phone Book and press % 2 Select Settings and press % 3 Select Sort Entries and press % 4 Select By Reading , By Category or By Katakana and press % 1 Set search method to By Reading 2 In Standby, press b 3 Enter reading 4 Select a name and press % 5 Press ! Use this service to backup your Phone Book entries to Data Synchronisation Server. Edit entries on 904SH or PCs and periodically synchronise Phone Book List contents to reflect the changes. Should Phone Book entries be lost or altered, use Vodafone Address Book to restore them. For details, contact Vodafone Customer Centre, General Information (see P.20-49 ). Saving from Received Calls Dialling from Phone Book Changing Search Method By Reading Order Opens entries that start with specified Reading By Category Opens entries in the specified Category By Katakana Opens entries with readings that start with katakana in the specified row Tip X Opening Phone Book Entries on USIM CardPress % S Select Phone Book S Press % S Select Settings S Press % S Select Select Phone Book S Press % S Select USIM Memory S Press % Search by Reading Tip X Multiple NumbersUse e to select other numbers. Vodafone Address Book J510_insatsu.book 31 ページ ２００６年３月８日 水曜日 午後４時３９分 20-32 Abridged English Manual 20 Select from two different shooting modes. Use Photo Camera for still images and Video Camera for video. ■ Photo Camera ■ Video Camera * Not available for W 240 x H 176 dots (HQVGA). Camera Shake Handset movement may blur images; hold 904SH firmly or place it on a stable surface and use Self-timer. 1 Press % , select Camera and press % 2 Frame image on Display . If # appears at bottom of Display, press A V to switch to Photo Camera. 3 Press % 4 Press % to save image 5 Press " to exit Activate mobile camera and press ( to switch to Internal Camera; image appears as mirror image. Mobile Camera Before Using Camera Image Size W 1536 × H 2048 dots W 1200 × H 1600 dots W 960 × H 1280 dots W 768 × H 1024 dots W 480 × H 640 dots W 240 × H 320 dots W 120 × H 160 dots Save Location Handset or Memory Card File Format JPEG (.jpg) Image Size W 240 × H 176 dots (HQVGA) W 176 × H 144 dots (QCIF) W 128 × H 96 dots (SQCIF) W 480 × H 640 dots (VGA) W 240 × H 320 dots (QVGA) Save Location Handset or Memory Card Memory Card File Format MPEG-4 or H263* (.3g…

Text truncated - open the document above for the full version.

Model Description FCC ID : APYHRO00045 Model Name : 904SH (Development Code: Hazel, Internal Name: JN-J510) Type of Emission : 246KGXW Brand Name : Vodafone by Sharp Type of Equipment : WCDMA & Tri-band (900/1800/1900) GSM Dual mode Mobile Phone / Bluetooth Enable Specification Items WCDMA : TX 1922.6 to 1977.4MHz RX 2112.6 to 2167.4MHz 900MHz : Tx 880.2 to 914.8MHz Rx 925.2 to 959.8MHz 1800MHz : Tx 1710.2 to 1784.8MHz Rx 1805.2 to 1879.8MHz 1900MHz : Tx 1850.2 to 1909.8MHz Rx 1930.2 to 1989.8MHz (WCDMA & GSM900/1800MHz Band do not operate in USA) Frequency Band Bluetooth : TX 2402MHz to 2480MHz RX 2402MHz to 2480MHz Tx Power (Mobile Phone) WCDMA 23dBm±1dB 900MHz 33dBm2dB 1800MHz 30dBm±2dB 1900MHz 30dBm±2dB Tx Power (Bluetooth) Class2, Nominal 0dBm (Max +4dBm / min -6dBm) Type of Modulation (Mobile Phone) WCDMA : G1A, G1B, G1C, G1D, G1E, G1F, G1X, G7W GSM : GXW Bluetooth : GFSK Transmission Technology WCDMA : DS/CDMA, FDD GSM : FDMA/TDMA Bluetooth : FHSS Voice Codec WCDMA : AMR GSM : EFR/ FR/ HR GPRS Class B, Class 10 (Total 5slots, TX: max 2 / RX: max 4) Antenna (Mobile & Bluetooth) Integrated Antenna: Reversed Mono-pole L-Type SIM Plug-in 3V SIM card slot Display Main LCD 2.41”, 262,144color TFT(ASV), 480(W)640(H) with Backlight Sub LCD Monochrome FSTN,12(W)72(H) with Backlight Camera (Main) CCD 3.2M pixel Resolution (Sub) C-MOS 110,000 pixel WAP Browser ACCESS Net front Battery/Talk time Capacity 900mAh Battery Type Rechargeable Lithium-Ion Battery Standby time 350h MAIN SPECIFICATION Talk time 180min(WCDMA) / 280min(GSM) Dimensions Target size 50.0 x 110.3 x 28.1 mm Target weight 149g Key Layout Soft key1, Soft key2, Navigation key, Center key, Custom key, 0-9mumeric key, Send/End key, *,# and 5 side key Bar code (JAN/QR) Scan / Decode , Encode (make a image file) Bluetooth Ver 1.2(Headset/Handsfree/Dial up/Object push) IrDA Ver 1.2 External Connector FeliCa For Electronic Money Service ( Edy etc) SD SD Audio Ver 1.0 Video Connector For Video Cable or Stereo Headset(10 pins) MCPC connector For USB Cable or PC Link cable or AC Charger SIM Card terminal 1slot SD card terminal For miniSD card [1 slot] External Interface Integrated charger circuit The terminals of charging are for using a cradle. LCD Remote Controller Optional Accessories STEREO Headphone Optional Accessories USB Cable Optional Accessories Video Cable Optional Accessories AC Charger Input AC 100 to 240V , Output DC 5.2V / 650mA Accessories Battery Lithium-Ion, DC 3.7V / 900mAh

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 26 Technical document No. 23163-0501 JQA File No. : KL80050662 Issued Date : February 17, 2006 TEST REPORT (SAR EVALUATION) APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan APPLICANT : WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable MODEL NO. : 904SH SERIAL NO. : 004401/11/001311/4 FCC ID : APYHRO00045 TEST STANDARD : FCC/OET Bulletin 65 Supplement C (Edition 01-01) TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : February 7, 2006 - February 8, 2006 Yuichi Fukumoto Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80050662 Issue Date : February 17, 2006 Model No. : 904SH FCC ID : APYHRO00045 Regulation : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 2 of 26 Technical document No. 23163-0501 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation.....................................................................................................................................3 2 Test Location.........................................................................................................................................3 3 Recognition of Test Laboratory............................................................................................................3 4 Description of the Equipment Under Test..........................................................................................4 5 Measurement System Diagram............................................................................................................5 6 System Components..............................................................................................................................6 7 Measurement Process...........................................................................................................................8 8 Measurement Uncertainties.................................................................................................................9 9 Equipment Under Test Modification.................................................................................................11 10 Responsible Party................................................................................................................................11 11 Deviation from Standard....................................................................................................................11 12 Test Results.........................................................................................................................................12 13 Summary..............................................................................................................................................13 14 Test Arrangement...............................................................................................................................14 15 Equipment Under Test Tune-Up Procedures....................................................................................16 Appendix A: Test Data ................................................................................................................................... 17 A.1 System Validation...............................................................................................................................17 A.2 Tissue Verification..............................................................................................................................18 A.3 SAR Measurement Data.....................................................................................................................19 Appendix B: Test Instruments....................................................................................................................... 25 Appendix C: Attachments .............................................................................................................................. 26 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT “EUT” means Equipment Under the Test. “N/A” means that Not Applicable. “N/T” means that Not Tested. - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80050662 Issue Date : February 17, 2006 Model No. : 904SH FCC ID : APYHRO00045 Regulation : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 3 of 26 Technical document No. 23163-0501 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 2 Radio-frequency Radiation Exposure Evaluation (§2.1091 and §2.1093) Test Procedure : FCC/OET Bulletin 65 Supplement C (…

Text truncated - open the document above for the full version.

Attachment 1 – System Validation Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/08 10:45:44Date/Time: 2006/02/08 10:48:07 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 2d038 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL1800 Medium parameters used: f = 1800 MHz; σ = 1.36 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 10.9 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 94.0 V/m; Power Drift = -0.068 dB Peak SAR (extrapolated) = 16.6 W/kg SAR(1 g) = 9.57 mW/g; SAR(10 g) = 5.12 mW/g Maximum value of SAR (measured) = 10.8 mW/g 0 dB = 10.8mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/07 11:15:17Date/Time: 2006/02/07 11:23:57 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 2d038 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: M1800 Medium parameters used: f = 1800 MHz; σ = 1.46 mho/m; ε r = 53; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(4.54, 4.54, 4.54); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 10.7 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.0 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 15.6 W/kg SAR(1 g) = 9.49 mW/g; SAR(10 g) = 5.14 mW/g 0 dB = 10.7mW/g JAPAN QUALITY ASSURANCE ORGANIZATION

Attachment 2 – SAR Test Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/08 11:14:52Date/Time: 2006/02/08 11:20:17 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Cheek/Touch 661ch (1880.00MHz) - Open Style DUT: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable; Type: 904SH; Serial: 004401/11/001311/4 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.132 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.37 V/m; Power Drift = -0.103 dB Peak SAR (extrapolated) = 0.216 W/kg SAR(1 g) = 0.121 mW/g; SAR(10 g) = 0.069 mW/g Maximum value of SAR (measured) = 0.137 mW/g 0 dB = 0.137mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/08 11:37:27Date/Time: 2006/02/08 11:42:51 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Ear/Tilt 661ch (1880.00MHz) - Open Style DUT: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable; Type: 904SH; Serial: 004401/11/001311/4 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.061 mW/g Ear/Tilt Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.77 V/m; Power Drift = -0.027 dB Peak SAR (extrapolated) = 0.095 W/kg SAR(1 g) = 0.059 mW/g; SAR(10 g) = 0.035 mW/g Maximum value of SAR (measured) = 0.063 mW/g 0 dB = 0.063mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/08 14:02:11Date/Time: 2006/02/08 14:07:48 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Cheek/Touch 661ch (1880.00MHz) - Open Style DUT: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable; Type: 904SH; Serial: 004401/11/001311/4 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.175 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.05 V/m; Power Drift = -0.056 dB Peak SAR (extrapolated) = 0.251 W/kg SAR(1 g) = 0.162 mW/g; SAR(10 g) = 0.096 mW/g Maximum value of SAR (measured) = 0.177 mW/g 0 dB = 0.177mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/08 15:08:22Date/Time: 2006/02/08 15:14:14 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Ear/Tilt 661ch (1880.00MHz) - Open Style DUT: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable; Type: 904SH; Serial: 004401/11/001311/4 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.057 mW/g Ear/Tilt Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.30 V/m; Power Drift = -0.163 dB Peak SAR (extrapolated) = 0.088 W/kg SAR(1 g) = 0.053 mW/g; SAR(10 g) = 0.031 mW/g Maximum value of SAR (measured) = 0.056 mW/g 0 dB = 0.056mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/08 15:33:56Date/Time: 2006/02/08 15:39:30 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Cheek/Touch 512ch (1850.20MHz) - Viewer Style DUT: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable; Type: 904SH; Serial: 004401/11/001311/4 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1850.2 MHz; σ = 1.44 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; C…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 3 – Dosimetric E-Field Probe – ET3DV6, S/N: 1679 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4 – System Validation Dipole – D1800V2, S/N: 2d038 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 5 – Duty Cycle Plots Modulation Type: GSM Duty Cycle: 12.0 % (Crest Factor: 8.3) Modulation Type: GSM+GPRS (Level 10 / 2 slot) Duty Cycle: 24.0 % (Crest Factor: 4.2)

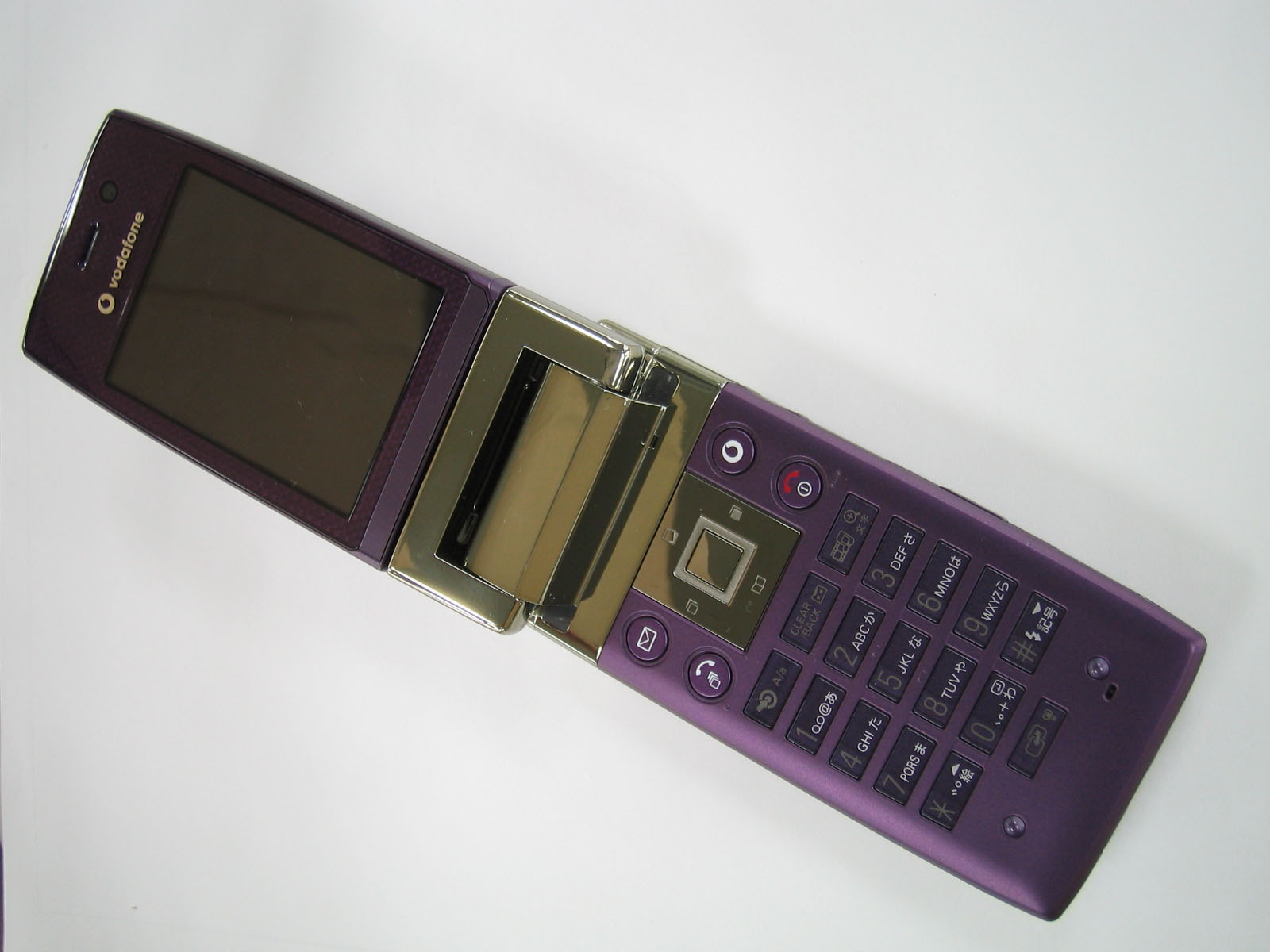

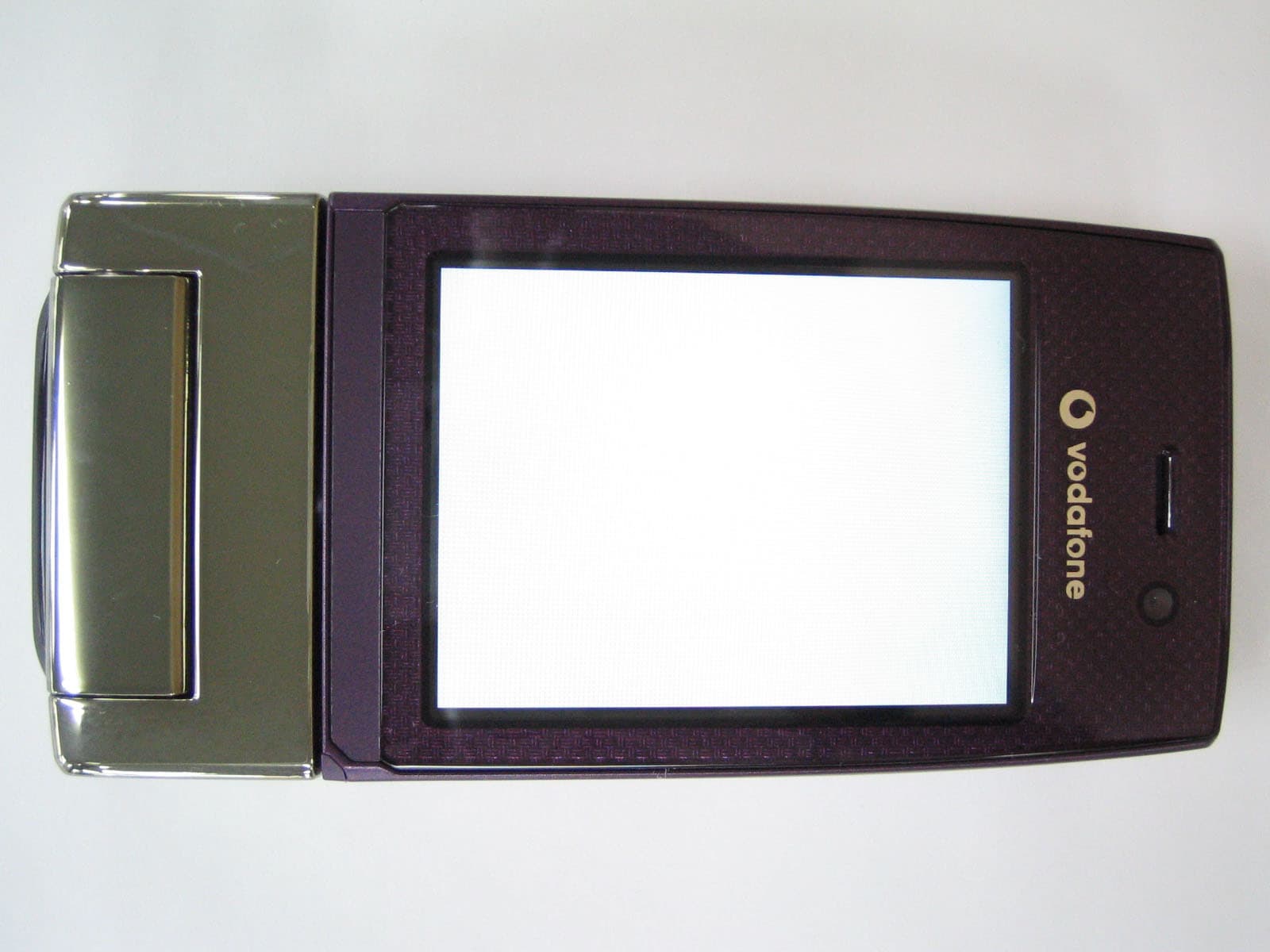

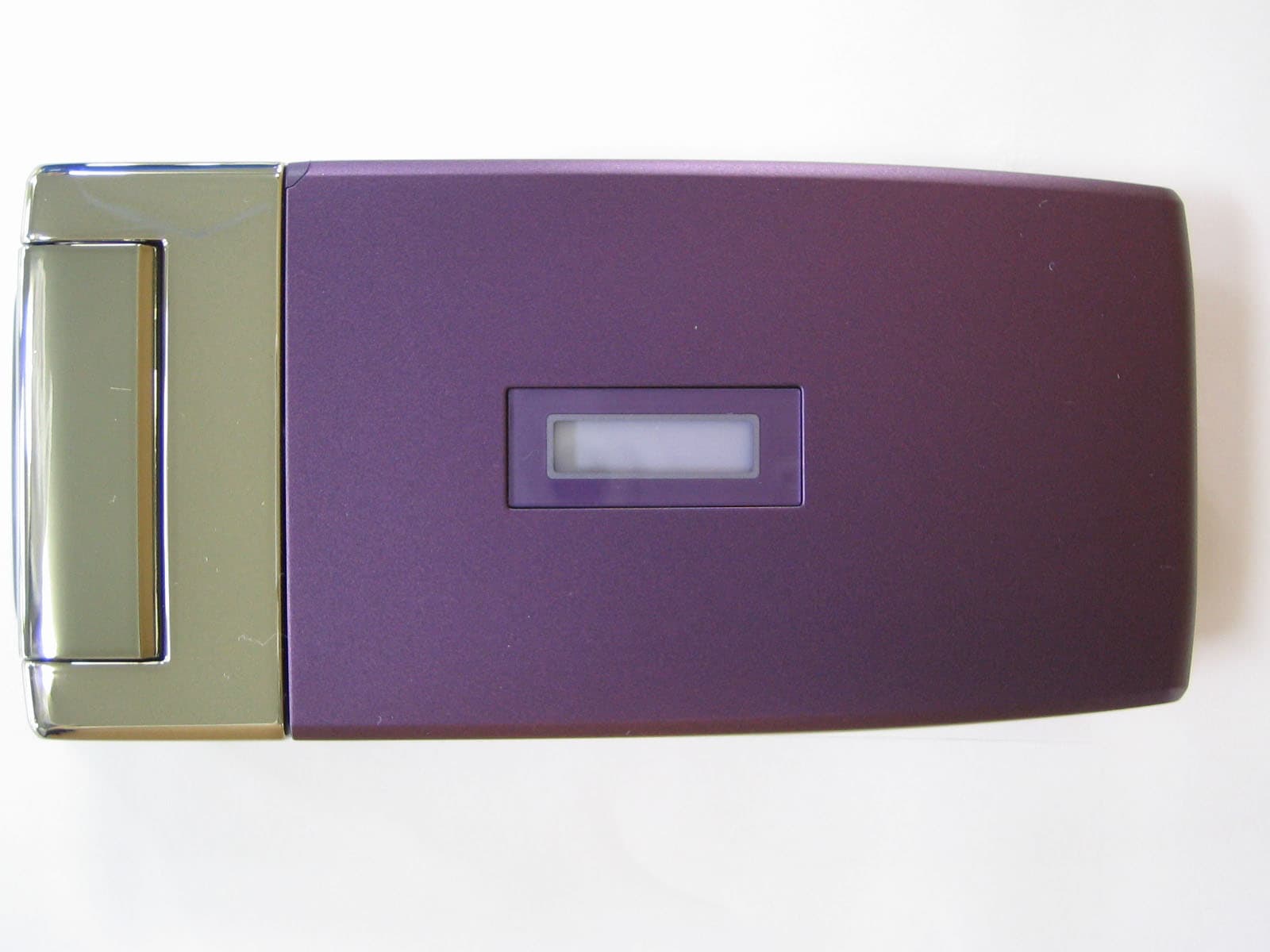

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 6 – EUT Photographs JAPAN QUALITY ASSURANCE ORGANIZATION JAPAN QUALITY ASSURANCE ORGANIZATION JAPAN QUALITY ASSURANCE ORGANIZATION JAPAN QUALITY ASSURANCE ORGANIZATION

JAPAN QUALITY ASSURANCE ORGANIZATION JAPAN QUALITY ASSURANCE ORGANIZATION KITA-KANSAI TESTING CENTER 7-7, Ishimaru 1-Chome, Minoh-shi, Osaka 562-0027 Japan. Phone. +81-72-729-2243/Facsimile. +81-72-728-6848 IssueDate:February17,2006 Page 1 of 36 TEST REPORTEMCEMISSION - JQA APPLICATION No.: KL80050663 Name of Product: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable Mo…

Text truncated - open the document above for the full version.
