APYHRO00046PCS Cellular Phone W/ Bluetooth

Declaration of Conformity Hereby, Sharp Telecommunications of Europe Limited, declares that this GX29 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.A copy of the original declaration of conformity can be found at the following Internet address:http://www.sharp-mobile.com Introduction 1 IntroductionCongratulations and thank you for choosing the GX29.About This User GuideThis User Guide is carefully designed to help you learn about your phone’s features and operations quickly and effectively.NOTICE• We strongly recommend that you keep separate permanent written records of all important data. Data may be lost or altered in virtually any electronic memory product under certain circumstances. Therefore, we assume no responsibility for data lost or otherwise rendered unusable, whether as a result of improper use, repairs, defects, battery replacement, use after the specified battery life has expired or any other cause. • We assume no responsibility, directly or indirectly, for financial losses or claims from third parties resulting from the use of this product and any of its functions, such as stolen credit card numbers, the loss or alteration of stored data, etc. • All company and/or produc t names are trademarks and/or registered trademarks of their respective holders. • Screen layout illustrated in this User Guide may differ from the actual one. The information described in this User Guide is subject to change without notice. • All the functions describe d in this User Guide may not be supported in all networks. • We assume no responsibility for downloaded contents, information, etc. from network. • Occasionally, a few black or bright pi xels may appear on the screen. Please note that this will not have any impact on any of the features or performance. CopyrightAccording to copyright laws, the reproduction, alteration and use of material which is protected by copyright (music, pictures, etc.) is only permitted for personal or private use. If the user is not in possession of more extensive copyright or has not received the explicit permission from the copyright owner to reproduce, alter or use a c opy which has been made or modified in this way, this is considered to be a violation of the copyright laws and gi ves the copyright owner the right to claim for damages. For this reason, avoid the illegal use of material which is protected by copyright.Windows is a registered trademark of Microsoft Corporation in the United Stat es and/or other countries. 2 Introduction This product is licensed under the MPEG-4 Visual Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the MPEG-4 Video Standard (“MPEG-4 Video”) and/or (ii) decode MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a licensed video provider. No license is granted or implied for any other use. Additional information may be obtained from MPEG LA. See http://www.mpegla.com.This product is licensed under the MPEG-4 Systems Patent Portfolio License for encoding in compliance with the MPEG-4 Systems Standard, except that an additional license and payment of royalties are necessary for encoding in connection with (i) data stored or replicated in physical media which is paid for on a title by title basis and/or (ii) data which is paid for on a title by title basis and is transmitted to an end user for permanent storage and/or use. Such additional license may be obtained from MPEG LA, LLC. See http://www.mpegla.com for additional details. Powered by JBlend™ Copyright 1997-2004 Aplix Corporation. All rights reserved.JBlend and all JBlend-based trademarks and logos are trademarks or registered trademarks of Aplix Corporation in Japan and other countries. Powered by Mascot Capsule ® /Micro3D Edition™ Mascot Capsule ® is a registered trademark of HI Corporation©2002-2006 HI Corporation. All Rights Reserved.Licensed by Inter Digital Technology Corporation under one or more of the following United States Patents and/or their domestic or foreign counterparts and other patents pending, including U.S. Patents: 4,675,863: 4,779,262: 4,785,450 & 4,811,420.T9 Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Australian Pat. No. 727539; Canadian Pat. No. 1,331,057; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro. Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL,PT.ES,SE,GB; Republic of Korea Pat. Nos. KR201211B1 and KR226206B1; and additional patents are pending worldwide. Bluetooth is a trademark of the Bluetooth SIG, Inc.The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sharp is under license. Other trademarks and trade names are those of their respective owners.CP8 PATENT Introduction 3 Useful Functions and ServicesYour phone offers you the following features:• A built-in digital camera for taking pictures and video clips. • A message function for reading and creating SMS messages. • MMS (Multimedia Messaging Services) for personalising your phone in various ways. • A WAP browser for accessing information on the mobile Internet. • Java™ applications. You can also download various applications from Vodafone via the mobile Internet. • The external display (blu e) for quickly checking the information of incoming calls or messages. • Email for sending up to 2000 characters and receiving mail with attachments. • A melody editing function for creating original ringtones using up to 32 voices. • A voice recorder function for recording and playing back voice clips. •A Bluetooth ® wireless technology interface for establishing contact and transmitting data with certain devices. You can transmit pictures, sounds, and video clips to OBEX-enabled phones. • A data synchronisa…

Text truncated - open the document above for the full version.

Model Description Model Name : GX29 Type of Emission : 238KGXW Brand Name : vodafone by SHARP Type of Equipment : GSM 900/1800/1900 GPRS Phone / Bluetooth enable Specification Frequency Band(GSM)Tri-Band GSM900/DCS1800/PCS1900 900MHz : Tx 880.2 to 914.8MHz Rx 925.2 to 959.8MHz 1800MHz : Tx 1710.2 to 1784.8MHz Rx 1805.2 to 1879.8MHz 1900MHz : Tx 1850.2 to 1909.8MHz Rx 1930.2 to 1989.8MHz (900/1800 Band do not operate in USA) Frequency Band(Bluetooth) TX/RX : 2402 to 2480MHz Tx Power(GSM)900MHz 33dBm±2dB 1800MHz 30dBm±2dB 1900MHz 30dBm±2dB Average Power is estimated about Tx Power / 8 Tx Power(Bluetooth)+4dBm, Class2 Type of Modulation(GSM)GMSK Type of Modulation(Bluetooth)GFSK Transmission TechnologyFDMA/TDMA (for GSM), FHSS(for Bluetooth) GPRSClass B, Class 10 Antenna(GSM)L Type Antenna Antenna(Bluetooth)L Type Antenna SIMPlug-in 3V SIM card slot SIM application toolkit release 99, class 3 Display Main LCD 1.9inch, 260K color CGS TFT, 240(W) x 320(H) dots with Backlight Sub LCDBlack/White STN, 72(W) x 12(H) dots with Backlight CameraC-MOS image sensor Resolution310K pixcel WAP BrowserWAP ver. 2.0 Battery/ Talk time Capacity780mAh Battery typeRechargeable Lithium-Ion Battery Target standby timeTBD Target talk timeTBD Dimensions Target size93.8(H) x 46(W) x 20.3(D)mm Target weight90g Key LayoutLeft Soft Key, Right Soft Key, Navigation Keys, Centre Key, 0 - 9 Numeric Key, Send/Redial Key, End/Power Key, *, # and Side Keys. Head set jack PDC shared connector SIM card terminal Integrated charger circuit Handsfree Kit(Head set) AC Charger Input AC 110 to 240V Output DC 5.2V Battery DC3.7V 780mAh USB Data Cable [option] Cigarette Lighter Charger [option] Input DC 12V/24V Output DC 5.2V Items External I/F Accessory Personal Hands-free Kit [option] MAIN SPECIFICATION

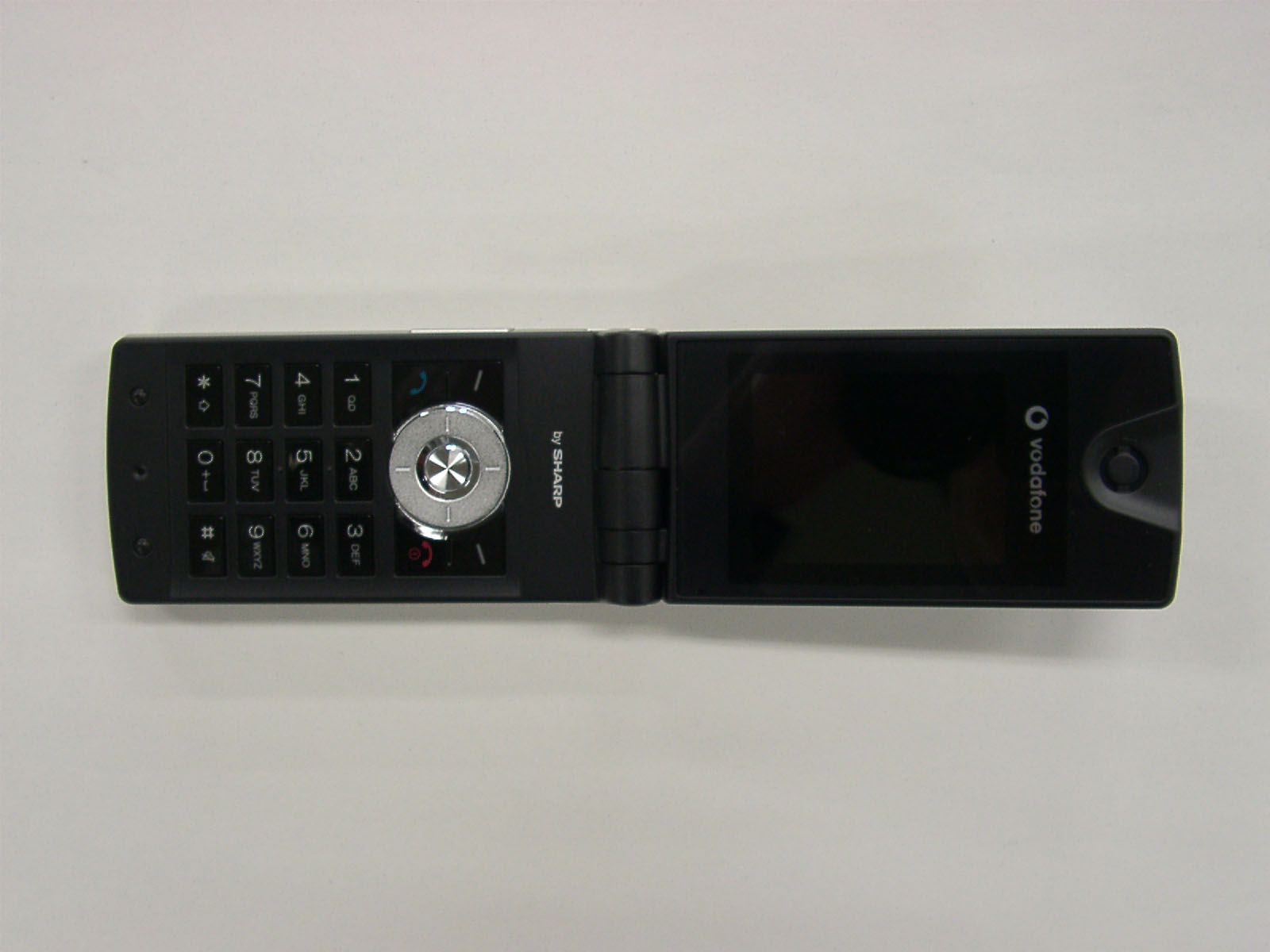

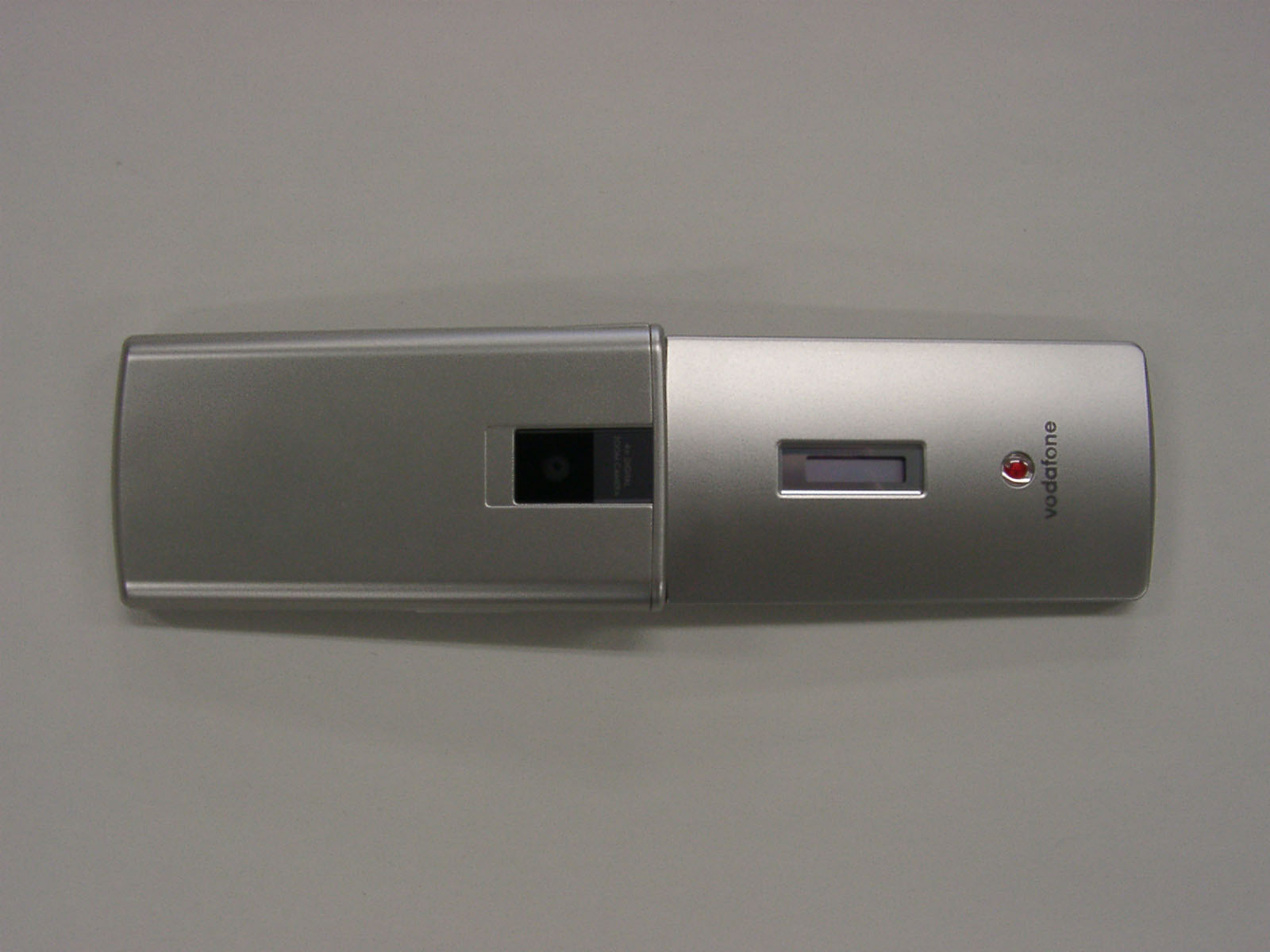

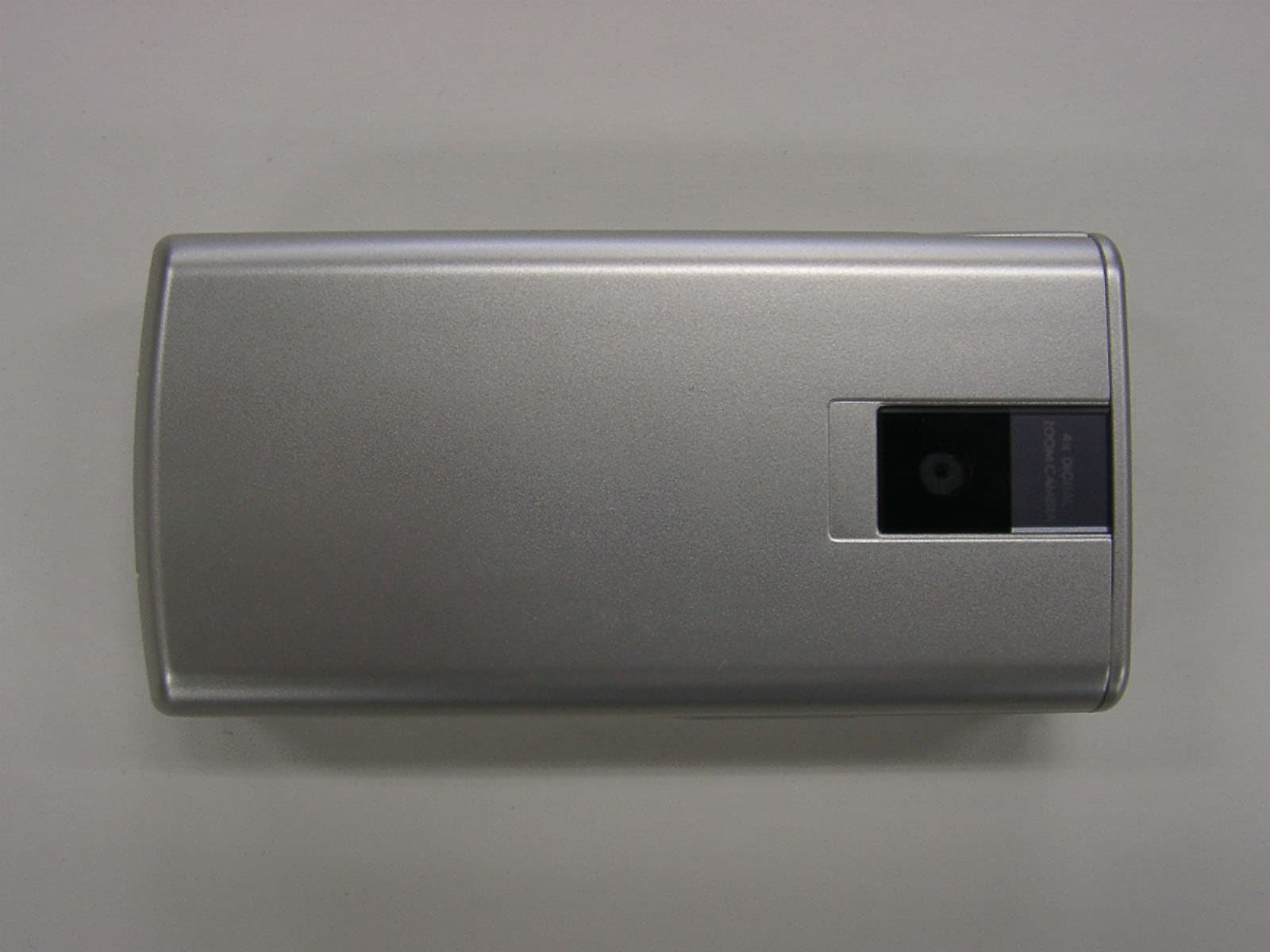

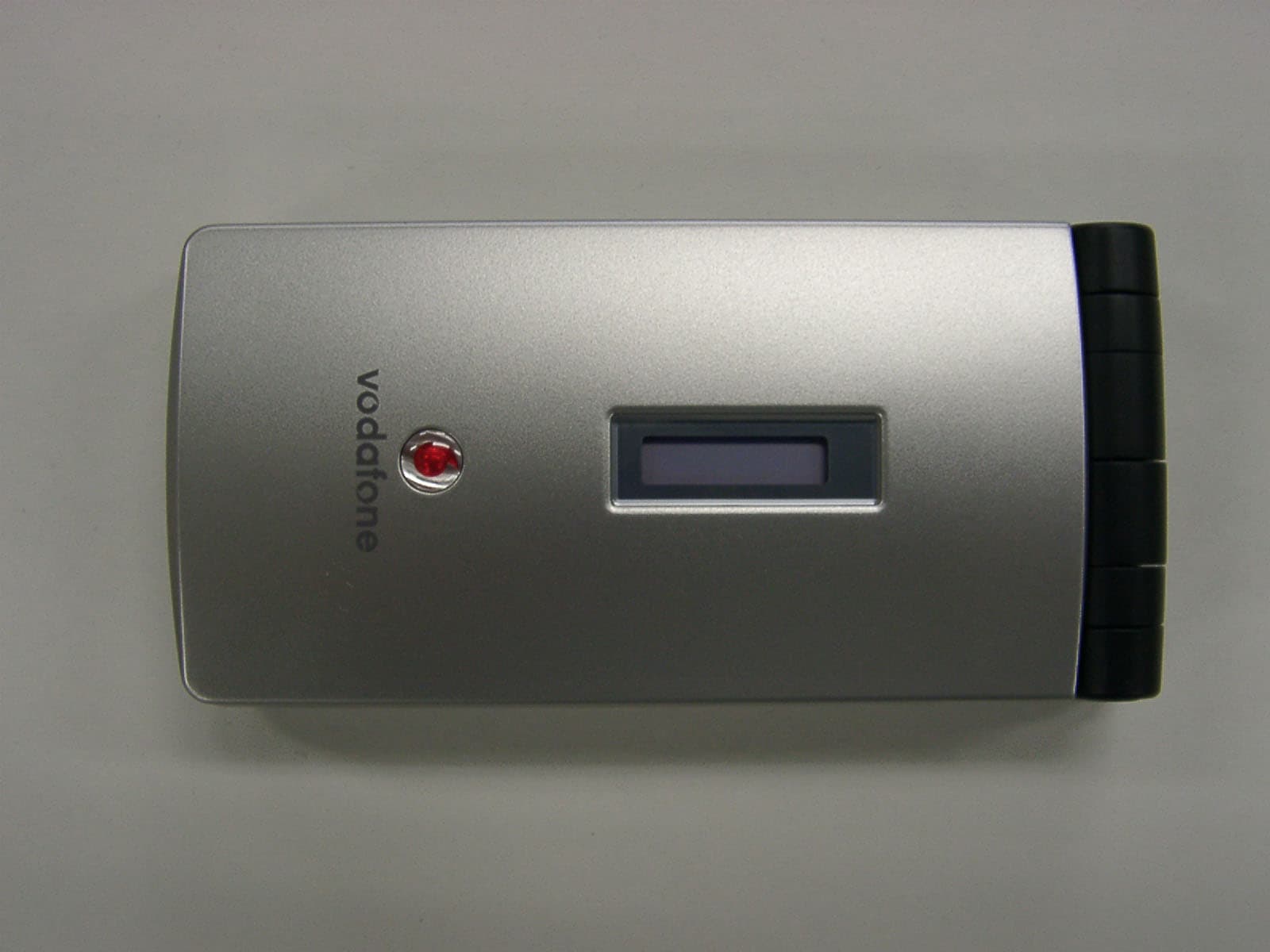

Model Name: GX29 1 st / Feb / 2006 Confidential Photo (External) 1 Model Name: GX29 1 st / Feb / 2006 Confidential Photo (External) 2

JAPAN QUALITY ASSURANCE ORGANIZATION ATTACHMENT Exhibit 6 EUT Photographs EUTPHOTOGRAPHS MODEL:GX29 JAPANQUALITYASSURANCEORGANIZATION

FCC ID Location & FCC ID Spec Label

Model Name: GX29 1 st / Feb / 2006 Confidential Photo (Internal) 1 Bluetooth Chip Model Name: GX29 1 st / Feb / 2006 Confidential Photo (Internal) 2 Model Name: GX29 1 st / Feb / 2006 Confidential Photo (Internal) 3

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 24 Technical document No. 23163-0501 JQA File No. : KL80050605 Issued Date : February 1, 2006 TEST REPORT (SAR EVALUATION) APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan PRODUCTS : Tri-band GSM Mobile Phone / Bluetooth Enable MODEL NO. : GX29 SERIAL NO. : 004401/11/008185/4 FCC ID : APYHRO00046 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 2 TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : January 23, 2006 - January 24, 2006 Yuichi Fukumoto Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80050605 Issue Date : February 1, 2006 Model No. : GX29 FCC ID : APYHRO00046 Regulation : CFR 47 FCC Rules and Regulations Part 2 Page 2 of 24 Technical document No. 23163-0501 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation.....................................................................................................................................3 2 Test Location.........................................................................................................................................3 3 Recognition of Test Laboratory............................................................................................................3 4 Description of the Equipment Under Test..........................................................................................4 5 Measurement System Diagram............................................................................................................5 6 System Components..............................................................................................................................6 7 Measurement Process...........................................................................................................................8 8 Measurement Uncertainties.................................................................................................................9 9 Equipment Under Test Modification.................................................................................................11 10 Responsible Party................................................................................................................................11 11 Deviation from Standard....................................................................................................................11 12 Test Results.........................................................................................................................................12 13 Summary..............................................................................................................................................13 14 Test Arrangement...............................................................................................................................14 15 Equipment Under Test Tune-Up Procedures....................................................................................18 Appendix A: Test Data ................................................................................................................................... 19 A.1 System Validation...............................................................................................................................19 A.2 Tissue Verification..............................................................................................................................20 A.3 SAR Measurement Data.....................................................................................................................21 Appendix B: Test Instruments....................................................................................................................... 23 Appendix C: Attachments .............................................................................................................................. 24 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT “EUT” means Equipment Under the Test. “N/A” means that Not Applicable. “N/T” means that Not Tested. - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80050605 Issue Date : February 1, 2006 Model No. : GX29 FCC ID : APYHRO00046 Regulation : CFR 47 FCC Rules and Regulations Part 2 Page 3 of 24 Technical document No. 23163-0501 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 2 Radio-frequency Radiation Exposure Evaluation (§2.1091 and §2.1093) Test Procedure : FCC/OET Bulletin 65 Supplement C (June 2001) and IEEE Std.1528–2003 Exposure Limits : …

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION ATTACHMENT Exhibit 1 System Validation Plots Date/Time: 2006/01/24 10:50:44Date/Time: 2006/01/24 10:53:06 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 2d038 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL1800 Medium parameters used: f = 1800 MHz; σ = 1.36 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 11.3 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 96.9 V/m; Power Drift = -0.079 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 10 mW/g; SAR(10 g) = 5.39 mW/g Maximum value of SAR (measured) = 11.1 mW/g 0 dB = 11.1mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/01/23 14:49:23Date/Time: 2006/01/23 14:51:45 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 2d038 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: M1800 Medium parameters used: f = 1800 MHz; σ = 1.54 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(4.54, 4.54, 4.54); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 11.6 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 93.5 V/m; Power Drift = -0.017 dB Peak SAR (extrapolated) = 16.8 W/kg SAR(1 g) = 10.4 mW/g; SAR(10 g) = 5.67 mW/g Maximum value of SAR (measured) = 11.7 mW/g 0 dB = 11.7mW/g JAPAN QUALITY ASSURANCE ORGANIZATION

JAPAN QUALITY ASSURANCE ORGANIZATION ATTACHMENT Exhibit 2 SAR Test Plots Date/Time: 2006/01/24 13:19:45Date/Time: 2006/01/24 13:29:43 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Cheek/Touch 512ch (1850.20MHz) DUT: Tri-band GSM Mobile Phone / Bluetooth Enable; Type: GX29; Serial: 004401/11/008185/4 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1850.2 MHz; σ = 1.42 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Area Scan (16x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.555 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.19 V/m; Power Drift = -0.040 dB Peak SAR (extrapolated) = 0.889 W/kg SAR(1 g) = 0.530 mW/g; SAR(10 g) = 0.302 mW/g Maximum value of SAR (measured) = 0.571 mW/g 0 dB = 0.571mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/01/24 14:25:02Date/Time: 2006/01/24 14:34:25 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Cheek/Touch 661ch (1880.00MHz) DUT: Tri-band GSM Mobile Phone / Bluetooth Enable; Type: GX29; Serial: 004401/11/008185/4 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Area Scan (15x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.611 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.13 V/m; Power Drift = -0.066 dB Peak SAR (extrapolated) = 0.951 W/kg SAR(1 g) = 0.570 mW/g; SAR(10 g) = 0.330 mW/g Maximum value of SAR (measured) = 0.619 mW/g 0 dB = 0.619mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/01/24 14:07:00Date/Time: 2006/01/24 14:16:21 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Cheek/Touch 810ch (1909.80MHz) DUT: Tri-band GSM Mobile Phone / Bluetooth Enable; Type: GX29; Serial: 004401/11/008185/4 Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1909.8 MHz; σ = 1.42 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Area Scan (15x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.753 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.49 V/m; Power Drift = -0.065 dB Peak SAR (extrapolated) = 1.20 W/kg SAR(1 g) = 0.697 mW/g; SAR(10 g) = 0.391 mW/g Maximum value of SAR (measured) = 0.773 mW/g 0 dB = 0.773mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/01/24 14:22:21 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Cheek/Touch 810ch (1909.80MHz) DUT: Tri-band GSM Mobile Phone / Bluetooth Enable; Type: GX29; Serial: 004401/11/008185/4 Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1909.8 MHz; σ = 1.42 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Z Scan (1x1x33): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.838 mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/01/24 14:44:15Date/Time: 2006/01/24 14:54:35 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Ear/Tilt 661ch (1880.00MHz) DUT: Tri-band GSM Mobile Phone / Bluetooth Enable; Type: GX29; Serial: 004401/11/008185/4 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt Position/Area Scan (15x8x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.229 mW/g Ear/Tilt Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.45 V/m; Power Drift = -0.049 dB Peak SAR (extrapolated) = 0.342 W/kg SAR(1 g) = 0.208 mW/g; S…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION ATTACHMENT Exhibit 3 Dosimetric E-Field Probe - ET3DV6, S/N: 1679 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION ATTACHMENT Exhibit 4 System Validation Dipole - D1800V2, S/N: 2d038 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION ATTACHMENT Exhibit 5 Transmitted Duty Cycle Plots Duty Cycle Plots (PCS 1900 MHz Band) Modulation Type: GSM Duty Cycle: 12.0 % (Crest Factor = 8.3) Modulation Type: GSM+GPRS (Level 10 / 2 slot) Duty Cycle: 24.0 % (Crest Factor = 4.2) JAPAN QUALITY ASSURANCE ORGANIZATION

JAPAN QUALITY ASSURANCE ORGANIZATION JAPAN QUALITY ASSURANCE ORGANIZATION KITA-KANSAI TESTING CENTER 7-7, Ishimaru 1-Chome, Minoh-shi, Osaka 562-0027 Japan. Phone. +81-72-729-2243/Facsimile. +81-72-728-6848 IssueDate:February1,2006 Page 1 of 36 TEST REPORTEMCEMISSION - JQA APPLICATION No.: KL80050606 Name of Product: Tri-band GSM Mobile Phone / Bluetooth Enable Model/Type No.: GX29 FCC ID: APYHRO00046 Applicant: Sharp Corporation, Communication Systems Group Address: 2-13-1, Iida Hachihonmatsu, Higashihiroshima-city, : Hiroshima 739-0192, JAPAN Manufacturer: Sharp Corporation, Communication Systems Group Address: 2-13-1, Iida Hachihonmatsu, Higashihiroshima-city, : Hiroshima 739-0192, JAPAN January 18, 2006Receive date of EUT: passedFinal Judgement: are obtained in use of equipment that is traceable to National TEST RESULTS IN THIS REPORT Institute of Advanced Industrial Science and Technology (AIST) under METI Japan and National Institute of Information and Communications Technology(NICT) under MPHPT Japan. only responds to the test sample. This test report shall not be reproduced THE TEST RESULTS except in full. Authorized by: , ManagerYuichi Fukumoto JQA KITA-KANSAI Testing Center JAPAN QUALITY ASSURANCE ORGANIZATION Page 2 of 36 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 - 4 Test Conditions5-18 Configuration of EUT / Operation mode of the EUT19 - 20 EUT Modification / Responsible Party / Deviation from Standard21 Test results / Measurement Uncertainty22 - 24 Summary25 26Test System-Arrangement (Drawings) 27Test-setup (Photographs) at worst case B) Test data - PCS1900 - Transmitter Power(TP)28 Antenna Conducted Spurious Emission29 - 30 Transmitter Power(EIRP)31 Unwanted Radiation32 - 33 Occupied Bandwidth34 Band-Edge Emission35 Frequency Stability36 JQA Application No. : KL80050606Regulation: CFR 47 FCC Rules Part 24 ModelNo.:GX29IssueDate :February1,2006 FCC ID: APYHRO00046 JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050606Regulation: CFR 47 FCC Rules Part 24 ModelNo.:GX29IssueDate :February1,2006 FCC ID: APYHRO00046 Page 3 of 36 TEST REGULATION FCC Rules and Regulations Part 24 (October 1, 2004) 1900 MHz systems (Part 24) - Narrowband PCS{ - Broadband PCSz Test procedure: The tests were performed according to FCC Rules and Regulations Part 2 (October 1, 2003), and ANSI C63.4 (2003). GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai: 1st Open Site (3 m Site) Test Facility located at Kameoka: 1st Open Site (3, 10 and 30 m, on common plane) :2ndOpenSite(3and10m,oncommonplane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognizedunder the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 Definitions for symbols used in this test report: - Black box indicates that the listed condition, standard or equipment is applicablez for this Report. - Blank box indicates that the listed condition, standard or equipment is not applicable{ for this Report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050606Regulation: CFR 47 FCC Rules Part 24 ModelNo.:GX29IssueDate :February1,2006 FCC ID: APYHRO00046 Page 4 of 36 Description of the Equipment Under Test (EUT): 1) Name: Tri-band GSM Mobile Phone / Bluetooth Enable 2) Model/Type No.: GX29 3) Product Type: Pre-production(Serial No.: 004401/11/008172/2) 4) Category: Broadband PCS 5) EUT Authorization:- Verification- Certification- D.o.C.{z { 6) Transmitting Frequency: 1850.2 MHz (512 ch) - 1909.8 MHz (810 ch)(PCS1900) 7) Receiving Frequency: 1930.2 MHz (512 ch) - 1989.8 MHz (810 ch) (PCS1900) 8) Integrated Antenna: L Type antenna 9) Emission Designations: 238KGXW(PCS1900) 10) Maximum RF Output Power: 1.820W(EIRP)(PCS1900) 11) Power Rating: 3.9VDC 12) Channel Numbers and Frequencies : PCS1900 Thecarrierspacingis200kHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: TX frequency (in MHz) = 1850.2 + 0.2 × (n -512) RX frequency (in MHz) = 1930.2 + 0.2 × (n -512) Where n : Channel Number (512 n 810)≤≤ 13) Modulation Type : GMSK 14) Type of Communication System : GSM JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050606Regulation: CFR 47 FCC Rules Part 24 ModelNo.:GX29IssueDate :February1,2006 FCC ID: APYHRO00046 Page 5 of 36 TEST CONDITIONS Transmitter Power (TP) Measurement (§2.1046(a)) Test Procedure : The Transmitter Power was measured with a power meter, two 10 dB attenuators and a short, low loss cable. EUT10 dBPowerAntenna Attenuator x 2MeterTerminal Fig.1 Transmitter Power Measurement Test location : KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan -Shieldedroom{ KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan -Shieldedroomz Used test instruments and sites : Model No.Device IDLast Cal. DateCal. Interval - E4417AB - 51August, 20051 Yearz - E9321AB - 52June, 20051 Yearz -6-20D-27{ - 4T-10D - 73{ - 4T-10D - 74{ -2-10D-79{ -2-10D-80{ - 54-10D - 82May, 20051 Yearz - 54-10D - 83May, 20051 Yearz Environmental conditions : Temperature:21 °CHumidity:48% JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050606Regulation: CFR 47 FCC Rules Part 24 ModelNo.:GX29IssueDate :February1,2006 FCC ID: APYHRO00046 Page 6 of 36 Antenna Conducted Spurious Emission Measurement (§2.1051,§24.238 ) Test Procedure : The Antenna Conducted Emission was measured with a spectrum analyzer. The test system is shown as follows: PCS1900 1) Frequency Range : 9kHz - 2GHz EUT10 dBSpectrumAntenna Att.(D-83)AnalyzerTerminal 2) Frequency Range : 2GHz - 20GHz EUT10 dBHPFSpectrumAntenna Att.(D-83)(D-96)AnalyzerTerminal Fig.2 Antenna Conducted Spurious Emission Measurement The setting of the spectrum analyzer are shown as follows : Frequency Ra…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 7 Attachment A Occupied Bandwidth Measurement PCS1900 Test Date: January 31, 2006 Temp.: 21 ; Humi.: 48 %°C CHTransmitting26dB99%Data No.Frequency(MHz)BandwidthBandwidthPage 5121850.200308.4 kHz238.3 kHzPage 2 6611880.000308.3 kHz238.0 kHzPage 3 8101909.800308.3 kHz238.0 kHzPage 4 .Note) The point shown on "" is the Maximum Margin Point Tester : Shigeru Kinoshita JQA Application No. : KL80050606Regulation : CFR 47 FCC Rules Part 24 ModelNo.:GX29IssueDate :February1,2006 FCC ID: APYHRO00046 JAPAN QUALITY ASSURANCE ORGANIZATION Page 2 of 7 Occupied Bandwidth Measurement Tra…

Text truncated - open the document above for the full version.
