APYHRO00047PCS Cellular Phone W/ Bluetooth

Declaration of Conformity Hereby, Sharp Telecommunications of Europe Limited, declares that this 550SH is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the original declaration of conformity can be found at the following Internet address: http://www.sharp-mobile.com Introduction1 Introduction Congratulations on your new 3G/UMTS 550SH phone. About This User Guide This user guide is carefully designed to help you learn about your phone’s features and operations quickly and effectively. NOTICE • We strongly recommend that you keep separate permanent written records of all important data. Data may be lost or altered in virtually any electronic memory product under certain circumstances. Therefore, we assume no responsibility for data lost or otherwise rendered unusable, whether as a result of improper use, repairs, defects, battery replacement, use after the specified battery life has expired or any other cause. • We assume no responsibility, directly or indirectly, for financial losses or claims from third parties resulting from the use of this product and any of its functions, such as stolen credit card numbers, the loss or alteration of stored data, etc. • All company and/or product names are trademarks and/or registered trademarks of their respective holders. • Screen layout may differ from that illustrated in this user guide. The information described in this user guide is subject to change without notice. • All the functions described in this user guide may not be supported by all networks. • We assume no responsibility for downloaded contents, information, etc. from the network. • Occasionally, a few black or bright pixels may appear on the screen. Please note that this will not have any impact on any of the features or on performance. Copyright According to copyright laws, the reproduction, alteration and use of material which is protected by copyright (music, pictures, etc.) is only permitted for personal or private use. If the user is not in possession of more extensive copyright or has not received the explicit permission from the copyright owner to reproduce, alter or use a copy which has been made or modified in this way, this is considered to be a violation of the copyright laws and gives the copyright owner the right to claim for damages. For this reason, avoid the illegal use of material which is protected by copyright. Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries. 2Introduction Powered by JBlend™ Copyright 1997-2005 Aplix Corporation. All rights reserved. JBlend and all JBlend-based trademarks and logos are trademarks or registered trademarks of Aplix Corporation in Japan and other countries. Powered by Mascot Capsule ® /Micro3D Edition™ Mascot Capsule ® is a registered trademark of HI Corporation ©2002-2006 HI Corporation. All Rights Reserved. Licensed by Inter Digital Technology Corporation under one or more of the following United States Patents and/or their domestic or foreign counterparts and other patents pending, including U.S. Patents: 4,675,863: 4,779,262: 4,785,450: 4,811,420: 5,228,056: 5,420,896: 5,799,010: 5,166,951: 5,179,571 & 5,345,467 T9 Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Australian Pat. No. 727539; Canadian Pat. No. 1,331,057; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro. Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL,PT.ES,SE,GB; Republic of Korea Pat. Nos. KR201211B1 and KR226206B1; and additional patents are pending worldwide. CP8 PATENT microSD™ is a trademark of the SD Card Association. Bluetooth is a trademark of the Bluetooth SIG, Inc. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sharp is under license. Other trademarks and trade names are those of their respective owners. Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations ; 4,901,307 5,490,165 5,056,109 5,504,773 5,101,501 5,506,865 5,109,390 5,511,073 5,228,054 5,535,239 5,267,261 5,544,196 5,267,262 5,568,483 5,337,338 5,600,754 5,414,796 5,657,420 5,416,797 5,659,569 5,710,784 5,778,338 Introduction3 This product is licensed under the MPEG-4 Visual Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the MPEG-4 Video Standard (“MPEG-4 Video”) and/or (ii) decode MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a licensed video provider. No license is granted or implied for any other use. Additional information may be obtained from MPEG LA. See http://www.mpegla.com. This product is licensed under the MPEG-4 Systems Patent Portfolio License for encoding in compliance with the MPEG-4 Systems Standard, except that an additional license and payment of royalties are necessary for encoding in connection with (i) data stored or replicated in physical media which is paid for on a title by title basis and/or (ii) data which is paid for on a title by title basis and is transmitted to an end user for permanent storage and/or use. Such additional license may be obtained from MPEG LA, LLC. See http://www.mpegla.com for additional details. MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. Useful Functions and Services Your phone offers you the following features: • Video calls. You can talk while viewing each other on respective screens. • 3D and colour Java™ games. You can also download various games and applications from Vodafone live! portal. • Thin Film Transistor (TFT) colour LCD display with images that are clearer and easier to view. • A built-in digital camera for taking pictures and video clips. • A message functi…

Text truncated - open the document above for the full version.

Model Description FCC ID : APYHRO00047 Model Name : 550SH Type of Emission : 245KGXW Brand Name : vodafone by SHARP Type of Equipment : 3G(UMTS)/GSM 900/1800/1900 GPRS Phone / Bluetooth enable Specification WCDMA & Tri-Band GSM900/DCS1800/PCS1900 WCDMA : Tx 1922.6 to 1977.4MHz Rx 2112.6 to 2167.4MHz 900MHz : Tx 880.2 to 914.8MHz Rx 925.2 to 959.8MHz 1800MHz : Tx 1710.2 to 1784.8MHz Rx 1805.2 to 1879.8MHz 1900MHz : Tx 1850.2 to 1909.8MHz Rx 1930.2 to 1989.8MHz (WCDMA & GSM900/1800 Band do not operate in USA) Frequency Band(Bluetooth) TX/RX : 2402 to 2480MHz Tx Power(WCDMA & GSM)WCDMA 23dBm±1dB 900MHz 33dBm±2dB 1800MHz 30dBm±2dB 1900MHz 30dBm±2dB Tx Power(Bluetooth)+4dBm, Class2 WCDMA : G1A, G1B, G1C, G1D, G1E, G1F, G1X, G7W GSM : GMSK Type of Modulation(Bluetooth)GFSK Transmission Technology DS/CDMA,FDD(for WCDMA), FDMA/TDMA (for GSM), FHSS(for Bluetooth) GPRSClass B, Class 10 Antenna(WCDMA & GSM)Integrated Antenna : L Type Antenna Antenna(Bluetooth)Integrated Antenna : L Type Antenna SIMPlug-in 3V SIM card slot SDmicroSD Memory Card Display Main LCD1.9inch, 260K color TFT, 240(W) x 320(H) dots with Backlight CameraC-MOS image sensor (Main) 1.3M pixcel (Sub) 110K pixcel WAP BrowserWAP ver. 2.0 Battery/ Talk time Capacity900mAh Battery typeRechargeable Lithium-Ion Battery Target standby timeTBD Target talk timeTBD Dimensions Target size110(H) x 47(W) x 18.5(D)mm Target weight95g Key LayoutLeft Soft Key, Right Soft Key, Navigation Keys, Centre Key, 0 - 9 Numeric Key, Send/Redial Key, End/Power Key, Video Telephone Key, Shortcut Key, *, # and Side Keys. Head set jack PDC shared connector SIM card terminal Integrated charger circuit SD Card connector Stereo Hands-free Kit(Head set) AC Charger Input AC 110 to 240V Output DC 5.2V Battery DC3.7V 900mAh USB Data Cable [option] Cigarette Lighter Charger [option] Input DC 12V/24V Output DC 5.2V Stereo Headset [option] Items External I/F Accessory Handsfree Microphone Unit [option] Resolution Frequency Band(WCDMA & GSM) Type of Modulation(WCDMA & GSM) MAIN SPECIFICATION

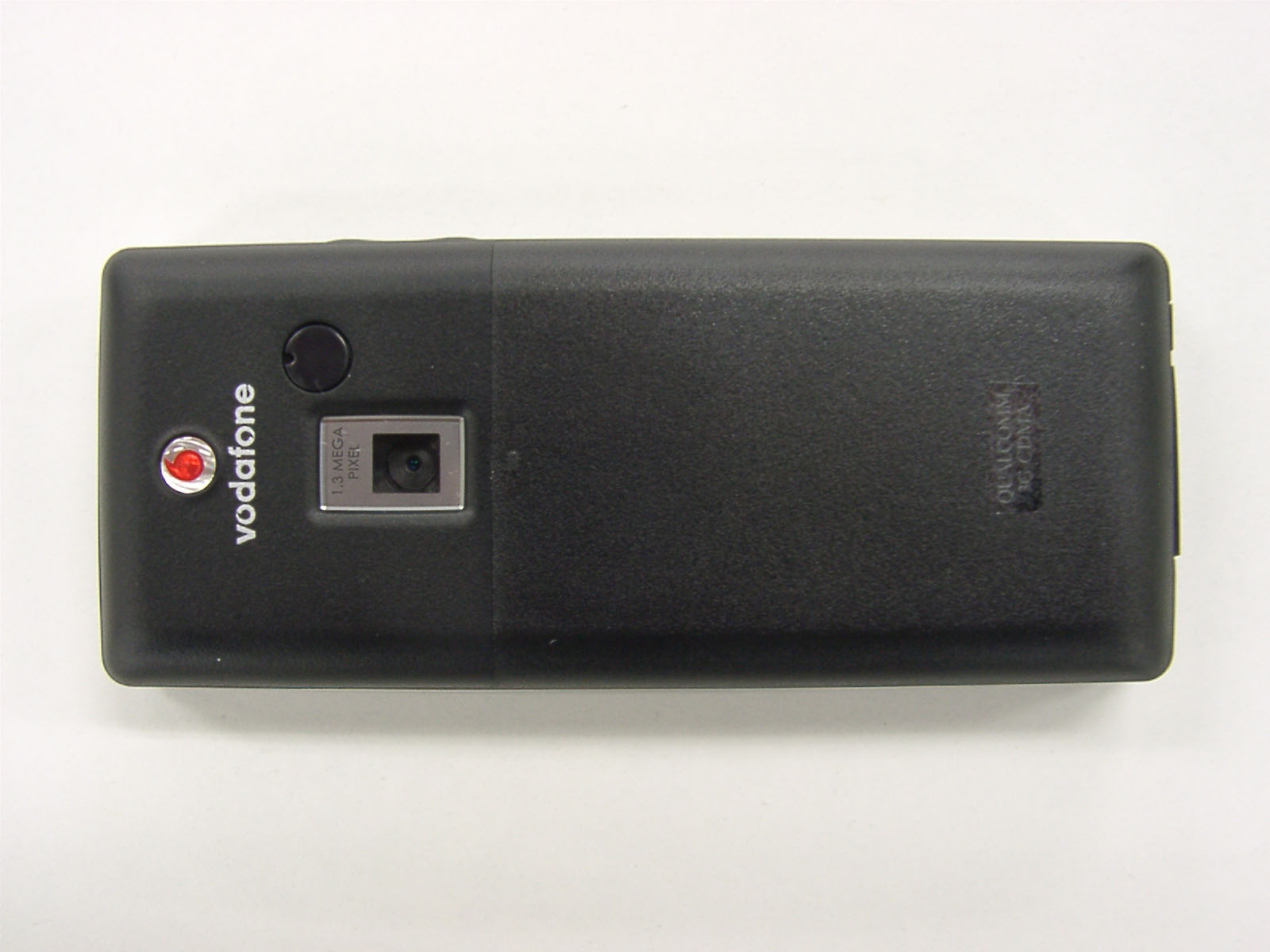

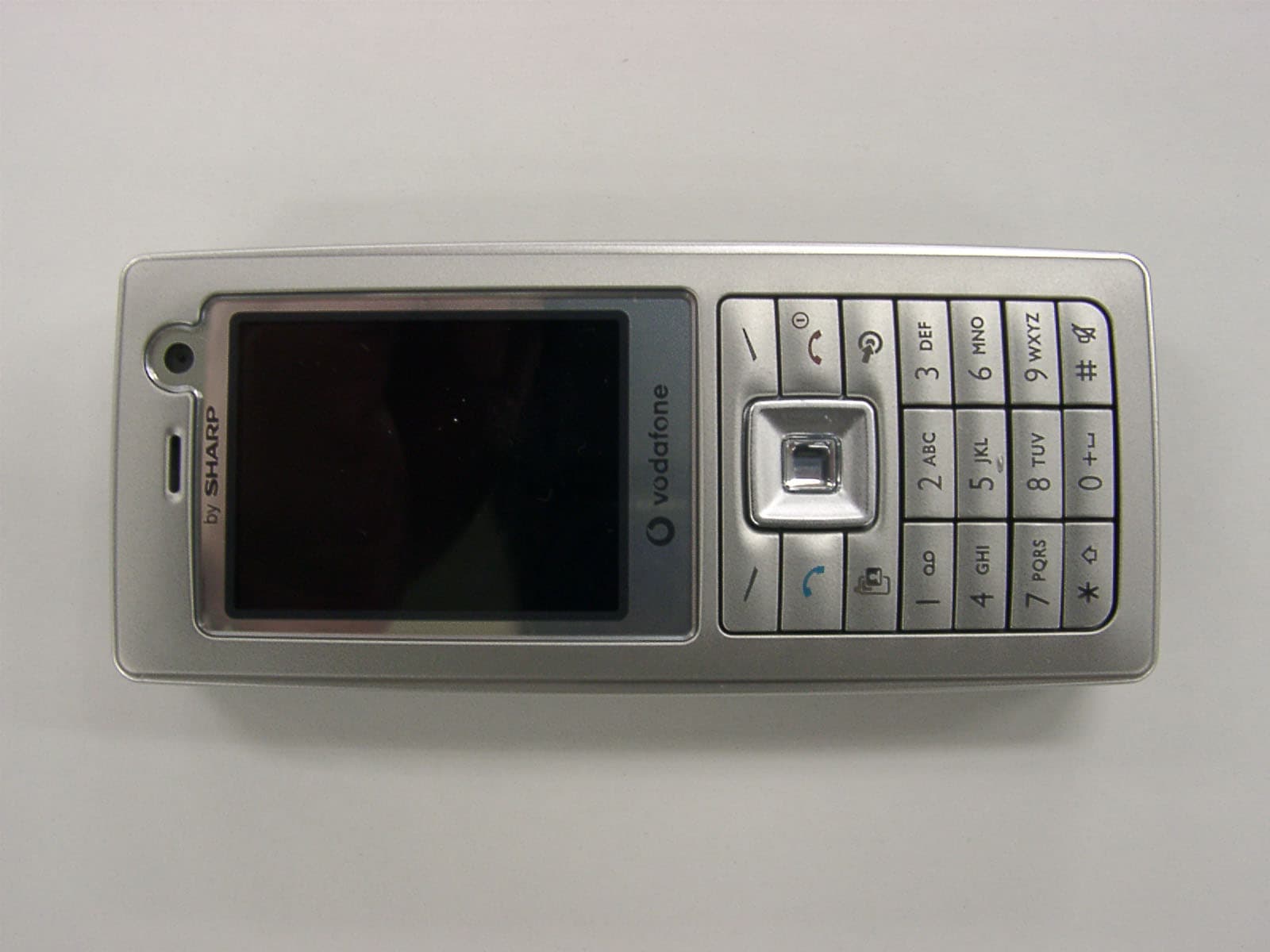

Model Name: 550SH 15 th / Feb / 2006 Confidential Photo (External) 1

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 6 – EUT Photographs JAPAN QUALITY ASSURANCE ORGANIZATION

FCC ID Location & FCC ID Spec Label

Model Name: 550SH 15 th / Feb / 2006 Confidential Photo (Internal) 1 Model Name: 550SH 15 th / Feb / 2006 Confidential Photo (Internal) 2 Bluetooth Chip Model Name: 550SH 15 th / Feb / 2006 Confidential Photo (Internal) 3 Model Name: 550SH 15 th / Feb / 2006 Confidential Photo (Internal) 4

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 23 Technical document No. 23163-0501 JQA File No. : KL80050683 Issued Date : February 15, 2006 TEST REPORT (SAR EVALUATION) APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan APPLICANT : UMTS / GSM 900/1800/1900 GPRS Phone / Bluetooth Enable MODEL NO. : 550SH SERIAL NO. : 004401/11/010710/5 FCC ID : APYHRO00047 TEST STANDARD : FCC/OET Bulletin 65 Supplement C (Edition 01-01) TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : February 6, 2006 - February 9, 2006 Yuichi Fukumoto Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80050683 Issue Date : February 15, 2006 Model No. : 550SH FCC ID : APYHRO00047 Regulation : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 2 of 23 Technical document No. 23163-0501 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation.....................................................................................................................................3 2 Test Location.........................................................................................................................................3 3 Recognition of Test Laboratory............................................................................................................3 4 Description of the Equipment Under Test..........................................................................................4 5 Measurement System Diagram............................................................................................................5 6 System Components..............................................................................................................................6 7 Measurement Process...........................................................................................................................8 8 Measurement Uncertainties.................................................................................................................9 9 Equipment Under Test Modification.................................................................................................11 10 Responsible Party................................................................................................................................11 11 Deviation from Standard....................................................................................................................11 12 Test Results.........................................................................................................................................12 13 Summary..............................................................................................................................................13 14 Test Arrangement...............................................................................................................................14 15 Equipment Under Test Tune-Up Procedures....................................................................................16 Appendix A: Test Data ................................................................................................................................... 17 A.1 System Validation...............................................................................................................................17 A.2 Tissue Verification..............................................................................................................................18 A.3 SAR Measurement Data.....................................................................................................................19 Appendix B: Test Instruments....................................................................................................................... 22 Appendix C: Attachments .............................................................................................................................. 23 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT “EUT” means Equipment Under the Test. “N/A” means that Not Applicable. “N/T” means that Not Tested. - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80050683 Issue Date : February 15, 2006 Model No. : 550SH FCC ID : APYHRO00047 Regulation : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 3 of 23 Technical document No. 23163-0501 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 2 Radio-frequency Radiation Exposure Evaluation (§2.1091 and §2.1093) Test Procedure : FCC/OET Bulletin 65 Supplement C (Edition …

Text truncated - open the document above for the full version.

Attachment 2 – SAR Test Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/09 14:38:25Date/Time: 2006/02/09 14:43:26 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Cheek/Touch 661ch (1880.00MHz) DUT: UMTS / GSM 900/1800/1900 GPRS Phone / Bluetooth Enable; Type: 550SH; Serial: 004401/11/010710/5 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Area Scan (9x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.676 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.1 V/m; Power Drift = -0.128 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.649 mW/g; SAR(10 g) = 0.393 mW/g Maximum value of SAR (measured) = 0.697 mW/g 0 dB = 0.697mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/09 14:53:18Date/Time: 2006/02/09 14:58:18 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Ear/Tilt 661ch (1880.00MHz) DUT: UMTS / GSM 900/1800/1900 GPRS Phone / Bluetooth Enable; Type: 550SH; Serial: 004401/11/010710/5 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt Position/Area Scan (9x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.599 mW/g Ear/Tilt Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.8 V/m; Power Drift = -0.124 dB Peak SAR (extrapolated) = 0.994 W/kg SAR(1 g) = 0.610 mW/g; SAR(10 g) = 0.355 mW/g Maximum value of SAR (measured) = 0.656 mW/g 0 dB = 0.656mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/09 15:59:10Date/Time: 2006/02/09 16:04:14 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Cheek/Touch 512ch (1850.20MHz) DUT: UMTS / GSM 900/1800/1900 GPRS Phone / Bluetooth Enable; Type: 550SH; Serial: 004401/11/010710/5 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1850.2 MHz; σ = 1.44 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Area Scan (9x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.02 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.0 V/m; Power Drift = -0.060 dB Peak SAR (extrapolated) = 1.75 W/kg SAR(1 g) = 0.993 mW/g; SAR(10 g) = 0.547 mW/g Maximum value of SAR (measured) = 1.08 mW/g 0 dB = 1.08mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/09 11:35:06Date/Time: 2006/02/09 11:40:11 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Cheek/Touch 661ch (1880.00MHz) DUT: UMTS / GSM 900/1800/1900 GPRS Phone / Bluetooth Enable; Type: 550SH; Serial: 004401/11/010710/5 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Area Scan (9x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.891 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.2 V/m; Power Drift = -0.113 dB Peak SAR (extrapolated) = 1.60 W/kg SAR(1 g) = 0.903 mW/g; SAR(10 g) = 0.496 mW/g Maximum value of SAR (measured) = 1.000 mW/g 0 dB = 1.00mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/02/09 12:03:13Date/Time: 2006/02/09 12:08:16 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Cheek/Touch 810ch (1909.80MHz) DUT: UMTS / GSM 900/1800/1900 GPRS Phone / Bluetooth Enable; Type: 550SH; Serial: 004401/11/010710/5 Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1909.8 MHz; σ = 1.44 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.2, 5.2, 5.2); Calibrated: 2005/12/15 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2005/12/08 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 3 – Dosimetric E-Field Probe – ET3DV6, S/N: 1679 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4 – System Validation Dipole – D1800V2, S/N: 2d038 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 5 – Duty Cycle Plots Modulation Type: GSM Duty Cycle: 12.0 % (Crest Factor: 8.3) Modulation Type: GSM+GPRS (Level 10 / 2 slot) Duty Cycle: 24.0 % (Crest Factor: 4.2)

JAPAN QUALITY ASSURANCE ORGANIZATION JAPAN QUALITY ASSURANCE ORGANIZATION KITA-KANSAI TESTING CENTER 7-7, Ishimaru 1-Chome, Minoh-shi, Osaka 562-0027 Japan. Phone. +81-72-729-2243/Facsimile. +81-72-728-6848 IssueDate:February15,2006 Page 1 of 36 TEST REPORTEMCEMISSION - JQA APPLICATION No.: KL80050684R Name of Product: UMTS/GSM 900/1800/1900 GPRS Phone / Bluetooth Enable Model/Type No.: 550SH FCC ID: APYHRO00047 Applicant: Sharp Corporation, Communication Systems Group Address: 2-13-1, Iida Hachihonmatsu, Higashihiroshima-city, : Hiroshima 739-0192, JAPAN Manufacturer: Sharp Corporation, Communication Systems Group Address: 2-13-1, Iida Hachihonmatsu, Higashihiroshima-city, : Hiroshima 739-0192, JAPAN February 1, 2006Receive date of EUT: passedFinal Judgement: are obtained in use of equipment that is traceable to National TEST RESULTS IN THIS REPORT Institute of Advanced Industrial Science and Technology (AIST) under METI Japan and National Institute of Information and Communications Technology(NICT) under MPHPT Japan. only responds to the test sample. This test report shall not be reproduced THE TEST RESULTS except in full. Authorized by: , ManagerYuichi Fukumoto JQA KITA-KANSAI Testing Center JAPAN QUALITY ASSURANCE ORGANIZATION Page 2 of 36 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 - 4 Test Conditions5-18 Configuration of EUT / Operation mode of the EUT19 - 20 EUT Modification / Responsible Party / Deviation from Standard21 Test results / Measurement Uncertainty22 - 24 Summary25 26Test System-Arrangement (Drawings) 27Test-setup (Photographs) at worst case B) Test data - PCS1900 - Transmitter Power(TP)28 Antenna Conducted Spurious Emission29 - 30 Transmitter Power(EIRP)31 Unwanted Radiation32 - 33 Occupied Bandwidth34 Band-Edge Emission35 Frequency Stability36 JQA Application No. : KL80050684RRegulation: CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date: February 15, 2006 FCC ID: APYHRO00047 JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050684RRegulation: CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date: February 15, 2006 FCC ID: APYHRO00047 Page 3 of 36 TEST REGULATION FCC Rules and Regulations Part 24 (October 1, 2004) 1900 MHz systems (Part 24) - Narrowband PCS{ - Broadband PCSz Test procedure: The tests were performed according to FCC Rules and Regulations Part 2 (October 1, 2003), and ANSI C63.4 (2003). GENERAL INFORMATION Test facility: 1) Test Facility located at Kita-Kansai: 1st Open Site (3 m Site) Test Facility located at Kameoka: 1st Open Site (3, 10 and 30 m, on common plane) :2ndOpenSite(3and10m,oncommonplane) FCC filing No. : 31040/SIT 1300F2 2) KITA-KANSAI TESTING CENTER is recognizedunder the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in Title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code: 200191-0 Definitions for symbols used in this test report: - Black box indicates that the listed condition, standard or equipment is applicablez for this Report. - Blank box indicates that the listed condition, standard or equipment is not applicable{ for this Report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050684RRegulation: CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date: February 15, 2006 FCC ID: APYHRO00047 Page 4 of 36 Description of the Equipment Under Test (EUT): 1) Name: UMTS/GSM 900/1800/1900 GPRS Phone / Bluetooth Enable 2) Model/Type No.: 550SH 3) Product Type: Pre-production(Serial No.: 004401/11/010738/6) 4) Category: Broadband PCS 5) EUT Authorization:- Verification- Certification- D.o.C.{z { 6) Transmitting Frequency: 1850.2 MHz (512 ch) - 1909.8 MHz (810 ch)(PCS1900) 7) Receiving Frequency: 1930.2 MHz (512 ch) - 1989.8 MHz (810 ch) (PCS1900) 8) Integrated Antenna: L Type antenna 9) Emission Designations: 245KGXW(PCS1900) 10) Maximum RF Output Power: 0.977W(EIRP)(PCS1900) 11) Power Rating: 4.0VDC 12) Channel Numbers and Frequencies : PCS1900 Thecarrierspacingis200kHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: TX frequency (in MHz) = 1850.2 + 0.2 × (n -512) RX frequency (in MHz) = 1930.2 + 0.2 × (n -512) Where n : Channel Number (512 n 810)≤≤ 13) Modulation Type : GMSK 14) Type of Communication System : GSM JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050684RRegulation: CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date: February 15, 2006 FCC ID: APYHRO00047 Page 5 of 36 TEST CONDITIONS Transmitter Power (TP) Measurement (§2.1046(a)) Test Procedure : The Transmitter Power was measured with a power meter, two 10 dB attenuators and a short, low loss cable. EUT10 dBPowerAntenna Attenuator x 2MeterTerminal Fig.1 Transmitter Power Measurement Test location : KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan -Shieldedroom{ KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan -Shieldedroomz Used test instruments and sites : Model No.Device IDLast Cal. DateCal. Interval - E4417AB - 51August, 20051 Yearz - E9321AB - 52June, 20051 Yearz -6-20D-27{ - 4T-10D - 73{ - 4T-10D - 74{ -2-10D-79{ -2-10D-80{ - 54-10D - 82May, 20051 Yearz - 54-10D - 83May, 20051 Yearz Environmental conditions : Temperature:18 °CHumidity:37% JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050684RRegulation: CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date: February 15, 2006 FCC ID: APYHRO00047 Page 6 of 36 Antenna Conducted Spurious Emission Measurement (§2.1051,§24.238 ) Test Procedure : The Antenna Conducted Emission was measured with a spectrum analyzer. The test system is shown as follows: PCS1900 1) Frequency Range : 9kHz - 2GHz EUT10 dBSpectrumAntenna Att.(D-83)AnalyzerTerminal 2) Frequency Range : 2GHz - 20GHz EUT10 dBHPFSpectrumAntenna Att.(D-83)(D-96)AnalyzerTerminal Fig.2 Antenna Conducted Spurious Emission Measurement The setting …

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 7 Attachment A Occupied Bandwidth Measurement PCS1900 Test Date: February 10, 2006 Temp.: 18 ; Humi.: 37 %°C CHTransmitting26dB99%Data No.Frequency(MHz)BandwidthBandwidthPage 5121850.200319.0 kHz244.5 kHzPage 2 6611880.000317.9 kHz242.5 kHzPage 3 8101909.800318.9 kHz242.6 kHzPage 4 .Note) The point shown on "" is the Maximum Margin Point Tester : Shigeru Kinoshita JQA Application No. : KL80050684RRegulation : CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date : February 15, 2006 FCC ID: APYHRO00047 JAPAN QUALITY ASSURANCE ORGANIZATION Page 2 of 7 Occupied Bandwidth Measurement Transmitting Frequency : 1850.200MHz (512 ch) JQA Application No. : KL80050684RRegulation : CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date : February 15, 2006 FCC ID: APYHRO00047 JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050684RRegulation : CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date : February 15, 2006 FCC ID: APYHRO00047 Page 3 of 7 Occupied Bandwidth Measurement Transmitting Frequency : 1880.000MHz (661 ch) JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050684RRegulation : CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date : February 15, 2006 FCC ID: APYHRO00047 Page 4 of 7 Occupied Bandwidth Measurement Transmitting Frequency : 1909.800MHz (810 ch) JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050684RRegulation : CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date : February 15, 2006 FCC ID: APYHRO00047 Page 5 of 7 Band-Edge Emission Measurement PCS1900 Test Date: February 10, 2006 Temp.: 18 ; Humi.: 37 %°C 1) Low Band-Edge Measurement CHTransmittingBand-Edge Band-EdgeData Frequency(MHz)Frequency(MHz) Level[dBc]Page 5121850.2001850.000-42.1Page 6 2) High Band-Edge Measurement CHTransmittingBand-Edge Band-EdgeData Frequency(MHz)Frequency(MHz) Level[dBc]Page 8101909.8001910.000-43.1Page 7 .Note) The point shown on "" is the Maximum Point Tester : Shigeru Kinoshita JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050684RRegulation : CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date : February 15, 2006 FCC ID: APYHRO00047 Page 6 of 7 Band-Edge Emissiom Measurement Transmitting Frequency : 1850.200MHz (512 ch) Band-Edge Frequency: 1850.000 MHz JAPAN QUALITY ASSURANCE ORGANIZATION JQA Application No. : KL80050684RRegulation : CFR 47 FCC Rules Part 24 Model No.: 550SHIssue Date : February 15, 2006 FCC ID: APYHRO00047 Page 7 of 7 Band-Edge Emissiom Measurement Transmitting Frequency : 1909.800MHz (810 ch) Band-Edge Frequency: 1910.000 MHz

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 10 Attachment B Antenna Conducted Spurious Emission Measurement (§2.1051,§24.238 ) Test Procedure : The Antenna Conducted Emission was measured with a spectrum analyzer. The test system is shown as follows: PCS1900 1) Frequency Range : 9kHz - 2GHz EUT10 dBSpectrumAntenna Att.(D-83)AnalyzerTerminal 2) Frequency Range : 2GHz - 20GHz EUT10 dBHPFSpectrumAntenna Att.(D-83)(D-96)AnalyzerTermin…

Text truncated - open the document above for the full version.
