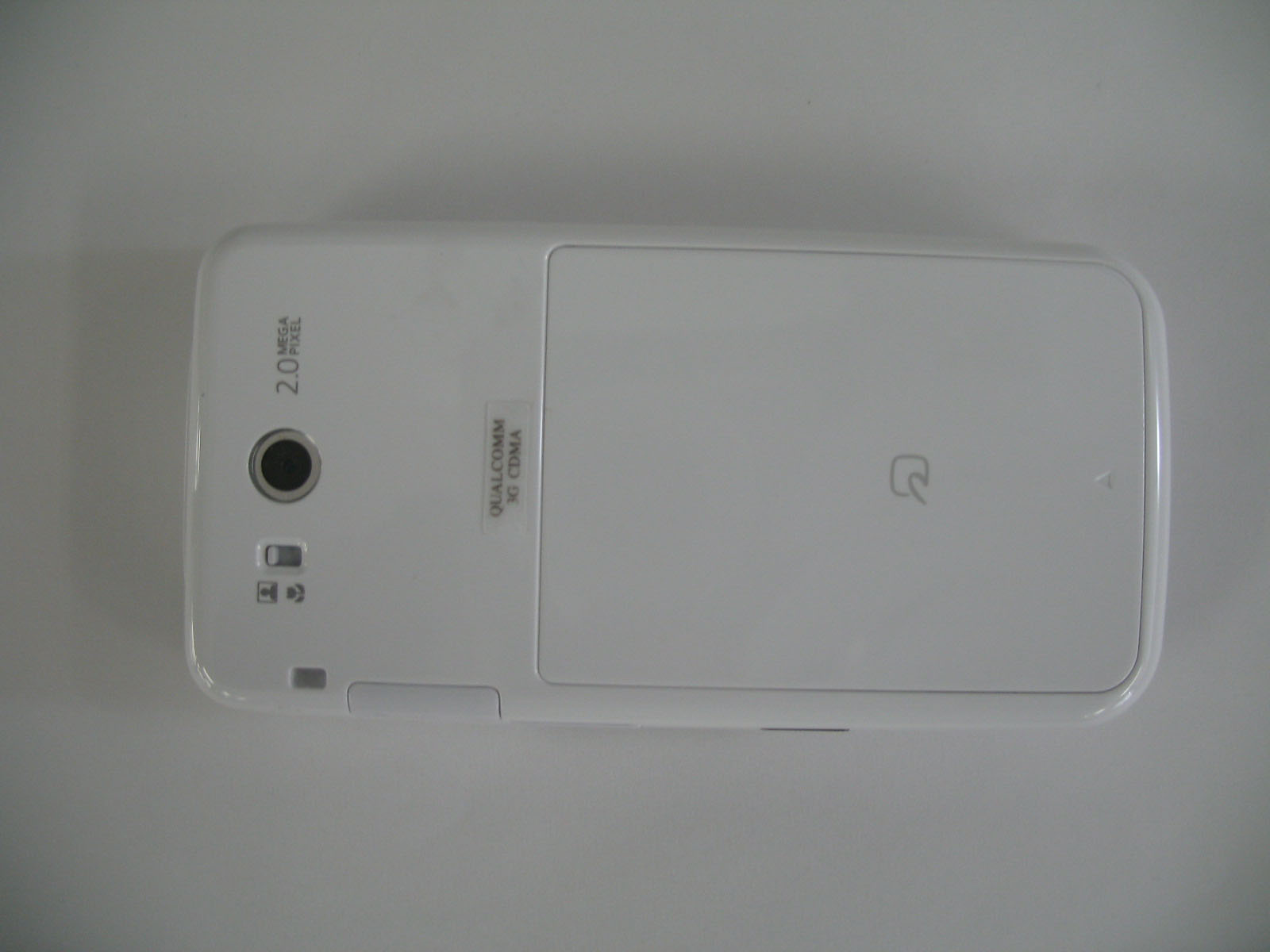

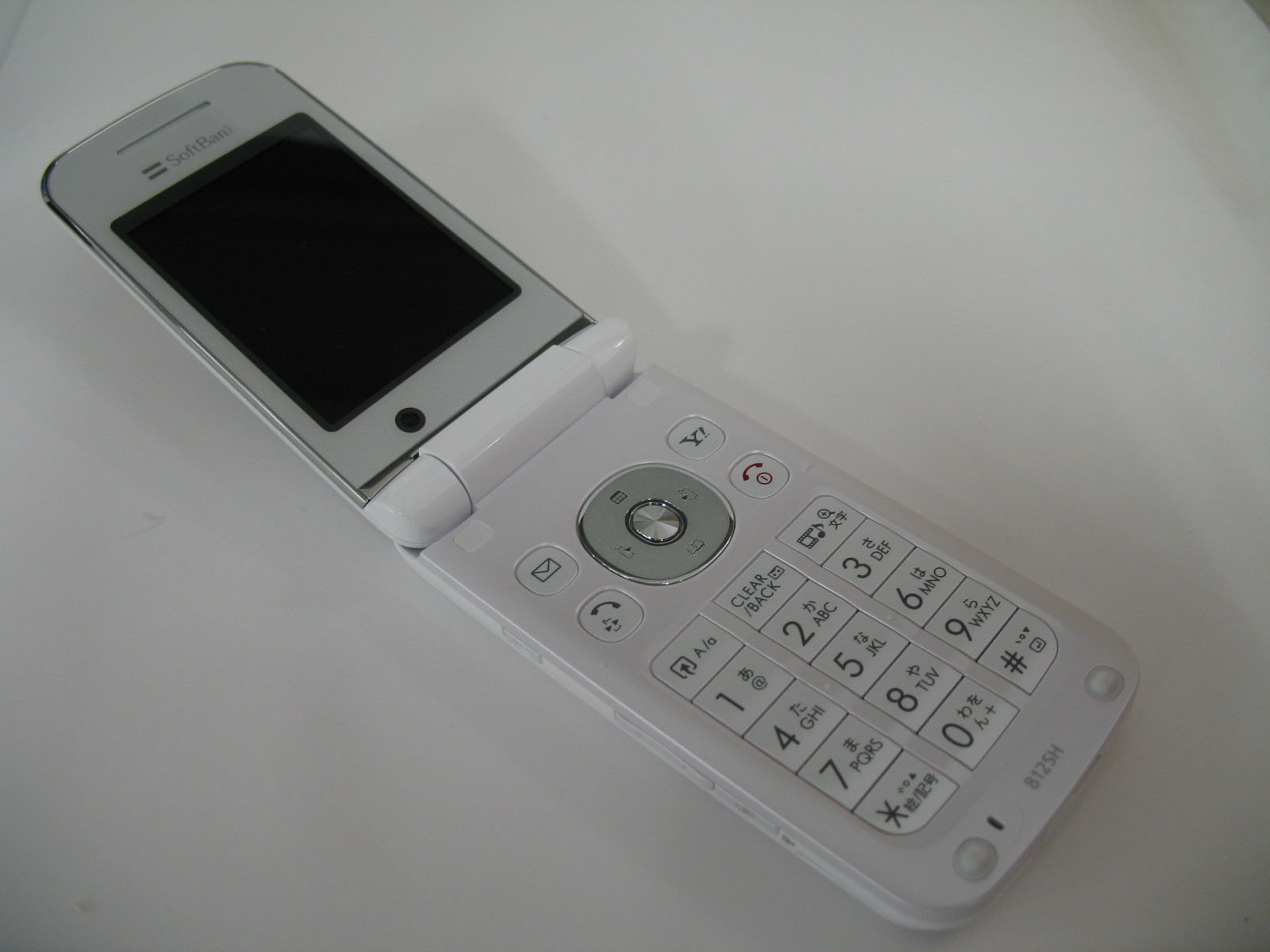

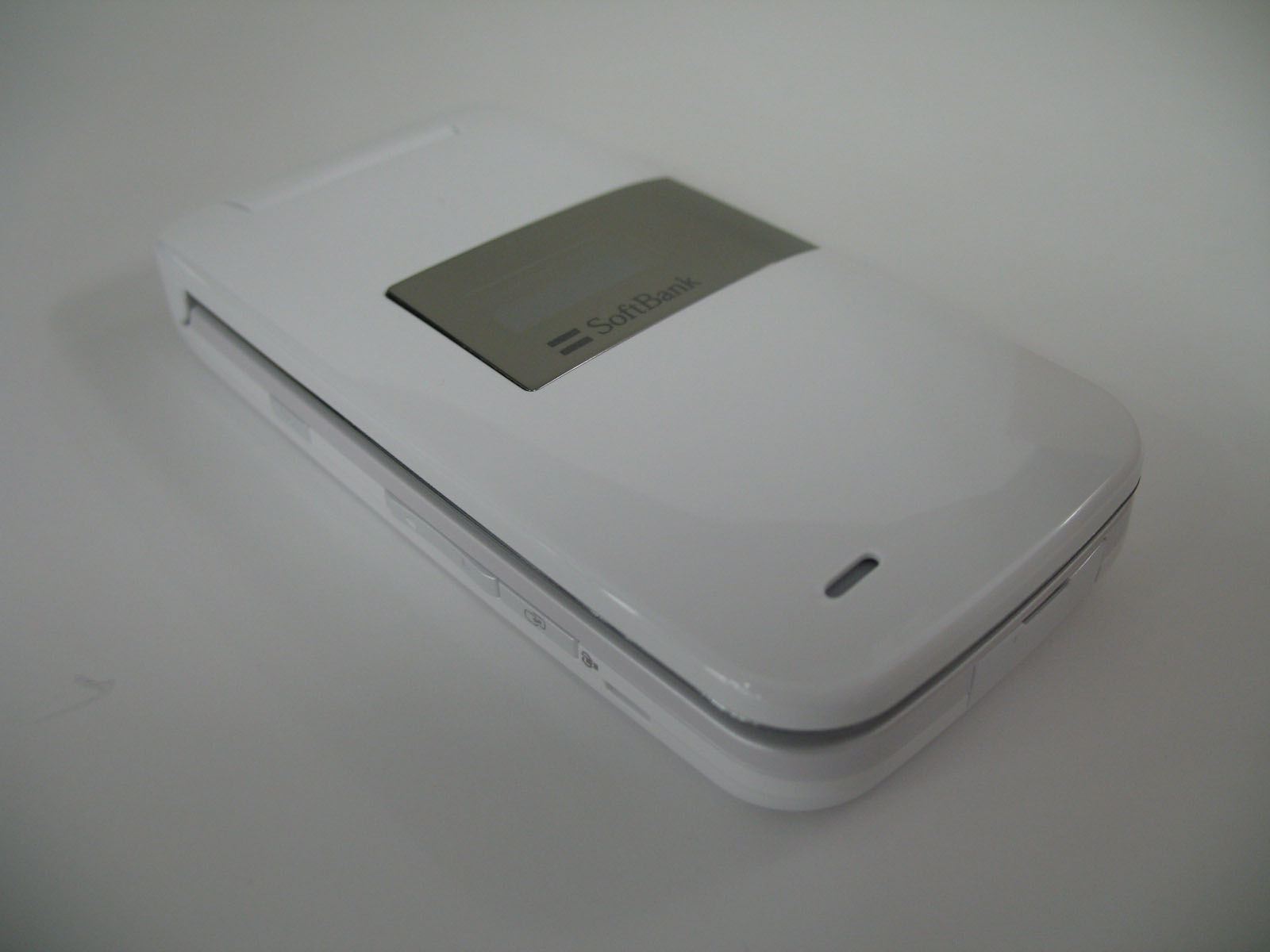

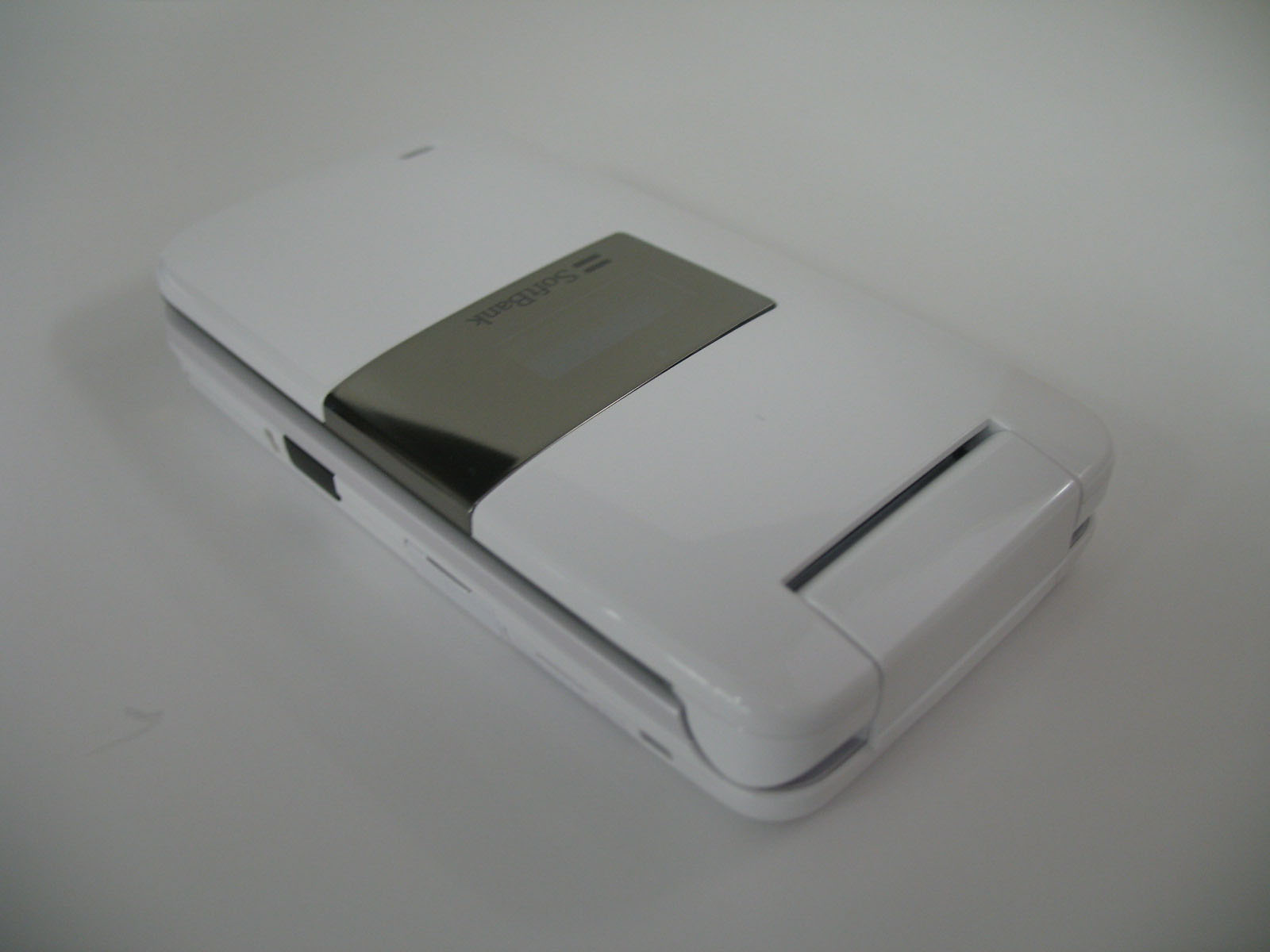

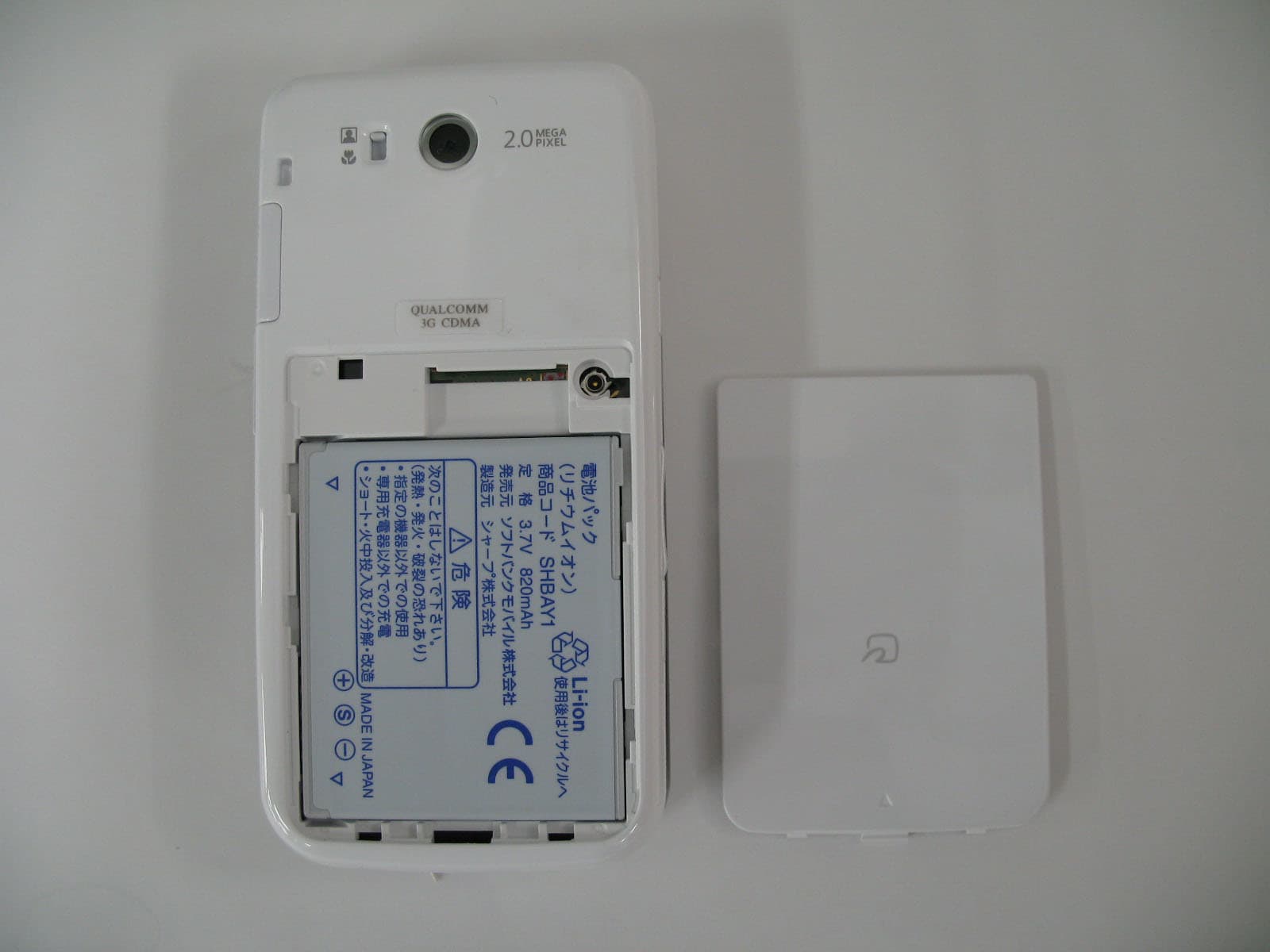

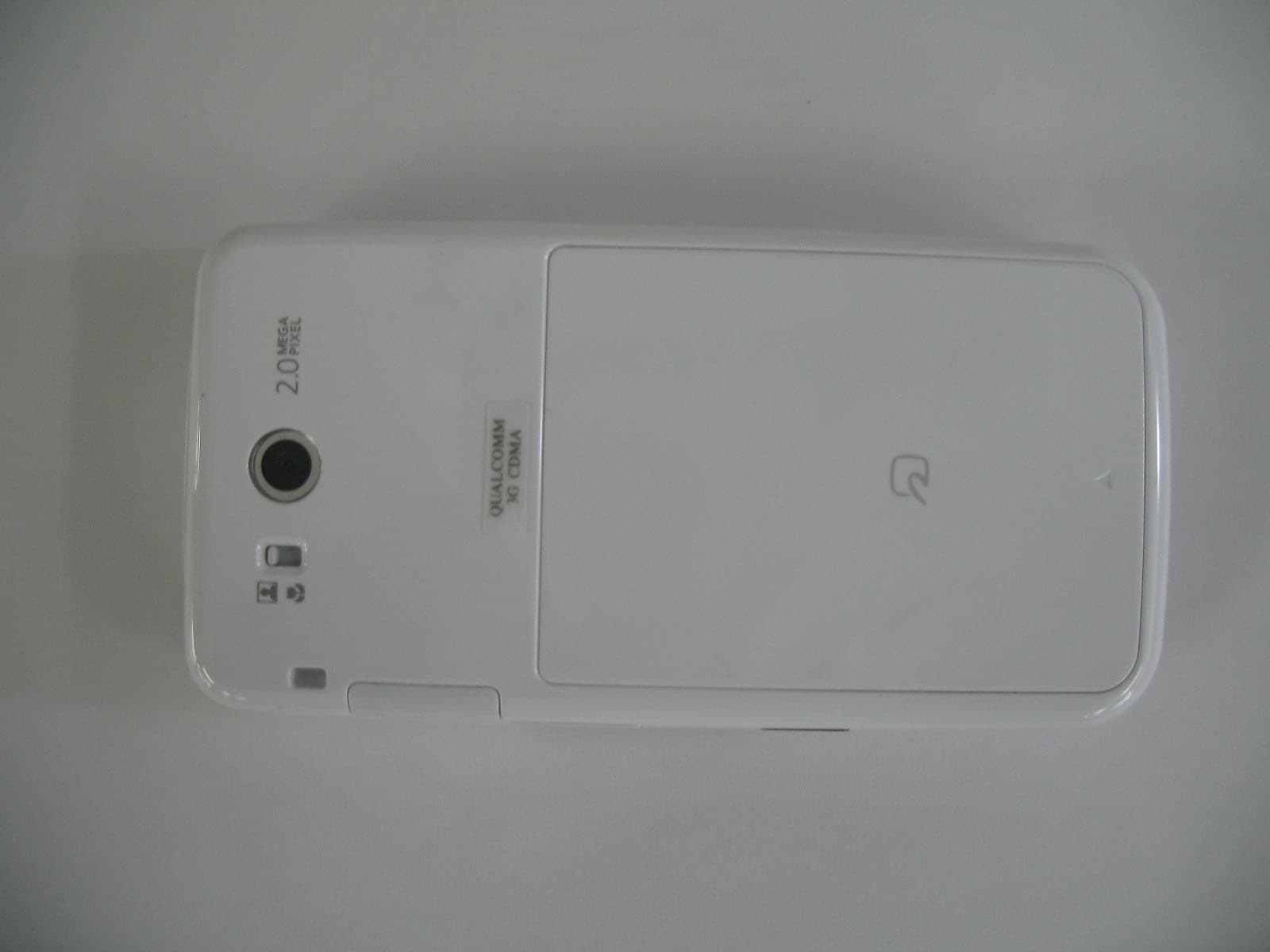

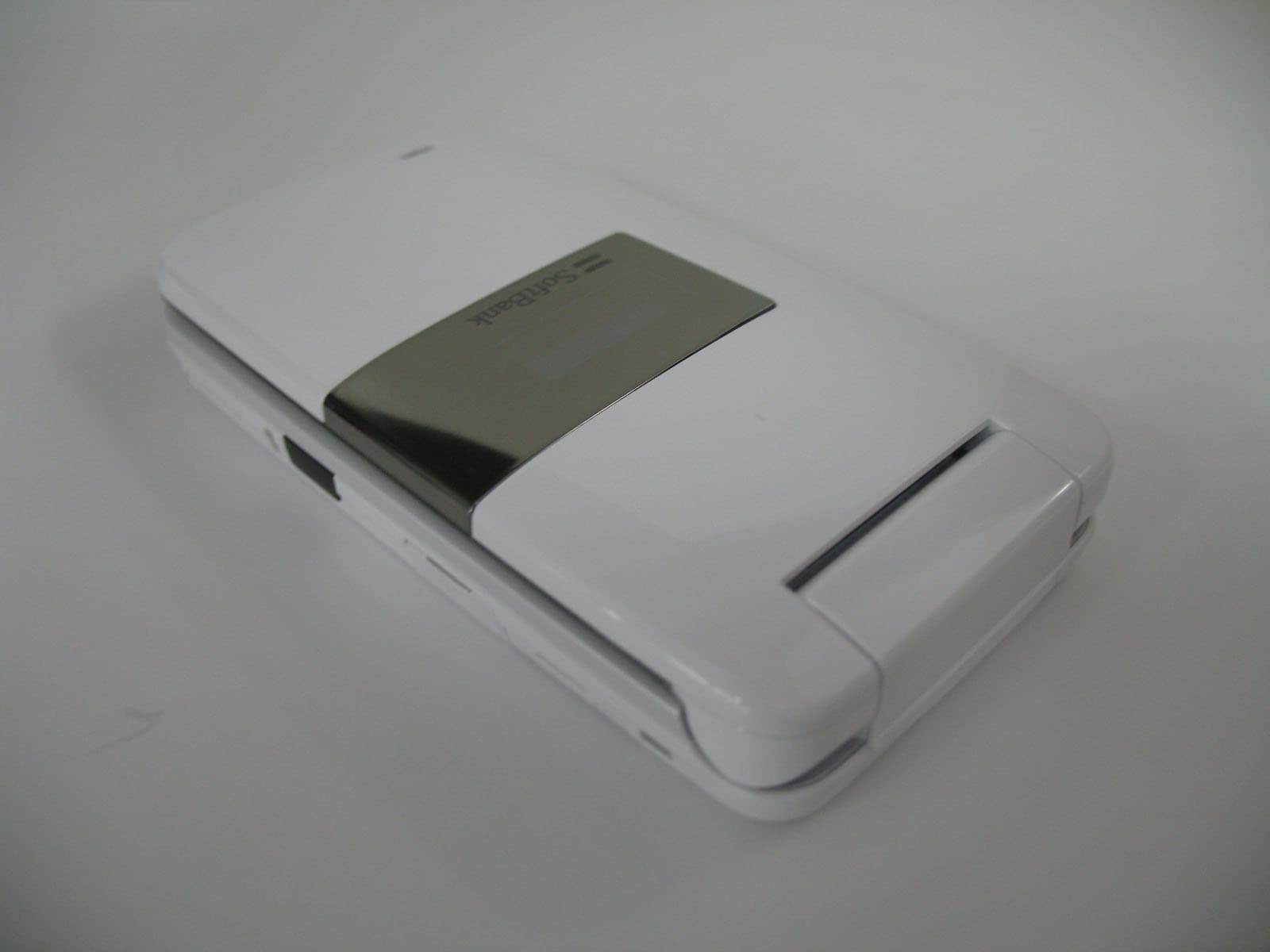

APYHRO00054Cellular Transceiver With Bluetooh

20-1 Abridged English Manual For more information about handset operations and functions, please go to the SOFTBANK MOBILE Corp. Website (http://www.softbank.jp) for the full manual* or dial 157 from a SoftBank handset for Customer Service. *Please note that the full manual may not be available in English at time of purchase. In this case, call Customer Service or check SoftBank Website again at a later date. L280_insatsu.book 1 ページ ２００６年１２月１３日 水曜日 午後１２時５５分 20-2 Abridged English Manual 20 This manual is for SoftBank 812SH and 813SH. Although 813SH is not equipped with mobile camera, operations/functions of these models are basically the same. In this manual, most operations are described with handset open in Standby. Sample screen shots, etc. are provided for reference only. Actual handset windows, menus, etc. may differ in appearance. Illustrations in this manual are based on SoftBank 812SH. ■ Functions These functions are not available on SoftBank 813SH: Video Call; Camera; Face Recognition; Scan Barcode; Create QR Code; Text Scanner. ■ Main Menu Note X For more about SoftBank 813SH, see ●●●● . 812SH-813SH Comparison SoftBank 812SH zZ SoftBank 813SH Communication Communication Yahoo! Keitai Yahoo! Keitai Media Player Media Player Messaging Messaging Camera PIM Data Folder Data Folder Tools Tools Entertainment Entertainment S! Appli S! Appli Lifestyle-appli Lifestyle-appli Phone Phone Settings Settings L280_insatsu.book 2 ページ ２００６年１２月１３日 水曜日 午後１２時５５分 20-3 Abridged English Manual 20 Accessories ■ Lithium-ion Battery (Type 1) (SHBAY1) ■ AC Charger (SHCAA1) ■ Utility Software (CD-ROM)* ★ * Utility Software updates/upgrades may become available on the SoftBank Website (http://www.softbank.jp) without prior notification. Please check for the newest versions of Utility Software and download as required. ★ Complimentary sample not available for purchase Note X Supplied Utility Software is designed exclusively for 812SH and 813SH. Tip X . For accessory-related information, please contact SoftBank Customer Centre, General Information (see P.20-50 ). . Handset is compatible with microSD TM Memory Card; microSD TM Memory Card is not included in this package. Purchase microSD TM Memory Card to use Memory Card-related handset functions. . In this manual, microSD TM Memory Card is referred to as "Memory Card". L280_insatsu.book 3 ページ ２００６年１２月１３日 水曜日 午後１２時５５分 20-4 Abridged English Manual 20 . Read safety precautions before using handset. . Observe precautions to avoid injury to self or others, or damage to property. . SoftBank is not liable for any damages resulting from use of this product. ■ Symbols Make sure you thoroughly understand these symbols before reading on. Symbols and their meanings are described below: Safety Precautions Before Using Handset 0 DANGER Great risk of death or serious injury from improper use 0 WARNING Risk of death or serious injury from improper use 0 CAUTION Risk of injury or damage to property from improper use 12345 Prohibited Actions 67 Compulsory Actions 0 Attention Required 0 DANGER Handset, Battery & Charger 6 Use specified battery, Charger and Desktop Holder only. Using non-specified equipment may cause malfunctions, electric shock or fire due to battery leakage, overheating or bursting. 1 Do not short-circuit Charger terminals. Keep metal objects away from Charger terminals. Keep handset away from jewellery. Battery may leak, overheat, burst or ignite causing injury. Use a case to carry battery. Battery 1 Prevent injury from battery leakage, breakage or fire. Do not:« Heat or dispose of battery in fire « Open/modify/disassemble battery « Damage or solder battery « Use a damaged or deformed battery « Use non-specified charger « Force battery into handset « Charge battery near fire or sources of heat; or expose it to extreme heat « Use battery for other equipment 6 If battery fluid contacts eyes, do not rub them. Rinse with clean water and consult a doctor immediately. Eyes may be severely damaged. L280_insatsu.book 4 ページ ２００６年１２月１３日 水曜日 午後１２時５５分 20-5 Abridged English Manual 20 0 WARNING Handset, Battery & Charger 1 Do not insert foreign objects into the handset, Charger or Desktop Holder. Do not insert metal or flammable objects into handset, Charger or Desktop Holder; may cause fire or electric shock. Keep out of children's reach. 3 Keep handset out of rain or extreme humidity. Fire or electric shock may result. 1 Keep handset away from liquid-filled containers. Keep the handset, Charger and Desktop Holder away from chemicals or liquids; fire or electric shock may result. 1 Keep battery, handset, Charger or Desktop Holder away from microwave ovens. Battery, handset, Charger or Desktop Holder may leak, burst, overheat or ignite, leading to accidents or injury. 2 Do not disassemble or modify handset or related hardware.« Do not open handset, Charger or Desktop Holder; may cause electric shock or injury. Contact SoftBank Customer Centre, Customer Assistance for repairs. « Do not modify handset, Charger or Desktop Holder; fire or electric shock may result. 7 If water or foreign matter is inside handset: Discontinue handset use to prevent fire/electric shock. Turn off handset, remove battery and unplug Charger, then contact SoftBank Customer Centre, Customer Assistance. 1 Avoid sources of fire. Keep power off in the presence of gas. Fire may result. Keep handset off and avoid charging battery while fuelling vehicles at petrol stations, etc. In addition, turn off handset before using S! FeliCa at petrol stations. (Cancel IC Card Lock beforehand.) 1 Do not subject handset to strong shocks or impacts. Strong shocks or impacts to handset, Charger or Desktop Holder may cause malfunction or injury. Should handset be damaged, remove battery then contact SoftBank Customer Centre, Customer Assistance. Discontinue handset use; fire or electric shock may occur. 7 If an abnormality occurs: If a handset emits an unusual sound, smoke or odour, discontinue use; may cause fire or elec…

Text truncated - open the document above for the full version.

xxvii microSD™ 、 miniSD™ は SD Card Association の商標です。 下記の または複数の米国特許またはそれに対応する他国の特許権に基づき、 １件 QUALCOMM 社よりライセンスされています。 Licensed by QUALCOMM Incorporated under one or more of the following UnitedStates Patents and/or their counterparts in other nations ;4,901,307 5,490,165 5,056,109 5,504,773 5,101,501 5,506,865 5,109,390 5,511,073 5,228,054 5,535,239 5,267,261 5,544,196 5,267,262 5,568,483 5,337,338 5,600,754 5,414,796 5,657,420 5,416,797 5,659,569 5,710,784 5,778,338 本製品はインターネットブラウザおよび SMIL プレーヤとして、 株 式会社 ACCESS の NetFront Browser および NetFront SMIL Player を搭載しています。 Copyright © 2004-2006 ACCESS CO., LTD. ACCESS 、 NetFront は株式会社 ACCESS の日本またはその他の 国における商標または登録商標です。本製品の一部分に Independent JPEG Group が開発した モジュールが含まれています。 Bluetooth ® is a trademark of the Bluetooth SIG, Inc. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sharp is under license. Other trademarks and trade names are those of their respective owners.Bluetooth ® は、米国 Bluetooth SIG.Inc. の登録商標です。 FeliCa はソニー株式会社が開発した非接触 IC カードの技術方式 です。 FeliCa はソニー株式会社の登録商標です。 m は、フェリカネットワークス株式会社の登録商標です。 FeliCa is a contactless IC card technology developed by Sony Corporation.FeliCa is a trademark of Sony Corporation. L280_insatsu.book xxvii ページ ２００６年１１月３０日 木曜日 午後６時３分

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Re: Sharp Corporation FCC ID: APYHRO00054 Confirmation Number: TC724652 Grant Date: 1/11/2007 Dear Examiner, We were notified by the grantee on 1/22/2007, “Regarding the files that were uploaded onto the FCC website for APYHRO00055 and APYHRO00054, we found that the EUT Photos in SAR report are available (Attachment 6). These photos are supposed to be kept confidential! Please remove the SAR photos from the FCC website ASAP.” Since “SAR_TestReport_Attachment 6” was uploaded as RF exposure exhibit, it can not be modified to be kept short-term confidential. The file was reloaded as Test Setup Photos exhibit yesterday and is being kept short-term confidential. Please kindly supersede RF exposure exhibit – “SAR_TestReport_Attachment 6" Thank you for your approval. Best Regards, Helen Zhao Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 Direct: (510) 771-1131 Fax: (510) 661-0888 Main: (510) 771-1000 e-mail: [email protected] FCC, VCCI, CISPR, CE, ACA, NZ 47173 Benicia St. Fremont, CA 94538 UL, CSA, TUV, BSMI, DHHS, NVLAP PHONE: (510) 771-1000 FAX: (510) 661-0888 www.ccsemc.com

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 22 Technical document No. 23763-0601 JQA File No. : KL80060476 Issued Date : December 8, 2006 TEST REPORT (SAR EVALUATION) APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan PRODUCTS : WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable MODEL NO. : 812SH SERIAL NO. : 004401/11/038392/0 FCC ID : APYHRO00054 TEST STANDARD : FCC/OET Bulletin 65 Supplement C (Edition 01-01) TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : December 4, 2006 - December 5, 2006 This report must not used by the client to claim product endorsement by NVLAP or Yuichi Fukumoto NIST or any agency of the U.S. Government. Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division NVLAP LAB CODE 200191-0 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80060476 Issue Date : December 8, 2006 Model No. : 812SH FCC ID : APYHRO00054 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 2 of 22 Technical document No. 23763-0601 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation.....................................................................................................................................3 2 Test Location.........................................................................................................................................3 3 Recognition of Test Laboratory............................................................................................................3 4 Description of the Equipment Under Test..........................................................................................4 5 Measurement System Diagram............................................................................................................5 6 System Components..............................................................................................................................6 7 Measurement Process...........................................................................................................................8 8 Measurement Uncertainties.................................................................................................................9 9 Equipment Under Test Modification.................................................................................................10 10 Responsible Party................................................................................................................................10 11 Deviation from Standard....................................................................................................................10 12 Test Results.........................................................................................................................................11 13 Summary..............................................................................................................................................12 14 Test Arrangement...............................................................................................................................13 15 Equipment Under Test Tune-Up Procedures....................................................................................15 Appendix A: Test Data ................................................................................................................................... 16 A.1 System Validation...............................................................................................................................16 A.2 Tissue Verification..............................................................................................................................17 A.3 SAR Measurement Data.....................................................................................................................18 Appendix B: Test Instruments....................................................................................................................... 21 Appendix C: Attachments .............................................................................................................................. 22 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT “EUT” means Equipment Under the Test. “N/A” means that Not Applicable. “N/T” means that Not Tested. - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80060476 Issue Date : December 8, 2006 Model No. : 812SH FCC ID : APYHRO00054 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 3 of 22 Technical document No. 23763-0601 Documentation 1 Test Regulation Applied Standard : FCC/OET Bulletin 65…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 1 – System Validation Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/12/05 10:29:53Date/Time: 2006/12/05 10:32:38 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 2d038 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL1800 Medium parameters used: f = 1800 MHz; σ = 1.36 mho/m; ε r = 38.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.22, 5.22, 5.22); Calibrated: 2006/11/16 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2006/11/09 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 10.3 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.0 V/m; Power Drift = -0.034 dB Peak SAR (extrapolated) = 15.3 W/kg SAR(1 g) = 9.07 mW/g; SAR(10 g) = 4.91 mW/g Maximum value of SAR (measured) = 10.2 mW/g 0 dB = 10.2mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/12/04 12:04:14Date/Time: 2006/12/04 12:06:38 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 2d038 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: M1800 Medium parameters used: f = 1800 MHz; σ = 1.46 mho/m; ε r = 52.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(4.61, 4.61, 4.61); Calibrated: 2006/11/16 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2006/11/09 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 10.7 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 91.7 V/m; Power Drift = -0.039 dB Peak SAR (extrapolated) = 15.3 W/kg SAR(1 g) = 9.47 mW/g; SAR(10 g) = 5.16 mW/g 0 dB = 10.7mW/g

Attachment 2 – SAR Test Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/12/05 16:11:52Date/Time: 2006/12/05 16:17:43 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Cheek/Touch 512ch (1850.20MHz) DUT: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable; Type: 812SH; Serial: 004401/11/038392/0 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1850.2 MHz; σ = 1.44 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.22, 5.22, 5.22); Calibrated: 2006/11/16 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2006/11/09 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.991 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.86 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.894 mW/g; SAR(10 g) = 0.536 mW/g Maximum value of SAR (measured) = 0.998 mW/g 0 dB = 0.998mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/12/05 15:39:25Date/Time: 2006/12/05 15:45:17 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Cheek/Touch 661ch (1880.00MHz) DUT: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable; Type: 812SH; Serial: 004401/11/038392/0 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.22, 5.22, 5.22); Calibrated: 2006/11/16 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2006/11/09 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.07 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.23 V/m; Power Drift = -0.038 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.953 mW/g; SAR(10 g) = 0.573 mW/g 0 dB = 1.07mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/12/05 15:57:02Date/Time: 2006/12/05 16:02:53 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Cheek/Touch 810ch (1909.80MHz) DUT: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable; Type: 812SH; Serial: 004401/11/038392/0 Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1909.8 MHz; σ = 1.44 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.22, 5.22, 5.22); Calibrated: 2006/11/16 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2006/11/09 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek/Touch Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.14 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.54 V/m; Power Drift = -0.031 dB Peak SAR (extrapolated) = 1.52 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.604 mW/g Maximum value of SAR (measured) = 1.13 mW/g 0 dB = 1.13mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/12/05 16:33:29Date/Time: 2006/12/05 16:39:21 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Ear/Tilt 661ch (1880.00MHz) DUT: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable; Type: 812SH; Serial: 004401/11/038392/0 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.22, 5.22, 5.22); Calibrated: 2006/11/16 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2006/11/09 z Phantom: SAM 1194; Type: QD 000 P40 CA; Serial: 1194 z Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Ear/Tilt Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.303 mW/g Ear/Tilt Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.5 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 0.437 W/kg SAR(1 g) = 0.300 mW/g; SAR(10 g) = 0.189 mW/g Maximum value of SAR (measured) = 0.319 mW/g 0 dB = 0.319mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2006/12/05 13:32:47Date/Time: 2006/12/05 13:38:44 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Right Head, Cheek/Touch 512ch (1850.20MHz) DUT: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable; Type: 812SH; Serial: 004401/11/038392/0 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: HSL1900 Medium parameters used: f = 1850.2 MHz; σ = 1.44 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: z Probe: ET3DV6 - SN1679; ConvF(5.22, 5.22, 5.22); Calibrated: 2006/11/16 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn508; Calibrated: 2006/11/09 z Phantom: SA…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 3 – Dosimetric E-Field Probe – ET3DV6, S/N: 1679 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4 – System Validation Dipole – D1800V2, S/N: 2d038 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 5 – Duty Cycle Plots Modulation Type: GSM Duty Cycle: 12.0 % (Crest Factor: 8.3) Modulation Type: GSM+GPRS (Level 10 / 2 slot) Duty Cycle: 24.0 % (Crest Factor: 4.2)

JAPAN QUALITY ASSURANCE ORGANIZATION JAPAN QUALITY ASSURANCE ORGANIZATION KITA-KANSAI TESTING CENTER 7-7, Ishimaru 1-Chome, Minoh-shi, Osaka 562-0027 Japan. Phone. +81-72-729-2243/Facsimile. +81-72-728-6848 IssueDate:December8,2006 Page 1 of 37 TEST REPORTEMCEMISSION - JQA File No.: KL80060477 Products: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable Model/Type No.: 812SH FCC ID: APYHRO00054 Applicant: Sharp Corporation, Communication Systems Group Address: 2-13-1, Iida Hachihonmatsu, Higashihiroshima-city, : Hiroshima 739-0192, JAPAN Manufacturer: Sharp Corporation, Communication Systems Group Address: 2-13-1, Iida Hachihonmatsu, Higashihiroshima-city, : Hiroshima 739-0192, JAPAN November 26, 2006Receive date of EUT: passedTest Results: are obtained in use of equipment that is traceable to National TEST RESULTS IN THIS REPORT Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology(NIST) of Japan. only responds to the test sample. This test report shall not be reproduced THE TEST RESULTS except in full. This report must not used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. NVLAP LAB CODE: 200191-0 , ManagerYuichi Fukumoto JQA KITA-KANSAI Testing Center JAPAN QUALITY ASSURANCE ORGANIZATION Page 2 of 37 DIRECTORY Page A) Documentation Directory2 Test Regulation / General Information3 - 4 Test Conditions5-18 Configuration of EUT / Operation mode of the EUT19 - 20 EUT Modification / Responsible Party / Deviation from Standard21 Test results / Measurement Uncertainty22 - 24 Summary25 26Test System-Arrangement (Drawings) 27 - 28Test-setup (Photographs) at worst case B) Test data - PCS1900 - Transmitter Power(TP)29 Antenna Conducted Spurious Emission30 - 31 Transmitter Power(EIRP)32 Unwanted Radiation33 - 34 Occupied Bandwidth35 Band-Edge Emission36 Frequency Stability37 JQA File No.: KL80060477Issue Date : December 8, 2006 Model No.: 812SHFCC ID: APYHRO00054 Regulation: CFR 47 FCC Rules Part 24 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No.: KL80060477Issue Date : December 8, 2006 Model No.: 812SHFCC ID: APYHRO00054 Regulation: CFR 47 FCC Rules Part 24 Page 3 of 37 TEST REGULATION FCC Rules and Regulations Part 24 (October 1, 2004) 1900 MHz systems (Part 24) - Narrowband PCS{ - Broadband PCSz Test procedure: The tests were performed according to FCC Rules and Regulations Part 2 (October 1, 2003), and ANSI C63.4 (2003). GENERAL INFORMATION JQA KITA-KANSAI Testing Center Testing Department EMC Division is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility of Testing Division is registered by the following bodies. VLAC Code: VLAC-001-2 (Effective through : April 3, 2008) NVLAP Lab Code: 200191-0 (Effective through : June 30, 2007) BSMI Recognition No.: SL2-IS-E-6006, SL2-IN-E-6006, SL2-AI-E-6006 (Effective through : September 14, 2007) VCCI Registration No.: R-006, R-008,R-1117, C-006, C-007, C-1674, C-2143 (Effective through : April 3, 2008) FCC Registration No. : 683630 (Effective through : June 30, 2007) IC Registration No. : IC 4125-1, IC 6217-1, IC 6217-2 (Effective through : November 16, 2008) Accredited as conformity assessment body for Japanelectrical appliances and material law by METI. (Effective through : February 24, 2007) Definitions for symbols used in this test report: - Black box indicates that the listed condition, standard or equipment is applicablez for this Report. - Blank box indicates that the listed condition, standard or equipment is not applicable{ for this Report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No.: KL80060477Issue Date : December 8, 2006 Model No.: 812SHFCC ID: APYHRO00054 Regulation: CFR 47 FCC Rules Part 24 Page 4 of 37 Description of the Equipment Under Test (EUT): 1) Name: WCDMA & Tri-band GSM Dual mode Mobile Phone / Bluetooth Enable 2) Model/Type No.: 812SH 3) Product Type: Pre-production(Serial No.: 004401/11/038736/8) 4) Category: Broadband PCS 5) EUT Authorization: - Verification- Certification- D.o.C.{z { 6) Transmitting Frequency: 1850.2 MHz (512 ch) - 1909.8 MHz (810 ch)(PCS1900) 7) Receiving Frequency: 1930.2 MHz (512 ch) - 1989.8 MHz (810 ch) (PCS1900) 8) Integrated Antenna: Inverse-L Type antenna 9) Emission Designations: 245KGXW(PCS1900) 10) Maximum RF Output Power: 1.288W(EIRP)(PCS1900) 11) Power Rating: 4.0VDC 12) Channel Numbers and Frequencies : PCS1900 Thecarrierspacingis200kHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: TX frequency (in MHz) = 1850.2 + 0.2 × (n -512) RX frequency (in MHz) = 1930.2 + 0.2 × (n -512) Where n : Channel Number (512 n 810)≤≤ 13) Modulation Type : GMSK 14) Type of Communication System : GSM JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No.: KL80060477Issue Date : December 8, 2006 Model No.: 812SHFCC ID: APYHRO00054 Regulation: CFR 47 FCC Rules Part 24 Page 5 of 37 TEST CONDITIONS Transmitter Power (TP) Measurement (§2.1046(a)) Test Procedure : The Transmitter Power was measured with a power meter, two 10 dB attenuators and a short, low loss cable. EUT10 dBPowerAntenna Attenuator x 2MeterTerminal Fig.1 Transmitter Power Measurement Test location : KITA-KANSAI Testing Center 7-7, Ishimaru, 1-Chome, Mino-Shi, Osaka, 562-0027, Japan -Shieldedroom{ KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-Cho, Kameoka-Shi, Kyoto, 621-0126, Japan -Shieldedroomz Used test instruments and sites : Model No.Device IDLast Cal. DateCal. Interval - E4417AB - 51{ - E9321AB - 52{ - N1911AB - 63June, 20061 Yearz - N1921AB - 64June, 20061 Yearz -6-20D-27{ - 4T-10D - 73{ - 4T-10D - 74{ -2-10D-79{ -2-10D-80{ - 54-10D - 82November, 20061 Yearz - 54-10D - 83November, 20061 Yearz Environmental conditions : Temperature: 21 °C Humidity: 42 % JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No.: KL80060477Issue Date : December 8, 2006 Model No.: 812…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 7 Attachment A Occupied Bandwidth Measurement PCS1900 Test Date: December 1, 2006 Temp.: 21 ; Humi.: 42 %°C CHTransmitting26dB99%Data No.Frequency(MHz)BandwidthBandwidthPage 5121850.200319.2 kHz242.5 kHzPage 2 6611880.000316.8 kHz244.6 kHzPage 3 8101909.800316.1 kHz242.8 kHzPage 4 .Note) The point shown on "" is the Maximum Margin Point Tester : Shigeru Kinoshita JQA File No.: KL80060477Issue Date : December 8, 2006 Model No.: 812SHFCC ID: APYHRO00054 Regulation: CFR 47 FCC Rules Part 24 JAPAN QUALITY ASSU…

Text truncated - open the document above for the full version.
