APYHRO00064Cellular Transceiver

30 e02_dt20_7e.fm [30/56] Before Using the Handset ※Key illustrations are examples and may look different from actual keys. Component names and functions u f e g d 8 c 3 1 7 5 6 m l 4 i s y x w v r 2 k q z 9 p a h j o n t k b dt20_E.book 30 ページ ２００７年１２月１２日 水曜日 午後２時３分 e02_dt20_7e.fm [31/56] 31 Continued on next page Before Using the Handset 1Earpiece Emits the other party’s voice. Listen to Record message/Voice memo using the earpiece. 2Brightness sensor (nP. 121) The sensor detects the light of the surrounding area and automatically adjusts the display brightness and keypad backlight. Do not cover the sensor area with a sticker. May interfere with the sensor. 3Main display (nP. 34) 4i-mode/Operation guidance key i (,) Press to use i-mode (nP. 172). Press to execute the functions of the operation guidance (nP. 33). Press for 1+ seconds to display the i-appli software list screen (nP. 235). 5Multi-guide key wt Move the cursor to select an item and execute or set (nP. 33). Press to display Menu, Redial list screen, Received calls list screen, Shortcut menu and Active marker. Press t for 1+ seconds to use Multi easy lock (nP. 138). Press r for 1+ seconds to use IC card lock (nP. 272). Press u for 1+ seconds to adjust the earpiece volume (nP. 111). 6Mail/Operation guidance key m Press to use mail functions (nP. 200). Press to execute the functions of the operation guidance (nP. 33). Press twice to check new messages (nP. 211). Press for 1+ seconds to display a new mail message screen (nP. 200). 7Start/Hands-free key s Press to make or receive a voice call. Press to use Hands-free (nP. 59). 8Dial/Text entry keys 1 to 9, 0, *, # Press to enter a phone number or text. Press * for 1+ seconds to use the Public mode (Drive mode) (nP. 73). Press # for 1+ seconds to use the Manner mode (nP. 115). Press 1 to 3 for 1+ seconds to use assigned functions (nP. 392). Press 5 for 1+ seconds to set font size collectively (nP. 127). Press 7 for 1+ seconds to record voice memo or play voice memo or recorded message (nP. 79, P. 394). Press 8 for 1+ seconds to switch modes when the 2in1 is used (nP. 424). Press 9 for 1+ seconds to reset Kisekae Tool settings (nP. 123). 9Multi/Supportbook key $ Press to view Supportbook (nP. 44). Press to use Multi Assistant (nP. 380). aMouthpiece Sends out your own voice. bSub camera Use to shoot still pictures of yourself. Use to send images of yourself during a Videophone call. cTOUCH CRUISER pad (nP. 39) Slide or double-tap the finger on the TOUCH CRUISER pad to perform the same operations as those of Multi-guide key (e.g. selecting, executing or setting an item). dCamera/Operation guidance key C Press to activate Camera (nP. 153). Press to execute the functions of the operation guidance (nP. 33). Press for 1+ seconds to display Data box (nP. 304). ePhonebook/Operation guidance key a Press to use the phonebook (nP. 98). Press to execute the functions of the operation guidance (nP. 33). Press for 1+ seconds to display the phonebook entry screen (nP. 99). fi-Channel/Clear key c (J) Press to show the channel list (nP. 196). Press to return to the previous screen. Use to delete phone numbers and text. dt20_E.book 31 ページ ２００７年１２月１２日 水曜日 午後２時３分 32 e02_dt20_7e.fm [32/56] Before Using the Handset gPower/End key H Press for 2+ seconds to turn the power on/off (nP. 53). Use to end the function being used and return to stand-by display. hEco key y Press to use the Eco mode (Power saver) (nP. 119). Press for 1+ seconds to use the Private filter (nP. 128). iTV key x Press to use 1Seg (nP. 278). Press for 1+ seconds to display the 1Seg menu screen. jEarphone/Microphone terminal (nP. 398) Connect a flat-plug earphone/ microphone with switch (sold separately). When using an earphone plug adapter (sold separately), an earphone/microphone with switch can also be used. kSpeakers Emits ring tones, music, etc. Emits the other party’s voice during hands-free operation. lmicroSD Memory Card slot (nP. 326) mUp key : Press for 1+ seconds with the FOMA terminal closed to activate Music player (nP. 369). Use for 1Seg or Music player. nDown key + Use for 1Seg or Music player. oPushTalk key & (q) Press to view the PushTalk phonebook (nP. 92). Press with the FOMA terminal closed to scroll from the beginning of i-Channel ticker in the sub display. Press for 1+ seconds to use the side key guard (nP. 138). pSub display (nP. 34) qCalled LED/Charging LED/Camera LED Flashes while receiving a call, etc (nP. 125). Stays lit while charging (nP. 49). Lights while activating the camera (nP. 153). Flashes during shooting (nP. 154, P. 157). r1Seg antenna (nP. 275) Use to receive 1Seg. sStrap ring tInfrared port Use for the Ir exchange (nP. 341). Use for the Ir remote control (nP. 345). uFOMA antenna An antenna is built in. To speak in better conditions, do not cover the antenna area by hand. vMain camera Use to shoot still pictures or movies (nP. 146). Use to send a camera image shot during a Videophone call to the other party (nP. 58). wFeliCa mark The IC card is included (The IC card cannot be removed). Use Osaifu-Keitai holding the FeliCa mark up to the scanning device (nP. 263). Use to send and receive data via the iC transmission (nP. 346). xBack cover (nP. 48) A radio frequency-preventing sheet is attached on the back of the back cover. Do not peel off this sheet. yExternal connector terminal (nP. 50, P. 335) zCharger terminal (nP. 51) Terminal for recharging with the desktop holder. dt20_E.book 32 ページ ２００７年１２月１２日 水曜日 午後２時３分 33 e02_dt20_7e.fm [33/56] Before Using the Handset When carrying, keeping the FOMA terminal closed as shown in the diagram for step 1 is recommended. ■Normal position ■Cycloid position Set to the Cycloid position in stand-by or other screens so that 1Seg is automatically activated. Use to select or execute the menus that appear in the operation guidance. The following shows the keys allotted to select or execute the menus items that appear in the guidance. How to open the FOMA terminal 1 Ope…

Text truncated - open the document above for the full version.

e22_dt20_7e.fm [503/504] 503 Continued on next page Appendix/External Devices/Troubleshooting This model phone FOMA SH905iTV meets the MIC’s * technical regulation for exposure to radio waves. The technical regulation established permitted levels of radio frequency energy, based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The regulation employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit is 2 watts/ kilogram (W/kg) ** averaged over ten grams of tissue. The limit includes a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The value of the limit is equal to the international guidelines recommended by ICNIRP *** . All phone models should be confirmed to comply with the regulation, before they are available for sale to the public. The highest SAR value for this model phone is 0.435 W/kg. It was taken by the Telecom Engineering Center (TELEC), a Registered Certification Agency on the Radio Law. The test for SAR was conducted in accordance with the MIC testing procedure using standard operating positions with the phone transmitting at its highest permitted power level in all tested frequency bands. While there may be differences between the SAR levels of various phones and at various positions, they all meet the MIC’s technical regulation. Although the SAR is determined at the highest certified power level, the actual SAR of the phone during operation can be well below the maximum value. For further information about SAR, please see the following websites: Specific absorption rate (SAR) World Health Organization (WHO) http://www.who.int/peh-emf/ ICNIRP http://www.icnirp.de/ MIC http://www.tele.soumu.go.jp/e/ele/body/index.htm TELEC http://www.telec.or.jp/ENG/Index_e.htm NTT DoCoMo http://www.nttdocomo.co.jp/english/product/ SHARP Corporation http://www.sharp.co.jp/products/menu/phone/cellular/sar/index.html *Ministry of Internal Affairs and Communications ** The technical regulation is provided in Article 14-2 of the Ministry Ordinance Regulating Radio Equipment. *** International Commission on Non-Ionizing Radiation Protection European RF Exposure Information Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the ear was 0.399 W/kg * . As SAR is measured utilizing the devices highest transmitting power the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum level required to reach the network. The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of mobile devices. They note that if you want to reduce your exposure then you can do so by limiting the length of calls or using a hands-free device to keep the mobile phone away from the head. * The tests are carried out in accordance with international guidelines for testing. dt20_E.book 503 ページ ２００７年１２月１２日 水曜日 午後２時３分 504 e22_dt20_7e.fm [504/504] Appendix/External Devices/Troubleshooting The Japan Export Control Regulation (“Foreign Exchange and International Trade Law” and its related laws) and the Export Administration Regulation are applied to this product and its accessories under certain conditions. To export or reexport this terminal and its accessories, conduct all legally required procedures at your own risk and expense. For details on the procedures, contact the Ministry of Economy, Trade and Industry or the US Department of Commerce. FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. FCC RF Exposure Information Your handset is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The guidelines are based on standards that were developed by independent scientific organisations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless handsets employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Hereby, Sharp Telecommunications of Europe Ltd, declares that this FOMA SH905iTV is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the original declaration of conformity can be found at the following Internet address: http://www.sharp.co.jp/k-tai/ Declaration of Conformity The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model handset when tested for use at the ear is 0.442 W/kg and when worn on the body, as described in this user guide, is 0.411 W/kg. Body-worn Operation; This device was tested for typical body-worn operations w…

Text truncated - open the document above for the full version.

Model Description FCC ID : APYHRO00064, Emission Type : F9W Destination : Japan Market only Model Name : FOMA SH905iTV Brand Name : NTT DoCoMo Type of Equipment : Tri-band WCDMA Mobile Phone Specification Items WCDMA Technical Specification 3GPP R99 Frequency Band 850MHz(band V) : Tx 826.4 to 846.6MHz Rx 871.4 to 891.6MHz 800MHz(band VI) : Tx 832.4 to 837.6MHz Rx 877.4 to 882.6MHz 2000MHz(band I) : Tx 1922.6to 1977.4MHz Rx 2112.6 to 2167.4MHz NOTE: Band I and Band VI do not operate in USA Tx Power 850MHz(bandV) 24dBm+1dB/-3dB 800MHz(bandVI) 24dBm+1dB/-3dB 2000MHz(bandI) 24dBm+1dB/-3dB Type of Modulation G1A, G1B, G1C, G1D, G1E, G1F, G1X, G7W Transmission Technology DS/CDMA Voice Codec ARM Antenna Integrated Antenna : L Type Antenna RF ID(FeliCa) Frequency Band 15.36-15.36MHz Type of Modulation ASK(10%) Antenna Integrated Loop Antenna Technical Specification NFCIP-1(ISO/IEC18092) Cell Phone Feature SIM Plug-in 3V SIM card slot Display Main 3.2inch, 16,777,216 color TFT(ASV), 854x480(WVGA) with Backlight Ｓub 0.8inch,(Organic EL), 36x96dot Camera Main C-MOS 3.2M pixel Ｓub C-MOS 110K pixel Battery/ Talk time Capacity 770mAh Battery type Rechargeable Lithium-Ion Battery standby time 520h talk time 200min Dimensions Target size 50(W) x 111.6(D) x 18.9(H)mm (Close position) Target weight 139g Key Layout Touch Cruiser ,I mode key ,Camera key ,Mail key ,Phone book key ,Multi Selector key ,Decision key ,Off hook key ,Channel key ,On hook key ,0-9unmeric key ,* key ,# key ,Multi key ,TV key ,Eco key ,and 3 side key External I/F Headset connector For Stereo Headset (10 pins) MCPC connector For USB Cable or PC Link cable or AC Charger SIM card terminal 1 slot SD Card connector For micro SD card (1 slot) Integrated charger circuit The terminals of charging are for using a cradle. Accessory AC Adapter Input AC 110 to 240V Output DC 5.4V/700mA Battery Lithium-Ion,DC3.7V 770mAh Stereo Handsfree(Headset) Optional Accessories USB Data Cable Optional Accessories Rev. Issue Date: DEC 28,02007

1 Chris Harvey From: Petruska, Steve [[email protected]] Sent: Monday, January 07, 2008 10:55 AM To: Chris Harvey Subject: RE: Sharp Corporation , FCC ID: APYHRO00064, Assessment NO.: AN07T7411, Notice#1 Chris, I have been advised that when the FeliCa device is transmitting, the mobile phone does not operate. (Mobile phone and FeliCa transmitting do not operate at the same time). So the SAR Report for Pt.22 can't cover co-location with the FeliCa transmitter. Please let me know what else you will need to finish the review and issue the grants. The factory is actually scheduled to start production tomorrow, Jan 8th. Thanks and regards, Steve Petruska Sharp Electronics Corp. 201-529-9689 -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Wednesday, January 02, 2008 10:10 AM To: Petruska, Steve Subject: RE: Sharp Corporation , FCC ID: APYHRO00064, Assessment NO.: AN07T7411, Notice#1 Steve, thank you for providing this to me. Happy New Year to you too. Since this is a composite device with multiple co-located transmitters under on FCC ID, there must be a separate application submitted for the FeliCa transmitter portion, albeit under the same FCC ID. I will include this report in my review, but the final review must be under a separate complete application, with co-location addressed in both applications (I think the SAR testing documentation submitted with the original part 22 application will need to be updated for co-location). Please let me know if you have any questions. Best regards, Chris Harvey -----Original Message----- From: Petruska, Steve [mailto:[email protected]] Sent: Wednesday, January 02, 2008 9:40 AM To: Chris Harvey Subject: RE: Sharp Corporation , FCC ID: APYHRO00064, Assessment NO.: AN07T7411, Notice#1 Hi Chris, Happy New Year. Attached is the Part 15C test report for the FeliCa device incorporated in the subject equipment and a new model description exhibit which is revised accordingly. Please proceed with your review of this application and let me know if you need any additional information. Thanks, 2 Steve Petruska Sharp Electronics Corp. 201-529-9689 -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Thursday, December 13, 2007 12:50 PM To: Petruska, Steve Cc: 'Mike Kuo' Subject: RE: Sharp Corporation , FCC ID: APYHRO00064, Assessment NO.: AN07T7411, Notice#1 Thanks Steve. I will await the 15C report while I continue to review the submitted documents. Best regards, Chris Harvey -----Original Message----- From: Petruska, Steve [mailto:[email protected]] Sent: Thursday, December 13, 2007 12:45 PM To: Chris Harvey Cc: Mike Kuo Subject: RE: Sharp Corporation , FCC ID: APYHRO00064, Assessment NO.: AN07T7411, Notice#1 Chris, Now I'm told the 15C report will not be ready until Dec. 26th. Also, JQA provided us with the attached revised part 22 test report. Due to a change to the correction factor, page 19 was revised to indicate "Min Margin 20.4dB at 4233MHz" and the ERP value was corrected on page 40 and 41. Please replace the previously submitted report with this one. Thanks, Steve Petruska Sharp Electronics Corp. -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Wednesday, December 12, 2007 1:59 PM To: Petruska, Steve Cc: 'Mike Kuo' Subject: RE: Sharp Corporation , FCC ID: APYHRO00064, Assessment NO.: AN07T7411, Notice#1 Steve, thank you for your reply. I will await the 15C report for the FeliCa portion of this device (I have assumed it will be incorporated under the same FCC ID APYHRO00064). In the mean time I will start reviewing your responses and additional exhibits. Best regards, Chris Harvey -----Original Message----- From: Petruska, Steve [mailto:[email protected]] Sent: Wednesday, December 12, 2007 12:30 PM To: Chris Harvey 3 Cc: Mike Kuo Subject: RE: Sharp Corporation , FCC ID: APYHRO00064, Assessment NO.: AN07T7411, Notice#1 Hi Chris, Thanks for your reply. Item# 1 Attached are the User Manual documents. The FCC required information is in the "12-2" file on the page numbered 504. Item# 3 I have been advised of the following: The technical version is 3GPP R99. This model has HSDPA capability, however it will only operate on the network in Japan, and this model has no HSUPA function. A revised Model Description exhibit is attached. Please let me know if this is acceptable. I have also been informed that this model incorporates a FeliCa device and a Part15C test report will be necessary. It is being prepared now and I expect to submit it next week. Best regards, Steve Petruska Sharp Electronics Corp. 201-529-9689 -----Original Message----- From: Chris Harvey [mailto:[email protected]] Sent: Tuesday, December 11, 2007 1:06 PM To: Petruska, Steve Cc: Mike Kuo Subject: RE: Sharp Corporation , FCC ID: APYHRO00064, Assessment NO.: AN07T7411, Notice#1 Steve, I do not have time to provide the details asked for item #3 at the moment. The FCC requirement for proper power and operational parameters for WCDMA devices. The SAR report does not provide much detail about how the EUT was operated to ensure that the power settings were correctly selected to satisfy the FCC's requirements for WCDMA. Also, there does not seem to technical details whether this device operates in accordance with 3GPP Release 5 or Release 6, and if it has HSDPA/HSUPA capabilities. I have attached the FCC's October version of the 3G guidance. The laboratory should be able to provide confirmation about compliance with the FCC requirement. I will await the submission of the Users Manual, as the information contained will be critical in determining the compliance and proper testing has been performed. I expect to be back online later today. Best regards, Chris Harvey -----Original Message----- From: Petruska, Steve [mailto:[email protected]] Sent: Tuesday, December 11, 2007 10:56 AM To: [email protected] Subject: RE: Sharp Corporation , FCC ID: APYHRO00064, Assessment NO.: AN07T7411, Notice#1 Hi Chris, 4…

Text truncated - open the document above for the full version.

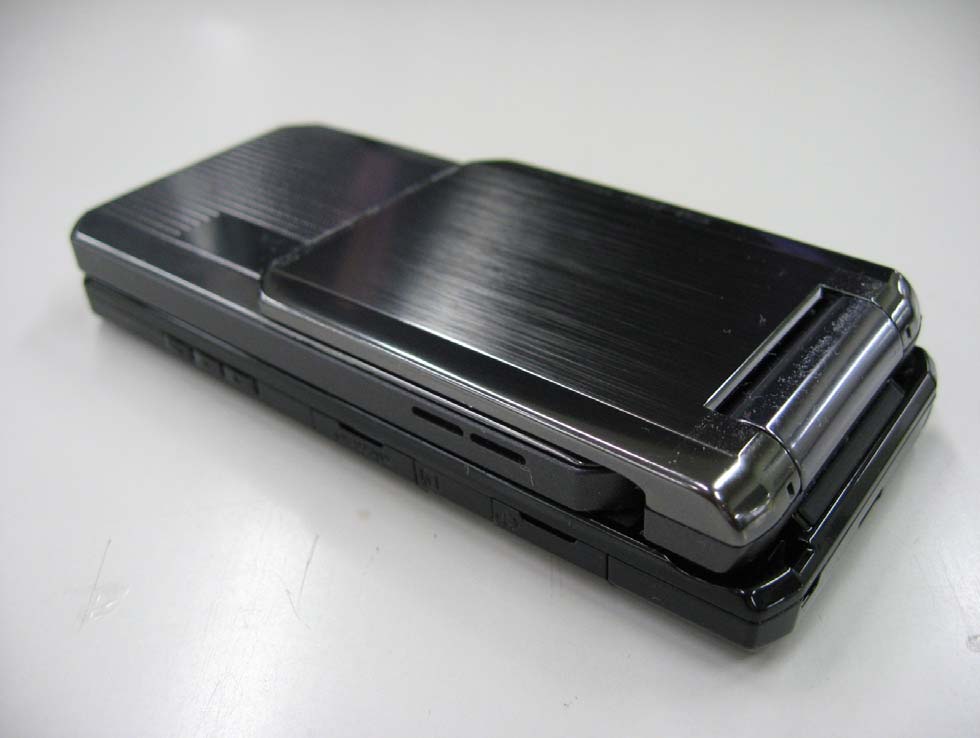

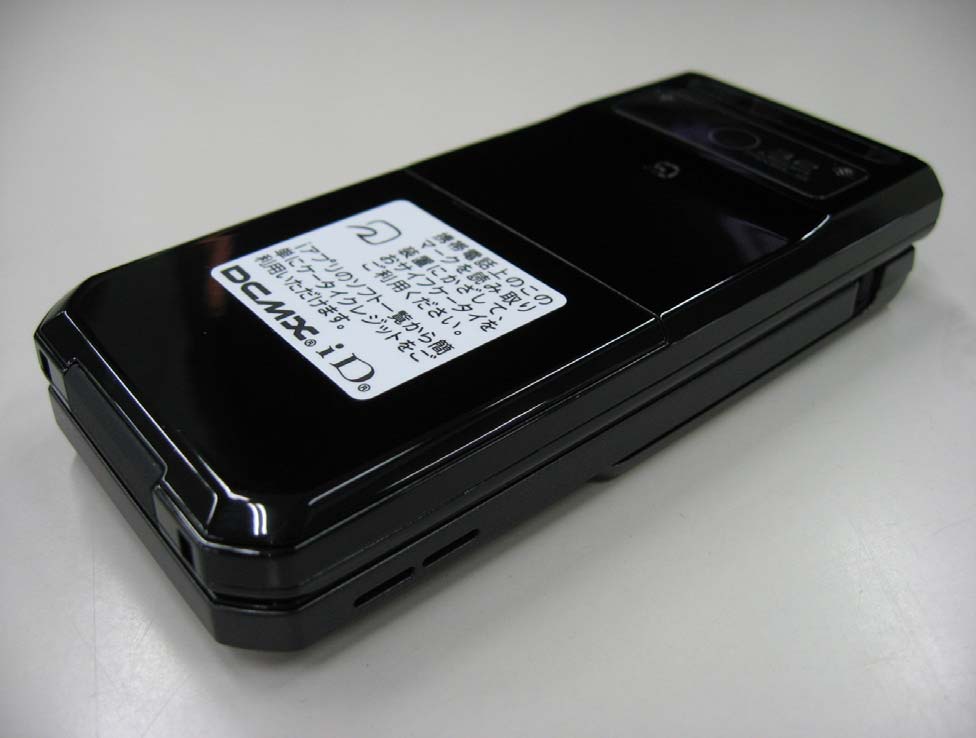

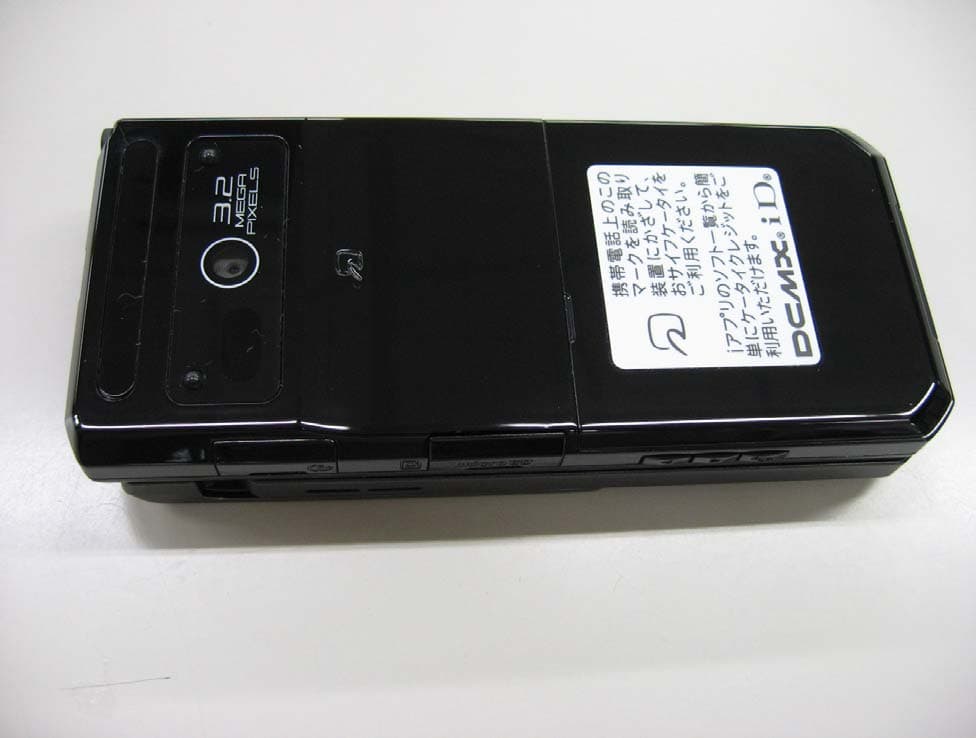

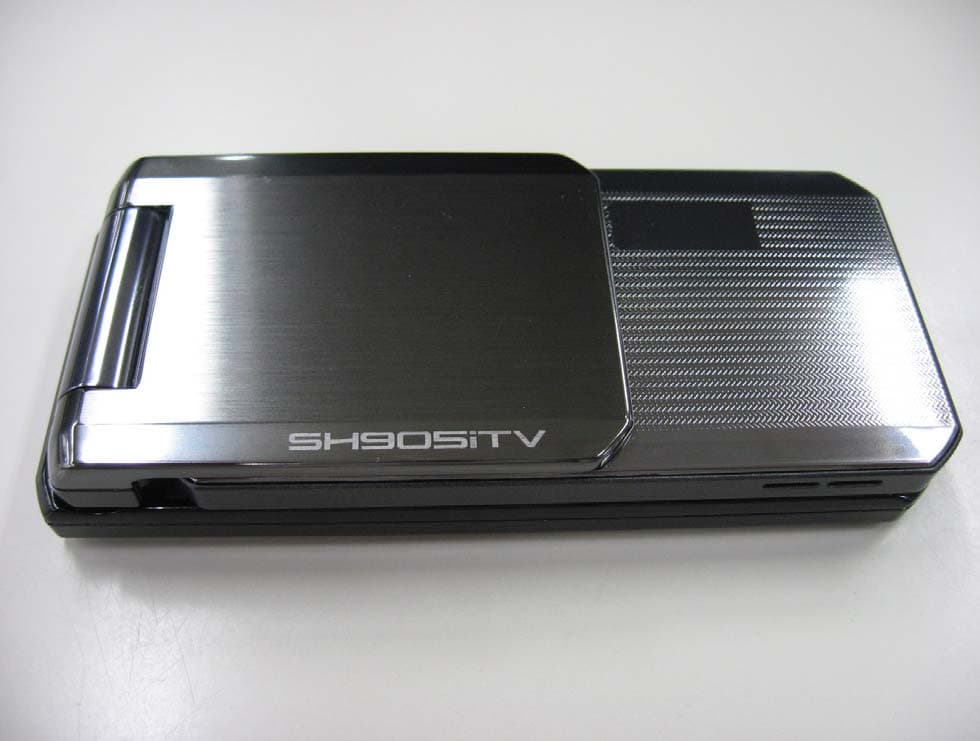

Model Name : FOMA SH905iTVPhoto(External)3/DEC/2007 1/3 Model Name : FOMA SH905iTVPhoto(External)3/DEC/2007 2/3 Model Name : FOMA SH905iTVPhoto(External)3/DEC/2007 3/3

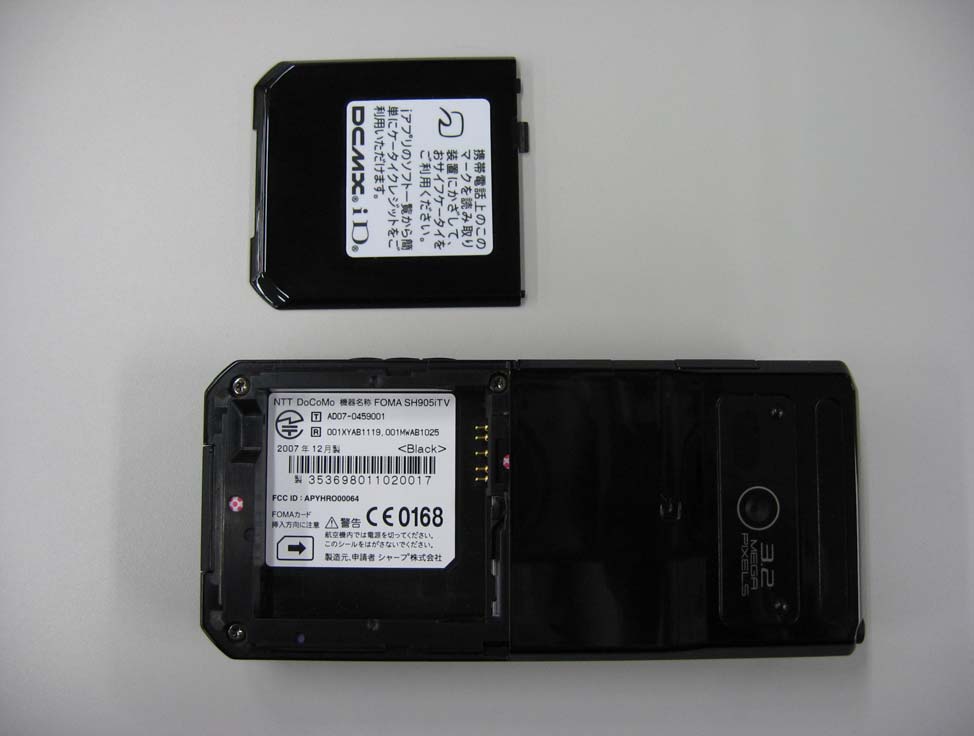

Model Name:FOMA SH905iTV Spec Label and Location FCC ID:APYHRO00064 ○ Spec Label ① Colour Name ② Apprpval Number of JATE ③ Certification Number of TELEC ④ Certification Number of TELEC ⑤ Production Year & Months ⑥ Barcode of IMEI ⑦ IMEI(Production Serial Number) FCC ID : APYHRO00064 ○ Ｌｏｃａｔｉｏｎ ・The label of the photograph is one example. Vendor:NTT DoCoMo Manufucturer/Applicant: SHARP Cor poration Caution:Turn off power in an aircraft. Don't remove this seal

Model Name : FOMA SH905iTVPhoto(Internal)4/DEC/2007 1/9 Model Name : FOMA SH905iTVPhoto(Internal)4/DEC/2007 2/9 Model Name : FOMA SH905iTVPhoto(Internal)4/DEC/2007 3/9 Model Name : FOMA SH905iTVPhoto(Internal)4/DEC/2007 4/9 Model Name : FOMA SH905iTVPhoto(Internal)4/DEC/2007 5/9 Model Name : FOMA SH905iTVPhoto(Internal)4/DEC/2007 6/9 Model Name : FOMA SH905iTVPhoto(Internal)4/DEC/2007 7/9 Model Name : FOMA SH905iTVPhoto(Internal)4/DEC/2007 8/9 Model Name : FOMA SH905iTVPhoto(Internal)4/DEC/2007 9/9

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 32 JQA File No. : KL80070438 Issue Date : December 28, 2007 TEST REPORT APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN PRODUCTS : Tri-band WCDMA Mobile Phone MODEL NO. : FOMA SH905iTV SERIAL NO. : 004401110965122 FCC ID : APYHRO00064 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 15 TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : December 16, 2007 - December 27, 2007 This report must not used by the client to claim product endorsement by NVLAP or Yuichi Fukumoto NIST or any agency of the U.S. Government. Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division NVLAP LAB CODE 200191-0 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070438 Issue Date : December 28, 2007 Model No. : FOMA SH905iTV FCC ID : APYHRO00064 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 2 of 32 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recognition of Test Laboratory.............................................................................................................3 4 Description of the Equipment Under Test...........................................................................................4 5 Test Condition........................................................................................................................................5 6 Preliminary Test and Test Setup.........................................................................................................7 7 Equipment Under Test Modification..................................................................................................13 8 Responsible Party................................................................................................................................13 9 Deviation from Standard.....................................................................................................................13 10 Test Results..........................................................................................................................................14 11 Summary..............................................................................................................................................17 12 Operating Condition............................................................................................................................18 13 Test Configuration...............................................................................................................................18 14 Equipment Under Test Arrangement (Drawings)............................................................................19 15 Equipment Under Test Arrangement (Photographs).......................................................................20 Appendix A: Test Data ................................................................................................................................... 23 A.1 AC Powerline Conducted Emission....................................................................................................23 A.2 Radiated Emission...............................................................................................................................24 A.3 Occupied Bandwidth...........................................................................................................................27 A.4 Band-Edge Emission...........................................................................................................................28 A.5 Frequency Stability.............................................................................................................................30 Appendix B: Test Instruments....................................................................................................................... 31 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT “EUT” means Equipment Under the Test. “N/A” means that Not Applicable. “N/T” means that Not Tested. - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070438 Issue Date : December 28, 2007 Model No. : FOMA SH905iTV FCC ID : APYHRO00064 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 3 of 32 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart C – Intentional Radiators Test Requirements : §15.225, §15.207 and §15.209 Test Procedure : ANSI C63.4–2003 2 T…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070438 Issue Date : December 28, 2007 Model No. : FOMA SH905iTV FCC ID : APYHRO00064 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 20 of 32 15 Equipment Under Test Arrangement (Photographs) 15.1 AC Powerline Conducted Emission – Front View – – Side View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070438 Issue Date : December 28, 2007 Model No. : FOMA SH905iTV FCC ID : APYHRO00064 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 21 of 32 15.2 Radiated Emission – X-axis – – Y-axis – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070438 Issue Date : December 28, 2007 Model No. : FOMA SH905iTV FCC ID : APYHRO00064 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 22 of 32 – Z-axis – Photograph present configuration with maximum emission The EUT position of the maximum emission is Z-axis.
