APYHRO00067Cellular Transceiver with Bluetooth

Declaration of Conformity Hereby, Sharp Telecommunications of Europe Limited, declares that this SH9010C is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the original declaration of conformity can be found at the following Internet address: http://www.sharp-mobile.com Sharp Telecommunications of Europe Ltd. Azure House, Bagshot Road, Bracknell, Berkshire RG12 7QY UK Introduction1 Introduction Congratulations on your new Sharp SH9010C phone. About This User Guide This user guide is carefully designed to help you learn about your phone’s features and operations quickly and effectively. NOTICE • We strongly recommend that you keep separate permanent written records of all important data. Data may be lost or altered in virtually any electronic memory product under certain circumstances. Therefore, we assume no responsibility for data lost or otherwise rendered unusable, whether as a result of improper use, repairs, defects, battery replacement, use after the specified battery life has expired or any other cause. • We assume no responsibility, directly or indirectly, for financial losses or claims from third parties resulting from the use of this product and any of its functions, such as stolen credit card numbers, the loss or alteration of stored data, etc. • All company and/or product names are trademarks and/or registered trademarks of their respective holders. • Screen layout may differ from that illustrated in this user guide. The information described in this user guide is subject to change without notice. • All the functions described in this user guide may not be supported by all networks. • We assume no responsibility for downloaded contents, information, etc. from the network. Intellectual Property Rights According to copyright laws, the reproduction, alteration and use of material which is protected by copyright (music, pictures, etc.) is only permitted for personal or private use. If the user is not in possession of more extensive copyright or has not received the explicit permission from the copyright owner to reproduce, alter or use a copy which has been made or modified in this way, this is considered to be a violation of the copyright laws and gives the copyright owner the right to claim for damages. For this reason, avoid the illegal use of material which is protected by copyright. 2Introduction Powered by JBlend™ Copyright 1997-2008 Aplix Corporation. All rights reserved. JBlend and all JBlend-based trademarks and logos are trademarks or registered trademarks of Aplix Corporation in Japan and other countries. Powered by Mascot Capsule ® /Micro3D Edition™ Mascot Capsule ® is a registered trademark of HI Corporation ©2002-2008 HI Corporation. All Rights Reserved. T9 Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,187,480, 5,818,437, 5,945,928, 5,953,541, 6,011,554, 6,286,064, 6,307,548, 6,307,549, and 6,636,162, 6,646,573, 6,970,599; Australia Pat. Nos. 727539, 746674, 747901; Austria Pat. Nos. AT225534, AT221222; Brazil P.I. No. 9609807-4; Canada Pat. Nos. 1,331,057, 2,227,904, 2,278,549, 2,302,595; Japan Pat. Nos. 3532780, 3492981; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK1010924; Republic of Singapore Pat. Nos. 51383, 66959, 71979; European Pat. Nos. 1 010 057 (98903671.0), 1 018 069 (98950708.2); Republic of Korea Pat. Nos. KR201211B1, KR226206B1, 402252; People’s Republic of China Pat. No. ZL96196739.0; Mexico Pat. Nos. 208141, 216023, 218409; Russian Federation Pat. Nos. 2206118, 2214620, 2221268; and additional patents are pending worldwide. CP8 PATENT microSD Logo is a trademark. Bluetooth is a trademark of the Bluetooth SIG, Inc. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sharp is under license. Other trademarks and trade names are those of their respective owners. Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations ; 4,901,307 5,490,165 5,056,109 5,504,773 5,101,501 5,506,865 5,109,390 5,511,073 5,228,054 5,535,239 5,267,261 5,544,196 5,267,262 5,568,483 5,337,338 5,600,754 5,414,796 5,657,420 5,416,797 5,659,569 5,710,784 5,778,338 Introduction3 This product contains NF Browser and NF Messaging Client of ACCESS CO., LT D. © 2008 ACCESS CO., LTD. All rights reserved. ACCESS is a trademark or registered trademark of ACCESS CO., LTD. in the United States, Japan and other countries. This software is based in part on the work of the Independent JPEG Group. Microsoft ® , Windows ® , Windows Vista ® , Outlook ® , PowerPoint ® and Excel ® are registered trademarks of Microsoft Corporation in the United States and/or other countries. Microsoft Word is a product name of Microsoft Corporation in the United States. Adobe ® and Acrobat ® are trademarks of Adobe Systems Incorporated. Adobe, the Adobe logo, FlashLite and the FlashLite logo are either trademarks or registered trademarks of Adobe Systems Incorporated in the United States and/or other countries. © 2003-2007 Adobe Systems Incorporated. All rights reserved. “Document Viewer” is powered by Picsel Technologies. Picsel, Picsel Powered, Picsel Cube Logo, Picsel File Viewer and Picsel Document Viewer are Trademarks or Registered Trademarks of the Picsel Group of Companies. CYCLOID is a registration-pending trademark of SHARP Corporation in People’s Republic of China. IrSimple™, IrSS™ and IrSimpleShot™ are trademarks of the Infrared Data Association ® . This product is licensed under the MPEG-4 Visual Patent Portfolio License for the personal and non-commercial use of a consumer to (i) encode video in compliance with the MPEG-4 Video Standard (“MPEG-4 Video”) and/or (ii) decode MPEG-4 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a licensed video provider. No license is granted or implied …

Text truncated - open the document above for the full version.

2Introduction Powered by JBlend™ Copyright 1997-2008 Aplix Corporation. All rights reserved. JBlend and all JBlend-based trademarks and logos are trademarks or registered trademarks of Aplix Corporation in Japan and other countries. Powered by Mascot Capsule ® /Micro3D Edition™ Mascot Capsule ® is a registered trademark of HI Corporation ©2002-2008 HI Corporation. All Rights Reserved. T9 Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,187,480, 5,818,437, 5,945,928, 5,953,541, 6,011,554, 6,286,064, 6,307,548, 6,307,549, and 6,636,162, 6,646,573, 6,970,599; Australia Pat. Nos. 727539, 746674, 747901; Austria Pat. Nos. AT225534, AT221222; Brazil P.I. No. 9609807-4; Canada Pat. Nos. 1,331,057, 2,227,904, 2,278,549, 2,302,595; Japan Pat. Nos. 3532780, 3492981; United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK1010924; Republic of Singapore Pat. Nos. 51383, 66959, 71979; European Pat. Nos. 1 010 057 (98903671.0), 1 018 069 (98950708.2); Republic of Korea Pat. Nos. KR201211B1, KR226206B1, 402252; People’s Republic of China Pat. No. ZL96196739.0; Mexico Pat. Nos. 208141, 216023, 218409; Russian Federation Pat. Nos. 2206118, 2214620, 2221268; and additional patents are pending worldwide. CP8 PATENT microSD Logo is a trademark. Bluetooth is a trademark of the Bluetooth SIG, Inc. The Bluetooth word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sharp is under license. Other trademarks and trade names are those of their respective owners. Licensed by QUALCOMM Incorporated under one or more of the following United States Patents and/or their counterparts in other nations ; 4,901,307 5,490,165 5,056,109 5,504,773 5,101,501 5,506,865 5,109,390 5,511,073 5,228,054 5,535,239 5,267,261 5,544,196 5,267,262 5,568,483 5,337,338 5,600,754 5,414,796 5,657,420 5,416,797 5,659,569 5,710,784 5,778,338

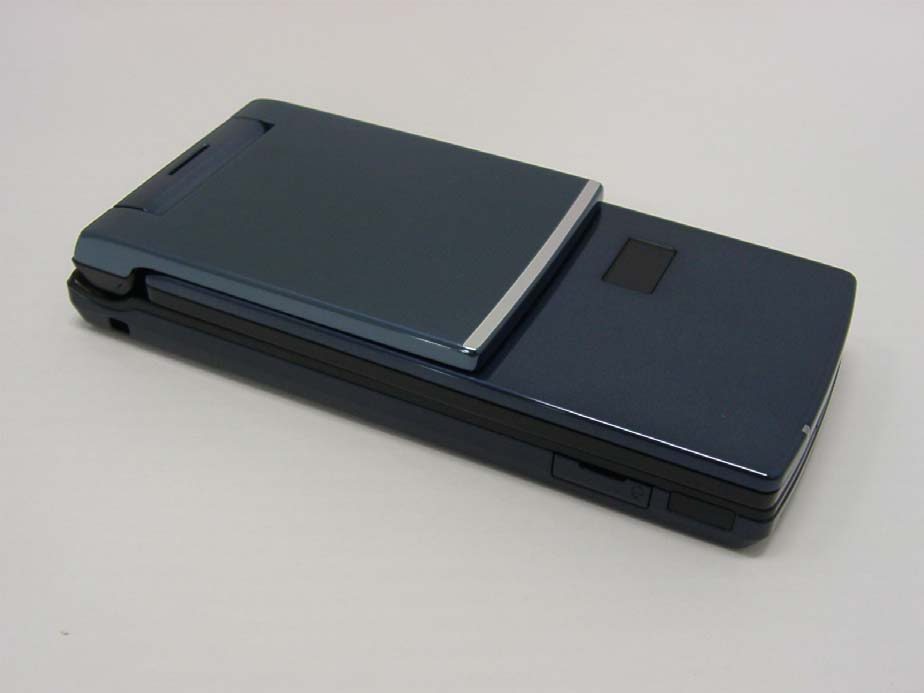

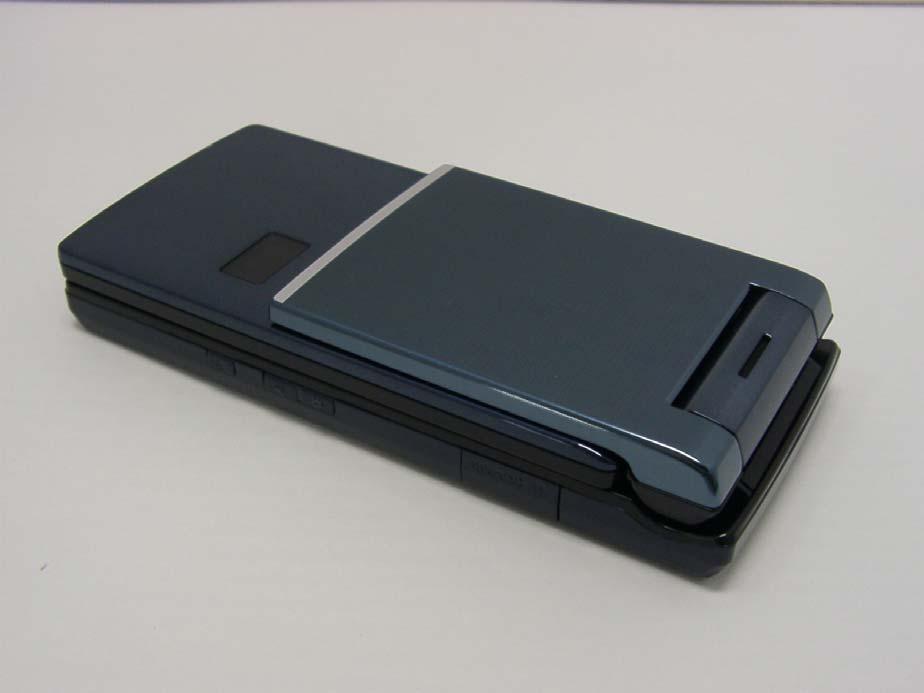

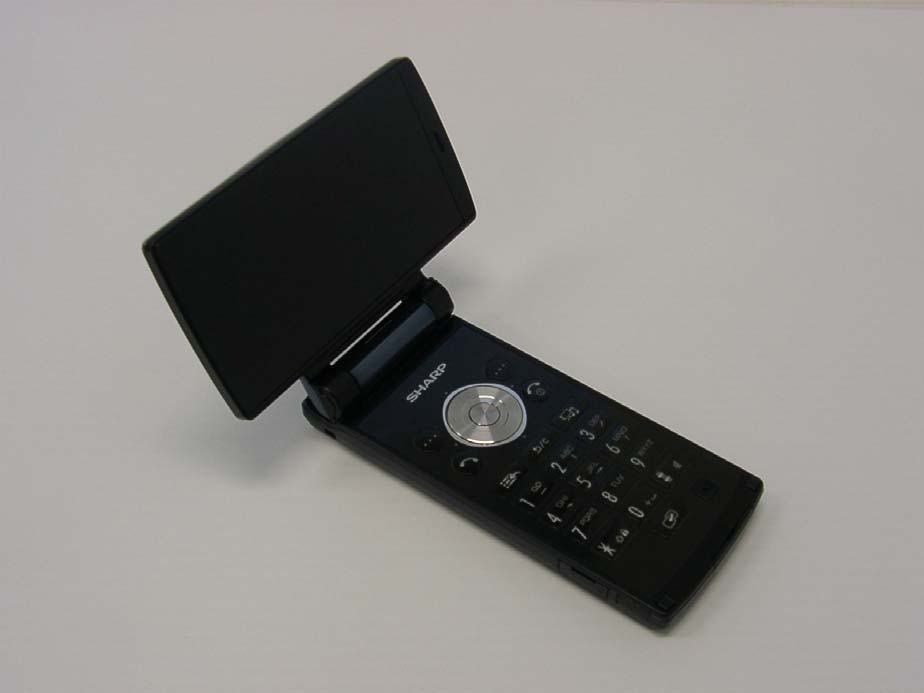

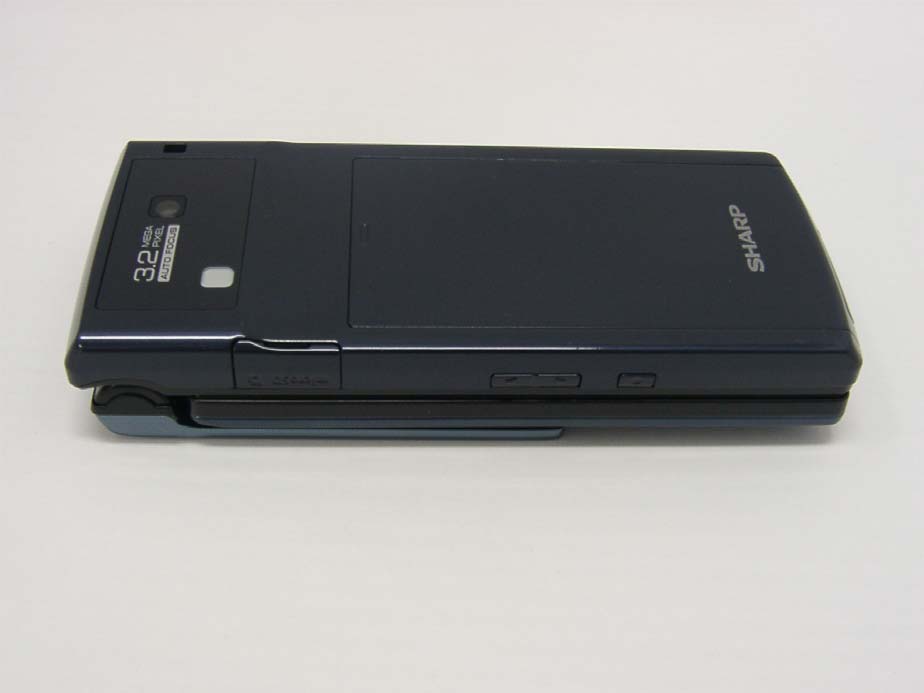

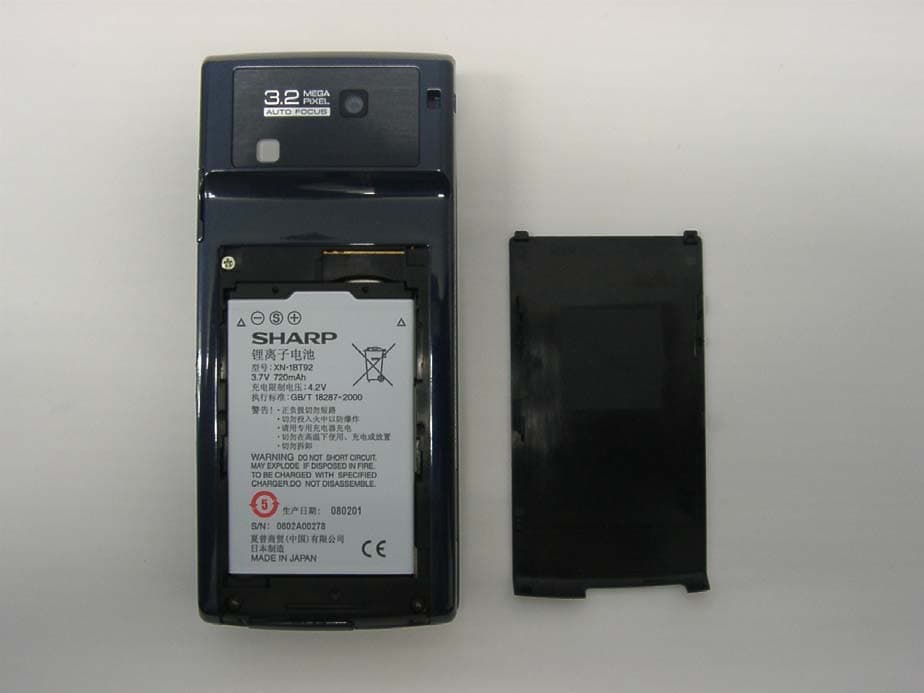

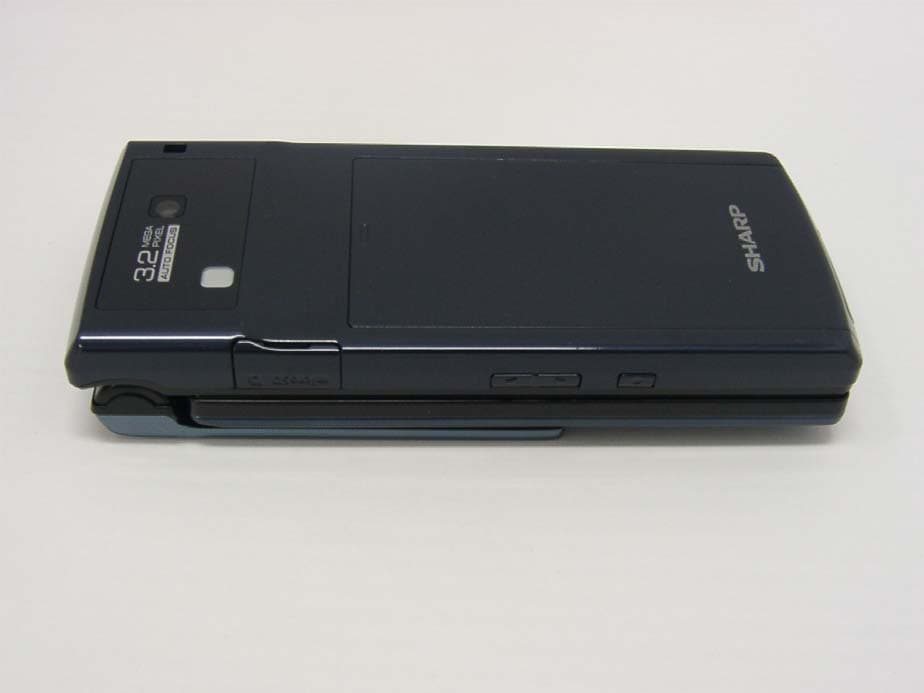

Model Name: SH9010C Photo (External) FCC ID: APYHRO00067 Confidential 1 / 4 Model Name: SH9010C Photo (External) FCC ID: APYHRO00067 Confidential 2 / 4 Model Name: SH9010C Photo (External) FCC ID: APYHRO00067 Confidential 3 / 4 Model Name: SH9010C Photo (External) FCC ID: APYHRO00067 Confidential 4 / 4

Model Name: SH9010CFCC ID : APYHRO00067 Spec Label and Location ○ Spec Label ○ Location

Model Name: SH9010C Photo (Internal) FCC ID: APYHRO00067 Confidential 1 / 4 Model Name: SH9010C Photo (Internal) FCC ID: APYHRO00067 Confidential 2 / 4 Model Name: SH9010C Photo (Internal) FCC ID: APYHRO00067 Confidential 3 / 4 Model Name: SH9010C Photo (Internal) FCC ID: APYHRO00067 Confidential 4 / 4

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 22 Technical document No. 23163-0701 JQA File No. : KL80070535 Issue Date : February 28, 2008 TEST REPORT (SAR EVALUATION) APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan PRODUCTS : GSM 900/1800/1900 GPRS phone / Bluetooth enable MODEL NO. : SH9010C SERIAL NO. : 004401/11/108716/5 FCC ID : APYHRO00067 TEST STANDARD : FCC/OET Bulletin 65 Supplement C (Edition 01-01) TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : February 5, 2008 ~ February 6, 2008 This report must not used by the client to claim product endorsement by NVLAP or Yuichi Fukumoto NIST or any agency of the U.S. Government. Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division NVLAP LAB CODE 200191-0 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070535 Issue Date : February 28, 2008 Model No. : SH9010C FCC ID : APYHRO00067 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 2 of 22 Technical document No. 23163-0701 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation.....................................................................................................................................3 2 Test Location.........................................................................................................................................3 3 Recognition of Test Laboratory............................................................................................................3 4 Description of the Equipment Under Test..........................................................................................4 5 Measurement System Diagram............................................................................................................5 6 System Components..............................................................................................................................6 7 Measurement Process...........................................................................................................................8 8 Measurement Uncertainties.................................................................................................................9 9 Equipment Under Test Modification.................................................................................................10 10 Responsible Party................................................................................................................................10 11 Deviation from Standard....................................................................................................................10 12 Test Results.........................................................................................................................................11 13 Summary..............................................................................................................................................12 14 Test Arrangement...............................................................................................................................13 15 Procedures used to Establish Test Signal.........................................................................................15 Appendix A: Test Data ................................................................................................................................... 16 Appendix B: Test Instruments....................................................................................................................... 21 Appendix C: Attachments .............................................................................................................................. 22 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT “EUT” means Equipment Under the Test. “AE” means Associated Equipment. “N/A” means that Not Applicable. “N/T” means that Not Tested. - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070535 Issue Date : February 28, 2008 Model No. : SH9010C FCC ID : APYHRO00067 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 3 of 22 Technical document No. 23163-0701 Documentation 1 Test Regulation Applied Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio- frequency Electromagnetic Fields Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions Test Procedure : FCC/OET Bulletin 65 Supplement C (Edition 01-01) and IEEE Std.1528–2003 Exposure Limits : ANSI/IEEE Std. C95.1, 1999 Edit…

Text truncated - open the document above for the full version.

Attachment 1 – System Validation Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2008/02/05 10:18:55 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 2d038 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL1800 Medium parameters used: f = 1800 MHz; σ = 1.35 mho/m; ε r = 40; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(5.36, 5.36, 5.36); Calibrated: 2007/11/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2007/11/07 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 10.5 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.3 V/m; Power Drift = -0.007 dB Peak SAR (extrapolated) = 16.5 W/kg SAR(1 g) = 9.37 mW/g; SAR(10 g) = 4.98 mW/g 0 dB = 10.5mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2008/02/06 9:44:58 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation DUT: Dipole 1800 MHz; Type: D1800V2; Serial: 2d038 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: M1800 Medium parameters used: f = 1800 MHz; σ = 1.46 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.8, 4.8, 4.8); Calibrated: 2007/11/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2007/11/07 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 10.7 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 91.5 V/m; Power Drift = -0.018 dB Peak SAR (extrapolated) = 15.6 W/kg SAR(1 g) = 9.54 mW/g; SAR(10 g) = 5.13 mW/g Maximum value of SAR (measured) = 10.9 mW/g 0 dB = 10.9mW/g JAPAN QUALITY ASSURANCE ORGANIZATION

Attachment 2 – SAR Test Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2008/02/05 13:10:06 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Cheek/Touch 661ch (1880.00MHz) DUT: GSM 900/1800/1900 GPRS phone / Bluetooth enable; Type: SH9010C; Serial: 004401/11/108716/5 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(5.36, 5.36, 5.36); Calibrated: 2007/11/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2007/11/07 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Cheek/Touch Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.325 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.6 V/m; Power Drift = 0.024 dB Peak SAR (extrapolated) = 0.516 W/kg SAR(1 g) = 0.352 mW/g; SAR(10 g) = 0.223 mW/g Maximum value of SAR (measured) = 0.378 mW/g 0 dB = 0.378mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2008/02/05 13:27:26 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Ear/Tilt 661ch (1880.00MHz) DUT: GSM 900/1800/1900 GPRS phone / Bluetooth enable; Type: SH9010C; Serial: 004401/11/108716/5 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(5.36, 5.36, 5.36); Calibrated: 2007/11/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2007/11/07 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Ear/Tilt Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.138 mW/g Ear/Tilt Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.3 V/m; Power Drift = 0.023 dB Peak SAR (extrapolated) = 0.208 W/kg SAR(1 g) = 0.132 mW/g; SAR(10 g) = 0.079 mW/g Maximum value of SAR (measured) = 0.142 mW/g 0 dB = 0.142mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2008/02/05 14:09:14 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Right Head, Cheek/Touch 512ch (1850.20MHz) DUT: GSM 900/1800/1900 GPRS phone / Bluetooth enable; Type: SH9010C; Serial: 004401/11/108716/5 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium: HSL1900 Medium parameters used: f = 1850.2 MHz; σ = 1.45 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(5.36, 5.36, 5.36); Calibrated: 2007/11/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2007/11/07 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Cheek/Touch Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.368 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.0 V/m; Power Drift = 0.000 dB Peak SAR (extrapolated) = 0.596 W/kg SAR(1 g) = 0.386 mW/g; SAR(10 g) = 0.227 mW/g Maximum value of SAR (measured) = 0.425 mW/g 0 dB = 0.425mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2008/02/05 15:33:43 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Right Head, Cheek/Touch 661ch (1880.00MHz) DUT: GSM 900/1800/1900 GPRS phone / Bluetooth enable; Type: SH9010C; Serial: 004401/11/108716/5 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: HSL1900 Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(5.36, 5.36, 5.36); Calibrated: 2007/11/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2007/11/07 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Cheek/Touch Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.414 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.3 V/m; Power Drift = -0.014 dB Peak SAR (extrapolated) = 0.725 W/kg SAR(1 g) = 0.461 mW/g; SAR(10 g) = 0.269 mW/g Maximum value of SAR (measured) = 0.506 mW/g 0 dB = 0.506mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2008/02/05 14:55:33 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Right Head, Cheek/Touch 810ch (1909.80MHz) DUT: GSM 900/1800/1900 GPRS phone / Bluetooth enable; Type: SH9010C; Serial: 004401/11/108716/5 Communication System: GSM 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8 Medium: HSL1900 Medium parameters used: f = 1909.8 MHz; σ = 1.45 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Right Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(5.36, 5.36, 5.36); Calibrated: 2007/11/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2007/11/07 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 Cheek/Touch Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15m…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 3 – Dosimetric E-Field Probe – ET3DV6, S/N: 1679 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4 – System Validation Dipole – D1800V2, S/N: 2d038 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 49 JQA File No. : KL80070536 Issue Date : February 28, 2008 TEST REPORT APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN PRODUCTS : GSM 900/1800/1900 GPRS phone / Bluetooth Enable MODEL NO. : SH9010C SERIAL NO. : 004401/11/108691/0 FCC ID : APYHRO00067 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 24 TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : February 20, 2008 - February 25, 2008 This report must not used by the client to claim product endorsement by NVLAP or Yuichi Fukumoto NIST or any agency of the U.S. Government. Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division NVLAP LAB CODE 200191-0 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070536 Issue Date : February 28, 2008 Model No. : SH9010C FCC ID : APYHRO00067 Regulation : CFR 47 FCC Rules and Regulations Part 24 Page 2 of 49 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recognition of Test Laboratory.............................................................................................................3 4 Description of the Equipment Under Test...........................................................................................4 5 Test Condition........................................................................................................................................5 6 Preliminary Test and Test Setup.........................................................................................................7 7 Equipment Under Test Modification..................................................................................................16 8 Responsible Party................................................................................................................................16 9 Deviation from Standard.....................................................................................................................16 10 Test Results..........................................................................................................................................17 11 Summary..............................................................................................................................................20 12 Operating Condition............................................................................................................................21 13 Test Configuration...............................................................................................................................21 14 Equipment Under Test Arrangement (Drawings)............................................................................22 Appendix A: Test Data ................................................................................................................................... 23 Appendix B: Test Arrangement (Photographs) ............................................................................................. 44 Appendix C: Test Instruments....................................................................................................................... 46 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT “EUT” means Equipment Under the Test. “N/A” means that Not Applicable. “N/T” means that Not Tested. - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070536 Issue Date : February 28, 2008 Model No. : SH9010C FCC ID : APYHRO00067 Regulation : CFR 47 FCC Rules and Regulations Part 24 Page 3 of 49 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 24 Subpart E - Broadband PCS Test Requirements : CFR 47 FCC Rules and Regulations Part 2 §2.1046, §2.1047, §2.1049, §2.1051, §2.1053, §2.1055 and §2.1057 Test Procedure : ANSI C63.4–2003, TIA/EIA–603-C-2004 2 Test Location KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-cho, Kameoka-shi, Kyoto 621-0126, Japan 3 Recognition of Test Laboratory JQA KITA-KANSAI Testing Center Testing Department EMC Division is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility of Testing Division is registered by the following bodies. VLAC Code : VLAC-001-2 (Effective through : April 3, 2008) NVLAP Lab Code : 200191-0 (Effective through : June 30, 2008) BSMI Recognition No. : SL2-IS-E-6006, SL2-IN-E-6006, SL2-AI-E-6006 (Effectiv…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070536 Issue Date : February 28, 2008 Model No. : SH9010C FCC ID : APYHRO00067 Regulation : CFR 47 FCC Rules and Regulations Part 24 Page 44 of 49 Appendix B: Test Arrangement (Photographs) B.1 Radiated Emission – Test Setup – – X-axis – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80070536 Issue Date : February 28, 2008 Model No. : SH9010C FCC ID : APYHRO00067 Regulation : CFR 47 FCC Rules and Regulations Part 24 Page 45 of 49 – Y-axis – – Z-axis – Photograph present configuration with maximum emission The EUT position of the maximum emission at Horizontal Polarization is X-axis. The EUT position of the maximum emission at Vertical Polarization is Z-axis.
