APYHRO00074Cellular Transceiver

Model Description FCC ID : APYHRO00074 Destination : Taiwan Market only Model Name : WX-T825 Brand Name : FAREASTONE/SHARP Emission Type : GSM(PCS) ----- GXW Type of Equipment : Cellular Phone / Bluetooth enable RF-section Items Technical Specification 3GPP R5 WCDMA 2000MHz(band I) : Tx 1922.6 to 1977.4MHz Rx 2112.6 to 2167.4MHz NOTE: Band I does not operate in USA Frequency Band GSM 900MHz : Tx 880.2 to 914.8MHz Rx 925.2 to 959.8MHz 1800MHz : Tx 1710.2 to 1784.8MHz Rx 1805.2 to 1879.8MHz 1900MHz : Tx 1850.2 to 1909.8MHz Rx 1930.2 to 1989.8MHz NOTE: GSM900/1800MHz Band do not operate in USA WCDMA : 24dBm+1dB/-3dB Tx Power GSM 900MHz 33dBm±2dB(GSM/GPRS) 1800MHz 30dBm±2dB(GSM/GPRS) 1900MHz 30dBm±2dB(GSM/GPRS) Transmission Technology WCDMA : DS/CDMA, FDD GSM : FDMA/TDMA Data Transmission GSM : GMSK GSM GPRS Class 10 (Total 5slots, TX: max 2 / RX: max 4) Voice Codec WCDMA : AMR GSM : EFR/ FR Cellular Phone Antenna WCDMA Antenna: Reversed F Type Antenna GSM Antenna: Reversed L Type Technical Specification Bluetooth Version 2.0 (without EDR) Frequency Band TX 2402MHz to 2480MHz RX 2402MHz to 2480MHz Tx Power Class2, Nominal 0dBm (Max +4dBm / min -6dBm) Type of Modulation GFSK Transmission Technology FHSS Bluetooth Antenna Antenna : Reversed L-Type / Gain= 0 dBi Class B Personal computer PERIPHERAL DEVICE Items Clock Frequency 26MHz, 208MHz USB Data Cable / Connector Shielded / Unshielded USB Stereo Handsfree RPHOHA018AF Rev1.0 Feature SIM Plug-in 3V SIM card slot Display Main 2.8inch, 262,144 color TFT(ASV), 240x400(WQVGA) with Backlight Ｓub None Camera Main C-MOS 2M pixel Ｓub None Battery/ Talk time Capacity 700mAh Battery type Rechargeable Lithium-Ion Battery standby time TBD talk time TBD Dimensions Target size 49(W) x 102.9(D) x 16.7(H)mm (Close position) Target weight 112g Key Layout Left Soft Key ,Right Soft Key ,Navigation keys (4Keys) ,Center key ,Shortcut Key ,Multimedia Key ,Send/End keys ,0-9 unmeric key ,* key ,# key ,Clear key ,and 6 side keys Cell Phone Feature Interface Headset connector For Stereo Headset (10 pins) MCPC connector For USB Cable or AC Charger SIM card terminal 1 slot SD Card connector For micro SD card (1 slot) Integrated charger circuit External I/F Accessory AC Charger Inbox Accessory, Input AC 100 to 240V Output DC 5.2V/650mA Battery Inbox Accessory, Lithium-Ion, DC3.7V 700mAh Stereo Handsfree Inbox Accessory USB Data Cable Optional Accessory Cigarette Lighter Charger Optional Accessory Stereo Headset Optional Accessory Accessory Handsfree Microphone Unit Optional Accessory

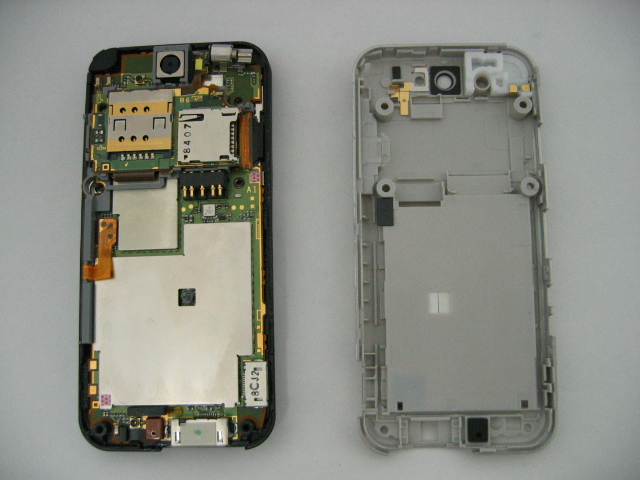

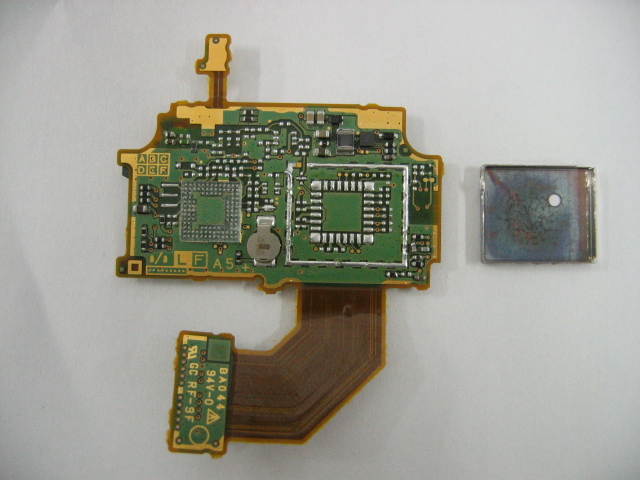

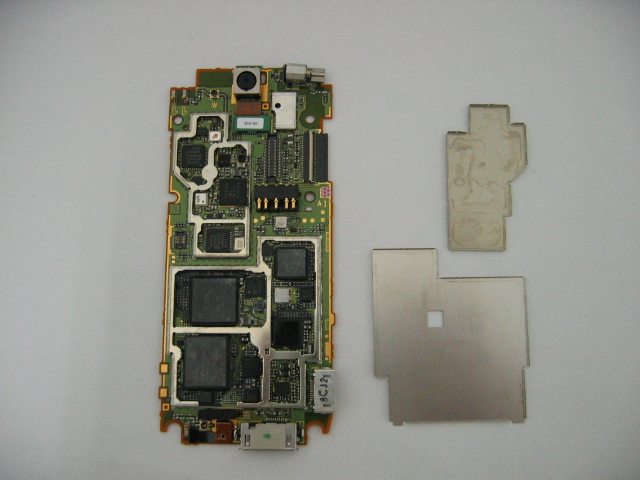

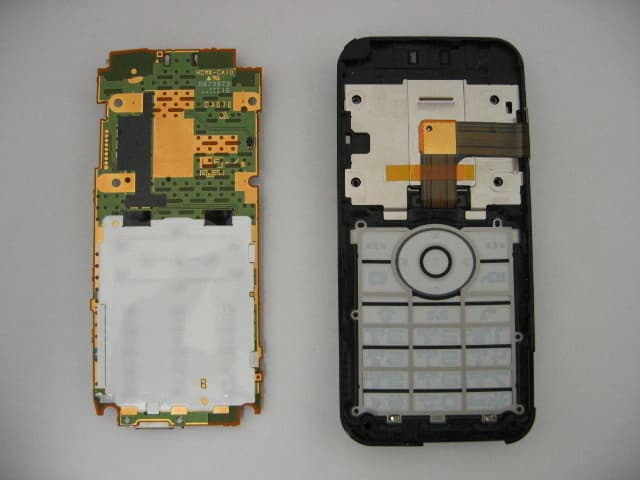

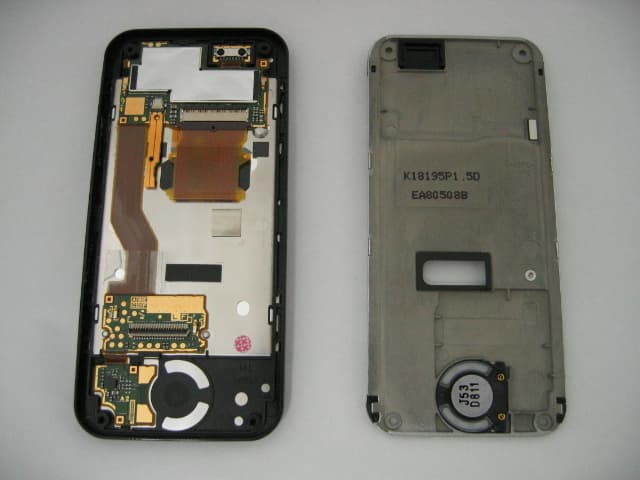

Model Name: WX-T825 Photo (Internal) FCC ID: APYHRO00074 1 / 6 Model Name: WX-T825 Photo (Internal) FCC ID: APYHRO00074 2 / 6 Model Name: WX-T825 Photo (Internal) FCC ID: APYHRO00074 3 / 6 Model Name: WX-T825 Photo (Internal) FCC ID: APYHRO00074 4 / 6 Model Name: WX-T825 Photo (Internal) FCC ID: APYHRO00074 5 / 6 Model Name: WX-T825 Photo (Internal) FCC ID: APYHRO00074 6 / 6

Test report No. : 29BE0157-HO Page : 2 of 22 Issued date : September 22, 2008 FCC ID : APYHRO00074 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Conducted Emission ....................................................................................... 11 SECTION 6: Radiated Emission .......................................................................................... 12 APPENDIX 1: Photographs of test setup............................................................................. 13 Conducted Emission .................................................................................................................... 13 Spurious Emission (Radiated) ....................................................................................................14 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) ..................................................... 15 APPENDIX 2: Data of EMI test ........................................................................................... 16 Conducted Emission .................................................................................................................... 16 Radiated Emission ....................................................................................................................... 18 APPENDIX 3: Test instruments ........................................................................................... 22 Test report No. : 29BE0157-HO Page : 3 of 22 Issued date : September 22, 2008 FCC ID : APYHRO00074 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Sharp Corporation, Communication Systems Group. Address : 2-13-1 Iida Hachihonmatsu, Higashihiroshima-City, Hiroshima, 739-0192, Japan Telephone Number : +81-82-420-1837 Facsimile Number : +81-82-420-1654 Contact Person : Tetsuya Maekawa SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Cellular Phone Model No. : WX-T825 Serial No. : 004401/11/135085/2 Rating : AC 120V/60Hz, DC4.0V Receipt Date of Sample : September 20, 2008 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: WX-T825 (referred to as the EUT in this report) is the Cellular Phone. Clock frequency(ies) in the system : 26MHz, 208MHz Test report No. : 29BE0157-HO Page : 4 of 22 Issued date : September 22, 2008 FCC ID : APYHRO00074 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2008, final revised on May 19, 2008 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Class B N/A [QP] 14.5dB, 4.95593MHz, N [AV] 8.8dB, 4.44421MHz, L Complied Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements Class B N/A 10.4dB, 82.465MHz, QP Horizontal Complied *Note: UL Japan, Inc’s EMI Work Procedure QPM05. *These tests were performed without any deviations from test procedure except for addition or exclusion. 3.3 Additions or deviations to standards No addition, deviation, nor exclusion has been made from standards. Test report No. : 29BE0157-HO Page : 5 of 22 Issued date : September 22, 2008 FCC ID : APYHRO00074 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Conducted emission Radiated emission (10m*) Radiated emission (3m*) Radiated emission (3m*) Test room 150kHz- 30MHz 9kHz- 30MHz 30MHz- 300MHz 300MHz- 1GHz 9kHz- 30MHz 30MHz- 300MHz 300MHz- 1GHz 1GHz- 18GHz 18GHz- 40GHz No.1 semi-anechoic chamber (±) 3.7dB 3.1dB 4.4dB 4.2dB 3.2dB 3.8dB 3.9dB 5.9dB 6.1dB No.2 semi-anechoic chamber (±) 3.7dB - - - 3.2dB 4.4dB 4.0dB 5.9dB 6.1dB No.3 semi-anechoic chamber (±) 3.7dB - - - 3.2dB 4.6dB 4.0dB 5.9dB 6.1dB No.4 semi-anechoic chamber (±) 3.7dB - - - 3.2dB 3.9dB 3.9dB 5.9dB 6.1dB *10m/3m = Measurement distance Conducted emission test The data listed in this test report has enough margin, more than the site margin. Radiated emission test(3m) The data listed in this test report has enough margin, more than the site margin. Test report No. : 29BE0157-HO Page : 6 of 22 Issued date : September 22, 2008 FCC ID : APYHRO00074 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.5 Test Location UL Japan, Inc. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 FCC Registration Number IC Registration Number Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Other rooms No.1 semi-anechoic chamber 313583 2973C-1 19.2 x 11.2 x …

Text truncated - open the document above for the full version.

Test report No. : 29BE0157-HO Page : 13 of 22 Issued date : September 22, 2008 FCC ID : APYHRO00074 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission Front Side Test report No. : 29BE0157-HO Page : 14 of 22 Issued date : September 22, 2008 FCC ID : APYHRO00074 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Spurious Emission (Radiated) Front Rear Test report No. : 29BE0157-HO Page : 15 of 22 Issued date : September 22, 2008 FCC ID : APYHRO00074 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis
