APYHRO00104Cellular Phone

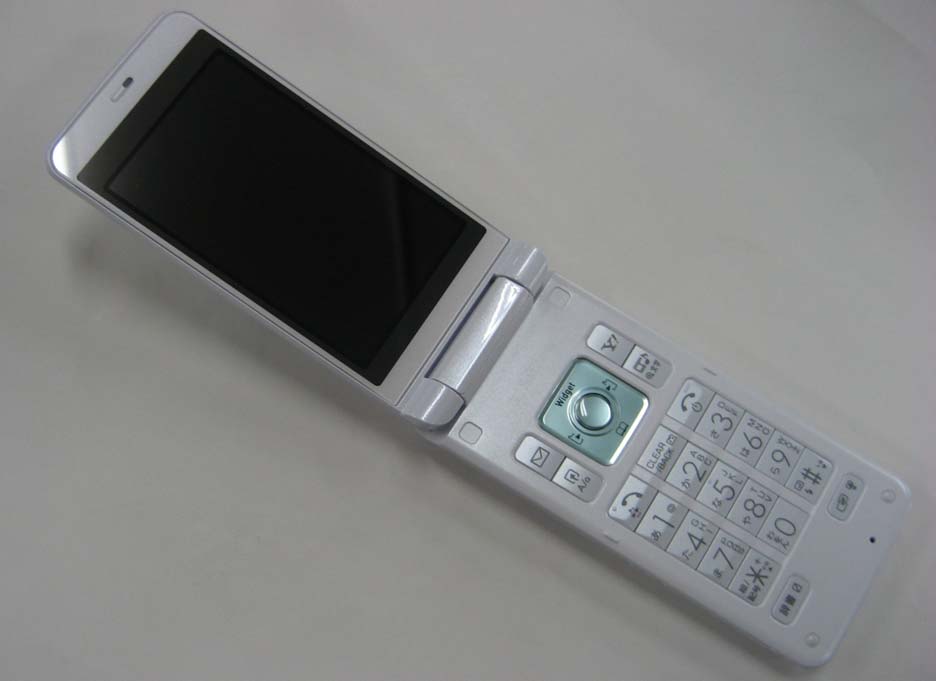

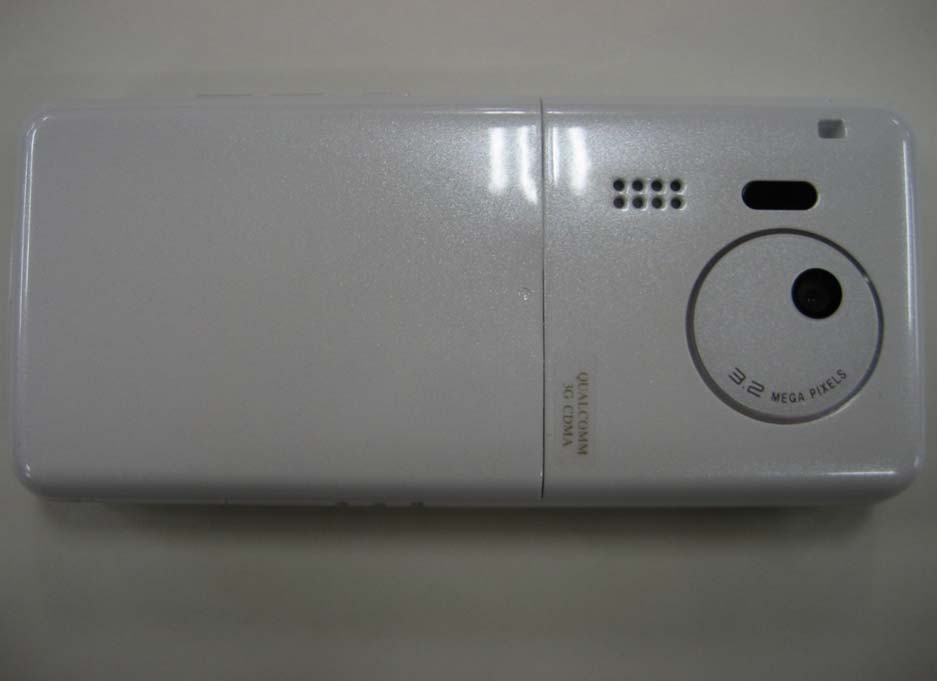

Model Name: 832SH Photo (External) FCC ID: APYHRO00104 1 / 3 Model Name: 832SH Photo (External) FCC ID: APYHRO00104 2 / 3 Model Name: 832SH Photo (External) FCC ID: APYHRO00104 3 / 3

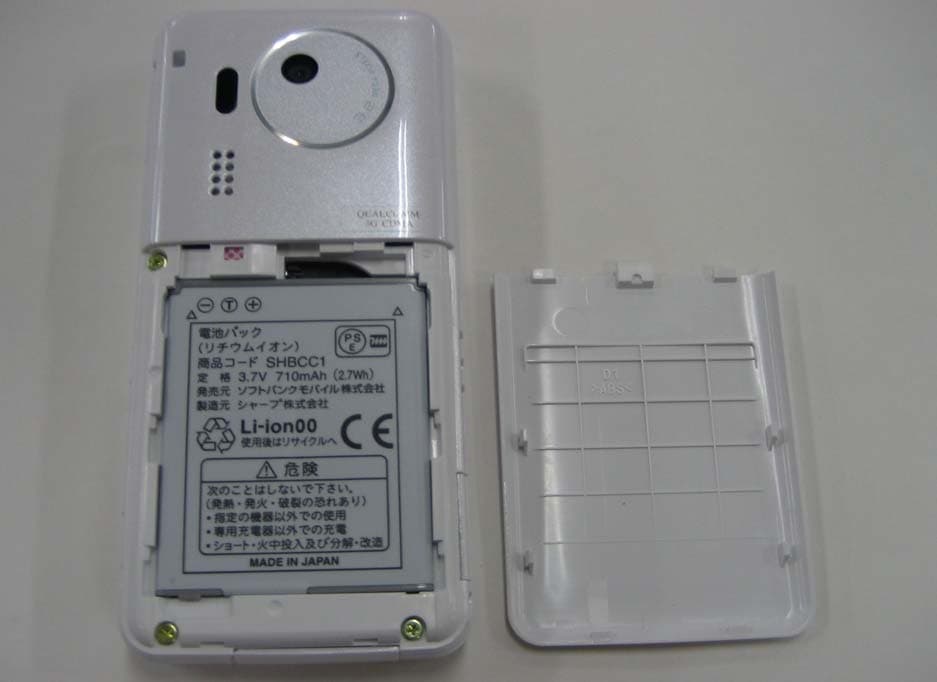

Model Name: 832SH Photo (Internal) FCC ID : APYHRO00104 1 / 4 Model Name: 832SH Photo (Internal) FCC ID : APYHRO00104 2 / 4 Model Name: 832SH Photo (Internal) FCC ID : APYHRO00104 3 / 4 Model Name: 832SH Photo (Internal) FCC ID : APYHRO00104 4 / 4

Test report No. : 29JE0074-HO-A Page : 2 of 20 Issued date : June 22, 2009 FCC ID : APYHRO00104 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Conducted Emission ......................................................................................... 9 SECTION 6: Radiated Emission .......................................................................................... 10 APPENDIX 1: Photographs of test setup............................................................................. 11 Conducted Emission .................................................................................................................... 11 Radiated Emission ....................................................................................................................... 12 Worst Case Position (Horizontal: Y-axis/ Vertical:Y-axis) ..................................................... 13 APPENDIX 2: Data of EMI test ........................................................................................... 14 Conducted Emission .................................................................................................................... 14 Radiated Emission ....................................................................................................................... 16 APPENDIX 3: Test instruments ........................................................................................... 20 Test report No. : 29JE0074-HO-A Page : 3 of 20 Issued date : June 22, 2009 FCC ID : APYHRO00104 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Sharp Corporation, Communication Systems Group. Brand Name : SHARP Address : 2-13-1 Iida Hachihonmatsu, HigashiHiroshima-City, Hiroshima, 739-0192, Japan Telephone Number : +81-82-420-1827 Facsimile Number : +81-82-420-1572 Contact Person : Hiroyuki Uwatoko SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Cellular Phone Model No. : 832SH Serial No. : 004401/11/206141/7 Receipt Date of Sample : June 12, 2009 Rating : AC120V/60Hz, DC4.0V Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Sharp Corporation, Communication Systems Group., Model No: 832SH is the Cellular Phone. Clock frequency : CPU: 26MHz RTC: 32.768kHz Internal: 208MHz Feature of EUT : 832SH is WCDMA & Tri-band (900/1800/1900) GSM Dual mode Cellular Phone. Test report No. : 29JE0074-HO-A Page : 4 of 20 Issued date : June 22, 2009 FCC ID : APYHRO00104 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2009, final revised on February 27, 2009 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Class B N/A [QP] 13.7dB, 0.15001MHz, L [AV] 16.6dB, 0.16815MHz, N Complied Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements Class B N/A 8.1dB, 72.384MHz, QP Horizontal Complied *Note: UL Japan, Inc’s EMI Work Procedure QPM05. 3.3 Addition to standard No addition, exclusion nor deviation has been made from the standard. Test report No. : 29JE0074-HO-A Page : 5 of 20 Issued date : June 22, 2009 FCC ID : APYHRO00104 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Conducted emission (+dB) Test room (semi- anechoic chamber) 150kHz-30MHz No.1 3.7dB No.2 3.7dB No.3 3.7dB No.4 3.7dB Radiated emission (10m*)(+dB) Radiated emission (3m*)(+dB) Test room (semi- anechoic chamber) 9kHz- 30MHz 30MHz- 300MHz 300MHz- 1GHz 9kHz- 30MHz 30MHz- 300MHz 300MHz- 1GHz 1GHz- 18GHz 18GHz- 26.5GHz 26.5GHz- 40GHz No.1 3.1dB 4.4dB 3.9dB 3.2dB 3.8dB 3.9dB 5.0dB 5.0dB 5.4dB No.2 - - - 3.2dB 4.4dB 4.0dB 5.0dB 5.2dB 5.4dB No.3 - - - 3.2dB 4.2dB 3.8dB 5.0dB 5.3dB 5.3dB No.4 - - - 3.2dB 4.0dB 3.8dB 5.0dB 5.3dB 5.3dB *10m/3m = Measurement distance Conducted Emission test The data listed in this test report has enough margin, more than the site margin. Radiated emission test(3m) The data listed in this test report has enough margin, more than the site margin. Test report No. : 29JE0074-HO-A Page : 6 of 20 Issued date : June 22, 2009 FCC ID : APYHRO00104 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.5 Test Location UL Japan, Inc. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 FCC Registration Number IC Registration Number Width x Depth x Height (m) Size of reference ground plane (m) / horizontal conducting plane Other rooms No.1 semi-anechoic chamber 313583 2973C-1 19.2 x 1…

Text truncated - open the document above for the full version.

Test report No. : 29JE0074-HO-A Page : 11 of 20 Issued date : June 22, 2009 FCC ID : APYHRO00104 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission Front Side Test report No. : 29JE0074-HO-A Page : 12 of 20 Issued date : June 22, 2009 FCC ID : APYHRO00104 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Spurious Emission (Radiated) Front Rear Test report No. : 29JE0074-HO-A Page : 13 of 20 Issued date : June 22, 2009 FCC ID : APYHRO00104 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: Y-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis
