~~~ Turning Power On Hold down F for at least a few seconds. Turning Power Off Hold down F for at least a few seconds. From the stand-by screen: Press c. z Press 3. z Press 6. z Press 2. From the stand-by screen: Press c. z Press 0. Making a Call From the stand-by screen: Enter the phone number you want to call. z Press N. To end a call: Press F. English Simple Manual Light sensor Main Display Cursor key Address book key Mail/Character key Talk key Number keys Microphone Center key Application key EZ key Clear/Memo key Power/End key Camera lens Strap eyelet Earpiece Quick key Direct/Veil View key Mobile light/flash au IC-Card Battery pack/cover microSD memory card slot Speaker Infrared port Charging terminals Side manner key Lock slider Sub display External connection cover Charging/Incoming indicator FeliCa mark External connection jack Turning Power On and Off Switching the Screen to English Checking Your Own Phone Number and E-mail Address Making and Answering a Call c186_j.book 454 ページ ２０１０年７月２７日 火曜日 午後８時４分 ~~~ Answering a Call When the phone starts ringing, press N. To adjust the earpiece volume during a call: Use j. Storing an Entry From the stand-by screen: Hold down & for at least a few seconds. z Use j to select the item you want to edit. z Press c (Select). z Enter the data. z Press % (Reg). Recalling an Entry From the stand-by screen: Press & to display the Address Book screen. z Use s to select the tab for the record you want to recall. z Use j to select the name of the record. z Press c (Detail) to view the record in detail. Recording a Movie Clip From the stand-by screen: Press c. z Use a to select “CAMERA”. z Press c (Select). z Select “Movie”. z Press c (Select). z Press c (Record) to start recording. z Press c (Stop) to stop recording. z Press c (Save) to store the movie. Press & () (Pause) during recording to pause recording. Press & () in the Movie mode to change to the Photo mode. Taking a Snapshot From the stand-by screen: Press c. z Use a to select “CAMERA”. z Press c (Select). z Select “Photo(W.paper Mode)”. z Press c (Select). z Press c (Shoot) to take a snapshot. z Press c (Save) to store the photo. Press & () in the Photo mode to change to the Movie mode. Ex: To call 212-123- in the USA Setting the Manner Mode From the stand-by screen: Hold down ( for at least a few seconds. Repeat the above operation to disable the Manner Mode. Setting the Answer Memo (Voice Recording) From the stand-by screen: Hold down C for at least a few seconds. Repeat the above operation to disable the Answer Memo. Storing and Recalling Address Book Entries Using the Camera (Movie and Snapshot) Making an International Call 001010 z 1 z 212 Area code International access codeCountry code (USA) z123z zN Number you want to call Other Handy Features For inquiries, please contact au Customer Service Center (General Information) If you are calling from a landline phone: (toll free) If you are calling from an au mobile phone: (toll free) c186_j.book 455 ページ ２０１０年７月２７日 火曜日 午後８時４分

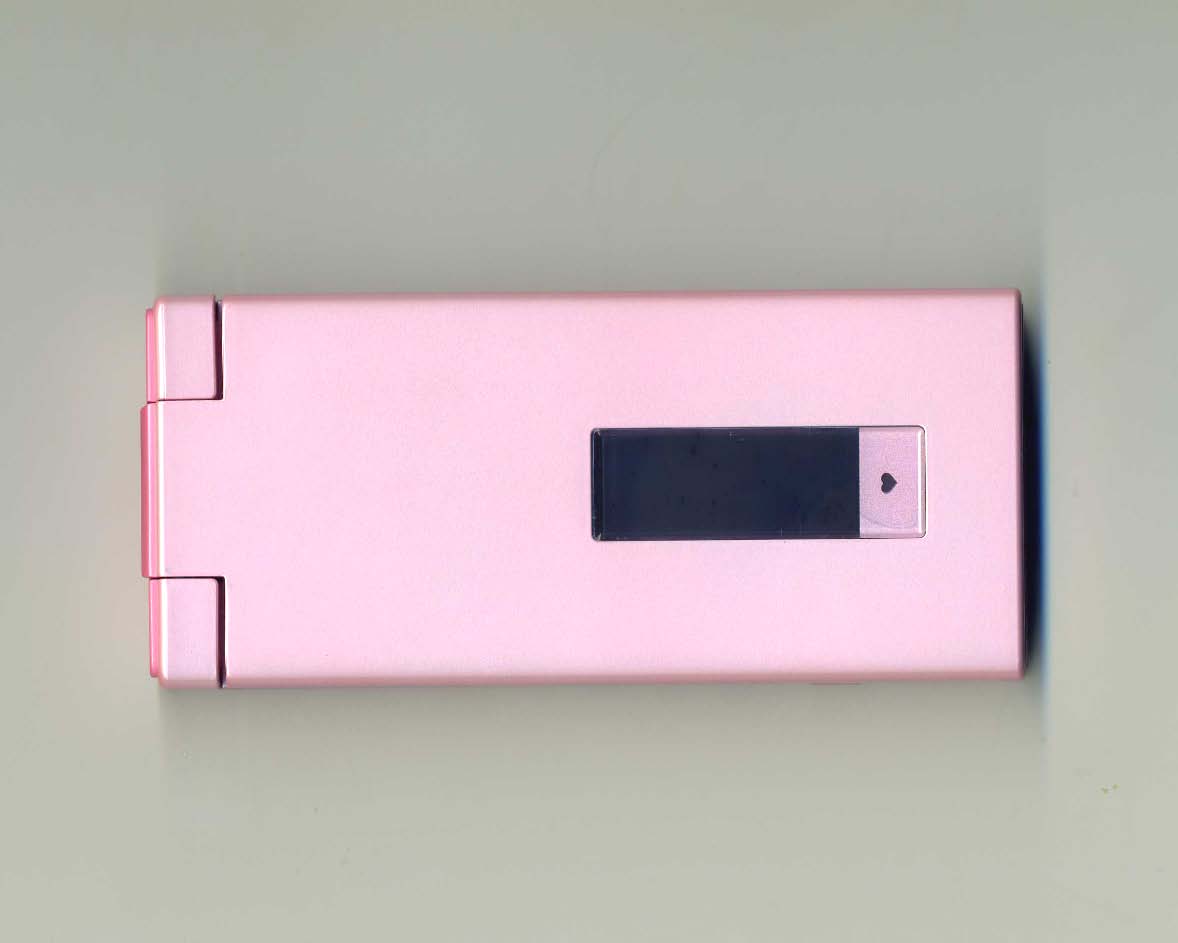

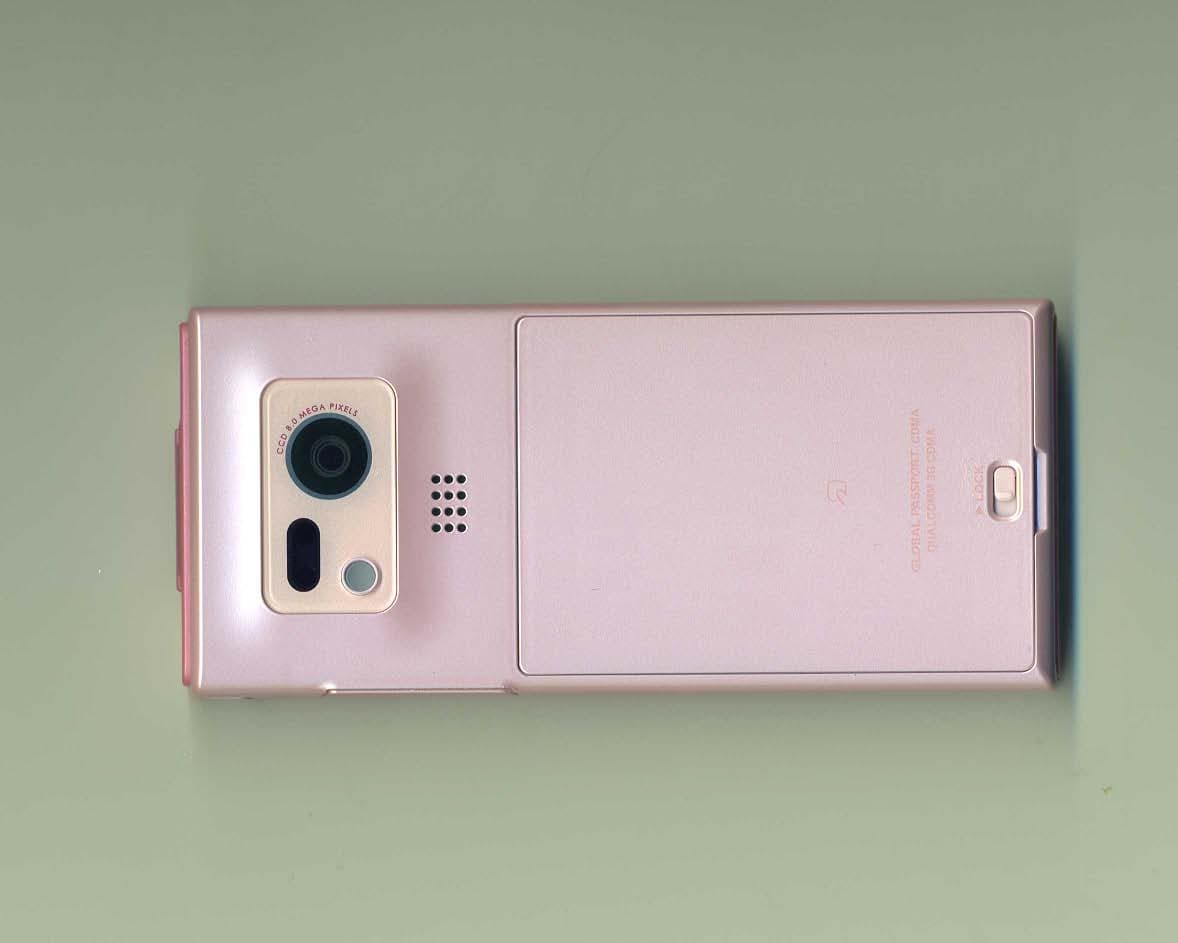

Model Name: CDMA SH009 Photo (External) FCC ID: APYHRO00127 1/3 Model Name: CDMA SH009 Photo (External) FCC ID: APYHRO00127 2/3 Model Name: CDMA SH009 Photo (External) FCC ID: APYHRO00127 3/3

Model Name: CDMA SH009 FCC ID Location (On Spec Label) FCC ID:APYHRO00127 ○Spec Label ○Location ① Production Years & Month ② Products Code ③ Production Number ④ Barcode of Production Number ⑤ Certification Number of TELEC ⑥ Approval Number of JATE Caution: Turn off power in aircrafts and hospitals. Don’t remove this label. Vendor:KDDI Corp.・Okinawa Cellular Corp. Manufacture/Applicant: SHARP Corp. ⑩ FCC ID: APYHRO00127

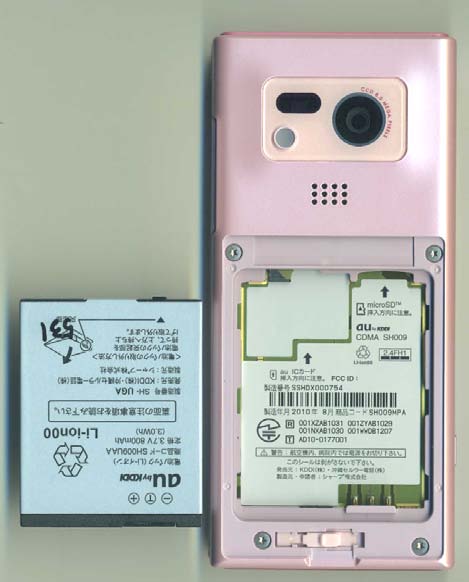

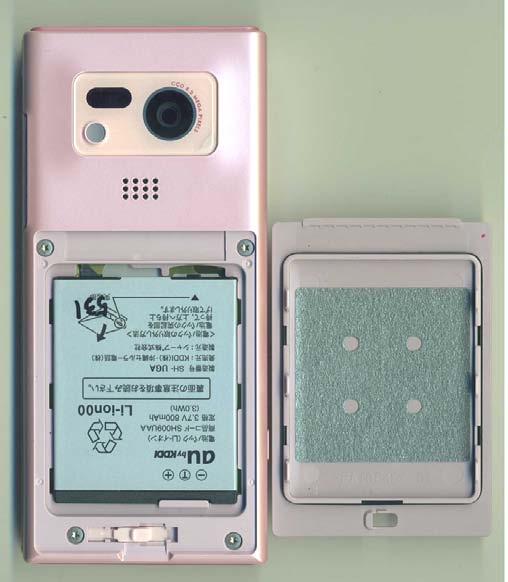

Model Name: CDMA SH009 Photo (Internal) FCC ID: APYHRO00127 1/6 Model Name: CDMA SH009 Photo (Internal) FCC ID: APYHRO00127 2/6 Model Name: CDMA SH009 Photo (Internal) FCC ID: APYHRO00127 3/6 Model Name: CDMA SH009 Photo (Internal) FCC ID: APYHRO00127 4/6 Model Name: CDMA SH009 Photo (Internal) FCC ID: APYHRO00127 5/6 Model Name: CDMA SH009 Photo (Internal) FCC ID: APYHRO00127 6/6

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 23 Technical document No. 23163-0701 JQA File No. : KL80100155 Issue Date : August 20, 2010 TEST REPORT (SAR EVALUATION) APPLICANT : Sharp Corporation ADDRESS : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan PRODUCTS : Cellular Phone MODEL NO. : CDMA SH009 SERIAL NO. : SSHDX000625 FCC ID : APYHRO00127 TEST STANDARD : FCC/OET Bulletin 65 Supplement C (Edition 01-01) TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : August 11 ~ 12, 2010 This report must not used by the client to claim product endorsement by NVLAP or Kousei Shibata NIST or any agency of the U.S. Government. Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division NVLAP LAB CODE 200191-0 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100155 Issue Date : August 20, 2010 Model No. : CDMA SH009 FCC ID : APYHRO00127 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 2 of 23 Technical document No. 23163-0701 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recognition of Test Laboratory.............................................................................................................3 4 Description of the Equipment Under Test...........................................................................................4 5 Test Results............................................................................................................................................4 6 Measurement System Diagram............................................................................................................5 7 System Components..............................................................................................................................6 8 Measurement Process............................................................................................................................9 9 Measurement Uncertainties...............................................................................................................10 10 Equipment Under Test Modification..................................................................................................11 11 Responsible Party................................................................................................................................11 12 Deviation from Standard.....................................................................................................................11 13 Summary..............................................................................................................................................12 14 Test Arrangement................................................................................................................................13 15 Procedures used to Establish Test Signal..........................................................................................15 Appendix A: Test Data ................................................................................................................................... 17 Appendix B: Test Instruments....................................................................................................................... 22 Appendix C: Attachments .............................................................................................................................. 23 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under Test EMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested SAR : Specific Absorption Rate - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100155 Issue Date : August 20, 2010 Model No. : CDMA SH009 FCC ID : APYHRO00127 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 3 of 23 Technical document No. 23163-0701 Documentation 1 Test Regulation Applied Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio- frequency Electromagnetic Fields Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions Test Procedure : FCC/OET Bulletin 65 Supplement C (Edition 01-01) IEEE Std.1528–2003 KDB Publication 941225 Rev. …

Text truncated - open the document above for the full version.

Attachment 1 – System Validation Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/08/12 10:15:18 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 835 MHz) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d104 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL900 Medium parameters used: f = 835 MHz; σ = 0.9 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1741; ConvF(6.36, 6.36, 6.36); Calibrated: 2009/09/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2009/11/09 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 2.65 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.1 V/m; Power Drift = -0.004 dB Peak SAR (extrapolated) = 3.59 W/kg SAR(1 g) = 2.45 mW/g; SAR(10 g) = 1.6 mW/g Maximum value of SAR (measured) = 2.64 mW/g 0 dB = 2.64mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/08/11 9:48:51 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body 835 MHz) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d104 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: M900 Medium parameters used: f = 835 MHz; σ = 0.956 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1741; ConvF(6.1, 6.1, 6.1); Calibrated: 2009/09/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2009/11/09 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 2.69 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.4 V/m; Power Drift = -0.017 dB Peak SAR (extrapolated) = 3.56 W/kg SAR(1 g) = 2.5 mW/g; SAR(10 g) = 1.65 mW/g Maximum value of SAR (measured) = 2.71 mW/g 0 dB = 2.71mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 2 – SAR Test Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/08/12 15:11:23 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Cheek/Touch 1013ch (824.70MHz) DUT: Cellular Phone; Type: SH009; Serial: SSHDX000625 Communication System: CDMA2000 Cellular; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL900 Medium parameters used: f = 824.7 MHz; σ = 0.891 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1741; ConvF(6.36, 6.36, 6.36); Calibrated: 2009/09/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2009/11/09 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Cheek/Touch Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.399 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.9 V/m; Power Drift = -0.007 dB Peak SAR (extrapolated) = 0.583 W/kg SAR(1 g) = 0.399 mW/g; SAR(10 g) = 0.270 mW/g Maximum value of SAR (measured) = 0.430 mW/g 0 dB = 0.430mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/08/12 15:23:49 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Cheek/Touch 1013ch (824.70MHz) DUT: Cellular Phone; Type: SH009; Serial: SSHDX000625 Communication System: CDMA2000 Cellular; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: HSL900 Medium parameters used: f = 824.7 MHz; σ = 0.891 mho/m; ε r = 41.3; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1741; ConvF(6.36, 6.36, 6.36); Calibrated: 2009/09/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2009/11/09 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Cheek/Touch Position/Z Scan (1x1x45): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 0.424 mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/08/12 11:19:03 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Cheek/Touch 384ch (836.52MHz) DUT: Cellular Phone; Type: SH009; Serial: SSHDX000625 Communication System: CDMA2000 Cellular; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: HSL900 Medium parameters used: f = 836.52 MHz; σ = 0.9 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1741; ConvF(6.36, 6.36, 6.36); Calibrated: 2009/09/15 zSensor-Surface: 4mm (Mechanical And Optical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2009/11/09 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Cheek/Touch Position/Area Scan (11x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.399 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.5 V/m; Power Drift = -0.020 dB Peak SAR (extrapolated) = 0.598 W/kg SAR(1 g) = 0.395 mW/g; SAR(10 g) = 0.268 mW/g Maximum value of SAR (measured) = 0.432 mW/g 0 dB = 0.432mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/08/12 15:43:57 Test Laboratory: JAPAN QUA…

Text truncated - open the document above for the full version.

Page 1 of 43 JQA File No. : KL80100156 Issue Date : August 20, 2010 TEST REPORT APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN PRODUCTS : Cellular Phone MODEL NO. : CDMA SH009 SERIAL NO. : SSHDX000624 FCC ID : APYHRO00127 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 22 TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : July 26, 2010 ~ August 19, 2010 This report must not used by the client to claim product endorsement by NVLAP or Kousei Shibata NIST or any agency of the U.S. Government. Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division NVLAP LAB CODE 200191-0 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100156 Issue Date : August 20, 2010 Model No. : CDMA SH009 FCC ID : APYHRO00127 Regulation : CFR 47 FCC Rules and Regulations Part 22 Page 2 of 43 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recognition of Test Laboratory.............................................................................................................3 4 Description of the Equipment Under Test...........................................................................................4 5 Test Condition........................................................................................................................................5 6 Preliminary Test and Test Setup.........................................................................................................7 7 Equipment Under Test Modification..................................................................................................16 8 Responsible Party................................................................................................................................16 9 Deviation from Standard.....................................................................................................................16 10 Test Results..........................................................................................................................................17 11 Summary..............................................................................................................................................20 12 Operating Condition............................................................................................................................21 13 Test Configuration...............................................................................................................................21 14 Equipment Under Test Arrangement (Drawings)............................................................................22 Appendix A: Test Data ................................................................................................................................... 23 Appendix B: Test Arrangement (Photographs) ............................................................................................. 40 Appendix C: Test Instruments....................................................................................................................... 42 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under Test EMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100156 Issue Date : August 20, 2010 Model No. : CDMA SH009 FCC ID : APYHRO00127 Regulation : CFR 47 FCC Rules and Regulations Part 22 Page 3 of 43 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 22 Subpart H – Cellular Radiotelephone Service Test Requirements : CFR 47 FCC Rules and Regulations Part 2 §2.1046, §2.1047, §2.1049, §2.1051, §2.1053, §2.1055 and §2.1057 Test Procedure : ANSI C63.4–2003, TIA/EIA–603-C-2004 2 Test Location KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-cho, Kameoka-shi, Kyoto 621-0126, Japan 3 Recognition of Test Laboratory JQA KITA-KANSAI Testing Center Testing Department EMC Division is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility of Testing Division is registered by the following bodies. VLAC Code : VLAC-001-2 (Effective through : March 30, 2012) NVLAP Lab Code : 200191-0 (Effective through : June 30, 2011) BSMI Recognition No. : SL2-IS-E-6006, S…

Text truncated - open the document above for the full version.

JQA File No. : KL80100156 Issue Date : August 20, 2010 Model No. : CDMA SH009 FCC ID : APYHRO00127 Regulation : CFR 47 FCC Rules and Regulations Part 22 Page 40 of 43 Appendix B: Test Arrangement (Photographs) Radiated Emission – X-axis – – Y-axis – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100156 Issue Date : August 20, 2010 Model No. : CDMA SH009 FCC ID : APYHRO00127 Regulation : CFR 47 FCC Rules and Regulations Part 22 Page 41 of 43 – Z-axis – Photograph present configuration with maximum emission The EUT position of the maximum emission at Horizontal Polarization is Y-axis. The EUT position of the maximum emission at Vertical Polarization is Z-axis. JAPAN QUALITY ASSURANCE ORGANIZATION

JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100155 Issue Date : August 20, 2010 Model No. : CDMA SH009 FCC ID : APYHRO00127 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 19 of 23 Technical document No. 23163-0701 A.3 SAR Measurement Data A.3.1 Left Head Cheek/Touch Position Ear/Tilt Position CDMA2000 BC0 (Duty Cycle: 100 %, Crest Factor: 1) Date : August 12, 2010 Frequency Test Position Channel MHz Tx Power [dBm] Power Drift [dB] Limit [mW/g] SAR (1g) [mW/g] Tissue Temp. [°C] 1013 824.70 23.73 -0.007 0.399 22.0 384 836.52 23.68 -0.020 0.395 22.0 Cheek/Touch 777 848.31 23.57 -0.071 1.6 0.359 22.0 Ear/Tilt 384 836.52 23.68 -0.026 1.6 0.140 22.0 NOTES : 1. Depth of Liquid : 15.0 cm 2. Transmitter power was measured at the antenna-conducted terminal. 3. SAR for head exposure configurations is measured in RC3 with the EUT configured to transmit at full rate using Loopback Service Option SO55. 4. Please refer to attachment for the result presentation in plot format. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100155 Issue Date : August 20, 2010 Model No. : CDMA SH009 FCC ID : APYHRO00127 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 20 of 23 Technical document No. 23163-0701 A.3.2 Right Head Cheek/Touch Position Ear/Tilt Position CDMA2000 BC0 (Duty Cycle: 100 %, Crest Factor: 1) Date : August 12, 2010 Frequency Test Position Channel MHz Tx Power [dBm] Power Drift [dB] Limit [mW/g] SAR (1g) [mW/g] Tissue Temp. [°C] Cheek/Touch 384 836.52 23.68 -0.020 1.6 0.366 22.0 Ear/Tilt 384 836.52 23.68 -0.027 1.6 0.148 22.0 NOTES : 1. Depth of Liquid : 15.0 cm 2. Transmitter power was measured at the antenna-conducted terminal. 3. SAR for head exposure configurations is measured in RC3 with the EUT configured to transmit at full rate using Loopback Service Option SO55. 4. Please refer to attachment for the result presentation in plot format. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100155 Issue Date : August 20, 2010 Model No. : CDMA SH009 FCC ID : APYHRO00127 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 21 of 23 Technical document No. 23163-0701 A.3.3 Body-worn Position Rear Position Front Position CDMA2000 BC0 (Duty Cycle: 100 %, Crest Factor: 1) Date : August 11, 2010 Frequency Test Position Channel MHz Tx Power [dBm] Power Drift [dB] Limit [mW/g] SAR (1g) [mW/g] Tissue Temp. [°C] 1013 824.70 23.72 -0.010 0.734 22.0 384 836.52 23.67 -0.017 0.761 22.0 Rear 777 848.31 23.58 -0.008 1.6 0.659 22.0 Front 384 836.52 23.67 -0.004 1.6 0.391 22.0 NOTES : 1. Depth of Liquid : 15.0 cm 2. Transmitter power was measured at the antenna-conducted terminal. 3. SAR for body exposure configurations is measured in RC3 with the EUT configured using TDSO / SO32, to transmit at full rate on FCH with all other code channels disabled. 4. The earphone wire connected to the EUT to simulate hand-free operation in a body-worn configuration. 5. Please refer to attachment for the result presentation in plot format. 1.5cm 1.5cm
