APYHRO00128Cellular Phone

~~~ - This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient/relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. Your handset is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless handsets employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. Highest SAR value: This device was tested for typical body-worn operations with the back of the handset kept 1.5 cm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 1.5 cm separation distance between the user's body and the back of the handset. The use of beltclips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. The FCC has granted an Equipment Authorization for this model handset with all reported SAR levels evaluated as in compliance with the FCC RF emission guidelines. SAR information on this model handset is on file with the FCC and can be found at http://www.fcc.gov/oet/fccid under the Display Grant section after searching on the corresponding FCC ID (see table above). Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Website at http://www.phonefacts.net . ModelFCC IDAt the EarOn the Body SH010APYHRO001280.409W/Kg0.565W/Kg j20_c290_9j.fm 497 ページ ２０１０年８月２０日 金曜日 午後１０時４４分

~~~ Turning Power On Hold down F for at least a few seconds. Turning Power Off Hold down F for at least a few seconds. From the stand-by screen: Press c. z Press 3. z Press 6. z Press 2. From the stand-by screen: Press c. z Press 0. Making a Call From the stand-by screen: Enter the phone number you want to call. z Press N. To end a call: Press F. English Simple Manual Earpiece Main Display Cursor key Address book key Mail/Character key Talk key Number keys Microphone Center key Application key EZ key Clear/Memo key Power/End key Camera lens Internal antennas Light sensor Quick key Direct/Veil View key Mobile light/flash au IC-Card Television antenna Battery pack/cover microSD memory card slot Side manner/clear key Speaker Infrared port Charging terminals Side shutter key Sub display External connection cover Internal antennas Charging/Incoming indicator FeliCa mark External connection jack Strap eyelet Shooting lamp Turning Power On and Off Switching the Screen to English Checking Your Own Phone Number and E-mail Address Making and Answering a Call c290_j.book 498 ページ ２０１０年８月２０日 金曜日 午後１１時１８分 ~~~ Answering a Call When the phone starts ringing, press N. To adjust the earpiece volume during a call: Use j. Storing an Entry From the stand-by screen: Hold down & for at least a few seconds. z Use j to select the item you want to edit. z Press c (Select). z Enter the data. z Press % (Reg). Recalling an Entry From the stand-by screen: Press & to display the Address Book screen. z Use s to select the tab for the record you want to recall. z Use j to select the name of the record. z Press c (Detail) to view the record in detail. Recording a Movie Clip From the stand-by screen: Press c. z Use a to select “CAMERA”. z Press c (Select). z Select “Movie”. z Press c (Select). z Press c (Record) to start recording. z Press c (Stop) to stop recording. z Press c (Save) to store the movie. Press & () (Pause) during recording to pause recording. Press & () in the Movie mode to change to the Photo mode. Taking a Snapshot From the stand-by screen: Press c. z Use a to select “CAMERA”. z Press c (Select). z Select “Photo (W.paper Mode)”. z Press c (Select). z Press c (Shoot) to take a snapshot. z Press c (Save) to store the photo. Press & () in the Photo mode to change to the Movie mode. Ex: To call 212-123- in the USA Setting the Manner Mode From the stand-by screen: Hold down ( for at least a few seconds. Repeat the above operation to disable the Manner Mode. Setting the Answer Memo (Voice Recording) From the stand-by screen: Hold down C for at least a few seconds. Repeat the above operation to disable the Answer Memo. Storing and Recalling Address Book Entries Using the Camera (Movie and Snapshot) Making an International Call 001010 z 1 z 212 Area code International access codeCountry code (USA) z123z zN Number you want to call Other Handy Features For inquiries, please contact au Customer Service Center (General Information) If you are calling from a landline phone: (toll free) If you are calling from an au mobile phone: (toll free) c290_j.book 499 ページ ２０１０年８月２０日 金曜日 午後６時５８分

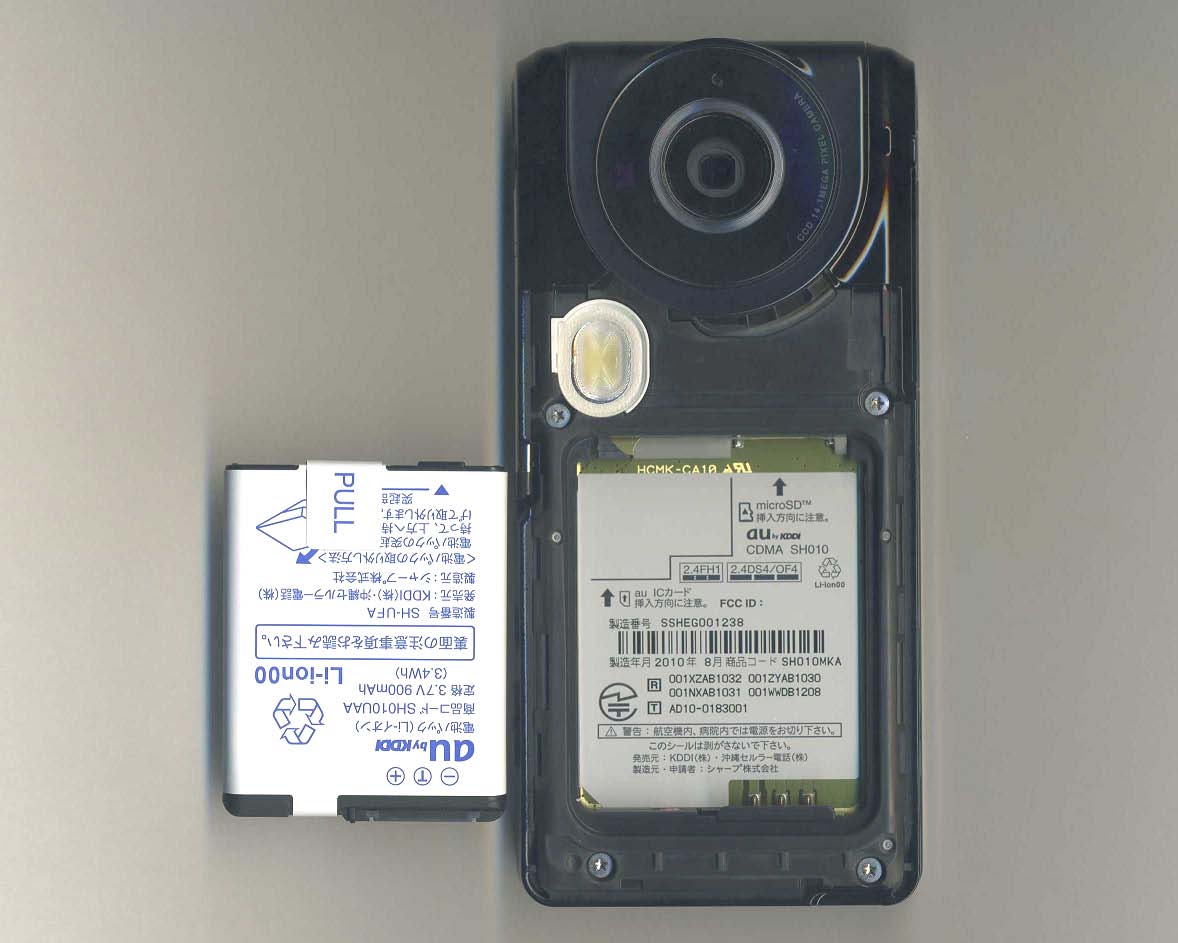

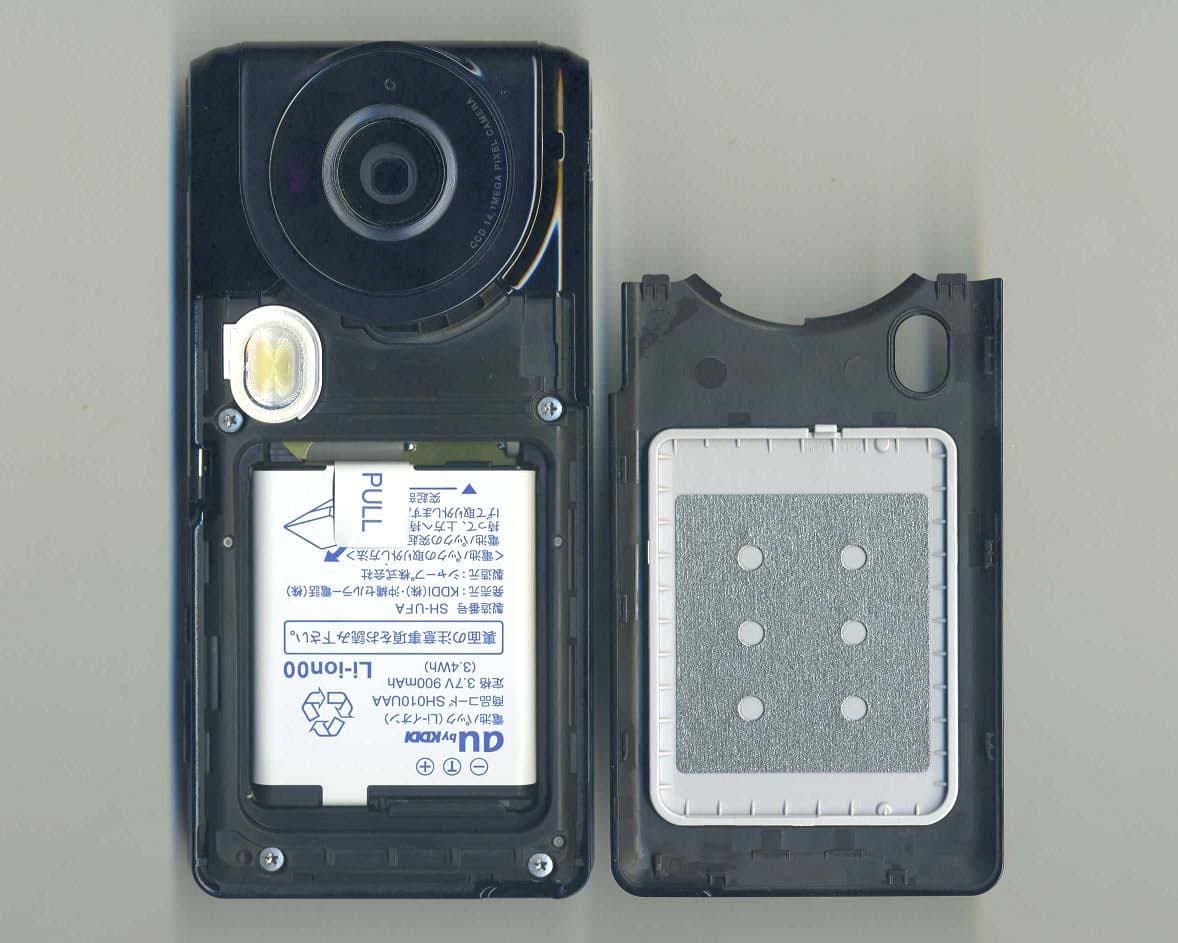

Model Name: CDMA SH010 Photo (External) FCC ID: APYHRO00128 1/4 Model Name: CDMA SH010 Photo (External) FCC ID: APYHRO00128 2/4 Model Name: CDMA SH010 Photo (External) FCC ID: APYHRO00128 3/4 Model Name: CDMA SH010 Photo (External) FCC ID: APYHRO00128 4/4

Model Name: CDMA SH010 FCC ID Location (On Spec Label) FCC ID:APYHRO00128 ○Spec Label ○Location ①,② Production Years & Month ③,④ Products Code ⑤,⑥ Production Number ⑦ Barcode of Production Number ⑧ Certification Number of TELEC ⑨ Approval Number of JATE Caution: Turn off power in aircrafts and hospitals. Don’t remove this label. Vendor:KDDI Corp.・Okinawa Cellular Corp. Manufacture/Applicant: SHARP Corp. ⑩ FCC ID: APYHRO00128

Model Name: CDMA SH010 Photo (Internal) FCC ID: APYHRO00128 1/5 Model Name: CDMA SH010 Photo (Internal) FCC ID: APYHRO00128 2/5 Model Name: CDMA SH010 Photo (Internal) FCC ID: APYHRO00128 3/5 Model Name: CDMA SH010 Photo (Internal) FCC ID: APYHRO00128 4/5 Model Name: CDMA SH010 Photo (Internal) FCC ID: APYHRO00128 5/5

Model Name: CDMA SH010 Photo (Antennas) FCC ID: APYHRO00128 1/1 Distance between CDMA Main antenna and Bluetooth antenna 89 mm Bluetooth Antenna CDMA Main TX Antenna (CDMA 800M) Sub Antenna （Receive Only）

Test report No. : 30LE0193-HO Page : 2 of 19 Issued date : July 29, 2010 FCC ID : APYHRO00128 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ...................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 3 SECTION 3: Test specification, procedures & results ......................................................... 4 SECTION 4: Operation of E.U.T. during testing ................................................................. 7 SECTION 5: Conducted Emission ......................................................................................... 8 SECTION 6: Radiated Emission ............................................................................................ 9 APPENDIX 1: Photographs of test setup............................................................................. 10 Conducted Emission .................................................................................................................... 10 Radiated Emission ....................................................................................................................... 11 Worst Case Position MHz ........................................................................................................... 12 APPENDIX 2: Data of EMI test ........................................................................................... 13 Conducted Emission .................................................................................................................... 13 Radiated Emission ....................................................................................................................... 15 APPENDIX 3: Test instruments ........................................................................................... 19 Test report No. : 30LE0193-HO Page : 3 of 19 Issued date : July 29, 2010 FCC ID : APYHRO00128 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Sharp Corporation, Communication Systems Group Address : 2-13-1 Iida Hachihonmatsu HigashiHiroshima-City, Hiroshima, 739-0192 Japan Telephone Number : +81-824-20-1630 Facsimile Number : +81-824-20-1624 Contact Person : Hachiro Hidaka SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Cellular Phone Model No. : CDMA SH010 Serial No. : Refer to Section 4, Clause 4.2 Receipt Date of Sample : July 22, 2010 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Feature of EUT : CDMA SH010 is 1XEV-DO Hybrid CDMA Tri-Band Cellular Phone. CDMA SH010 is designed by Sharp Corporation exclusively for au, a cellular phone carrier owned by KDDI corporation in Japan Clock frequency(ies) in the system : CPU: 19.2MHz RTC: 32.768kHz Inner: 768MHz Test report No. : 30LE0193-HO Page : 4 of 19 Issued date : July 29, 2010 FCC ID : APYHRO00128 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B 2010, final revised on January 22, 2010 and effective March 1, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result Conducted emission FCC: ANSI C63.4: 2003 7. AC powerline conducted emission measurements Class B N/A [QP] 14.9dB 0.20596MHz, N [AV] 10.6dB 0.41712MHz, N Complied Radiated emission FCC: ANSI C63.4: 2003 8. Radiated emission measurements Class B N/A 5.3dB 108.640MHz Horizontal Complied *Note: UL Japan, Inc’s EMI Work Procedure QPM05. 3.3 Addition to standard No addition, exclusion nor deviation has been made from the standard. Test report No. : 30LE0193-HO Page : 5 of 19 Issued date : July 29, 2010 FCC ID : APYHRO00128 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Conducted emission (+dB) Test room (semi- anechoic chamber) 150kHz-30MHz No.1 2.6dB No.2 2.9dB No.3 3.3dB No.4 2.8dB Radiated emission (10m*)(+dB) Test room (semi- anechoic chamber) 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz No.1 2.7dB 4.8dB 5.0dB No.2 - - - No.3 - - - No.4 - - - *10m = Measurement distance Radiated emission (3m*)(+dB) (1m*)(+dB) (0.5m*)(+dB) Test room (semi- anechoic chamber) 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz 1GHz -10GHz 10GHz -18GHz 18GHz -26.5GHz 26.5GHz -40GHz No.1 2.9dB 4.8dB 5.0dB 3.9dB 4.3dB 4.5dB 4.3dB No.2 3.5dB 4.8dB 5.1dB 4.0dB 4.2dB 4.4dB 4.2dB No.3 3.8dB 4.6dB 4.7dB 4.0dB 4.2dB 4.5dB 4.2dB No.4 3.5dB 4.4dB 4.9dB 4.0dB 4.2dB 4.6dB 4.2dB *3m/1m/0.5m = Measurement distance Conducted Emission test The data listed in this test report has enough margin, more than the site margin. Radiated emission test(3m) The data listed in this test report has enough margin, more than the site margin. Test report No. : 30LE0193-HO Page : 6 of 19 Issued date : July 29, 2010 FCC ID : APYHRO00128 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.5 Test Location UL Japan, Inc. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 FCC Re…
