APYHRO00129Cellular Phone

SH-01C SH-01C 環境保全のため、不要になった電池はNTTドコモまたは代理店、リサイクル協力店などにお持ちください。 大豆油インキを使用しています。 再生紙を使用しています ユニバーサルナンバー用国際識別番号滞在国の国際電話アクセス番号 -81-3-6718-1414 ＊ （無料） -8005931-8600 ＊ ＊一般電話などでかけた場合には、日本向け通話料がかかります。 ※SH-01Cからご利用の場合は、＋81-3-6718-1414でつながります。 （「＋」は「０」ボタンを１秒以上押します。） ＊滞在国内通話料などがかかる場合があります。 ※主要国の国際電話アクセス番号／ユニバーサルナンバー用国際識別番号については、ドコ モの「国際サービスホームページ」をご覧ください。 一般電話などからの場合ドコモの携帯電話からの場合 海外での故障について ＜ネットワークオペレーションセンター＞（24時間受付） ＜ユニバーサルナンバー＞ ◎公共の場所で携帯電話をご利用の際は、周囲の方への心くばりを忘れずに。 ●紛失・盗難などにあわれたら、速やかに利用中断手続きをお取りください。●お客様が購入されたFOMA端末に故障が発生した場合は、ご帰国後にドコモ指定の故障取扱窓口へご持参ください。 ＊滞在国内通話料などがかかる場合があります。 ※主要国の国際電話アクセス番号／ユニバーサルナンバー用国際識別番号については、ドコ モの「国際サービスホームページ」をご覧ください。 ＊一般電話などでかけた場合には、日本向け通話料がかかります。 ※SH-01Cからご利用の場合は、＋81-3-6832-6600でつながります。 （「＋」は「０」ボタンを１秒以上押します。） -8000120-0151 ＊ ユニバーサルナンバー用国際識別番号 -81-3-6832-6600 ＊ （無料） 滞在国の国際電話アクセス番号 海外での紛失、盗難、精算などについて ＜ドコモ インフォメーションセンター＞（24時間受付） ドコモの携帯電話からの場合 一般電話などからの場合 ＜ユニバーサルナンバー＞ ※ 一般電話などからはご利用いただけません。 受付時間 24時間 （年中無休） （局番なしの） 113 （無料） ■ドコモの携帯電話からの場合 故障お問い合わせ先 ※ 一部のIP電話からは接続できない場合があ ります。 0120-800-000 ■一般電話などからの場合 ※ 一般電話などからはご利用いただけません。 （局番なしの） 151 （無料） ■ドコモの携帯電話からの場合 総合お問い合わせ先＜ドコモ インフォメーションセンター＞ ●番号をよくご確認の上、お間違いのないようにおかけください。● 各種手続き、故障・アフターサービスについては、上記お問い合わせ先にご連絡いただくか、ドコモホームページ、ｉモードサイトにてお近くのドコモショップなどにお問い合わせください。 ※ 一部のIP電話からは接続できない場合があ ります。 0120-800-000 ■一般電話などからの場合 ｉモードサイト iMenu お客様サポート ドコモショップ ドコモホームページ http://www.nttdocomo.co.jp/ 受付時間 午前9:00～午後8:00 （年中無休） ’10. ’10. TINSJA742AFZZ 10* **.* ** SM*** ’10. 1 9 j01_dv80.fm [9/23]~~~~~~~~~~~~~~~~~~~~~~~~~ は じ め に FOMA端末をアダプタに接続した 状態で長時間連続使用される場合 には特にご注意ください。 充電しながらｉアプリやテレビ電話、ワンセグ視 聴などを長時間行うとFOMA端末や電池パック・ アダプタの温度が高くなることがあります。 温度の高い部分に直接長時間触れるとお客様の 体質や体調によっては肌に赤みやかゆみ、かぶれ などが生じたり、低温やけどの原因となる恐れが あります。 赤外線ポートを目に向けて送信し ないでください。 目に悪影響を及ぼす原因となります。 赤外線通信使用時に、赤外線ポー トを赤外線装置のついた家電製品 などに向けて操作しないでくださ い。 赤外線装置の誤動作により、事故の原因となりま す。 ピクチャーライトの発光部を人の 目に近づけて点灯発光させないで ください。 視力障害の原因となります。また、目がくらんだ り驚いたりしてけがなどの事故の原因となりま す。 注意事項： 当製品に使用されているピクチャーライト光源 LEDは、指定されていない調整などの操作を意図 的に行った場合、眼の安全性を超える光量を放出 する可能性がありますので分解しないでくださ い。 FOMA端末内のドコモUIMカード やmicroSDカード挿入口に水など の液体や金属片、燃えやすいもの などの異物を入れないでくださ い。 火災、やけど、けが、感電の原因となります。 自動車などの運転者に向けてライ トを点灯しないでください。 運転の妨げとなり、事故の原因となります。 航空機内や病院など、使用を禁止 された区域では、FOMA端末の電 源を切ってください。 電子機器や医用電気機器に悪影響を及ぼす原因 となります。また、自動的に電源が入る機能を設 定している場合は、設定を解除してから電源を 切ってください。 医療機関内における使用については各医療機関 の指示に従ってください。 また、航空機内での使用などの禁止行為をした場 合、法令により罰せられます。 ハンズフリーに設定して通話する 際や、 着信音が鳴っているときな どは、 必ずFOMA端末を耳から離 してください。 また、 イヤホンマイクなどを FOMA端末に装着し、ゲームや音 楽再生をする場合は、適度なボ リュームに調節してください。 音量が大きすぎると難聴の原因となります。 また、周囲の音が聞こえにくいと、事故の原因と なります。 Earphone Signal Level The maximum output voltage for the music player function, measured in accordance with EN 50332-2, is 28.0 mV. 心臓の弱い方は、着信バイブレー タ（振動）や着信音量の設定に注意 してください。 心臓に悪影響を及ぼす原因となります。 FOMA端末の取り扱いについて 警告 クラス 1 LED製品 EN60825-1:1994 A1:2002 & A2:2001 ピクチャーライト j01_dv80.fm 9 ページ ２０１０年９月１７日 金曜日 午前１１時１０分 105 j07_2_dv80.fm[105/117] ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ その他 Quick Manual Use only the battery packs and adapters specified by NTT DOCOMO for use with the FOMA terminal.May cause fires, burns, bodily injury or electric shock.Do not throw the battery pack into a fire.The battery pack may catch fire, explode, overheat or leak.Do not dispose of used battery packs in ordinary garbage.May cause fires or damage to the environment. Place tape over the terminals to insulate unnecessary battery packs, and take them to a docomo Shop, retailer or institution that handles used batteries in your area.Avoid using the handset in extremely high or low temperatures.Use the FOMA terminal within the range of a temperature between 5°C and 40°C (for temperatures of 36°C or higher, such as in a room with a bath, limit usage to a short period of time) and a humidity between 45% and 85%.Charge battery in areas where ambient temperature is between 5°C and 35°C.Do not point the illuminated light directly at someone’s eyes. Do not use Picture Light near people’s faces. Eyesight may be temporarily affected leading to accidents. CAUTION:Use of controls, adjustments or performance of procedure other than those specified herein may result in hazardous radiation exposure. As the emission level from Picture Light LED used in this product is harmful to the eyes, do not attempt to disassemble the cabinet. Servicing is limited to qualified servicing station only.Picture light source LED characteristicsa) Continuous illuminationb) Wavelength White: 400-700 nm c) Maximum output White: 1.4 mW (inside FOMA terminal 4.3 mW) 1 Hook a finger on the tab and pull out the tray ( 1 ) 2 Hold the UIM with the IC (gold) turned down and set on the tray ( 2 ) 3 Push the tray all the way in ( 3 ) CAUTION EN60825-1:1994 A1:2002 & A2:2001 CLASS1 LED Product Picture Light Before Use Inserting UIM (FOMA card) Note that inserting or removing the UIM forcibly may damage the UIM or deform the tray. NotchIC (gold) 123 Notch Tray Tab j07_2_dv80.fm 105 ページ ２０１０年９月１３日 月曜日 午後４時５３分 106 j07_2_dv80.fm [106/116]~~~~~~~~~~~~~~~~~~~~~~~~~ そ の 他 Perform with the FOMA terminal turned off and closed while holding with your both hands. The battery pack is not waterproof/dust-proof. 1Slide the back cover lever in the direction of the arrow (1) to unlock and remove the back cover (2) The FOMA terminal has a slot to remove the back cover. Securely hold the FOMA terminal as shown in the illustration to prevent excessive force on the back cover and hook a nail on the slot and remove the back cover upward. 2Attach the battery pack Turn a recycle mark side of the battery pack up, match tabs and attach the battery pack. 3Insert the tab of the top of the back cover into the FOMA terminal slot (1), insert it in the direction of the arrow (2) and securely push down with both hands (3) The back of the back cover has also six tabs to insert the back cover. Securely push tab areas down with both hands so that gaps are not left between the FOMA terminal and the back cover. 4Slide the back cover lever in the direction of the arrow (4) to lock Attaching battery pack Slot Tabs With a recycle mark side up Using unnecessar…

Text truncated - open the document above for the full version.

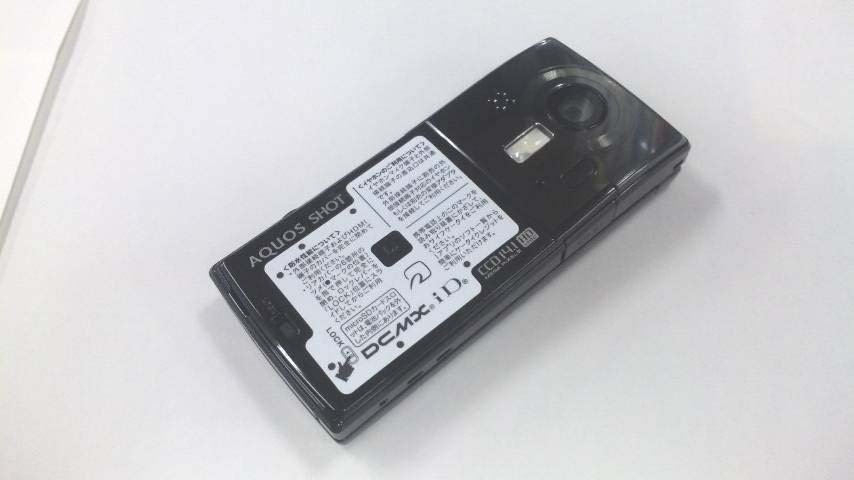

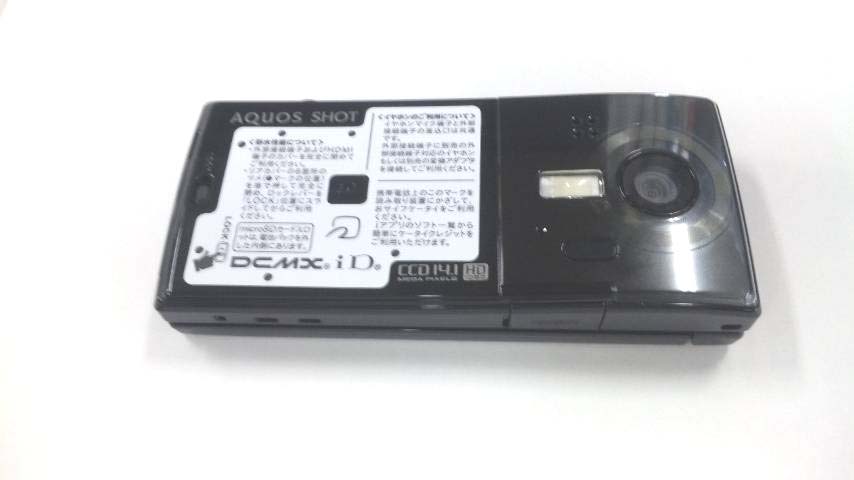

Model Name:SH-01CPhoto(External)29th/September/2010 1 / 3 Model Name:SH-01CPhoto(External)29th/September/2010 2 / 3 Model Name:SH-01CPhoto(External)29th/September/2010 3 / 3

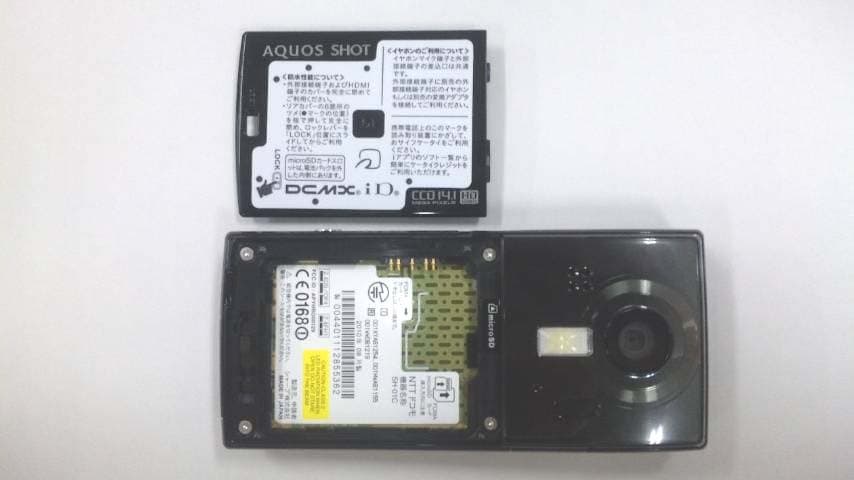

Model Name: SH-0１C FCC ID: APYHRO00129 ○Spec Label Vendor : NTT DoCoMo ① Color Name ② Approval Number of JATE ③ Certifiction Number of TELEC ④ Production Years & Months ⑤ Bar Code of IMEI ⑥ IMEI (Production Serial Number) Caution : Turn off power in an aircraft. Don't remove this seal. Manufucturer/Applicant : SHARP Corporation ○Location Spec Label and Location 5/October/2010 FCC ID

Model Name:SH-01CPhoto(Internal)29th/September/2010 1 / 6 Model Name:SH-01CPhoto(Internal)29th/September/2010 2 / 6 Model Name:SH-01CPhoto(Internal)29th/September/2010 3 / 6 Model Name:SH-01CPhoto(Internal)29th/September/2010 4 / 6 Model Name:SH-01CPhoto(Internal)29th/September/2010 5 / 6 Model Name:SH-01CPhoto(Internal)29th/September/2010 6 / 6

SH-01C Bluetooth/WLANantenna 88mm 81mm Main antenna(WCDMA：BandV) Main antenna(PCS1900)

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 36 Technical document No. 23163-0701 JQA File No. : KL80100204 Issue Date : September 30, 2010 TEST REPORT (SAR EVALUATION) APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan PRODUCTS : Cellular Phone MODEL NO. : SH-01C SERIAL NO. : 004401112855172 FCC ID : APYHRO00129 TEST STANDARD : FCC/OET Bulletin 65 Supplement C (Edition 01-01) TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : September 16 ~ 23, 2010 This report must not used by the client to claim product endorsement by NVLAP or Kousei Shibata NIST or any agency of the U.S. Government. Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division NVLAP LAB CODE 200191-0 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100204 Issue Date : September 30, 2010 Model No. : SH-01C FCC ID : APYHRO00129 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 2 of 36 Technical document No. 23163-0701 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation.....................................................................................................................................3 2 Test Location.........................................................................................................................................3 3 Recognition of Test Laboratory............................................................................................................3 4 Description of the Equipment Under Test..........................................................................................4 5 Test Results...........................................................................................................................................4 6 Measurement System Diagram............................................................................................................5 7 System Components..............................................................................................................................6 8 Measurement Process...........................................................................................................................9 9 Measurement Uncertainties...............................................................................................................10 10 Equipment Under Test Modification.................................................................................................11 11 Responsible Party................................................................................................................................11 12 Deviation from Standard....................................................................................................................11 13 Summary..............................................................................................................................................12 14 Test Arrangement...............................................................................................................................13 15 Procedures used to Establish Test Signal.........................................................................................15 Appendix A: Test Data ................................................................................................................................... 19 Appendix B: Test Instruments....................................................................................................................... 35 Appendix C: Attachments .............................................................................................................................. 36 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under Test EMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested SAR : Specific Absorption Rate - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100204 Issue Date : September 30, 2010 Model No. : SH-01C FCC ID : APYHRO00129 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 3 of 36 Technical document No. 23163-0701 Documentation 1 Test Regulation Applied Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio- frequency Electromagnetic Fields Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions Test Procedure : FCC/OET Bulletin 65 Supplement C (Edition 01-01) IEEE Std.1528–2003 KDB P…

Text truncated - open the document above for the full version.

Attachment 1 – System Validation Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/09/16 10:23:42 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 835 MHz) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL900 Medium parameters used: f = 835 MHz; σ = 0.898 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.2, 6.2, 6.2); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2009/11/09 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 2.64 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.1 V/m; Power Drift = -0.024 dB Peak SAR (extrapolated) = 3.56 W/kg SAR(1 g) = 2.42 mW/g; SAR(10 g) = 1.58 mW/g Maximum value of SAR (measured) = 2.62 mW/g 0 dB = 2.62mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/09/17 11:02:42 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body 835 MHz) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: M900 Medium parameters used: f = 835 MHz; σ = 0.969 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.09, 6.09, 6.09); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2009/11/09 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 2.77 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.4 V/m; Power Drift = 0.037 dB Peak SAR (extrapolated) = 3.64 W/kg SAR(1 g) = 2.55 mW/g; SAR(10 g) = 1.69 mW/g Maximum value of SAR (measured) = 2.76 mW/g 0 dB = 2.76mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/09/18 9:40:00 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 1900 MHz) DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL1900 Medium parameters used: f = 1900 MHz; σ = 1.45 mho/m; ε r = 39.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.93, 4.93, 4.93); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2009/11/09 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 11.8 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 96.1 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 18.2 W/kg SAR(1 g) = 10.4 mW/g; SAR(10 g) = 5.44 mW/g Maximum value of SAR (measured) = 11.8 mW/g 0 dB = 11.8mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/09/19 9:41:59 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body 1900 MHz) DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: M1900 Medium parameters used: f = 1900 MHz; σ = 1.55 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.56, 4.56, 4.56); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2009/11/09 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 11.6 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 94.8 V/m; Power Drift = -0.028 dB Peak SAR (extrapolated) = 16.1 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.47 mW/g Maximum value of SAR (measured) = 11.7 mW/g 0 dB = 11.7mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/09/23 9:37:41 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 2450 MHz) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2450 MHz; σ = 1.83 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.26, 4.26, 4.26); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2009/11/09 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 15.4 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 96.8 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 30.8 W/kg SAR(1 g) = 13.7 mW/g; SAR(10 g) = 6.21 mW/g Maximum value of SAR (measured) = 15.3 mW/g 0 dB = 15.3mW/g JAPAN QUALITY …

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 3 – Dosimetric E-Field Probe – ET3DV6, S/N: 1679 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4-1 – System Validation Dipole – D835V2, S/N: 4d081 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4-2 – System Validation Dipole – D1900V2, S/N: 5d112 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4-3 – System Validation Dipole – D2450V2, S/N: 714 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 87 JQA File No. : KL80100209 Issue Date : September 27, 2010 TEST REPORT APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN PRODUCTS : Cellular Phone MODEL NO. : SH-01C SERIAL NO. : 00440112855214 00440112855206 FCC ID : APYHRO00129 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 15 TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : September 13, 2009 ~ September 23, 2010 This report must not used by the client to claim product endorsement by NVLAP or Kousei Shibata NIST or any agency of the U.S. Government. Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division NVLAP LAB CODE 200191-0 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100209 Issue Date : September 27, 2010 Model No. : SH-01C FCC ID : APYHRO00129 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 2 of 87 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recognition of Test Laboratory.............................................................................................................3 4 Description of the Equipment Under Test...........................................................................................4 5 Test Condition........................................................................................................................................5 6 Preliminary Test and Test Setup.........................................................................................................7 7 Equipment Under Test Modification..................................................................................................13 8 Responsible Party................................................................................................................................13 9 Deviation from Standard.....................................................................................................................13 10 Test Results..........................................................................................................................................14 11 Summary..............................................................................................................................................17 12 Operating Condition............................................................................................................................18 13 Test Configuration...............................................................................................................................18 14 Equipment Under Test Arrangement (Drawings)............................................................................19 Appendix A: Test Data ................................................................................................................................... 20 Appendix B: Test Arrangement (Photographs) ............................................................................................. 84 Appendix C: Test Instruments....................................................................................................................... 86 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under TestEMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100209 Issue Date : September 27, 2010 Model No. : SH-01C FCC ID : APYHRO00129 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 3 of 87 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart C – Intentional Radiators Test Requirements : §15.247, §15.207 and §15.209 Test Procedure : ANSI C63.4–2003 The tests were performed with reference to the FCC Public Notice DA 00-705, released March 30, 2000. The test set-up was made in accordance to the general provisions of ANSI C63.4-2003. 2 Test Location KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-cho, Kameoka-shi, Kyoto 621-0126, Japan 3 Recognition of Test Laboratory VLAC Code : VLAC-001-2 (Effective through : March 30, 2012) NVLAP Lab Code : 200191-0 (Effective through : June 30, 2011) BSMI Recognition No. : SL2-IS-E-6006, SL2-IN-E-6006, SL2-AI-E-6006 (Effective through : September 14, 2013) VCCI…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100209 Issue Date : September 27, 2010 Model No. : SH-01C FCC ID : APYHRO00129 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 84 of 87 Appendix B: Test Arrangement (Photographs) B.1 AC Powerline Conducted Emission – Front View – – Side View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100209 Issue Date : September 27, 2010 Model No. : SH-01C FCC ID : APYHRO00129 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 85 of 87 B.2 Radiated Emission – Front View– – Over View– Photograph present configuration with maximum emission

JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100204 Issue Date : September 30, 2010 Model No. : SH-01C FCC ID : APYHRO00129 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 22 of 36 Technical document No. 23163-0701 A.3 SAR Measurement Data A.3.1 WCDMA Band V A.3.1.1 Left Head Cheek/Touch Position Ear/Tilt Position WCDMA Band V (Duty Cycle: 100 %, Crest Factor: 1) Date : September 16, 2010 Frequency Test Position Channel MHz Tx Power [dBm] Power Drift [dB] Limit [mW/g] SAR (1g) [mW/g] Tissue Temp. [°C] 4132 826.40 22.81 -0.042 0.253 22.0 4182 836.40 22.98 -0.002 0.296 22.0 Cheek/Touch 4233 846.60 23.07 -0.041 1.6 0.298 22.0 Ear/Tilt 4182 836.40 22.98 -0.002 1.6 0.143 22.0 NOTES : 1. Depth of Liquid : 15.0 cm 2. Transmitter power was measured at the antenna-conducted terminal. 3. SAR is measured using a 12.2 kbps RMC. 4. Please refer to attachment for the result presentation in plot format. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100204 Issue Date : September 30, 2010 Model No. : SH-01C FCC ID : APYHRO00129 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 23 of 36 Technical document No. 23163-0701 A.3.1.2 Right Head Cheek/Touch Position Ear/Tilt Position WCDMA Band V (Duty Cycle: 100 %, Crest Factor: 1) Date : September 16, 2010 Frequency Test Position Channel MHz Tx Power [dBm] Power Drift [dB] Limit [mW/g] SAR (1g) [mW/g] Tissue Temp. [°C] Cheek/Touch 4182 836.40 22.98 -0.022 1.6 0.292 22.0 Ear/Tilt 4182 836.40 22.98 -0.032 1.6 0.136 22.0 NOTES : 1. Depth of Liquid : 15.0 cm 2. Transmitter power was measured at the antenna-conducted terminal. 3. SAR is measured using a 12.2 kbps RMC. 4. Please refer to attachment for the result presentation in plot format. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100204 Issue Date : September 30, 2010 Model No. : SH-01C FCC ID : APYHRO00129 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 24 of 36 Technical document No. 23163-0701 A.3.1.3 Body-worn Position – close style Rear Position Front Position WCDMA Band V (Duty Cycle: 100 %, Crest Factor: 1) Date : September 17, 2010 Frequency Test Position Channel MHz Tx Power [dBm] Power Drift [dB] Limit [mW/g] SAR (1g) [mW/g] Tissue Temp. [°C] Rear 4182 836.40 22.98 -0.012 1.6 0.386 22.0 Front 4182 836.40 22.98 -0.039 1.6 0.162 22.0 NOTES : 1. Depth of Liquid : 15.0 cm 2. Transmitter power was measured at the antenna-conducted terminal. 3. SAR is measured using a 12.2 kbps RMC. 4. The earphone wire connected to the EUT to simulate hand-free operation in a body-worn configuration. 5. Please refer to attachment for the result presentation in plot format. 1.5cm 1.5cm JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100204 Issue Date : September 30, 2010 Model No. : SH-01C FCC ID : APYHRO00129 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 25 of 36 Technical document No. 23163-0701 A.3.1.4 Body-worn Position – viewer style Rear Position Front Position WCDMA Band V (Duty Cycle: 100 %, Crest Factor: 1) Date : September 17, 2010 Frequency Test Position Channel MHz Tx Power [dBm] Power Drift [dB] Limit [mW/g] SAR (1g) [mW/g] Tissue Temp. [°C] 4132 826.40 22.81 -0.025 0.321 22.0 4182 836.40 22.98 -0.047 0.394 22.0 Rear 4233 846.60 23.07 -0.014 1.6 0.503 22.0 Front 4182 836.40 22.98 -0.047 1.6 0.179 22.0 NOTES : 1. Depth of Liquid : 15.0 cm 2. Transmitter power was measured at the antenna-conducted terminal. 3. SAR is measured using a 12.2 kbps RMC. 4. The earphone wire connected to the EUT to simulate hand-free operation in a body-worn configuration. 5. Please refer to attachment for the result presentation in plot format. 1.5cm 1.5cm JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100204 Issue Date : September 30, 2010 Model No. : SH-01C FCC ID : APYHRO00129 Standard : FCC/OET Bulletin 65 Supplement C (Edition 0…

Text truncated - open the document above for the full version.
