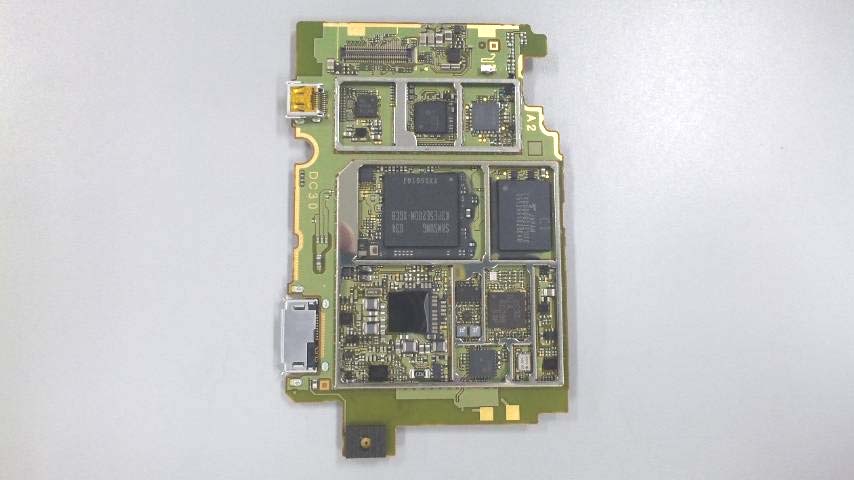

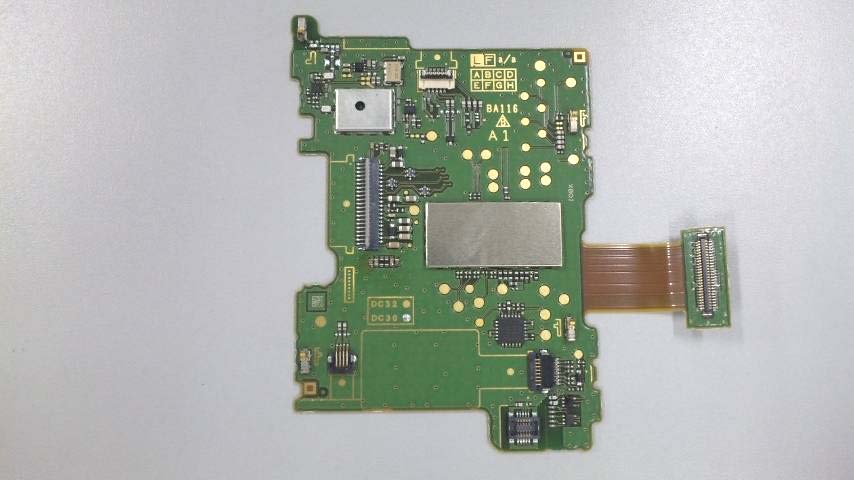

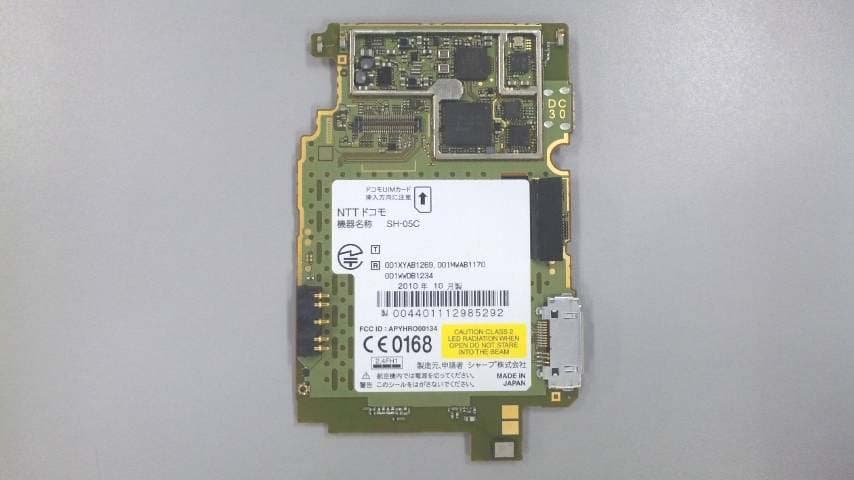

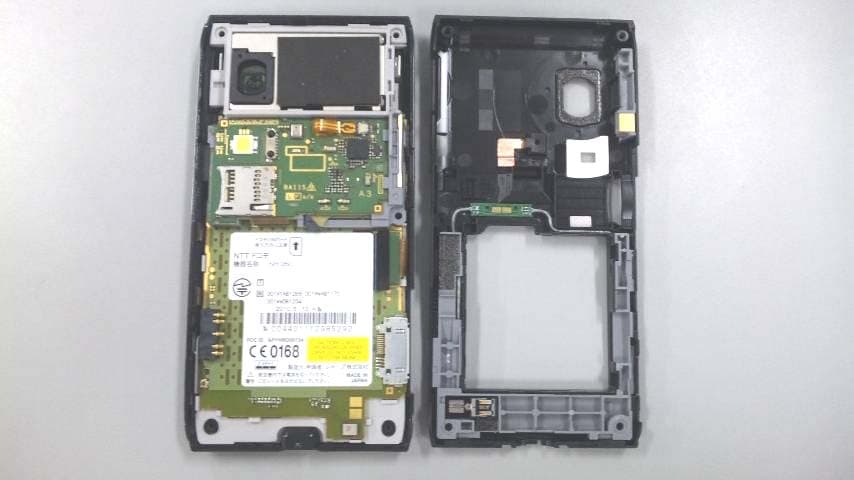

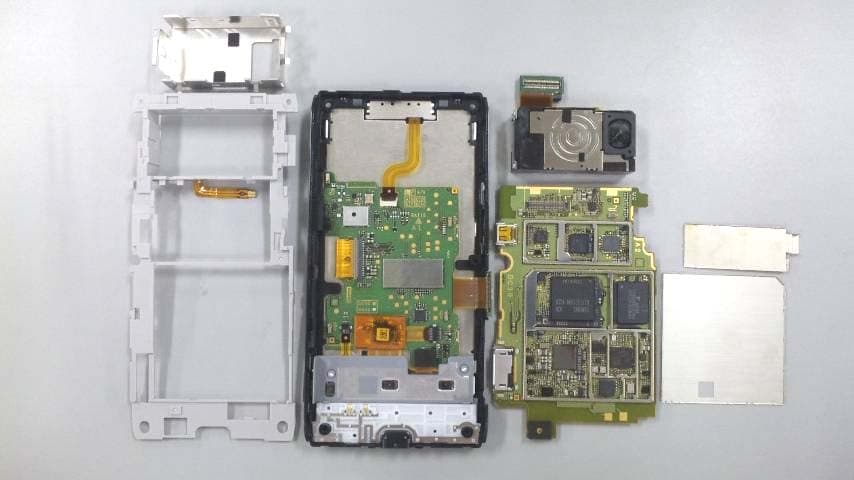

Model Name:SH-05CPhoto(Internal)25th/November/2010 1 / 6 Model Name:SH-05CPhoto(Internal)25th/November/2010 2 / 6 Model Name:SH-05CPhoto(Internal)25th/November/2010 3 / 6 Model Name:SH-05CPhoto(Internal)25th/November/2010 4 / 6 Model Name:SH-05CPhoto(Internal)25th/November/2010 5 / 6 Model Name:SH-05CPhoto(Internal)25th/November/2010 6 / 6

Model Name: SH-05C FCC ID: APYHRO00134 ○Spec Label Vendor : NTT DoCoMo ① Color Name ② Approval Number of JATE ③ Certifiction Number of TELEC ④ Production Years & Months ⑤ Bar Code of IMEI ⑥ IMEI (Production Serial Number) Manufucturer/Applicant : SHARP Corporation Caution : Turn off power in an aircraft. Don't remove this seal. ○Location Spec Label and Location 24/November/2010 FCC ID

Model Name:SH-05CPhoto(External)25th/November/2010 1 / 3 Model Name:SH-05CPhoto(External)25th/November/2010 2 / 3 Model Name:SH-05CPhoto(External)25th/November/2010 3 / 3

53.5mm Main Anten na Bluetooth Anten na SH-05C

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 23 Technical document No. 23163-0701 JQA File No. : KL80100333 Issue Date : November 18, 2010 TEST REPORT (SAR EVALUATION) APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan PRODUCTS : Cellular Phone MODEL NO. : SH-05C SERIAL NO. : 004401112985177 FCC ID : APYHRO00134 TEST STANDARD : FCC/OET Bulletin 65 Supplement C (Edition 01-01) TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : November 2 ~ 3, 2010 This report must not used by the client to claim product endorsement by NVLAP or Kousei Shibata NIST or any agency of the U.S. Government. Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division NVLAP LAB CODE 200191-0 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100333 Issue Date : November 18, 2010 Model No. : SH-05C FCC ID : APYHRO00134 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 2 of 23 Technical document No. 23163-0701 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation.....................................................................................................................................3 2 Test Location.........................................................................................................................................3 3 Recognition of Test Laboratory............................................................................................................3 4 Description of the Equipment Under Test..........................................................................................4 5 Test Results...........................................................................................................................................4 6 Measurement System Diagram............................................................................................................5 7 System Components..............................................................................................................................6 8 Measurement Process...........................................................................................................................9 9 Measurement Uncertainties...............................................................................................................10 10 Equipment Under Test Modification.................................................................................................11 11 Responsible Party................................................................................................................................11 12 Deviation from Standard....................................................................................................................11 13 Summary..............................................................................................................................................12 14 Test Arrangement...............................................................................................................................13 15 Procedures used to Establish Test Signal.........................................................................................15 Appendix A: Test Data ................................................................................................................................... 17 Appendix B: Test Instruments....................................................................................................................... 22 Appendix C: Attachments .............................................................................................................................. 23 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under Test EMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested SAR : Specific Absorption Rate - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100333 Issue Date : November 18, 2010 Model No. : SH-05C FCC ID : APYHRO00134 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 3 of 23 Technical document No. 23163-0701 Documentation 1 Test Regulation Applied Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio- frequency Electromagnetic Fields Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions Test Procedure : FCC/OET Bulletin 65 Supplement C (Edition 01-01) IEEE Std.1528–2003 KDB Publica…

Text truncated - open the document above for the full version.

Attachment 1 – System Validation Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/11/02 11:09:38 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 835 MHz) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL900 Medium parameters used: f = 835 MHz; σ = 0.894 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.2, 6.2, 6.2); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn516; Calibrated: 2010/04/15 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 2.65 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.4 V/m; Power Drift = 0.005 dB Peak SAR (extrapolated) = 3.59 W/kg SAR(1 g) = 2.44 mW/g; SAR(10 g) = 1.6 mW/g Maximum value of SAR (measured) = 2.64 mW/g 0 dB = 2.64mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/11/03 10:43:43 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body 835 MHz) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: M900 Medium parameters used: f = 835 MHz; σ = 0.956 mho/m; ε r = 55.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.09, 6.09, 6.09); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn516; Calibrated: 2010/04/15 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 2.67 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.1 V/m; Power Drift = -0.006 dB Peak SAR (extrapolated) = 3.55 W/kg SAR(1 g) = 2.48 mW/g; SAR(10 g) = 1.64 mW/g Maximum value of SAR (measured) = 2.69 mW/g 0 dB = 2.69mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 2 – SAR Test Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/11/02 14:38:09 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Cheek/Touch 4132ch (826.4MHz) DUT: Cellular Phone; Type: SH-05C; Serial: 004401112985177 Communication System: WCDMA; Frequency: 826.4 MHz;Duty Cycle: 1:1 Medium: HSL900 Medium parameters used: f = 826.4 MHz; σ = 0.884 mho/m; ε r = 42.3; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.2, 6.2, 6.2); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn516; Calibrated: 2010/04/15 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Cheek/Touch Position/Area Scan (10x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.821 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 31.6 V/m; Power Drift = -0.013 dB Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.819 mW/g; SAR(10 g) = 0.612 mW/g Maximum value of SAR (measured) = 0.863 mW/g 0 dB = 0.863mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/11/02 14:17:42 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Cheek/Touch 4182ch (836.4MHz) DUT: Cellular Phone; Type: SH-05C; Serial: 004401112985177 Communication System: WCDMA; Frequency: 836.4 MHz;Duty Cycle: 1:1 Medium: HSL900 Medium parameters used: f = 836.4 MHz; σ = 0.894 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.2, 6.2, 6.2); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn516; Calibrated: 2010/04/15 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Cheek/Touch Position/Area Scan (10x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.725 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.5 V/m; Power Drift = -0.032 dB Peak SAR (extrapolated) = 0.949 W/kg SAR(1 g) = 0.747 mW/g; SAR(10 g) = 0.553 mW/g Maximum value of SAR (measured) = 0.792 mW/g 0 dB = 0.792mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2010/11/02 14:52:13 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head, Cheek/Touch 4233ch (846.6MHz) DUT: Cellular Phone; Type: SH-05C; Serial: 004401112985177 Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium: HSL900 Medium parameters used: f = 846.6 MHz; σ = 0.904 mho/m; ε r = 42; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.2, 6.2, 6.2); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn516; Calibrated: 2010/04/15 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Cheek/Touch Position/Area Scan (10x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.868 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 32.2 V/m; Power Drift = -0.028 dB Peak SAR (extrapolated) = 1.10 W/kg SAR(1 g) = 0.863 …

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 44 JQA File No. : KL80100334 Issue Date : November 22, 2010 TEST REPORT APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN PRODUCTS : Cellular Phone MODEL NO. : SH-05C SERIAL NO. : 004401112985110 FCC ID : APYHRO00134 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 22 TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : November 5, 2010 ~ November 16, 2010 This report must not used by the client to claim product endorsement by NVLAP or Kousei Shibata NIST or any agency of the U.S. Government. Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. EMC Division NVLAP LAB CODE 200191-0 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100334 Issue Date : November 22, 2010 Model No. : SH-05C FCC ID : APYHRO00134 Regulation : CFR 47 FCC Rules and Regulations Part 22 Page 2 of 44 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recognition of Test Laboratory.............................................................................................................3 4 Description of the Equipment Under Test...........................................................................................4 5 Test Condition........................................................................................................................................5 6 Preliminary Test and Test Setup.........................................................................................................7 7 Equipment Under Test Modification..................................................................................................16 8 Responsible Party................................................................................................................................16 9 Deviation from Standard.....................................................................................................................16 10 Test Results..........................................................................................................................................17 11 Summary..............................................................................................................................................20 12 Operating Condition............................................................................................................................21 13 Test Configuration...............................................................................................................................21 14 Equipment Under Test Arrangement (Drawings)............................................................................22 Appendix A: Test Data ................................................................................................................................... 23 Appendix B: Test Arrangement (Photographs) ............................................................................................. 41 Appendix C: Test Instruments....................................................................................................................... 43 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under Test EMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100334 Issue Date : November 22, 2010 Model No. : SH-05C FCC ID : APYHRO00134 Regulation : CFR 47 FCC Rules and Regulations Part 22 Page 3 of 44 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 22 Subpart H – Cellular Radiotelephone Service Test Requirements : CFR 47 FCC Rules and Regulations Part 2 §2.1046, §2.1047, §2.1049, §2.1051, §2.1053, §2.1055 and §2.1057 Test Procedure : ANSI C63.4–2003, TIA/EIA–603-C-2004 2 Test Location KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-cho, Kameoka-shi, Kyoto 621-0126, Japan 3 Recognition of Test Laboratory JQA KITA-KANSAI Testing Center Testing Department EMC Division is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility of Testing Division is registered by the following bodies. VLAC Code : VLAC-001-2 (Effective through : March 30, 2012) NVLAP Lab Code : 200191-0 (Effective through : June 30, 2011)…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100334 Issue Date : November 22, 2010 Model No. : SH-05C FCC ID : APYHRO00134 Regulation : CFR 47 FCC Rules and Regulations Part 22 Page 41 of 44 Appendix B: Test Arrangement (Photographs) Radiated Emission – X-axis – – Y-axis – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100334 Issue Date : November 22, 2010 Model No. : SH-05C FCC ID : APYHRO00134 Regulation : CFR 47 FCC Rules and Regulations Part 22 Page 42 of 44 – Z-axis – Photograph present configuration with maximum emission The EUT position of the maximum emission at Horizontal Polarization is Y-axis. The EUT position of the maximum emission at Vertical Polarization is Z-axis.

JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100333 Issue Date : November 18, 2010 Model No. : SH-05C FCC ID : APYHRO00134 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 19 of 23 Technical document No. 23163-0701 A.3 SAR Measurement Data A.3.1 Left Head Cheek/Touch Position Ear/Tilt Position WCDMA Band V (Duty Cycle: 100 %, Crest Factor: 1) Date : November 2, 2010 Frequency Test Position Channel MHz Tx Power [dBm] Power Drift [dB] Limit [mW/g] SAR (1g) [mW/g] Tissue Temp. [°C] 4132 826.40 23.03 -0.013 0.819 22.0 4182 836.40 22.76 -0.032 0.747 22.0 Cheek/Touch 4233 846.60 23.15 -0.028 1.6 0.863 22.0 Ear/Tilt 4182 836.40 22.76 -0.023 1.6 0.369 22.0 NOTES : 1. Depth of Liquid : 15.0 cm 2. Transmitter power was measured at the antenna-conducted terminal. 3. SAR is measured using a 12.2 kbps RMC. 4. Please refer to attachment for the result presentation in plot format. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100333 Issue Date : November 18, 2010 Model No. : SH-05C FCC ID : APYHRO00134 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 20 of 23 Technical document No. 23163-0701 A.3.2 Right Head Cheek/Touch Position Ear/Tilt Position WCDMA Band V (Duty Cycle: 100 %, Crest Factor: 1) Date : November 2, 2010 Frequency Test Position Channel MHz Tx Power [dBm] Power Drift [dB] Limit [mW/g] SAR (1g) [mW/g] Tissue Temp. [°C] Cheek/Touch 4182 836.40 22.76 -0.007 1.6 0.667 22.0 Ear/Tilt 4182 836.40 22.76 -0.014 1.6 0.380 22.0 NOTES : 1. Depth of Liquid : 15.0 cm 2. Transmitter power was measured at the antenna-conducted terminal. 3. SAR is measured using a 12.2 kbps RMC. 4. Please refer to attachment for the result presentation in plot format. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80100333 Issue Date : November 18, 2010 Model No. : SH-05C FCC ID : APYHRO00134 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 21 of 23 Technical document No. 23163-0701 A.3.3 Body-worn Position Rear Position Front Position WCDMA Band V (Duty Cycle: 100 %, Crest Factor: 1) Date : November 3, 2010 Frequency Test Position Channel MHz Tx Power [dBm] Power Drift [dB] Limit [mW/g] SAR (1g) [mW/g] Tissue Temp. [°C] 4132 826.40 23.03 -0.005 0.684 22.0 4182 836.40 22.76 -0.016 0.615 22.0 Rear 4233 846.60 23.15 -0.011 1.6 0.682 22.0 Front 4182 836.40 22.76 -0.018 1.6 0.560 22.0 NOTES : 1. Depth of Liquid : 15.0 cm 2. Transmitter power was measured at the antenna-conducted terminal. 3. SAR is measured using a 12.2 kbps RMC. 4. The earphone wire connected to the EUT to simulate hand-free operation in a body-worn configuration. 5. Please refer to attachment for the result presentation in plot format. 1.5cm 1.5cm
