APYHRO00142Mobile Terminal Equipment

1 EB-W51GJ EB-WX1GJ Quick Tips Charge the product The product is not fully charged when you purchase it. Before using the product for the first time or when the battery has run low, charge the battery. ● Only use the specified AC adapter. Using an AC adapter other than the specified type may cause a fire or electric shock. ● If the product is not charged after the prescribed charging time has elapsed, stop charging. Continuing to charge the product may cause a fire or electric shock. 1. Insert the power plug of the AC adapter into a power socket. 2. Insert the connector of the AC adapter into the product's power/mini-USB connector. Power/mini-USB connector When charging starts, the battery indicator on the front side of the product () turns red. When the product is fully charged, the battery indicator turns off. 3. When charging is finished, remove the connector of the AC adapter. 4. Disconnect the AC adapter from the power socket. 2 Turn on/off the power „ Turn on the power 1. Press the power key. Rear side of product „ Turn off the power 1. Hold down the power key for 2 seconds. The menu is displayed. 2. Tap . 3. Tap [OK]. Setup „ STEP 1 : Configure wireless LAN settings Register information about the access point you will use. ● Users are liable for communication and connection charges required when using the wireless LAN function. ● These instructions cover the configuration procedure for an access point using AOSS. 1. Turn on the power by pressing the power key. 2. Tap []. 3. Tap []. 4. Tap []. Press the AOSS button on the access point device (the wireless LAN base station). 5. When the [] screen appears, tap [OK]. The ] screen appears. 3 „ STEP 2 : Register the product 1. On the [] screen, tap ]. After a few seconds, a user ID and password entry screen appears. 2. Enter your user ID and password, and tap ]. 3. Tap [OK]. Setup is now complete. FCC Notice ● This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ● Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. Information to User This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 4 Printed in China 6060A1215302 10L IAC HI c 1. Reorient/relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. FCC RF Exposure Information Your device is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.

次ω仇k‘~()Ú...

AAC Adaapter (PV V-AC41) FCC ID: AAPYHRO000142

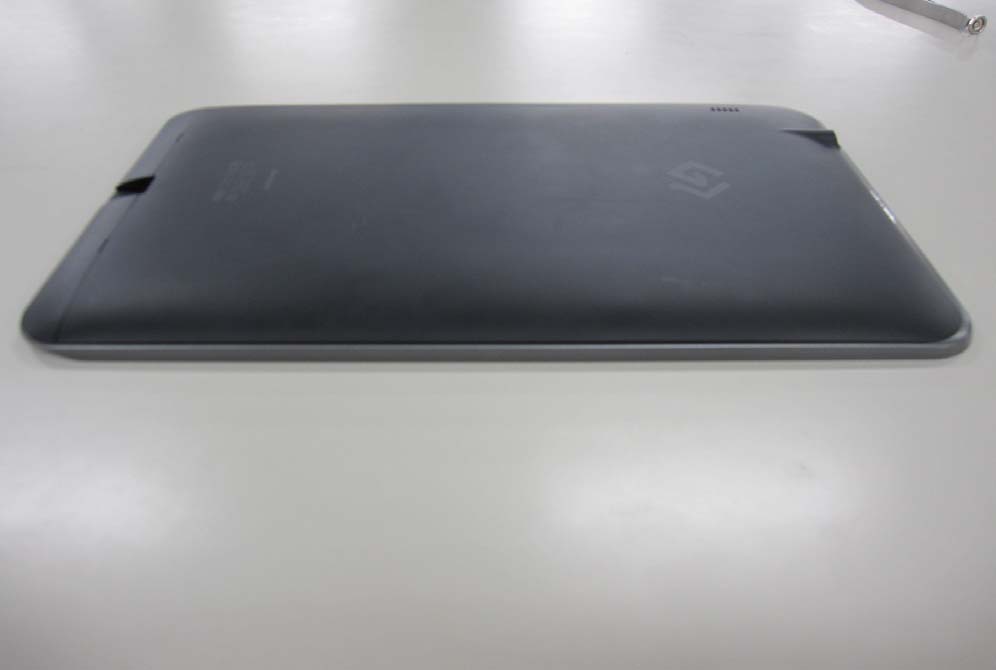

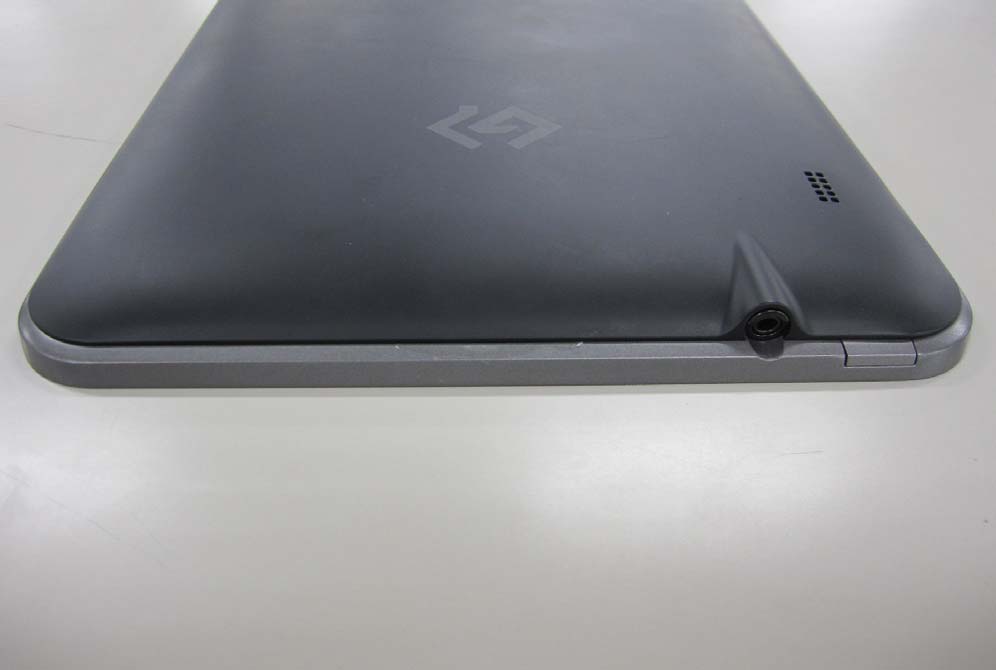

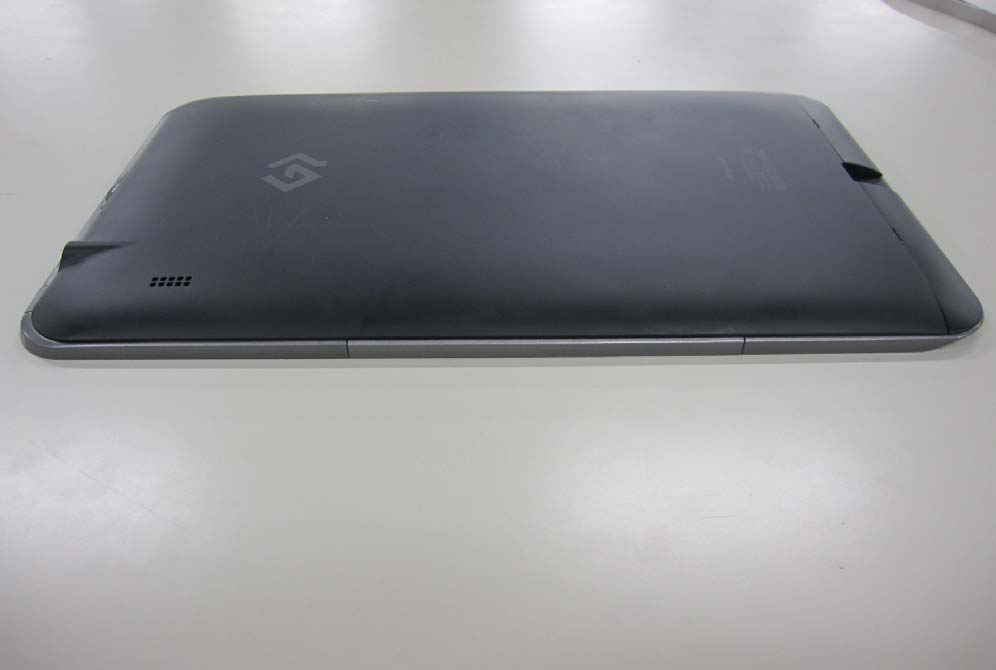

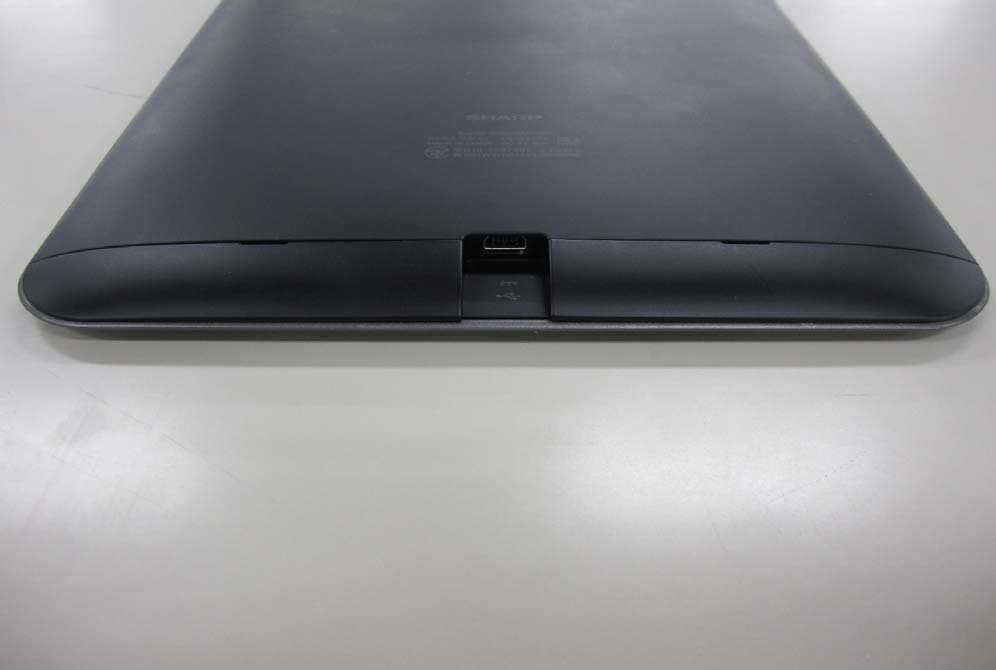

Model Name: EB-WX1GJ FCC ID: APYHRO00142 Photo (External) 1 / 3 ページ Model Name: EB-WX1GJ FCC ID: APYHRO00142 Photo (External) 2 / 3 ページ Model Name: EB-WX1GJ FCC ID: APYHRO00142 Photo (External) 3 / 3 ページ

FCC ID:APYHRO00142 EB-WX1GJ FCC ID Location

Model Name: EB-WX1GJ FCC ID: APYHRO00142 Photo (Internal) 1 / 6 ページ Model Name: EB-WX1GJ FCC ID: APYHRO00142 Photo (Internal) 2 / 6 ページ Model Name: EB-WX1GJ FCC ID: APYHRO00142 Photo (Internal) RF Part 3 / 6 ページ Model Name: EB-WX1GJ FCC ID: APYHRO00142 Photo (Internal) 4 / 6 ページ Model Name: EB-WX1GJ FCC ID: APYHRO00142 Photo (Internal) 5 / 6 ページ Model Name: EB-WX1GJ FCC ID: APYHRO00142 Photo (Internal) 6 / 6 ページ

Test report No. : 31CE0252-HO-01-D Page : 2 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information .......................................................................................3 SECTION 2: Equipment under test (E.U.T.) .........................................................................3 SECTION 3: Test specification, procedures & results ..........................................................4 SECTION 4: Operation of E.U.T. during testing ..................................................................7 SECTION 5: Conducted Emission ..........................................................................................9 SECTION 6: Radiated Emission ...........................................................................................10 APPENDIX 1: Photographs of test setup..............................................................................11 Conducted Emission .................................................................................................................... 11 Radiated Emission ....................................................................................................................... 13 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) ..................................................... 15 APPENDIX 2: Data of EMI test ............................................................................................16 Conducted Emission .................................................................................................................... 16 Radiated Emission ....................................................................................................................... 18 APPENDIX 3: Test instruments ............................................................................................22 Test report No. : 31CE0252-HO-01-D Page : 3 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Sharp Corporation Address : 2-13-1 Iida, Hachihonmatsu,Higashi-Hiroshima City,Hiroshima, 739- 0192 Japan Telephone Number : +81-82-420-1556 Facsimile Number : +81-82-420-1654 Contact Person : Chikashi Saizaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Mobile Terminal Equipment Model No. : EB-WX1GJ Serial No. : Refer to Section 4, Clause 4.2 Rating : DC5.0V Receipt Date of Sample : November 5, 2010 Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: EB-WX1GJ (referred to as the EUT in this report) is the Mobile Terminal Equipment. General Specification Clock frequency in the system : CPU: 800MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2412-2462MHz Modulation : DSSS Power Supply (radio part input) : DC 3.3V / DC 1.8V Antenna type : Film Antenna Antenna Gain : Max 2.87dBi Test report No. : 31CE0252-HO-01-D Page : 4 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B: 2010, final revised on October 13, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators 3.2 Procedures and results Item Test Procedure Limits DeviationWorst margin Result Conducted emission ANSI C63.4: 2003 7. AC powerline conducted emission measurements Class B N/A [QP] 13.7dB 0.17132MHz, L [AV] 5.9dB 15.37325MHz, N Complied Radiated emission ANSI C63.4: 2003 8. Radiated emission measurements Class B N/A 6.8dB 72.405MHz, QP Horizontal Complied *Note: UL Japan, Inc’s EMI Work Procedure QPM05. 3.3 Addition to standard No addition, exclusion nor deviation has been made from the standard. Test report No. : 31CE0252-HO-01-D Page : 5 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Test room (semi- anechoic chamber) Conducted emission (+dB) 150kHz-30MHz No.1 2.6dB No.2 2.9dB No.3 3.3dB No.4 2.8dB Test room (semi- anechoic chamber) Radiated emission (3m*)(+dB) (1m*)(+dB) (0.5m*)(+dB) 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz 1GHz -10GHz 10GHz -18GHz 18GHz -26.5GHz 26.5GHz -40GHz No.1 2.9dB 4.8dB 5.0dB 3.9dB 4.3dB 4.5dB 4.3dB No.2 3.5dB 4.8dB 5.1dB 4.0dB 4.2dB 4.4dB 4.2dB No.3 3.8dB 4.6dB 4.7dB 4.0dB 4.2dB 4.5dB 4.2dB No.4 3.5dB 4.4dB 4.9dB 4.0dB 4.2dB 4.6dB 4.2dB *3m/1m/0.5m = Measurement distance Conducted Emission test The data listed in this test report has enough margin, more than the site margin. Radiated emission test (3m) The data listed in this test report has enough margin, more than the site margin. Test report No. : 31CE0252-HO-01-D Page : 6 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.5 Test Location UL Japan, Inc. Head Office EMC Lab. *NVLAP Lab. code: 200572-0 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 FCC Registration Number IC Registration Number Width x Depth x Height (m) Size of reference ground plane (m) / ho…

Text truncated - open the document above for the full version.

Test report No. : 31CE0252-HO-01-D Page : 16 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/11/09 Company : SHARP CORPORATION Report No. : 31CE0252-HO-01 Kind of EUT : Mobile Terminal Equipment Power : AC 120V / 60Hz Model No. : EB-WX1GJ Temp./Humi. : 22deg.C. / 43% Serial No. : 9 Engineer : Takumi Shimada Mode / Remarks : USB Communication Mode LIMIT : FCC15.107(a) QP FCC15.107(a) AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1708936.925.713.250.138.964.954.914.816.0N 0.2277028.322.613.341.635.962.552.521.016.6N 0.3974728.226.613.341.539.957.947.916.48.0N 1.2589120.320.013.333.633.356.046.022.412.7N 3.8133527.517.813.541.031.356.046.015.014.7N 15.3732529.929.514.644.544.160.050.015.55.9N 0.1713238.026.913.251.240.164.954.913.714.8L 0.2284030.421.213.343.734.562.552.518.818.0L 0.3977128.026.513.341.339.857.947.916.68.1L 1.2592120.820.013.334.133.356.046.021.912.7L 3.7630824.215.013.537.728.556.046.018.317.5L 15.3747029.729.314.644.343.960.050.015.76.1L *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 31CE0252-HO-01-D Page : 17 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/11/09 Company : SHARP CORPORATION Report No. : 31CE0252-HO-01 Kind of EUT : Mobile Terminal Equipment Power : AC 120V / 60Hz Model No. : EB-WX1GJ Temp./Humi. : 22deg.C. / 43% Serial No. : 9 Engineer : Takumi Shimada Mode / Remarks : Charging Mode LIMIT : FCC15.107(a) QP FCC15.107(a) AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.5627724.516.613.437.930.056.046.018.116.0N 1.0636624.911.613.338.224.956.046.017.821.1N 1.6894924.18.613.437.522.056.046.018.524.0N 2.4421224.78.213.538.221.756.046.017.824.3N 3.2580523.73.613.737.417.356.046.018.628.7N 6.1576925.210.414.339.524.760.050.020.525.3N 0.5602523.622.913.437.036.356.046.019.09.7L 1.0582822.018.913.335.332.256.046.020.713.8L 1.7444021.518.513.434.931.956.046.021.114.1L 2.4310821.216.213.534.729.756.046.021.316.3L 3.3052021.614.913.735.328.656.046.020.717.4L 6.1574521.19.914.335.424.260.050.024.625.8L Test report No. : 31CE0252-HO-01-D Page : 18 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/11/08 Company : SHARP CORPORATION Report No. : 31CE0252-HO-01 Kind of EUT : Mobile Terminal Equipment Power : DC 4.0V Model No. : EB-WX1GJ Temp. / Humi. : 21deg.C / 52% Serial No. : 9 Engineer : Hisayoshi Sato Mode / Remarks : USB Communication Mode Hori: X-axis, Ver: X-axis LIMIT : FCC15.109(a) 3m, below 1GHz:QP, above 1GHz:PK Except for the data below : adequate margin data below the limits. CHART:WITH FACTOR ANT TYPE: -30MHz:LOOP, 30-300MHz:BICONICAL, 300MHz-1000MHz:LOGPERIODIC, 1000MHz-:HORN CALCULATION:RESULT = READING + ANT FACTOR + LOSS(CABLE+ATTEN.) - GAIN(AMP) Frequency[Hz] [dBuV/m]<< QP DATA >> Horizontal Vertical Horizontal Vertical 30M1G50M70M100M200M300M500M700M 0 10 20 30 40 50 60 70 80 FrequencyReading DET AntennaLoss& LevelAngleHeight Polar. LimitMargin Comment FrequencyReading DETFactorGain LevelAngleHeight Polar. LimitMargin Comment [MHz][dBuV] DET [dB/m][dB][dBuV/m][Deg][cm] Polar. [dBuV/m][dB] Comment 72.40550.9QP6.7-24.433.2273239Hori.40.06.8 72.40544.3QP6.7-24.426.6233100Vert.40.013.4 199.99933.0QP16.7-23.026.70300Hori.43.516.8 199.99930.8QP16.7-23.024.5126100Vert.43.519.0 300.01137.5QP15.7-22.231.016100Hori.46.015.0 300.01127.3QP15.7-22.220.8219214Vert.46.025.2 399.99537.2QP17.5-21.633.116117Hori.46.012.9 399.99532.4QP17.5-21.628.311189Vert.46.017.7 432.00436.1QP18.1-21.432.832103Hori.46.013.2 432.00436.2QP18.1-21.432.976100Vert.46.013.1 796.83628.9QP23.0-19.432.5239230Vert.46.013.5 796.83634.2QP23.0-19.437.8263152Hori.46.08.2 *The limit is rounded down to one decimal place. *The test result is rounded off to one or two decimal places, so some differences might be observed. Test report No. : 31CE0252-HO-01-D Page : 19 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2010/11/08 Company : SHARP CORPORATION Report No. : 31CE0252-HO-01 Kind of EUT : Mobile Terminal Equipment Power : DC 4.0V Mo…

Text truncated - open the document above for the full version.

Test report No. : 31CE0252-HO-01-D Page : 11 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission USB Communication mode Photo 1 Photo 2 Test report No. : 31CE0252-HO-01-D Page : 12 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission Charging mode Photo 1 Photo 2 Test report No. : 31CE0252-HO-01-D Page : 13 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission USB Communication mode Photo 1 Photo 2 * The distance between EUT and auxiliary equipment is separated to prevent the radiated emission of EUT from being shielded. Test report No. : 31CE0252-HO-01-D Page : 14 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission Charging mode Photo 1 Photo 2 Test report No. : 31CE0252-HO-01-D Page : 15 of 22 Issued date : November 12, 2010 FCC ID : APYHRO00142 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis
