APYHRO00156Cellular Phone

1 SH80F Instruction Manual (extract) 2 Declaration of Conformity The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors in France. Hereby, Sharp Telecommunications of Europe Ltd,declares that this SH80F is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the original declaration of conformity can be found at the following Internet address: http://www.sharp-phone.com/ 3 Caution Use only the battery packs (SH30) ,adapters (including micro USB cable) (SH10) and headset (SH40) specified by SHARP for use with the terminal. May cause fires, burns, bodily injury or electric shock. Do not point the illuminated light directly at someone’s eyes. Especially when you shoot still pictures or moving pictures of young children, keep 1 m or more distance from them. Do not use Mobile light near people’s faces. Eyesight may be temporarily affected leading to accidents. Precautions:The Mobile light source used for this product may emit the light over the safety level for eyes when operations such as undirected adjustments are intentionally made. Therefore, do not disassemble the terminal. CAUTION: Use of controls, adjustments or performance of procedure other than those specified herein may result in hazardous radiation exposure. As the emission level from Mobile light LED used in this product is harmful to the eyes, do not attempt to disassemble the cabinet. Servicing is limited to qualified servicing station only. Earphone Signal Level The maximum output voltage for the music player function, measured in accordance with EN 50332-2, is 55 mV. Mobile light source LED characteristics a) Continuous illumination b) Wavelength White: 400-700 nm Red: 600-670 nm c) Maximum output White: 247μW (inside terminal 1.46 mW) Red: 110μW (inside terminal 916 μW) 4 Do not throw the battery pack into a fire. The battery pack may catch fire, explode, overheat or leak. Do not dispose of used battery packs in ordinary garbage. May cause fires or damage to the environment. Place tape over the terminals to insulate unnecessary battery packs, and take them to retailer or institution that handles used batteries in your area. Avoid using the handset in extremely high or low temperatures. Use the terminal within the range of a temperature between 5°C and 35°C and a humidity between 45% and 85%. Charge battery in areas where ambient temperature is between 5°C and 35°C. 5 Charging with AC adapter 1) Insert the AC adapter connector horizontally into the external connector terminal of the micro USB cable. Check the direction (front or rear) of the connector, keep it parallel with the micro USB cable and securely push all the way in. 2) Open the external connector terminal cover of the terminal and insert the microUSB plug of the micro USB cable horizontally into the external connector terminal. Insert the microUSB plug horizontally with the character side turned down. 3) When inserting the AC adapter power plug into an outlet, charging lamp illuminates and charging starts 4) When charging lamp turns off, charging is complete When charging is complete, remove the microUSB plug horizontally from the terminal. When removing the connector from the micro USB cable and unplug it horizontally. SH80F SH10 6 Do not forcibly insert or remove. May cause damage to the external connector terminal, the microUSB plug and the connector. Pull the adapter out of the outlet if it will not be used for a long time. Do not forcibly pull the external connector terminal cover. May damage the cover. Do not place objects near the terminal when charging. May damage the terminal. 7 Turning power ON/OFF Turning power ON [ ] (for at least 2 seconds) Turning power OFF [ ] (for at least 1 second)[Power off][OK] Sleep mode The screen is off and the sleep mode is activated when [ ] is pressed or the terminal is not in use for a set length of time. Press [ ] in the sleep mode to deactivate the sleep mode. Touch panel lock When the power is turned on or the sleep mode is deactivated, the touch panel is locked. Keep touching [ ] and slide it up into [] to unlock. Key operation in touch panel unlock screen To set/disable silent mode: [ ] (for at least 1 second) To illuminate Mobile light: [ ] (for at least 1 second) Press any key or touch [ ] to turn off. To turn off power: [ ] (for at least 2 seconds) 8 Basic operation Operation of touch panel You can operate by touching the touch panel (display) directly with your finger. Operations differ depending on the function and screen in use. Operations differ depending on the function and screen in use. The touch panel is designed to be lightly touched with your finger. Do not forcefully press with your finger or press with a pointed object (fingernail, ballpoint pen, pin, etc.). In the following cases, the touch panel may not work even if you touch it. May cause a malfunction. ・Operation with a gloved finger ・Operation with a fingernail ・Operation with foreign objects placed on the operation pad ・Operation on the touch panel on which a protective sheet or a sticker is put Touch Touch a key or an item displayed on the screen to select or set it. 1) Put your finger on the touch panel and put it off Touch for a while When you touch the screen for a while, a menu may appear depending on the function and screen in use. 1) Keep your finger on the touch panel Slide Slide up/down while a menu is displayed etc. to scroll the screen. When you touch a menu or item by mistake, slide away from the menu or item to cancel the selection. 9 1) Keep your finger on the touch panel and slide it Quickly slide Quickly slide to the left/right in the home screen etc. to switch pages. 1) Quickly slide your finger and put it off Put a distance between two fingers apart/closer Put a distance between two fingers apart/closer while displaying an image etc. to zoom in/out. 1) Put two fingers on the touch panel and slide them with putting a distance between …

Text truncated - open the document above for the full version.

17 http://www.fcc.gov/oet/ea/fccid/ after searching on FCC ID APYHRO00156. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) Website at http://www.ctia.org/ . Intellectual Property Right The Bluetooth word mark and logos are owned by the Bluetooth SIG, INC. and any use of such marks by SHARP. is under license. Other trademarks and trade names are those of their respective owners.

Model Name:SH80FPhoto(External)11th/Aug/2011 1 / 3 Model Name:SH80FPhoto(External)11th/Aug/2011 2 / 3 Model Name:SH80FPhoto(External)11th/Aug/2011 3 / 3

Model Name: SH80F FCC ID: APYHRO00156 ○Spec Label Caution : Turn off power in an aircraft. Don't remove this seal. Manufucturer/Applicant : SHARP Corporation ① Production Years & Months ② Destination ③ Bar Code of IMEI ④ IMEI (Production Serial Number) ⑤ H/W ver ○Location Spec Label and Location 11/Aug/2011 FCC ID ① ② ③ ④ ⑤ ① ② ③ ④ ⑤

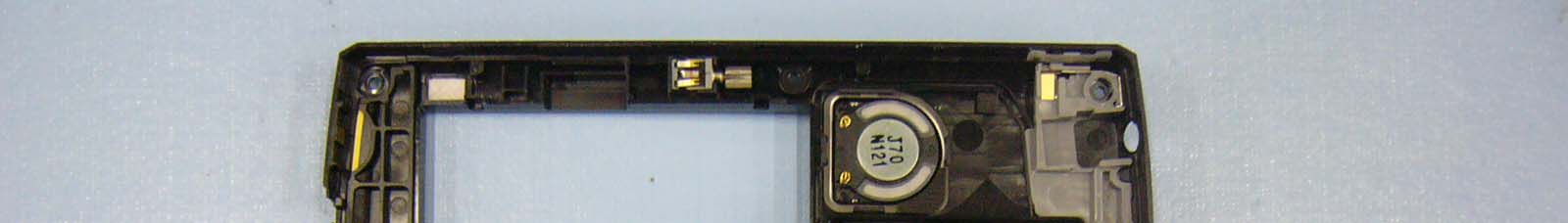

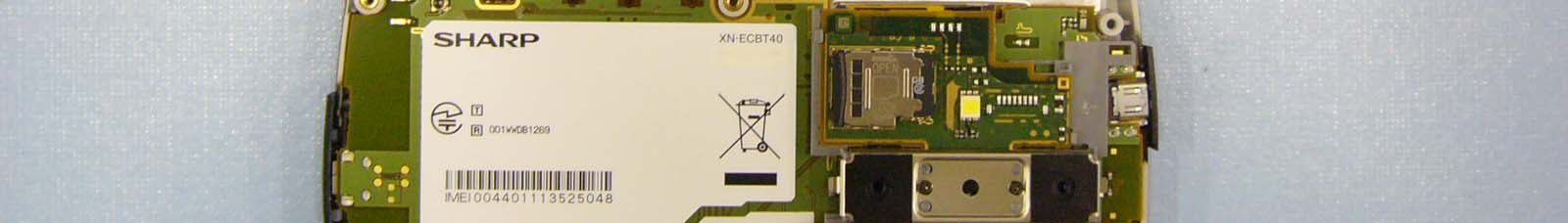

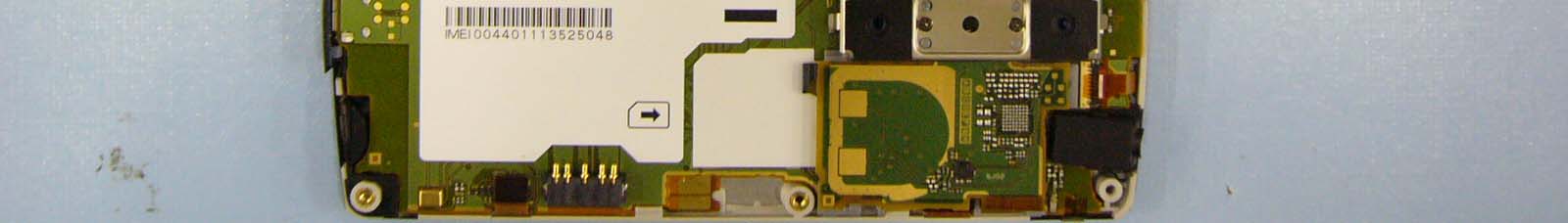

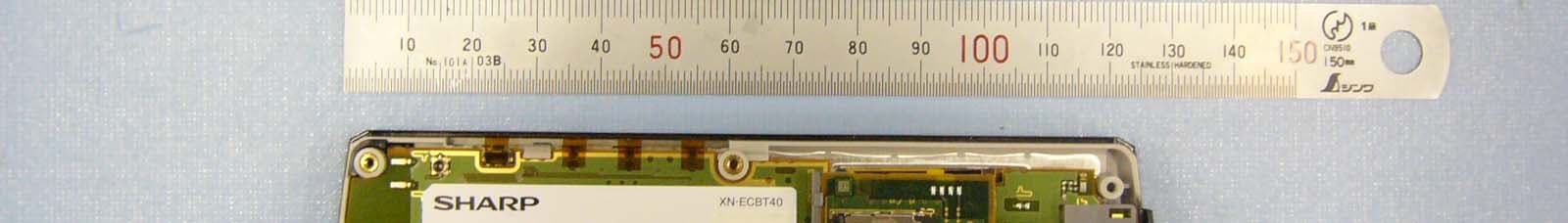

Model Name:SH80FPhoto(Internal)11th/Aug/2011 1 / 4 Model Name:SH80FPhoto(Internal)11th/Aug/2011 2 / 4 Model Name:SH80FPhoto(Internal)11th/Aug/2011 3 / 4 Model Name:SH80FPhoto(Internal)11th/Aug/2011 4 / 4

A Q UOS PHONE Bluetooth / WLANBluetooth / WLAN 107 Main Antenna(WCDMA Band-I/ WCDMA Band-VIII/ GSM900 / 107mm DCS1800 / PCS1900) 96.5mm

指示なき寸法公差は （単位 ｍｍ） 寸法区分寸法公差 ２５以下 ±０．０５ ２５～１００ ±０．１ １００～２５０ ±０．１５ ２５０～４００ ±０．２ ４００～５００ ±０．３ ５００を超える ±０．５ ＳＨＡＲＰ 図番 改訂 年 月 日 担当 検認 通報／連絡書番号 備 考設定 １２３４ ．．．． ・本部品の加工／組立等の全生産工程において一切のオゾン層破壊物質を使用しない事。 旧図面は失効とする 出図 検認 検図 担当 部門 材質 コ｜ド 仕上 名称 １２３４５６ ８９１ ０ １ １ １ ２ １ ３ ７１ ４ ３角図法 尺度 3:1 適用機種 図面は実測しないこと SUS304-CSP 1/2H t=0.15 Niメッキ1μm以上 ＊＊＊ 設計通報 連絡書（ ）号新設 書換 変更 ～西暦 年月日 配布先 控 合計 控 合計 先行発行 PF開発センター 機構開発部 西暦2010年12月27日 作成 ＱＡＮＴＺＡ０２９ＡＦＺＺ シャープ株式会社通信システム事業本部 BTアンテナ板金 ＊ ・本図面で作製・使用される部品・材料等の含有化学物質は、「環境負荷物質含有状況報告書」のとおり。 注記） ３．曲げ内Rは0.05以下のこと。１．指示なき寸法公差は±0.1とする。２．指示なき角RはR0.2のこと。 ４．カエリは0.05以下のこと。 Auｽﾄﾗｲﾌﾟﾒｯｷ0.1μm以上 １ １ ２ ２ ２ ２

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 33 Technical document No. 23163-0701 JQA File No. : KL80110169 Issue Date : August 5, 2011 TEST REPORT (SAR EVALUATION) APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan PRODUCTS : Cellular Phone MODEL NO. : SH80F SERIAL NO. : 004401113528802 FCC ID : APYHRO00156 TEST STANDARD : FCC/OET Bulletin 65 Supplement C (Edition 01-01) TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : July 25 ~ 27, 2011 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110169 Issue Date : August 5, 2011 Model No. : SH80F FCC ID : APYHRO00156 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 2 of 33 Technical document No. 23163-0701 TABLE OF CONTENTS Page Documentation .............................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recognition of Test Laboratory.............................................................................................................3 4 Description of the Equipment Under Test...........................................................................................4 5 Test Results............................................................................................................................................4 6 Measurement System Diagram............................................................................................................5 7 System Components..............................................................................................................................6 8 Measurement Process............................................................................................................................9 9 Measurement Uncertainties...............................................................................................................10 10 Equipment Under Test Modification..................................................................................................11 11 Responsible Party................................................................................................................................11 12 Deviation from Standard.....................................................................................................................11 13 Summary..............................................................................................................................................12 14 Test Arrangement................................................................................................................................13 15 Procedures used to Establish Test Signal..........................................................................................15 Appendix A: Test Data ................................................................................................................................ 18 Appendix B: Test Setup Photographs ......................................................................................................... 26 Appendix C: Test Instruments .................................................................................................................... 32 Appendix D: Attachments ........................................................................................................................... 33 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under Test EMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested SAR : Specific Absorption Rate - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110169 Issue Date : August 5, 2011 Model No. : SH80F FCC ID : APYHRO00156 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 3 of 33 Technical document No. 23163-0701 Documentation 1 Test Regulation Applied Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio- frequency Electromagnetic Fields Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions Test Procedure : …

Text truncated - open the document above for the full version.

Attachment 1 – System Validation Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2011/07/25 9:49:58 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 1900 MHz) DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL1900 Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.93, 4.93, 4.93); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2010/11/11 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 11.6 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 96.2 V/m; Power Drift = -0.020 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.39 mW/g Maximum value of SAR (measured) = 11.6 mW/g 0 dB = 11.6mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2011/07/25 13:57:37 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body 1900 MHz) DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: M1900 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.56, 4.56, 4.56); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2010/11/11 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 12.1 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 96.5 V/m; Power Drift = -0.027 dB Peak SAR (extrapolated) = 16.6 W/kg SAR(1 g) = 10.5 mW/g; SAR(10 g) = 5.67 mW/g Maximum value of SAR (measured) = 12.0 mW/g 0 dB = 12.0mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2011/07/26 9:51:11 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 2450 MHz) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2450 MHz; σ = 1.81 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.26, 4.26, 4.26); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2010/11/11 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 15.2 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 97.2 V/m; Power Drift = -0.001 dB Peak SAR (extrapolated) = 30.3 W/kg SAR(1 g) = 13.5 mW/g; SAR(10 g) = 6.17 mW/g Maximum value of SAR (measured) = 15.1 mW/g 0 dB = 15.1mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2011/07/27 9:30:06 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body 2450 MHz) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: M2450 Medium parameters used: f = 2450 MHz; σ = 1.95 mho/m; ε r = 51.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.1, 4.1, 4.1); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2010/11/11 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 14.7 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 91.5 V/m; Power Drift = -0.024 dB Peak SAR (extrapolated) = 29.5 W/kg SAR(1 g) = 13 mW/g; SAR(10 g) = 5.91 mW/g Maximum value of SAR (measured) = 14.5 mW/g 0 dB = 14.5mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 2-1 – SAR Test Plots (PCS 1900) JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2011/07/25 12:41:51 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head 512ch / PCS 1900 - GPRS 2slot DUT: Cellular Phone; Type: SH80F; Serial: 004401113528802 Communication System: GSM 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:4.15 Medium: HSL1900 Medium parameters used: f = 1850.2 MHz; σ = 1.37 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.93, 4.93, 4.93); Calibrated: 2010/08/20 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE3 Sn508; Calibrated: 2010/11/11 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Cheek/Touch Position/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.273 mW/g Cheek/Touch Position/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.89 V/m; Power Drift = -0.038 dB Peak SAR (extrapolated) = 0.393 W/kg SAR(1 g) = 0.2…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 93 JQA File No. : KL80110172R Issue Date : August 22, 2011 TEST REPORT APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN PRODUCTS : Cellular Phone MODEL NO. : SH80F SERIAL NO. : 004401113527226 004401113527184 FCC ID : APYHRO00156 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 15 TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : July 15, 2011 ~ August 17, 2011 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110172R Issue Date : August 22, 2011 Model No. : SH80F FCC ID : APYHRO00156 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 2 of 93 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recognition of Test Laboratory.............................................................................................................3 4 Description of the Equipment Under Test...........................................................................................4 5 Test Condition........................................................................................................................................5 6 Preliminary Test and Test Setup.........................................................................................................7 7 Equipment Under Test Modification..................................................................................................13 8 Responsible Party................................................................................................................................13 9 Deviation from Standard.....................................................................................................................13 10 Test Results..........................................................................................................................................14 11 Summary..............................................................................................................................................17 12 Operating Condition............................................................................................................................18 13 Test Configuration...............................................................................................................................18 14 Equipment Under Test Arrangement (Drawings)............................................................................19 Appendix A: Test Data ................................................................................................................................... 20 Appendix B: Test Arrangement (Photographs) ............................................................................................. 90 Appendix C: Test Instruments....................................................................................................................... 92 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under Test EMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110172R Issue Date : August 22, 2011 Model No. : SH80F FCC ID : APYHRO00156 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 3 of 93 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart C – Intentional Radiators Test Requirements : §15.247, §15.207 and §15.209 Test Procedure : ANSI C63.4–2003 The tests were performed with reference to the FCC Public Notice DA 00-705, released March 30, 2000. The test set-up was made in accordance to the general provisions of ANSI C63.4-2003. 2 Test Location Japan Quality Assurance Organization (JQA) KITA-KANSAI Testing Center Testing Department SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan MINOH Test Site (KITA-KANSAI Testing Center) 7-7, Ishimaru, 1-chome, Minoh-shi, Osaka, 562-0027, Japan KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-cho, Kameoka-shi, Kyoto, 621-0126, Japan 3 Recognition of Test Laboratory JQA KITA-KANSAI Testing Center Testing Dept. SAITO EMC Branch is accredited under ISO/IEC 17025 by following …

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110172R Issue Date : August 22, 2011 Model No. : SH80F FCC ID : APYHRO00156 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 90 of 93 Appendix B: Test Arrangement (Photographs) B.1 AC Powerline Conducted Emission – Front View – – Side View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110172R Issue Date : August 22, 2011 Model No. : SH80F FCC ID : APYHRO00156 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 91 of 93 B.2 Radiated Emission – Front View– – Rear View– Photograph present configuration with maximum emission

JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110169 Issue Date : August 5, 2011 Model No. : SH80F FCC ID : APYHRO00156 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 26 of 33 Technical document No. 23163-0701 Appendix B: Test Setup Photographs B.1 Left Head – Cheek/Touch Position – – Ear/Tilt Position – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110169 Issue Date : August 5, 2011 Model No. : SH80F FCC ID : APYHRO00156 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 27 of 33 Technical document No. 23163-0701 B.2 Right Head – Cheek/Touch Position – – Ear/Tilt Position – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110169 Issue Date : August 5, 2011 Model No. : SH80F FCC ID : APYHRO00156 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 28 of 33 Technical document No. 23163-0701 B.3 Body w/ 1.0 cm (hotspot mode) – Top Edge – – Bottom Edge – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110169 Issue Date : August 5, 2011 Model No. : SH80F FCC ID : APYHRO00156 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 29 of 33 Technical document No. 23163-0701 – Right Edge – – Left Edge – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110169 Issue Date : August 5, 2011 Model No. : SH80F FCC ID : APYHRO00156 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 30 of 33 Technical document No. 23163-0701 – Front Side – – Rear Side – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110169 Issue Date : August 5, 2011 Model No. : SH80F FCC ID : APYHRO00156 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 31 of 33 Technical document No. 23163-0701 – Rear Side w/ headset –
