APYHRO00165Cellular Phone

’11. ɜ ġ If you lose your handset or have it stolen, immediately take the steps necessary for suspending the use of the handset. ɜ ġ If the handset you purchased is damaged, bring your handset to a repair counter specified by DOCOMO after returning to Japan. To prevent damage to the environment, bring used battery packs to a docomo service counter, a docomo agent or a recycle center. Sales : Manufacturer : SHARP Corporation Don’t forget your mobile phone... or your manners! When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Universal number international prefixInternational call access codefor the country you stay -81-3-6718-1414 * (toll free) -8005931-8600 * From land-line phonesFrom DOCOMO mobile phones Failures encountered overseas <Network Support and Operation Center> <Universal number> * You might be charged a domestic call fee according to the call rate for the country you stay. ɦ For international call access codes for major countries and universal number international prefix, refer to DOCOMO International Services website. * You are charged a call fee to Japan when calling from a land-line phone, etc. ɦ If you use SH-01D, you should dial the number +81-3-6832-6600 (to enter “+”, touch “0” for a while). * You might be charged a domestic call fee according to the call rate for the country you stay. ɦ For international call access codes for major countries and universal number international prefix, refer to DOCOMO International Services website. * You are charged a call fee to Japan when calling from a land-line phone, etc. ɦ If you use SH-01D, you should dial the number +81-3-6718-1414 (to enter “+”, touch “0” for a while). -8000120-0151 * Universal number international prefix -81-3-6832-6600 * (toll free) International call access codefor the country you stay Loss or theft of handset or payment of cumulative cost overseas <docomo Information Center> From DOCOMO mobile phones From land-line phones <Universal number> (available 24 hours a day) (available 24 hours a day) ɦ Unavailable from land-line phones, etc. ɡ From DOCOMO mobile phones (In Japanese only) ɦ Unavailable from land-line phones, etc. (No prefix) 151 (toll free) ɡ From DOCOMO mobile phones (In Japanese only) Repairs (Business hours: 24 hours (open all year round)) (Business hours: 9:00 a.m. to 8:00 p.m.) ɦ Unavailable from part of IP phones. 0120-800-000 (toll free) ɡ From land-line phones (In Japanese only) 0120-005-250 (toll free) ɦ Service available in: English, Portuguese, Chinese, Spanish, Korean. (Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)) ɦ Unavailable from part of IP phones. (No prefix) 113 (toll free) General Inquiries <docomo Information Center> ɜ Please confirm the phone number before you dial. ɜ For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop e tc. near you on the NTT DOCOMO website. NTT DOCOMO website ȁ http://www.nttdocomo.co.jp/english/ ɦ Unavailable from part of IP phones. ɡ From land-line phones (In Japanese only) 0120-800-000 (toll free) INSTRUCTION MANUAL SH-01D ’11.11 (1st Edition) 11L SM188 ’11.11 1 1 㸭㸭 6 Contents/Precautions  Before use, read these “Precautions” carefully and use your handset properly.  Keep this manual in a safe place for future reference.  These precautions contain information intended to prevent bodily injury to the user and to surrounding people, as well as damage to property, and must be observed at all times. The following symbols indicate the different degrees of injury or damage that may occur if information provided is not observed and the handset is used improperly. The following symbols indicate specific directions. Precautions (ALWAYS FOLLOW THESE DIRECTIONS) Danger This symbol indicates that “death or serious bodily injury may directly and immediately result from improper use”. Warning This symbol indicates that “death or serious bodily injury may result from improper use”. Caution This symbol indicates that “minor injury and/or property damage may result from improper use”. Indicates a prohibited action.Indicates not to disassemble the device.Indicates not to handle the device with wet hands.Indicates not to use the device near water or get it wet.Indicates that instructions specified are compulsory (must be followed).Indicates that the power cord must be unplugged from the outlet. 2 7 Contents/Precautions “Precautions” is explained in the following seven sections. Handling the handset, battery pack, adapters (including charger micro USB adapter), desktop holder and docomo mini UIM card  (general) . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7  Handling the handset . . . . . . . . . . . . . . . . . . P. 8  Handling battery pack . . . . . . . . . . . . . . . . . P. 11  Handling adapters (including charger micro USB adapter) and desktop holder . . . . . . . . . . . . P. 12  Handling docomo mini UIM card . . . . . . . . . P. 13  Handling near electronic medical equipment  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 13  Viewing 3D images . . . . . . . . . . . . . . . . . . . P. 14 Do not use, store or leave the equipment in locations subject to high temperatures, such as near a fire, in direct sunlight or inside a vehicle on a hot day. May cause fires, burns or bodily injury. Do not place the equipment inside cooking appliances such as microwave ovens or pressure cookers. May cause fires, burns, bodily injury or electric shock. Do not attempt to disassemble or modify the equipment. May cause fires, burns, bodily injury or electric shock. Do not get the equipment wet with water, drinking water, pet urine, etc. May cause fires, burns, bodily injury or electric shock.Refer to the following for details on waterproofness.n “Waterproof/Dust-proof” on P. 21 Use only the battery packs and adapters (including charger micro USB adapter) specified by NT…

Text truncated - open the document above for the full version.

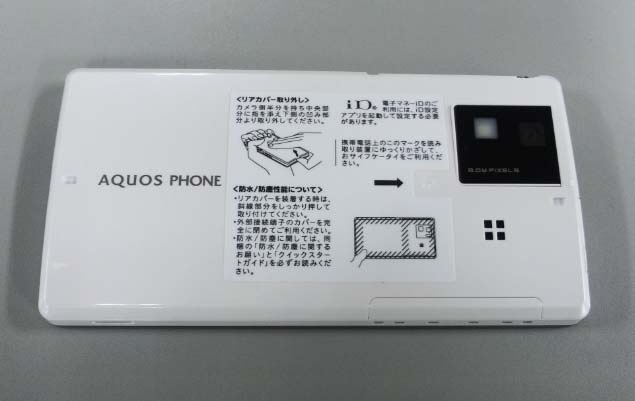

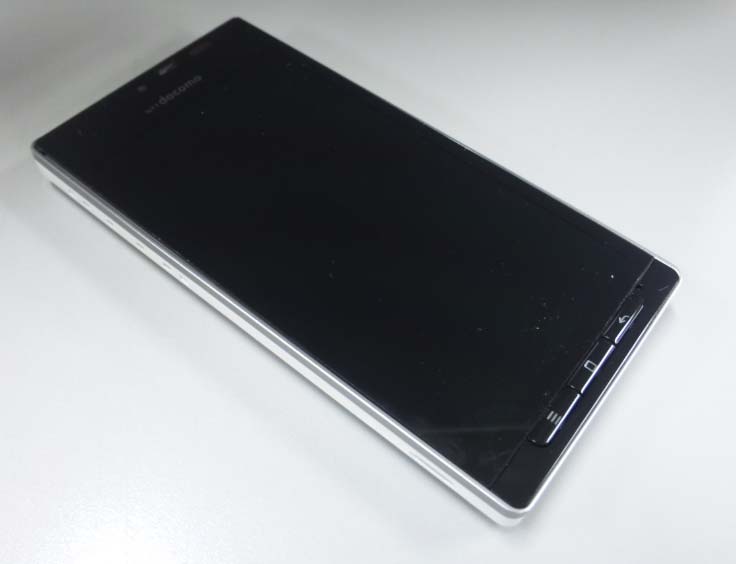

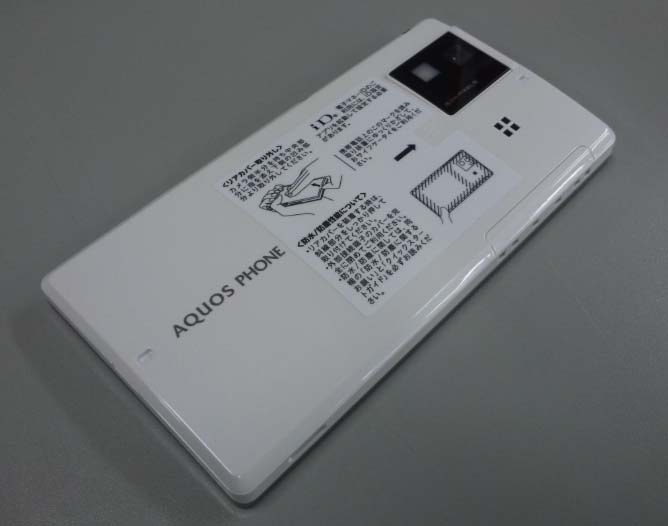

Model Name:SH-06D FCC ID: APYHRO00165 Photo(External)23/January/2012 1 / 21 / 2 Model Name:SH-06D FCC ID: APYHRO00165 Photo(External)23/January/2012 2 / 22 / 2

23/January/2012 Model Name: SH-06D SpecLabel and Location Model Name: SH 06D FCC ID: APYHRO00165 ○Spec Label Vendor : NTT DoCoMo Spec Label and Location ① Color ② Approval Number of JATE ③ Certification Number of TELEC ④ Production Years & Months ⑤ Bar Code of IMEI ⑥() Spec Label and Location ⑥ IMEI (Production Serial Number) Manufucturer/Applicant : SHARP Corporation Spec Label and Location Country of production Caution : Turn off power in an aircraft. Don't remove this seal. ○Location Spec Label and Location FCC ID ○Location Spec Label and Location FCC ID Spec Label and Location FCC ID Spec Label and Location FCC ID

Model Name:SH-06D FCC ID: APYHRO00165 Photo(Internal)23/January/2012 1 / 31 / 3 Model Name:SH-06D FCC ID: APYHRO00165 Photo(Internal)23/January/2012 2 / 32 / 3 Model Name:SH-06D FCC ID: APYHRO00165 Photo(Internal)23/January/2012 3 / 33 / 3

Antenna Photo FCC ID ：APYHRO00165 SH-06D Antenna Distance Between PCS1900/WCDMA BandV Antenna and Bluetooth/WLAN Antenna ＆ Between Antenna and edge of equipment Between Antenna and edge of equipment 3.5mm 52.8mm Top edge Reverse side (Bluetooth / WLAN Antenna) 3.4mm Bluetooth / WLAN Antenna 115.8mm 114.8mm 107.1mm Right Left edge WCDMA BandV / PCS1900 Antenna 1.5mm 1.5mm 1.4mm Bottom edge Reverse side (WCDMABandV / PCS1900Antenna) Bottom edge (WCDMA BandV / PCS1900 Antenna) View from Front (LCD) side View from Rear (Battery)

Attachment 1 – System Validation Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/01/13 14:28:02 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 835 MHz) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL900 Medium parameters used: f = 835 MHz; σ = 0.889 mho/m; ε r = 41.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.24, 6.24, 6.24); Calibrated: 2011/08/18 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2011/11/14 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 2.53 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.5 V/m; Power Drift = 0.008 dB Peak SAR (extrapolated) = 3.23 W/kg SAR(1 g) = 2.35 mW/g; SAR(10 g) = 1.56 mW/g Maximum value of SAR (measured) = 2.56 mW/g 0 dB = 2.56mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/01/14 11:14:15 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body 835 MHz) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL900 Medium parameters used: f = 835 MHz; σ = 0.946 mho/m; ε r = 55; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.18, 6.18, 6.18); Calibrated: 2011/08/18 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2011/11/14 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 2.49 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.9 V/m; Power Drift = 0.007 dB Peak SAR (extrapolated) = 3.10 W/kg SAR(1 g) = 2.3 mW/g; SAR(10 g) = 1.55 mW/g Maximum value of SAR (measured) = 2.51 mW/g 0 dB = 2.51mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/01/15 10:42:49 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 1900 MHz) DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL1900 Medium parameters used: f = 1900 MHz; σ = 1.4 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.93, 4.93, 4.93); Calibrated: 2011/08/18 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2011/11/14 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 11.1 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 93.9 V/m; Power Drift = 0.001 dB Peak SAR (extrapolated) = 17.0 W/kg SAR(1 g) = 9.81 mW/g; SAR(10 g) = 5.18 mW/g Maximum value of SAR (measured) = 11.1 mW/g 0 dB = 11.1mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/01/16 9:54:03 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body 1900 MHz) DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL1900 Medium parameters used: f = 1900 MHz; σ = 1.55 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.43, 4.43, 4.43); Calibrated: 2011/08/18 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2011/11/14 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 11.6 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.5 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.44 mW/g Maximum value of SAR (measured) = 11.6 mW/g 0 dB = 11.6mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/01/17 10:24:58 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 2450 MHz) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2450 MHz; σ = 1.81 mho/m; ε r = 39; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: EX3DV4 - SN3808; ConvF(7.07, 7.07, 7.07); Calibrated: 2011/09/02 zSensor-Surface: 2mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2011/11/14 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 20.3 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 107.1 V/m; Power Drift = -0.001 dB Peak SAR (extrapolated) = 28.2 W/kg SAR(1 g) = 13.3 mW/g; SAR(10 g) = 6.05 mW/g Maximum value of SAR (measured) = 20.3 mW/g 0 dB = 20.3mW/g JAPAN QUALITY…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 3 – Dosimetric E-Field Probe – ET3DV6, S/N: 1679 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 3 – Dosimetric E-Field Probe – EX3DV4, S/N: 3808 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4 – System Validation Dipole – D835V2, S/N: 4d081 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4 – System Validation Dipole – D1900V2, S/N: 5d112 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4 – System Validation Dipole – D2450V2, S/N: 714 Calibration Data

Page 1 of 89 JQA File No. : KL80110466 Issue Date : January 25, 2012 TEST REPORT APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN PRODUCTS : Cellular Phone MODEL NO. : SH-06D SERIAL NO. : 004401113625293 004401113625285 FCC ID : APYHRO00165 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 15 TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : January 12 ~ 19, 2012 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110466 Issue Date : January 25, 2012 Model No. : SH-06D FCC ID : APYHRO00165 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 2 of 89 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recognition of Test Laboratory.............................................................................................................3 4 Description of the Equipment Under Test...........................................................................................4 5 Test Condition........................................................................................................................................5 6 Preliminary Test and Test Setup.........................................................................................................7 7 Equipment Under Test Modification..................................................................................................13 8 Responsible Party................................................................................................................................13 9 Deviation from Standard.....................................................................................................................13 10 Test Results..........................................................................................................................................14 11 Summary..............................................................................................................................................17 12 Operating Condition............................................................................................................................18 13 Test Configuration...............................................................................................................................18 14 Equipment Under Test Arrangement (Drawings)............................................................................19 Appendix A: Test Data ................................................................................................................................... 20 Appendix B: Test Arrangement (Photographs) ............................................................................................. 86 Appendix C: Test Instruments....................................................................................................................... 88 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under Test EMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110466 Issue Date : January 25, 2012 Model No. : SH-06D FCC ID : APYHRO00165 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 3 of 89 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart C – Intentional Radiators Test Requirements : §15.247, §15.207 and §15.209 Test Procedure : ANSI C63.4–2003 The tests were performed with reference to the FCC Public Notice DA 00-705, released March 30, 2000. The test set-up was made in accordance to the general provisions of ANSI C63.4-2003. 2 Test Location Japan Quality Assurance Organization (JQA) KITA-KANSAI Testing Center Testing Department SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan MINOH Test Site (KITA-KANSAI Testing Center) 7-7, Ishimaru, 1-chome, Minoh-shi, Osaka, 562-0027, Japan KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-cho, Kameoka-shi, Kyoto, 621-0126, Japan 3 Recognition of Test Laboratory JQA KITA-KANSAI Testing Center Testing Dept. SAITO EMC Branch is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility o…

Text truncated - open the document above for the full version.

JQA File No. : KL80110466 Issue Date : January 25, 2012 Model No. : SH-06D FCC ID : APYHRO00165 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 86 of 89 Appendix B: Test Arrangement (Photographs) B.1 AC Powerline Conducted Emission – Front View – – Side View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110466 Issue Date : January 25, 2012 Model No. : SH-06D FCC ID : APYHRO00165 Regulation : CFR 47 FCC Rules and Regulations Part 15 Page 87 of 89 B.2 Radiated Emission – Front View– – Over View– Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION

JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110461S Issue Date : February 8, 2012 Model No. : SH-06D FCC ID : APYHRO00165 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 31 of 38 Technical document No. 23163-0701 Appendix B: Test Setup Photographs B.1 Left Head – Cheek/Touch Position – – Ear/Tilt Position – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110461S Issue Date : February 8, 2012 Model No. : SH-06D FCC ID : APYHRO00165 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 32 of 38 Technical document No. 23163-0701 B.2 Right Head – Cheek/Touch Position – – Ear/Tilt Position – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110461S Issue Date : February 8, 2012 Model No. : SH-06D FCC ID : APYHRO00165 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 33 of 38 Technical document No. 23163-0701 B.3 Body w/ 1.0 cm (hotspot mode) – Top Edge – – Bottom Edge – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110461S Issue Date : February 8, 2012 Model No. : SH-06D FCC ID : APYHRO00165 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 34 of 38 Technical document No. 23163-0701 – Left Edge – – Right Edge – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110461S Issue Date : February 8, 2012 Model No. : SH-06D FCC ID : APYHRO00165 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 35 of 38 Technical document No. 23163-0701 – Front Side – – Rear Side – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80110461S Issue Date : February 8, 2012 Model No. : SH-06D FCC ID : APYHRO00165 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 36 of 38 Technical document No. 23163-0701 – Rear Side w/ headset –
