6 Contents/Precautions Before use, read these “Precautions” carefully and use your handset properly. Keep this manual in a safe place for future reference. These precautions contain information intended to prevent bodily injury to the user and to surrounding people, as well as damage to property, and must be observed at all times. The following symbols indicate the different degrees of injury or damage that may occur if information provided is not observed and the handset is used improperly. The following symbols indicate specific directions. Precautions (ALWAYS FOLLOW THESE DIRECTIONS) Danger This symbol indicates that “death or serious bodily injury may directly and immediately result from improper use”. Warning This symbol indicates that “death or serious bodily injury may result from improper use”. Caution This symbol indicates that “minor injury and/or property damage may result from improper use”. Indicates a prohibited action. Indicates not to disassemble the device. Indicates not to handle the device with wet hands. Indicates not to use the device near water or get it wet. Indicates that instructions specified are compulsory (must be followed). Indicates that the power cord must be unplugged from the outlet. 7 Contents/Precautions “Precautions” is explained in the following seven sections. Handling the handset, battery pack, adapters (including charger micro USB adapter), desktop holder and docomo mini UIM card  (general) . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 Handling the handset . . . . . . . . . . . . . . . . . . P. 8 Handling battery pack . . . . . . . . . . . . . . . . . P. 11 Handling adapters (including charger micro USB adapter) and desktop holder . . . . . . . . . . . . P. 12 Handling docomo mini UIM card . . . . . . . . . P. 13 Handling near electronic medical equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 13 Viewing 3D images . . . . . . . . . . . . . . . . . . . P. 14 Do not use, store or leave the equipment in locations subject to high temperatures, such as near a fire, in direct sunlight or inside a vehicle on a hot day. May cause fires, burns or bodily injury. Do not place the equipment inside cooking appliances such as microwave ovens or pressure cookers. May cause fires, burns, bodily injury or electric shock. Do not attempt to disassemble or modify the equipment. May cause fires, burns, bodily injury or electric shock. Do not get the equipment wet with water, drinking water, pet urine, etc. May cause fires, burns, bodily injury or electric shock. Refer to the following for details on waterproofness. n“Waterproof/Dust-proof” on P. 21 Use only the battery packs and adapters (including charger micro USB adapter) specified by NTT DOCOMO for use with the handset. May cause fires, burns, bodily injury or electric shock. Do not subject the equipment to strong force or impacts or throw it. May cause fires, burns, bodily injury or electric shock. Do not allow conductive materials (such as metal objects and pencil lead) to come into contact with the charger terminal, external connector terminal or earphone/microphone terminal. In addition, do not insert such objects. May cause fires, burns, bodily injury or electric shock. Do not cover or wrap the equipment with bedding, etc. when using or charging. May cause fires or burns. Handling the handset, battery pack, adapters (including charger micro USB adapter), desktop holder and docomo mini UIM card (general) Danger Warning 8 Contents/Precautions Be sure to turn off the handset and not to charge the battery in locations such as gas stations where flammable gas is generated. May cause a gas explosion or fire. To use Osaifu-Keitai in locations such as gas stations, be sure to turn off the power in advance (If the Osaifu-Keitai lock setting is activated, disable the lock before turning off the power). If you notice anything unusual, such as an unusual odor, overheating, discoloration or deformation during use, charging or storage, immediately follow the instructions below. Unplug the power cord from the outlet or cigarette lighter socket. Turn off the handset. Remove the battery pack from the handset. May cause fires, burns, bodily injury or electric shock. Do not leave the equipment on unstable surfaces, such as on a wobbly table or sloped surface. May fall and cause injury. Do not store the equipment in locations that are subject to humidity, dust or high temperatures. May cause fires, burns or electric shock. If being used by a child, have a guardian teach him/her the proper handling procedures. In addition, check that the child is using the equipment as directed. May result in bodily injury. Keep the equipment out of the reach of young children. A young child may swallow the equipment or suffer other bodily injury. Be very careful when using the handset connected to adapters (including charger micro USB adapter) repeatedly or for long periods of time. The handset, battery pack or adapters (including charger micro USB adapter) may become warm if 1Seg etc. is used for a long time while charging. Touching high temperature areas for a prolonged period of time may cause skin irritations, itchiness or low-temperature burns in some people. Do not aim the infrared port towards the eyes. May cause eye injury. Do not aim the infrared port towards home electric appliances with an infrared device during infrared communication. May interfere with the operation of infrared devices and cause an accident. Caution Handling the handset Warning 10 Contents/Precautions If you are using electronic medical equipment, contact the respective manufacturer or dealer to check whether the operation of the equipment is affected by signals. May interfere with the operation of electronic medical equipment, etc. Turn off the handset near high-precision electronic devices or devices that use weak electronic signals. May interfere with the operation of electronic devices. Take particular…

Text truncated - open the document above for the full version.

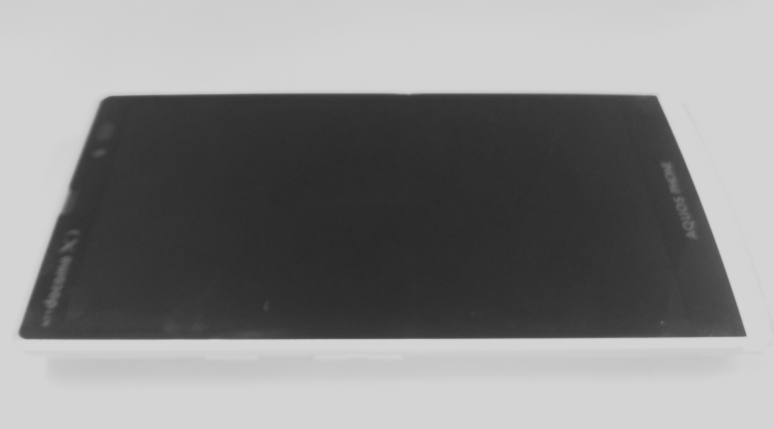

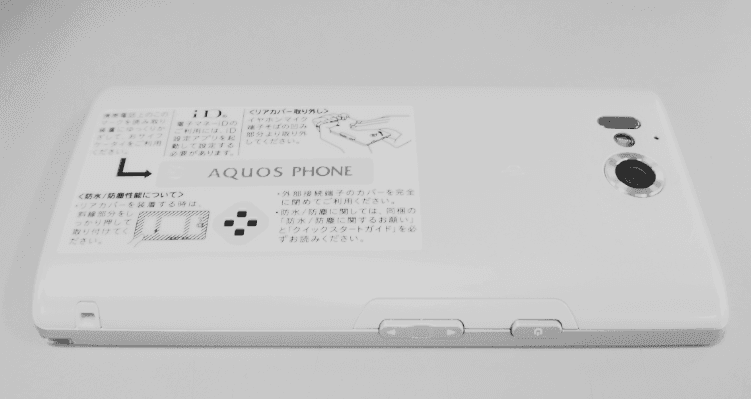

Model Name:SH-07D FCC ID: APYHRO00170 Photo(External)13/April/2012 1 / 2 Model Name:SH-07D FCC ID: APYHRO00170 Photo(External)13/April/2012 2 / 2

16/May/2012 Model Name: SH-09D SpecLabel and Location Model Name: SH 09D FCC ID: APYHRO00170 ○Spec Label Vendor : NTT DoCoMo Spec Label and Location ① Color ② Approval Number of JATE ③ Certification Number of TELEC ④ Production Years & Months ⑤ Bar Code of IMEI ⑥() Spec Label and Location ⑥ IMEI (Production Serial Number) Caution : Turn off power in an aircraft. Don't remove this seal. Spec Label and Location FCC ID Manufucturer/Applicant : SHARP Corporation Country of production Spec Label and Location FCC ID ○Location Spec Label and Location FCC ID Spec Label and Location FCC ID Spec Label and Location FCC ID

Model Name:SH-07D FCC ID: APYHRO00170 Photo(Internal)13/April/2012 1 / 3 Model Name:SH-07D FCC ID: APYHRO00170 Photo(Internal)13/April/2012 2 / 3 Model Name:SH-07D FCC ID: APYHRO00170 Photo(Internal)13/April/2012 3 / 3

Antenna Photo FCC ID ：APYHRO00170 SH-09D Antenna Distance Between GSM850/PCS1900/WCDMA BandV Antenna and Bluetooth/WLAN Antenna ＆ Between Antenna and edge of equipment Between Antenna and edge of equipment 2.7mm 53.9mm Top edge Bluetooth / WLAN Antenna 2.1mm 116.9mm 122.5mm Right Left edge 109.3mm 114.8mm 6.4mm 8.8mm 1.2mm d 8.8mm WCDMA BandV / GSM850 / PCS1900 Antenna Bottom edge View from Rear (Battery)

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 40 Technical document No. 23163-1201 JQA File No. : KL80120011 Issue Date : May 10, 2012 TEST REPORT (SAR EVALUATION) Applicant : Sharp Corporation, Communication Systems Group Address : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan Products : Cellular Phone Model No. : SH-09D Serial No. : 004401113965228 FCC ID : APYHRO00170 Test Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Test Results : Passed Date of Test : May 1 ~ 8, 2012 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120011 Issue Date : May 10, 2012 Model No. : SH-09D FCC ID : APYHRO00170 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 2 of 40 Technical document No. 23163-1201 TABLE OF CONTENTS Page 1 Description of the Equipment Under Test...........................................................................................3 2 Summary of Test Results......................................................................................................................4 3 Test Procedure.......................................................................................................................................5 4 Test Location..........................................................................................................................................5 5 Recognition of Test Laboratory.............................................................................................................5 6 Measurement System Diagram............................................................................................................6 7 System Components..............................................................................................................................7 8 Measurement Process..........................................................................................................................11 9 Measurement Uncertainties...............................................................................................................12 10 Test Arrangement................................................................................................................................13 11 Tissue Verification...............................................................................................................................15 12 System Validation................................................................................................................................16 13 RF Output Power Measurements.......................................................................................................18 14 SAR Measurements.............................................................................................................................24 15 Test Setup Photographs......................................................................................................................33 16 Test Instruments.................................................................................................................................39 17 Appendix...............................................................................................................................................40 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120011 Issue Date : May 10, 2012 Model No. : SH-09D FCC ID : APYHRO00170 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 3 of 40 Technical document No. 23163-1201 1 Description of the Equipment Under Test 1. Manufacturer : Sharp Corporation, Communication Systems Group 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan 2. Products : Cellular Phone 3. Model No. : SH-09D 4. Serial No. : 004401113965228 5. Product Type : Pre-production 6. Date of Manufacture : April, 2012 7. Transmitting Frequency : 826.40 MHz – 846.60 MHz (WCDMA Band V) 824.20 MHz – 848.80 MHz (GSM 850) 1850.20 MHz – 1909.80 MHz (PCS 1900) 2412 MHz – 2462 MHz (WLAN 802.11b/g/n) 2402 MHz – 2480 MHz (Bluetooth) 8. Battery Option : Lithium-ion Battery Pack SH37 (1900mAh) 9. Power Rating : 4.0VDC 10. EUT Grounding : None 11. Device Category : Portable Device (§2.1093) 12. Exposure Category : General Population/Uncontrolled Exposure 13. FCC Rule Part(s) : 22(H), 24(E), 15.247 14. EUT Authorization : Certification 15. Received Date of EUT : April 27, 2012 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120011 Issue Date : May 10, 2012 Model No. : SH-09D FCC ID : APYHRO00170 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 4 of 40 Technical document No. 23163-1201 2 Summary of Test Results Applied Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio- frequency Electromagnetic Fields Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiof…

Text truncated - open the document above for the full version.

Attachment 1 – System Validation Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/05/01 9:43:28 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 835 MHz) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL900 Medium parameters used: f = 835 MHz; σ = 0.896 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.24, 6.24, 6.24); Calibrated: 2011/08/18 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2011/11/14 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 2.57 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.8 V/m; Power Drift = -0.016 dB Peak SAR (extrapolated) = 3.24 W/kg SAR(1 g) = 2.37 mW/g; SAR(10 g) = 1.58 mW/g Maximum value of SAR (measured) = 2.58 mW/g 0 dB = 2.58mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/05/02 9:35:21 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body 835 MHz) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL900 Medium parameters used: f = 835 MHz; σ = 0.937 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.18, 6.18, 6.18); Calibrated: 2011/08/18 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2011/11/14 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 2.53 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.0 V/m; Power Drift = -0.016 dB Peak SAR (extrapolated) = 3.14 W/kg SAR(1 g) = 2.33 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) = 2.52 mW/g 0 dB = 2.52mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/05/03 9:38:23 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 1900 MHz) DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL1900 Medium parameters used: f = 1900 MHz; σ = 1.43 mho/m; ε r = 40.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.93, 4.93, 4.93); Calibrated: 2011/08/18 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2011/11/14 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 11.7 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 95.2 V/m; Power Drift = 0.012 dB Peak SAR (extrapolated) = 17.7 W/kg SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.41 mW/g Maximum value of SAR (measured) = 11.6 mW/g 0 dB = 11.6mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/05/04 9:50:58 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body 1900 MHz) DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL1900 Medium parameters used: f = 1900 MHz; σ = 1.55 mho/m; ε r = 52.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.43, 4.43, 4.43); Calibrated: 2011/08/18 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2011/11/14 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 11.7 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 93.3 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 17.6 W/kg SAR(1 g) = 10.3 mW/g; SAR(10 g) = 5.43 mW/g Maximum value of SAR (measured) = 11.5 mW/g 0 dB = 11.5mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/05/07 9:48:36 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head 2450 MHz) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL2450 Medium parameters used: f = 2450 MHz; σ = 1.81 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: EX3DV4 - SN3808; ConvF(7.07, 7.07, 7.07); Calibrated: 2011/09/02 zSensor-Surface: 2mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2011/11/14 zPhantom: SAM 1200; Type: QD 000 P40 CA; Serial: 1200 zMeasurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 Antenna Input Power 250 mW/Area Scan (5x5x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (measured) = 20.6 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 108.5 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 28.7 W/kg SAR(1 g) = 13.6 mW/g; SAR(10 g) = 6.19 mW/g Maximum value of SAR (measured) = 21.2 mW/g 0 dB = 21.2mW/g JAPAN QU…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 3 – Dosimetric E-Field Probe – ET3DV6, S/N: 1679 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 3 – Dosimetric E-Field Probe – EX3DV4, S/N: 3808 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4 – System Validation Dipole – D835V2, S/N: 4d081 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4 – System Validation Dipole – D1900V2, S/N: 5d112 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Attachment 4 – System Validation Dipole – D2450V2, S/N: 714 Calibration Data

Conducted Tx Power FCC ID ： APYHR00170 Bd Difference Tx Power [dBm] Measured WCDMA BandV 23.42 -0.78 GSM850 31.69 -1.81 PCS1900 30.03 -0.47 WLAN 13.02 -3.87 Band Difference[dB] Tune Up Procedure SPEC[MAX] 30.5024.2016.8933.50 WLAN 13 . 02 3 . 87 SAR Handsets Multiple Transmitters AssessmentSum of the 1g SAR for 3G/GSM vs. WLAN Sum of the 1g SAR for WLAN vs. 3G/GSM 16.89 TPii Highest 1g SAR (mW/g) Σ1g SAR Σ1g SAR Highest 1g SAR (mW/g) TPii WLAN WLAN Left Head Touched WCDMA Band V 0.568 0.097 0.665 WCDMA Band V 0.408 0.642 Left Head Touched GSM850 0.547 0.097 0.644 GSM850 0.436 0.670 Right Head Touched PCS1900 0.316 0.229 0.545 PCS1900 0.316 0.550 body Rear w/1.0cm WCDMA Band V 0.676 0.051 0.727 WCDMA Band V 0.197 0.262 bod y Rear w/1.0cm GSM850 0.631 0.051 0.682 GSM850 0.187 0.252 Test Position bod y Ed g e w/1.0cm Right Head Touched 0.234 0.065 3G/GSM Band 3G/GSM Band Highest 1g SAR (mW/g) Σ1g SAR (mW/g) Σ1g SAR (mW/g) Highest 1g SAR (mW/g) Test Position body Rear w/1 . 0cm GSM850 0 . 631 0 . 051 0 . 682 GSM850 0 . 187 0 . 252 body Front w/1.0cm PCS1900 0.381 0.040 0.432 PCS1900 0.202 0.267 scaled-up (by calculation) SAR scaled-up (by calculation) SAR body Edge w/1.0cm 0.065 WLAN WLAN Left Head Touched WCDMA Band V 0.680 0.236 0.916 WCDMA Band V 0.488 1.059 Left Head Touched GSM850 0.830 0.236 1.066 GSM850 0.661 1.232 Right Head Touched PCS1900 0.352 0.558 0.910 PCS1900 0.352 0.923 body Rear w/1.0cm WCDMA Band V 0.809 0.124 0.933 WCDMA Band V 0.236 0.394 / Test Position Highest 1g SAR (mW/g) Σ1g SAR (mW/g) 3G/GSM Band Right Head Touched 0.570 Test Position Highest 1g SAR (mW/g) Σ1g SAR (mW/g) 3G/GSM Band bdR /10 0158 < 1.6mW/g < 1.6mW/g body Rear w/1.0cm GSM850 0.957 0.124 1.082 GSM850 0.284 0.442 body Front w/1.0cm PCS1900 0.425 0.098 0.549 PCS1900 0.225 0.384 body Rear w/1.0cm 0.158 < 1 . 6mW/g < 1. 6 mW / g

Page 1 of 46 JQA File No. : KL80120012-2 Issue Date : May 14, 2012 TEST REPORT APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN PRODUCTS : Cellular Phone MODEL NO. : SH-09D SERIAL NO. : 004401113965335 FCC ID : APYHRO00170 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 22 TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : May 9 ~ 11, 2012 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120012-2 Issue Date : May 14, 2012 Model No. : SH-09D FCC ID : APYHRO00170 Regulation : CFR 47 FCC Rules and Regulations Part 22 Page 2 of 46 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recognition of Test Laboratory.............................................................................................................3 4 Description of the Equipment Under Test...........................................................................................4 5 Test Condition........................................................................................................................................5 6 Preliminary Test and Test Setup.........................................................................................................7 7 Equipment Under Test Modification..................................................................................................16 8 Responsible Party................................................................................................................................16 9 Deviation from Standard.....................................................................................................................16 10 Test Results..........................................................................................................................................17 11 Summary..............................................................................................................................................20 12 Operating Condition............................................................................................................................21 13 Test Configuration...............................................................................................................................21 14 Equipment Under Test Arrangement (Drawings)............................................................................22 Appendix A: Test Data ................................................................................................................................... 23 Appendix B: Test Arrangement (Photographs) ............................................................................................. 43 Appendix C: Test Instruments....................................................................................................................... 45 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under Test EMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120012-2 Issue Date : May 14, 2012 Model No. : SH-09D FCC ID : APYHRO00170 Regulation : CFR 47 FCC Rules and Regulations Part 22 Page 3 of 46 Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 22 Subpart H – Cellular Radiotelephone Service Test Requirements : CFR 47 FCC Rules and Regulations Part 2 §2.1046, §2.1047, §2.1049, §2.1051, §2.1053, §2.1055 and §2.1057 Test Procedure : ANSI C63.4–2003, TIA/EIA–603-C-2004 2 Test Location Japan Quality Assurance Organization (JQA) KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan MINOH Test Site (KITA-KANSAI Testing Center) 7-7, Ishimaru, 1-chome, Minoh-shi, Osaka, 562-0027, Japan KAMEOKA EMC Branch 9-1, Ozaki, Inukanno, Nishibetsuin-cho, Kameoka-shi, Kyoto, 621-0126, Japan 3 Recognition of Test Laboratory JQA KITA-KANSAI Testing Center SAITO EMC Branch is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility of Testing Division is registered by the following bodies. VLAC Code : VLAC-001-2 (Effective through : March 30, 2014) VCCI Registration No. : A-0002 (Expi…

Text truncated - open the document above for the full version.

Page 1 of 46 JQA File No. : KL80120012-1 Issue Date : May 14, 2012 TEST REPORT APPLICANT : Sharp Corporation, Communication Systems Group ADDRESS : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN PRODUCTS : Cellular Phone MODEL NO. : SH-09D SERIAL NO. : 004401113965335 FCC ID : APYHRO00170 TEST STANDARD : CFR 47 FCC Rules and Regulations Part 22 TESTING LOCATION : Japan Quality Assurance Organization KITA-KANSAI Testing Center 1-7-7, Ishimaru, Minoh-shi, Osaka 562-0027, Japan TEST RESULTS : Passed DATE OF TEST : April 29 ~ May 10, 2012 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center Testing Dept. SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120012-1 Issue Date : May 14, 2012 Model No. : SH-09D FCC ID : APYHRO00170 Regulation : CFR 47 FCC Rules and Regulations Part 22 Page 2 of 46 TABLE OF CONTENTS Page Documentation ................................................................................................................................................. 3 1 Test Regulation......................................................................................................................................3 2 Test Location..........................................................................................................................................3 3 Recogniti…
