APYHRO00179Media Tablet with 802.11a/b/g/n, NFC, Bluetooth and GPS

® ® ® In some countries/regions including Europe, there are restrictions on the use of 5GHz WLAN that may limit the use to indoors only. If you intend to use 5GHz WLAN on the device, check the local laws and regulations beforehand. ® ® ® ® ® memo Hereby, Sharp Telecommunications of Europe Ltd, declares that this SHT21 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the original declaration of conformity can be found at the following Internet address: (http://www.sharp.co.jp/k-tai/) sht21_u.book 74 ページ ２０１２年１０月３０日 火曜日 午後５時４４分 Mobile Light Do not point the illuminated light directly at someone’s eyes. Be especially careful not to shoot small children from a very close distance. Do not use Mobile light near people’s faces. Eyesight may be temporarily affected leading to accidents. AC Adapter Any AC adapter used with this device must be suitably approved with a 5Vdc SELV output which meets limited power source requirements as specified in EN/IEC 60950-1 clause 2.5. Battery - CAUTION Loudness warning Excessive sound pressure from earphones and headphones can cause hearing loss. Headphone Signal Level The maximum output voltage for the music player function, measured in accordance with EN 50332-2, is mV. European RF Exposure Information Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. Use specified Charger only. Non-specified equipment use may cause malfunctions, electric shock or fire due to battery leakage, overheating or bursting. The battery is embedded inside the product. Avoid removing the embedded battery since this may cause overheating or bursting. Do not dispose of the product with ordinary refuse. Take the product to an au Shop, or follow the local disposal regulations. Charge battery in ambient temperatures between 5°C and 35°C; outside this range, battery may leak/overheat and performance may deteriorate. sht21_u.book 75 ページ ２０１２年１０月３０日 火曜日 午後５時４４分 Loudness warning Excessive sound pressure from earphones and headphones can cause hearing loss. Headphone Signal Level The maximum output voltage for the music player function, measured in accordance with EN 50332-2, is 25 mV. European RF Exposure Information Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. The guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/k. The SAR for this device is compliant with these SAR exposure requirements. The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of mobile devices. - This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. The battery is embedded inside the product. Avoid removing the embedded battery since this may cause overheating or bursting. Do not dispose of the product with ordinary refuse. Take the product to an au Shop, or follow the local disposal regulations. Charge battery in ambient temperatures between 5°C and 35°C; outside this range, battery may leak/overheat and performance may deteriorate. sht21_u.book 76 ページ ２０１２年１１月７日 水曜日 午前１１時５２分 Information to User This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient/relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. FCC RF Exposure Information Your device is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/k. The SAR for this device is compliant with these SAR exposure requirements. sht21_u.book 77 ペー…

Text truncated - open the document above for the full version.

ii ~~~~ Thank you for buying the “AQUOS PAD SHT21” (simply called the “SHT21” or the “product” from here on). Before using the product, be sure to read the “Basic Manual” (this PDF manual) on the au homepage to ensure correct use. After you have finished reading this PDF manual, be sure to store it and the printed manuals (Accessories) in safe places so that you can retrieve them whenever you need them. If you lose the printed manuals (Accessories), contact an au shop or Customer Service Center. “Basic Manual” (This PDF Manual) This manual describes basic operations of major functions. For detailed descriptions of various functions, refer to the “Instruction Manual application” (Japanese) that can be used on the product or “Full Instruction Manual” (Japanese) on the au homepage: (http://www.au.kddi.com/torisetsu/index.html) “Instruction Manual Application” (Japanese) You can use the “Instruction Manual application” on the product to check detailed operational procedures. Also, you can activate intended functions from an explanation screen depending on the functions. On the home screen, tap [APPS] [[Instruction Manual]. •To use the application for the first time, you need to download and install it by following on-screen instructions. Downloading Manuals You can download the “Basic Manual” (this PDF manual) and the “Instruction Manual” (Accessory) (Japanese) or “Full Instruction Manual” (Japanese) in PDF format from the au homepage. Before you start using the product, be sure to read the “Safety Precautions” to ensure correct use. Before you assume that the product is malfunctioning, check for possible remedies in the following au Customer Support site of au homepage: (http://cs.kddi.com/support/komatta/kosho/ index.html) Preface Operating Instructions Safety Precautions sht21_e.book ii ページ ２０１２年１１月２６日 月曜日 午前１１時１９分 1 •Communication is not possible even inside the service area in places where the signal does not reach (e.g. tunnels and basements). Also, communication may not be possible in poor reception areas. Communication may be interrupted if you move into a poor reception areas during communications. •Since this product uses radio waves, the possibility of communication intercepts by third parties cannot be eliminated. (Though the LTE/CDMA system has highly secure confidential communication features.) •Since the product is a radio station under the Radio Law, you may be asked to temporarily submit the product for inspection in accordance with the Radio Law. •The IMEI information of the product is automatically sent to KDDI CORPORATION for maintenance and monitoring operational status of the product. •Since the battery is built into the product, you cannot replace it yourself. For replacing the battery, contact an au shop or Customer Service Center. •Take care not to inconvenience people around you when you use the product in a public place. •If you are using the product overseas, check the relevant laws and regulations of the country/region you visit. •When the product is used by a child, parents or guardians should thoroughly read this PDF manual and teach the child how to use it. The product always emit weak radio waves when power is on. Use the product in an enjoyable and safe manner without forgetting to be considerate of others around you. Use of the product is not allowed in the following places! •Do not use the product while driving a car or riding a motorbike or bicycle. It may cause a traffic accident. Use of the product while driving a car or motorbike is prohibited by law. Use of the product while riding a bicycle may be punishable by some regulations. •Be sure to turn off the product while you are aboard an airplane. Otherwise, safety of your flight may be compromised. When Using the Product Etiquette sht21_e.book 1 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分 2 Be considerate of where you use the product and the volume! In theaters, museums, libraries, and other similar places, turn the power off or turn on the manner mode so as not to disturb others around you by reception sounds. •Do not use the product on a street where you might interrupt the flow of pedestrians. •Move to areas where you will not inconvenience others on trains, in hotel lobbies, etc. •Obtain the permission of other people before you take their photos with the product’s camera. Be considerate of people around you! •Some people close to you in crowded places such as packed trains may be using a cardiac pacemaker. Turn the product off in such places. •Abide by the rules of hospitals and other medical institutions where it is forbidden to use or carry the product. Before you start using the product, make sure that you have all the following packaged items with the product. •Instruction Manual (Japanese) •Setting Guide (Japanese) •Before Using the Product (Japanese) List of Packaged Items SHT21 microUSB-3.5 L-Shaped Conversion Cable (Sample) * This is inserted into the SHT21 at the time of purchase. Stylus Pen* (SHT21KBA) Warranty (Japanese) Desktop Holder (SHT21PUA) sht21_e.book 2 ページ ２０１２年１１月２６日 月曜日 午前１１時１９分 3 The following items are not included in the package. •Purchase a specified charger (sold separately). •Illustrations in this manual are only for reference. They may look different from the actual product. au Disaster Countermeasure is an application in which you can use Disaster Message Board, Emergency Rapid Mail (Earthquake Early Warning, Disaster and Evacuation Information, and Tsunami Warning) and Disaster Voice Messaging Service. AOn the home screen, [APPS] [[au] (au Disaster Countermeasure). The au Disaster Countermeasure menu is displayed. Using Disaster Message Board Disaster Message Board is a service to enable customers in disaster areas to register their safety information via LTE NET when large-scale disasters, such as an earthquake whose Japan seismic scale is approximately 6-lower or more, occur. The registered safety information can be checked by customers using au terminals, and also from other car…

Text truncated - open the document above for the full version.

(TCB-BABT) Sharp Telecommunications of Europe LTD. 16 th Nov 2012 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: APYHRO00179 Media Tablet / NFC / W-LAN / Bluetooth Enabled Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Sharp Corporation hereby requests permanent confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematic Diagrams - Parts List - Tune-up / Output Power Alignment Procedure - Theory of operation - Model Description Sharp Corporation also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period until 25 th December.2012: - Test Setup Photos - External Photos - Internal Photos - Operation Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Martin Doidge Business Systems Sharp Telecommunications of Europe LTD.

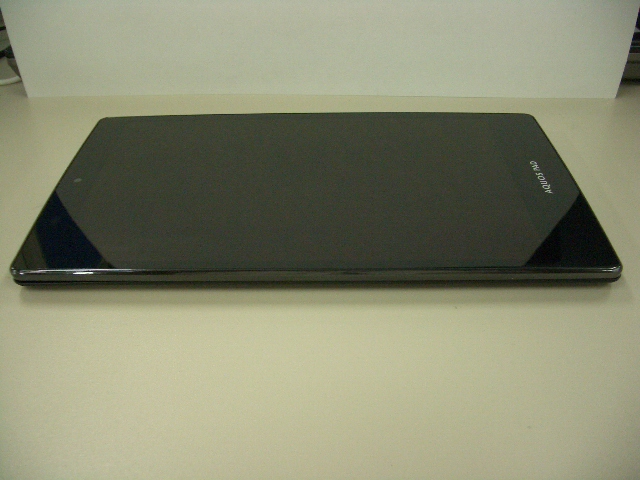

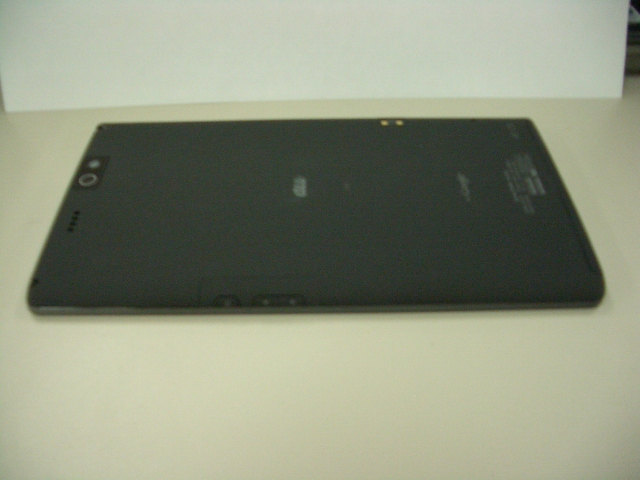

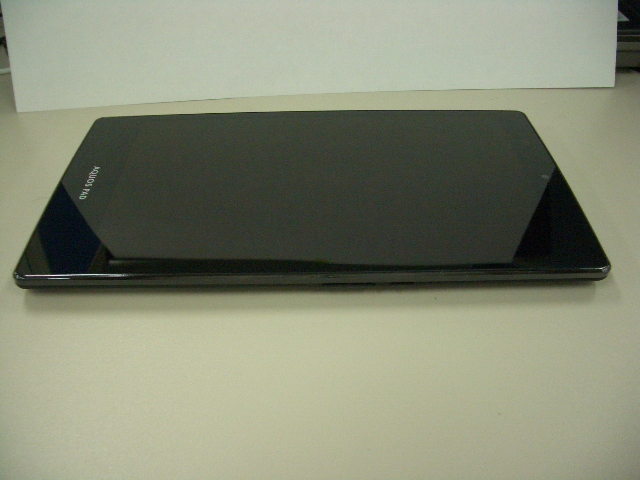

Model Name: CDMA SHT21 Photo (External) FCC ID:APYHRO00179 1/4 Model Name: CDMA SHT21 Photo (External) FCC ID:APYHRO00179 2/4 Model Name: CDMA SHT21 Photo (External) FCC ID:APYHRO00179 3/4 Model Name: CDMA SHT21 Photo (External) FCC ID:APYHRO00179 4/4

Model Name: CDMA SHT21 FCC ID Location (On Spec Label) FCC ID:APYHRO00179 ○Spec screenprinting ○ Location ① Products Code ② FCC ID Number Back CAB

Model Name: CDMA SHT21 Photo (Internal) FCC ID:APYHRO00179 1/4 Model Name: CDMA SHT21 Photo (Internal) FCC ID:APYHRO00179 2/4 Model Name: CDMA SHT21 Photo (Internal) FCC ID:APYHRO00179 3/4 Model Name: CDMA SHT21 Photo (Internal) FCC ID:APYHRO00179 4/4

16 th November, 2012 (TCB-STE) Sharp Telecommunications of Europe LTD BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD SAR STATEMENT FCC ID: APYHRO00179 This device contains WLAN technology (2.4GHz and 5GHz) that SHARP CORPORATION confirms are exempt from SAR testing by design pursuant to Rule Part 2.1093 and the following guidelines: KDB 447498 D01 60/f(GHz) Exclusion levels P (2.4GHz WLAN @ 2.5GHz) must be < 24 mW P (5GHz WLAN @ 5.7GHz) must be < 10.53 mW The measured power levels (including antenna gain) for 2.4GHz WLAN are less than 24mW The measured power levels (including antenna gain) for 5GHz WLAN are less than 10.53mW Yours sincerely, Martin Doidge Business Systems Sharp Telecommunications of Europe LTD.

Document 75919259 Report 16 Issue 2 November 2012 Report On FCC DFS Testing of the Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS In accordance with FCC CFR 47 Part 15E and FCC 06-96 COMMERCIAL-IN-CONFIDENCE FCC ID: APYHRO00179 TÜV SÜD Product Service, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuv-sud.co.uk COMMERCIAL-IN-CONFIDENCE Document 75919259 Report 16 Issue 2 Page 1 of 28 COMMERCIAL-IN-CONFIDENCE REPORT ON FCC DFS Testing of the Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS In accordance with FCC CFR 47 Part 15E and FCC 06-96 Document 75919259 Report 16 Issue 2 November 2012 PREPARED FOR Sharp Communication Compliance Ltd Azure House Bagshot Road Bracknell Berkshire RG12 7QY PREPARED BY Natalie Bennett Senior Administrator (Technical) APPROVED BY Mark Jenkins Authorised Signatory DATED 20 November 2012 This report has been up-issued to Issue 2 to remove the test set up photos. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Part 15E and FCC 06-96. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); S Bennett Document 75919259 Report 16 Issue 2 Page 2 of 28 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 3 1.1 Introduction ................................................................................................................................... 4 1.2 Test Requirements ....................................................................................................................... 5 1.3 Brief Summary of Results ............................................................................................................. 6 1.4 Application Form ........................................................................................................................... 7 1.5 Product Information .................................................................................................................... 10 1.6 Test Conditions ........................................................................................................................... 10 1.7 Deviations from the Standard ..................................................................................................... 10 1.8 Modification Record .................................................................................................................... 10 1.9 DFS Test System ........................................................................................................................ 11 2 TEST DETAILS .......................................................................................................................... 13 2.1 Calibration of Test Setup ............................................................................................................ 14 2.2 In-Service Monitoring .................................................................................................................. 18 3 TEST EQUIPMENT USED ......................................................................................................... 21 3.1 Test Equipment Used ................................................................................................................. 22 3.2 Support Test Equipment ............................................................................................................. 23 3.3 Measurement Uncertainty .......................................................................................................... 24 4 PHOTOGRAPHS ........................................................................................................................ 25 4.1 DFS Test Equipment .................................................................................................................. 26 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ............................................................ 27 5.1 Accreditation, Disclaimers and Copyright ................................................................................... 28 Document 75919259 Report 16 Issue 2 Page 3 of 28 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY FCC DFS Testing of the Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS In accordance with FCC CFR 47 Part 15E and FCC 06-96 Document 75919259 Report 16 Issue 2 Page 4 of 28 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE 1.1 INTRODUCTION The information contained in this report is intended to show verification of the FCC DFS Testing of the Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS to the requirements of FCC CFR 47 Part 15E and FCC 06-96. Objective To perform FCC DFS Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Manufacturer Sharp Corporation Model Number(s) CDMA SHT21 Serial Number(s) IMEI 004401114403724 Hardware Version 1PP Software Version A8310 Number of Samples Tested 1 Test Specification/Issue/Date FCC CFR 47 Part 15E (2011) FCC 06-96 (2006) Incoming Release Date Application Form 11 October 2012 Disposal Reference Number Date Held Pending Disposal Not Applicable Not Applicable Order Number Date 9385 24 October 2012 Start of Test 23 October 2012 Finish of Test 23 October 2…

Text truncated - open the document above for the full version.

Document 75919259 Report 11 Issue 3 November 2012 Report On FCC Testing of the Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS In accordance with FCC CFR 47 Part 15E (WLAN) COMMERCIAL-IN-CONFIDENCE FCC ID: APYHRO00179 TÜV SÜD Product Service, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuv-sud.co.uk COMMERCIAL-IN-CONFIDENCE Document 75919259 Report 11 Issue 3 Page 2 of 243 COMMERCIAL-IN-CONFIDENCE REPORT ON FCC Testing of the Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS In accordance with FCC CFR 47 Part 15E (WLAN) Document 75919259 Report 11 Issue 3 November 2012 PREPARED FOR Sharp Communication Compliance Ltd Azure House Bagshot Road Bracknell Berkshire RG12 7QY PREPARED BY Natalie Bennett Senior Administrator (Technical) APPROVED BY Ryan Henley Authorised Signatory DATED 20 November 2012 This report has been up-issued to Issue 3 to amend conducted power measurements. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Part 15E. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); G Lawler M Russell Document 75919259 Report 11 Issue 3 Page 3 of 243 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 4 1.1 Introduction ................................................................................................................................... 5 1.2 Brief Summary of Results ............................................................................................................. 6 1.3 Application Form ........................................................................................................................... 8 1.4 Product Information .................................................................................................................... 11 1.5 Test Conditions ........................................................................................................................... 11 1.6 Deviations from the Standard ..................................................................................................... 11 1.7 Modification Record .................................................................................................................... 11 2 TEST DETAILS .......................................................................................................................... 12 2.1 AC Line Conducted Emissions ................................................................................................... 13 2.2 Power Limits ............................................................................................................................... 18 2.3 Undesirable Emission Limits ...................................................................................................... 50 2.4 Frequency Stability ................................................................................................................... 168 2.5 26 dB Bandwidth ....................................................................................................................... 178 2.6 Peak Power Spectral Density ................................................................................................... 204 2.7 Ratio of the Peak Excursion of the Modulation Envelope ........................................................ 230 3 TEST EQUIPMENT USED ....................................................................................................... 237 3.1 Test Equipment Used ............................................................................................................... 238 3.2 Measurement Uncertainty ........................................................................................................ 241 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT .......................................................... 242 4.1 Accreditation, Disclaimers and Copyright ................................................................................. 243 Document 75919259 Report 11 Issue 3 Page 4 of 243 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY FCC Testing of the Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS In accordance with FCC CFR 47 Part 15E (WLAN) Document 75919259 Report 11 Issue 3 Page 5 of 243 COMMERCIAL-IN-CONFIDENCE 1.1 INTRODUCTION The information contained in this report is intended to show verification of the FCC Testing of the Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS to the requirements of FCC CFR 47 Part 15E. Objective To perform FCC Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. Manufacturer Sharp Corporation Model Number(s) CDMA SHT21 Serial Number(s) IMEI 004401114403765 IMEI 004401114403773 Number of Samples Tested 2 Test Specification/Issue/Date FCC CFR 47 Part 15E (2011) Incoming Release Date Application Form 11 October 2012 Disposal Reference Number Date Held Pending Disposal Not Applicable Not Applicable Order Number Date 9385 24 October 2012 Start of Test 9 October 2012 Finish of Test 1 November 2012 Name of Engineer(s) G Lawler M Russell Related Document(s) FCC 06-96: 2006; FCC Public Notice DA 02-2138: 2002; UKAS M3003: Edition 2: 2007; ETSI TR 100 028: 2001 Document 75919259 Report 11 Issue …

Text truncated - open the document above for the full version.

FCC ID: APYHRO00179 Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS 2012 Not to be reproduced, except in its entirety, Page 1 of 5 without the Permission of TÜV SÜD Product Service Reference: 75919259 PHOTOGRAPHS OF TEST SET UP FCC Part 15B Radiated Emissions 30MHz-1GHz FCC ID: APYHRO00179 Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS 2012 Not to be reproduced, except in its entirety, Page 2 of 5 without the Permission of TÜV SÜD Product Service Reference: 75919259 FCC Part 15B Radiated Emissions 1-18GHz FCC ID: APYHRO00179 Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS 2012 Not to be reproduced, except in its entirety, Page 3 of 5 without the Permission of TÜV SÜD Product Service Reference: 75919259 FCC Part 15B Conducted Emissions FCC ID: APYHRO00179 Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS 2012 Not to be reproduced, except in its entirety, Page 4 of 5 without the Permission of TÜV SÜD Product Service Reference: 75919259 FCC Part 15.247 Radiated Emissions 1GHz-18GHz FCC ID: APYHRO00179 Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS 2012 Not to be reproduced, except in its entirety, Page 5 of 5 without the Permission of TÜV SÜD Product Service Reference: 75919259 FCC Part 15.247 Radiated Emissions 18GHz-25GHz FCC Part 15.407 Radiated Emissions 25GHz-40GHz

FCC ID: APYHRO00179 Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS 2012 Not to be reproduced, except in its entirety, Page 1 of 2 without the Permission of TÜV SÜD Product Service Reference: 75919259 PHOTOGRAPHS OF TEST SET UP View 1 View 2 FCC ID: APYHRO00179 Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS 2012 Not to be reproduced, except in its entirety, Page 2 of 2 without the Permission of TÜV SÜD Product Service Reference: 75919259 View 3

FCC ID: APYHRO00179 Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS 2012 Not to be reproduced, except in its entirety, Page 1 of 5 without the Permission of TÜV SÜD Product Service Reference: 75919259 PHOTOGRAPHS OF TEST SET UP FCC Part 15B Radiated Emissions 30MHz-1GHz FCC ID: APYHRO00179 Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS 2012 Not to be reproduced, except in its entirety, Page 2 of 5 without the Permission of TÜV SÜD Product Service Reference: 75919259 FCC Part 15B Radiated Emissions 1-18GHz FCC ID: APYHRO00179 Sharp CDMA SHT21 Dual-band CDMA (BC0, BC6) & Dual-band LTE (B11, B18). Dual mode Media Tablet with Bluetooth, WLAN, NFC(Type-A/ B) and GPS 2012 Not to be reprod…
