APYHRO00186Cellular Phone

ɜ ġ If you lose your handset or have it stolen, immediately take the steps necessary for suspending the use of the handset. ɜ ġ If the handset you purchased is damaged, bring your handset to a repair counter specified by DOCOMO after returning to Japan. Sales : Manufacturer : SHARP Corporation Don’t forget your mobile phone... or your manners! When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Universal number international prefixInternational call access codefor the country you stay -81-3-6718-1414 * (toll free) -8005931-8600 * From land-line phonesFrom DOCOMO mobile phones Failures encountered overseas <Network Support and Operation Center> <Universal number> * You might be charged a domestic call fee according to the call rate for the country you stay. ɦ For international call access codes for major countries and universal number international prefix, refer to DOCOMO International Services website. * You are charged a call fee to Japan when calling from a land-line phone, etc. ɦ If you use SH-01E, you should dial the number +81-3-6832-6600 (to enter “+”, touch “0” for a while). * You might be charged a domestic call fee according to the call rate for the country you stay. ɦ For international call access codes for major countries and universal number international prefix, refer to DOCOMO International Services website. * You are charged a call fee to Japan when calling from a land-line phone, etc. ɦ If you use SH-01E, you should dial the number +81-3-6718-1414 (to enter “+”, touch “0” for a while). -8000120-0151 * Universal number international prefix -81-3-6832-6600 * (toll free) International call access codefor the country you stay Loss or theft of handset or payment of cumulative cost overseas <docomo Information Center> From DOCOMO mobile phones From land-line phones <Universal number> (available 24 hours a day) (available 24 hours a day) ɦ Unavailable from land-line phones, etc. ɡ From DOCOMO mobile phones (In Japanese only) ɦ Unavailable from land-line phones, etc. (No prefix) 151 (toll free) ɡ From DOCOMO mobile phones (In Japanese only) Repairs (Business hours: 24 hours (open all year round)) (Business hours: 9:00 a.m. to 8:00 p.m.) ɦ Unavailable from part of IP phones. 0120-800-000 (toll free) ɡ From land-line phones (In Japanese only) 0120-005-250 (toll free) ɦ Service available in: English, Portuguese, Chinese, Spanish, Korean. (Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)) ɦ Unavailable from part of IP phones. (No prefix) 113 (toll free) General Inquiries <docomo Information Center> ɜ Please confirm the phone number before you dial. ɜ For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop e tc. near you on the NTT DOCOMO website. NTT DOCOMO website ȁ http://www.nttdocomo.co.jp/english/ ɦ Unavailable from part of IP phones. ɡ From land-line phones (In Japanese only) 0120-800-000 (toll free) INSTRUCTION MANUAL SH-01E ’12.9 (1st Edition) 12J SM193 ’12.9 1 6 Contents/Precautions Before use, read these “Precautions” carefully and use your handset properly. Keep this manual in a safe place for future reference. These precautions contain information intended to prevent bodily injury to the user and to surrounding people, as well as damage to property, and must be observed at all times. The following symbols indicate the different degrees of injury or damage that may occur if information provided is not observed and the handset is used improperly. The following symbols indicate specific directions. Precautions (ALWAYS FOLLOW THESE DIRECTIONS) Danger This symbol indicates that “death or serious bodily injury may directly and immediately result from improper use”. Warning This symbol indicates that “death or serious bodily injury may result from improper use”. Caution This symbol indicates that “minor injury and/or property damage may result from improper use”. Indicates a prohibited action. Indicates not to disassemble the device. Indicates not to use the device near water or get it wet. Indicates not to handle the device with wet hands. Indicates that instructions specified are compulsory (must be followed). Indicates that the power cord must be unplugged from the outlet. 7 Contents/Precautions “Precautions” is explained in the following six sections. Handling the handset, battery pack, adapters, desktop holder, docomo mini UIM card and 1Seg antenna cable (general) . . . . . . . . . . . . . . . . P. 7 Handling the handset . . . . . . . . . . . . . . . . . . P. 8 Handling battery pack . . . . . . . . . . . . . . . . . P. 11 Handling adapters and desktop holder . . . . P. 12 Handling docomo mini UIM card . . . . . . . . . P. 13 Handling near electronic medical equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 14 Do not use, store or leave the equipment in locations subject to high temperatures (near a fire or heating unit, in a kotatsu, under direct sunlight, inside a vehicle on a hot day, etc.). May cause fires, burns or bodily injury. Do not place the equipment inside cooking appliances such as microwave ovens or pressure cookers. May cause fires, burns, bodily injury or electric shock. Do not attempt to disassemble or modify the equipment. May cause fires, burns, bodily injury or electric shock. Do not get the equipment wet with water, drinking water, pet urine, etc. May cause fires, burns, bodily injury or electric shock. Refer to the following for details on waterproofness. n“Waterproof/Dust-proof” on P. 21 Use only the battery packs and adapters specified by NTT DOCOMO for use with the handset. May cause fires, burns, bodily injury or electric shock. Do not subject the equipment to strong force or impacts or throw it. May cause fires, burns, bodily injury or electric shock. Do not allow conductive materials (such as metal objects and pencil lead) to come into contact with the cha…

Text truncated - open the document above for the full version.

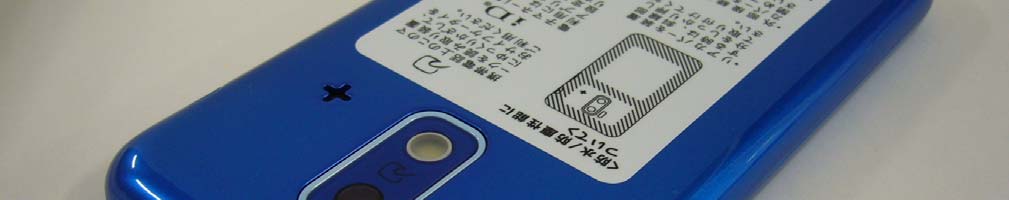

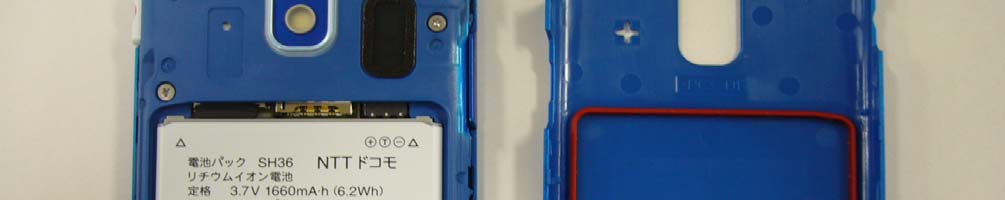

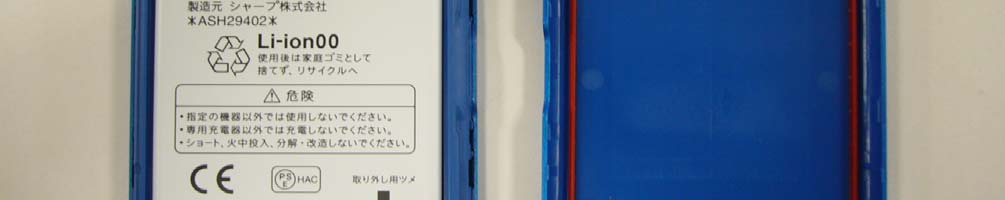

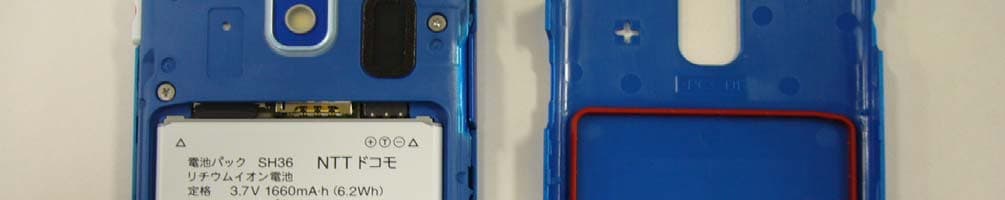

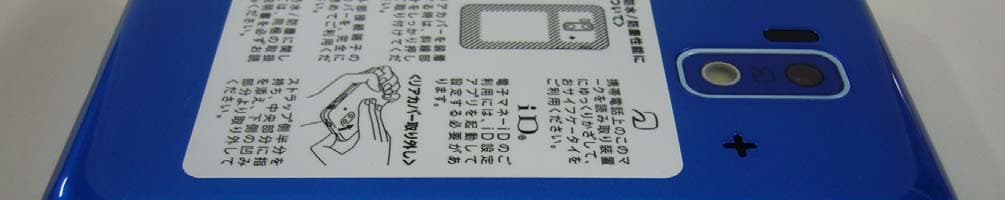

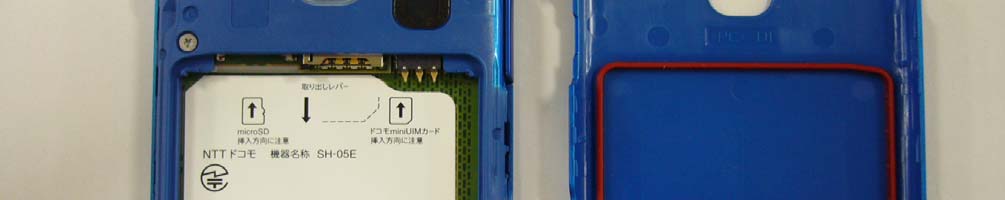

Model Name: SH-05E Photo (External) FCC ID : APYHRO00186 - 1 / 3 - Model Name: SH-05E Photo (External) FCC ID : APYHRO00186 - 2 / 3 - Model Name: SH-05E Photo (External) FCC ID : APYHRO00186 - 3 / 3 -

Dec/17/2012 Model Name: SH-05E FCC ID: APYHRO00186 ○S L b l Spec Label and Location ○Spec Label Vendor : NTT DoCoMo ① Color ② Approval Number of JATE ③C ifi i N b f TELEC③Certification Number of TELEC ④ Production Years & Months ⑤ Bar Code of IMEI ⑥ IMEI (Production Serial Number) Manufucturer/Applicant : SHARP Corporation Country of production Caution : Turn off power in an aircraft. Don't remove this seal. FCC ID ○Location FCC ID

Model Name: SH-05E Photo (Internal) FCC ID : APYHRO00186 1 / 4 Model Name: SH-05E Photo (Internal) FCC ID : APYHRO00186 2 / 4 Model Name: SH-05E Photo (Internal) FCC ID : APYHRO00186 3 / 4 Model Name: SH-05E Photo (Internal) FCC ID : APYHRO00186 4 / 4

Antenna Photo FCC ID ： APYHRO00186 SH-05E Antenna DistanceBetween GSM850/PCS1900/WCDMA BandV Antenna and Bluetooth/WLAN A ntenna & Between Antenna and edge of equipment 4.5mm 45.8mm Top edge Bluetooth / WLAN Antenna 45 . 8mm 4.6mm 103.4mm Right edge Left edge 107.2mm WCDMA BandV / GSM850 / PCS1900 Antenna 20mm 20 1.7mm 2.0mm 2.0mm Bottom edge View from Rear (Battery) side

Appendix 1 – System Validation Plots JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/11/30 9:25:43 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Communication System: CW; Frequency: 835 MHz; Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.887 mho/m; ε r = 41; ρ = 1000 kg/m 3 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.16, 6.16, 6.16); Calibrated: 2012/08/17 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2012/11/05 zPhantom: SAM; Type: QD 000 P40 CA; Serial: 1200 Antenna Input Power 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.54 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.8 V/m; Power Drift = 0.022 dB Peak SAR (extrapolated) = 3.37 W/kg SAR(1 g) = 2.36 mW/g; SAR(10 g) = 1.55 mW/g Maximum value of SAR (measured) = 2.56 mW/g 0 dB = 2.56mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/12/04 11:14:02 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body) DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Communication System: CW; Frequency: 835 MHz; Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.968 mho/m; ε r = 55.2; ρ = 1000 kg/m 3 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.21, 6.21, 6.21); Calibrated: 2012/08/17 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2012/11/05 zPhantom: SAM; Type: QD 000 P40 CA; Serial: 1200 Antenna Input Power 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.56 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.5 V/m; Power Drift = 0.013 dB Peak SAR (extrapolated) = 3.35 W/kg SAR(1 g) = 2.36 mW/g; SAR(10 g) = 1.56 mW/g Maximum value of SAR (measured) = 2.55 mW/g 0 dB = 2.55mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/12/05 9:30:09 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Head) DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Communication System: CW; Frequency: 1900 MHz; Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 40.2; ρ = 1000 kg/m 3 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(5.06, 5.06, 5.06); Calibrated: 2012/08/17 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2012/11/05 zPhantom: SAM; Type: QD 000 P40 CA; Serial: 1200 Antenna Input Power 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.3 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 94.3 V/m; Power Drift = 0.002 dB Peak SAR (extrapolated) = 16.8 W/kg SAR(1 g) = 9.84 mW/g; SAR(10 g) = 5.2 mW/g Maximum value of SAR (measured) = 11.2 mW/g 0 dB = 11.2mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/12/05 13:23:10 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Validation (Body) DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Communication System: CW; Frequency: 1900 MHz; Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 52.5; ρ = 1000 kg/m 3 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(4.51, 4.51, 4.51); Calibrated: 2012/08/17 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2012/11/05 zPhantom: SAM; Type: QD 000 P40 CA; Serial: 1200 Antenna Input Power 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.5 mW/g Antenna Input Power 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 93.7 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 16.4 W/kg SAR(1 g) = 10 mW/g; SAR(10 g) = 5.38 mW/g Maximum value of SAR (measured) = 11.4 mW/g 0 dB = 11.4mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Appendix 2 – SAR Test Plots (WCDMA Band V) JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/11/30 14:36:55 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head 4132ch / WCDMA Band V DUT: Cellular Phone; Type: SH-05E; Serial: 004401114675206 Communication System: WCDMA Band V; Frequency: 826.4 MHz; Duty Cycle: 1:1 Medium parameters used: f = 826.4 MHz; σ = 0.879 mho/m; ε r = 41.1; ρ = 1000 kg/m 3 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(6.16, 6.16, 6.16); Calibrated: 2012/08/17 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn508; Calibrated: 2012/11/05 zPhantom: SAM; Type: QD 000 P40 CA; Serial: 1200 Left Touched/Area Scan (11x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.653 mW/g Left Touched/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.8 V/m; Power Drift = 0.028 dB Peak SAR (extrapolated) = 0.803 W/kg SAR(1 g) = 0.644 mW/g; SAR(10 g) = 0.479 mW/g Maximum value of SAR (measured) = 0.671 mW/g 0 dB = 0.671mW/g JAPAN QUALITY ASSURANCE ORGANIZATION Date/Time: 2012/11/30 14:07:09 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION Left Head 4182ch / WCDMA Band V DUT: Cellular Phone; Type: SH-05E; Serial: 004401114675206 Communication System: WCDMA Band V; Frequency: 836.4 MHz; Duty Cycle: 1:1 Medium parameters used: f = 836.4 MHz; σ = 0.889 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: zProbe: ET3DV6 - SN1679; ConvF(…

Text truncated - open the document above for the full version.

JAPAN QUALITY ASSURANCE ORGANIZATION Appendix 3 – Dosimetric E-Field Probe ET3DV6 – SN: 1679 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Appendix 4 – System Validation Dipole D835V2 – SN: 4d081 Calibration Data JAPAN QUALITY ASSURANCE ORGANIZATION Appendix 4 – System Validation Dipole D1900V2 – SN: 5d112 Calibration Data

JAPAN QUALITY ASSURANCE ORGANIZATION Page 1 of 39 Technical document No. 23163-1201 JQA File No. : KL80120550 Issue Date : December 6, 2012 TEST REPORT (SAR EVALUATION) Applicant : Sharp Corporation, Communication Systems Group Address : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan Products : Cellular Phone Model No. : SH-05E Serial No. : 004401114675206 FCC ID : APYHRO00186 Test Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Test Results : Passed Date of Test : November 30 ~ December 5, 2012 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120550 Issue Date : December 6, 2012 Model No. : SH-05E FCC ID : APYHRO00186 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 2 of 39 Technical document No. 23163-1201 TABLE OF CONTENTS Page 1 Description of the Device Under Test (DUT).......................................................................................3 2 Summary of Test Results......................................................................................................................4 3 Test Procedure.......................................................................................................................................5 4 Test Location..........................................................................................................................................5 5 Recognition of Test Laboratory.............................................................................................................5 6 Measurement System Diagram............................................................................................................6 7 System Components..............................................................................................................................7 8 Measurement Process..........................................................................................................................11 9 Measurement Uncertainties...............................................................................................................12 10 Test Arrangement................................................................................................................................14 11 Tissue Verification...............................................................................................................................16 12 System Validation................................................................................................................................17 13 RF Output Power Measurements.......................................................................................................19 14 SAR Measurements.............................................................................................................................25 15 Test Setup Photographs......................................................................................................................33 16 Test Instruments.................................................................................................................................38 17 Appendix...............................................................................................................................................39 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120550 Issue Date : December 6, 2012 Model No. : SH-05E FCC ID : APYHRO00186 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 3 of 39 Technical document No. 23163-1201 1 Description of the Device Under Test (DUT) 1. Manufacturer : Sharp Corporation, Communication Systems Group 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan 2. Products : Cellular Phone 3. Model No. : SH-05E 4. Serial No. : 004401114675206 5. Product Type : Pre-production 6. Date of Manufacture : November, 2012 7. Transmitting Frequency : 826.4 MHz – 846.6 MHz (WCDMA Band V) 824.2 MHz – 848.8 MHz (GSM 850) 1850.2 MHz – 1909.8 MHz (PCS 1900) 2412 MHz – 2462 MHz (WLAN 802.11b/g/n) 2402 MHz – 2480 MHz (Bluetooth) 8. Battery Option : Lithium-ion Battery Pack SH36 (1660mAh) 9. Power Rating : 4.0VDC 10. EUT Grounding : None 11. Device Category : Portable Device (§2.1093) 12. Exposure Category : General Population/Uncontrolled Exposure 13. FCC Rule Part(s) : 22(H), 24(E), 15.247 14. EUT Authorization : Certification 15. Received Date of DUT : November 27, 2012 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120550 Issue Date : December 6, 2012 Model No. : SH-05E FCC ID : APYHRO00186 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 4 of 39 Technical document No. 23163-1201 2 Summary of Test Results Applied Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio- frequency Electromagnetic Fields Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Li…

Text truncated - open the document above for the full version.

Page 1 of 42 Technical document No. 23199-1201 JQA File No. : KL80120552 Issue Date : December 11, 2012 TEST REPORT Applicant : Sharp Corporation, Communication Systems Group Address : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN Products : Cellular Phone Model No. : SH-05E Serial No. : 004401114675164 FCC ID : APYHRO00186 Test Standard : CFR 47 FCC Rules and Regulations Part 22 Test Results : Passed Date of Test : November 29 ~ December 4, 2012 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120552 Issue Date : December 11, 2012 Model No. : SH-05E FCC ID : APYHRO00186 Standard : CFR 47 FCC Rules and Regulations Part 22 Page 2 of 42 Technical document No. 23199-1201 TABLE OF CONTENTS Page 1 Description of the Equipment Under Test...........................................................................................3 2 Summary of Test Results......................................................................................................................4 3 Test Procedure.......................................................................................................................................5 4 Test Location..........................................................................................................................................5 5 Recognition of Test Laboratory.............................................................................................................5 6 Details of the Equipment Under Test..................................................................................................6 7 Details of the Test Item.........................................................................................................................8 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under Test EMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120552 Issue Date : December 11, 2012 Model No. : SH-05E FCC ID : APYHRO00186 Standard : CFR 47 FCC Rules and Regulations Part 22 Page 3 of 42 Technical document No. 23199-1201 1 Description of the Equipment Under Test 1. Manufacturer : Sharp Corporation, Communication Systems Group 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN 2. Products : Cellular Phone 3. Model No. : SH-05E 4. Serial No. : 004401114675164 5. Product Type : Pre-production 6. Date of Manufacture : November, 2012 7. Power Rating : 4.0VDC (Internal Lithium-ion BatterySH36 1660mAh) 8. EUT Grounding : None 9. Transmitting Frequency : 824.2 MHz(128CH) – 848.8 MHz(251CH) 10. Receiving Frequency : 869.2 MHz(128CH) – 893.8 MHz(251CH) 11. Emission Designations : 244KGXW 12. Max. RF Output Power : 1.514W (ERP) 13. Category : GSM850 14. EUT Authorization : Certification 15. Received Date of EUT : November 29, 2012 16. Channel Plan The carrier spacing is 200 kHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: Transmitting Frequency (in MHz) = 824.2 + 0.2 × (n – 128) where, n : channel number (128 ≤ n ≤ 251) Receiving Frequency (in MHz) = 869.2 + 0.2 × (n –128) where, n : channel number (128 ≤ n ≤ 251) JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120552 Issue Date : December 11, 2012 Model No. : SH-05E FCC ID : APYHRO00186 Standard : CFR 47 FCC Rules and Regulations Part 22 Page 4 of 42 Technical document No. 23199-1201 2 Summary of Test Results Applied Standard : CFR 47 FCC Rules and Regulations Part 22 Subpart H – Cellular Radiotelephone Service The EUT described in clause 1 was tested according to the applied standard shown above. Details of the test configuration is shown in clause 6. The conclusion for the test items of which are required by the applied standard is indicated under the test result. - The test result was passed for the test requirements of the applied standard. - The test result was failed for the test requirements of the applied standard. - The test result was not judged the test requirements of the applied standard. In the approval of test results, - Determining compliance with the limits in this report was based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. - No deviations were employed from the applied standard. - No modifications were conducted by JQA to achieve compliance to the limitations. Reviewed by: Tested by: Shigeru Kinoshita Shigeru Osawa Deputy Manager Deputy Manager JQA KITA-KANSAI Testing Center JQA KITA-KANSAI Testing Center SAITO EMC Branch SAITO EMC Branch JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120552 Issue Date : December 11, 2012 Model No. : SH-05E …

Text truncated - open the document above for the full version.

Page 1 of 42 Technical document No. 23199-1201 JQA File No. : KL80120551 Issue Date : December 11, 2012 TEST REPORT Applicant : Sharp Corporation, Communication Systems Group Address : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN Products : Cellular Phone Model No. : SH-05E Serial No. : 004401114675164 FCC ID : APYHRO00186 Test Standard : CFR 47 FCC Rules and Regulations Part 22 Test Results : Passed Date of Test : November 29 ~ December 4, 2012 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120551 Issue Date : December 11, 2012 Model No. : SH-05E FCC ID : APYHRO00186 Standard : CFR 47 FCC Rules and Regulations Part 22 Page 2 of 42 Technical document No. 23199-1201 TABLE OF CONTENTS Page 1 Description of the Equipment Under Test...........................................................................................3 2 Summary of Test Results......................................................................................................................4 3 Test Procedure.......................................................................................................................................5 4 Test Location..........................................................................................................................................5 5 Recognition of Test Laboratory.............................................................................................................5 6 Details of the Equipment Under Test..................................................................................................6 7 Details of the Test Item.........................................................................................................................8 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT : Equipment Under Test EMC : Electromagnetic Compatibility AE : Associated Equipment EMI : Electromagnetic Interference N/A : Not Applicable EMS : Electromagnetic Susceptibility N/T : Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80120551 Issue Date : December 11, 2012 Model No. : SH-05E FCC ID : APYHRO00186 Standard : CFR 47 FCC Rules and Regulations Part 22 Page 3 of 42 Technical document No. 23199-1201 1 Description of the Equipment Under Test 1. Manufacturer : Sharp Corporation, Communication Systems Group 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN 2. Products : Cellular Phone 3. Model No. : SH-05E 4. Serial No. : 004401114675164 5. Product Type : Pre-production 6. Date of Manufacture : November, 2012 7. Power Rating : 4.0VDC (Internal Lithium-ion Battery SH36 1660mAh) 8. EUT Grounding : None 9. Transmitting Frequency : 826.4 MHz(4132CH) – 846.6MHz(4233CH) 10. Receiving Frequency : 871.4 MHz(4357CH) – 891.6MHz(4458CH) 11. Emission Designations : 4M16F9W 12. Max. RF Output Power : 0.380W (ERP) 13. Category : WCDMA850 14. EUT Authorization : Certification 15. Received Date of EUT : November 29, 2012 16. Channel Plan The carrier spacing is 200 kHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: Transmitting Frequency (in MHz) = 826.4 + 0.2 × (n – 4132) where, n : channel number (4132 ≤ n ≤ 4233) Rece…

Text truncated - open the document above for the full version.
