APYHRO00187Cellular Phone

Model Name: 203SH Photo (External) FCC ID : APYHRO00187 - 1 / 3 - Model Name: 203SH Photo (External) FCC ID : APYHRO00187 - 2 / 3 - Model Name: 203SH Photo (External) FCC ID : APYHRO00187 - 3 / 3 -

Model Name: 203SH Spec Label and Location FCC ID: APYHRO00187 ○Spec Label ①Barcode of IMEI ②IMEI (Production Serial Number) ③Products Code ④Color Name ⑤"製造年月" ⑤Production Year & Month ○Location FCC ID : APYHRO00187 Caution:Don`t remove this label. Turn off power in aircrafts. Vendor: SOFTBANK MOBILE Corp. Manufacturer/Applicant: SHARP Co.

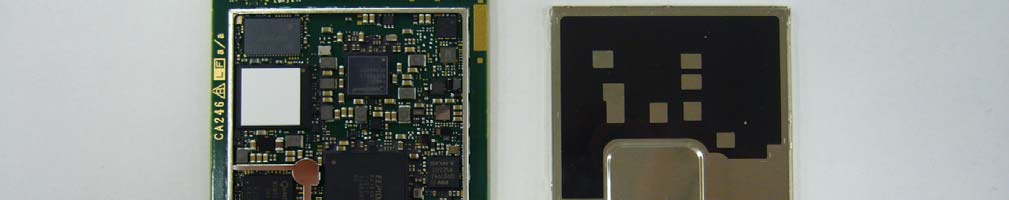

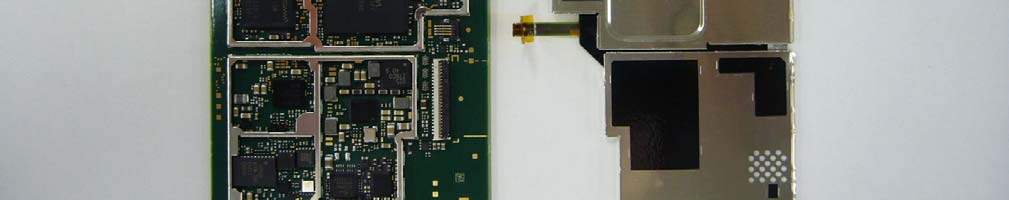

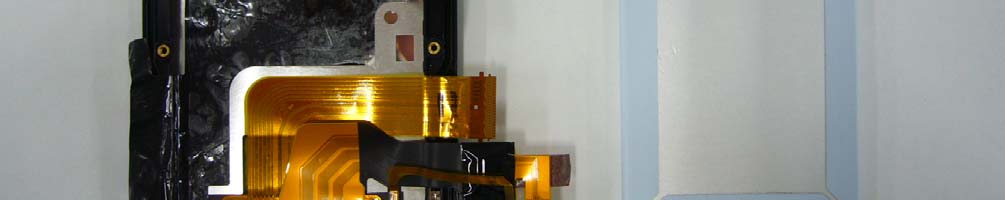

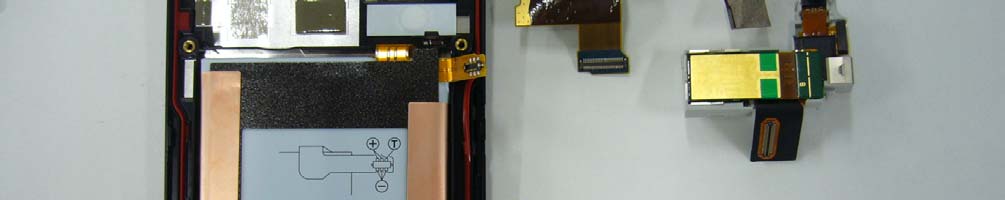

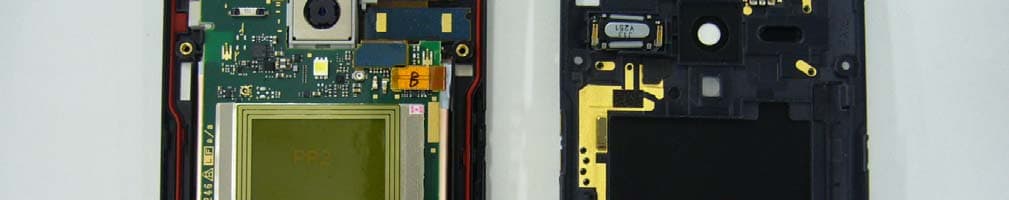

Model Name: 203SH Photo (Internal) FCC ID : APYHRO00187 1 / 4 Model Name: 203SH Photo (Internal) FCC ID : APYHRO00187 2 / 4 Model Name: 203SH Photo (Internal) FCC ID : APYHRO00187 3 / 4 Model Name: 203SH Photo (Internal) FCC ID : APYHRO00187 4 / 4

Test report No. : 10003339H-B Page : 2 of 22 Issued date : Februay 4, 2013 FCC ID : APYHRO00187 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10003339H-B Revision Test report No. Date Page revised Contents - (Original) 10003339H-B February 4, 2013 - - Test report No. : 10003339H-B Page : 3 of 22 Issued date : Februay 4, 2013 FCC ID : APYHRO00187 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Conducted Emission ....................................................................................... 10 SECTION 6: Radiated Emission .......................................................................................... 11 APPENDIX 1: Data of EMI test ........................................................................................... 12 Conducted Emission .................................................................................................................... 12 Radiated Emission ....................................................................................................................... 14 APPENDIX 2: Test instruments ........................................................................................... 18 APPENDIX 3: Photographs of test setup............................................................................. 19 Conducted Emission .................................................................................................................... 19 Radiated Emission ....................................................................................................................... 20 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) ..................................................... 22 Test report No. : 10003339H-B Page : 4 of 22 Issued date : Februay 4, 2013 FCC ID : APYHRO00187 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Sharp Corporation, Communication Systems Group. Address : 2-13-1 Iida Hachihonmatsu HigashiHiroshima-City, Hiroshima, 739-0192 Japan Telephone Number : +81-82-420-1827 Facsimile Number : +81-82-420-1572 Contact Person : Hiroyuki Uwatoko SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Cellular Phone Model No. : 203SH Serial No. : Refer to Section 4, Clause 4.2 Receipt Date of Sample : January 11, 2013 Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Feature of EUT : 203SH is AXGP, Tri-band WCDMA(FDD I/FDD VIII/FDD XI) & Tri-band GSM(900/1800/1900) Multi-mode Cellular Phone. The EUT has the function that Bluetooth wireless technology interface and wireless LAN technical interface for establishing contact and transmitting data with certain device. Clock frequencies in the system : CPU: 1.512GHz (max) RTC: 32.768kHz Source oscillation: 19.2MHz / 27MHz (CPU) / 27.12MHz (NFC) 37.4MHz (Bluetooth/WLAN) Test report No. : 10003339H-B Page : 5 of 22 Issued date : Februay 4, 2013 FCC ID : APYHRO00187 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test specification Test Specification : FCC Part 15 Subpart B: 2012, final revised on December 27, 2012 and effective January 28, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart B Unintentional Radiators * The revision on December 27, 2012 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Limits Deviation Worst margin Result Conducted emission ANSI C63.4: 2009 7. AC powerline conducted emission measurements Class B N/A [QP] 12.9dB 0.16998MHz, L [AV] 12.7dB 0.16998MHz, L Complied Radiated emission ANSI C63.4: 2009 8. Radiated emission measurements Class B N/A 9.0dB 599.270MHz, Horizontal, QP Complied *Note: UL Japan, Inc’s EMI Work Procedure 13-EM-W0420. 3.3 Addition to standard No addition, exclusion nor deviation has been made from the standard. Test report No. : 10003339H-B Page : 6 of 22 Issued date : Februay 4, 2013 FCC ID : APYHRO00187 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 3.4 Uncertainty EMI The following uncertainties have been calculated to provide a confidence level of 95% using a coverage factor k=2. Test room (semi- anechoic chamber) Conducted emission (+dB) 150kHz-30MHz No.1 3.5dB No.2 3.6dB No.3 3.6dB No.4 3.6dB Test room (semi- anechoic chamber) Radiated emission (3m*)(+dB) (1m*)(+dB) (0.5m*)(+dB) 9kHz -30MHz 30MHz -300MHz 300MHz -1GHz 1GHz -10GHz 10GHz -18GHz 18GHz -26.5GHz 26.5GHz -40GHz No.1 4.3dB 5.0dB 5.1dB 4.9dB 5.8dB 4.4dB 4.3dB No.2 4.3dB 5.2dB 5.1dB 5.0dB 5.7dB 4.3dB 4.2dB No.3 4.6dB 5.0dB 5.1dB 5.0dB 5.7dB 4.5dB 4.2dB No.4 4.8dB 5.2dB 5.0dB 5.0dB 5.7dB 5.2dB 4.2dB *3m/1m/0.5m = Measurement distance Conducted Emission test The data listed in this test report has enough margin, more than the site margin. Radiated emission test(3m) The data listed in this test report has enough m…

Text truncated - open the document above for the full version.

Test report No. : 10003339H-B Page : 19 of 22 Issued date : Februay 4, 2013 FCC ID : APYHRO00187 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10003339H-B Page : 20 of 22 Issued date : Februay 4, 2013 FCC ID : APYHRO00187 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Below 1GHz) Photo 1 Photo 2 Test report No. : 10003339H-B Page : 21 of 22 Issued date : Februay 4, 2013 FCC ID : APYHRO00187 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Emission (Above 1GHz) Photo 1 Photo 2 Test report No. : 10003339H-B Page : 22 of 22 Issued date : Februay 4, 2013 FCC ID : APYHRO00187 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:X-axis) X-axis Y-axis Z-axis End of Report
