APYHRO00197Cellular Phone

Don’t forget your mobile phone... or your manners! When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Sales : Manufacturer : SHARP Corporation For loss, theft, malfunction, and inquiries while overseas (24-hour reception) ɡ From DOCOMO mobile phones ɡ From land-line phones <Universal number> International call access codefor the country you stay -81-3-6832-6600 * (toll free) * You are charged a call fee to Japan when calling from a land-line phone, etc. ɦ If you use SH-01F, you should dial the number +81-3-6832-6600 (to enter “+”, touch and hold “0”). Universal number international prefix -8000120-0151 * * You might be charged a domestic call fee according to the call rate for the country you stay. ɦ For international call access codes for major countries and universal number international prefix, refer to DOCOMO International Services website. ɜ ġ If you lose your handset or have it stolen, immediately take the steps necessary for suspending the use of the handset. ɜ ġ If the handset you purchased is damaged, bring your handset to a repair counter specified by DOCOMO after returning to Japan. Repairs (Business hours: 24 hours (open all year round)) (No prefix) 113 (toll free) ɡ From DOCOMO mobile phones (In Japanese only) ɡ From land-line phones (In Japanese only) ɦ Unavailable from part of IP phones. 0120-800-000 (toll free) ɦ Unavailable from land-line phones, etc. General Inquiries <docomo Information Center> (Business hours: 9:00 a.m. to 8:00 p.m.) 0120-005-250 (toll free) ɦ Service available in: English, Portuguese, Chinese, Spanish. ɦ Unavailable from part of IP phones. (Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)) (No prefix) 151 (toll free) ɡ From DOCOMO mobile phones (In Japanese only) ɦ Unavailable from land-line phones, etc. ɦ Unavailable from part of IP phones. 0120-800-000 (toll free) ɡ From land-line phones (In Japanese only) ɜ Please confirm the phone number before you dial. ɜ For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop etc. near you on the NTT DOCOMO website. NTT DOCOMO website ȁ http://www.nttdocomo.co.jp/english/ SH-01F INSTRUCTION MANUAL ’13. ɜ (1st Edition) 13 ɜ SM*** ȁ 1 ’13. ɜ Introduction Thank you for purchasing “SH-01F”.Be sure to read this manual before and during use to ensure proper operation.  For details on other optional parts n P. 83 “Introduction of options and related devices” Checking operation method Quick Start Guide (Basic package)(in Japanese only)This guide describes operations of basic functions.User’s Manual (App of the handset)(in Japanese only)This manual describes detailed guidance and operations of functions.In the home screen, [ R ] / [Instruction Manual] To display help: [ z ] / [ ུ ͅίς͈ঀ̞̥̹ ] (How to use this app)User’s Manual (in PDF format)This manual describes detailed guidance and operations of functions.Download from the DOCOMO website(http://www.nttdocomo.co.jp/english/support/trouble/manual/download/index.html ) ɦ The URL and contents of this manual are subject to change without prior notice.  The screens and illustrations in this manual are shown as examples. The actual screens and illustrations may differ.  The explanations in this manual are based on the case when the home app is docomo LIVE UX. If you change the home app, operation procedures etc. may be different from the explanations of this manual.  Note that “SH-01F” is referred to as “handset” in this manual.  This manual refers to microSD Card, microSDHC Card or microSDXC Card as “microSD Card” or “microSD”.  Reproduction of this manual in part or in whole is prohibited.  The contents of this manual are subject to change without prior notice. Basic package SH-01F (includes warranty) Quick Start Guide (in Japanese only) Notes on usage(in Japanese only) 4 Contents/Precautions  Before use, read these “Precautions” carefully and use your handset properly.Keep this manual in a safe place for future reference.  These precautions contain information intended to prevent bodily injury to the user and to surrounding people, as well as damage to property, and must be observed at all times. The following symbols indicate the different degrees of injury or damage that may occur if information provided is not observed and the handset is used improperly.The following symbols indicate specific directions.“Precautions” is explained in the following six sections. Handling the handset, adapters and docomo mini UIM card (general) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4  Handling the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5  Handling adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6  Handling docomo mini UIM card . . . . . . . . . . . . . . . . . . . . . . P. 7  Handling near electronic medical equipment . . . . . . . . . . . . P. 7  Material list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 Precautions (ALWAYS FOLLOW THESE DIRECTIONS) Danger This symbol indicates that “death or serious bodily injury may directly and immediately result from improper use”. Warning This symbol indicates that “death or serious bodily injury may result from improper use”. Caution This symbol indicates that “minor injury and/or property damage may result from improper use”. Indicates a prohibited action. Indicates not to handle the device with wet hands. Indicates not to disassemble the device. Indicates that instructions specified are compulsory (must be followed). Indicates not to use the device near water or get it wet. Indicates that the power cord must be unplugged from the outlet. Handling the handse t, adapters and docomo mini UIM card (general) Danger Do not use, store or leave the equipment in locations subject to high temperatures (near a fire or heating unit, in a kotatsu, unde…

Text truncated - open the document above for the full version.

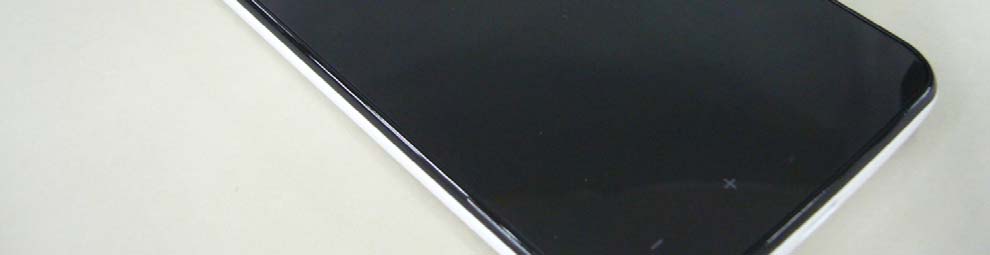

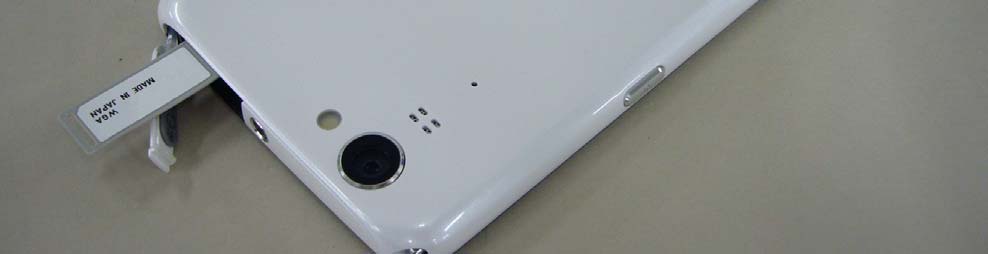

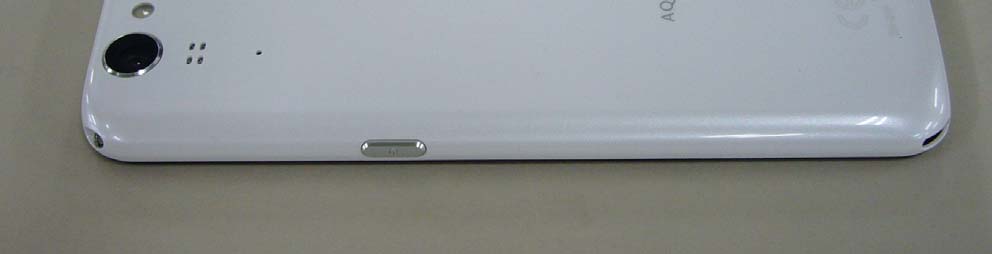

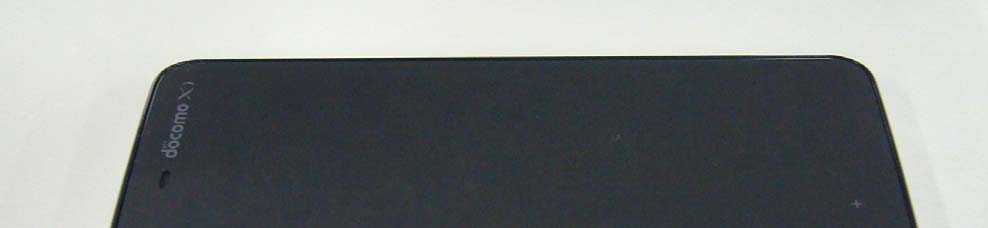

Model Name: SH-01F Photo (External) FCC ID: APYHRO00197 1 / 21 / 2 Model Name: SH-01F Photo (External) FCC ID: APYHRO00197 2 / 22 / 2

Model Name:SH-01F Spec Label and Location FCC ID:APYHRO00197 ○Spec Label IMEI Label on IMEI Tray ① Barcode of IMEI ② IMEI (Production Serial Number) ② IMEI (Production Serial Number) ③ Production Year & Month ④ Country of Manufacture FCC ID: APYHRO00197FCC ID: APYHRO00197 ○Location IMEI Tray Can be seen on back cover (appearance)

Model Name: SH-01F Photo (Internal) FCC ID: APYHRO00197 1 / 51 / 5 Model Name: SH-01F Photo (Internal) FCC ID: APYHRO00197 2 / 52 / 5 Model Name: SH-01F Photo (Internal) FCC ID: APYHRO00197 3 / 53 / 5 Model Name: SH-01F Photo (Internal) FCC ID: APYHRO00197 4 / 54 / 5 Model Name: SH-01F Photo (Internal) FCC ID: APYHRO00197 5 / 55 / 5

Antenna Photo FCC ID: APYHRO00197 SH-01F Antenna Distance Between 'GSM850/PCS1900/WCDMA Band-V Antenna' and 'Bluetooth/WLAN Antenna' & Between Antenna and edge of equipment Note*; Shortest distance between Bluetooth/WLAN and Main anttena Sub Antenna (Receive only) Top edge Bottom edge 59.9 mm 0.68 mm 130.8 mm 99.1 mm 0.63 mm 1.8 mm 0.85 mm 21.3 mm Left edge Right edge Bluetooth/WLAN Antenna Main Antenna WCDMA Bnad-V / GSM850 / PCS1900 88.2 mm (Note*)

Appendix 1 – System Performance Check Plots Date: 9/8/2013 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Frequency: 835 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 1.001 S/m; ε r = 55.061; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3540; ConvF(9.87, 9.87, 9.87); Calibrated: 8/19/2013; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/5/2012 - Phantom: SAM v4.0 SN1200; Type: QD000P40CC; Serial: TP 1200 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Body/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.94 W/kg Body/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 55.182 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.46 W/kg SAR(1 g) = 2.34 W/kg; SAR(10 g) = 1.54 W/kg Maximum value of SAR (measured) = 2.96 W/kg 0 dB = 2.96 W/kg = 4.71 dBW/kg Date: 9/9/2013 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Frequency: 835 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 0.914 S/m; ε r = 41.432; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3540; ConvF(9.88, 9.88, 9.88); Calibrated: 8/19/2013; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/5/2012 - Phantom: SAM v4.0 SN1200; Type: QD000P40CC; Serial: TP 1200 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Head/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.98 W/kg Head/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 58.540 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.59 W/kg SAR(1 g) = 2.39 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 3.05 W/kg 0 dB = 3.05 W/kg = 4.84 dBW/kg Date: 9/10/2013 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.425 S/m; ε r = 39.852; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3540; ConvF(8.37, 8.37, 8.37); Calibrated: 8/19/2013; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn516; Calibrated: 5/10/2013 - Phantom: SAM v4.0 SN1200; Type: QD000P40CC; Serial: TP 1200 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Head/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 15.0 W/kg Head/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 103.8 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 18.9 W/kg SAR(1 g) = 10.3 W/kg; SAR(10 g) = 5.38 W/kg Maximum value of SAR (measured) = 14.8 W/kg 0 dB = 14.8 W/kg = 11.70 dBW/kg Date: 9/11/2013 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.543 S/m; ε r = 52.593; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3540; ConvF(8.02, 8.02, 8.02); Calibrated: 8/19/2013; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn516; Calibrated: 5/10/2013 - Phantom: SAM v4.0 SN1200; Type: QD000P40CC; Serial: TP 1200 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Body/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 15.2 W/kg Body/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 100.6 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 19.5 W/kg SAR(1 g) = 10.9 W/kg; SAR(10 g) = 5.72 W/kg Maximum value of SAR (measured) = 15.6 W/kg 0 dB = 15.6 W/kg = 11.93 dBW/kg Date: 9/12/2013 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 5 GHz; Type: D5GHzV2; Serial: 1039 Frequency: 5200 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 5200 MHz; σ = 5.436 S/m; ε r = 47.391; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3540; ConvF(4.11, 4.11, 4.11); Calibrated: 8/19/2013; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn516; Calibrated: 5/10/2013 - Phantom: SAM v4.0 SN1200; Type: QD000P40CC; Serial: TP 1200 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Body/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 38.0 W/kg Body/Input 250 mW/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 90.889 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 77.2 W/kg SAR(1 g) = 19.5 W/kg; SAR(10 g) = 5.46 W/kg Maximum value of SAR (measured) = 40.5 W/kg 0 dB = 40.5 W/kg = 16.07 dBW/kg Date: 9/12/2013 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 5 GHz; Type: D5GHzV2; Serial: 1039 Frequency: 5300 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 5300 MHz; σ = 5.557 S/m; ε r = 47.23; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3540; ConvF(3.94, 3.94, 3.94); Calibrated: 8/19/2013; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn516; Calibrated: 5/10/2013 - Phantom: SAM v4.0 SN1200; Type: QD000P40CC; Serial: TP 1200 - Measurement SW: DASY52, Version 52.8 (7…

Text truncated - open the document above for the full version.

Appendix 3 – Dosimetric E-Field Probe Calibration Data Appendix 4 – System Validation Dipole Calibration Data

Page 1 of 60 Technical document No. 23163-1301 JQA File No. : JQA File No. :JQA File No. : JQA File No. : KL80130332S Issue Issue Issue Issue Date DateDate Date : :: : October 21, 2013 TEST RE TEST RETEST RE TEST REPORT (SAR EVALUATION) PORT (SAR EVALUATION)PORT (SAR EVALUATION) PORT (SAR EVALUATION) A AA Applicant pplicantpplicant pplicant : :: : Sharp Corporation, Communication Systems Division Address AddressAddress Address : :: : 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan Products ProductsProducts Products : :: : Cellular Phone Model No Model NoModel No Model No. .. . : :: : SH-01F Serial No Serial NoSerial No Serial No. .. . : :: : 004401114935139 FCC ID FCC IDFCC ID FCC ID : :: : APYHRO00197 T TT Test estest est S SS Standard tandardtandard tandard : :: : FCC/OET Bulletin 65 Supplement C (Edition 01-01) T TT Test estest est R RR Results esultsesults esults : :: : Passed PassedPassed Passed Date of Date ofDate of Date of T TT Test estest est : :: : September 8 ~ 16, 2013 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80130332S Issue Date : October 21, 2013 Model No. : SH-01F FCC ID : APYHRO00197 Standard : FCC/OET Bulletin 65 Supplement C (Edition 01-01) Page 2 of 60 Technical document No. 23163-1301 TABLE OF CONTENTS TABLE OF CONTENTSTABLE OF CONTENTS TABLE OF CONTENTS Page PagePage Page 1 11 1 Description of the Device Under Test (DUT) Description of the Device Under Test (DUT)Description of the Device Under Test (DUT) Description of the Device Under Test (DUT) ....................................................................................... 3 2 22 2 Summary of Test Results Summary of Test ResultsSummary of Test Results Summary of Test Results ...................................................................................................................... 4 3 33 3 Test Procedure Test ProcedureTest Procedure Test Procedure ....................................................................................................................................... 5 4 44 4 Test Lo Test LoTest Lo Test Location cationcation cation .......................................................................................................................................... 5 5 55 5 Recognition of Test Laboratory Recognition of Test LaboratoryRecognition of Test Laboratory Recognition of Test Laboratory ............................................................................................................. 5 6 66 6 Measurement System Diagram Measurement System DiagramMeasurement System Diagram Measurement System Diagram ............................................................................................................ 6 7 77 7 System Components System ComponentsSystem Components System Components .............................................................................................................................. 7 8 88 8 Measurement Process Measurement ProcessMeasurement Process Measurement Process ..........................................................................................................................12 9 99 9 M MM Measurement Uncertainties easurement Uncertaintieseasurement Uncertainties easurement Uncertainties ...............................................................................................................13 10 1010 10 Test Arrangement Test ArrangementTest Arrangement Test Arrangement ................................................................................................................................15 11 1111 11 Tissue Verification Tissue VerificationTissue Verification Tissue Verification ...............................................................................................................................17 12 1212 12 System Validation System ValidationSystem Validation System Validation ................................................................................................................................21 13 1313 13 RF Output Power Measurements RF Output Power MeasurementsRF Output Power Measurements RF Output Power Measurements .......................................................................................................23 14 1414 14 SAR Measurements SAR MeasurementsSAR Measurements SAR Measurements .............................................................................................................................31 15 1515 15 Test Setup Photographs Test Setup PhotographsTest Setup Photographs Test Setup Photographs ......................................................................................................................54 16 1616 16 Test Instruments Test InstrumentsTest Instruments Test Instruments .................................................................................................................................59 17 1717 17 Appendix AppendixAppendix Appendix.........................................…

Text truncated - open the document above for the full version.

Page 1 of 43 Technical document No. 23199-1201 JQA File No. : JQA File No. :JQA File No. : JQA File No. : KL80130333R Issue Issue Issue Issue Date DateDate Date : :: : October 1, 2013 TEST RE TEST RETEST RE TEST REPORT PORTPORT PORT A AA Applicant pplicantpplicant pplicant : :: : Sharp Corporation, Communication Systems Division Address AddressAddress Address : :: : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN P PP Products roductsroducts roducts : :: : Cellular Phone M MM Model No odel Noodel No odel No. .. . : :: : SH-01F Serial No Serial NoSerial No Serial No. .. . : :: : 004401114935196 004401114935162 FCC ID FCC IDFCC ID FCC ID : :: : APYHRO00197 T TT Test estest est S SS Standard tandardtandard tandard : :: : CFR 47 FCC Rules and Regulations Part 22 T TT Test estest est R RR Results esultsesults esults : :: : Passed PassedPassed Passed Date DateDate Date of ofof of T TT Test estest est : :: : September 13 ~ 24, 2013 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80130333R Issue Date : October 1, 2013 Model No. : SH-01F FCC ID : APYHRO00197 Standard : CFR 47 FCC Rules and Regulations Part 22 Page 2 of 43 Technical document No. 23199-1201 TABLE OF CONTENTS TABLE OF CONTENTSTABLE OF CONTENTS TABLE OF CONTENTS Page PagePage Page 1 11 1 Description of the Equipment Under Test Description of the Equipment Under TestDescription of the Equipment Under Test Description of the Equipment Under Test ........................................................................................... 3 2 22 2 Summary of Test Results Summary of Test ResultsSummary of Test Results Summary of Test Results ...................................................................................................................... 4 3 33 3 Test Procedure Test ProcedureTest Procedure Test Procedure ....................................................................................................................................... 5 4 44 4 Test Location Test LocationTest Location Test Location .......................................................................................................................................... 5 5 55 5 Recognition of Test Laboratory Recognition of Test LaboratoryRecognition of Test Laboratory Recognition of Test Laboratory ............................................................................................................. 5 6 66 6 Details of the Equipment Under Test Details of the Equipment Under TestDetails of the Equipment Under Test Details of the Equipment Under Test .................................................................................................. 6 7 77 7 Details of the Test Item Details of the Test ItemDetails of the Test Item Details of the Test Item ......................................................................................................................... 9 D DD DEFINITIONS EFINITIONSEFINITIONS EFINITIONS FOR FORFOR FOR A AA ABBREVIATION AND SYMBOLS BBREVIATION AND SYMBOLSBBREVIATION AND SYMBOLS BBREVIATION AND SYMBOLS USED USEDUSED USED IN ININ IN THIS THISTHIS THIS T TT TEST ESTEST EST REPORT REPORTREPORT REPORT EUT EUTEUT EUT : Equipment Under Test EMC EMCEMC EMC : Electromagnetic Compatibility AE AEAE AE : Associated Equipment EMI EMIEMI EMI : Electromagnetic Interference N/A N/AN/A N/A : Not Applicable EMS EMSEMS EMS : Electromagnetic Susceptibility N/T N/TN/T N/T : Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80130333R Issue Date : October 1, 2013 Model No. : SH-01F FCC ID : APYHRO00197 Standard : CFR 47 FCC Rules and Regulations Part 22 Page 3 of 43 Technical document No. 23199-1201 1 11 1 D DD Description escriptionescription escription of ofof of the Equipment Under Test the Equipment Under Testthe Equipment Under Test the Equipment Under Test 1. Manufacturer : Sharp Corporation, Communication Systems Division 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN 2. Products : Cellular Phone 3. Model No. : SH-01F 4. Serial No. : 004401114935196 : 004401114935162 5. Product Type : Pre-production 6. Date of Manufacture : August, 2013 7. Power Rating : 4.0VDC (Lithium-ion Battery LIS1531SPPC(SY6) 3000mAh) 8. EUT Grounding : None 9. Transmitting Frequency : 824.2 MHz(128CH) – 848.8 MHz(251CH) 10. Receiving Frequency : 869.2 MHz(128CH) – 893.8 MHz(251CH) 11. Emission Designations : 245KGXW 12. Max. RF Output Power : 1.202W (ERP) 13. Category : GSM850 14. EUT Authorization : Certification 15. Received Date of EUT : September 11, 2013 16. Channel Plan The carrier spacing is 200 kHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: Transmitting Frequency (in MHz) = 824.2 + 0.2 × (n – 128) where, n : channel number (128 ≤ n ≤ 251) Receiving Frequency (in MHz) = 869.2 +…

Text truncated - open the document above for the full version.

Page 1 of 43 Technical document No. 23199-1201 JQA File No. : JQA File No. :JQA File No. : JQA File No. : KL80130334R Issue Issue Issue Issue Date DateDate Date : :: : October 1, 2013 TEST RE TEST RETEST RE TEST REPORT PORTPORT PORT A AA Applicant pplicantpplicant pplicant : :: : Sharp Corporation, Communication Systems Division Address AddressAddress Address : :: : 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN P PP Products roductsroducts roducts : :: : Cellular Phone M MM Model No odel Noodel No odel No. .. . : :: : SH-01F Serial No Serial NoSerial No Serial No. .. . : :: : 004401114935196 004401114935162 FCC ID FCC IDFCC ID FCC ID : :: : APYHRO00197 T TT Test estest est S SS Standard tandardtandard tandard : :: : CFR 47 FCC Rules and Regulations Part 22 T TT Test estest est R RR Results esultsesults esults : :: : Passed PassedPassed Passed Date DateDate Date of ofof of T TT Test estest est : :: : September 13 ~ 24, 2013 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80130334R Issue Date : October 1, 2013 Model No. : SH-01F FCC ID : APYHRO00197 Standard : CFR 47 FCC Rules and Regulations Part 22 Page 2 of 43 Technical document No. 23199-1201 TABLE OF CONTENTS TABLE OF CONTENTSTABLE OF CONTENTS TABLE OF CONTENTS Page PagePage Page 1 11 1 Description of the Equipment Under Test Description of the Equipment Under TestDescription of the Equipment Under Test Description of the Equipment Under Test ........................................................................................... 3 2 22 2 Summary of Test Results Summary of Test ResultsSummary of Test Results Summary of Test Results ...................................................................................................................... 4 3 33 3 Test Procedure Test ProcedureTest Procedure Test Procedure ....................................................................................................................................... 5 4 44 4 Test Location Test LocationTest Location Test Location .......................................................................................................................................... 5 5 55 5 Recognition of Test Laboratory Recognition of Test LaboratoryRecognition of Test Laboratory Recognition of Test Laboratory ............................................................................................................. 5 6 66 6 Details of the Equi Details of the EquiDetails of the Equi Details of the Equipment Under Test pment Under Testpment Under Test pment Under Test .................................................................................................. 6 7 77 7 Details of the Test Item Details of the Test ItemDetails of the Test Item Details of the Test Item ......................................................................................................................... 9 D DD DEFINITIONS EFINITIONSEFINITIONS EFINITIONS FOR FORFOR FOR A AA ABBREVIATION AND SYMBOLS BBREVIATION AND SYMBOLSBBREVIATION AND SYMBOLS BBREVIATION AND SYMBOLS USED USEDUSED USED IN ININ IN THIS THISTHIS THIS TE TETE TEST STST ST REPORT REPORTREPORT REPORT EUT EUTEUT EUT : Equipment Under Test EMC EMCEMC EMC : Electromagnetic Compatibility AE AEAE AE : Associated Equipment EMI EMIEMI EMI : Electromagnetic Interference N/A N/AN/A N/A : Not Applicable EMS EMSEMS EMS : Electromagnetic Susceptibility N/T N/TN/T N/T : Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80130334R Issue Date : October 1, 2013 Model N…

Text truncated - open the document above for the full version.
