APYHRO00207Cellular Phone

Don’t forget your mobile phone... or your manners! When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Sales : Manufacturer : SHARP Corporation For loss, theft, malfunction, and inquiries while overseas (24-hour reception) ɡ From DOCOMO mobile phones ɡ From land-line phones <Universal number> International call access codefor the country you stay -81-3-6832-6600 * (toll free) * You are charged a call fee to Japan when calling from a land-line phone, etc. ɦ If you use SH-04F, you should dial the number +81-3-6832-6600 (to enter “+”, touch and hold “0”). Universal number international prefix -8000120-0151 * * You might be charged a domestic call fee according to the call rate for the country you stay. ɦ For international call access codes for major countries and universal number international prefix, refer to DOCOMO International Services website. ɜ ġ If you lose your handset or have it stolen, immediately take the steps necessary for suspending the use of the handset. ɜ ġ If the handset you purchased is damaged, bring your handset to a repair counter specified by DOCOMO after returning to Japan. Repairs (Business hours: 24 hours (open all year round)) (No prefix) 113 (toll free) ɡ From DOCOMO mobile phones (In Japanese only) ɡ From land-line phones (In Japanese only) ɦ Unavailable from part of IP phones. 0120-800-000 (toll free) ɦ Unavailable from land-line phones, etc. General Inquiries <docomo Information Center> (Business hours: 9:00 a.m. to 8:00 p.m.) 0120-005-250 (toll free) ɦ Service available in: English, Portuguese, Chinese, Spanish. ɦ Unavailable from part of IP phones. (Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)) (No prefix) 151 (toll free) ɡ From DOCOMO mobile phones (In Japanese only) ɦ Unavailable from land-line phones, etc. ɦ Unavailable from part of IP phones. 0120-800-000 (toll free) ɡ From land-line phones (In Japanese only) ɜ Please confirm the phone number before you dial. ɜ For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop etc. near you on the NTT DOCOMO website. NTT DOCOMO website ȁ http://www.nttdocomo.co.jp/english/ SH-04F INSTRUCTION MANUAL ’14. ɜ (1st Edition) 14 ɜ TU*** ȁ 1 ’14. ɜ Introduction Thank you for purchasing “SH-04F”. Be sure to read this manual before and during use to ensure proper operation. For optional parts (sold separately) compatible with the handset, refer to the DOCOMO website. (https://www.nttdocomo.co.jp/product/option/) (in Japanese only) Checking operation method Quick Start Guide (Basic package) (in Japanese only) This guide describes operations of basic functions. User’s Manual (App of the handset) (in Japanese only) This manual describes detailed guidance and operations of functions. In the home screen, [R]/[Instruction Manual] To display help: [z]/[ུ ͅίς͈ঀ̞̥̹] (How to use this app) User’s Manual (in PDF format) This manual describes detailed guidance and operations of functions. Download from the DOCOMO website (http://www.nttdocomo.co.jp/english/support/trouble/ manual/download/index.html) ɦThe URL and contents are subject to change without prior notice. The screens and illustrations in this manual are shown as examples. The actual screens and illustrations may differ. The explanations in this manual are based on the case when the home app is docomo LIVE UX. If you change the home app, operation procedures etc. may be different from the explanations of this manual. Note that “SH-04F” is referred to as “handset” in this manual. This manual refers to microSD Card, microSDHC Card or microSDXC Card as “microSD Card” or “microSD”. Reproduction of this manual in part or in whole without prior permission is prohibited. The contents of this manual are subject to change without prior notice. Basic package SH-04F (includes warranty) Quick Start Guide (in Japanese only) Notes on usage (in Japanese only) 4 Contents/Precautions Before use, read these “Precautions” carefully and use your handset properly. Keep this manual in a safe place for future reference. These precautions contain information intended to prevent bodily injury to the user and to surrounding people, as well as damage to property, and must be observed at all times. The following symbols indicate the different degrees of injury or damage that may occur if information provided is not observed and the handset is used improperly. The following symbols indicate specific directions. “Precautions” is explained in the following six sections. Handling the handset, adapters and docomo mini UIM card (general) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 Handling the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5 Handling adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6 Handling docomo mini UIM card . . . . . . . . . . . . . . . . . . . . . . P. 7 Handling near electronic medical equipment . . . . . . . . . . . . P. 7 Material list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 Precautions (ALWAYS FOLLOW THESE DIRECTIONS) Danger This symbol indicates that “death or serious bodily injury may directly and immediately result from improper use”. Warning This symbol indicates that “death or serious bodily injury may result from improper use”. Caution This symbol indicates that “minor injury and/or property damage may result from improper use”. Indicates a prohibited action. Indicates not to handle the device with wet hands. Indicates not to disassemble the device. Indicates that instructions specified are compulsory (must be followed). Indicates not to use the device near water or get it wet. Indicates that the power cord must be unplugged from the outlet. Handling the handset, adapters and docomo mini UIM card (general) Danger Do not use, store or leave the equipment in locations subject to high tempera…

Text truncated - open the document above for the full version.

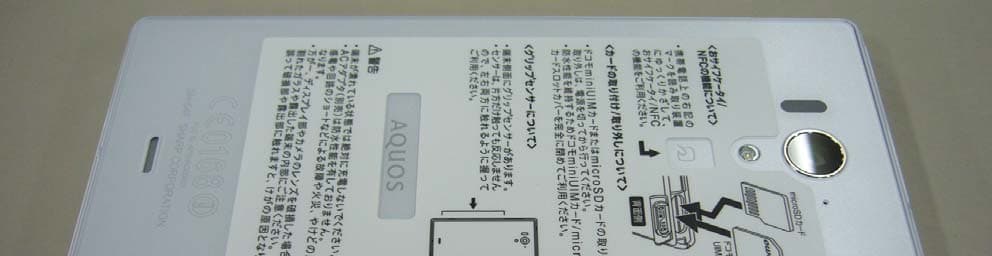

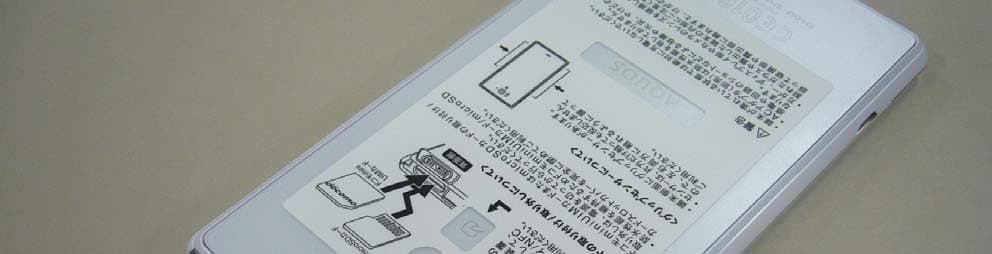

Model Name: SH-04F Photo (External) FCC ID: APYHRO00207 1 / 21 / 2 Model Name: SH-04F Photo (External) FCC ID: APYHRO00207 2 / 22 / 2

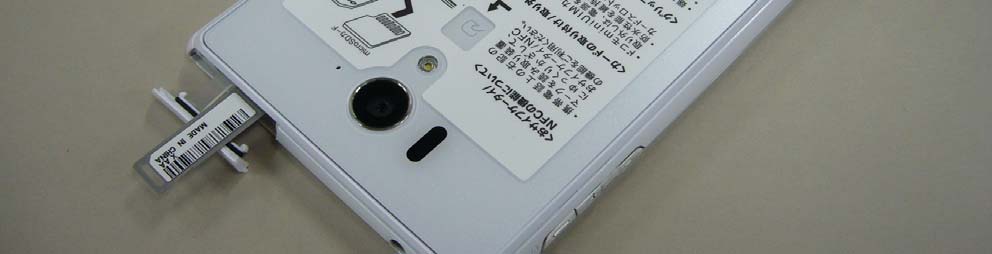

FCC ID Location (On CAB) FCC ID:APYHRO00207 ○Location (on Back cover) ○ IMEI (Serial number ) Label ① FCC ID: APYHRO00207 ② Model Name ③ Manufacture ④ IMEI Number Bar code ⑤ Production serial number (IMEI) ⑥ Production Year & Month ⑦ Production country ⑥ ② ⑤ ③ ④ ① Serial number tray ⑦ APYHRO00207

Model Name: SH-04F Photo (Internal) FCC ID: APYHRO00207 1 / 51 / 5 Model Name: SH-04F Photo (Internal) FCC ID: APYHRO00207 2 / 52 / 5 Model Name: SH-04F Photo (Internal) FCC ID: APYHRO00207 3 / 53 / 5 Model Name: SH-04F Photo (Internal) FCC ID: APYHRO00207 4 / 54 / 5 Model Name: SH-04F Photo (Internal) FCC ID: APYHRO00207 5 / 55 / 5

Annena PhotoFCC ID ： APYHRO00207 SH-04F Antenna Distance 31mm 1mm 69mm 139.5mm 1mm Main Antenna TOP Edge Right Edge Left Edge 1mm 1mm 2mm 91mm 2.4GHz/5GHz WLAN&BT Antenna Bottom Edge

Page 1 of 58 Technical document No. 23163-1301 JQA File No. :KL80130656R Issue Date :March 31, 2014 TEST REPORT (SAR EVALUATION) Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan Products:Cellular Phone Model No.:SH-04F Serial No.:004401115065274 FCC ID:APYHRO00207 Test Standard:CFR 47 FCC Rules and Regulations Part 2 Test Results:Passed Date of Test:March 5 ~ 17, 2014 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan, National Institute of Information and Communications Technology (NICT) of Japan , and Laboratory for EMF and Microwave Electronics at the Swiss Federal Institute of Technology (ETH) in Zürich, Switzerland. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80130656RIssue Date : March 31, 2014 Model No.: SH-04FFCC ID: APYHRO00207 Standard: CFR 47 FCC Rules and Regulations Part 2 Page 2 of 58 Technical document No. 23163-1301 TABLE OF CONTENTS Page 1Description of the Device Under Test (DUT).................................................................................. 3 2Summary of Test Results................................................................................................................ 4 3Test Procedure................................................................................................................................. 5 4Test Location................................................................................................................................... 5 5Recognition of Test Laboratory....................................................................................................... 5 6Measurement System Diagram....................................................................................................... 6 7System Components........................................................................................................................ 7 8Measurement Process.....................................................................................................................10 9Measurement Uncertainties...........................................................................................................11 10Test Arrangement..........................................................................................................................13 11Tissue Verification..........................................................................................................................15 12System Performance Check............................................................................................................19 13RF Output Power Measurements...................................................................................................21 14SAR Measurements........................................................................................................................29 15Test Setup Photographs.................................................................................................................52 16Test Instruments............................................................................................................................57 17Appendix.........................................................................................................................................58 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80130656RIssue Date : March 31, 2014 Model No.: SH-04FFCC ID: APYHRO00207 Standard: CFR 47 FCC Rules and Regulations Part 2 Page 3 of 58 Technical document No. 23163-1301 1Description of the Device Under Test (DUT) 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida, Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, Japan 2.Products:Cellular Phone 3.Model No.:SH-04F 4.Serial No.:004401115065274 5.Product Type:Pre-production 6.Date of Manufacture:February, 2014 7.Transmitting Frequency:GSM 850 (824 MHz – 849 MHz) PCS 1900 (1850 MHz – 1910 MHz) WCDMA Band V (824 MHz – 849 MHz) WLAN 2.4 GHz (DTS : 2412 MHz – 2462 MHz) WLAN 5 GHz (U-NII 1 : 5150 MHz – 5250 MHz) WLAN 5 GHz (U-NII 2A : 5250 MHz – 5350 MHz) WLAN 5 GHz (U-NII 2C : 5470 MHz – 5725 MHz) Bluetooth (2402 MHz – 2480 MHz) 8.Battery Option:Lithium-ion Battery Pack UBATIA242AFN1 (3300mAh) 9.Power Rating:4.0VDC 10.EUT Grounding:None 11.Device Category:Portable Device (§2.1093) 12.Exposure Category:General Population/Uncontrolled Exposure 13.FCC Rule Part(s):22(H), 24(E), 15.247, 15.407 14.EUT Authorization:Certification 15.Received Date of DUT:March 4, 2014 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80130656RIssue Date : March 31, 2014 Model No.: SH-04FFCC ID: APYHRO00207 Standard: CFR 47 FCC Rules and Regulations Part 2 Page 4 of 58 Technical document No. 23163-1301 2Summary of Test Results Applied Standard : CFR 47 FCC Rules and Regulations Part 2 – Frequency Allocations and Radio Treaty Matters; General Rules and Regulations Test Configuration Reported 1 g SAR (W/kg) Limit (W/kg) LicensedDTSU-NII Head0.560.220.37 1.6 Body-worn Accessory0.710.160.69 Wireless Router (Hotspot)0.710.21N/A Simultaneous Transmission1.400.881.40 The test results arepassedfor exposure limits specified in ANSI…

Text truncated - open the document above for the full version.

Appendix 1 – System Performance Check Plots Date: 3/7/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Frequency: 835 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 0.906 S/m; ε r = 41.45; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.38, 6.38, 6.38); Calibrated: 8/16/2013; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.52 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 54.573 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.44 W/kg SAR(1 g) = 2.34 W/kg; SAR(10 g) = 1.53 W/kg Maximum value of SAR (measured) = 2.53 W/kg 0 dB = 2.53 W/kg = 4.03 dBW/kg Date: 3/7/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d081 Frequency: 835 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 0.978 S/m; ε r = 54.831; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.04, 6.04, 6.04); Calibrated: 8/16/2013; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.61 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.565 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.51 W/kg SAR(1 g) = 2.46 W/kg; SAR(10 g) = 1.62 W/kg Maximum value of SAR (measured) = 2.68 W/kg 0 dB = 2.68 W/kg = 4.28 dBW/kg Date: 3/8/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.448 S/m; ε r = 39.437; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(5.04, 5.04, 5.04); Calibrated: 8/16/2013; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.7 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 90.511 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 15.8 W/kg SAR(1 g) = 9.47 W/kg; SAR(10 g) = 5.03 W/kg Maximum value of SAR (measured) = 10.7 W/kg 0 dB = 10.7 W/kg = 10.29 dBW/kg Date: 3/8/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d112 Frequency: 1900 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.562 S/m; ε r = 52.568; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(4.48, 4.48, 4.48); Calibrated: 8/16/2013; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 11.4 W/kg Dipole/Input 250 mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 92.722 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 16.7 W/kg SAR(1 g) = 10.2 W/kg; SAR(10 g) = 5.44 W/kg Maximum value of SAR (measured) = 11.5 W/kg 0 dB = 11.5 W/kg = 10.61 dBW/kg Date: 3/12/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 2450 MHz; Type: D2450V2; Serial: 714 Frequency: 2450 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.876 S/m; ε r = 38.047; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3808; ConvF(6.95, 6.95, 6.95); Calibrated: 9/12/2013; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Dipole/Input 250 mW/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 20.4 W/kg Dipole/Input 250 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 105.5 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 28.0 W/kg SAR(1 g) = 13.4 W/kg; SAR(10 g) = 6.2 W/kg Maximum value of SAR (measured) = 20.7 W/kg 0 dB = 20.7 W/kg = 13.16 dBW/kg Date: 3/14/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION System Performance Check DUT: Dipole 5 GHz; Type: D5GHzV2; Serial: 1111 Frequency: 5200 MHz;Duty Cycle: 1:1 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 5200 MHz; σ = 5.33 S/m; ε r = 47.524; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3808; ConvF(4.27, 4.27, 4.27); Calibrated: 9/12/2013; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW:…

Text truncated - open the document above for the full version.

Appendix 2 – Highest SAR Test Plots Date: 3/7/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 189ch / GSM 850 - GPRS 4slots DUT: Cellular Phone; Type: SH-04F; Serial: 004401115065274 Frequency: 836.4 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.908 S/m; ε r = 41.442; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.38, 6.38, 6.38); Calibrated: 8/16/2013; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Head/Right Touched/Area Scan (11x8x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.436 W/kg Head/Right Touched/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.780 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.517 W/kg SAR(1 g) = 0.415 W/kg; SAR(10 g) = 0.318 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.430 W/kg 0 dB = 0.430 W/kg = -3.67 dBW/kg Plot No.1 Date: 3/7/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 189ch / GSM 850 - GPRS 4slots DUT: Cellular Phone; Type: SH-04F; Serial: 004401115065274 Frequency: 836.4 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.979 S/m; ε r = 54.849; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(6.04, 6.04, 6.04); Calibrated: 8/16/2013; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Body/Rear/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.554 W/kg Body/Rear/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.294 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.728 W/kg SAR(1 g) = 0.529 W/kg; SAR(10 g) = 0.382 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.557 W/kg 0 dB = 0.557 W/kg = -2.54 dBW/kg Plot No.2 Date: 3/8/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 661ch / PCS 1900 - GPRS 4slots DUT: Cellular Phone; Type: SH-04F; Serial: 004401115065274 Frequency: 1880 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1880 MHz; σ = 1.427 S/m; ε r = 39.525; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(5.04, 5.04, 5.04); Calibrated: 8/16/2013; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Head/Left Touched/Area Scan (11x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.324 W/kg Head/Left Touched/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.012 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.427 W/kg SAR(1 g) = 0.293 W/kg; SAR(10 g) = 0.183 W/kg Maximum value of SAR (measured) = 0.310 W/kg 0 dB = 0.310 W/kg = -5.09 dBW/kg Plot No.3 Date: 3/8/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 661ch / PCS 1900 - GPRS 4slots DUT: Cellular Phone; Type: SH-04F; Serial: 004401115065274 Frequency: 1880 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1880 MHz; σ = 1.541 S/m; ε r = 52.614; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(4.48, 4.48, 4.48); Calibrated: 8/16/2013; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Body/Bottom/Area Scan (7x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.498 W/kg Body/Bottom/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.888 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 0.719 W/kg SAR(1 g) = 0.451 W/kg; SAR(10 g) = 0.256 W/kg Maximum value of SAR (measured) = 0.502 W/kg 0 dB = 0.502 W/kg = -2.99 dBW/kg Plot No.4 Date: 3/8/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 661ch / PCS 1900 - GPRS 4slots DUT: Cellular Phone; Type: SH-04F; Serial: 004401115065274 Frequency: 1880 MHz;Duty Cycle: 1:2.08018 Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1880 MHz; σ = 1.541 S/m; ε r = 52.614; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1679; ConvF(4.48, 4.48, 4.48); Calibrated: 8/16/2013; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn508; Calibrated: 11/27/2013 - Phantom: SAM v4.0 SN1194; Type: QD000P40CA; Serial: TP 1194 - Measurement SW: DASY52, Version 52.8 (7); SEMCAD X Version 14.6.10 (7164) Body/Rear/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.409 W/kg Body/Rear/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.240 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.588 W/kg SAR(1 g) = 0.384 W/kg; SAR(10 g) = 0.227 W/kg Maximum value of SAR (measured) = 0.429 W/kg 0 dB = 0.429 W/kg = -3.68 dBW/kg Plot No.5 Date: 3/7/2014 Test Laboratory: JAPAN QUALITY ASSURANCE ORGANIZATION 4182ch / WCDMA Band V DUT: Cellular Phone; Type: SH-04F; Serial: 004401115065274 Frequency: 836.4 MHz;Duty Cycle: 1:1 R…

Text truncated - open the document above for the full version.

Appendix 3 – Dosimetric E-Field Probe Calibration Data

Appendix 4 – System Validation Dipole Calibration Data

Page 1 of 42 Technical document No. 23199-1201 JQA File No. :KL80130657 Issue Date :March 24, 2014 T E S T R E P O R T Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN Products:Cellular Phone Model No.:SH-04F Serial No.:004401115065365 004401115065464 FCC ID:APYHRO00207 Test Standard:CFR 47 FCC Rules and Regulations Part 22 Test Results:Passed Date of Test:March 10 ~ 17, 2014 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80130657Issue Date : March 24, 2014 Model No.: SH-04FFCC ID: APYHRO00207 Standard: CFR 47 FCC Rules and Regulations Part 22 Page 2 of 42 Technical document No. 23199-1201 TABLE OF CONTENTS Page 1Description of the Equipment Under Test...........................................................................................3 2Summary of Test Results......................................................................................................................4 3Test Procedure.......................................................................................................................................5 4Test Location..........................................................................................................................................5 5Recognition of Test Laboratory.............................................................................................................5 6Details of the Equipment Under Test..................................................................................................6 7Details of the Test Item.........................................................................................................................8 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT: Equipment Under TestEMC: Electromagnetic Compatibility AE: Associated EquipmentEMI: Electromagnetic Interference N/A: Not ApplicableEMS: Electromagnetic Susceptibility N/T: Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80130657Issue Date : March 24, 2014 Model No.: SH-04FFCC ID: APYHRO00207 Standard: CFR 47 FCC Rules and Regulations Part 22 Page 3 of 42 Technical document No. 23199-1201 1Description of the Equipment Under Test 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN 2.Products:Cellular Phone 3.Model No.:SH-04F 4.Serial No.:004401115065365 :004401115065464 5.Product Type:Pre-production 6.Date of Manufacture:February, 2014 7.Power Rating:4.0VDC (Lithium-ion Battery UBATIA242AFN1 3300mAh) 8.EUT Grounding:None 9.Transmitting Frequency:824.2 MHz(128CH) – 848.8 MHz(251CH) 10.Receiving Frequency:869.2 MHz(128CH) – 893.8 MHz(251CH) 11.Emission Designations:244KGXW 12.Max. RF Output Power:1.122W (ERP) 13.Category:GSM850 14.EUT Authorization:Certification 15.Received Date of EUT:March 5, 2014 16.Channel Plan The carrier spacing is 200 kHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: Transmitting Frequency (in MHz)= 824.2 + 0.2 × (n – 128) where, n : channel number (128 ≤ n ≤ 251) Receiving Frequency (in MHz) = 869.2 + 0.2 × (n –128) where, n : channel number (128 ≤ n ≤ 251) JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80130657Issue Date : March 24, 2014 Model No.: SH-04FFCC ID: APYHRO00207 Standard: CFR 47 FCC Rules and Regulations Part 22 Page 4 of 42 Technical document No. 23199-1201 2Summary of Test Results Applied Standard : CFR 47 FCC Rules and Regulations Part 22 Subpart H – Cellular Radiotelephone Service The EUT described in clause 1 was tested according to the applied standard shown above. Details of the test configuration is shown in clause 6. The conclusion for the test…

Text truncated - open the document above for the full version.
