APYHRO00208Hand Held Mini Phablet

Don’t forget your mobile phone... or your manners! When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Sales: Manufacturer: SHARP Corporation For loss, theft, malfunction, and inquiries while overseas (24-hour reception) ■From DOCOMO mobile phones ■From land-line phones <Universal number> International call access code for the country you stay -81-3-6832-6600 * (toll free) * You are charged a call fee to Japan when calling from a land-line phone, etc. ※ If you use SH-06F, you should dial the number +81-3-6832-6600 (to enter “+”, touch and hold “0”). Universal number international prefix -8000120-0151 * * You might be charged a domestic call fee according to the call rate for the country you stay. ※ For international call access codes for major countries and universal number international prefix, refer to DOCOMO International Services website. ● If you lose your tablet or have it stolen, immediately take the steps necessary for suspending the use of the tablet. ● If the tablet you purchased is damaged, bring your tablet to a repair counter specified by DOCOMO after returning to Japan. Repairs (Business hours: 24 hours (open all year round)) (No prefix) 113 (toll free) ■From DOCOMO mobile phones (In Japanese only) ■From land-line phones (In Japanese only) ※ Unavailable from part of IP phones. 0120-800-000 (toll free) ※ Unavailable from land-line phones, etc. General Inquiries <docomo Information Center> (Business hours: 9:00 a.m. to 8:00 p.m.) 0120-005-250 (toll free) ※ Service available in: English, Portuguese, Chinese, Spanish. ※ Unavailable from part of IP phones. (Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)) (No prefix) 151 (toll free) ■From DOCOMO mobile phones (In Japanese only) ※ Unavailable from land-line phones, etc. ※ Unavailable from part of IP phones. 0120-800-000 (toll free) ■From land-line phones (In Japanese only) ● Please confirm the phone number before you dial. ● For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop etc. near you on the NTT DOCOMO website. NTT DOCOMO website https://www.nttdocomo.co.jp/english/ INSTRUCTION MANUAL SH-06F ’14.● (1st Edition) 14● HI*** 1 ’14.● SH-06F_E_01.fm [0/12]~~~~~ ~~~~~ ~~~~~ ~~~~ ~~~~~ Introduction Thank you for purchasing “SH-06F”. Be sure to read this manual before and during use to ensure proper operation. For optional parts (sold separately) compatible with the tablet, refer to the DOCOMO website. (https://www.nttdocomo.co.jp/product/option/) (in Japanese only) Checking operation method Quick Start Guide (Basic package) (in Japanese only) This guide describes operations of basic functions. User’s Manual (App of the tablet) (in Japanese only) This manual describes detailed guidance and operations of functions. In the home screen, [R]/[Instruction Manual] To display help: [z]/[本アプリの使いかた] (How to use this app) User’s Manual (in PDF format) This manual describes detailed guidance and operations of functions. Download from the DOCOMO website (https://www.nttdocomo.co.jp/english/support/ trouble/manual/download/index.html) ※The URL and contents are subject to change without prior notice. The screens and illustrations in this manual are shown as examples. The actual screens and illustrations may differ. The explanations in this manual are based on the case when the home app is docomo LIVE UX. If you change the home app, operation procedures etc. may be different from the explanations of this manual. Note that “SH-06F” is referred to as “tablet” in this manual. This manual refers to microSD Card, microSDHC Card or microSDXC Card as “microSD Card” or “microSD”. Reproduction of this manual in part or in whole without prior permission is prohibited. The contents of this manual are subject to change without prior notice. Basic package SH-06F (includes warranty) Desktop Holder SH47 86%ྠ㍈ኚ᥮ࢣ࣮ࣈࣝ6+ Quick Start Guide (in Japanese only) Notes on usage (in Japanese only) SH-06F_E.book 0 ページ ２０１４年４月２４日 木曜日 午後６時３５分 4 Contents/Precautions SH-06F_E_01.fm [4/12] Before use, read these “Precautions” carefully and use your tablet properly. Keep this manual in a safe place for future reference. These precautions contain information intended to prevent bodily injury to the user and to surrounding people, as well as damage to property, and must be observed at all times. The following symbols indicate the different degrees of injury or damage that may occur if information provided is not observed and the tablet is used improperly. The following symbols indicate specific directions. “Precautions” is explained in the following six sections. Handling the tablet, adapters, desktop holder, docomo mini UIM card and USB coaxial conversion cable (general) . . . . . . . . P. 4 Handling the tablet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5 Handling adapters and USB coaxial conversion cable . . . . . P. 6 Handling docomo mini UIM card . . . . . . . . . . . . . . . . . . . . . . P. 7 Handling near electronic medical equipment . . . . . . . . . . . . P. 7 Material list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7 Precautions (ALWAYS FOLLOW THESE DIRECTIONS) Danger This symbol indicates that “death or serious bodily injury may directly and immediately result from improper use”. Warning This symbol indicates that “death or serious bodily injury may result from improper use”. Caution This symbol indicates that “minor injury and/or property damage may result from improper use”. Indicates a prohibited action. Indicates not to handle the device with wet hands. Indicates not to disassemble the device. Indicates that instructions specified are compulsory (must be followed). Indicates not to use the device near water or get it wet. Indicates that the power cord must be unplugged from the outlet. Handling the tablet, adapters, desktop holder, docomo mini UI…

Text truncated - open the document above for the full version.

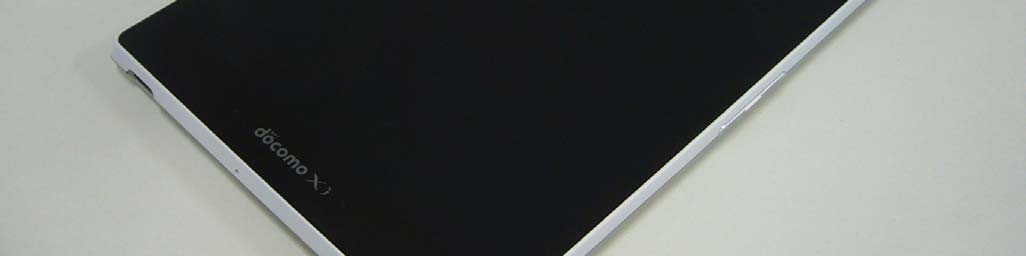

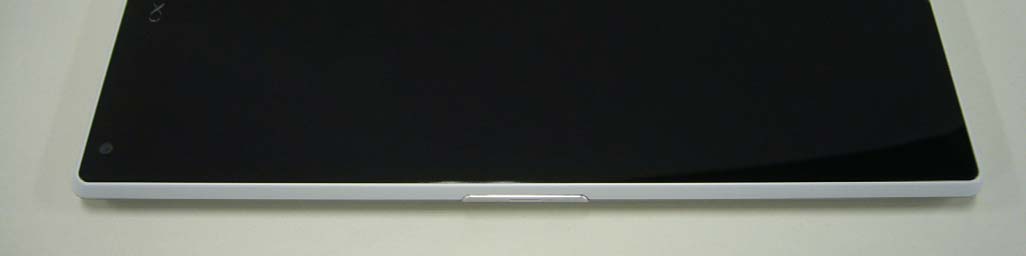

Photo (External) FCC ID: APYHRO00208 1 / 21 / 2 Photo (External) FCC ID: APYHRO00208 2 / 22 / 2

Spec Label and Location FCC ID:APYHRO00208 ○Spec Label IMEI Label on IMEI Tray ① Barcode of IMEI ② IMEI (P d ti S i l N b ) ② IMEI (Production Serial Number) ③ Production Year & Month ④ Country of Manufacture FCC ID: APYHRO00208FCC ID: APYHRO00208 ○Location Can be seen on back cover (appearance) IMEI Tray

Photo (Internal) FCC ID: APYHRO00208 1 / 41 / 4 Photo (Internal) FCC ID: APYHRO00208 2 / 42 / 4 Photo (Internal) FCC ID: APYHRO00208 3 / 43 / 4 Photo (Internal) FCC ID: APYHRO00208 4 / 44 / 4

Page 1 of 30 Technical document No. 23199-1201 JQA File No. :KL80140007 Issue Date :April 25, 2014 T E S T R E P O R T Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN Products:Hand Held Mini Phablet Model No.:SH-06F Serial No.:004401115115145 FCC ID:APYHRO00208 Test Standard:CFR 47 FCC Rules and Regulations Part 15 Test Results:Passed Date of Test:April 16 ~ 21, 2014 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140007Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 2 of 30 Technical document No. 23199-1201 TABLE OF CONTENTS Page 1Description of the Equipment Under Test...................................................................................... 3 2Summary of Test Results................................................................................................................ 4 3Test Procedure................................................................................................................................. 5 4Test Location................................................................................................................................... 5 5Recognition of Test Laboratory....................................................................................................... 5 6Details of the Equipment Under Test............................................................................................. 6 7Details of the Test Item................................................................................................................... 7 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT: Equipment Under TestEMC: Electromagnetic Compatibility AE: Associated EquipmentEMI: Electromagnetic Interference N/A: Not ApplicableEMS: Electromagnetic Susceptibility N/T: Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140007Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 3 of 30 Technical document No. 23199-1201 1Description of the Equipment Under Test 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN 2.Products:Hand Held Mini Phablet 3.Model No.:SH-06F 4.Serial No.:004401115115145 5.Product Type:Pre-production 6.Date of Manufacture:March, 2014 7.Power Rating:4.0VDC(Lithium-ion Battery UBATIA247AFZZ 4200mAh) 8.EUT Grounding:None 9.Transmitting Frequency:13.560 MHz 10.Receiving Frequency:13.560 MHz 11.EUT Authorization:Certification 12.Received Date of EUT:April 3, 2014 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140007Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 4 of 30 Technical document No. 23199-1201 2Summary of Test Results Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart C – Intentional Radiators The EUT described in clause 1 was tested according to the applied standard shown above. Details of the test configuration is shown in clause 6. The conclusion for the test items of which are required by the applied standard is indicated under the test result. - The test result waspassedfor the test requirements of the applied standard. - The test result wasfailedfor the test requirements of the applied standard. - The test result wasnot judgedthe test requirements of the applied standard. In the approval of test results, -Determining compliance with the limits in this report was based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. -No deviations were employed from the applied standard. -No modifications were conducted by JQA to achieve compliance to the limitations. Reviewed by:Tested by: Shigeru KinoshitaShigeru Osawa Deputy ManagerDeputy Manager JQA KITA-KANSAI Testing CenterJQA KITA-KANSAI Testing Center SAITO EMC BranchSAITO EMC Branch JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140007Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 5 of 30 Technical document No. 23199-1201 3Test Procedure Test Requirements : §15.225, §15.207 and §15.209 Test Procedure: ANSI C63.4–2003 4Test Location Japan Quality Assurance Organization (JQA) KITA-KANSAI Testing Center 7-7, Ishimaru, 1-chome, Minoh-shi, Osaka, 562-0027, Japan SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan 5Recognition of Test Laboratory JQA KITA-KANSAI Testing Center SAITO EMC Branch is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility is registered by the following bodies. VLAC Accreditation No.: VLAC-001-2 (Expiry date : March 30, 20…

Text truncated - open the document above for the full version.

Page 1 of 31 Technical document No. 23199-1201 JQA File No. :KL80140010 Issue Date :April 25, 2014 T E S T R E P O R T Applicant:Sharp Corporation, Communication Systems Division Address:2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN Products:Hand Held Mini Phablet Model No.:SH-06F SERIAL NO.:004401115115350 004401115115236 FCC ID:APYHRO00208 Test Standard:CFR 47 FCC Rules and Regulations Part 15 Test Results:Passed Date of Test:April 11 ~ April 17, 2014 Kousei Shibata Manager Japan Quality Assurance Organization KITA-KANSAI Testing Center SAITO EMC Branch 7-3-10, Saito-asagi, Ibaraki-shi, Osaka 567-0085, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. ● VLAC does not approve, certify or warrant the product by this test report. VLAC-001-2 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140010Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 2 of 31 Technical document No. 23199-1201 TABLE OF CONTENTS Page 1Description of the Equipment Under Test...................................................................................... 3 2Summary of Test Results................................................................................................................ 4 3Test Procedure................................................................................................................................. 5 4Test Location................................................................................................................................... 5 5Recognition of Test Laboratory....................................................................................................... 5 6Details of the Equipment Under Test............................................................................................. 6 7Details of the Test Item................................................................................................................... 9 DEFINITIONS FOR ABBREVIATION AND SYMBOLS USED IN THIS TEST REPORT EUT: Equipment Under TestEMC: Electromagnetic Compatibility AE: Associated EquipmentEMI: Electromagnetic Interference N/A: Not ApplicableEMS: Electromagnetic Susceptibility N/T: Not Tested - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140010Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 3 of 31 Technical document No. 23199-1201 1Description of the Equipment Under Test 1.Manufacturer:Sharp Corporation, Communication Systems Division 2-13-1, Iida Hachihonmatsu, Higashi-Hiroshima City, Hiroshima, 739-0192, JAPAN 2.Products:Hand Held Mini Phablet 3.Model No.:SH-06F 4.Serial No.:004401115115350 :004401115115236 5.Product Type:Pre-production 6.Date of Manufacture:March, 2014 7.Power Rating:4.0VDC (Lithium-ion Battery UBATIA247AFZZ 4200mAh) 8.EUT Grounding:None 9.Transmitting Frequency:2402.0 MHz(02CH) – 2480.0MHz(80CH) 10.Receiving Frequency:2402.0 MHz(02CH) – 2480.0MHz(80CH) 11.EUT Authorization:Certification 12.Received Date of EUT:April 3, 2014 13.Channel Plan The carrier spacing is 1 MHz. The carrier frequency is designated by the absolute frequency channel number (ARFCN). The carrier frequency is expressed in the equation shown as follows: Normal Mode: Transmitting Frequency (in MHz)= 2402.0 + (n - 2) Receiving Frequency (in MHz) = 2402.0 + (n - 2) where, n : channel number (2 ≤ n ≤ 80) JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140010Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 4 of 31 Technical document No. 23199-1201 2Summary of Test Results Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart C – Intentional Radiators The EUT described in clause 1 was tested according to the applied standard shown above. Details of the test configuration is shown in clause 6. The conclusion for the test items of which are required by the applied standard is indicated under the test result. - The test result waspassedfor the test requirements of the applied standard. - The test result wasfailedfor the test requirements of the applied standard. - The test result wasnot judgedthe test requirements of the applied standard. In the approval of test results, -Determining compliance with the limits in this report was based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. -No deviations were employed from the applied standard. -No modifications were conducted by JQA to achieve compliance to the limitations. Reviewed by:Tested by: Shigeru KinoshitaShigeru Osawa Deputy ManagerDeputy Manager JQA KITA-KANSAI Testing CenterJQA KITA-KANSAI Testing Center SAITO EMC BranchSAITO EMC Branch JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140010Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 5 of 31 Technical document No. 23199-1201 3Test Procedure Test Requirements : §15.249, §15.207 and §15.209 Test Procedure: ANSI C63.10–2009 4Test Location Japan Quality Assurance Organiza…

Text truncated - open the document above for the full version.

JQA File No. : KL80140007Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 29 of 30 Technical document No. 23199-1201 7.6Test Setup (Photographs) 7.6.1AC Powerline Conducted Emission Not Applicable 7.6.2Radiated Emission – X-axis – – Y-axis – JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140007Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 30 of 30 Technical document No. 23199-1201 – Z-axis – Photograph present configuration with maximum emission The EUT position of the maximum emission is Y-axis. JAPAN QUALITY ASSURANCE ORGANIZATION

JQA File No. : KL80140010Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 30 of 31 Technical document No. 23199-1201 7.4Test Setup (Photographs) 7.4.1AC Powerline Conducted Emission – Front View – – Side View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No. : KL80140010Issue Date : April 25, 2014 Model No.: SH-06FFCC ID: APYHRO00208 Standard: CFR 47 FCC Rules and Regulations Part 15 Page 31 of 31 Technical document No. 23199-1201 7.4.2Radiated Emission – Front View– – Rear View – Photograph present configuration with maximum emission JAPAN QUALITY ASSURANCE ORGANIZATION
